EVERISING S-4633SA BAND SAW | SEMI AUTO | MITRE CUTTING | 460 x 330MM CAPACITY | INVERTER | FULL STR

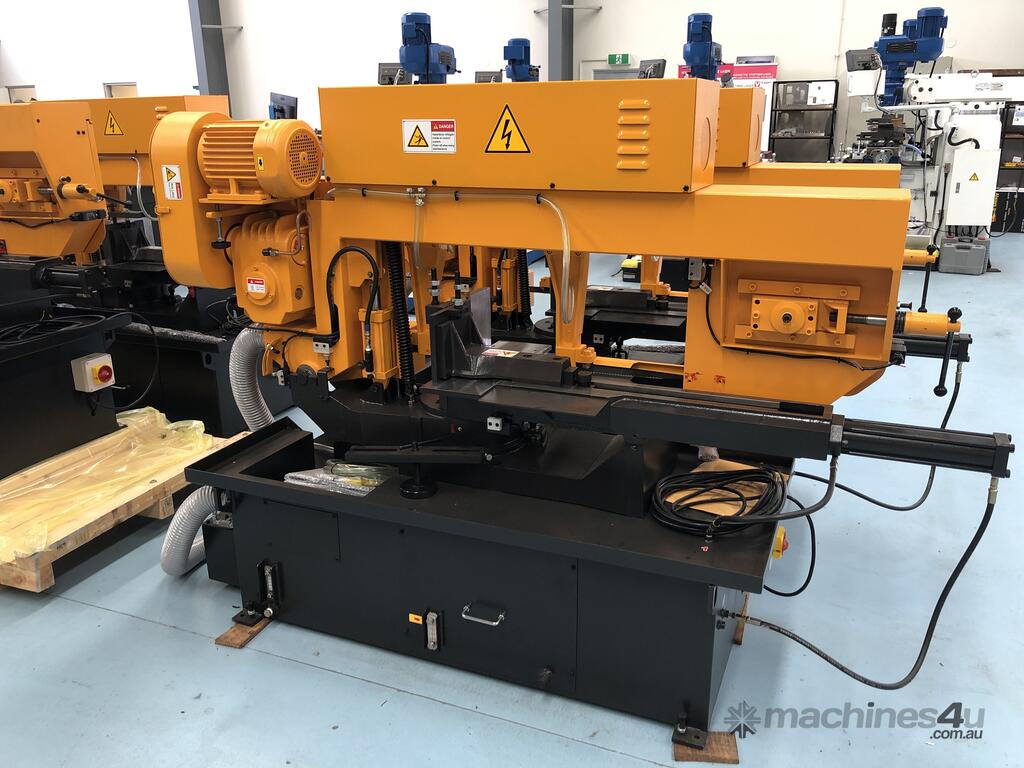

Everising S-4633SA semi auto mitre cutting band saw

One of the most popular models in the Everising range. This saw is a double mitre cutting metal band saw that's ideal for the fabricator, engineering shop or steel merchant that need a saw that's quick to set up, reliable and offers a solid list of included features.

Everising is synonymous in Australia and world wide for being reliable, great value for money, feature packed and the leader in its market segment.

For over 20 years Complete Machine Tools have been the proud Aussie agents for Everising band saws and circular saws and have forged a very large loyal customer base with numerous customer having multiple Everising machines and 1 customer boasting over 100 Everising saws operating Australia wide.

Having a great deal of knowledge in sawing and its applications Complete Machine Tools and Everising are the perfect choice when looking for a new band saw whether its a fully auto or semi auto band saw.

A large product range is available that can suit the most demanding of applications regardless of size or complexity.


Specs -

330 diameter
305 x 460 Rectangular
305 diameter +/- 45 degrees
305 square +/- 45 degrees
250 diameter -60 degrees
250 square -60 degrees
Blade speeds: 25, 45, 70, 100 mtr/minute
Blade Tensioning: manual screw actuated
Blade Size: 4115mm x 27mm x 0.9mm
Drive Motor: 3HP

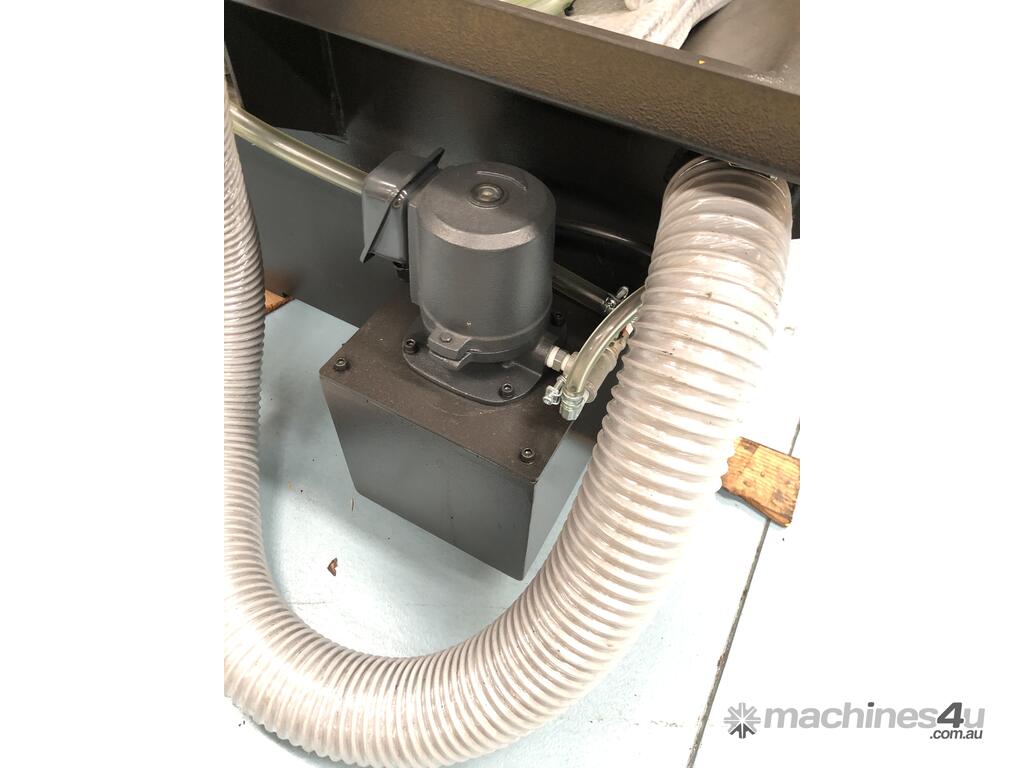

Hydraulic Pump Motor: 1/2 HP
Table height: 770mm
Weight: 800kgs
Floor Space: 2200mm x 2100mm
Coolant Pump Motor: 1/8HP

Features -

Saw Frame Angle: -60 deg to 0 to +45 deg
Double Mitre Cutting
Angle Swivel Adjustment: manual with graduated scale for setting

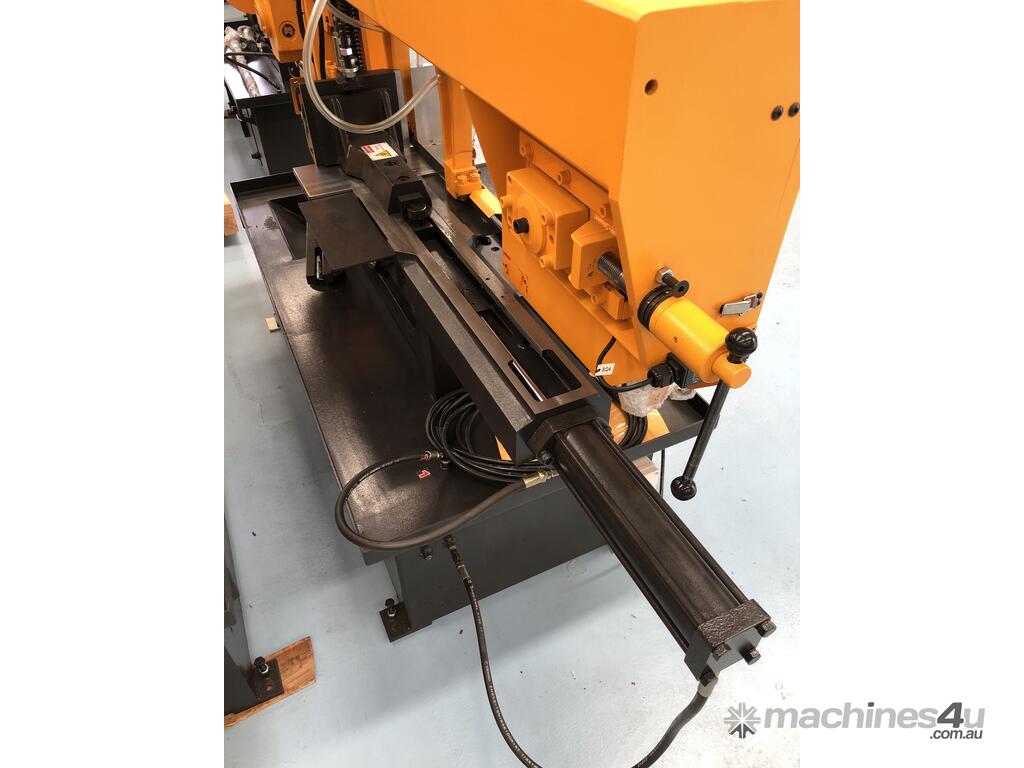

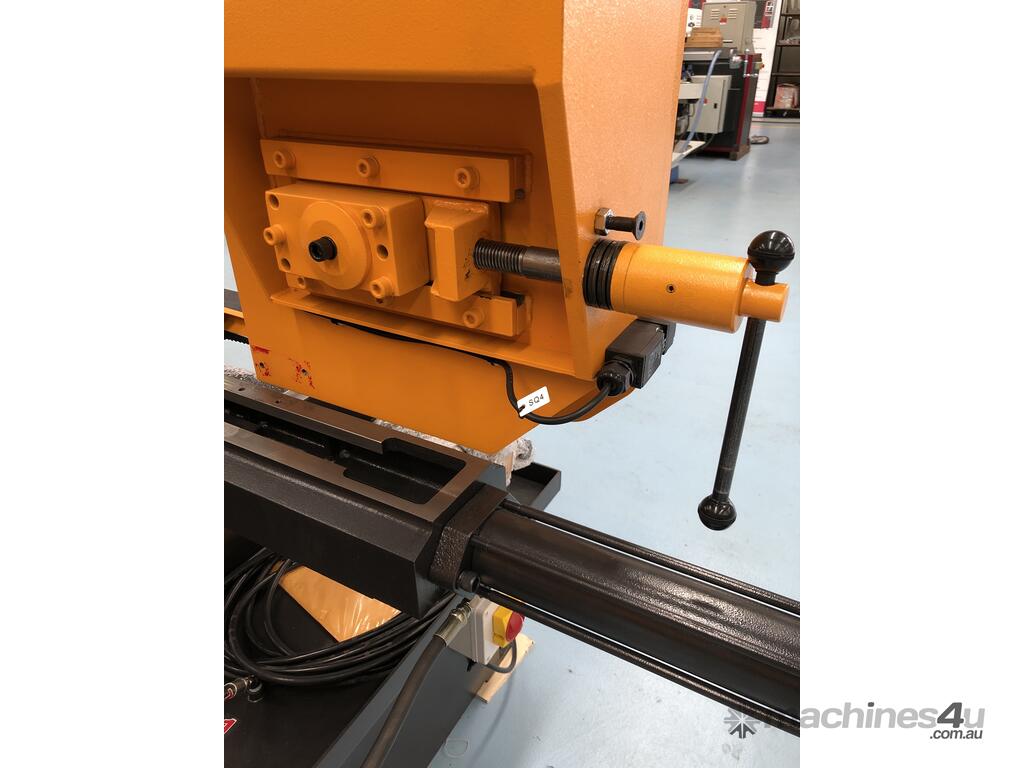

Hydraulic Vice clamping - full stroke

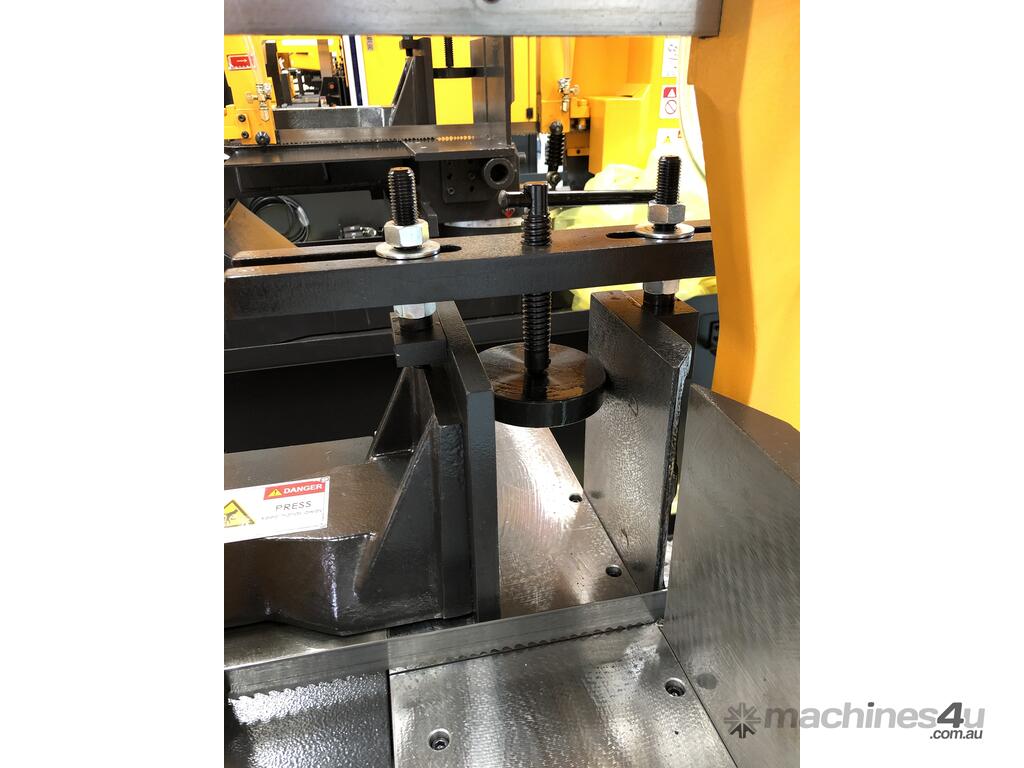

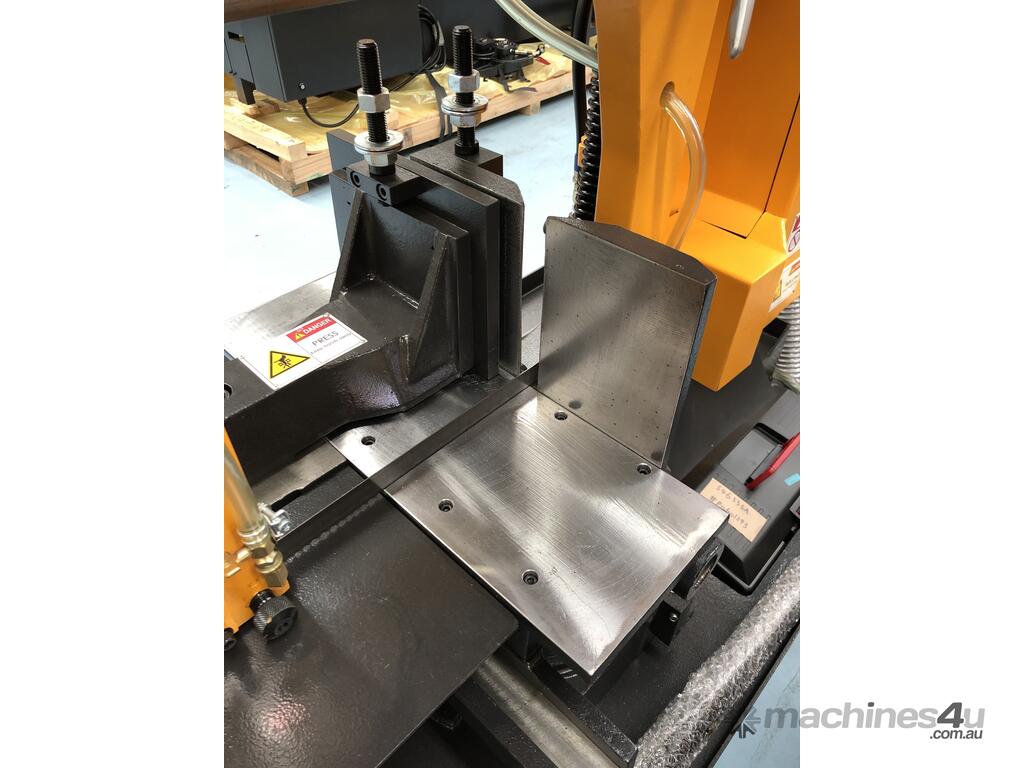

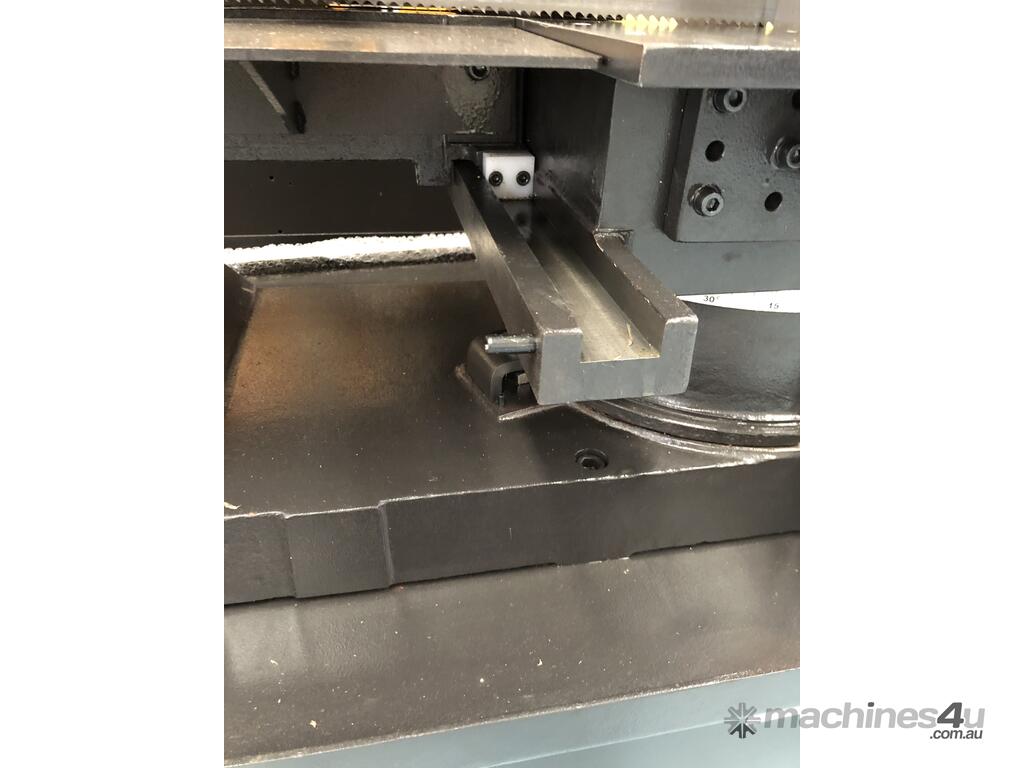

Manual Nesting Fixture

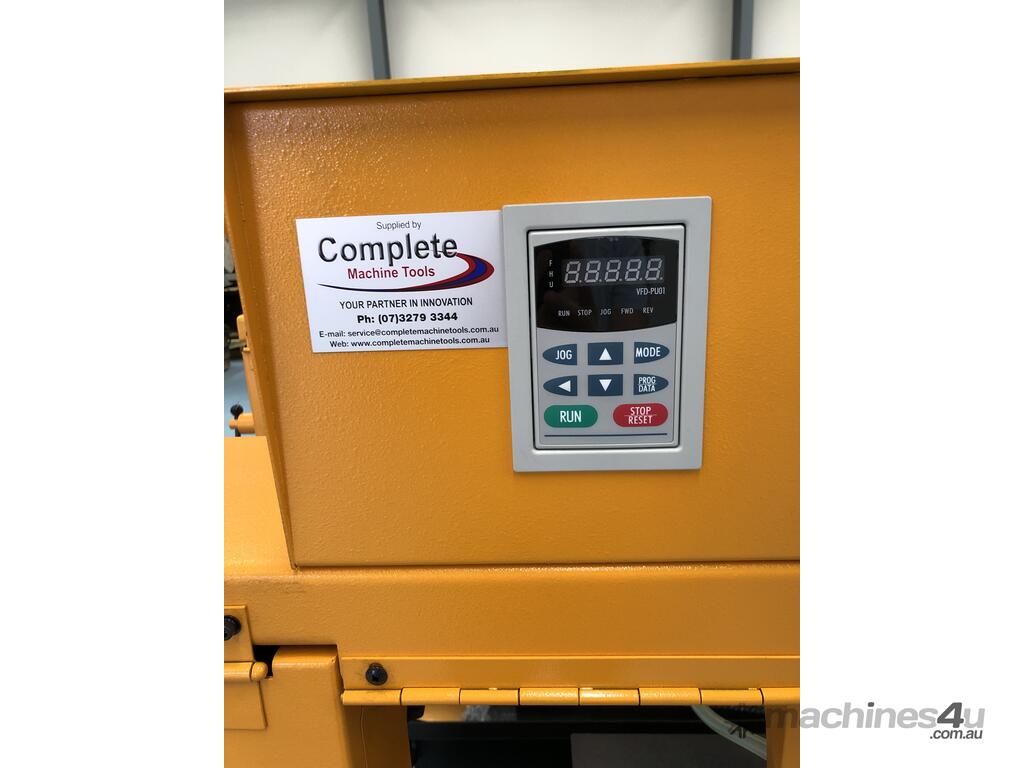

Infinitely variable blade speed controlled by an inverter
Front length stop measurement bar

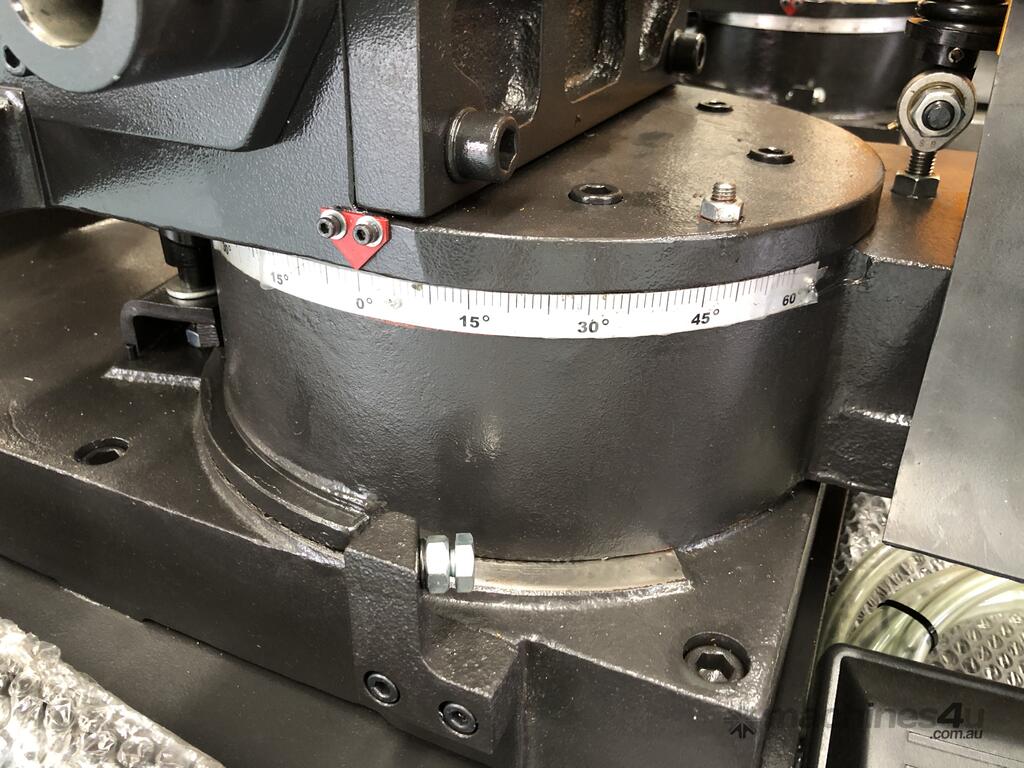

Steel scale at base of saw for angle setting
Hydraulic cutting frame lift up and decent
Small compact design

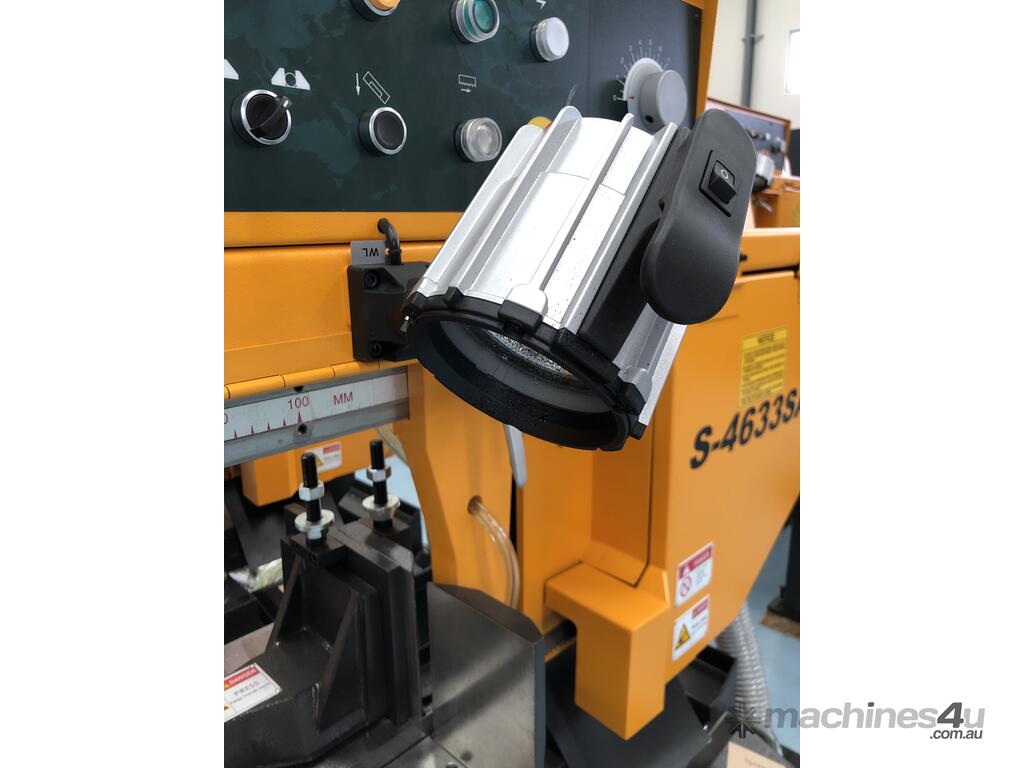

Work light

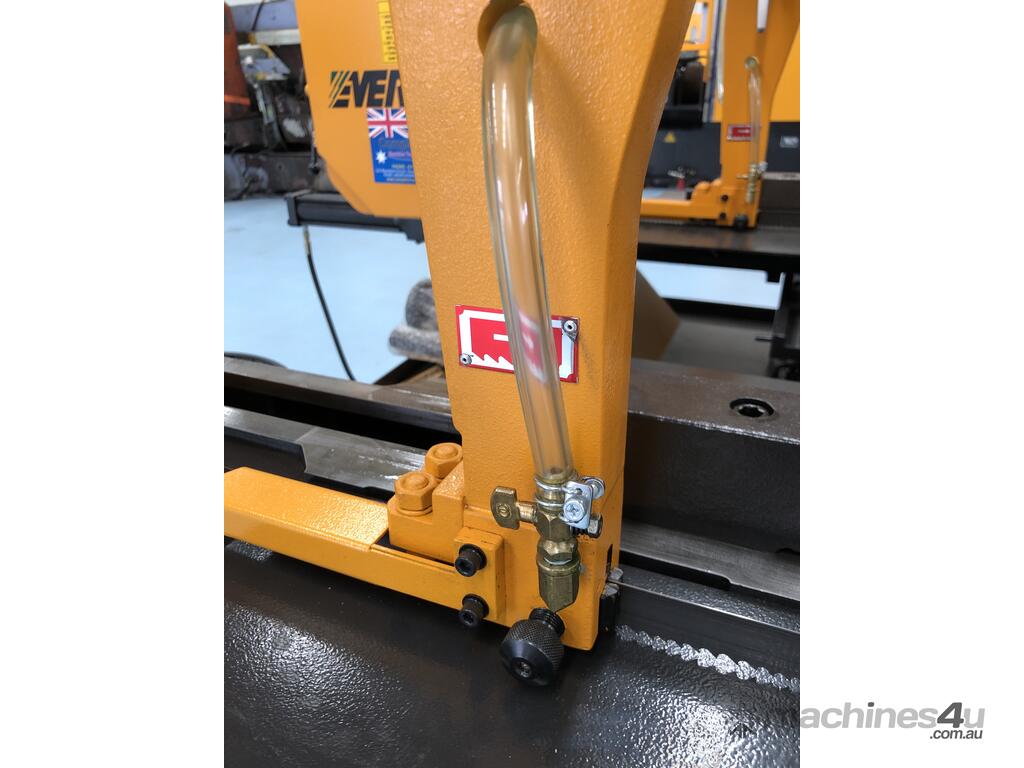

Coolant system

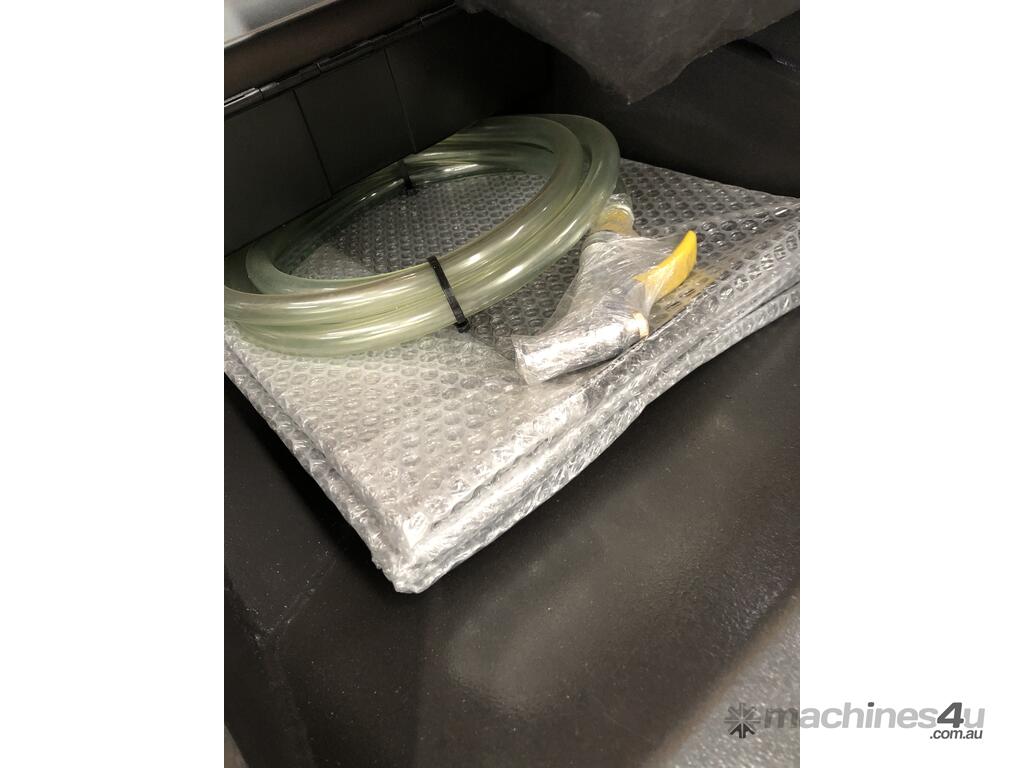

Spray down hose for cleaning the machine
Pre machined slots in the cutting plate plate for better longevity
Cutting plate can easily be changed when needed by undoing a few bolts

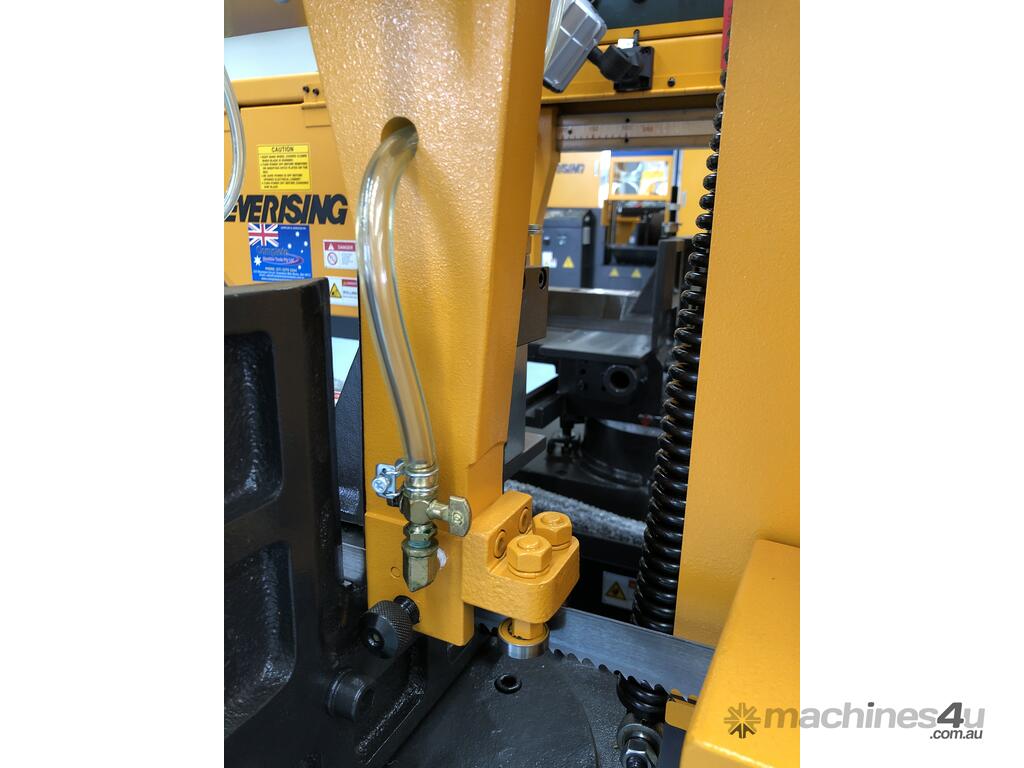

Rigid carbide blade guides
Bearings on the guide arms for better blade tracking

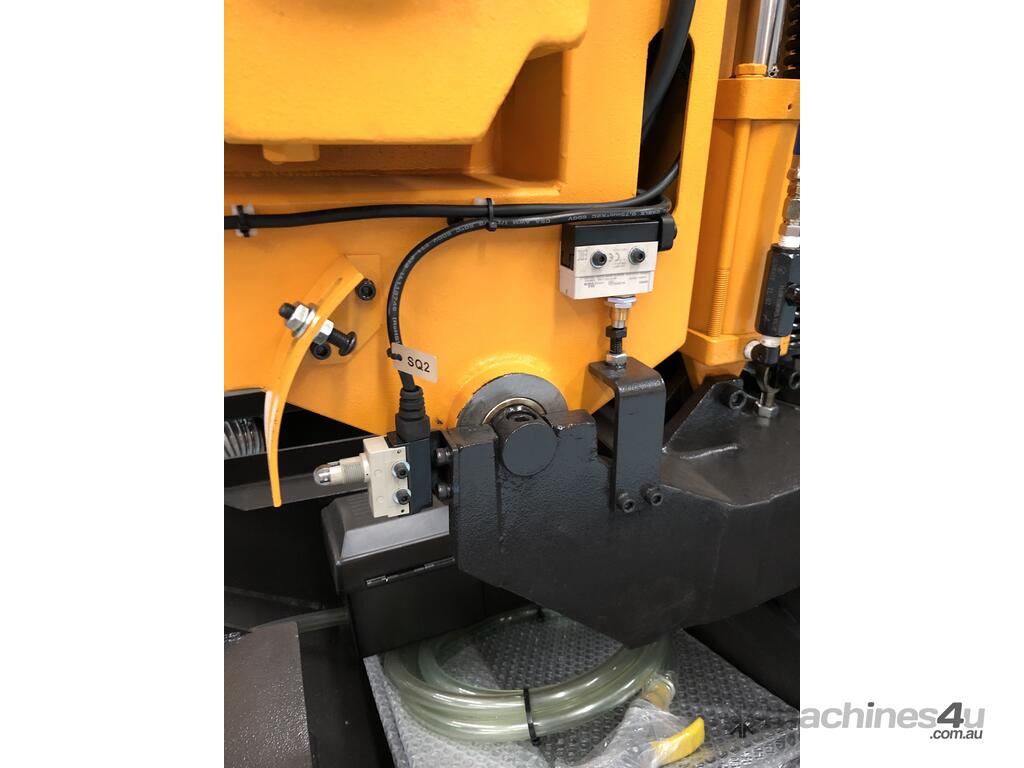

Adjustable frame up positioning via a limit switch

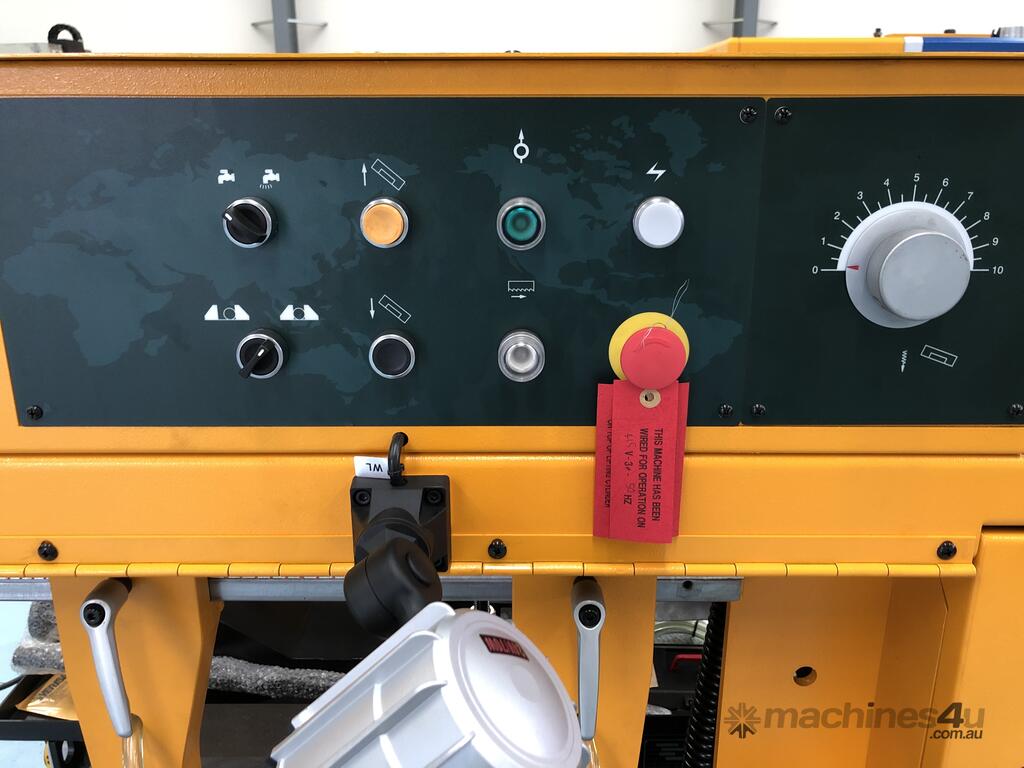

Conveniently located control panel with a simple layout

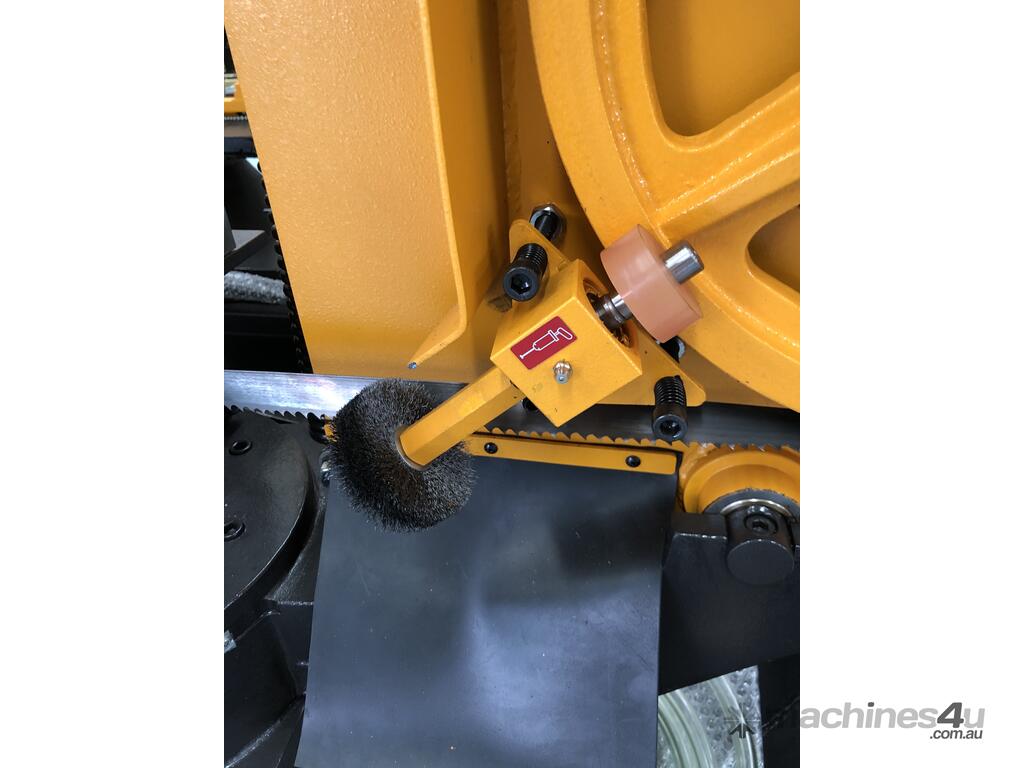

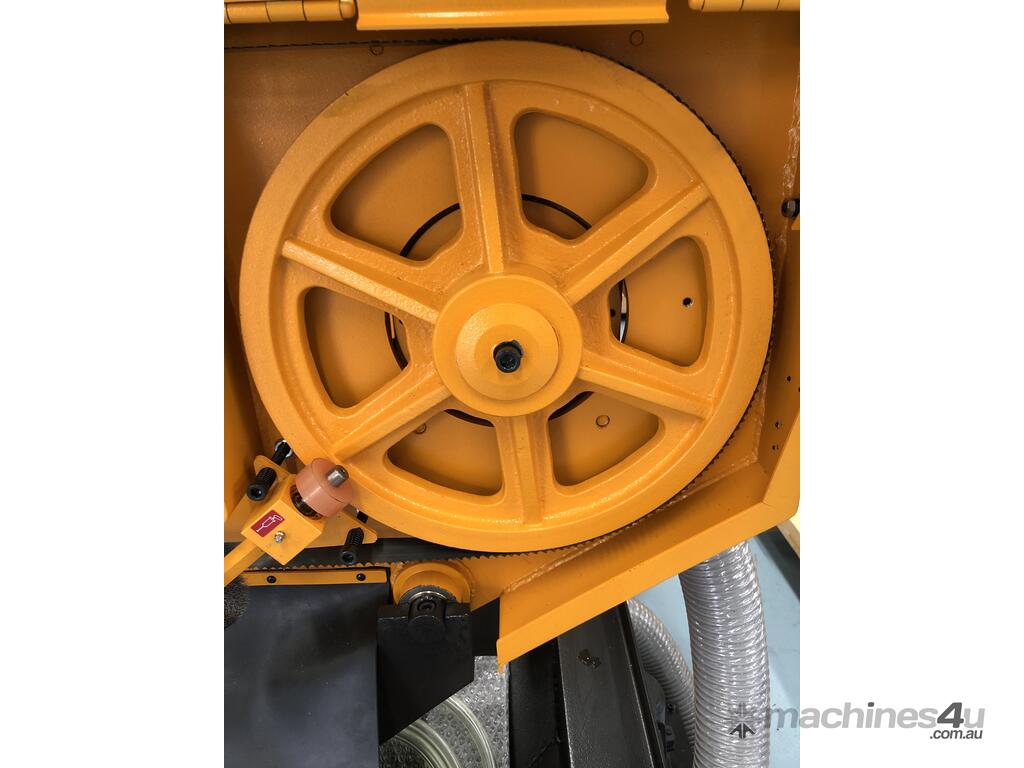

Blade cleaning brush ensuring better blade tracking on band wheels
Blade tension pre defined setting

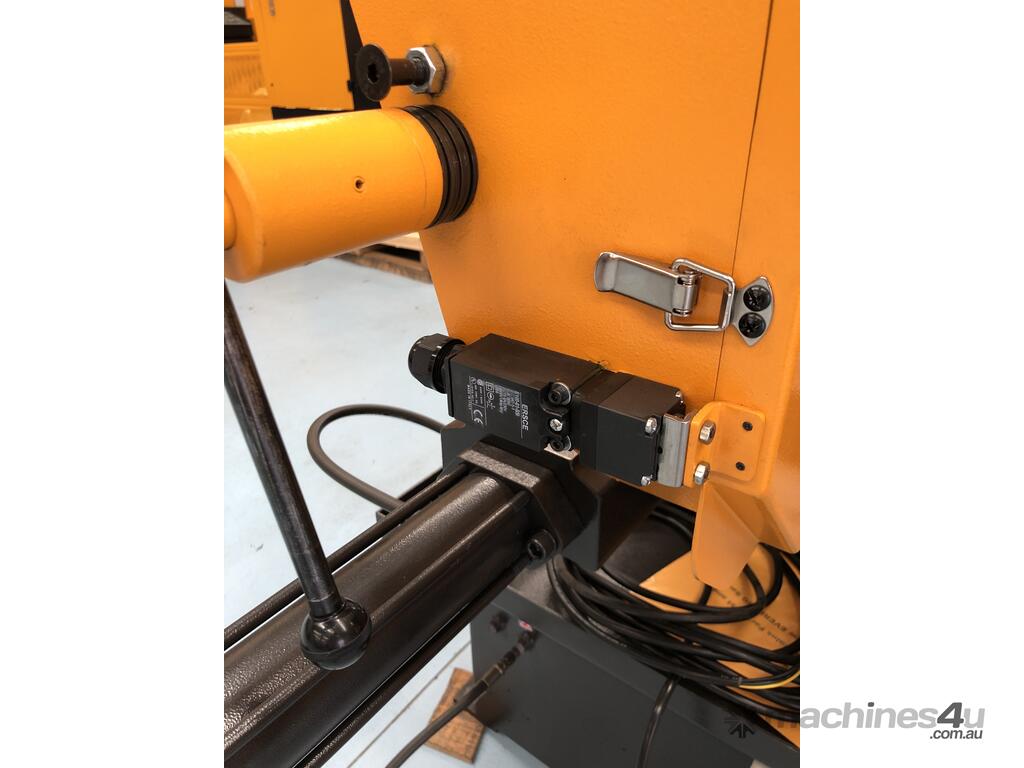

Interlock Switches on doors
Centrally located frame down feed adjustment via a steel knob
Swarf inbuilt collection area
Blade breakage shut off device

A great work horse for any size company!
