EVERISING S-6235HAA FULLY AUTO MITRE BANDSAW | AUTO ANGLE MOVEMENT | 620 x 350MM CAPACITY

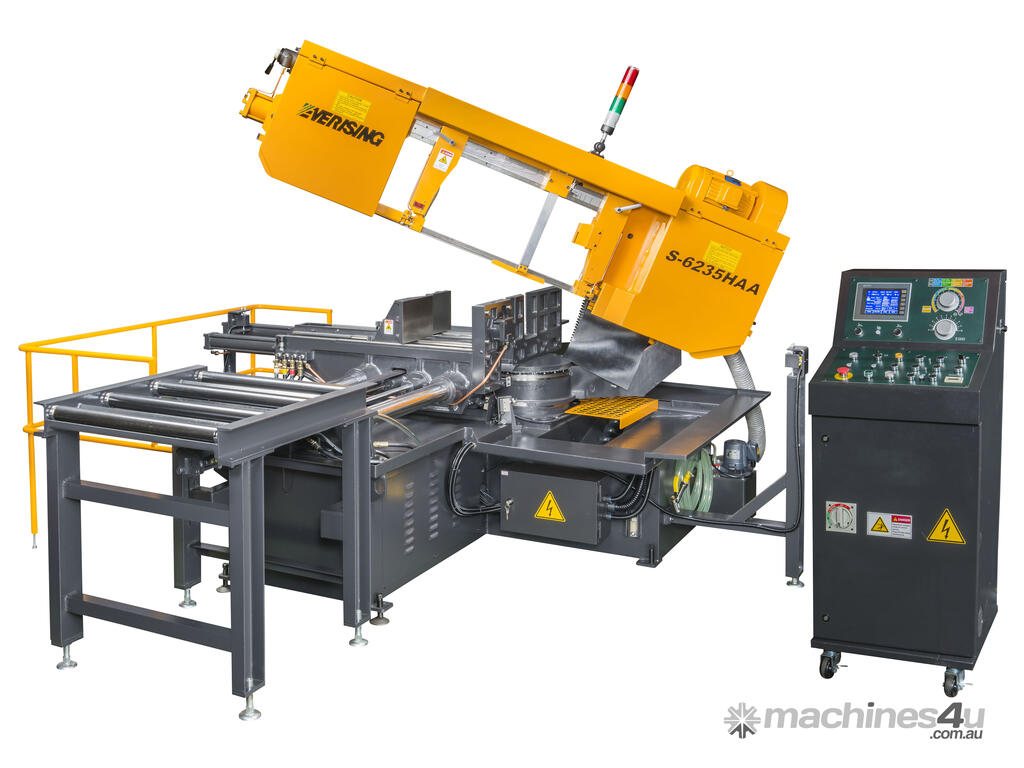

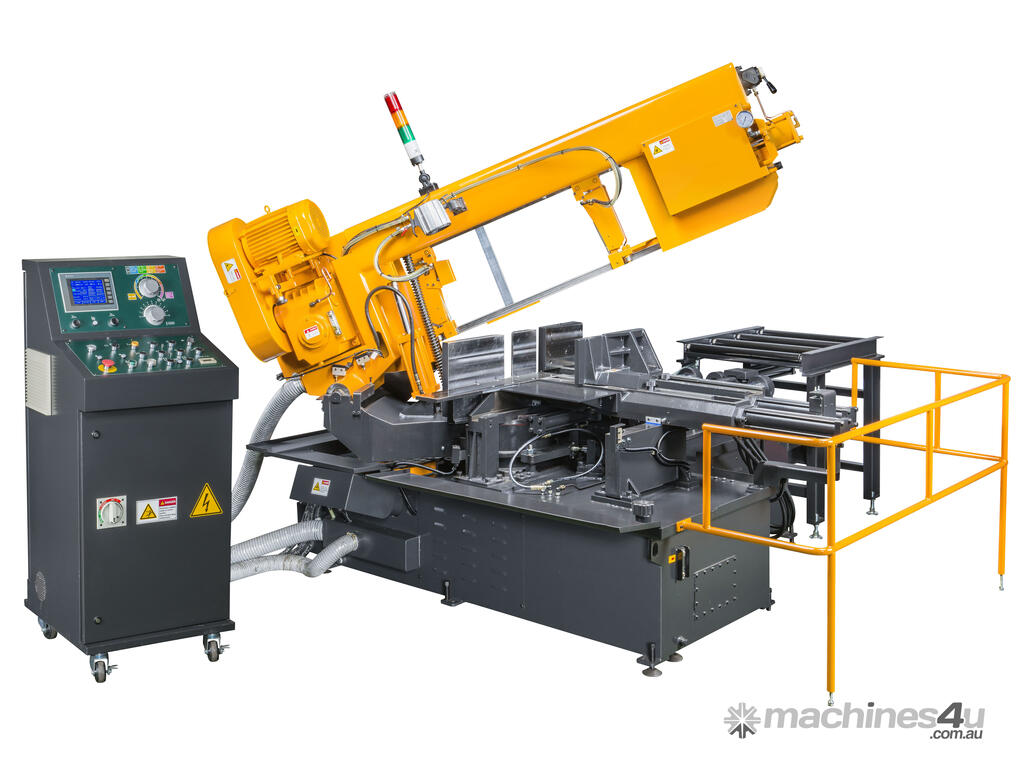

EVERISING S-6235HAA FULLY AUTOMATIC BANDSAW WITH AUTO ANGLE

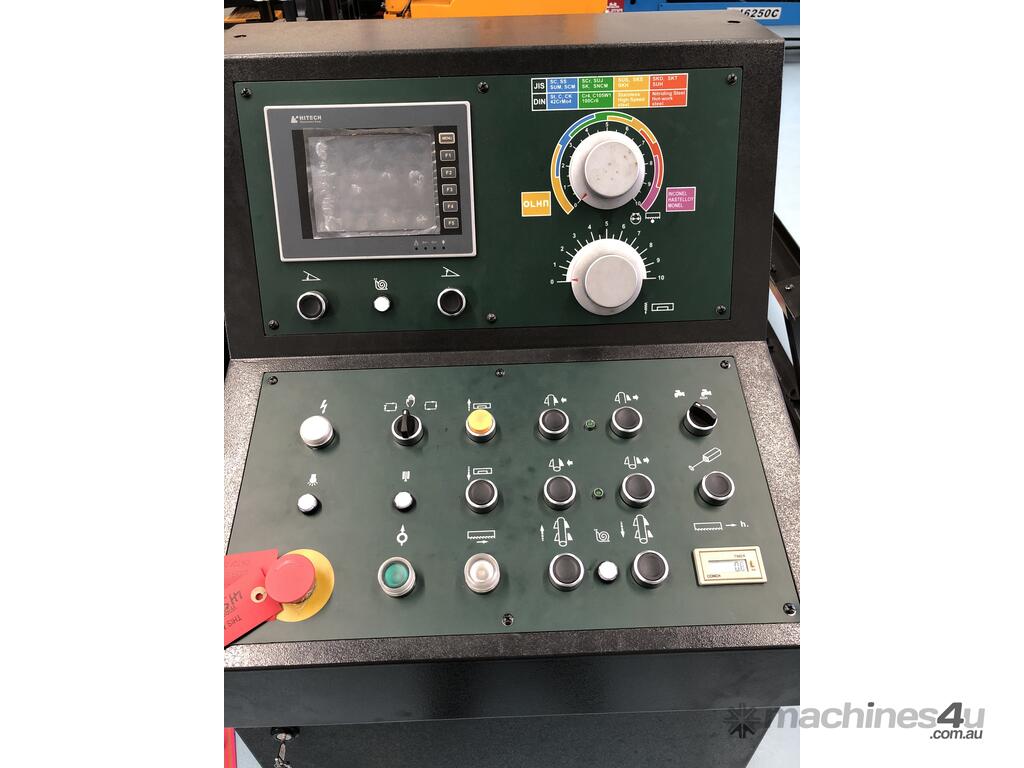

THE EVERISING S-6235HAA BANDSAW HAS HAS THE ABILITY TO EXECUTE MULTIPLE ANGLE AND LENGTH CUTS FROM A SINGLE INPUT INTO THE CONTROLLER

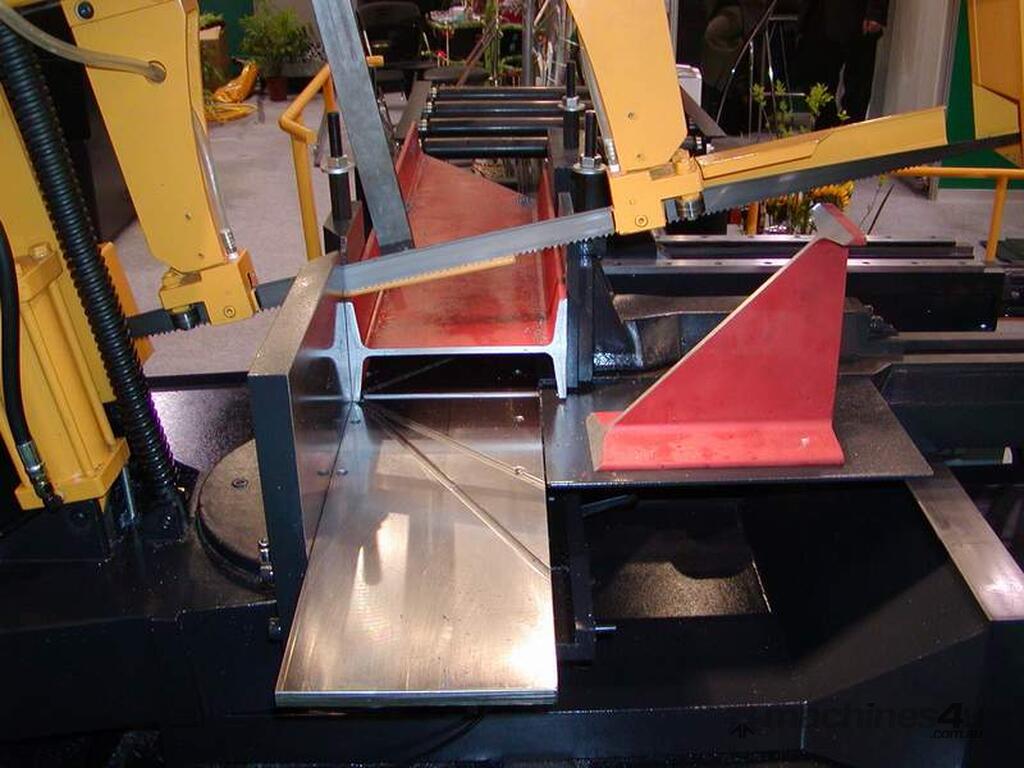

WITH HYDRAULICALLY CONTROLLED, DUAL VICED CLAMPING SYSTEM, COMBINED WITH SHUTTLE TYPE AUTOMATIC FEEDING. THE MACHINE FEEDS THE MATERIAL AND PROCESS"S THE CUTS WITHOUT THE NEED FOR MANUAL INTERRUPTION OR ADJUSTMENT AND AS A DOUBLE MITRE MACHINE, IT CAN CUT OPPOSING ANGLES AUTOMATICALLY.

CHECK OUT THE INFO SHEET ATTACHED FOR MORE DETAILED INFORMATION.

Everising is synonymous in Australia and world wide for being reliable, great value for money, feature packed and the leader in its market segment.

For over 20 years Complete Machine Tools have been the proud Aussie agents for Everising band saws and circular saws and have forged a very large loyal customer base with numerous customer having multiple Everising machines and 1 customer boasting over 100 Everising saws operating Australia wide.

Having a great deal of knowledge in sawing and its applications Complete Machine Tools and Everising are the perfect choice when looking for a new band saw whether its a fully auto or semi auto band saw.

A large product range is available that can suit the most demanding of applications regardless of size or complexity.

Specs -

90 - 620 X 350mm
±45° - 350mm
±45° - 350 X 420mm
.-60° - 300mm
.-60° - 350 X 290mm

BLADE SPEED BY INVERTER- 20 - 100 m/min

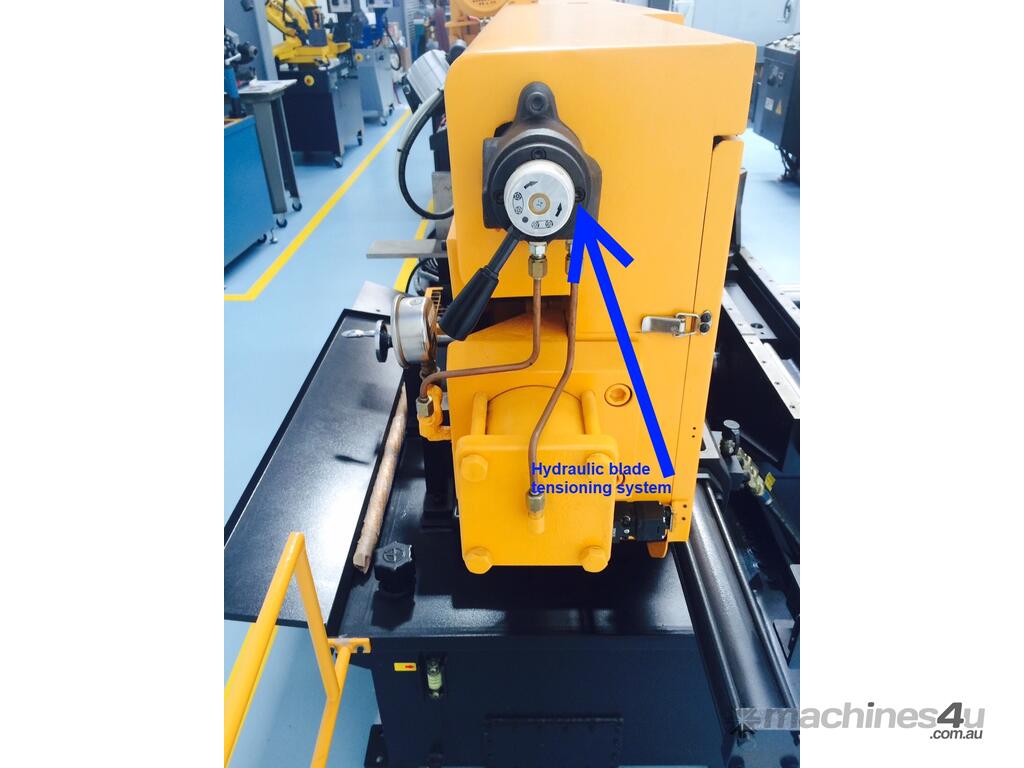

BLADE TENSION - HYDRAULIC
BLADE SIZE - 4900 X 34 X 1.1mm
DRIVE MOTOR - 5HP *HYD PUMP - 1HP *COOLANT PUMP - 1/8 HP
SHUTTLE BAR FEED - 600mm X 9
SAW FRAME ANGLE - -60° ~ 0° ~ +45°
ANGLE SWIVEL - MANUAL
ANGLE DISPLAY - ANGLE SCALE
TABLE HEIGHT - 830mm

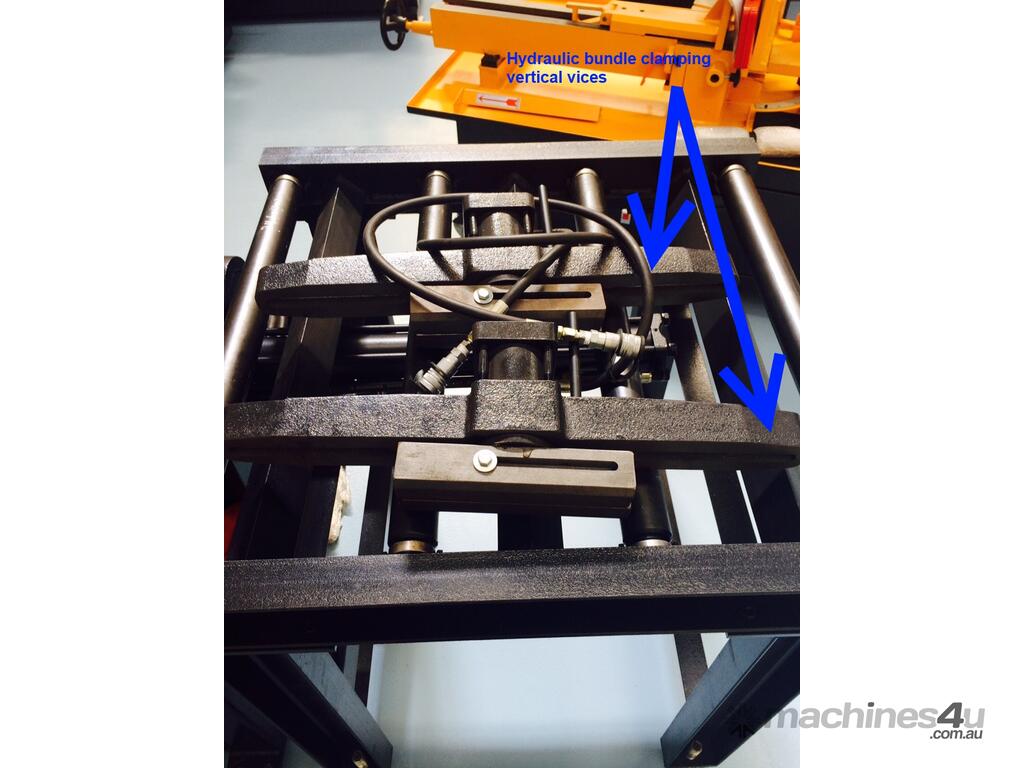

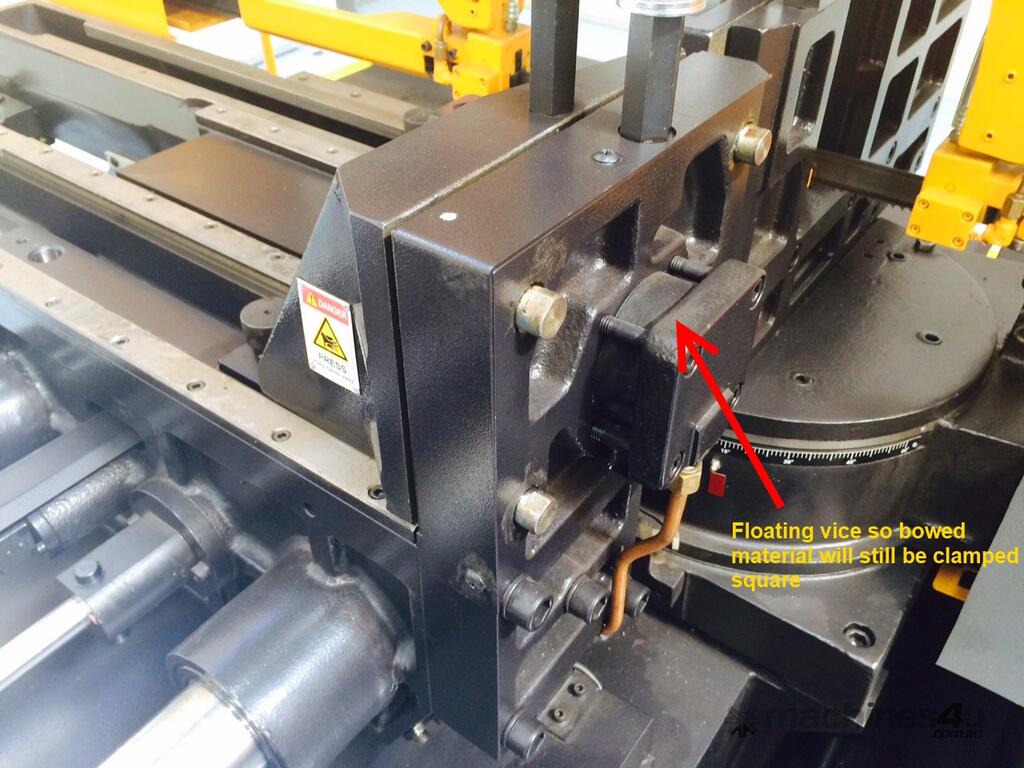

CLAMPING VICE TYPE - HYDRAULIC (FULL STROKE 2 STEP)

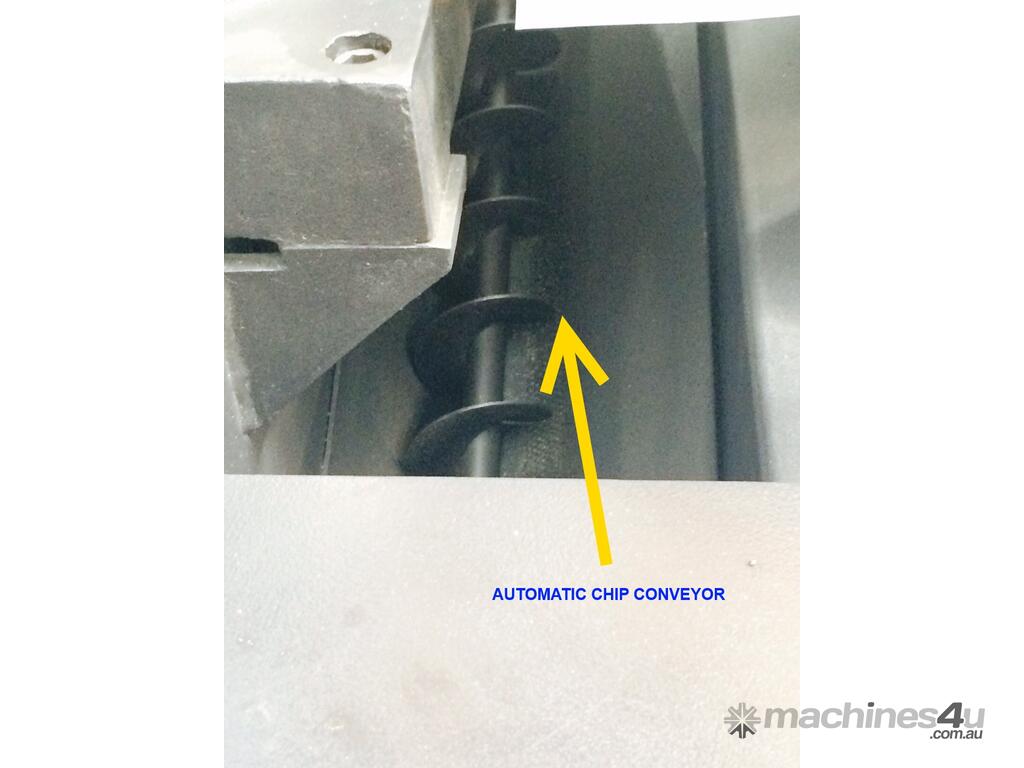

AUTO CHIP CONVEYOR

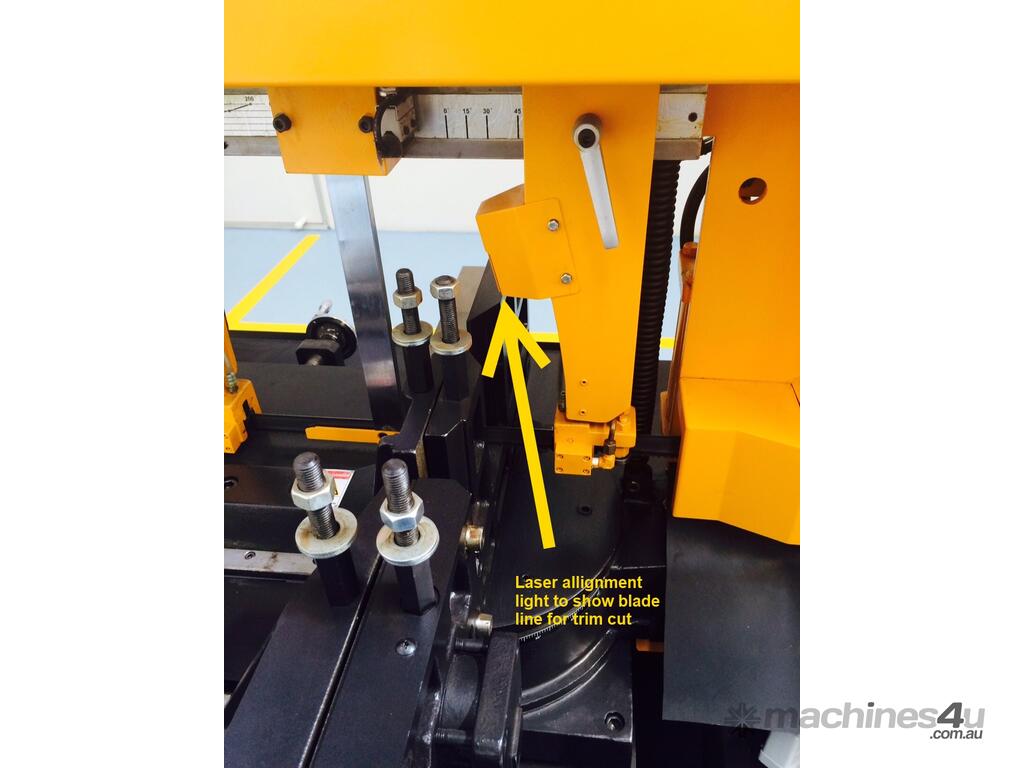

LASER LIGHT
WEIGHT - 2200KG
FLOOR SPACE - 4530 X 2100 mm
PALLET SIZE: 2950 X 2300 X 2000 MM (LXWXH)
