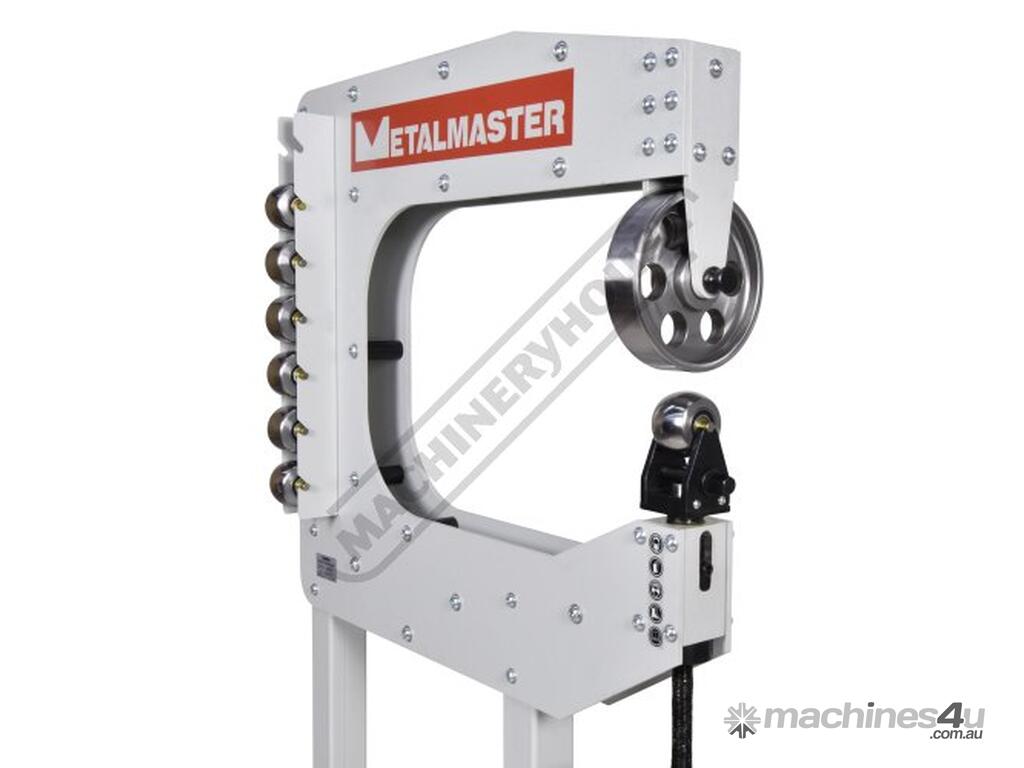

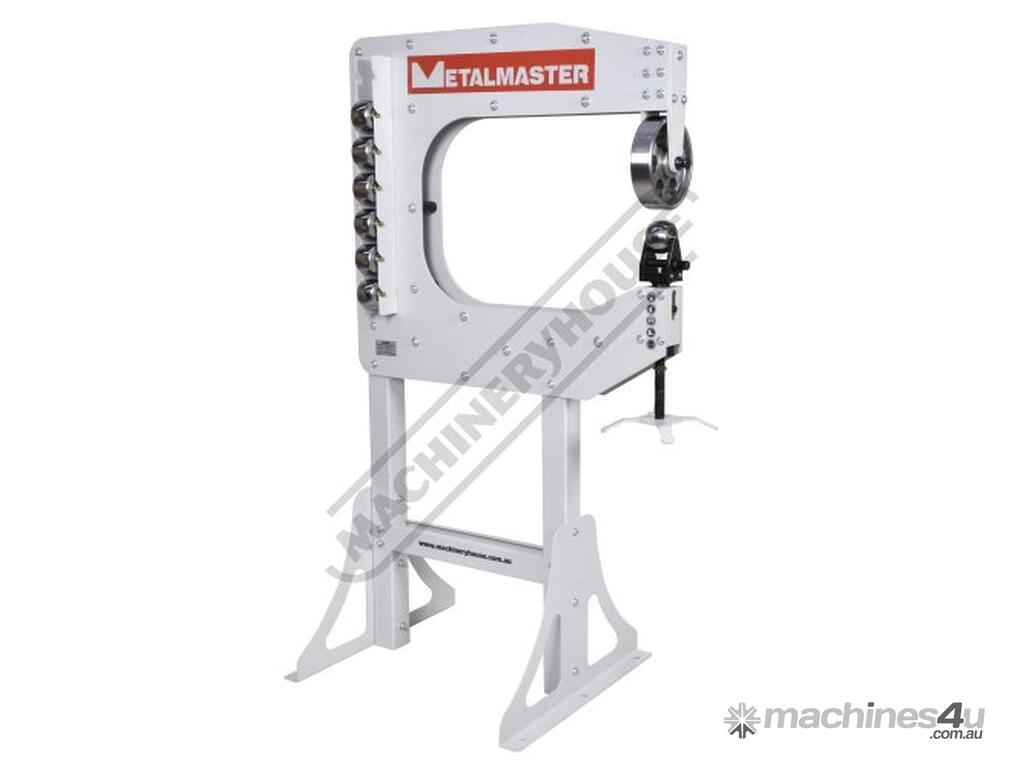

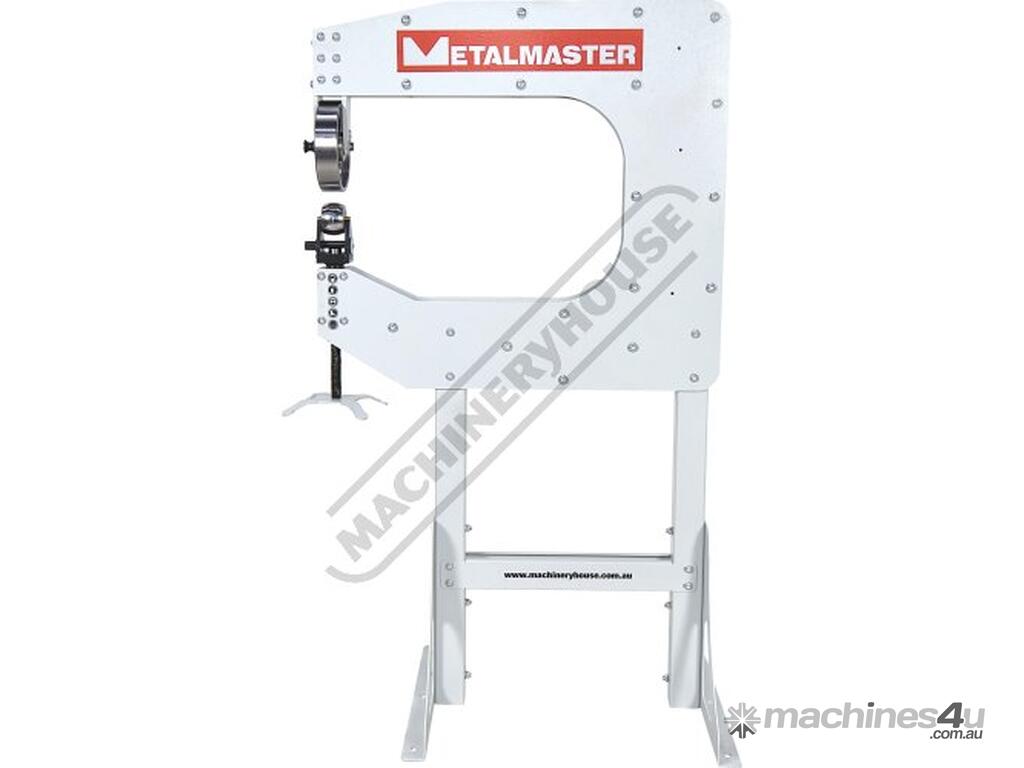

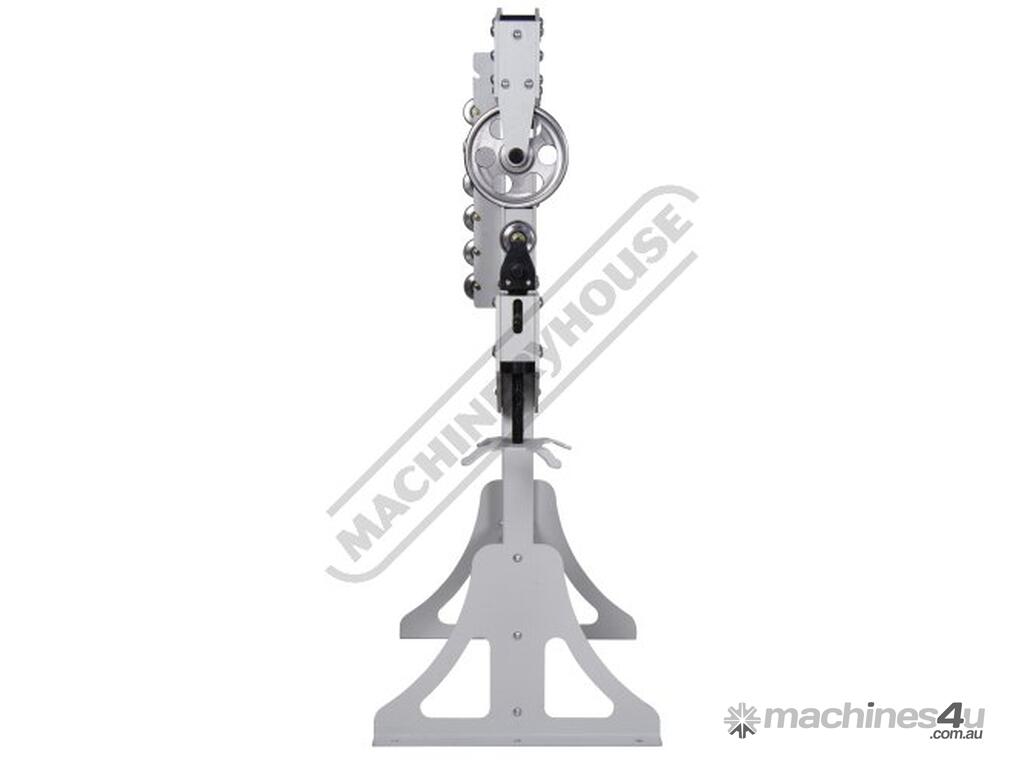

EWHD-65 English Wheel 1.6mm Mild Steel Capacity 650mm Throat Depth

METALMASTER EWHD-65 English Wheel 1.6mm Mild Steel Capacity 650mm Throat Depth
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: S2252

The New Metalmaster EWHD-65 has been designed as the “Little Brother” of our EWHD-80 English Wheel to give you the rigidity of a steel plate design machine at an economical price. With side frames manufactured from 8mm thick steel plate & heavy steel tube legs giving the EWHD-65 the right mix of rigidity & practicality for the craftsman wanting that higher level of finish and control while metal shaping. It is capable of shaping mild steel up to 1.6mm (16 gauge) and with a throat of 650mm giving you ample room to shape medium size panels. The upper wheel and 7 lower anvils are all hardened to 45-50HRC ensuring longer life and with a quick release anvil cradle for rapid and easy panel removal it makes this machine even more versatile.

Optional accessories - Nylon Lower Anvil sets & Urethane Bands are perfect when shaping aluminium or material requiring a mirror finish eg. Stainless Steel.

Features:
650mm throat depth
1.6mm mild steel capacity
Upper wheel Ø203 x 50.8mm wide

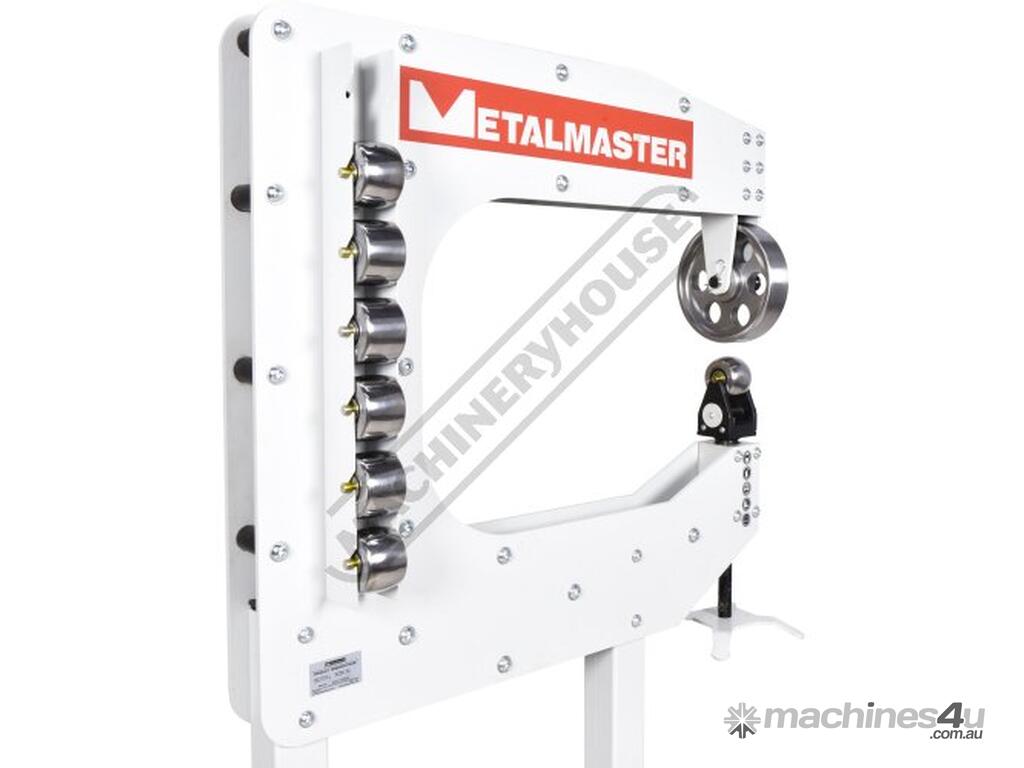

Comes with 7 lower anvils (all 50.8mm wide) in the following radius: flat 50.8 76.2 101.6 152.4 203.2 304.8mm

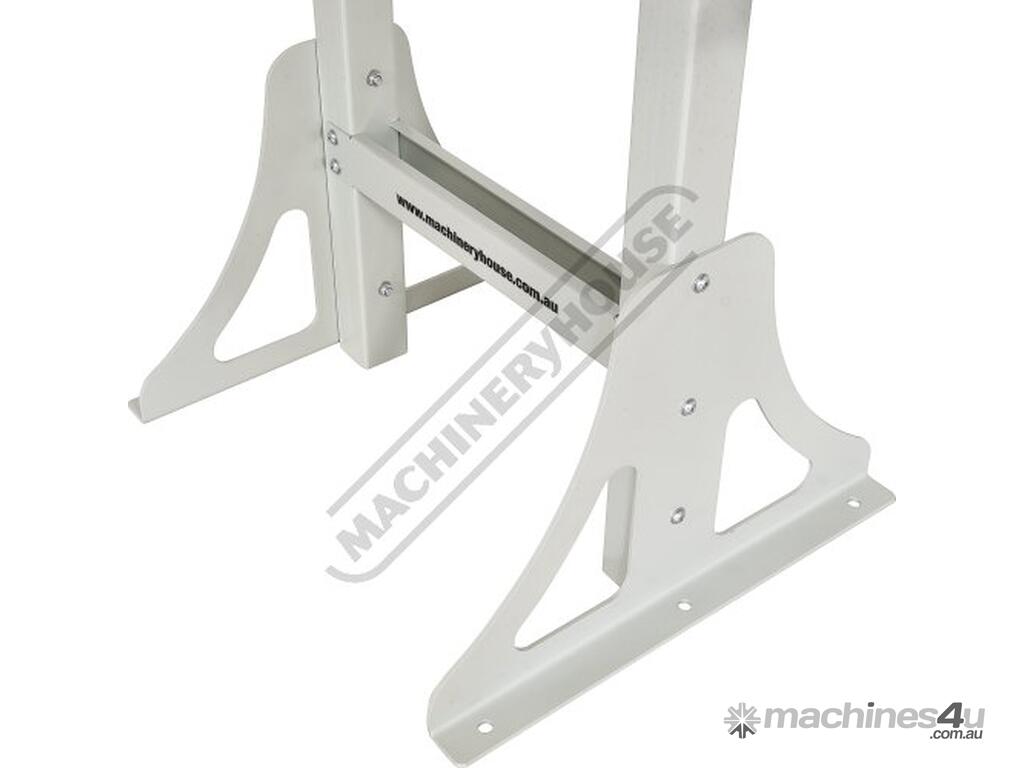

Heavy duty steel frame using twin 8mm plates for extra rigidity
Wheel & anvils hardened to 45-50HRC

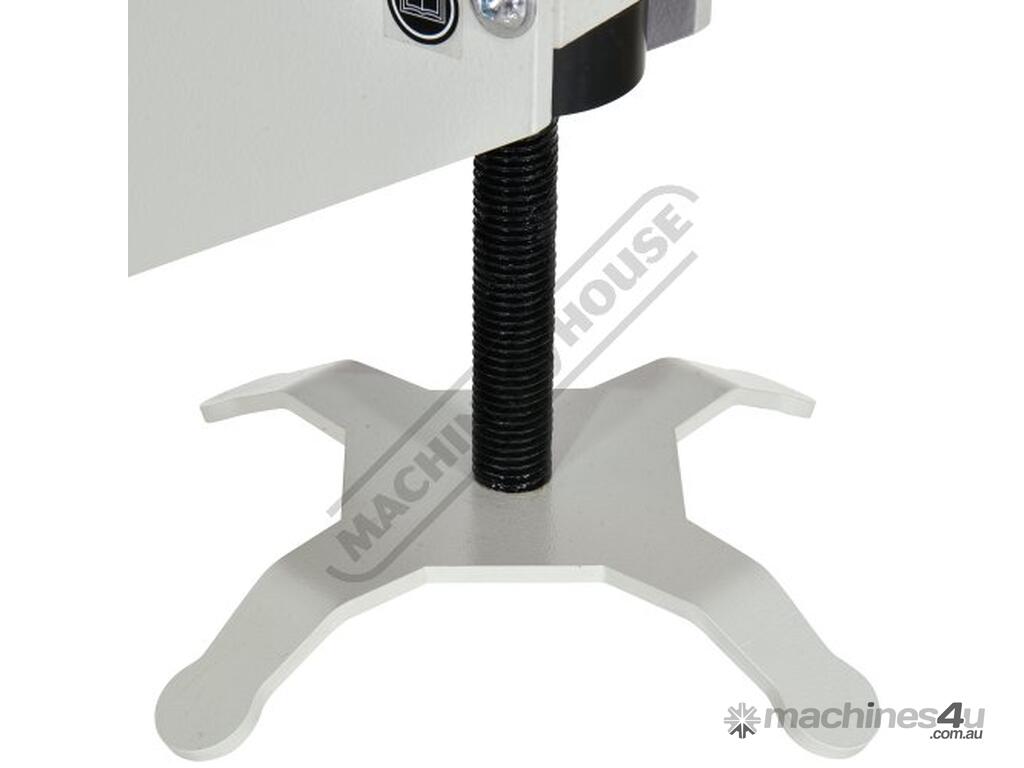

Quick release anvil cradle for rapid and easy panel removal


Specifications:
ORDER CODE: S2252
MODEL: EWHD-65
Mild Steel - Capacity (mm / Gauge): 1.6
Aluminium - Capacity (mm / Gauge): ~
Copper - Capacity (mm / Gauge): ~
Throat Capacity (mm): 650
Upper Wheel (Ø x W mm): Ø203 x 50
Lower Anvils - Radius (mm): flat, 50.8, 76.2, 101.6,
Lower Anvils - Radius (mm): 152.4, 203.2, 304.8
Lower Anvils - Radius (mm): ~
Working Height (mm): ~
Nett Weight (kg): 150


To Purchase Online Please Visit The Machineryhouse & Search For 'S2252'
