EWM-75 English Wheel 1.6mm Mild Steel Capacity 711mm Throat Depth

METALMASTER EWM-75 English Wheel 1.6mm Mild Steel Capacity 711mm Throat Depth
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: S225

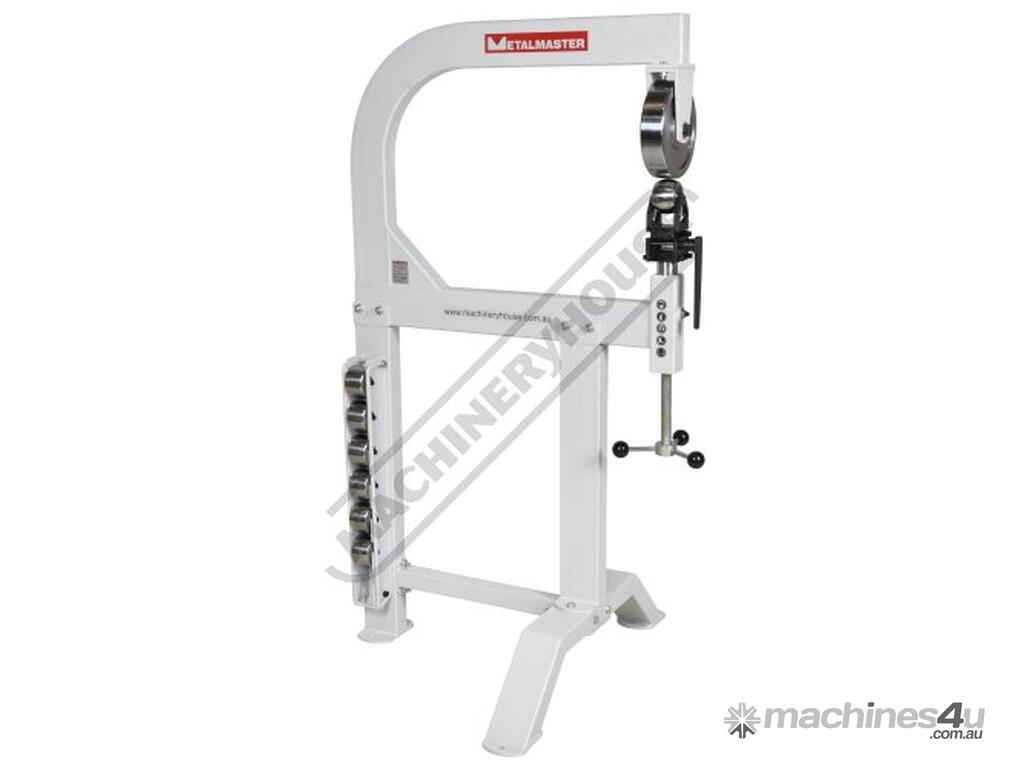

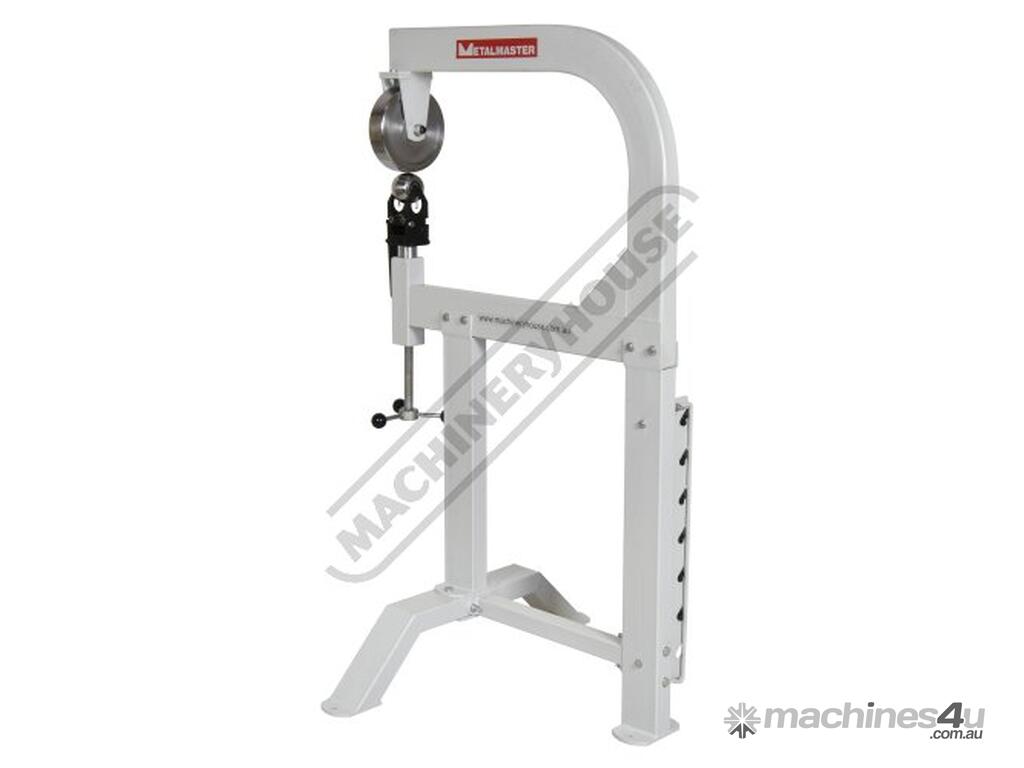

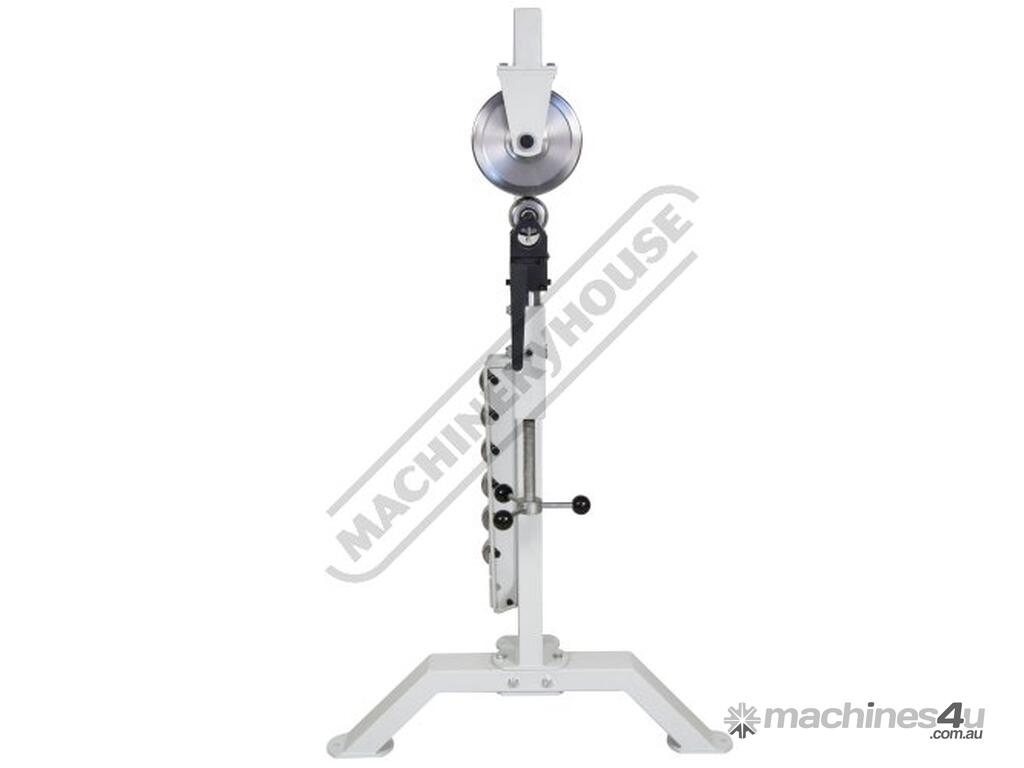

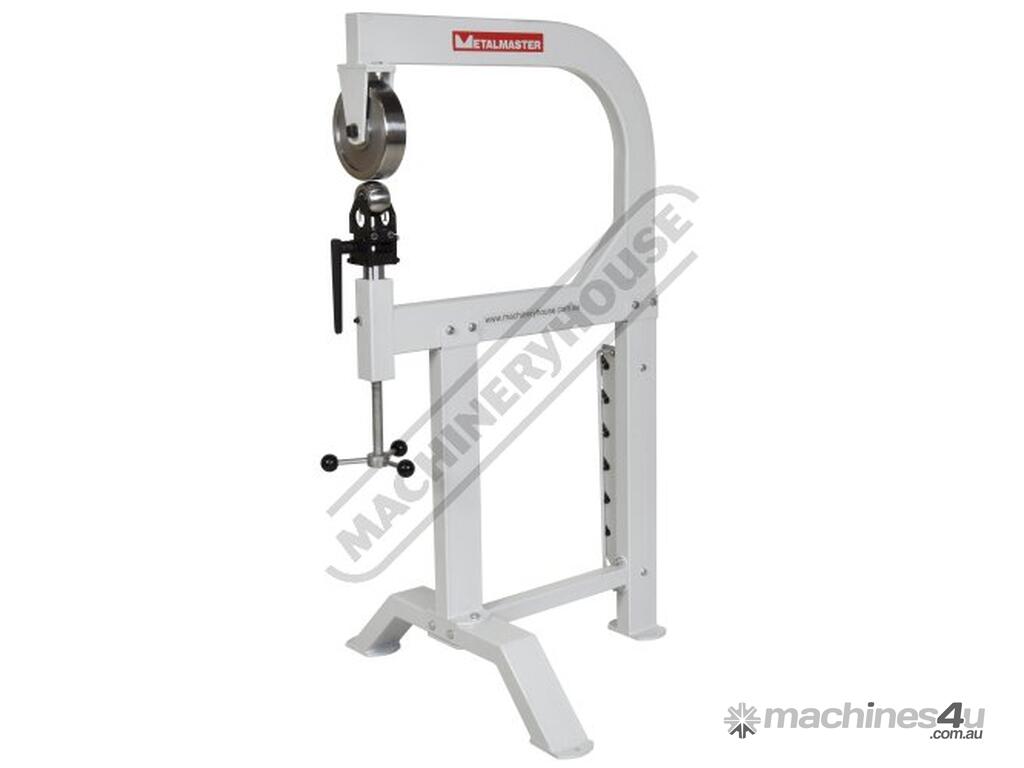

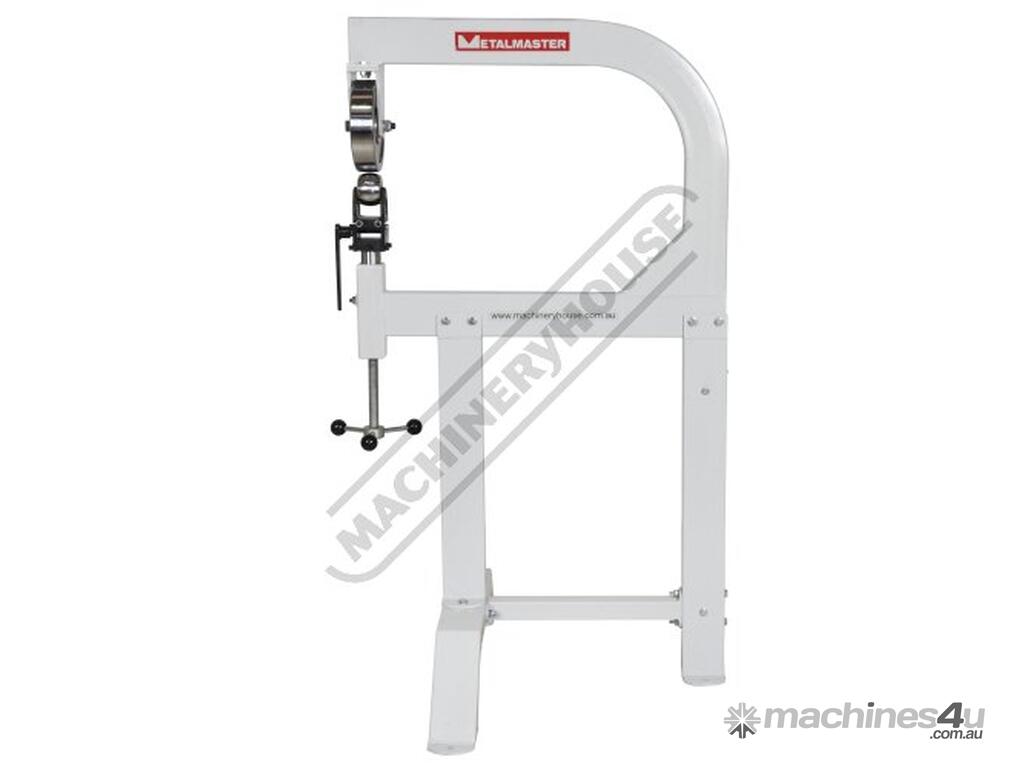

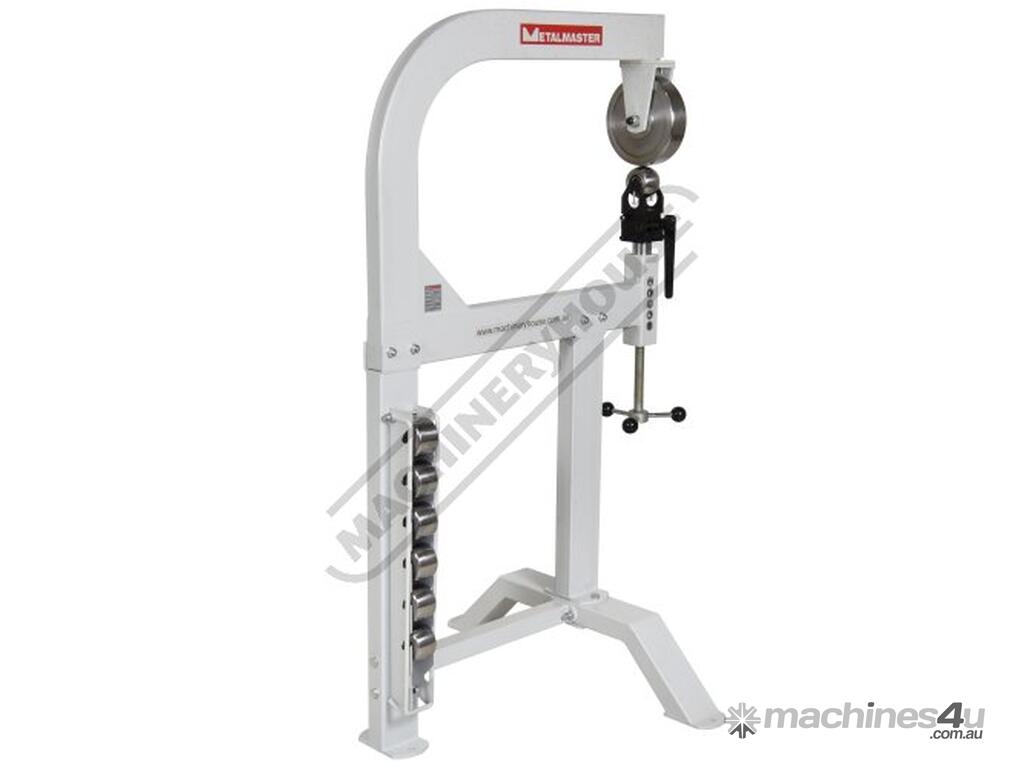

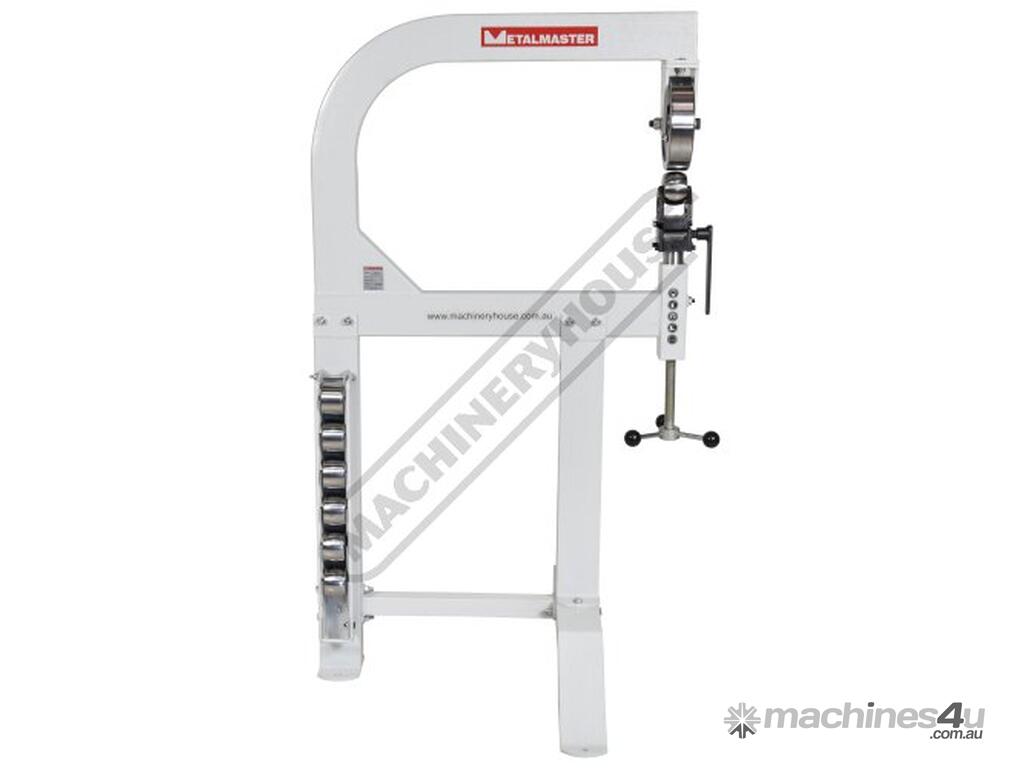

The EWM-75 heavy duty English Wheel is designed to allow craftsmen to form smooth curves from flat sheets of metal. They are mainly used in car, motorcycle, aviation and racing car construction or restoration where sheet metal panels need to have compound curves formed.

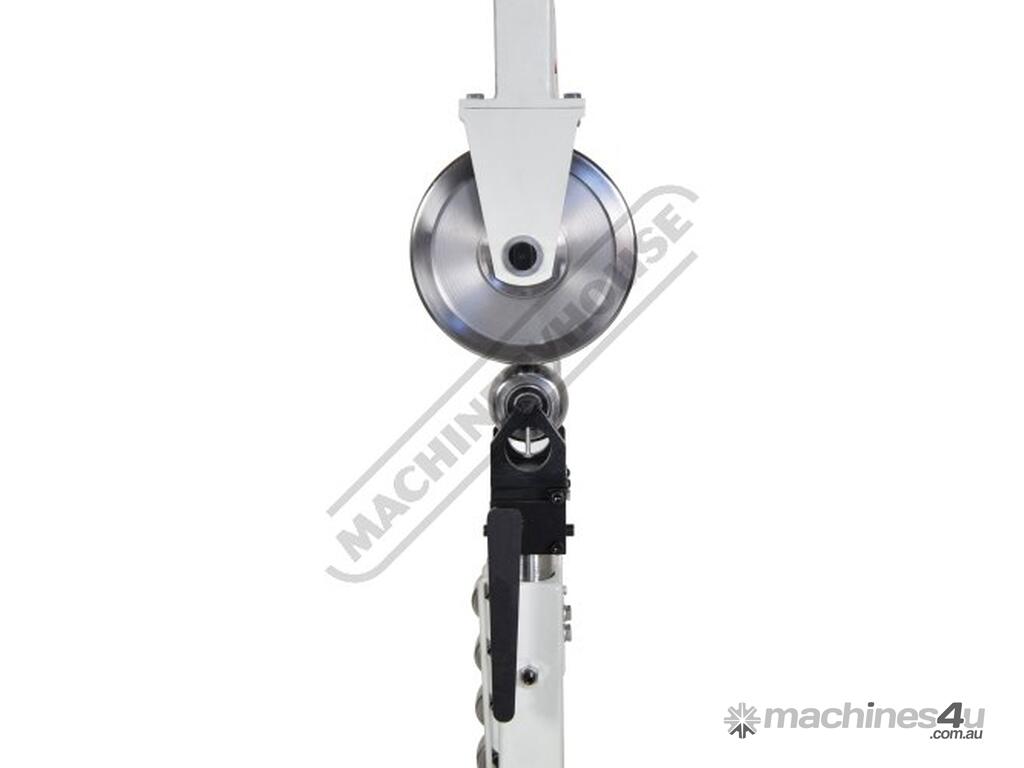

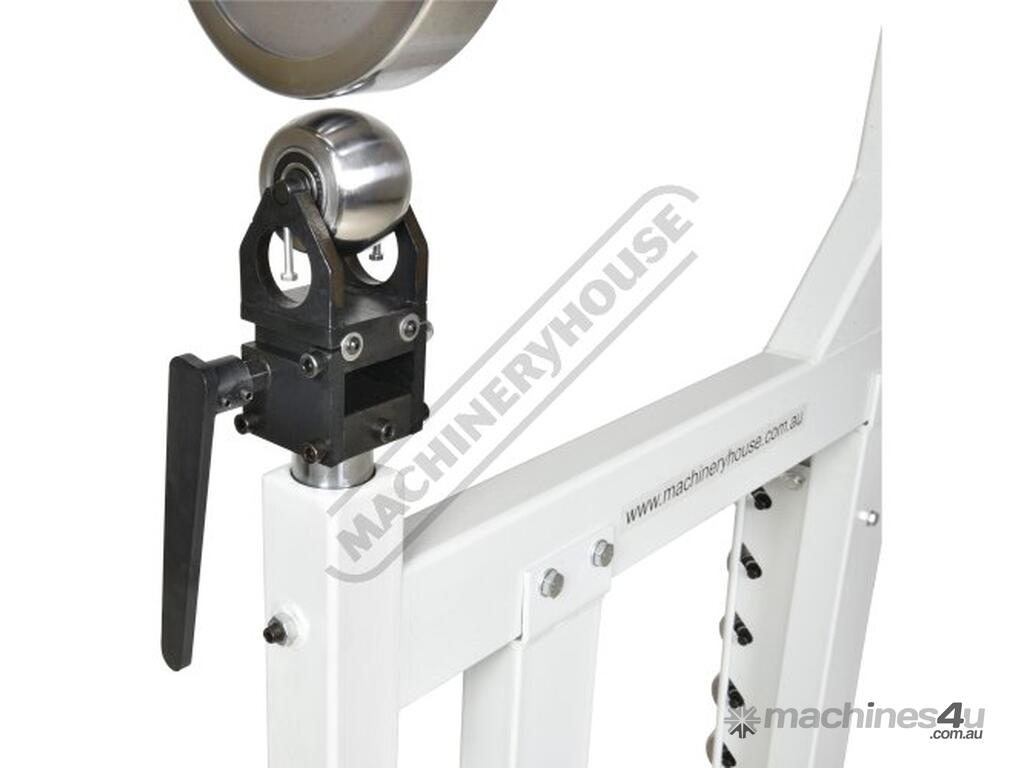

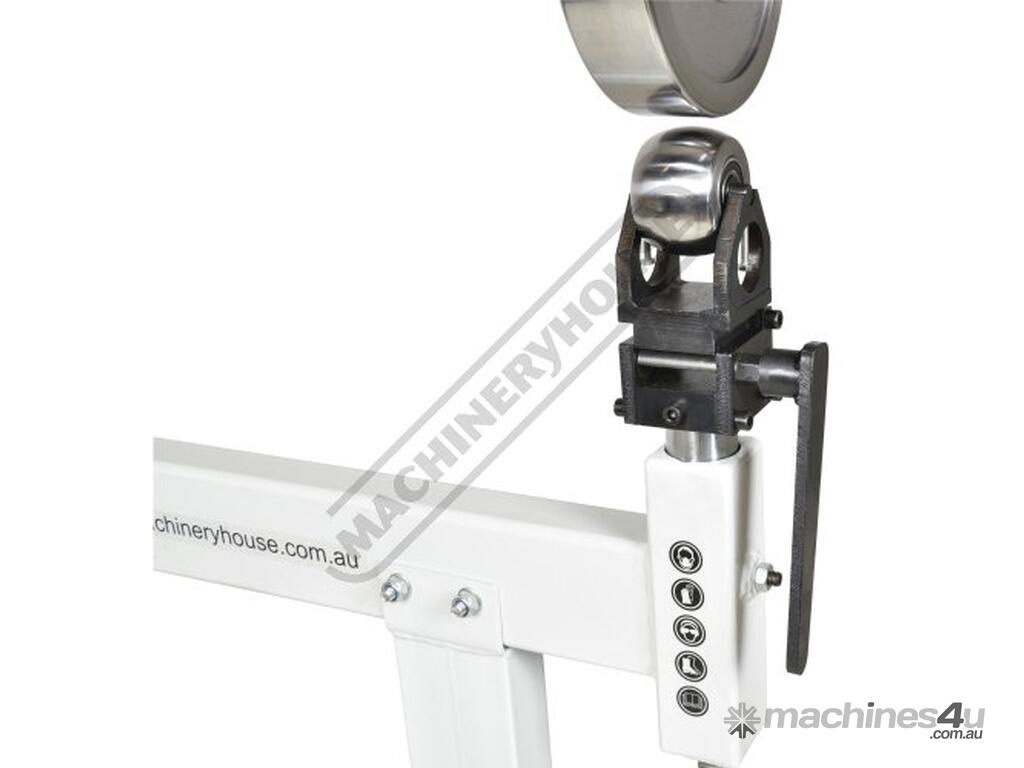

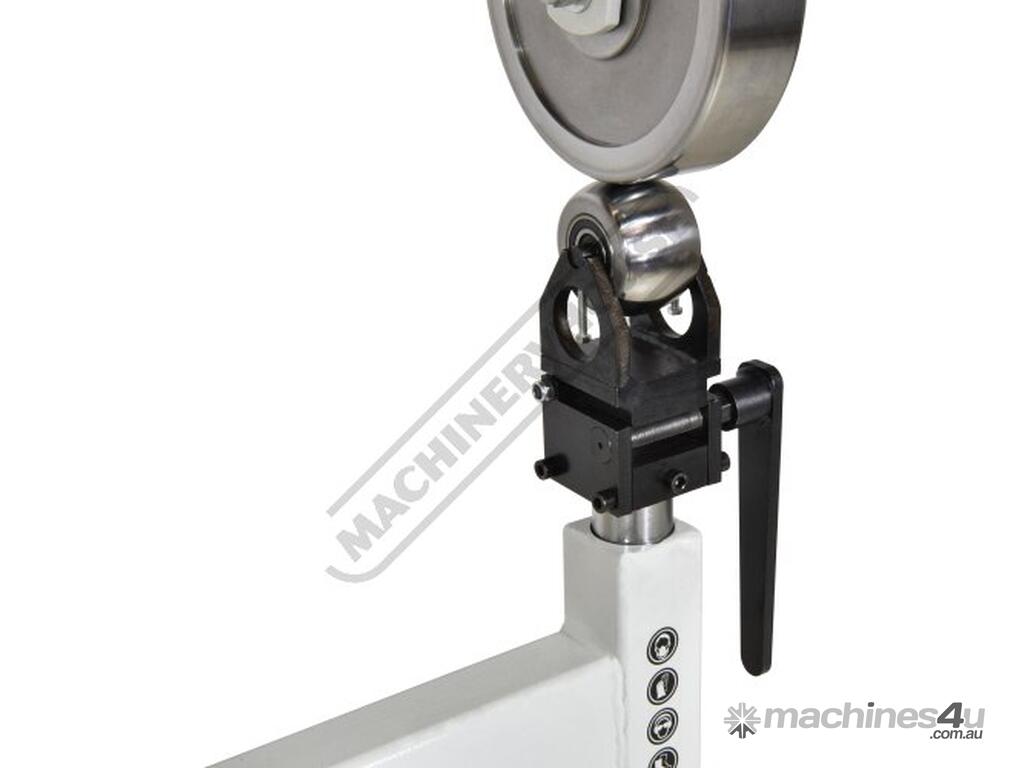

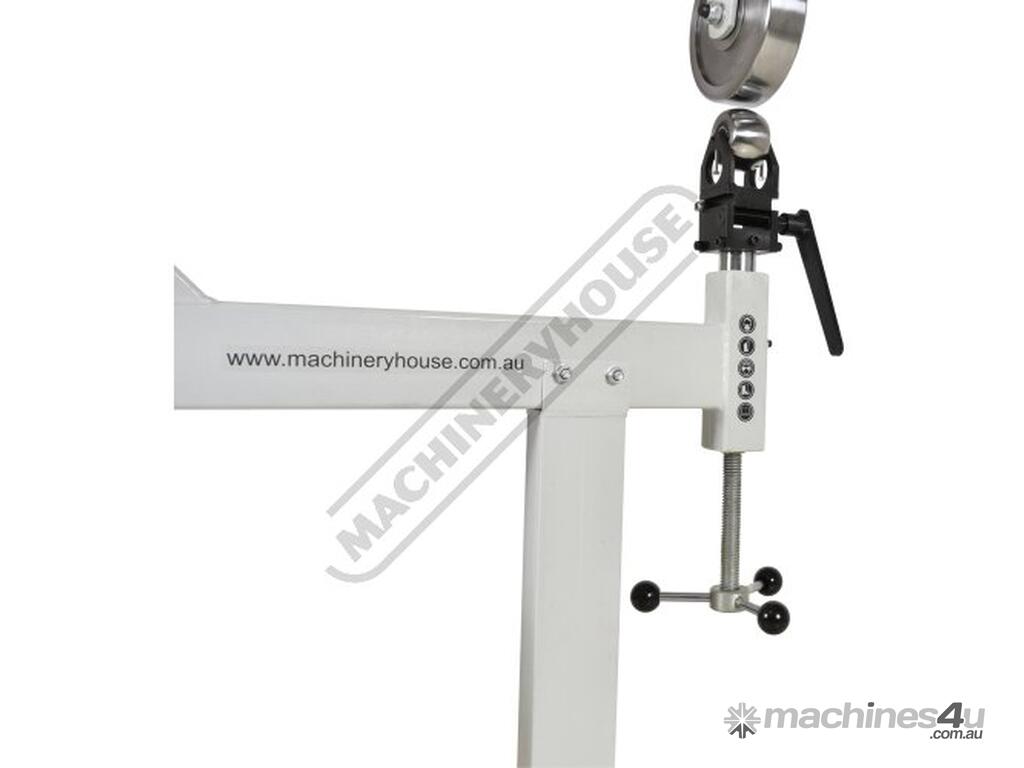

The operator passes the sheet metal between the upper wheel and lower anvil. This process stretches the material and causes it to become thinner. As the material stretches, it forms a convex surface over the lower anvil.

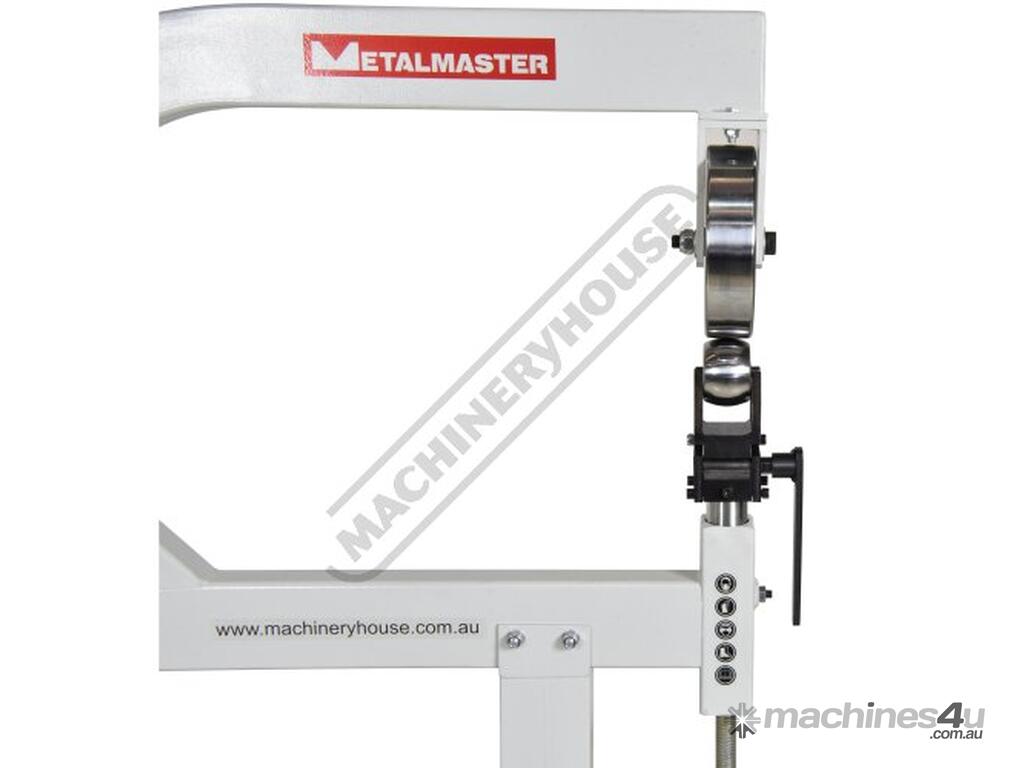

This heavy duty steel fabricated machine has a large 711mm throat which allows a capacity of 1.6mm for mild steel and 2.0mm for Copper and Aluminium.

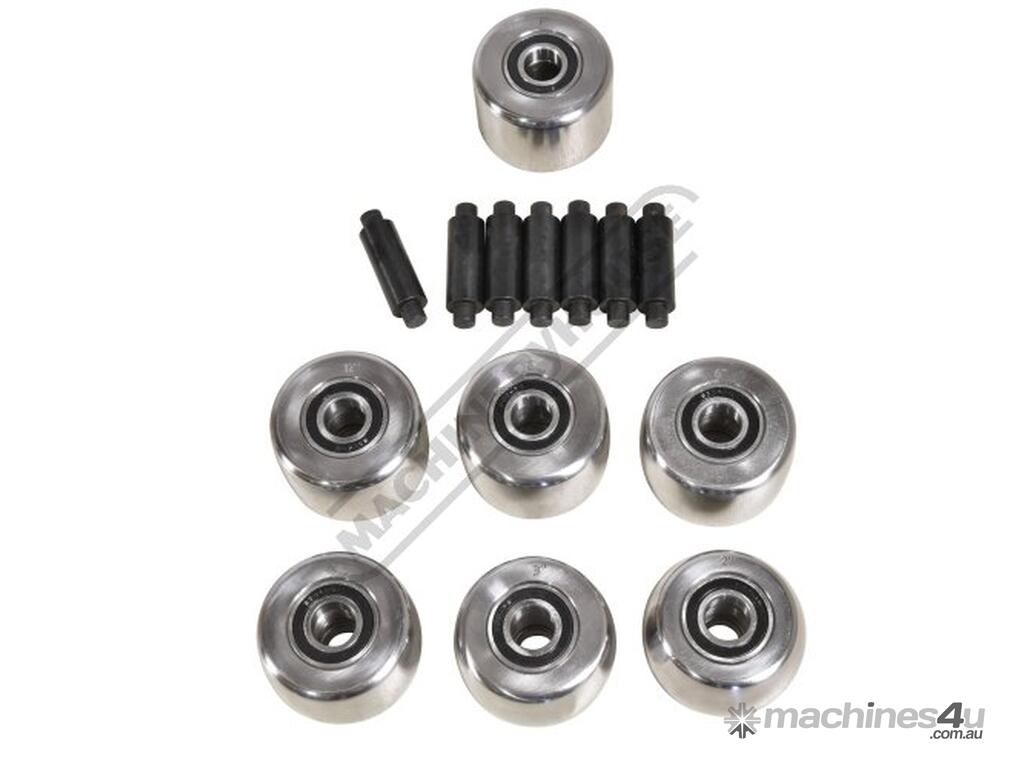

Supplied with a 203mm diameter x 50.8mm wide upper wheel and 50.8, 76.2, 101.6, 152.4, 203.2, 304.8mm lower radius anvils & 1 x flat anvil.

The machine weighs 75kg and has provisions to be easily secured to floor.

Features:
711mm throat capacity
1.6mm mild steel capacity
2.0mm copper & aluminium capacity
Upper wheel Ø203 x 50.8mm wide

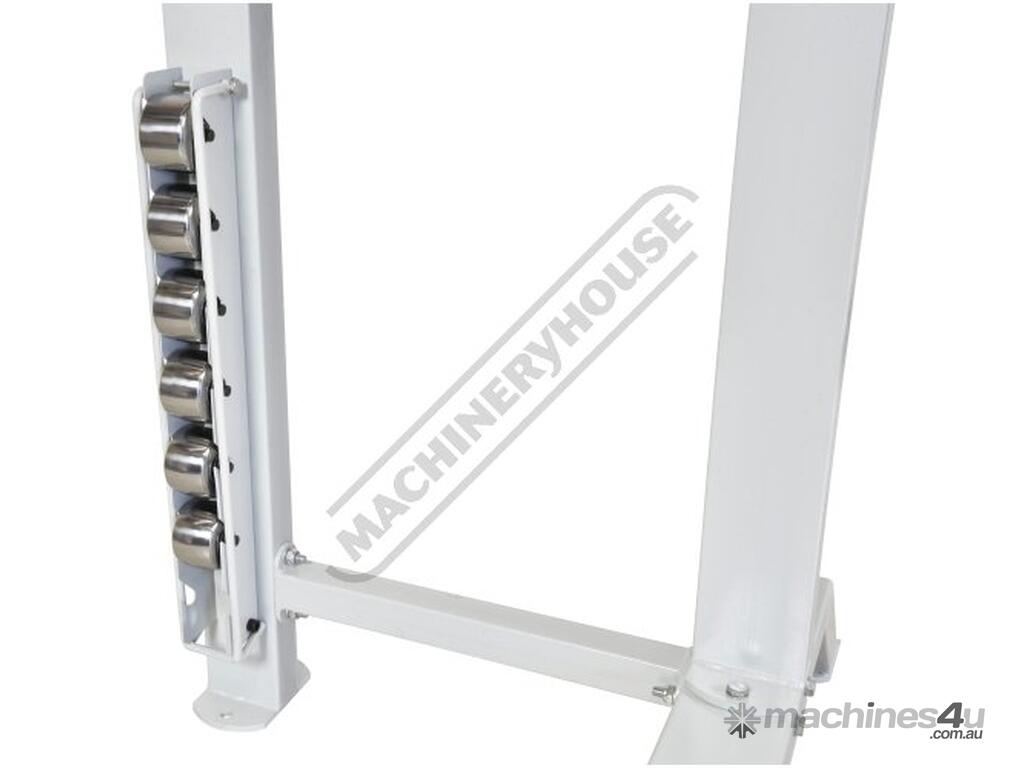

Comes with 7 lower anvils (all 50.8mm wide) in the following radius: flat 50.8 76.2 101.6 152.4 203.2 304.8mm
Sealed ball bearings in all dies and heat treated to minimise wear


Specifications:
ORDER CODE: S225
MODEL: EWM-75
Mild Steel - Capacity (mm / Gauge): 1.6 / 16
Aluminium - Capacity (mm / Gauge): 2.0 / 14
Copper - Capacity (mm / Gauge): ~
Throat Capacity (mm): 711
Upper Wheel (Ø x W mm): Ø203 x 50
Lower Anvils - Radius (mm): flat, 50.8, 76.2, 101.6,
Lower Anvils - Radius (mm): 152.4, 203.2, 304.8
Lower Anvils - Radius (mm): ~
Working Height (mm): 1200
Nett Weight (kg): 73
