**EX DEMO** | AccurlCMT MASTERLINE FIBER LASER | 6KW MAX | PRECITEC HEAD | BECKHOFF CONTROLLER

EX STOCK - OVERSTOCKED AND NEEDING TO MOVE THIS EX DEMO MACHINE QUICKLY, MASSIVE MANUFACTURER DISCOUNT

THIS DICOUNT IS ONLY ON THIS MACHINE, MANUFACTURER OFFERING A VERY SUBSTANTIAL DISCOUNT ON A NEW STOCK MACHINE ENABLING US TO HEAVILY DISCOUNT THIS LASER IN STOCK AND OFFSET THE DISCOUNT AGAINST THIS EX DEMO MACHINE

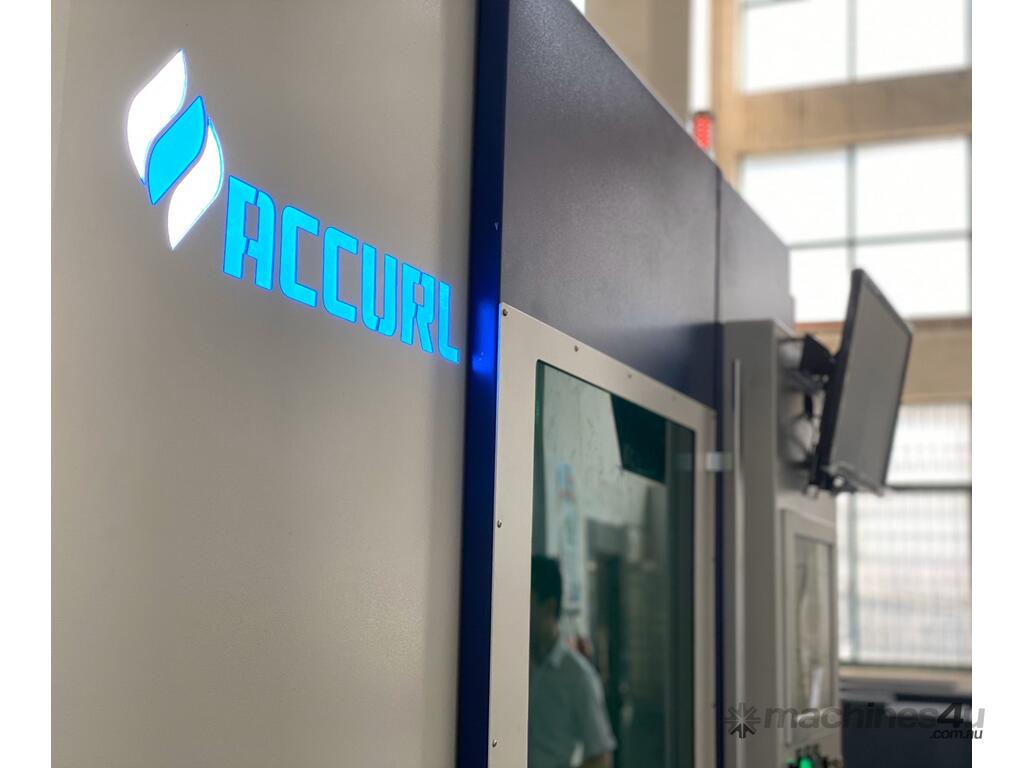

Accurl sheet metal machinery offer high level technology machinery within its market segment and is a progressive forward thinking company constantly improving their products and product range. Its because of this Complete Machine Tools has taken on the agency for Accurl machines in Australia. Why limit yourself to a company that only can supply a laser cutting machine, go with a company who can grow with your business and offer a complete solution for all your sheet metal and fabrication machinery needs under the 1 roof.

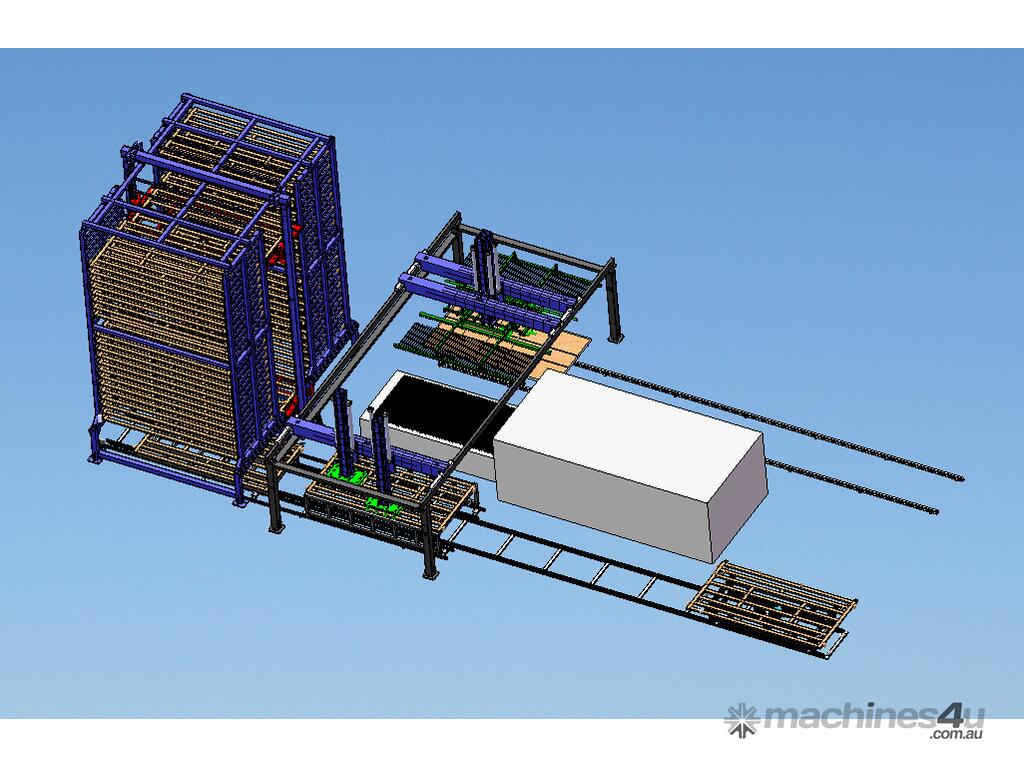

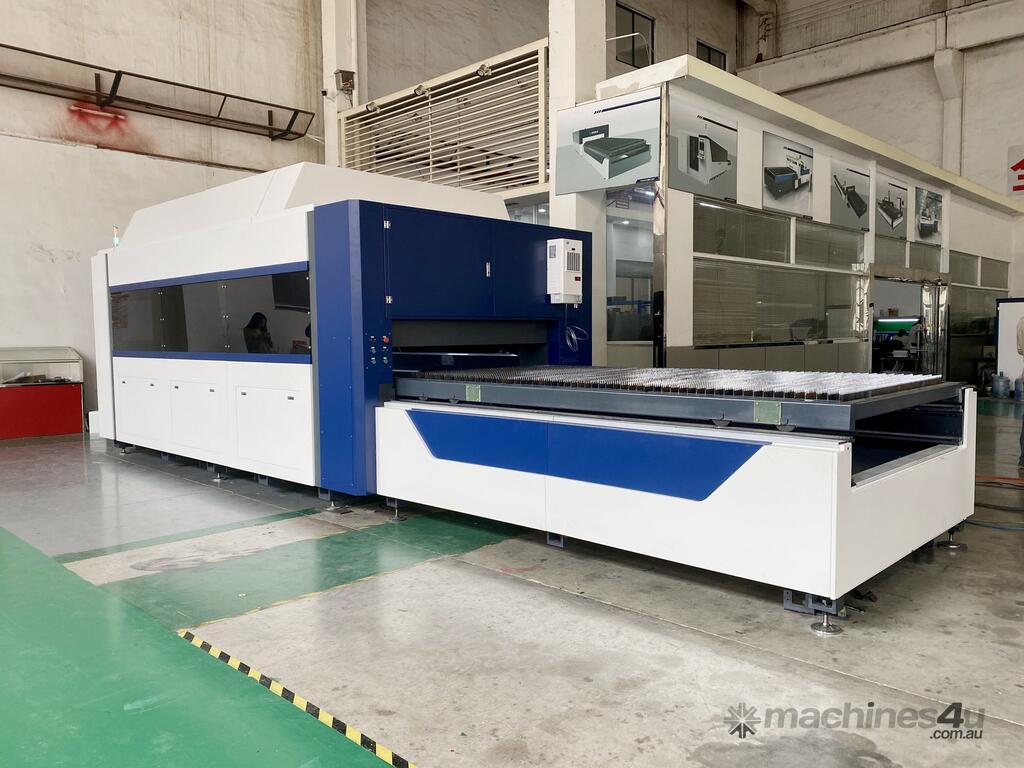

The Masterline series is our range topping machine fitted with all of the best running gear, fastest rapid speeds and the ability to add numerous levels of automation. The Masterline series is ideal for advanced laser cutting companies needing a fast high level laser cutting machine without any compromise. The Masterline Series is fitted as standard with a Precitec Procutter cutting head, Beckhoff controller, motors and drives, nozzle cleaner and pneumatic safety door at the rear of the machine.

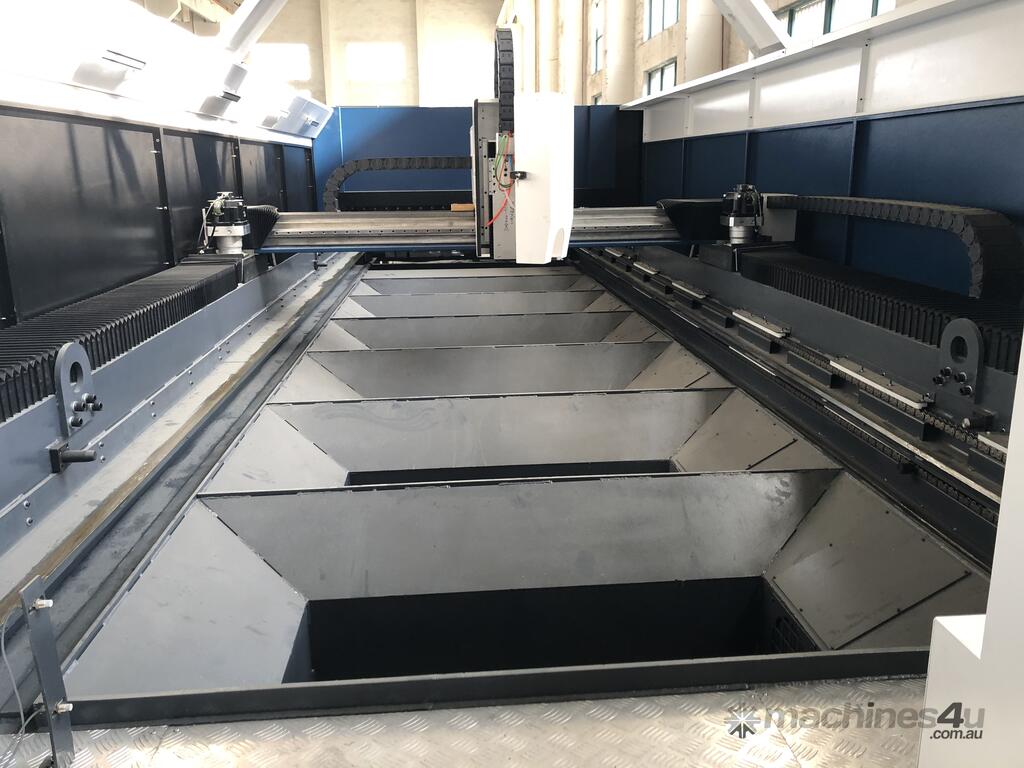

The Masterline comes as standard with an aluminium gantry for the cutting head which drastically reduces the weight compared to a steel gantry. Utilising the aluminium gantry allows the rapid movement to be faster and the control while cutting more stable.

STANDARD COMPONENTS -

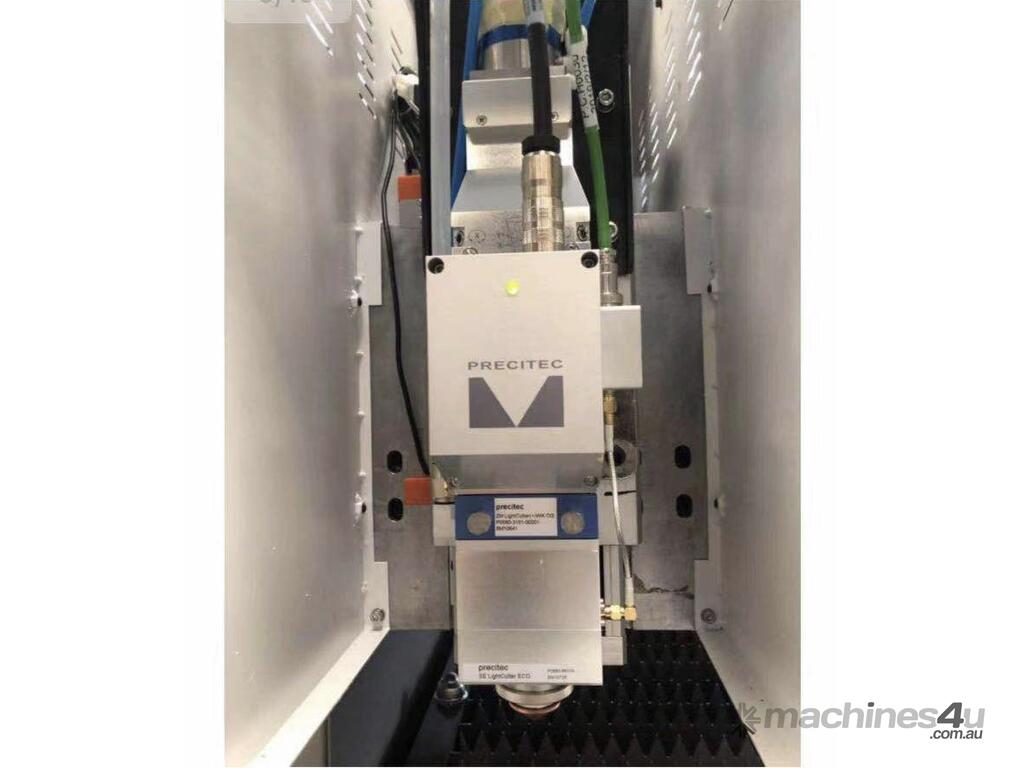

- Precitec Procutter auto focus cutting head (German)
- Beckhoff controller (German)
- IPG laser source (USA)
- Beckhoff Twincat controller software (German)
- Beckhoff servo motors & drives (German)
- Alpha planetary gear head (German)
- Alpha racks (German)

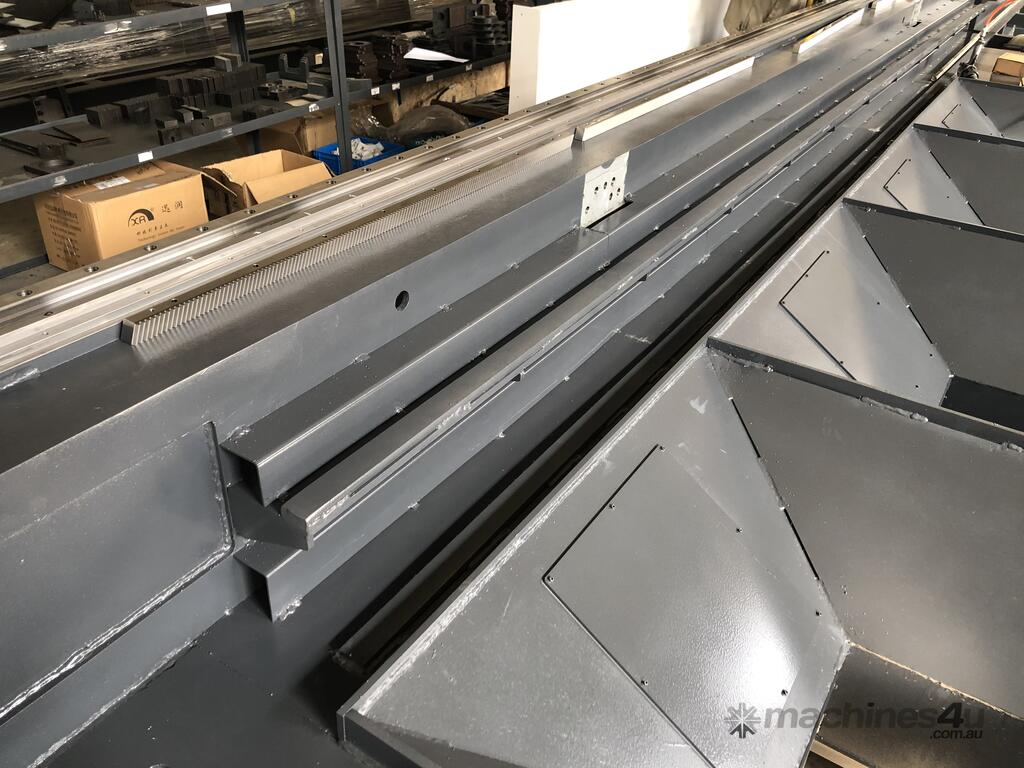

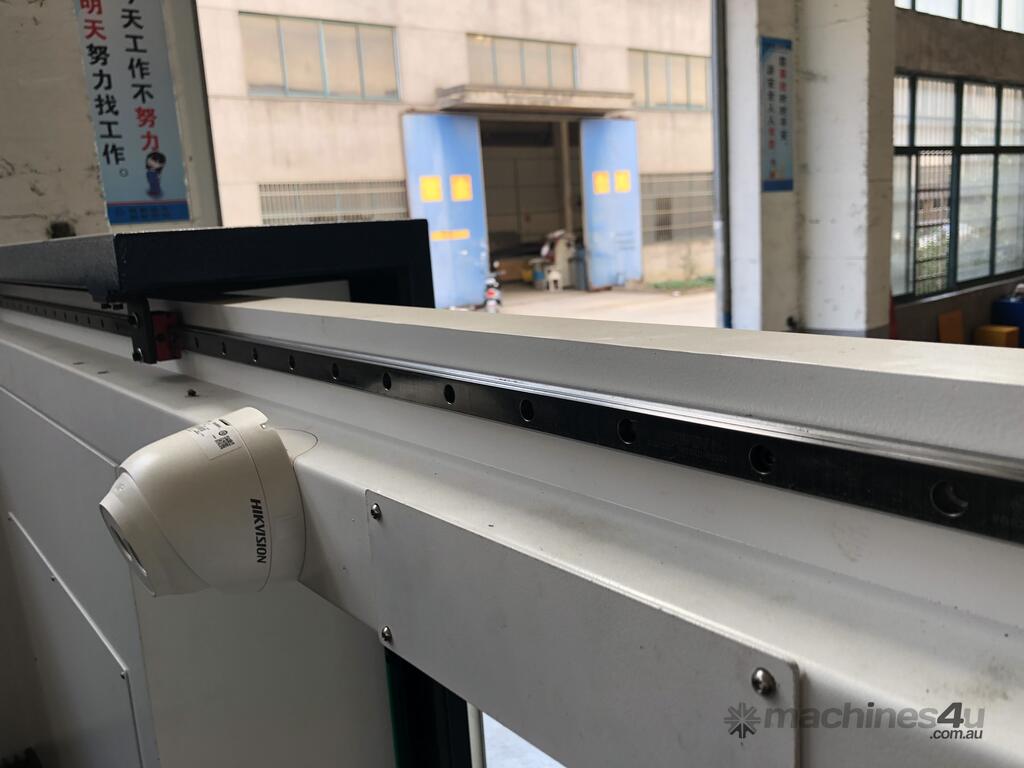

- Rexroth linear guide ways (German)
- Sigmanest offline software with local training and a 1 year service agreement

STANDARD FEATURES -

- Aluminium cutting head gantry
- Nozzle cleaning system
- Red laser dot sheet alignment system
- Fly cut | frog jump | pre-pierce functions
- Sheet corner auto detection function
- Pneumatic safety door at rear of the machine

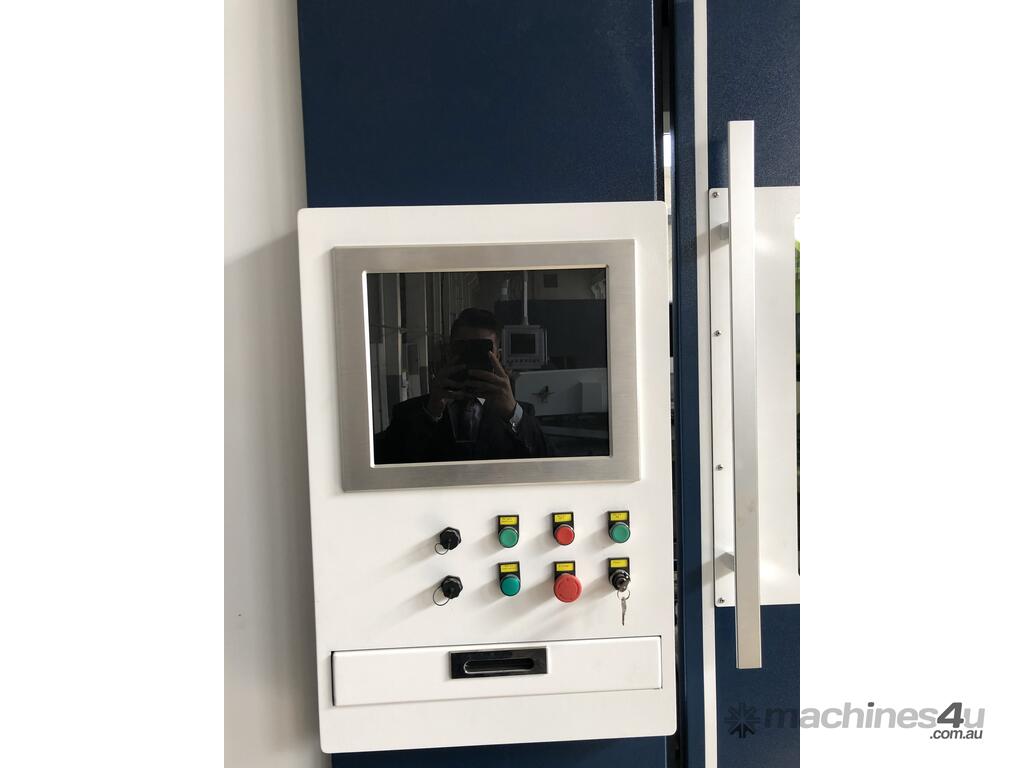

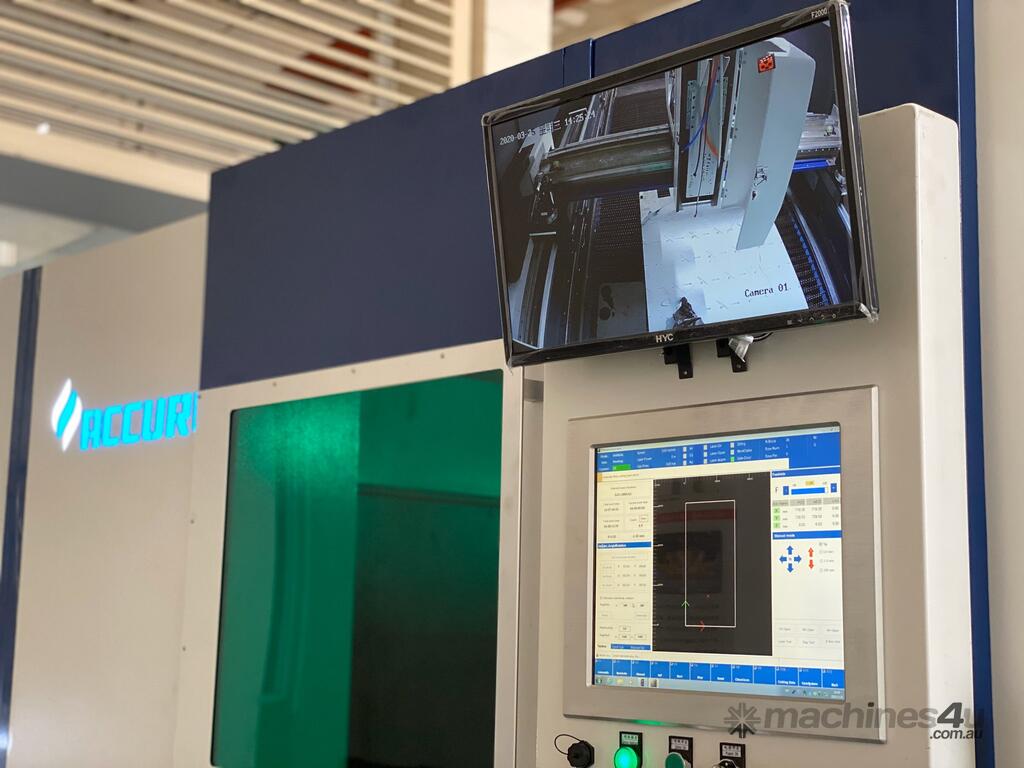

- Touch screen controller
- Air filtration system
- Auto focus cutting head
- Light barrier protection at rear of the machine

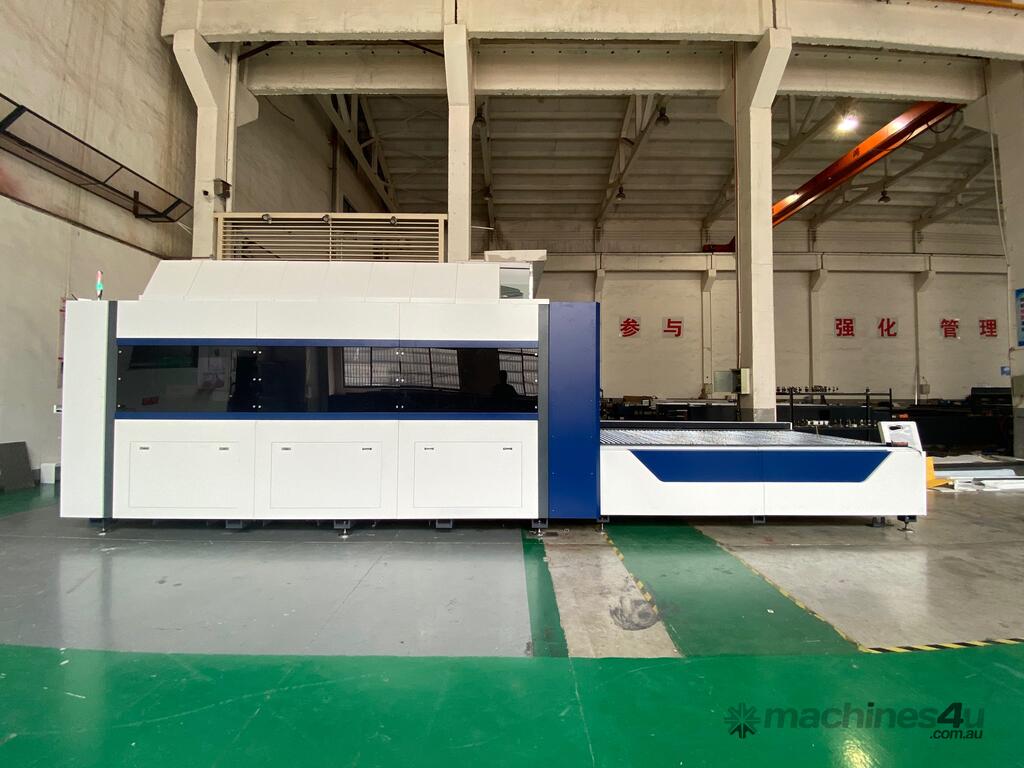

- Fully enclosed design
- Laser grade safety glass
- Controller has the ability to network to office PC or server for file transfer

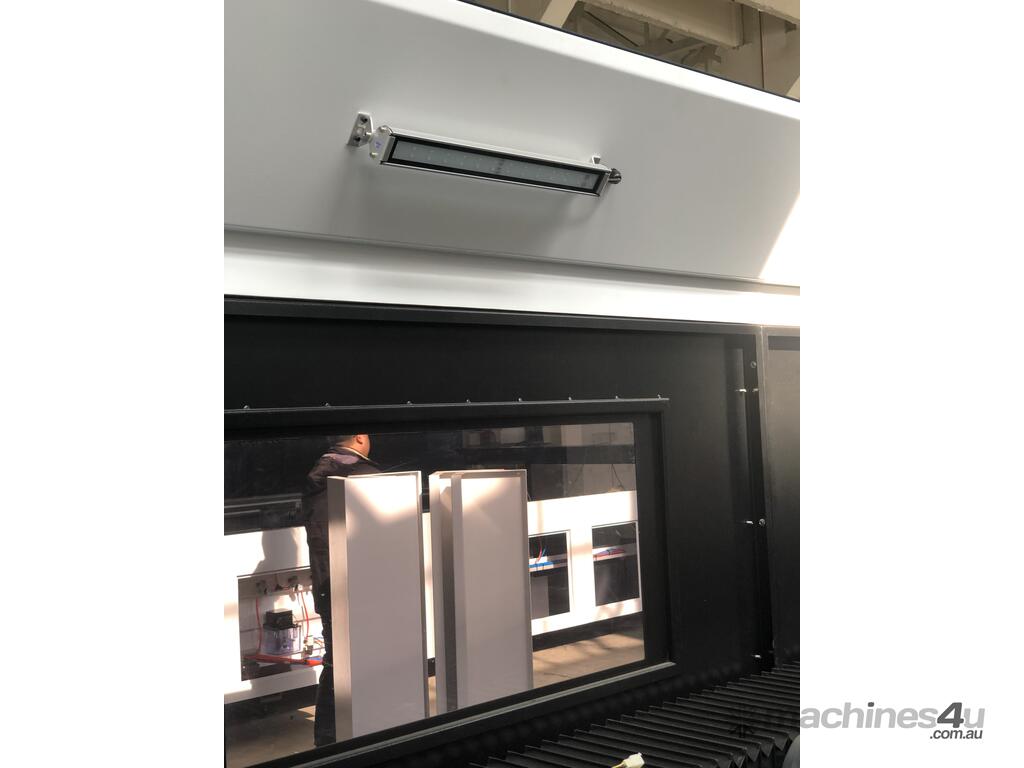

- Internal LED lighting
- External 3 colour status lamp

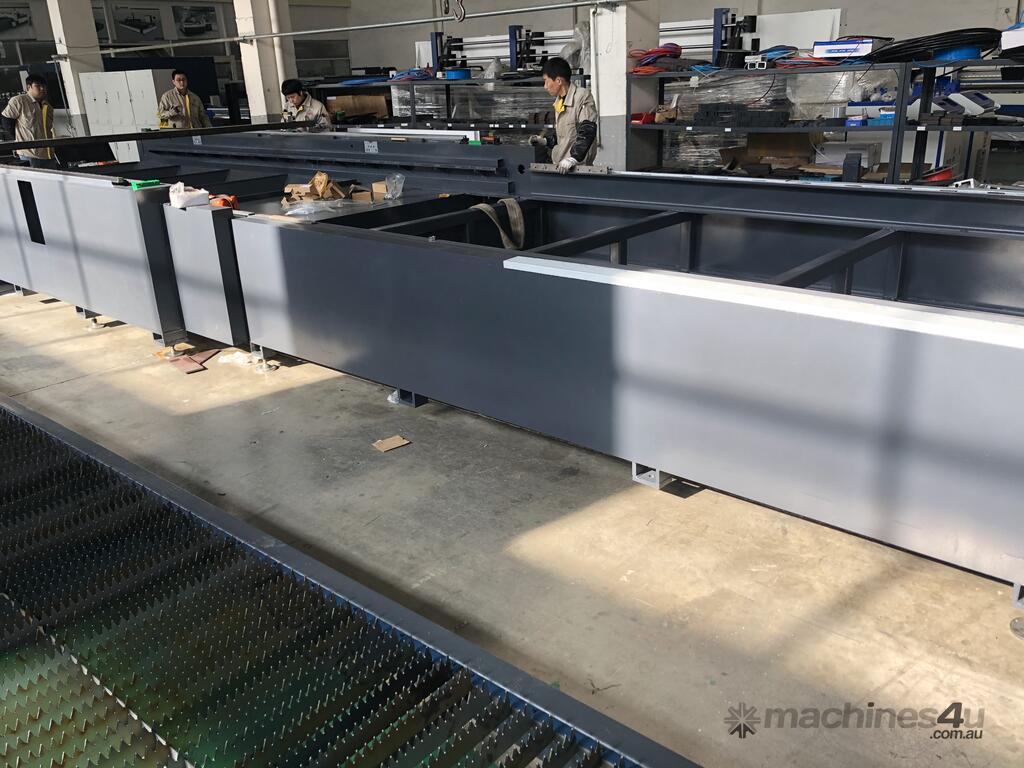

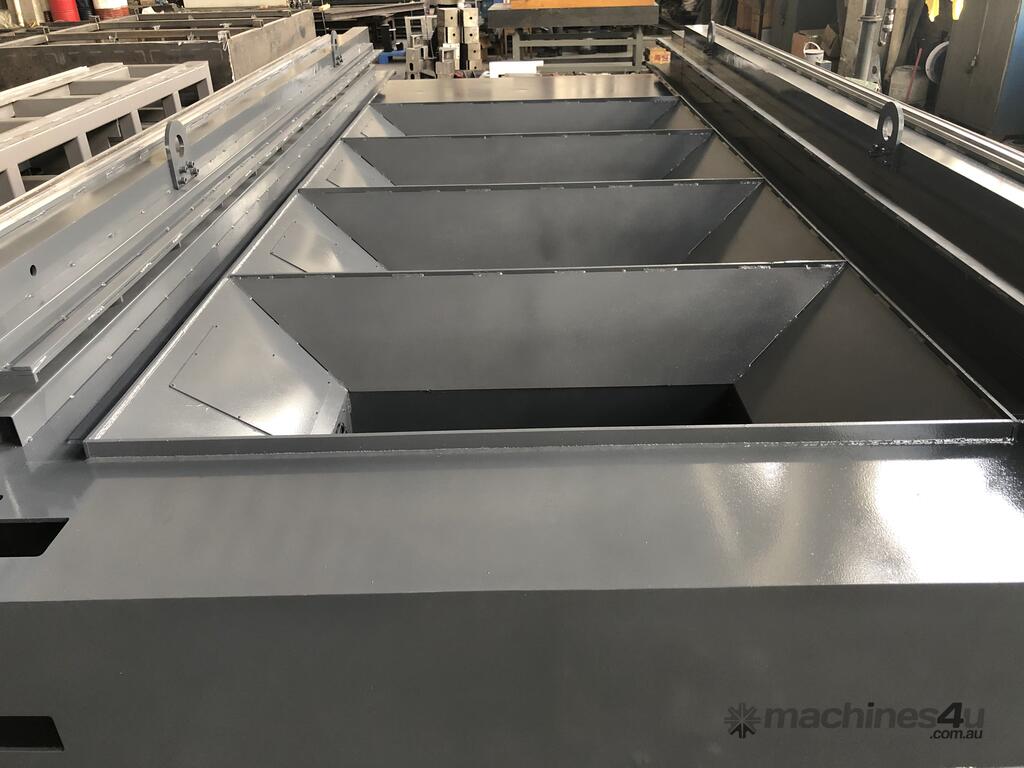

- Solid heavy duty frame for greater vibration absorption
- Pneumatic locking table pics to eliminate any table movement while cutting, this is also fitted with a sensor that if the pins are not in position the cutting will not start.
- Quick changing of exchange tables
- Oxygen & Air auto gas selection via a servo valve
- Nitrogen manual selection (Optional auto selection servo valve available)

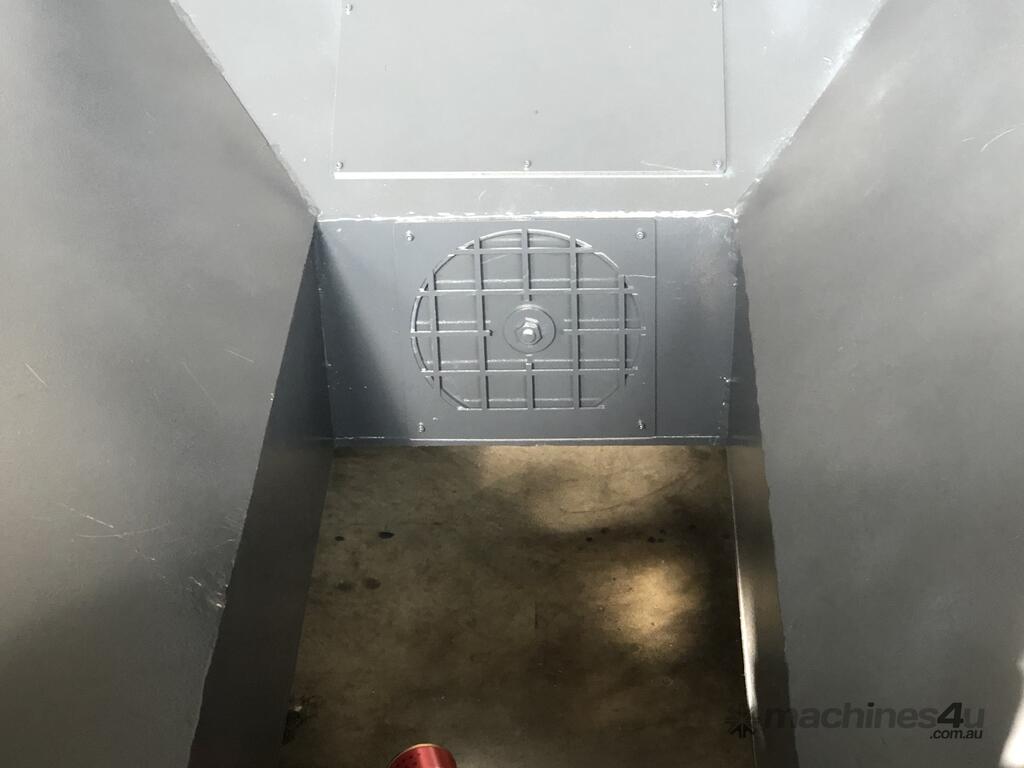

- Pneumatic suction table zone selection, when cutting in a certain zone on the cutting table a flap controller pneumatically will open allowing all air suction to be concentrated on that zone for better fume extraction to the filtration system.
- Heavy duty box section exchange tables
- Clever door design allowing easy access into the machine for maintenance

CUTTING CAPACITIES -

- Power source (IPG) 3KW
- Mild Steel 25mm
- Stainless 12mm
- Aluminium 8mm
- Brass 8mm
- Copper 5mm
