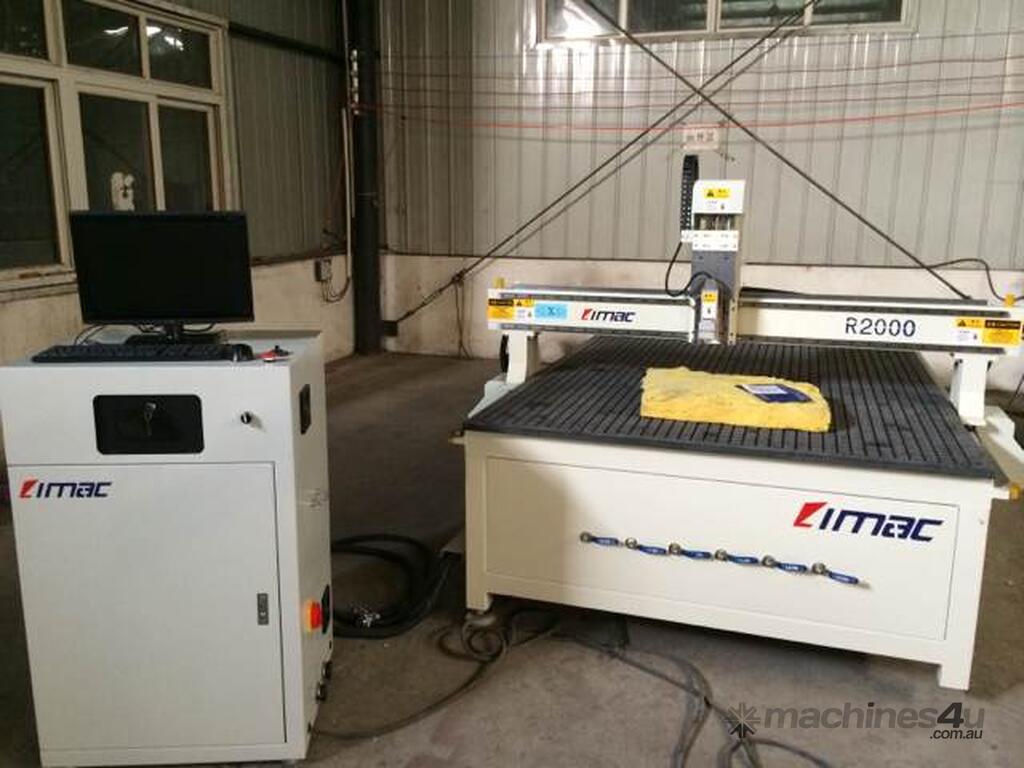

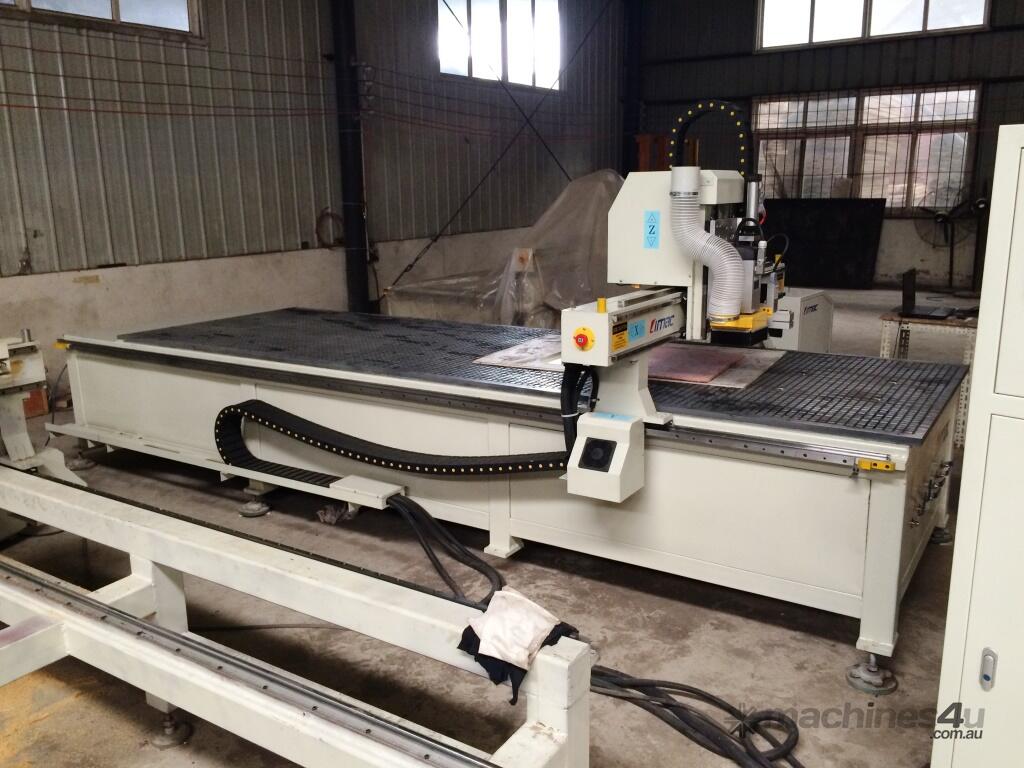

The LIMAC CNC router & knife dual head cutting machine body is fabricated from high quality steel by welding. With this structure structure, the machine encompasses high-loading capacity. Welding stress is eliminated by professional equipment; machine body is precisely machined, which produces a rigid frame; machine tool quality linear guide rail ensures high precision and ultra smooth movement.
This machine is ideal for wood working applications and also for cutting foam and material.
Applications -

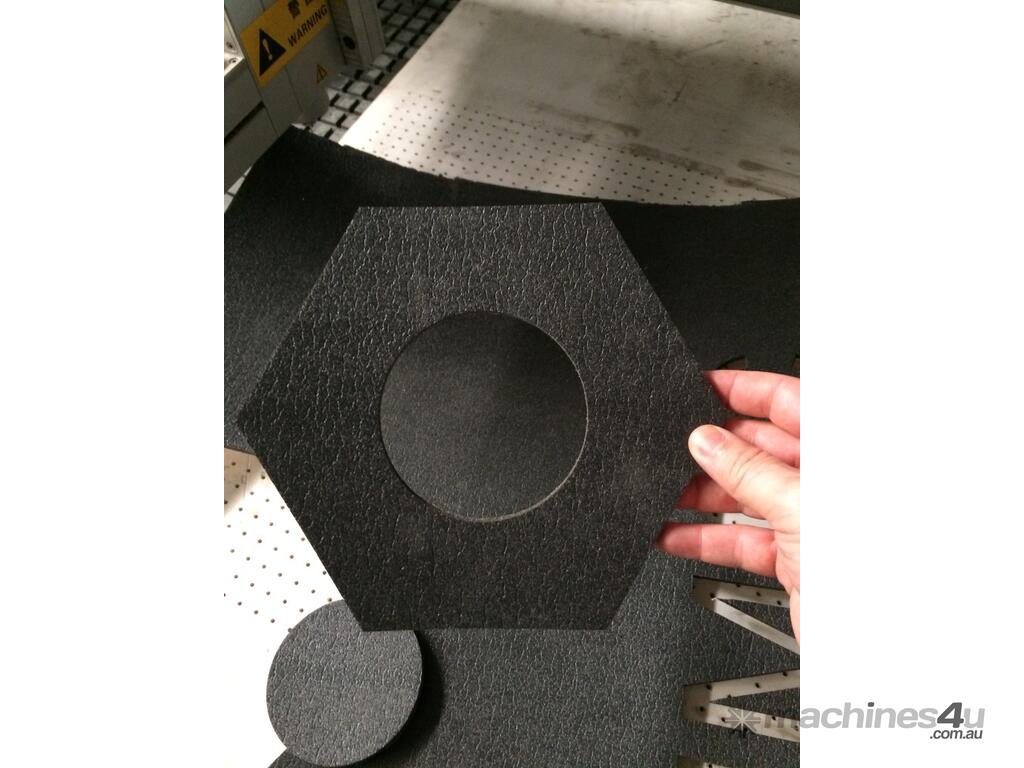

MOST COMMERCIAL INSULATION SHEET FOAM PRODUCTS & WOOD WORKING APPLICATIONS
LIMAC Knife cutting system includes tangential knife, oscillating knife, kiss cut and
creasing wheel, for cutting and creasing soft and semi-rigid materials.

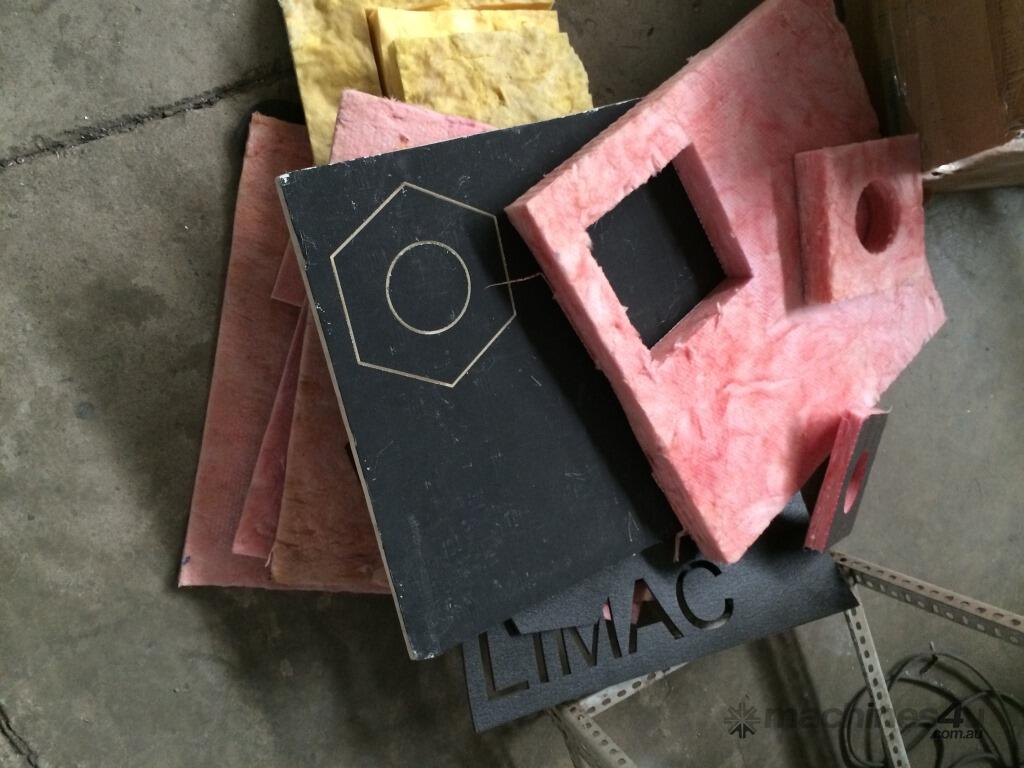

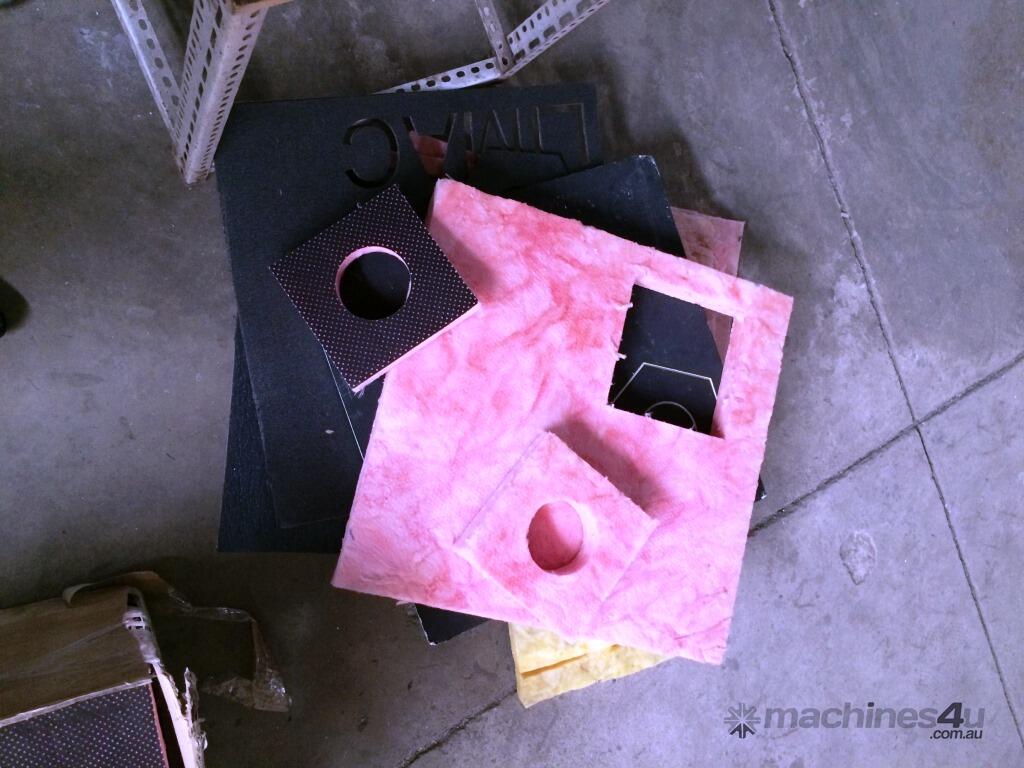

The knife cutting is also integrated with the LIMAC router so that one machine can cut soft, semi-rigid and hard materials from paper vinyl to wood to aluminum foil backed insulation with ease.
The Limac dual head router & knife cutting machine offers a well priced and well optioned up machine with some great features.
Overview -
1. Machine body made of RHS
2. Gantry made of cast aluminum to ensure smooth and vibration free cutting result.
3. High suction power vacuum table.
4. Standalone controller cabinet with anti-disruption feature ensures stable working of machine.

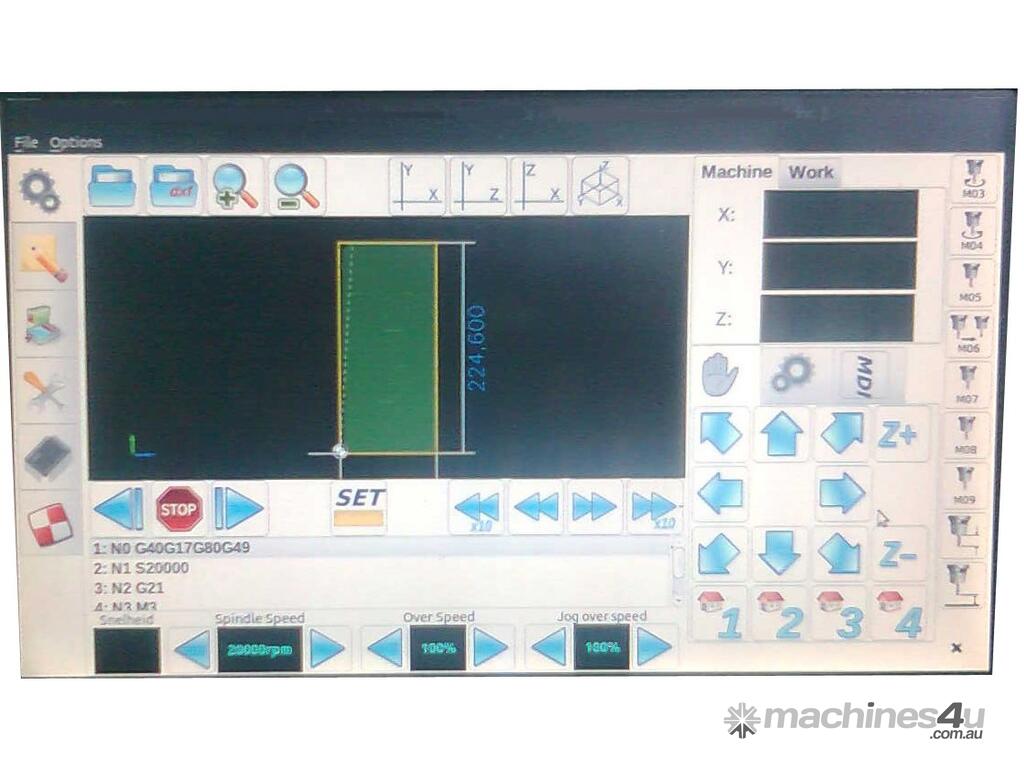

5. Industrial controller with Ethernet interface and works with all windows systems both on desktop and laptop.
6. Remote control feature makes it easy for diagnosis and troubleshooting.
7. Machine completely earthed, comply with electric safety requirements.
8. 1 year warranty: free parts replacement.
9. Compatible with Windows 8/7/Vista/XP/2000
10. File transfer by Ethernet and USB flash drive.
11. Compatible CAM software: ArtCAM, TYPE3, Castmate, Enroute, MasterCAM, UG, etc.
12. Compatible Graphics format: BMP, TIF, DXF, EPS, AI, PLT, IGS, ISO, etc.
13. Closed cable chain for protection.
14. Anti-collision block.
15. Two Emergency stop buttons on each side of gantry, plus one on control box.
16. Limit switches on all axes.
17. Automatic material surface detection.
18. User manual.

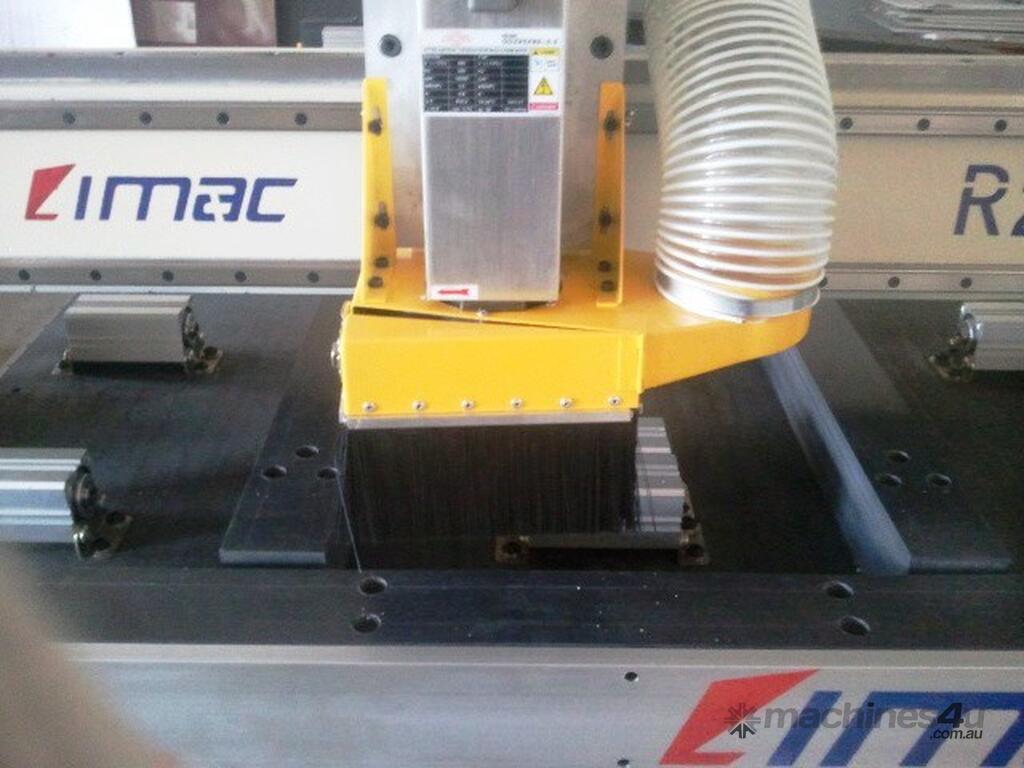

19. Includes 4.5kw router spindle.
20. 5.5kw two bag dust collector.
21. Oscillating knife & router head
Specs -
Max working area - 1500 x 4000mm
Vacuum table
Vacuum pump - 2 x 5.5KW 320cbm/hr
Material feeding thickness - 180mm
Max travel speed - 30m/min
Max cutting speed - 20m/min
Positioning accuracy - 0.025 mm/pulse
Applications -
1. Felt
2. Foam
3. Composites
4. Gasket
5. Rubber
6. Cork
7. Cardboard
8. Veneer
9. Plastic
10. Leather
11. Wood
12. Fiber glass insulation
