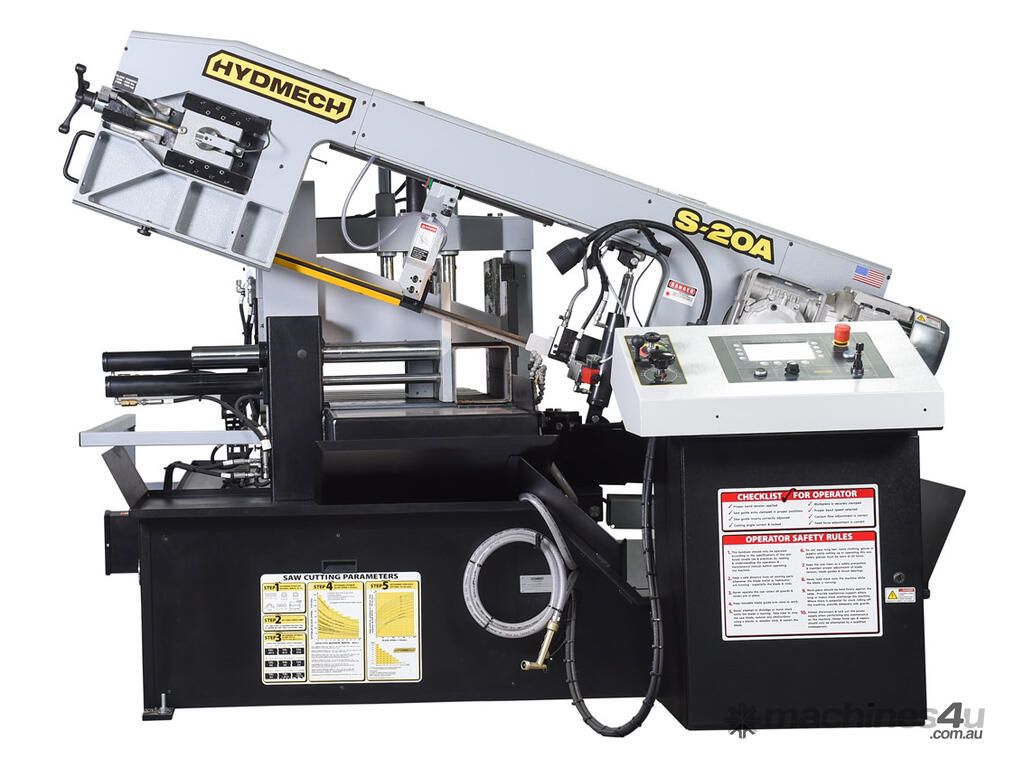

EXCEPTIONAL CUTTING CAPABILITY - CNC BANDSAW - Hydmech S20A Automatic Horizontal Pivot Band Saw

With quality USA construction, the Hydmech S20A CNC Band Saw will give you the best cost per cut on the market and has a capacity of 457 x 330mm.

It will provide you with exceptional miter cutting capability for light to medium duty applications.

UNIQUE FEATURES
• Easy swing, heavy duty cast iron saw head that can swing up to 60 degrees one direction.

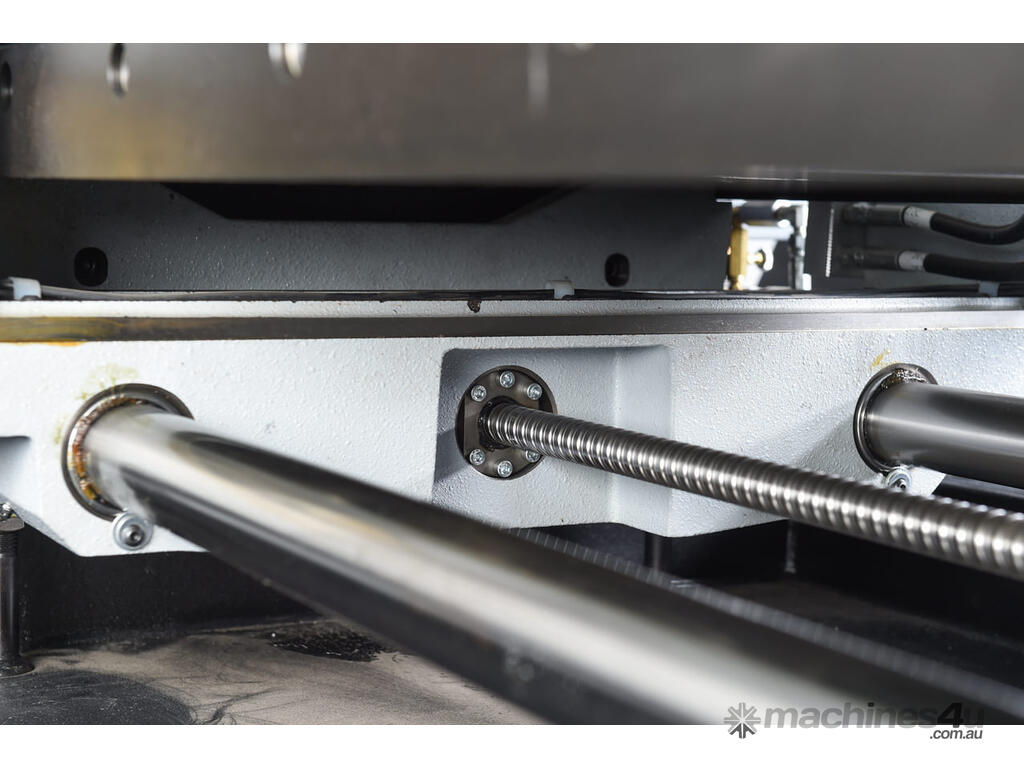

• Cast iron material shuttle features automatic multi-indexing up to 685 mm in a single stroke. Powered by ball screw and stepper motor.

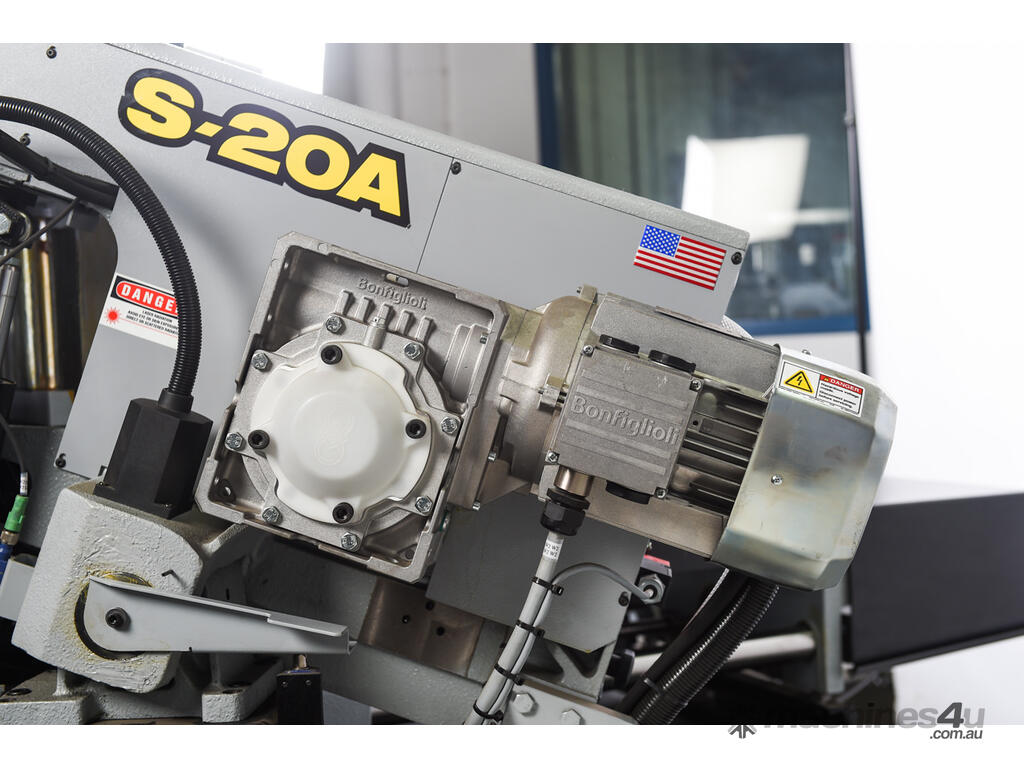

• 3.5 kW VFD. True direct blade drive – no belts/pulleys

• On-demand hydraulics save energy

• Blade chamber pulls back material from cut part extending blade life

• Cast iron band wheels

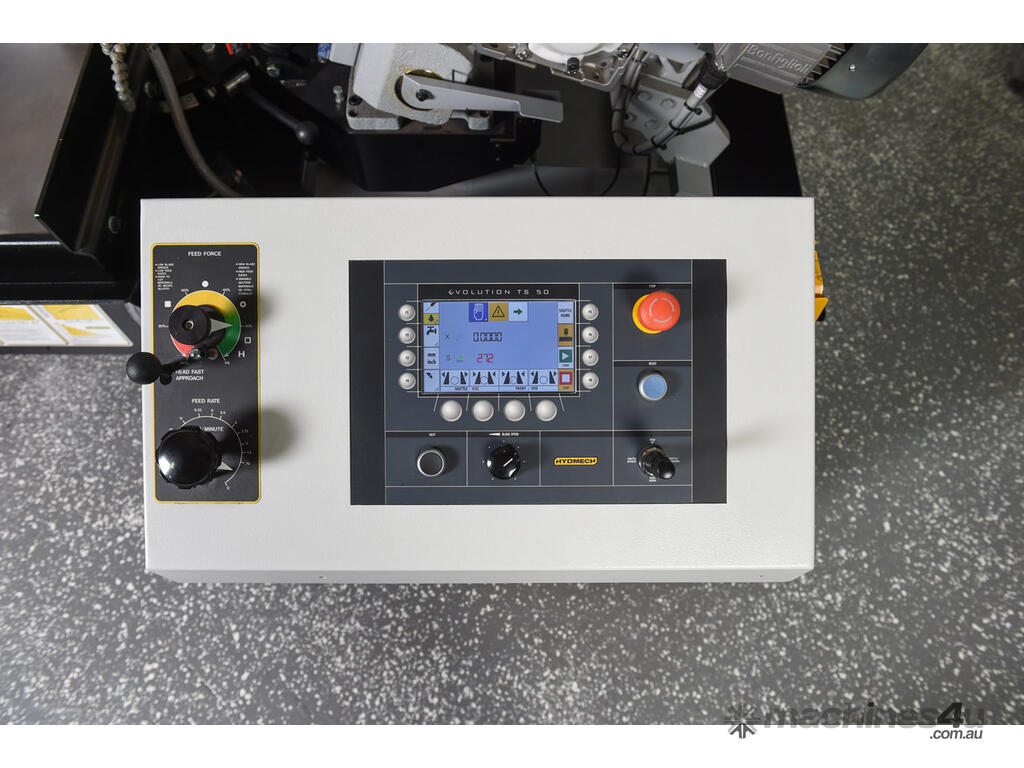

• Automatic PLC, touch screen control programmable up to 100 jobs with 20 in queue

• Replaceable blade brush

• Robust steel base

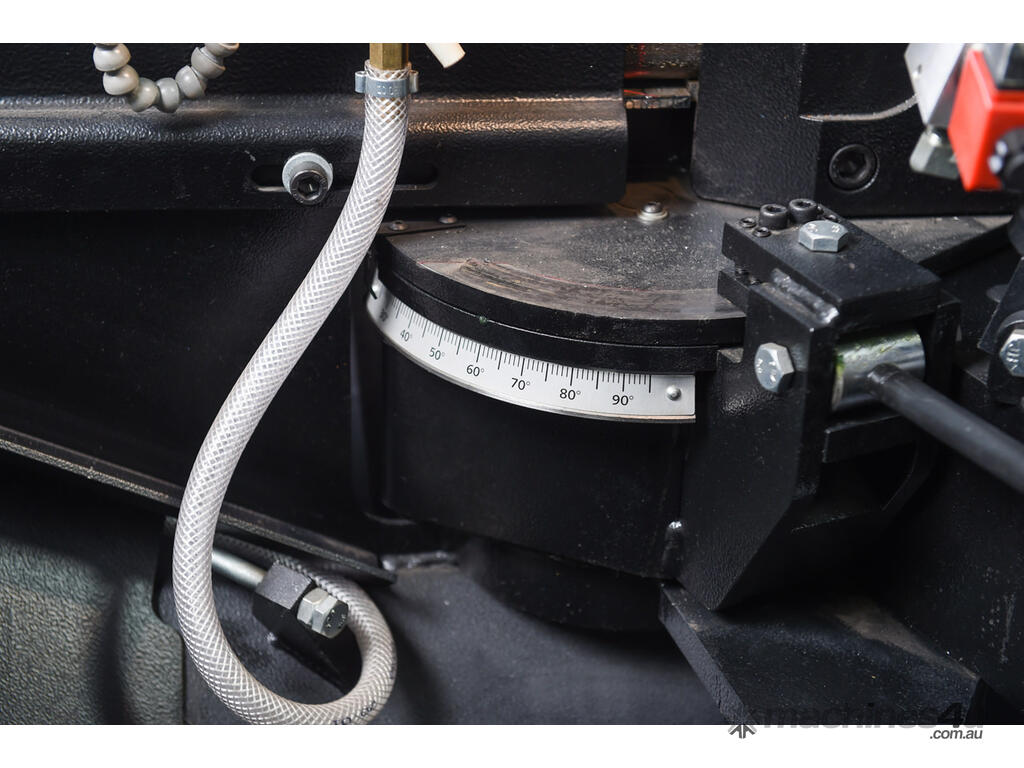

• Easy to read angle scale with angle locking mechanism

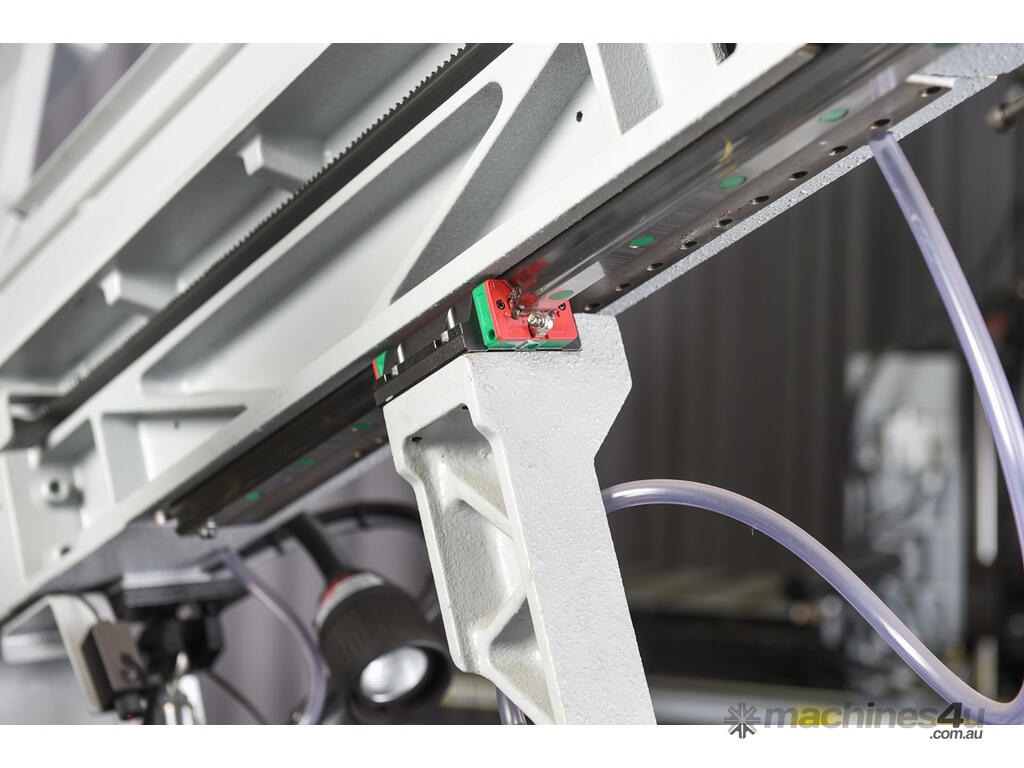

• Cast iron saw blade guide arm mounted on linear rails is adjustable for proper spacing.

• Easy access electrical panel

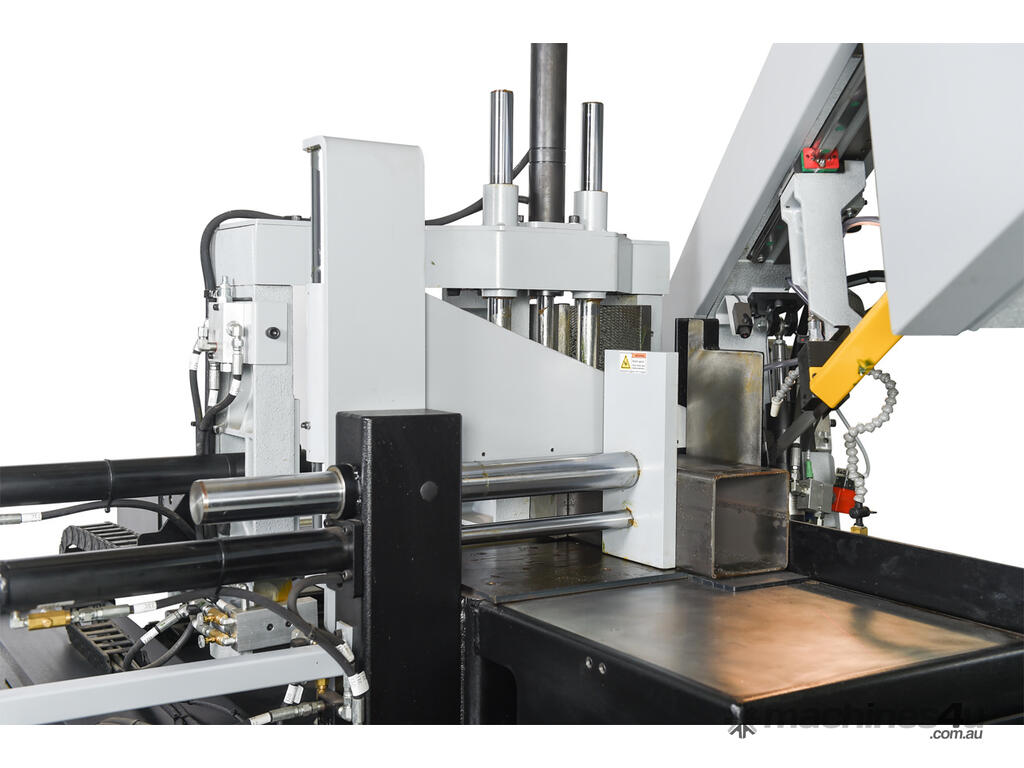

• Full capacity, full stroke hydraulic material vices

• Out of stock switch

• Mechanical band tensioning with digital readout

• Hydraulic positive down feed of sawing head

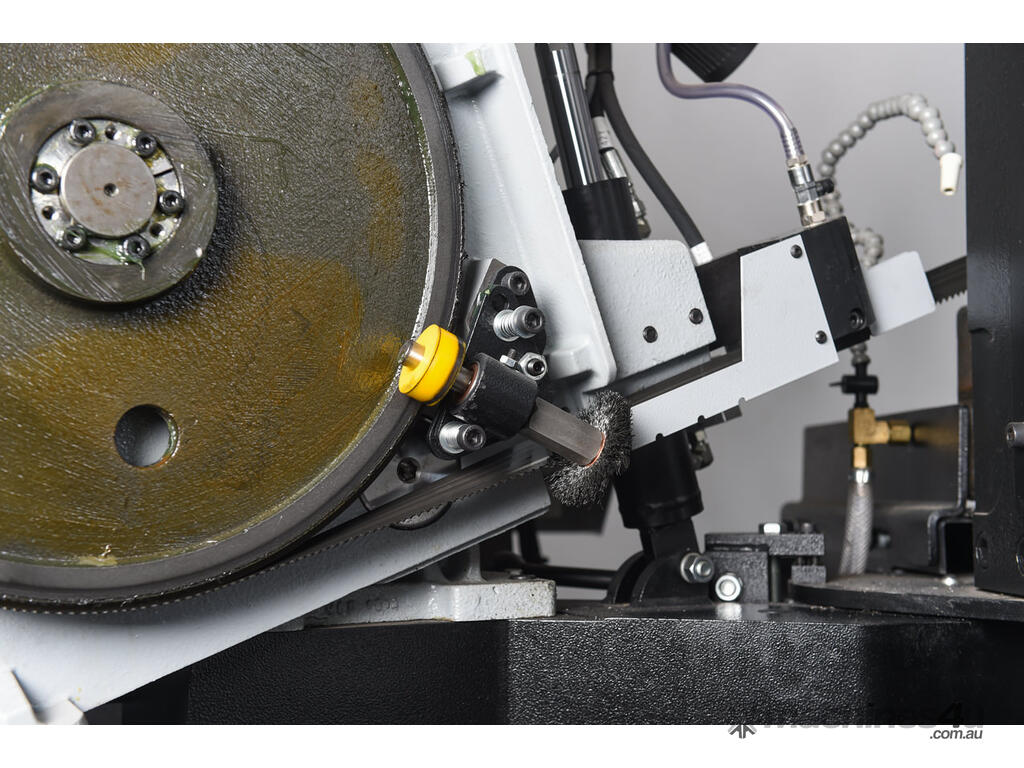

• Pre-set replaceable carbide guide inserts

• Safety door interlocks

• Flood coolant with wash down hose

• Laser light

• Work light

• Variable vice pressure


DOWNLOAD THE BROCHURE
