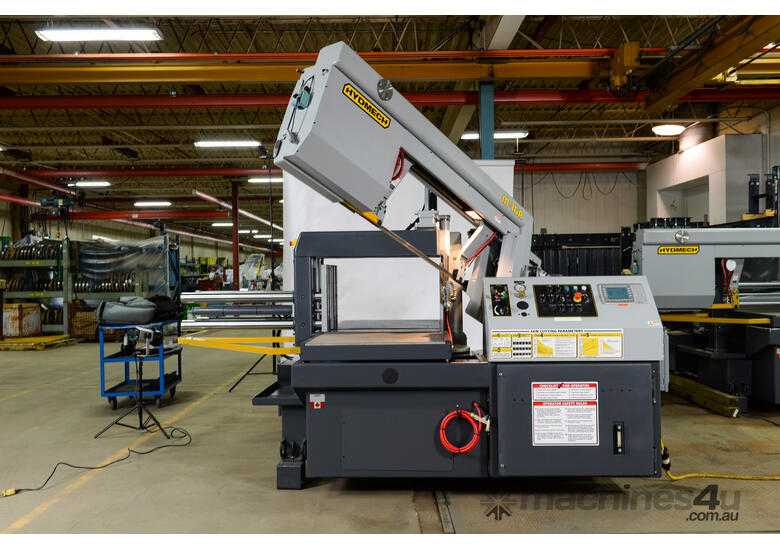

EXCEPTIONAL CUTTING PERFORMANCE - CNC Band Saw - HYDMECH M-16A Automatic Scissor Style - USA Made

American made Hydmech M-16A automatic scissor style band saw, with a capacity of 635 x 406mm, mitres from 90° to 60° and provides exceptional cutting performance on a wide range of material.

UNIQUE FEATURES

• Automatic programmable mitering with “go to” angle functionality

• Automatic multi-indexing up to 838 mm in a single stroke

• Full capacity, full stroking hydraulic vices

• Steel guide arms mounted on linear rails. Hydraulically powered idler side guide arm is adjustable for proper spacing.

• 5.5 kW VFD. True direct blade drive – no belts/pulleys

• Replaceable blade brush

• Robust steel base

• Hydraulic positive down feed

• Blade chamber separates material from cut part

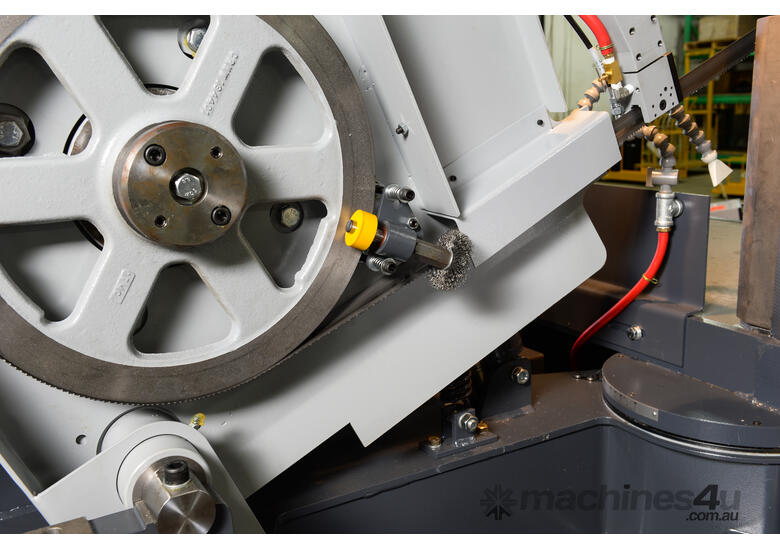

• Cast iron band wheels

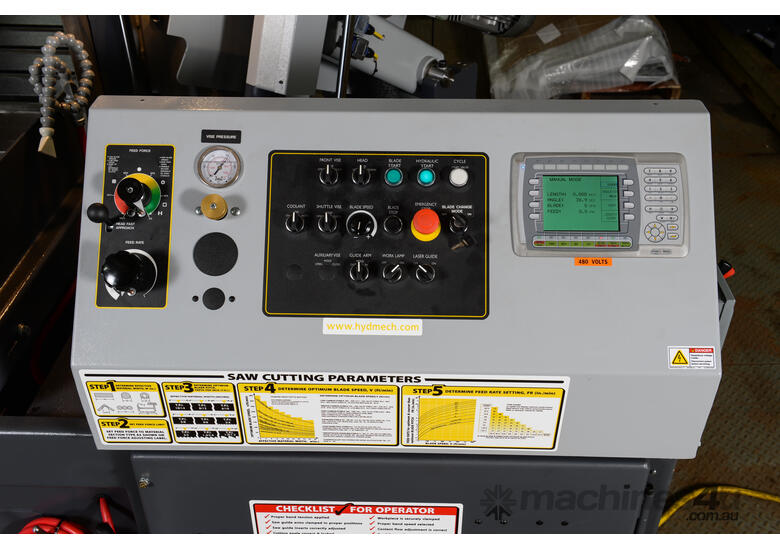

• 216mm Mitsubishi FX5U PLC color touch screen controller. No flipping from screen-to-screen, the control is interactive with messages for the operator that reduces the learning curve. User Friendly Graphical Icon programing for miter cutting, 1000 jobs, 20 jobs in queue

• Automatic chip removal auger

• Blade breakage switch

• Hardened replaceable wear plates on material vises

• Hydraulic band tensioning

• Hydraulic carbide guide tensioning

• Safety door interlocks

• Flood coolant with wash down hose

• Laser light

• Work light

• Out of stock switch

• Variable vice pressure

• Easy access electrical panel and hydraulics
