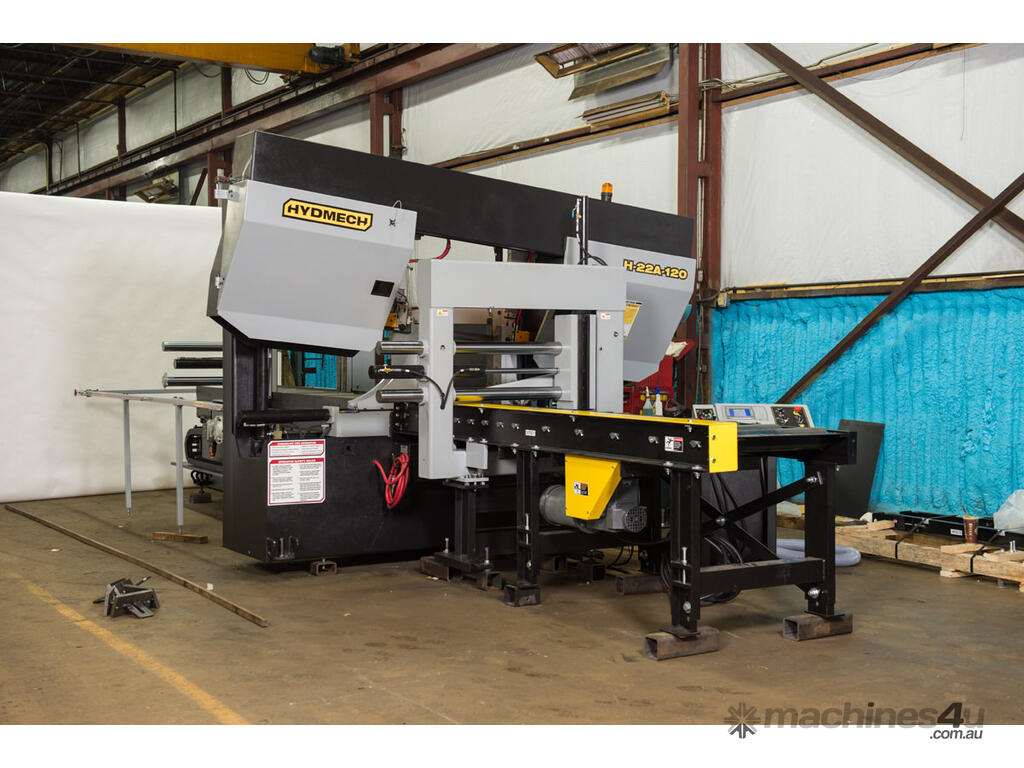

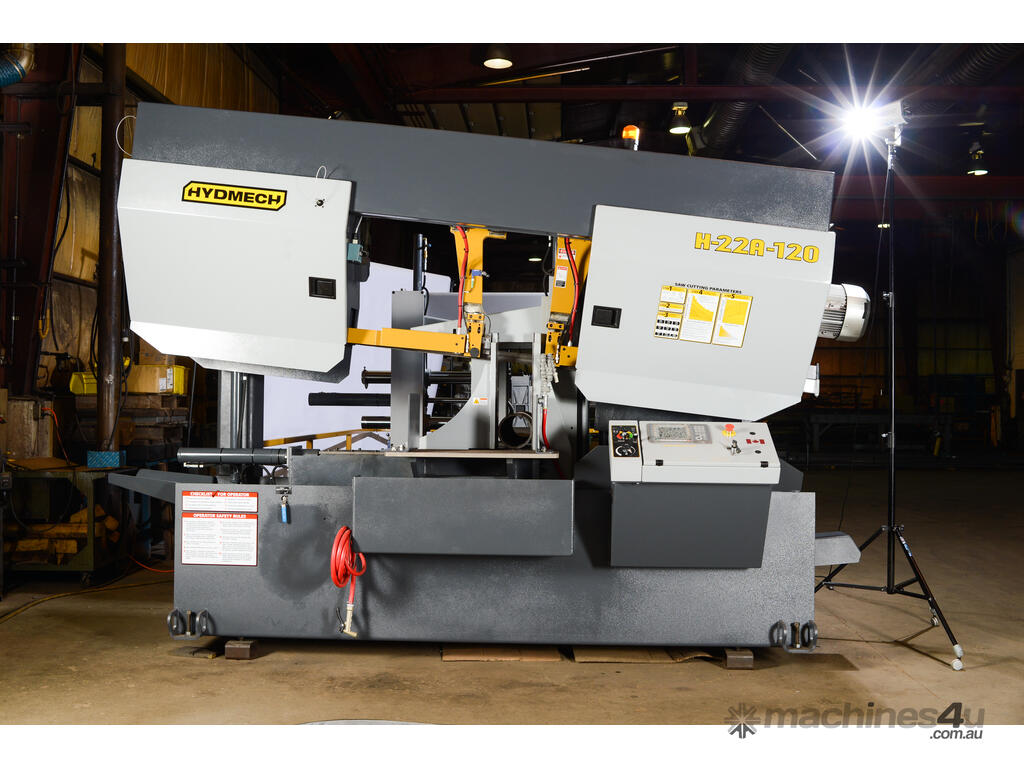

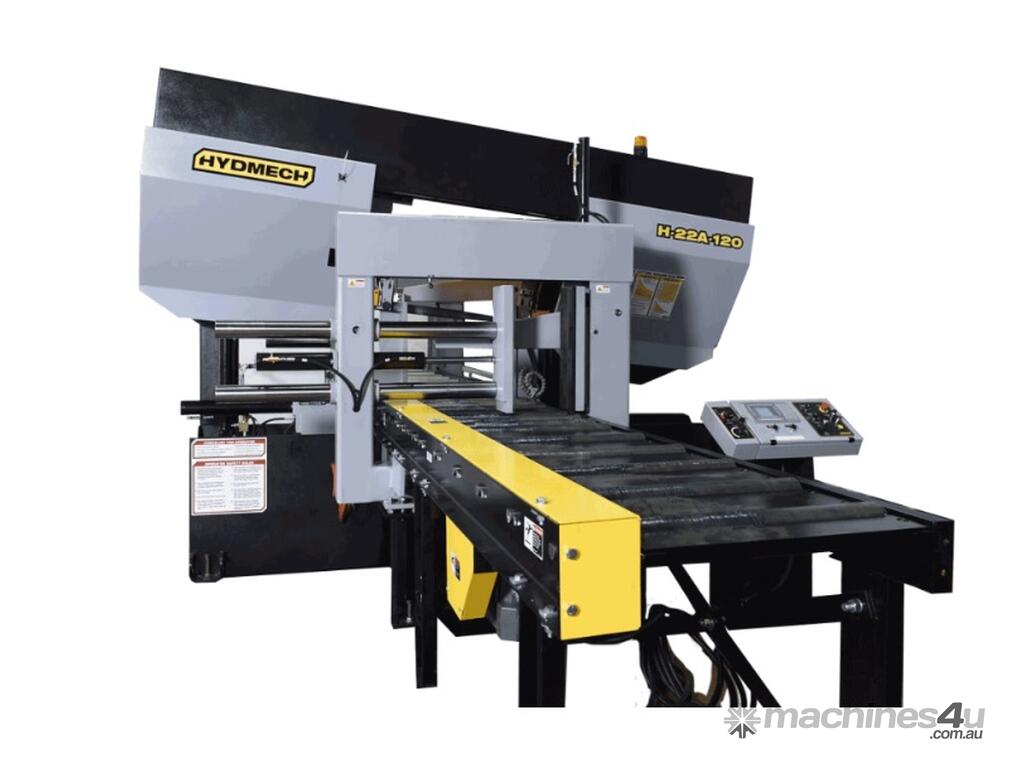

EXCEPTIONAL CUTTING PERFORMANCE - Hydmech H22A-120 Dual Column Horizontal Bandsaw

Capacity: 508 x 558mm. The H-22A-120 is a heavy-duty, automatic, horizontal long bar feed band saw designed to provide exceptional cutting performance in multi-shift, high-production environments.

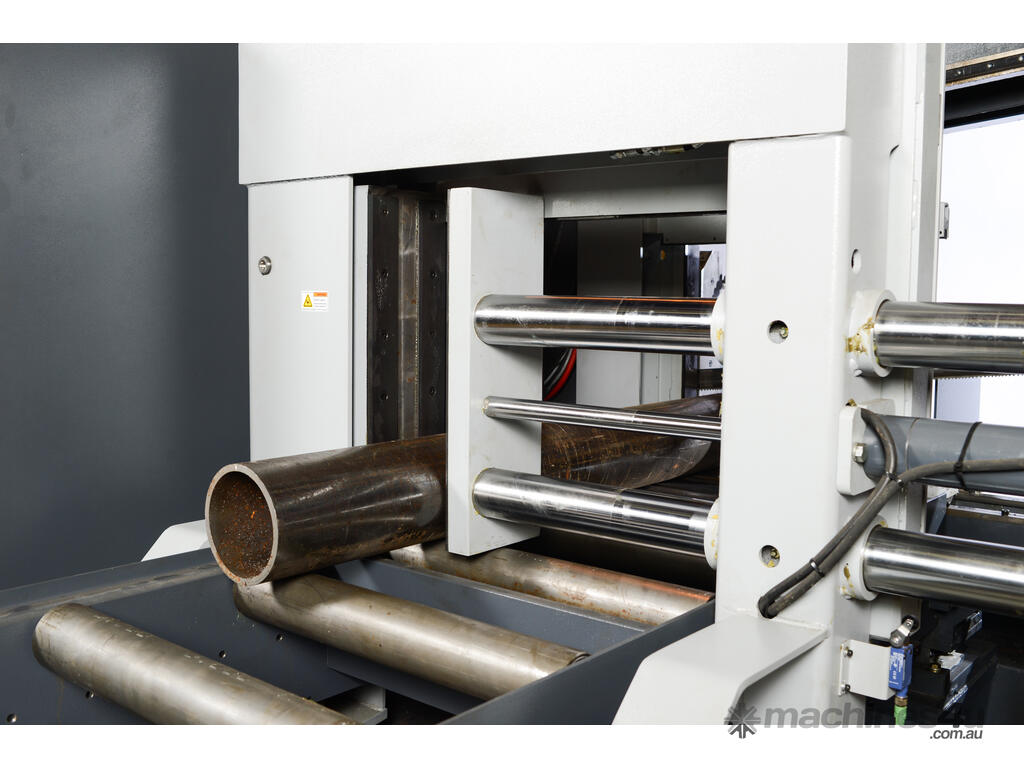

• Spilt front vice

• Full capacity hydraulic overhead bundling

• 3 m bar feed

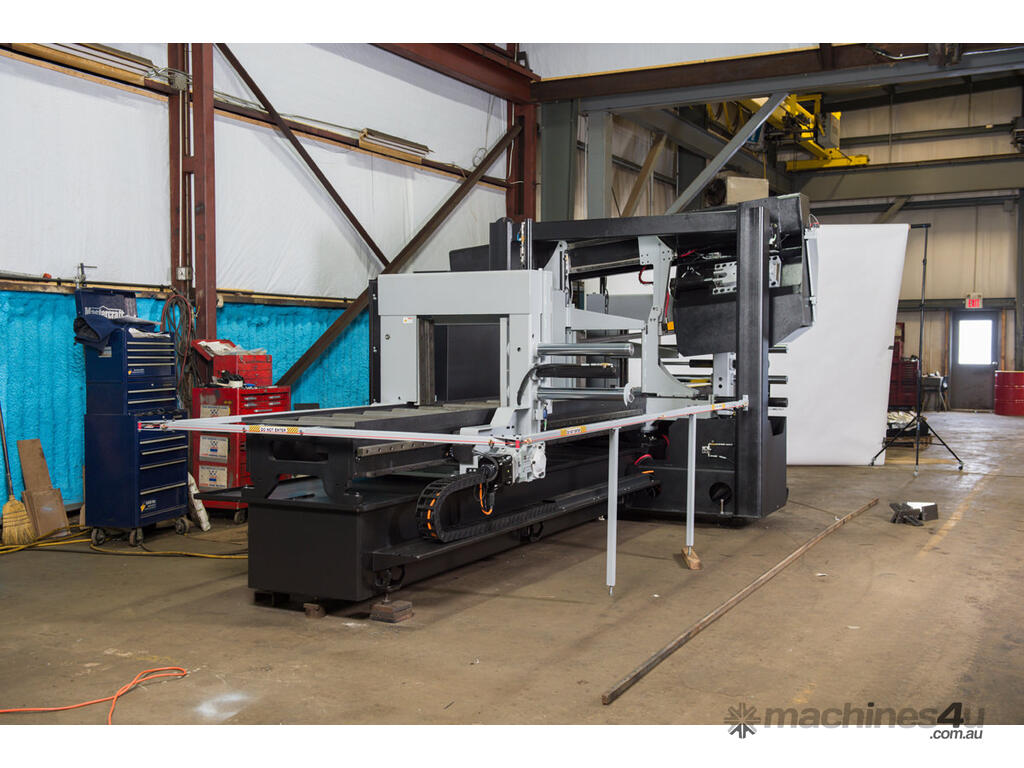

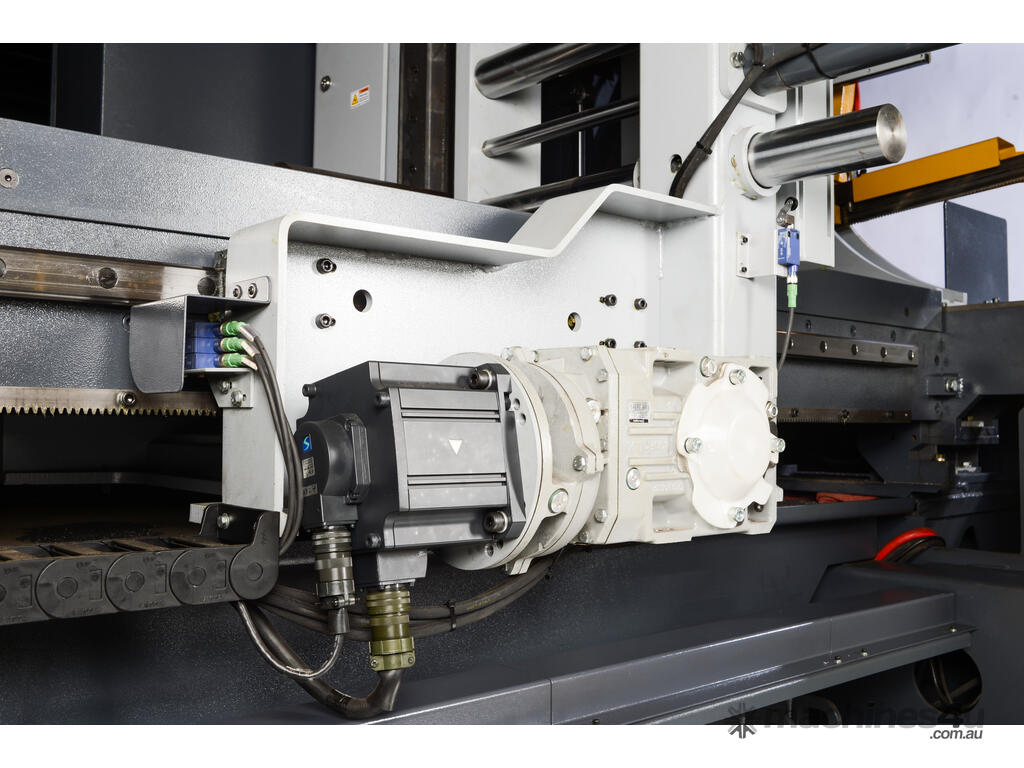

• Shuttle features automatic multi-indexing up to 3048 mm in a single stroke with automatic kerf compensation. Powered by a rack and pinion servo drive.

• Steel guide arms. The idler side guide arm is mechanically connected to the front vice moveable jaw for proper guide arm spacing.

• 7.5 kW VFD. True direct blade drive – no belts/pulleys

• Full capacity, full stroking hydraulic vices

Hydraulic-positive down feed

• High-resolution feed rate valve allows for constant feed rate when cutting special alloys

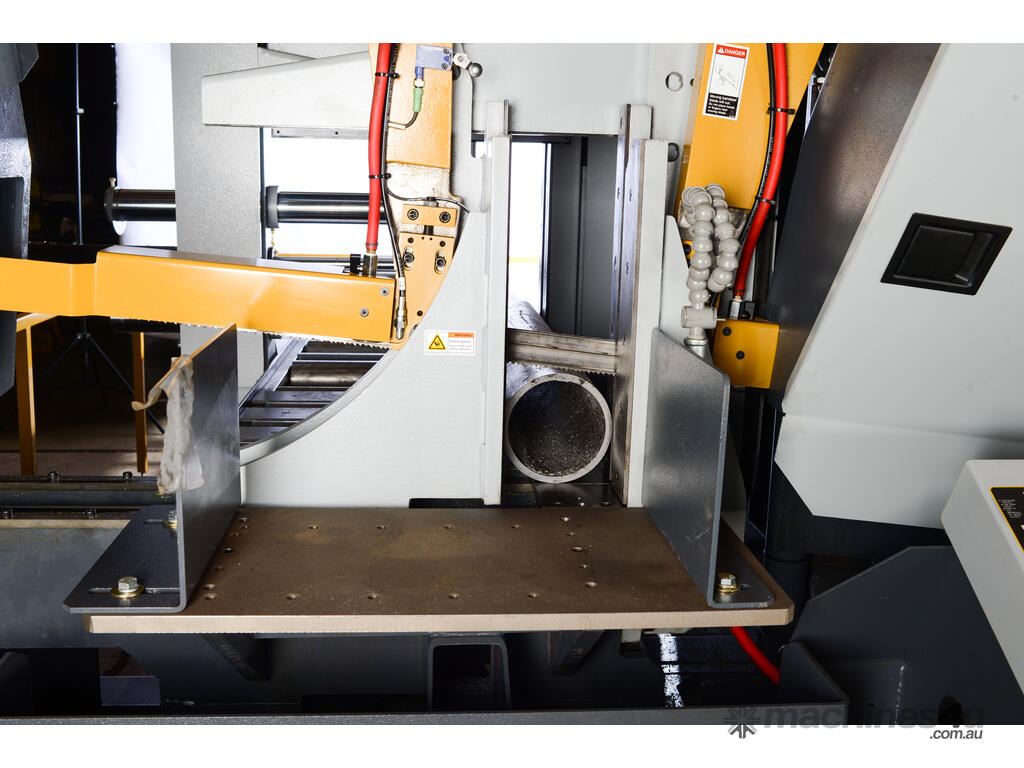

• Blade chamber separates material from the cut part

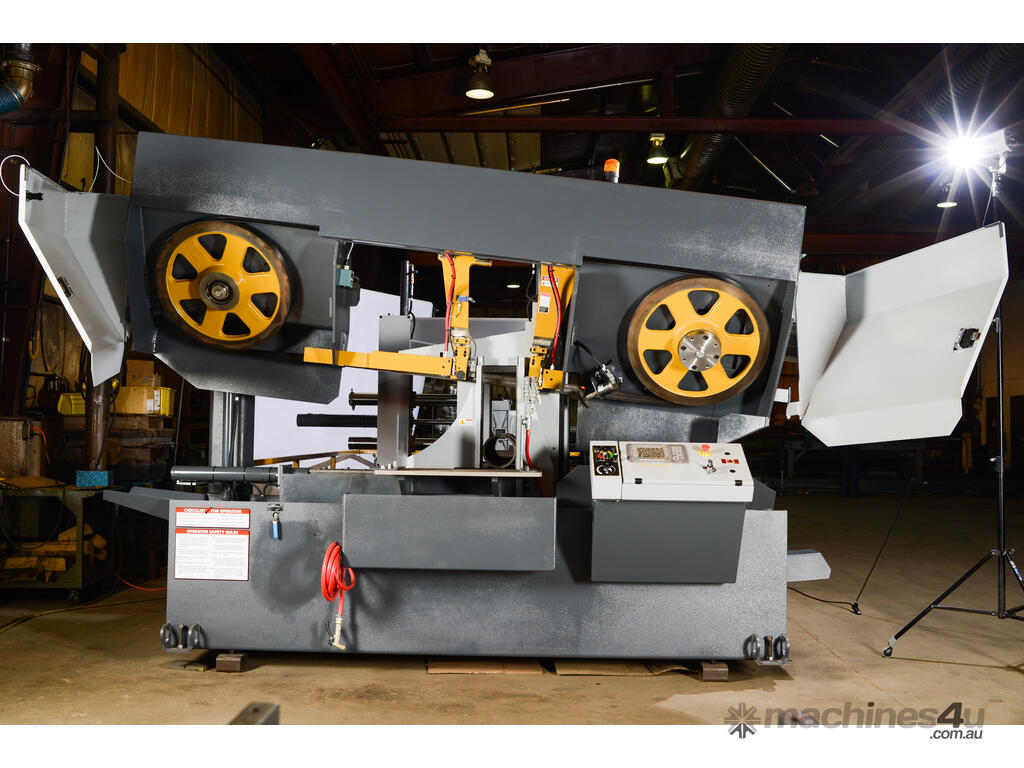

• Cast iron band wheels

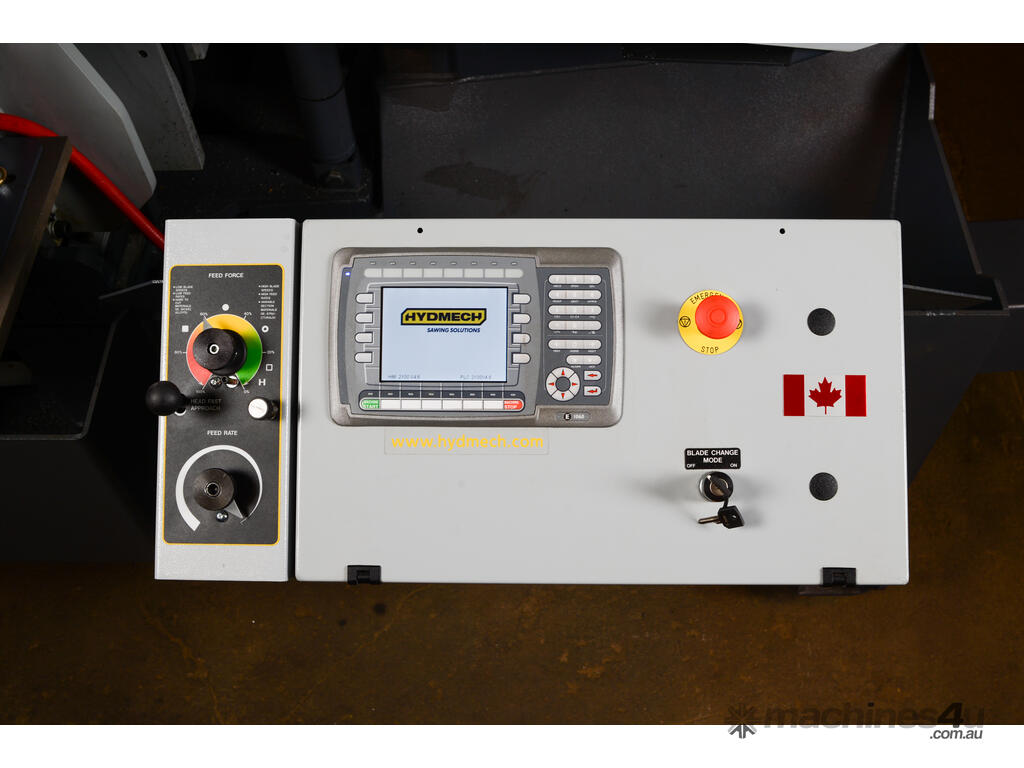

• 178 mm Mitsubishi FX5U PLC color touchscreen controller.
No flipping from screen to screen, the control is interactive with messages for the operator reduces the learning curve. Programmable head up position, Built-in machine diagnostics on the display screen, Simple Software updates, 999 jobs, ten jobs in the queue.

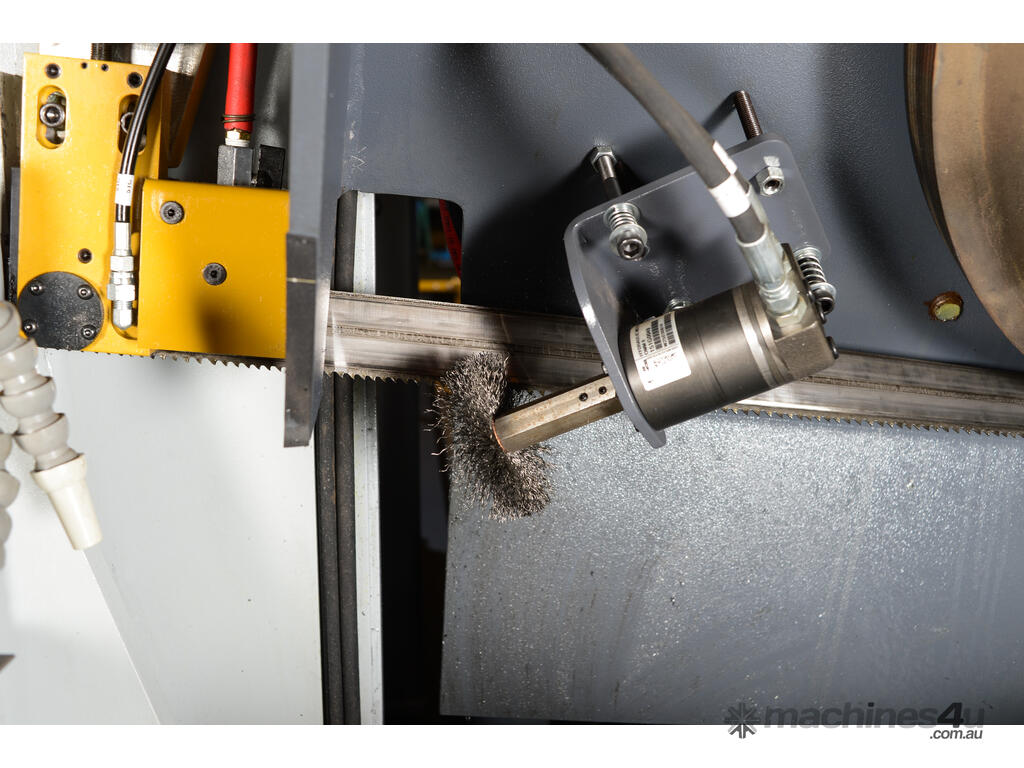

• Replaceable blade brush

• Robust steel base

• Automatic chip removal auger

• Easy access to electrical panel and hydraulics

• Blade breakage switch

• Hydraulic band tensioning with digital readout

• Hydraulic carbide guide tensioning

• Hardened, replaceable wear plates

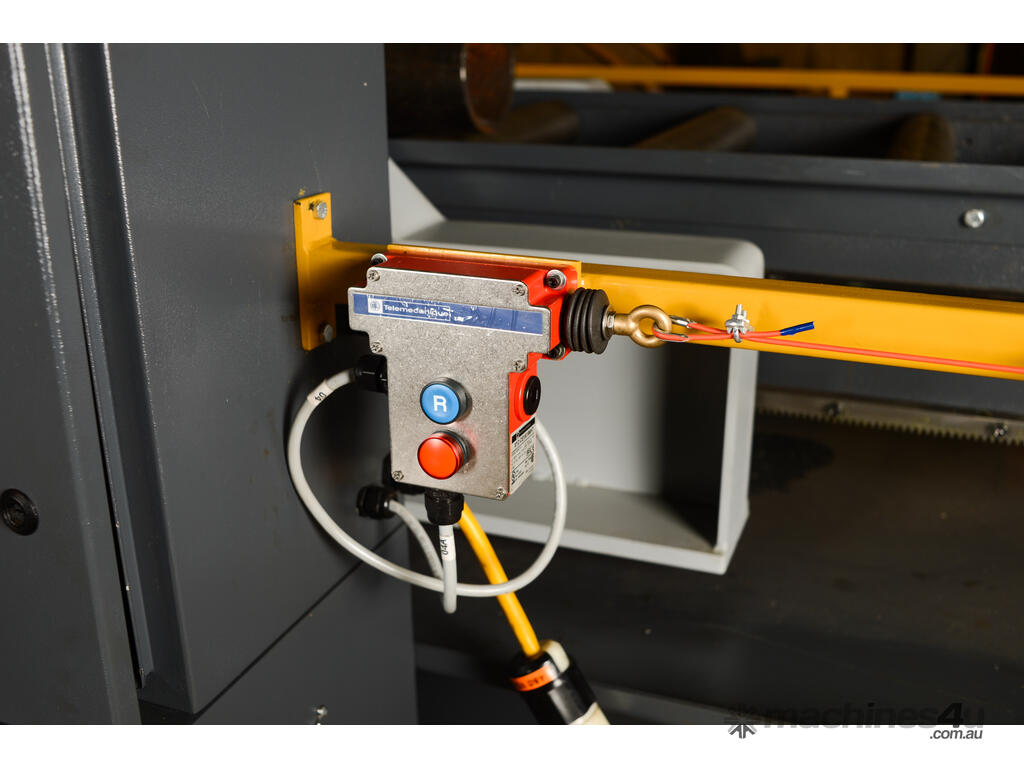

• Safety door interlocks

• Flood coolant with a wash-down hose

• Work light

• Laser light

• Variable vice pressure

• Out of stock switch
