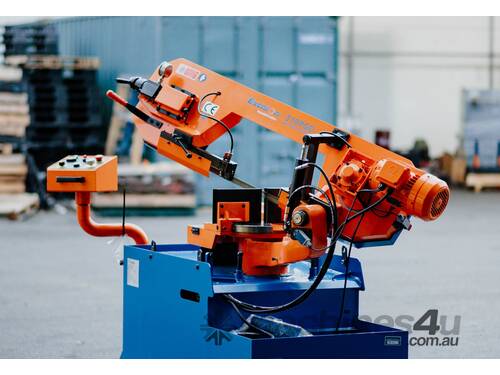

EXCISION 310 - PGD BANDSAW MACHINE 415V DOUBLE MITRE

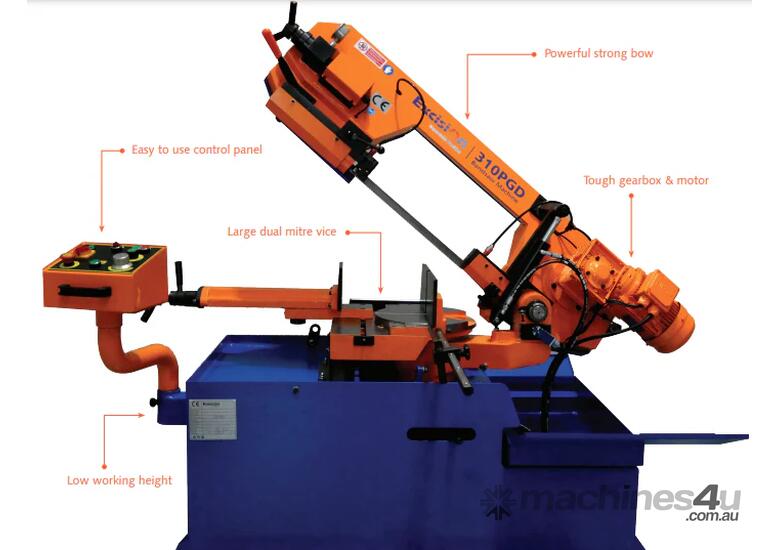

This bandsaw has been designed for rugged and tough conditions of a fabrication and engineering workshop.

Benefits:
- Control Panel – easy to reach and easy to control
- Coolant Pump - fitted with a removable coolant tank incorporating a submerged electric coolant pump which supplies coolant to both carbide guide assemblies
- Powerful motor with variable speed 20-90 m/min

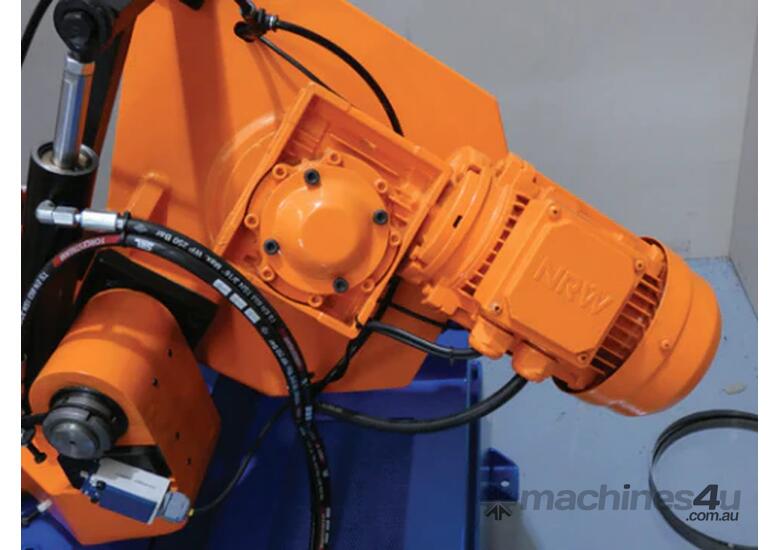

- Heavy Duty direct dive gearbox – built tough – can cut all day non-stop
- Blade guides with rollers and carbide pads provide precise support for the blade guarantee longer blade life.
- Variable speed – giving you a clean and fast cut for all materials, from aluminium to stainless steel to induction harden chrome bar
- Blade brush to keep the blade clean from swarf
- Low working height - only 730mm
- Height adjustment switch to save you time when cutting smaller jobs

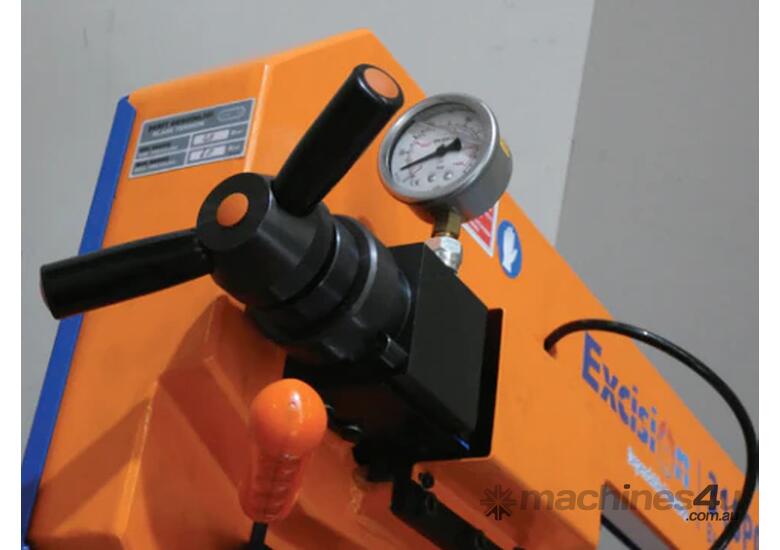

- Hydromechanic Blade Tension – gives you the correct amount of blade tension, critical for straight cuts and longer blade life
- Material Limit Shaft – machines stops once the cut is completed
- Automatic blade break protection
- Constructed in heavy gauge steel, giving you a strong rigid saw frame, providing a high degree of accuracy when cutting.

Technical Specification:
- Motor - 1.5kW (415v - 3phase)
- Blade Speed - 25 - 90 m/min (variable)
- Blade Dimensions - 3150 x 27 x 0.9 mm
- Machine Weight - 480kg
- Machine Dimensions - 750 x 1650 x 1150 mm
- Table Height - 730 mm

Need more information about this product? Reach out to the expert team at Excision now!
