EZ MACHINERY COMPACTING BAGGING MACHINE

The semi automated compaction range of baggers is designed to service industries
with the specific requirement to compact products into bags.
A robust design ensures continued bagging and the touch screen control make it easy
for operators to program the unit. The unit has been designed to suit a range of commercial
feed mixes, grains, organic material, wool, fibres and much more.

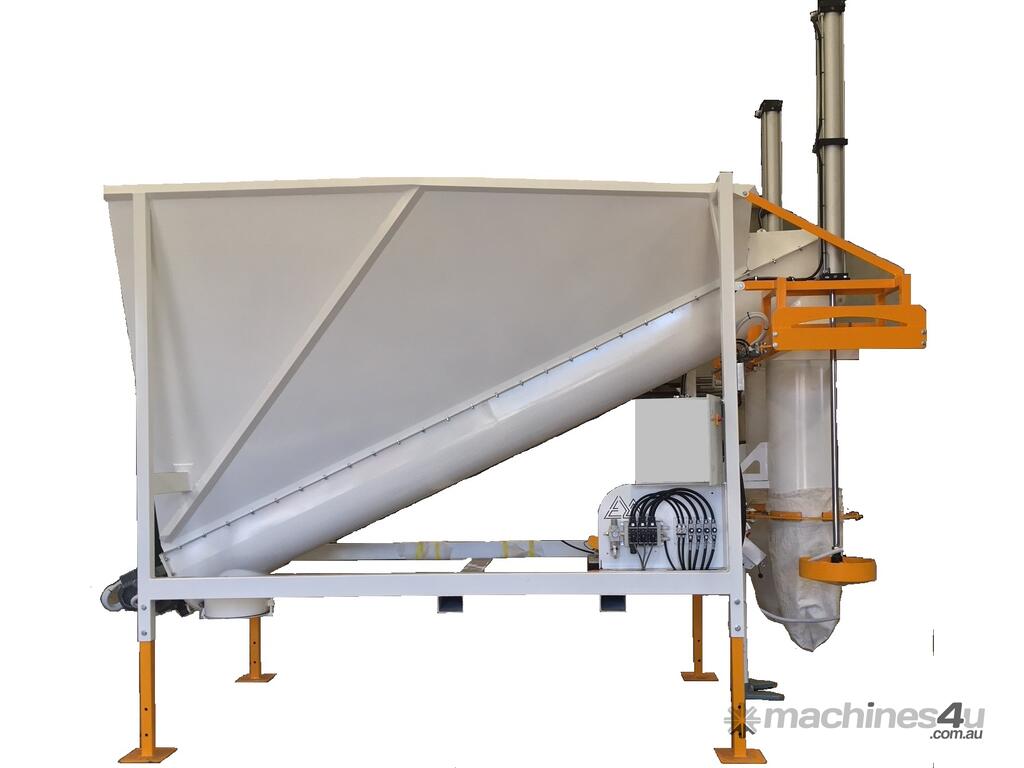

The standard bagger comes in a 5m3 hopper and is capable of up to 180 bags an

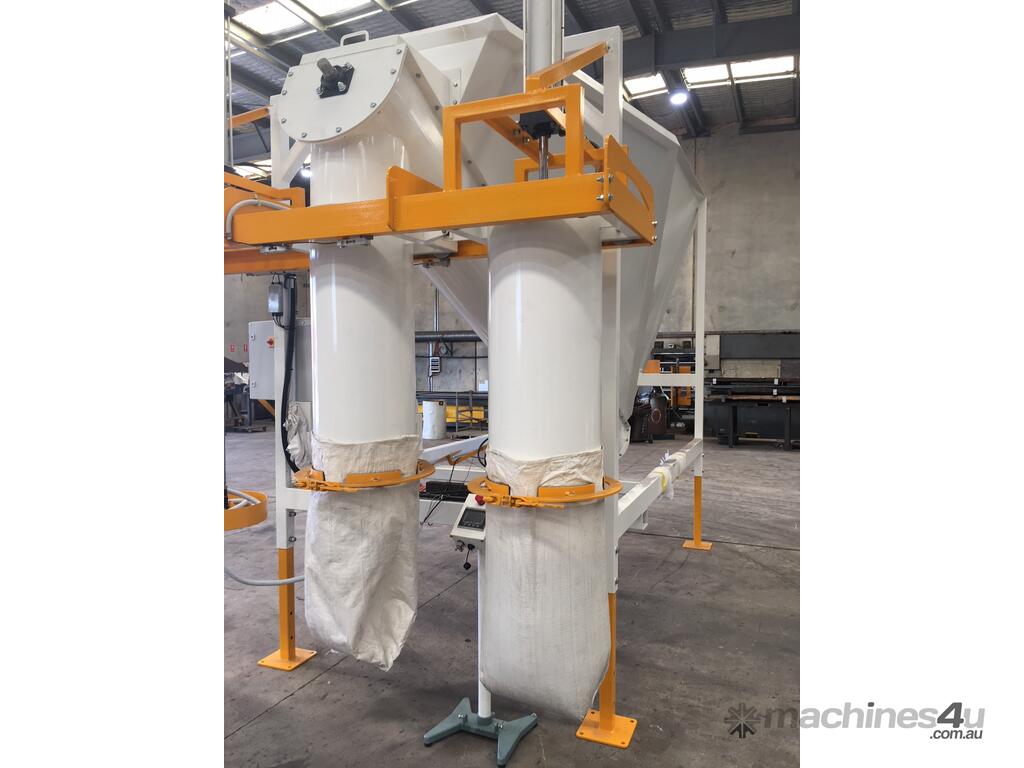

hour. The dual bag system ensures that down time is minimal in between bag changes.

The bag kicker can be set up to suit your bag height and aids in settling of the product into the bag.

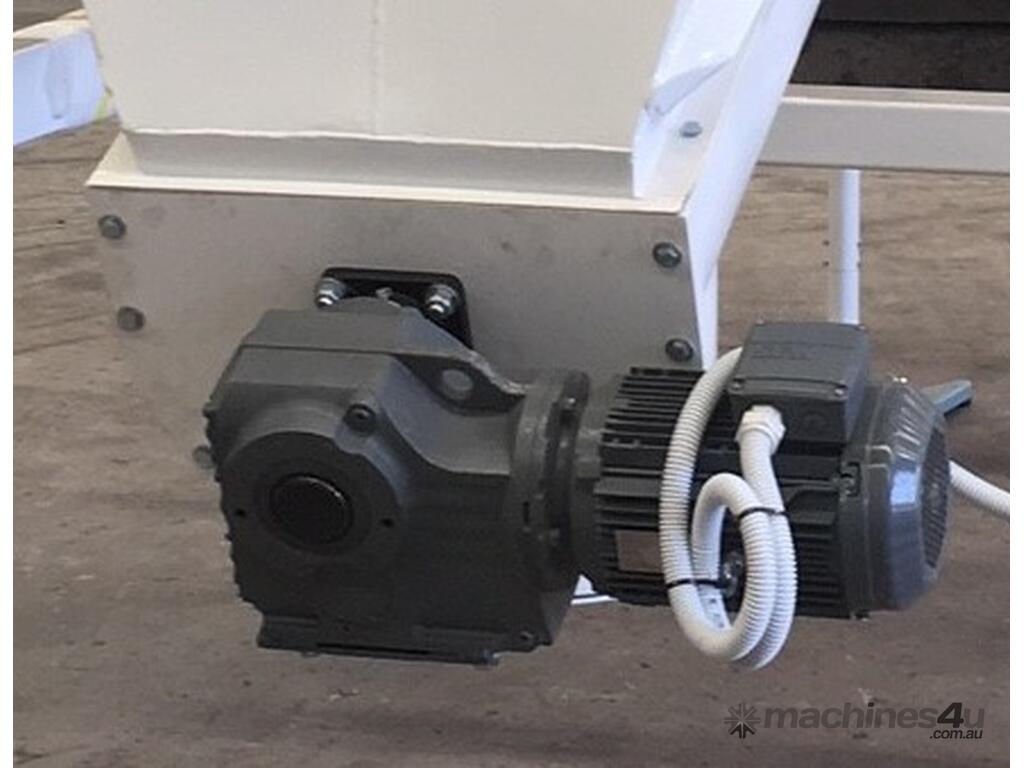

The powerful direct drive gearbox can be supplied in single or 3 phase.

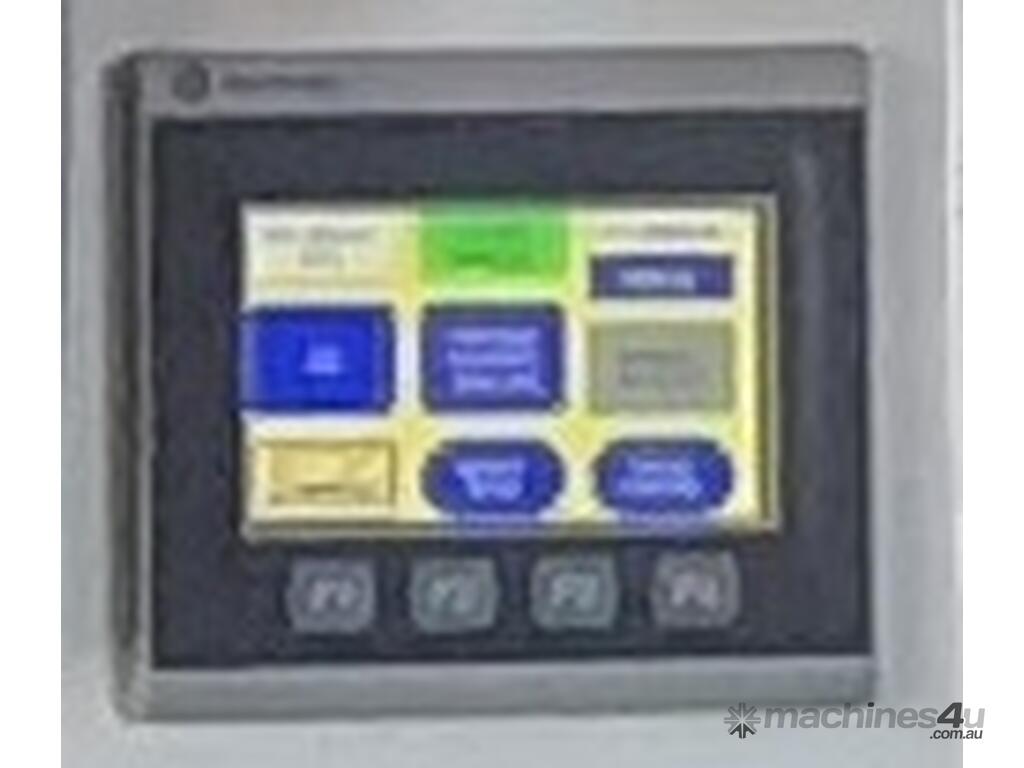

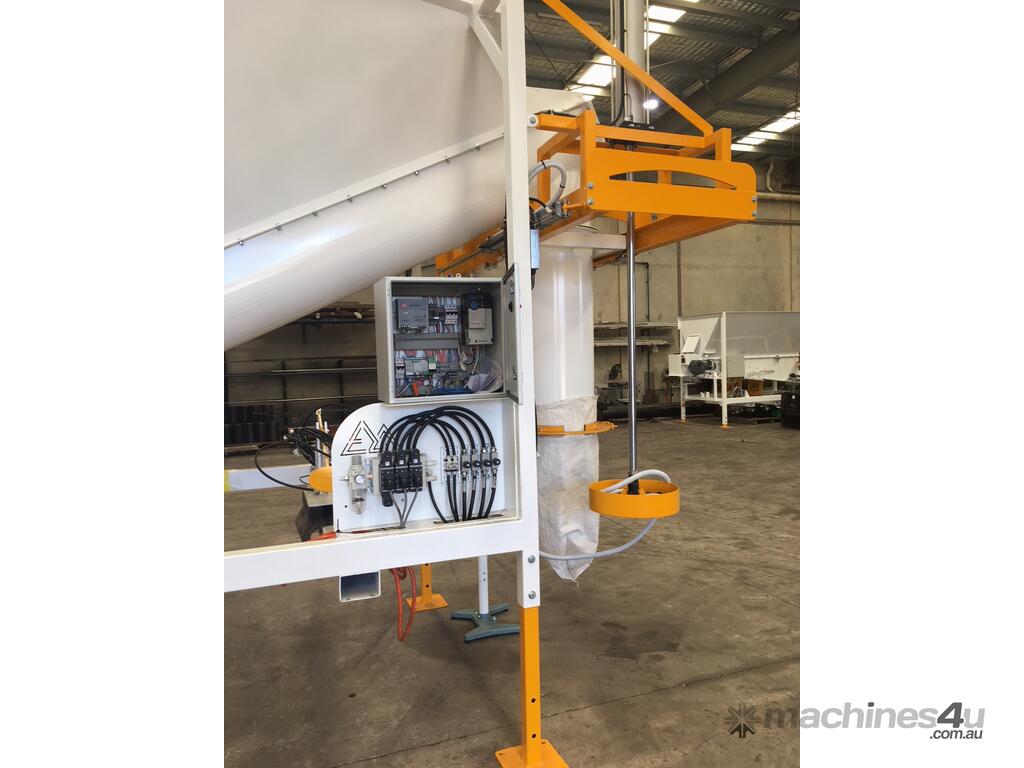

A pedestal mounted touch screen is positioned next to the operator for simplicity. Accuracy of fill is
achieved by load cells positioned on the travers carriage.
The rear discharge chute enables the unit to be cleaned with ease. The reversible screw drives the left over product from the cleanout chute.

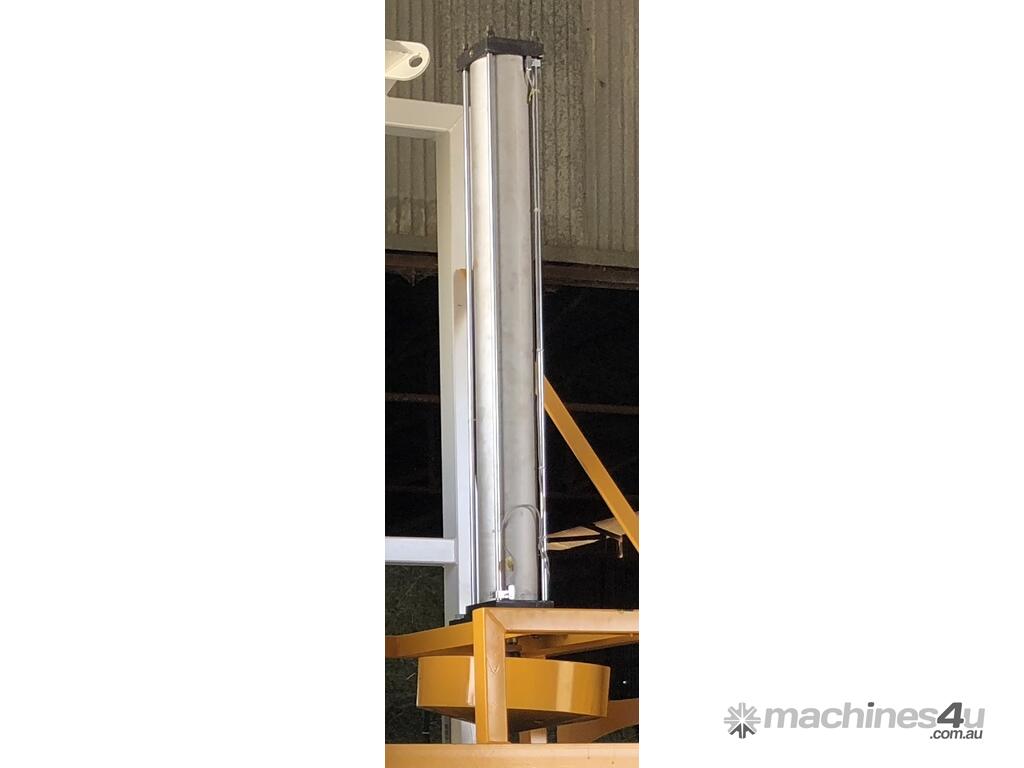

Powerful compaction Rams ensure the bags are packed firm.

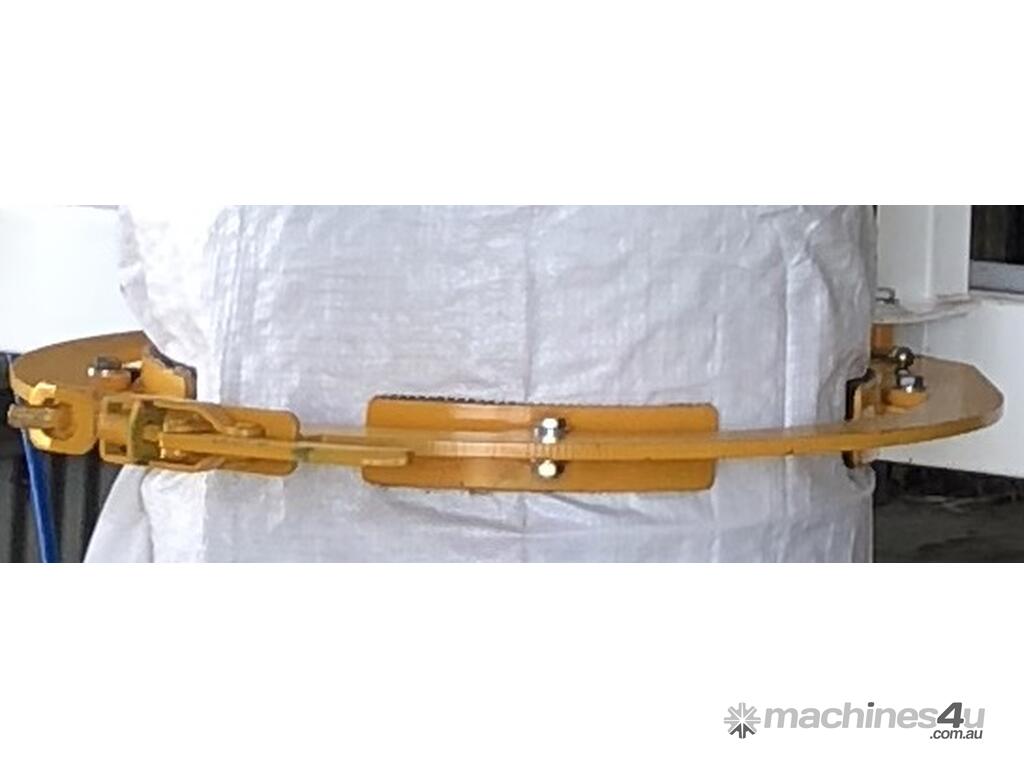

A simple clamping device operates manually on both sides of the chute. The clamps make sure the
bag stays in place during filling.
Each corner of the compaction bagger has adjustable legs fitted to enable ergonomic height control
for the operator

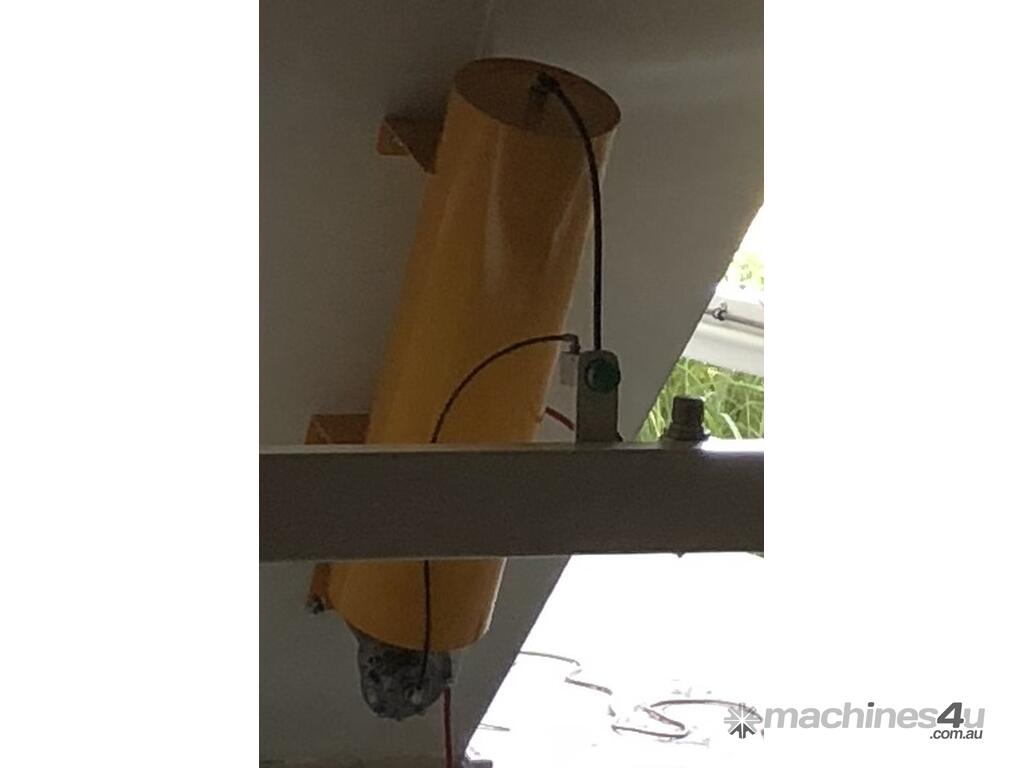

Optional: Air Cannon eliminates hopper bridging
