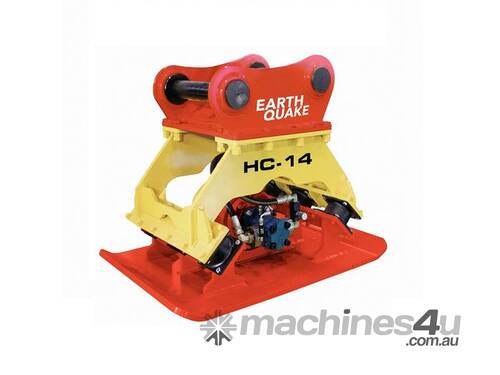

EQ HC-14
Patented cushion elastomers for maximum protection of the excavator and operator from vibration.
Highly effective in narrow ditches.
High quality hydraulic motor.
Perfect for road construction, building foundations and slope compacting.
Specifications
Suits Excavators 10-18 ton
Weight (without top bracket) 355kg
Max. vibrating force 6.55 ton
Max. oil flow 154 lpm
Rated oil flow 100-140 lpm
Operating Pressure 140-210 bar
Max. vibration per minute 2,200 vpm
Baseplate size 600x1,100 mm
