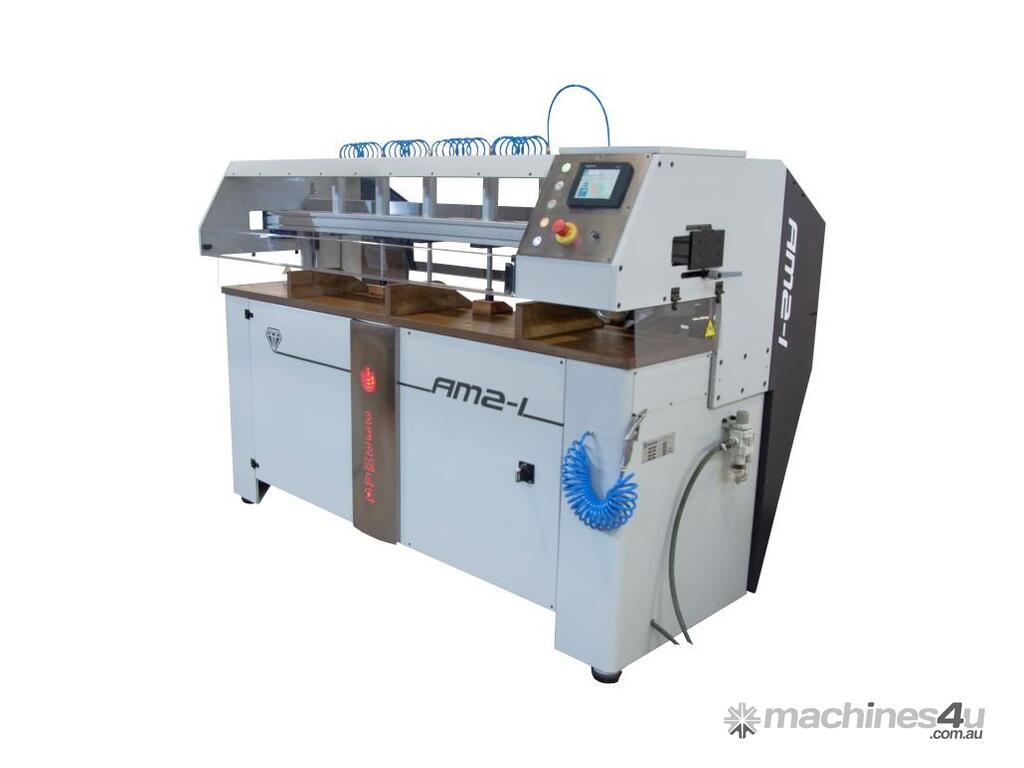

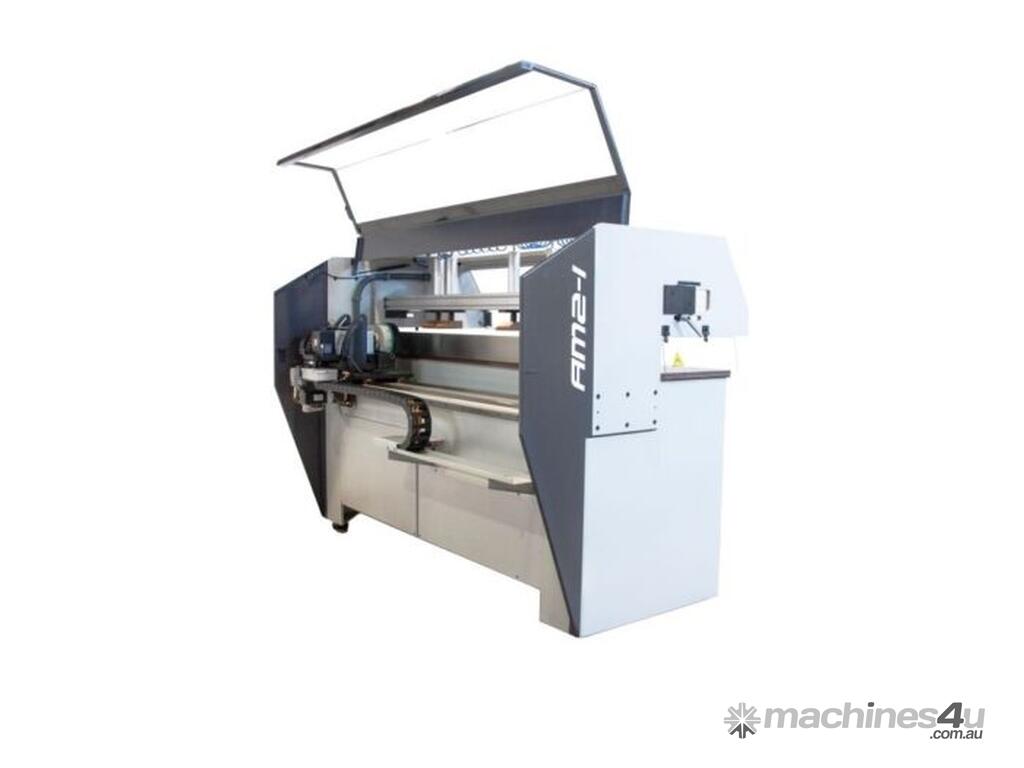

Edge Polishing Machine AM2-I

The edge polishing machine AM2-i is an efficient and versatile tool, capable of performing multiple tasks by mixing automatic and manual functions. This machine for processing plastics and acrylic (PMMA) stands out for its flexibility of use and its economical price. It can be used to polish the acrylic edges completely straight or in bevels up to +45 °C.

As with all our polishing machines, and thanks to BERMAQ® diamond tools, the acrylic polisher AM2-i guarantees an unbeatable finish. Glossy, smooth and clear edges give every piece an extra touch of appearance and quality. Machine with an excellent quality-price relation.

Technical specifications
Useful length: 1400 mm
Maximum thickness of the piece: 120 mm
Milling motor speed: 5000 rpm – 6600 rpm
Feed motor speed: 500 mm/min – 12.000 mm/min
Min/max machining angle: -2º / +45º ami-c
Clamps: five (5) units
Outer machine dimensions: 2200 x 1200 x 1500 mm
Power supply: 230 VAC 3Ph 380 VAC 3Ph+N 50 / 6O Hz
Tools included::
EIMQ-131003-LA: for clear finish (red)
EIMQ-131001-LA: precutter tool (black)
