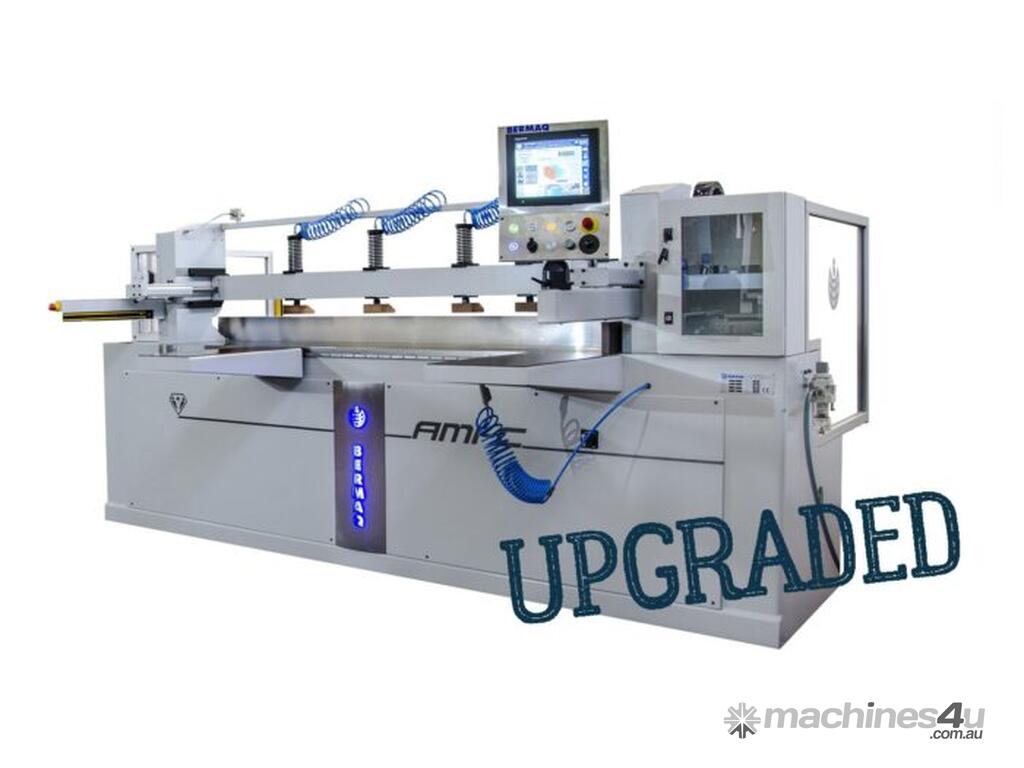

Edge Polishing Machine AMI-C

The AMI-C edge polishing machine is advanced of its time. It has combined state-of-the-art technological content with extraordinary flexibility and outstanding usability. The extensive experience of BERMAQ® has allowed developing multiple functionalities for this CNC polishing machine focused on satisfying the world of acrylic and plastic polishing, achieving faster, more precise, and versatile processes and, above all, with excellent quality results.

Thanks to the most recent update of the AMI-C in 2020, new operations are incorporated to improve the user experience with the edge polisher, offering more polishing functionalities and allowing obtaining the superior finishes characteristic of our diamond tools.

Technical specifications
Working length: 2100 or 3100 mm
Maximum thickness: 120 mm
Maximum depth: 4 mm
RPM milling: 6600 / 12000 rpm
Milling speed: 0 – 5 m / min
Load speed: 0 – 20 m / min
Air pressure: 6 bar
Suction diameter: 80 mm

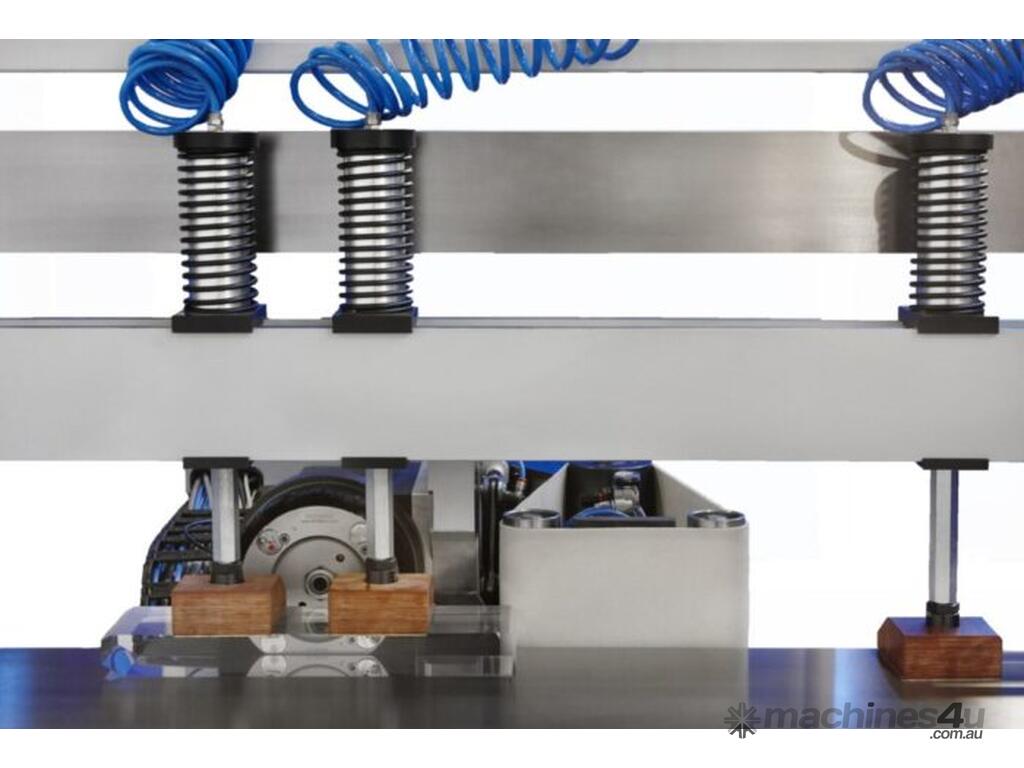

Number of clamps: std 5 / std 7 units
Weight: 1,950 / 2,150 kg
Milling angle range: from –5º to +60º
Installed power: 8,5 kW
Precision depth electronically adjustable: +/- 0,05 mm
High precision guide
Tool cabinet
Structural steel caucus stabilized
Fixed support table

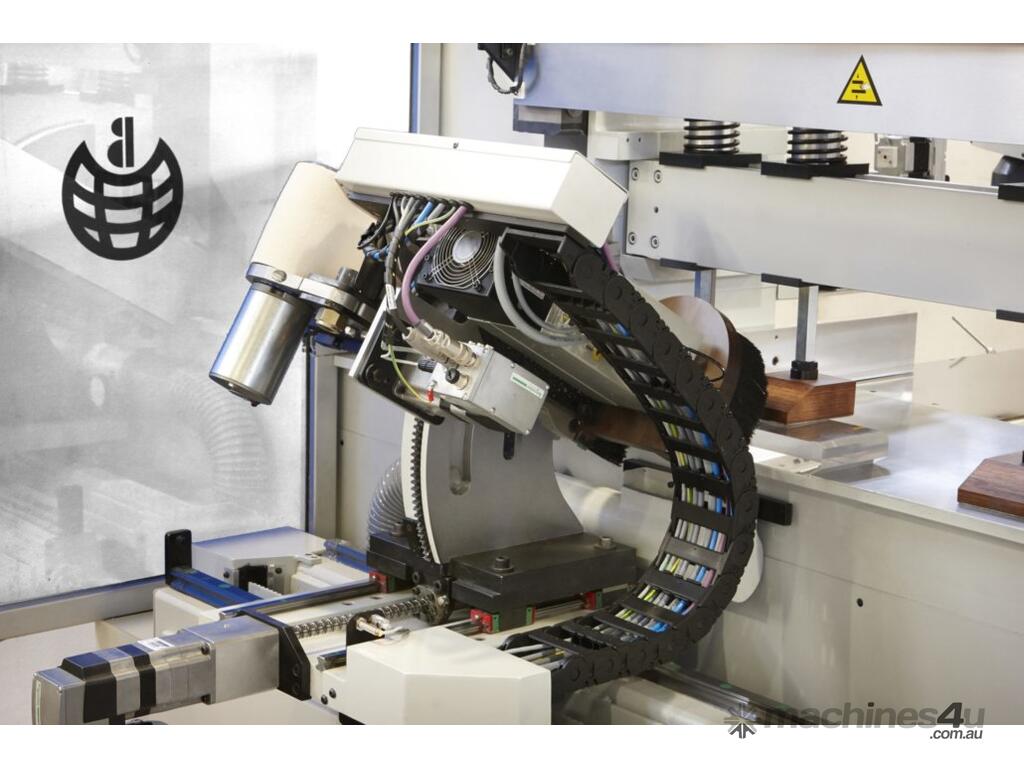

4-housing polishing disk of interchangeable tools
Black PCD tool for the pre-cutting pass
Red PCD tool for the transparent finishing
Counterweights for 4-housing polishing disk
Remote-controlled service: includes industrial router for maintenance and repair work
IMPROVEMENTS 2020 UPGRADE

Renewed screen appearance.
Round machining mode.
Possible only rag working mode.
Maintenance position + maintenance warning by hours.
Diagnosis screen of the machine’s motors (voltages, consume, temperatures…) in real-time and in graphic + PLC inputs/outputs + electric diagrams of inputs and outputs integrated to the HMI.
Calculation of machining time + process bar during the cycle.
Machining assistance screens integrated into the HMI.
