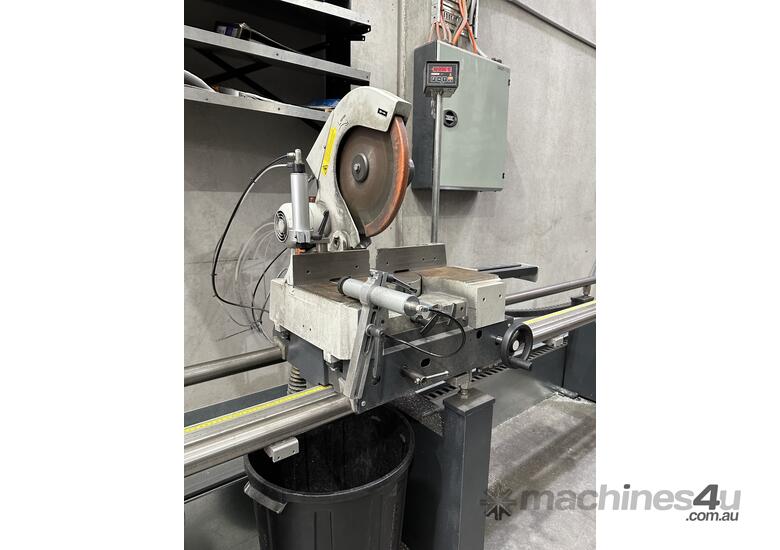

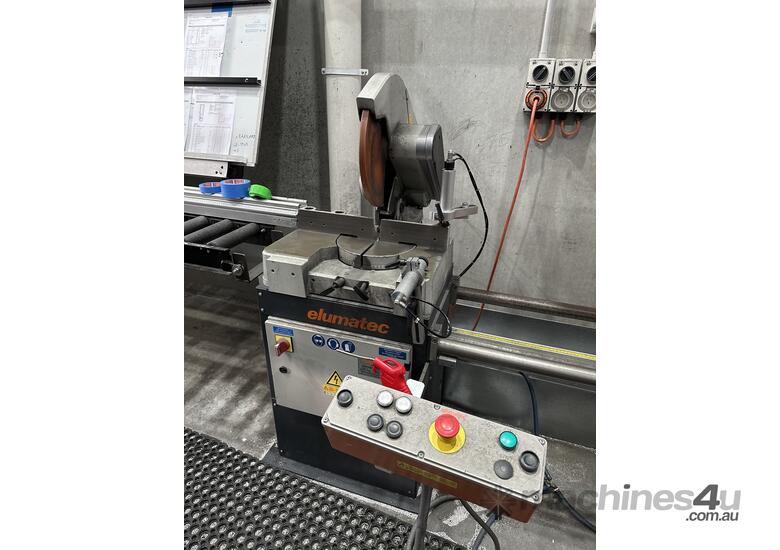

This saw is in great condition and has since been upgraded to an auto saw and now surplus to our needs.
Minimum cutting length at 90° 520 mm
Minimum cutting length pivoted at 45° 520 mm
Positive location points at 15°, 30°, and 45°
Pivoting range from 0° to 45° continuously adjustable
Hydro-pneumatic saw feed
For cutting range, see cutting diagram
Saw blade diameter 380 mm
Saw blade speed 2,800 rpm
Power supply 230/400 V, 3~, 50 Hz
Power output per motor 3 kW
Compressed air supply 7 bar

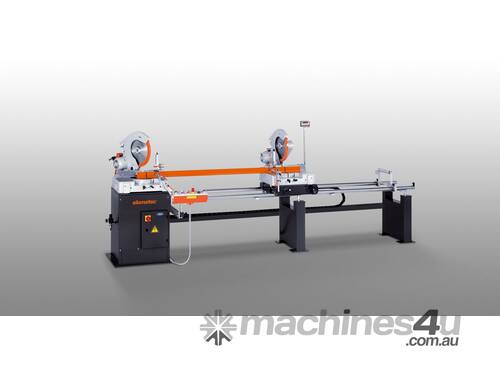

*Video attached is not of the actual saw but a new one for reference*
