Ergonomic 320.258DGH Bandsaw

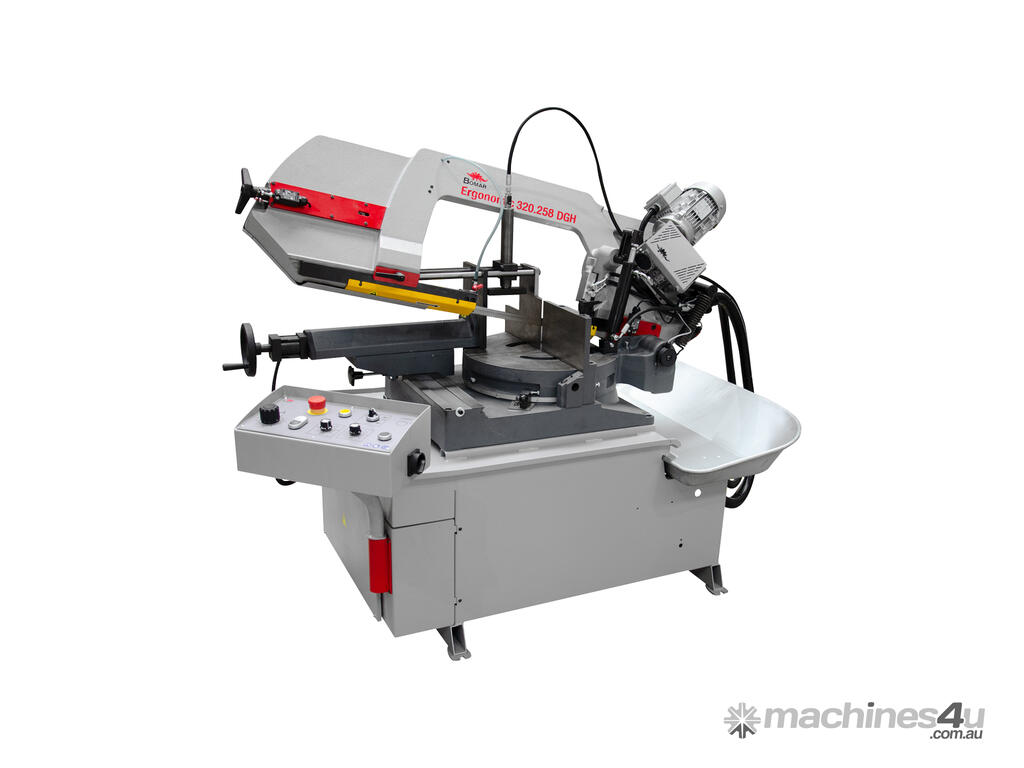

Bomar Ergonomic 320.258DGH is a semi-automatic band saw with a heavy saw frame of vibration-proof cast alloy, with a powerful industrial engine and a spiral gearing running in an oil bath,

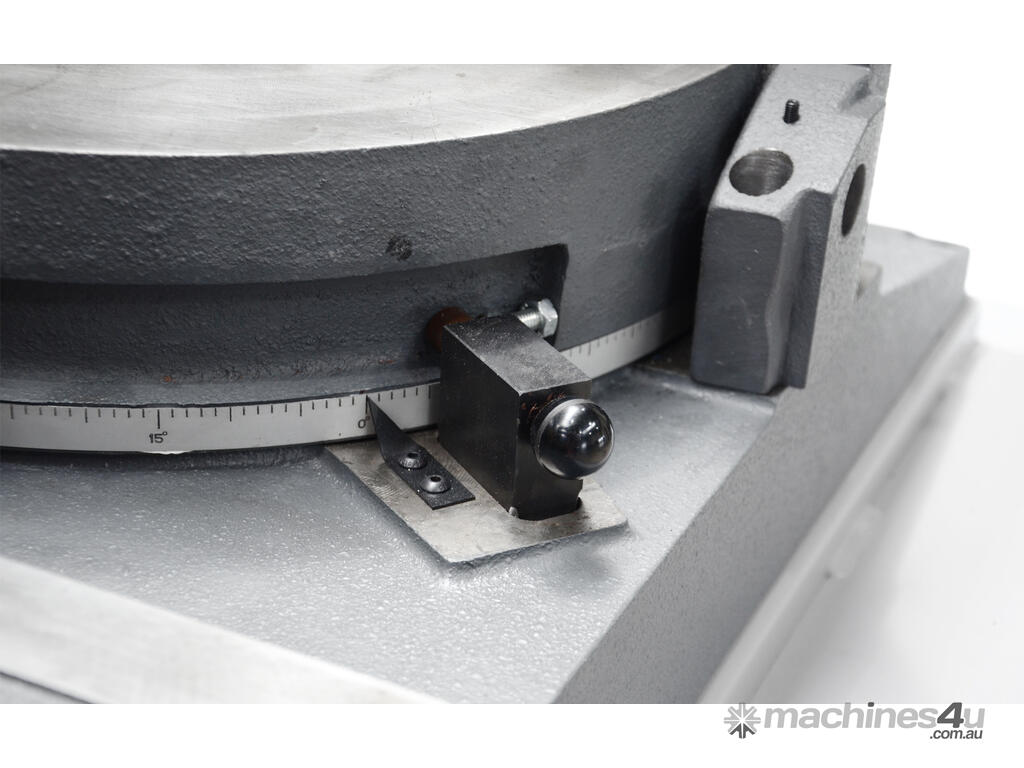

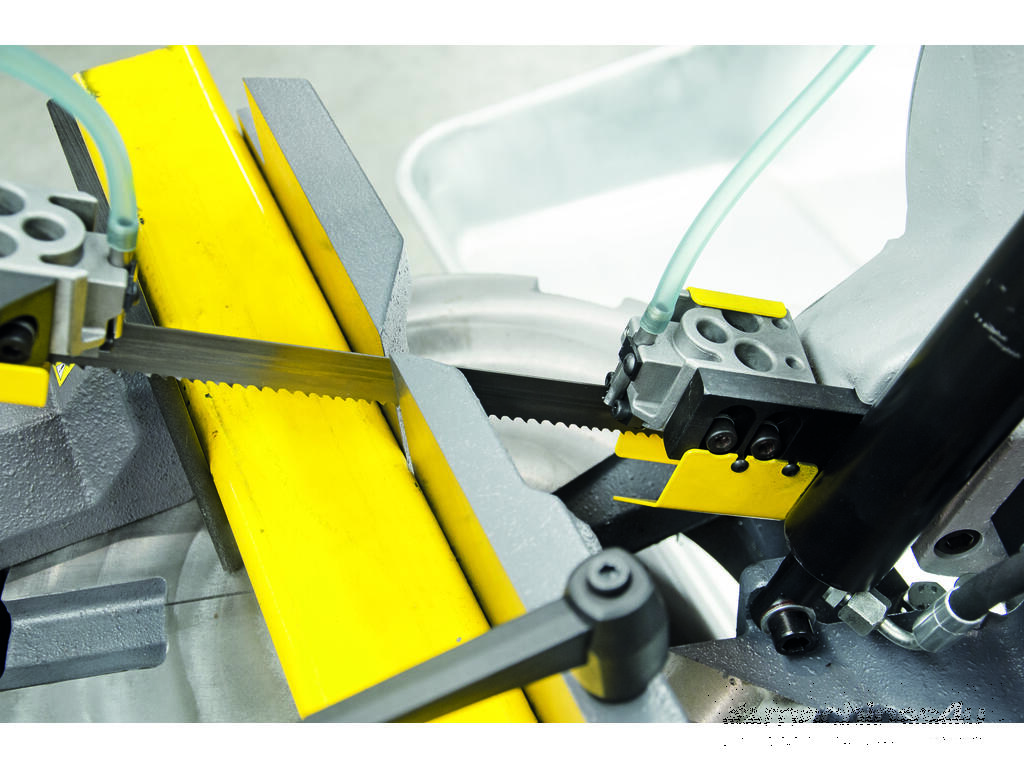

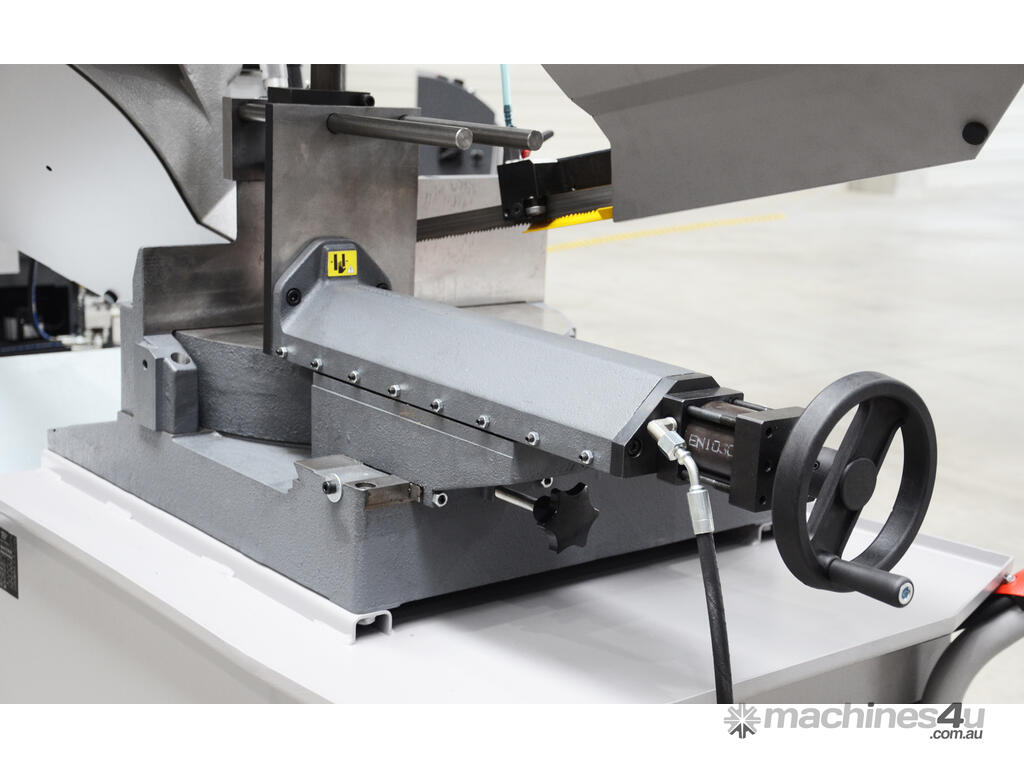

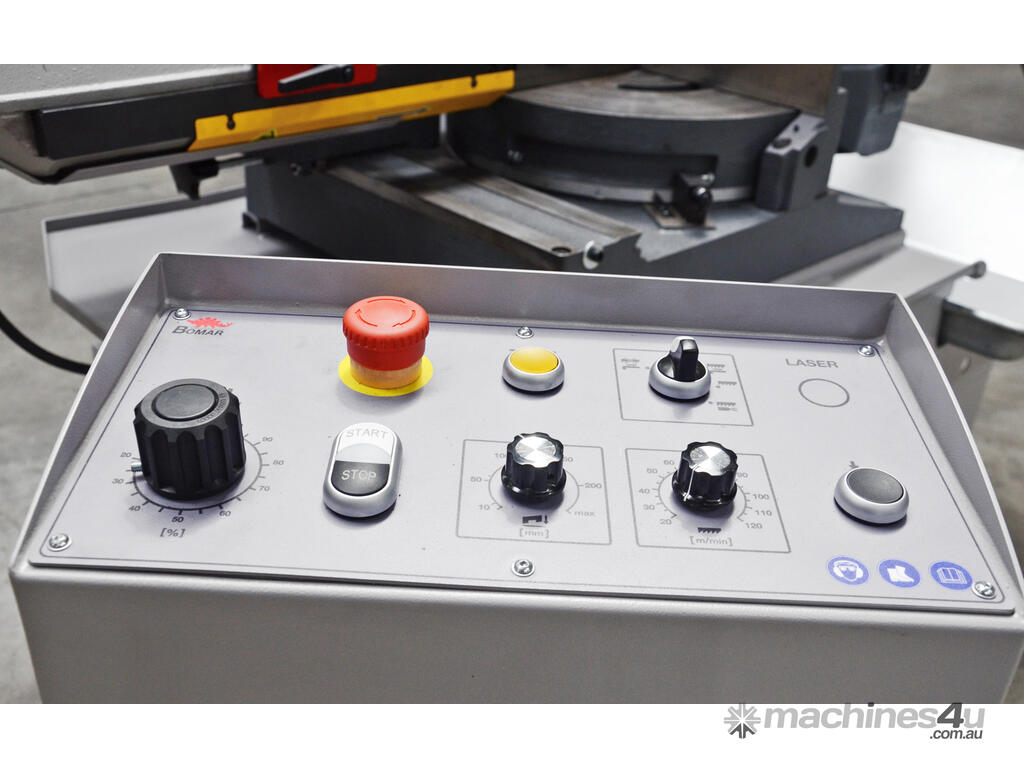

Precise hard metal saw band guides, saw head pivot embedded in pre-stressed conical bearings, a 27mm saw band and a syn-chronic swarf brush are the prerequisites for excellent cutting performance. The front-handled, very simple and fast angle adjustment for cuts in the range of -45° to +60° and a quick-acting vice with hydraulic clamping provide for a broad application range. The machine is equipped with a big feed table providing a good basis also for short pieces. The frame lifting and the cutting feed have hydraulic drive. The cutting feed can be adjusted on the control panel. The machine is equipped with an automatic cutting pressure regulation system. A coolant equipment in the machine base, a big ex-tractable swarf container with a dripping sieve (ecological disposal of dry swarf) Laser Liner, Variable Speed motor belongs to the standard equipment.

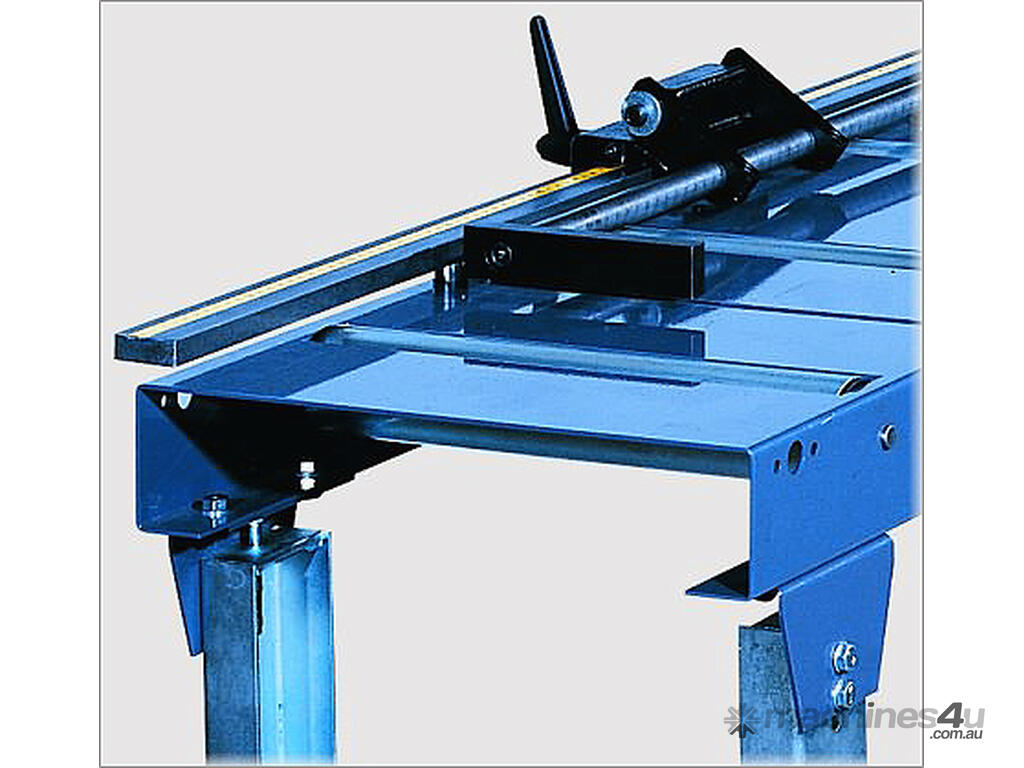

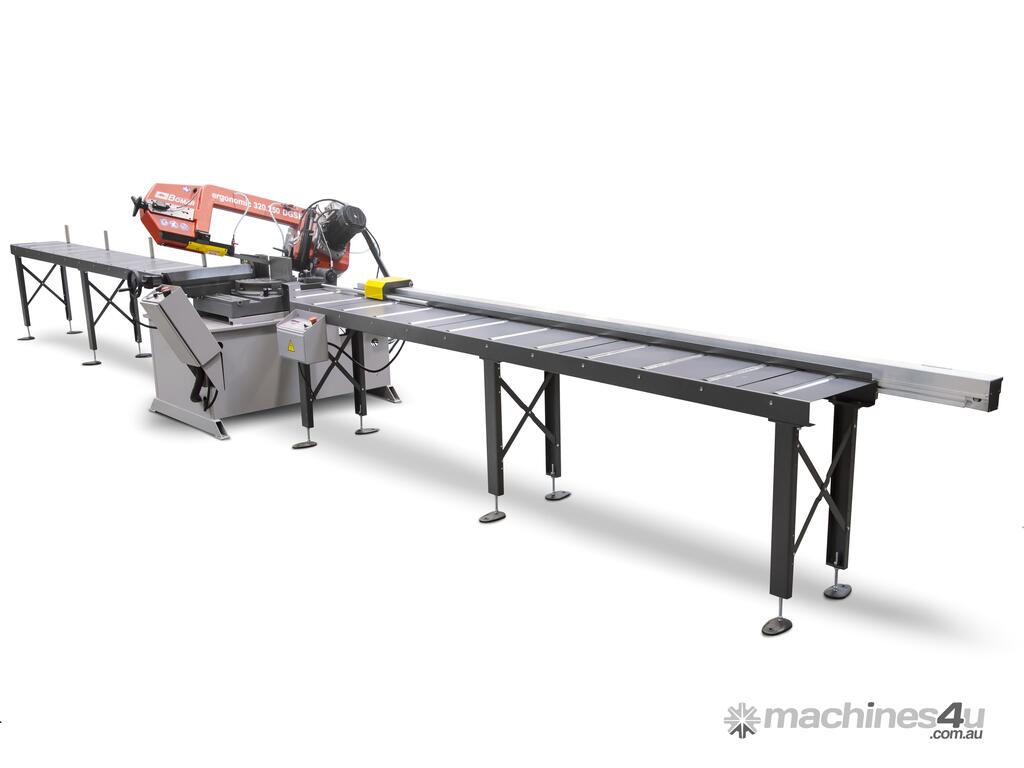

A broad offer of accessories and options as roller conveyors and stops, minimum-amount lubrication system, smooth variable speed regulation is available for this machine as options.
Cutting capacity
0 deg 258mm Round, 320x100mm or 275x250mm Rect, 250mm Square
45 deg Right 210mm Round, 210x100mm or 185x240mm Rect, 195mm Square
45 deg Left 185mm Round, 195x100mm or 90x230mm Rect, 150mm Square
60 deg Right 135mm Round, 135x100mm or 150x250mm Rect, 170mm Square
