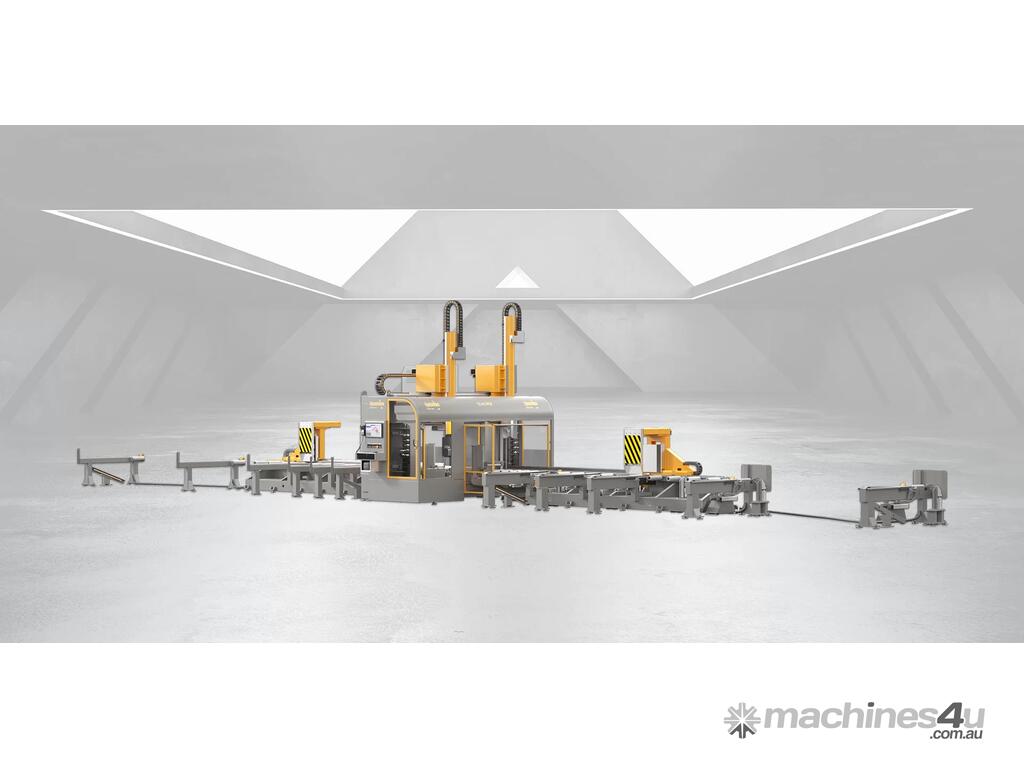

WORKING AREA: The working area inside the cabin consists of 2 independent opposing operating units, one upper and one lower, complete with 5 axis milling heads in continuous interpolation and 12 kW electro spindles at 7000 rpm. The tool handler is HSK63F.
INFEED HANDLING SYSTEM: Parts are preloaded by a NC automatic clamp; a second CNC clamp will check the correct section and ensure precise position of the part to be processed.
LOADING AREA: Large preloading area, designed to load one or more pieces with a maximum width 1300 mm, which will then be managed by the infeed clamps.
OUTFEED HANDLING SYSTEM: It consists of an automatic clamp managed by the NC, which allows the workpiece to be moved from the cabin to the exit zone for successive evacuation and storage in the unloading area. A second clamp is also installed in the unloading area to handle the part during processing.
CONSOLE: A control console complete with NC is installed on the machine structure using a hinge system, allowing it to be oriented in multiple positions. An automatic printer interfacing with the NC generates the labels during unloading.
