Euromaster S 40250-4A

THE NEW HACO EUROMASTER–S Pressbrakes combine:
- ACCURACY
- SPEED
- RELIABILITY
- REPEATABILITY

Euromaster-S 40250 with 4 axis backgauge

4.1m x 250T 7 AXIS CNC CONTROLLED PRESSBRAKE (AXIS:Y1-Y2-X-R-Z1-Z2-ADT)

Equipped with our FASTBEND PREMIUM 2D MT operator controls, the EUROMASTER-S series machines are a combination of modern technology with high accuracy, high speed positioning, superior reliability and repeatability. The EUROMASTER-S provides outstanding performance.

Our 2D graphic Multi Touch CNC controls with automatic bending sequence calculation, 3D visualization, high-speed back gauge systems, tooling choice and safety equipment make the EUROMASTER-S pressbrake the most complete offer in the market.
SPECIFICATIONS:

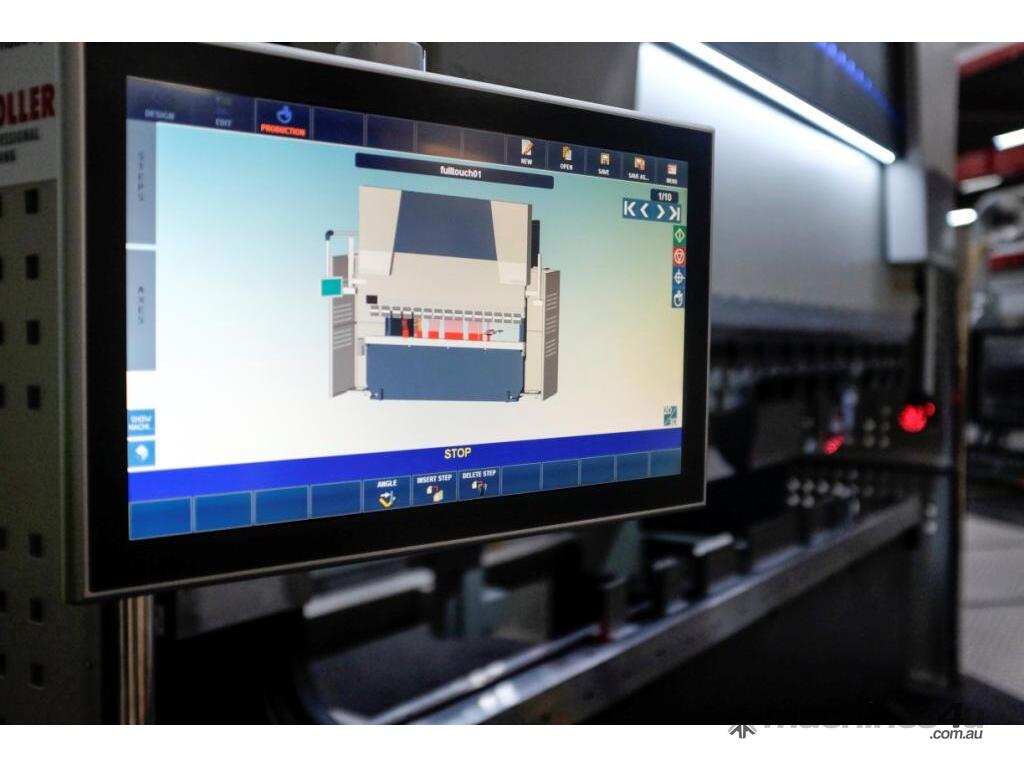

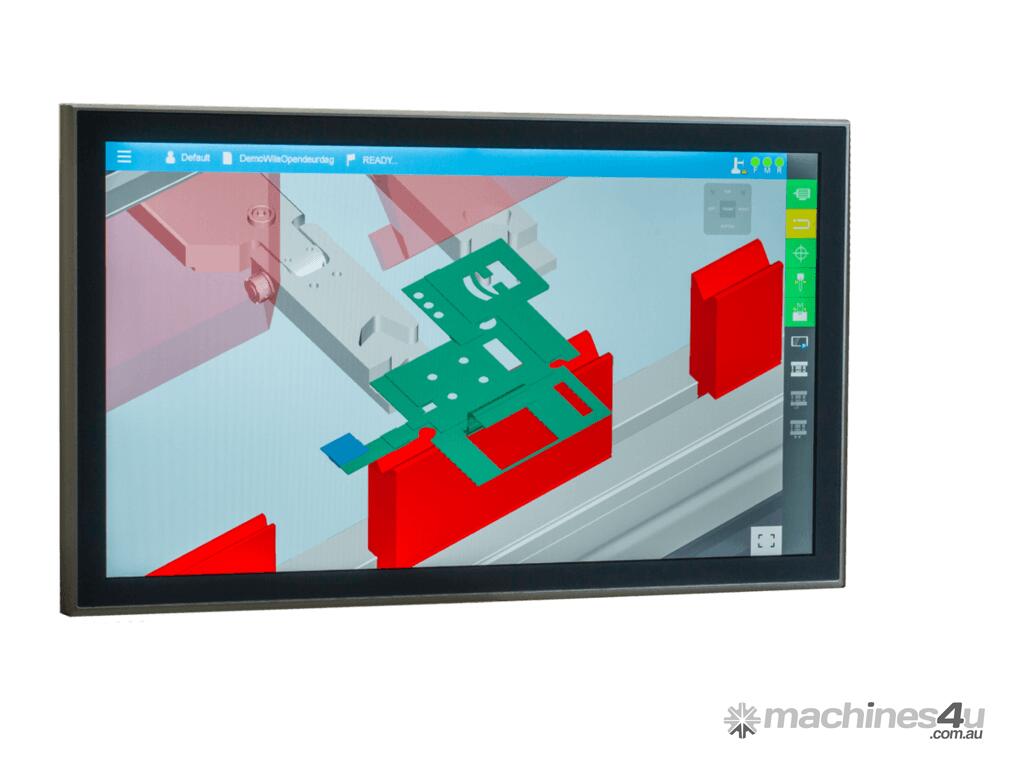

• FastBEND-2D Premium 2D Multi Touch Graphic Control with 21.5” Touch Screen
Smart Draft + MultiTasking + Step Previewer + Combined Icons + Auto Tooling

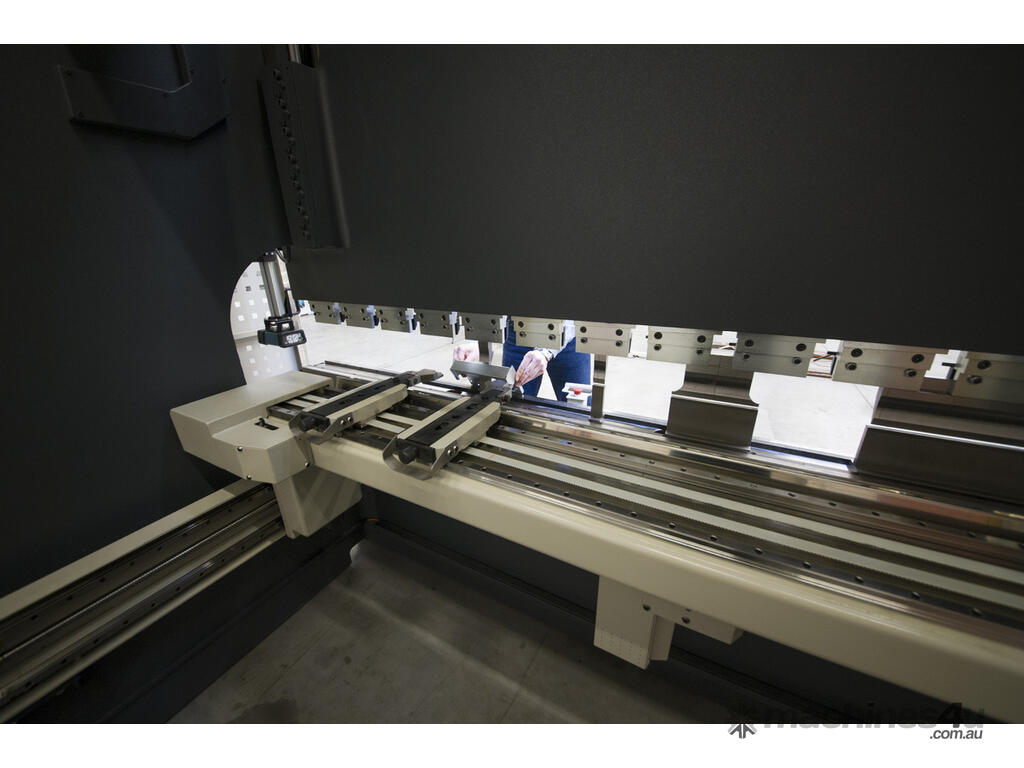

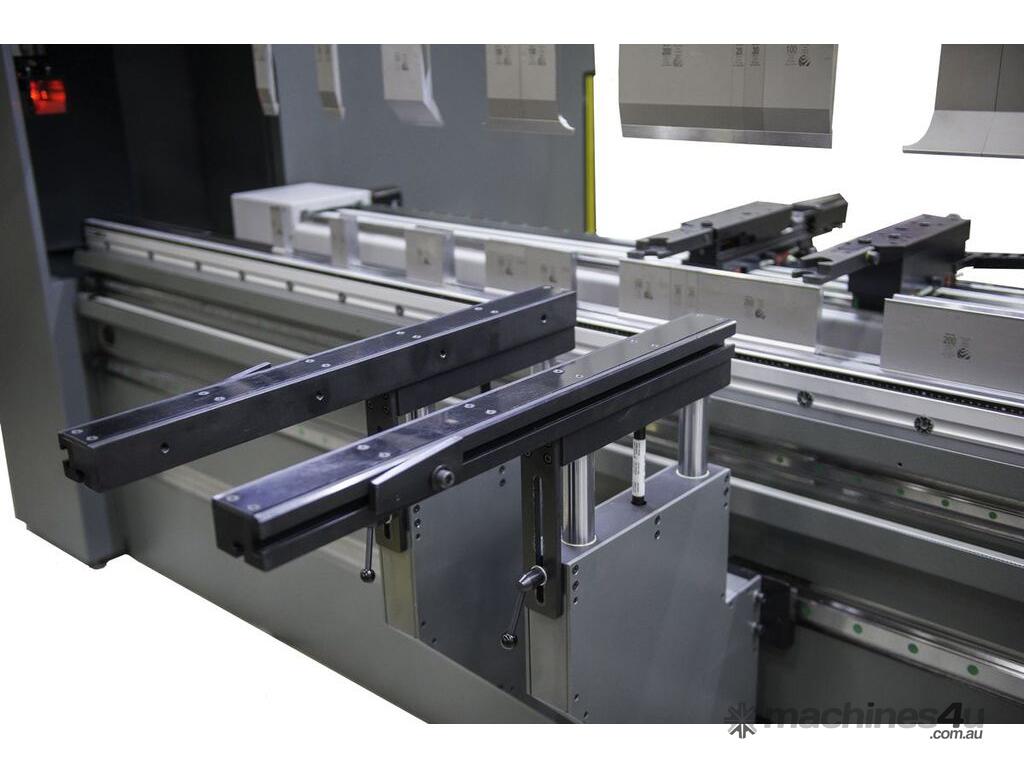

• Fast X-R-Z1-Z2 4-axis backgauge.
• Y1/Y2 Hydraulic SYNCHRO axis with 0.01mm positioning accuracy.
• 520mm Daylight with 270mm Stroke
• 400mm Throat depth Standard (other options on new orders)
• Fast Approach Speed 125mm/s
• Stroke X-axis = 800mm
• Speed X-axis = 800mm/s (models up to 4m and 2500kN)
• Stroke R-axis = 130mm (models up to 4m and 2500kN)
• Speed R-axis = 350mm/sec
• Speed Z1/Z2 axis = 800mm/s (models up to 4m and 2500kN)

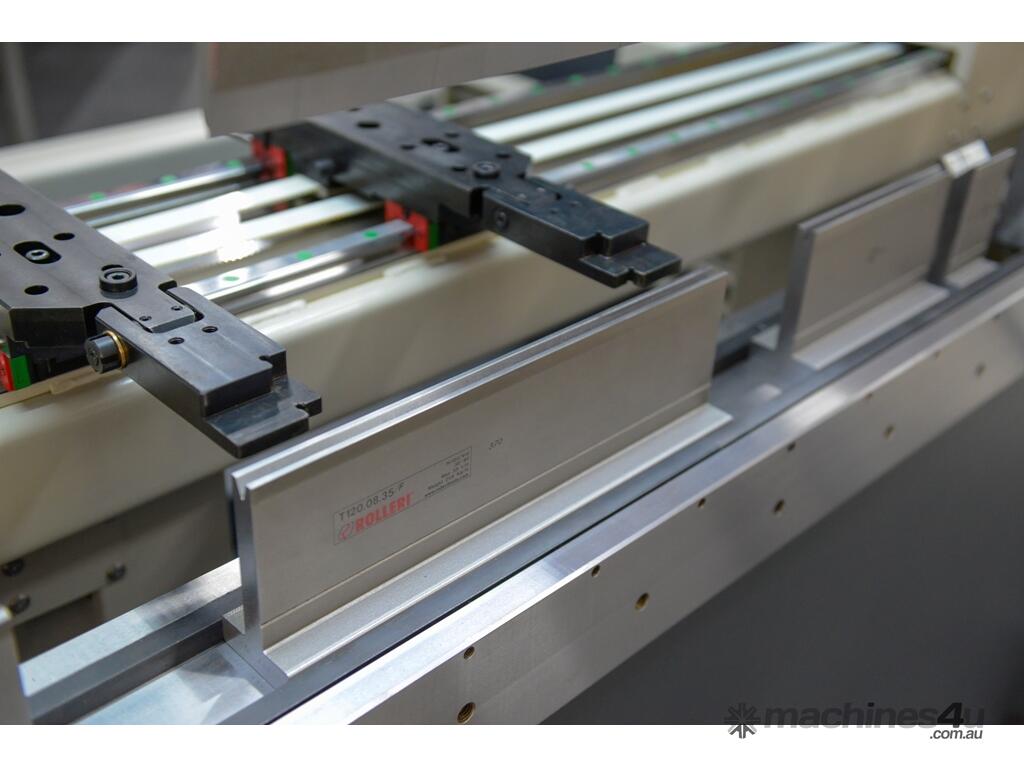

• European Standard top tooling with quick release tool change clamps
• CNC Crowning Table.

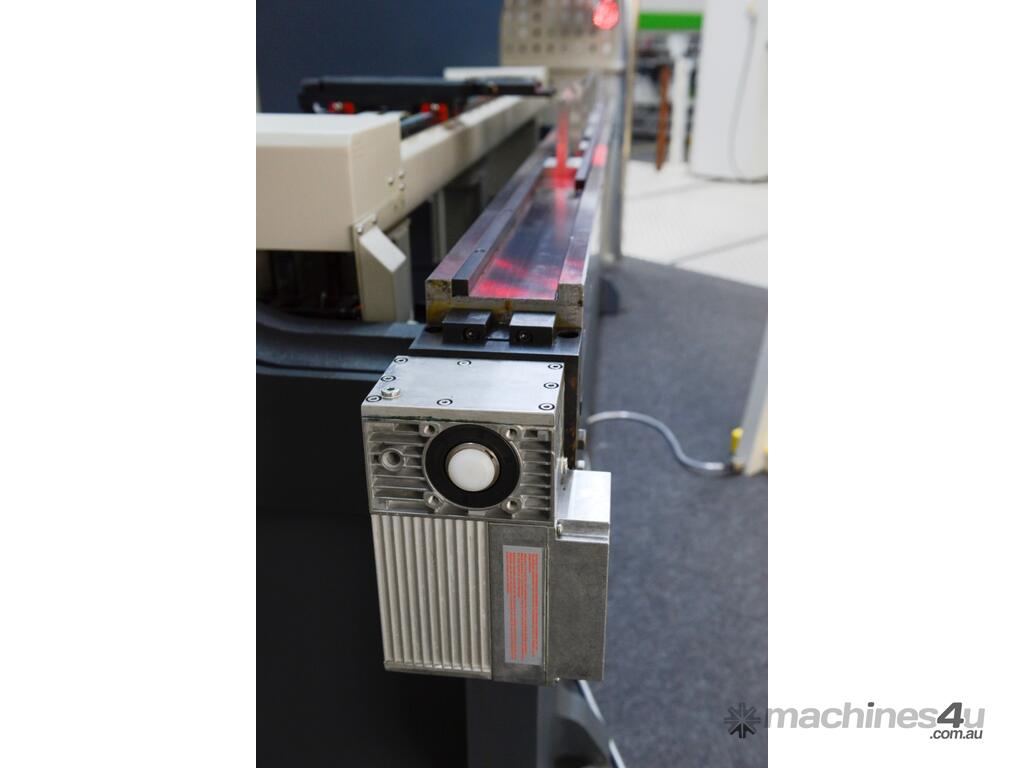

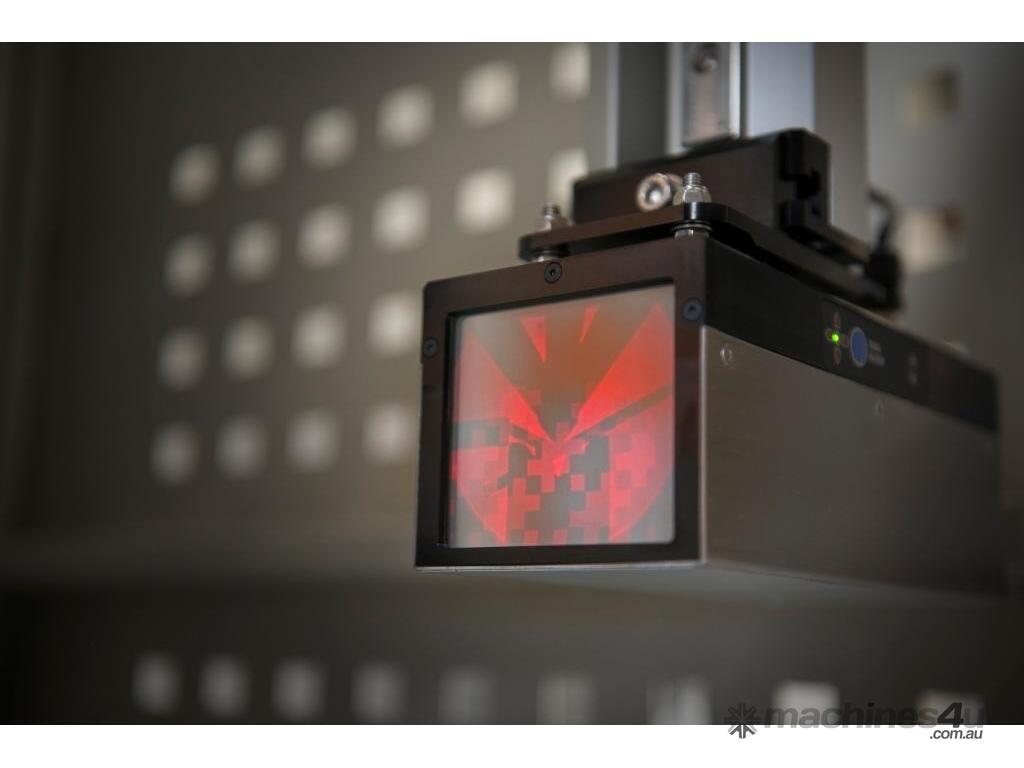

• Manufacturer supplied Laser Safety light guard with 2mm Fast-slow point
• Operation, programming and maintenance manual.

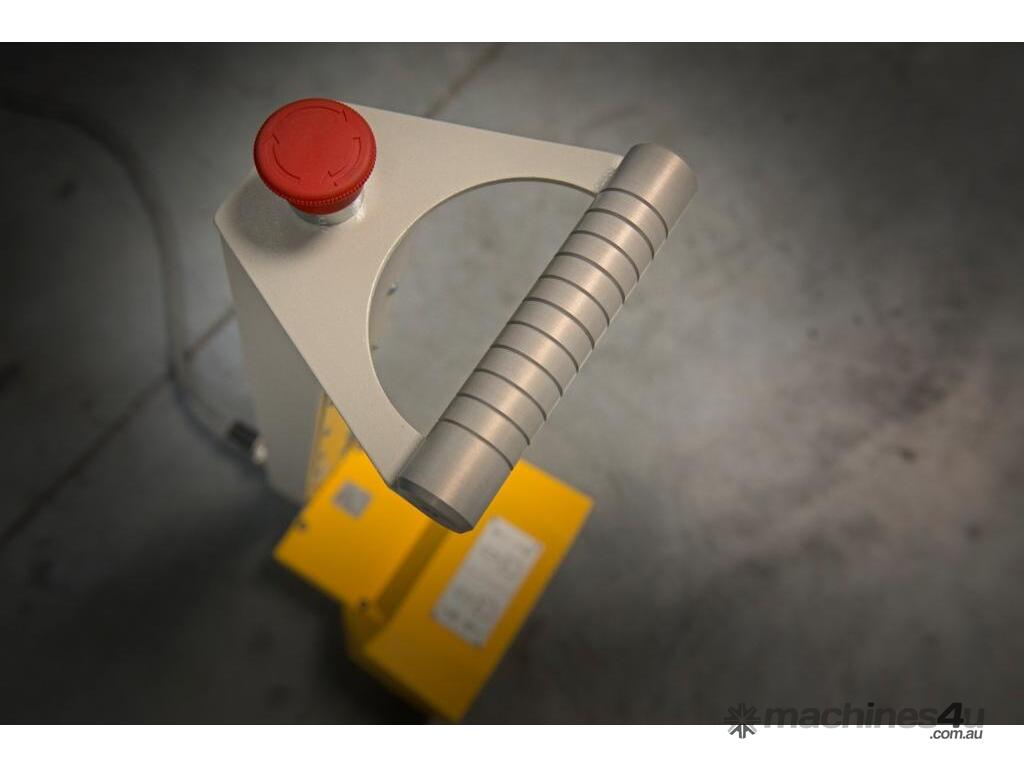

• Foot pedal control
• LED illumination of the bending area
Manufacturers Installation & Backup Australia Wide
Options available on new orders:
• CNC Stroke Z1/Z2 axis = Depending on machine length
• Speed Z1/Z2 axis = 800mm/s (models up to 4m and 2500kN)
