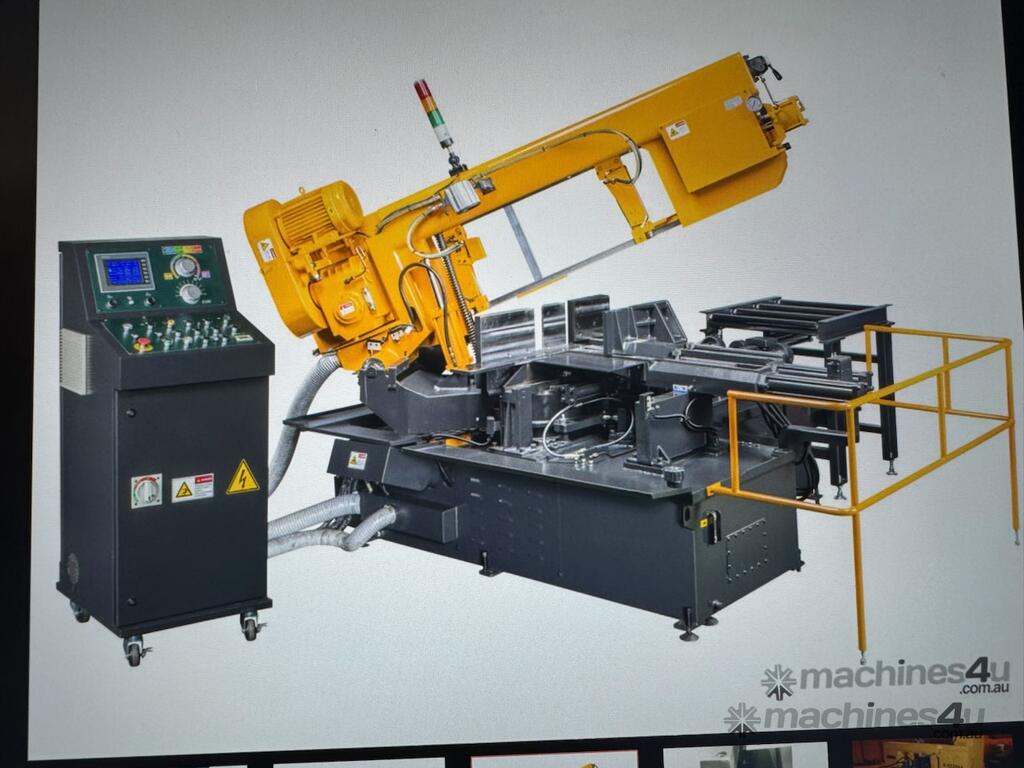

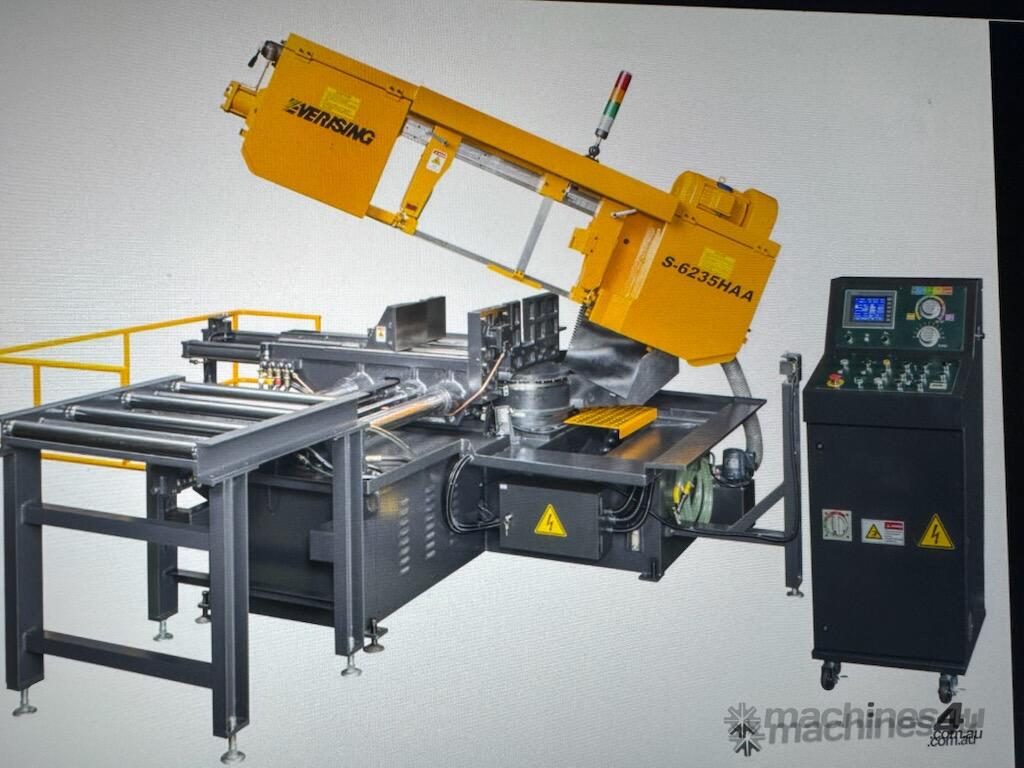

Everising Swing Beam Mitre Auto Bandsaw with Infeed Rollers - S-6235HA

Everising Swing Beam Mitre Auto Bandsaw with Infeed Rollers - S-6235HA
- Everising Mitre Band Saw Pivot Type S-6235HA
- Bi-direction angle swivel -60° ~ 0° ~ +45° with scale indicator,
- Shuttle type automatic feed. (only for 0° ~ -60°),

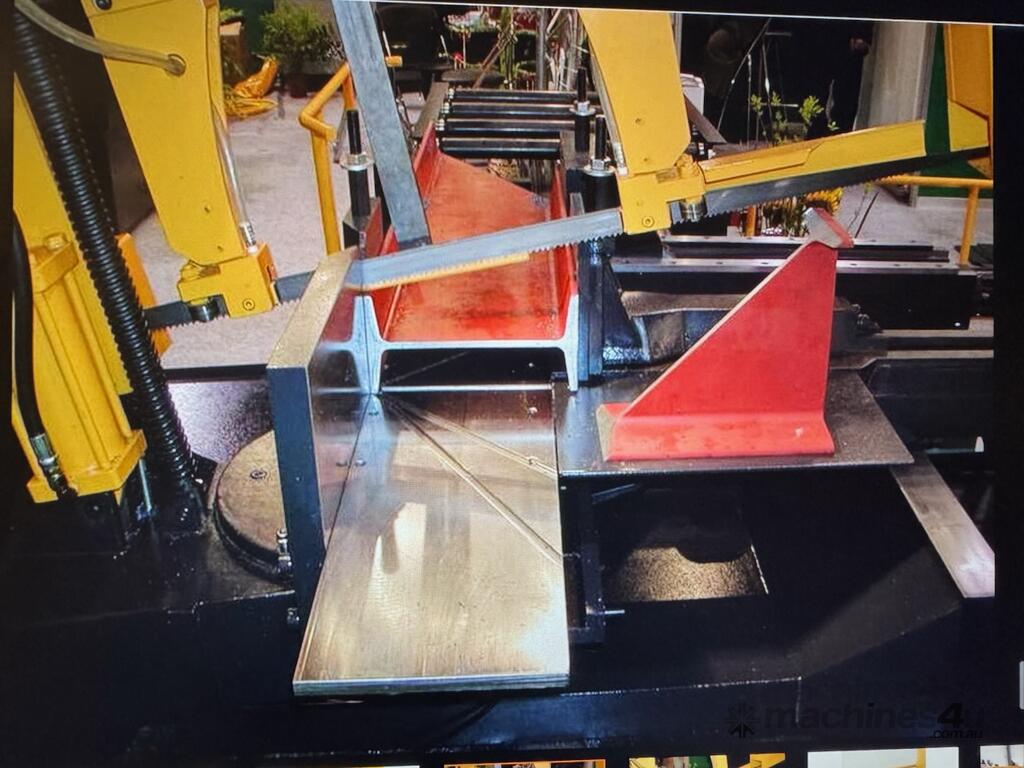

- Hydraulically controlled dual vise clamping with floating system,
- Full-stroke vice clamping system - 2 steps,
- Variable blade speed control by Inverter,
- P.L.C. control for all electric and hydraulic functions,
- Down feed speed regulated by hydraulic control valve,
- Pre-set cut counter with shut off.
- Out-of-stock shut off.
- Automatic work height control and fast approach,
- Multiple indexing (9 times),

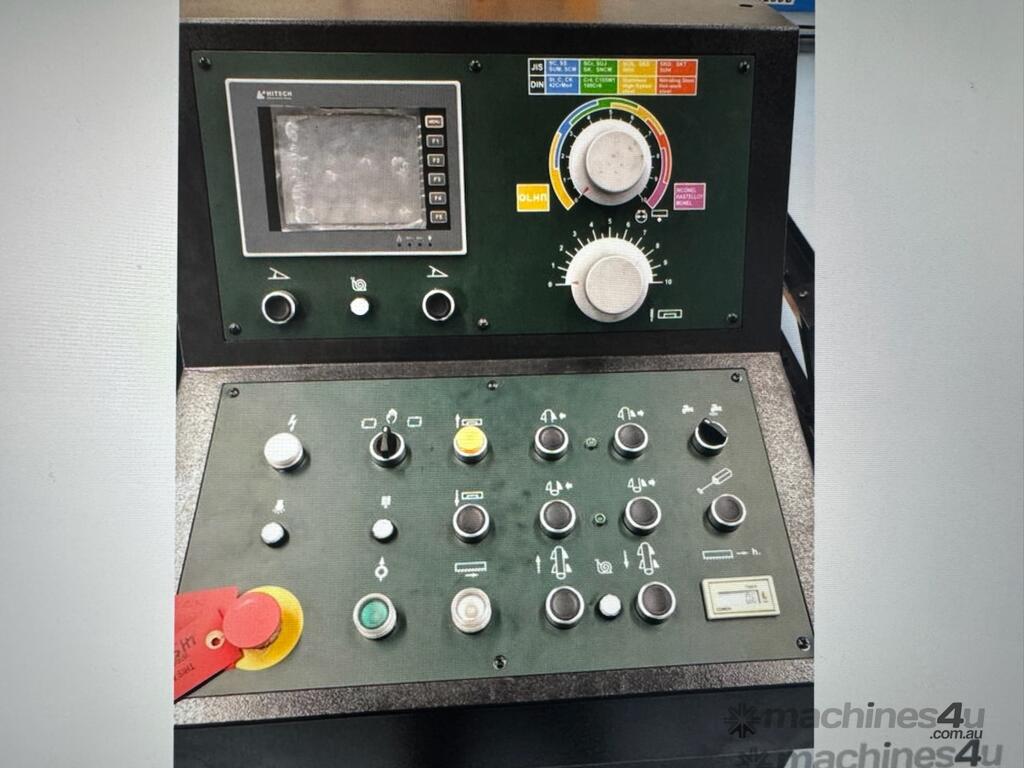

- Independent electric cabinet and control panel,
- Power driven wire brush,
- Roller bearing carbide blade guide system,
- Idler wheel motion detector with blade stalling and breakage shut-off,
- Flushing hose for machine cleaning,
- Work light,
- Roller stock table 2M long,
- One M42 bi-metal saw blade,
- One set of tools and tools box.

- A Nice One Owner Machine!

- Capacity: 0: 350 mm (13.8"), 620 x 350 mm (24.4" W x 13.8" H),
- Capacity: 45°: 350 mm (13.8"), 420 x 350 mm (16.5" W x 13.8" H),
- Capacity: 60°: 300 mm (11.8"), 290 x 350 mm (11.4" W x 13.8" H),
- Blade Speed: 20 to 100 m/min (65 to 330 fpm),
- Motor: Blade drive: 3.7 kW (5 HP),
- Motor: Hydraulic Pump: 0.75 kW (1 HP),
- Motor: Coolant Pump: 0.1 kW (1/8 HP),
- Blade Size: 4900 x 34 x 1.1 mm (192.9" x 1.3" x 0.043"),
- Blade Tension: Hydraulic
- Index Length: Single Feed: 600 mm (23.6"),
- Index Length: Max Index Times: 9,
- Saw Frame Angle: -60° ~ 0° ~ +45° Bi - Direction,
- Angle Swivel: Manual,
- Angle Display: Angle Scale,
- Table Height: 830 mm (32.7"),
- Vise Clamping Type: Hydraulic (Full Stroke 2 Step),
- Machine Weight: 2200 kg (4850 lb),
- Floor Space (W x D): 2350 x 3400 mm (92.5” x 133.9”).
