This very rare opportunity to pick up a near new ALU Ranger OneR 4221 in stock in Australia. No wait time for construction and shipping, ready to be installed now. This machine has completed 1 exhibition and has now been returned to our showroom located in Melbourne. We are offering this complete with a new machine warranty.
Save over $12,000 from the RRP
Call for an inspection

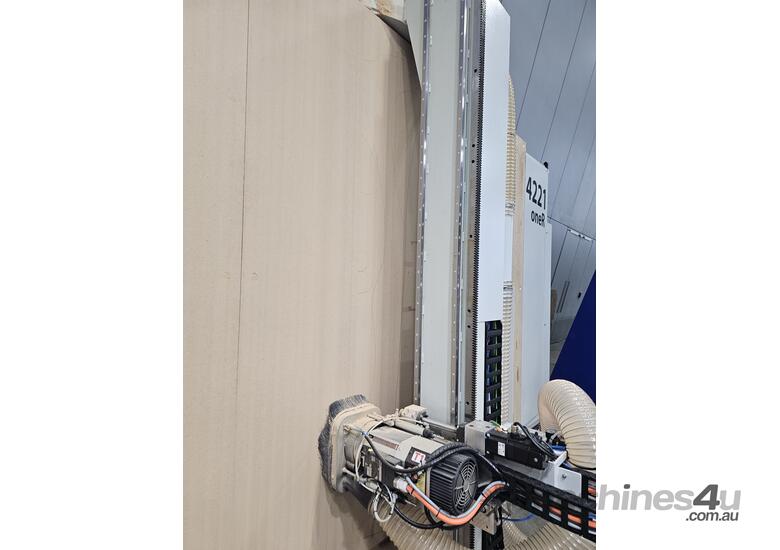

ALU RANGER OneR is the Panel Router with Vertical Table for high-speed panel cutting, drilling and milling.
Ranger is a machine designed and equipped to process panels made of different materials, such as solid aluminium, ACM, HPL, fibre cement, wood and plastic, which are used in a variety of sectors, including architecture, industry, transport, interior design and visual communication.
The verticality of the worktable, its solid construction and patented automation systems are just 3 of the main features of Ranger that ensure increased safety, efficiency, cleanliness and quality during processing.
The ALU Ranger oneR has been designed and equipped to process composite aluminum panels for the fabrication of architectural façades.
With the correct choice of tools and optional extras*, it is possible to also process solid aluminum panels (max 4 mm (5/32) in an alloy suitable for processing), fireproof aluminum composite panels “MINERAL CORE” and plastic (acrylic and polycarbonate) for façades, interior design and visual communication.
The machine can process different types of panels by using the adequate tools, rotation speed, the right feeding speed and lubrication when processing.
Please consult the specifications of the panels and tools manufacturers.
The machine can be equipped with loading and unloading systems to further increase daily productivity.
N.B. not supplied: - power supply cables with plugs
- compressed air supply hose
- dust suction hose
- tools for working with materials other than aluminum composites (PE cores)
Technical Specifications
Working Table - X 4200, Y 2100, Z 90
Panel holding, vacuum
by working table with mdf - 6 Zones AUTO
sacrificial board (selection by PLC)
Panel Holding vacuum
by zones combinations - 24
Vacuum Pump - 1x 250 m³/h
- 1x 147 Cfm
Axis Speed (Rapid) - X 30, Y 30 , Z 10 mt/min

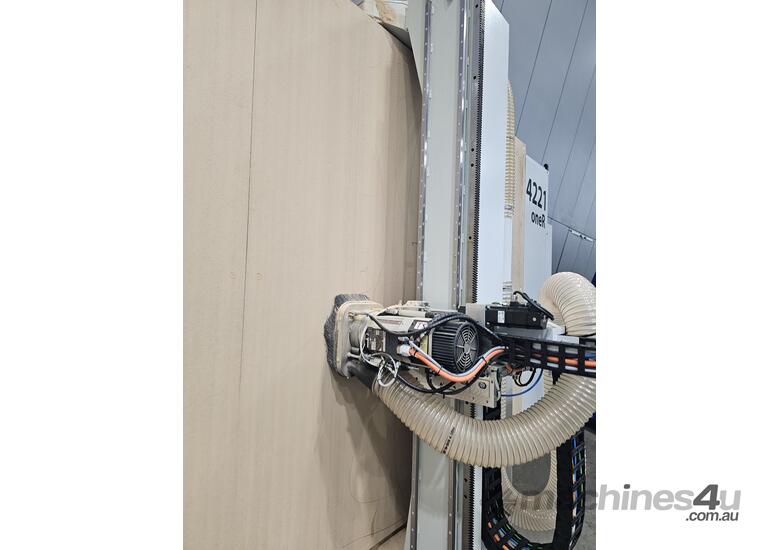

Electrospindle R8A - 8Kw - collet ER32 up to 24000 g/min
Automatic tool changer
working table side - 8 positions - cones ISO30 - cone sensor
Total Power - min 14 Kw - max 24 Kw
Max weight of panel
under process - ca. 250 kg
Total Weight - 2700 Kg
