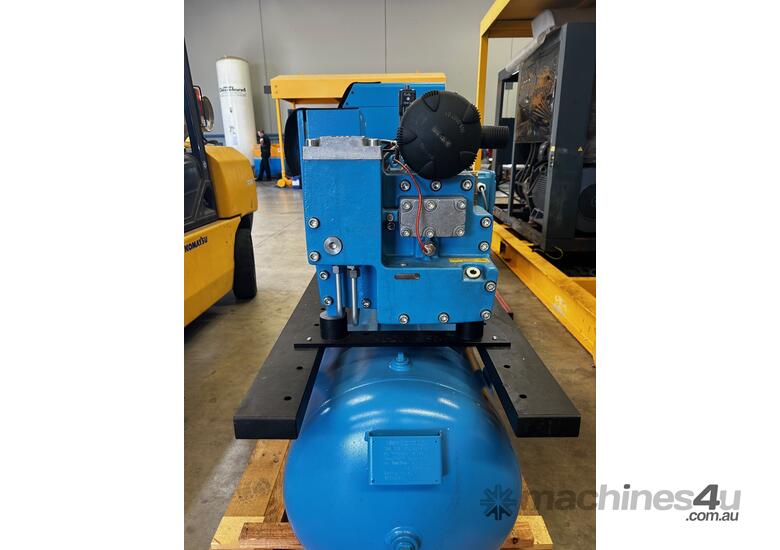

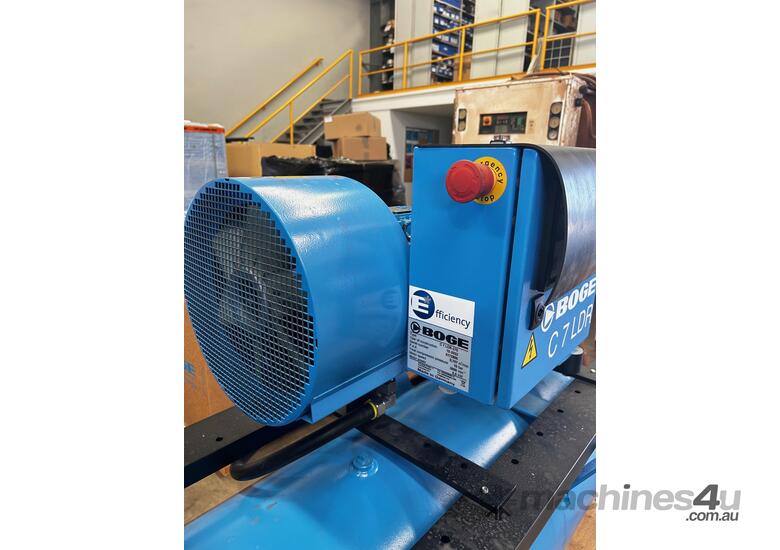

Ex Demo less than 100 Hours 25cfm BOGE C7LDR

The BOGE C7LDR offers 25 cfm of reliable, energy-efficient compressed air drying. With advanced technology and durable design, it ensures consistent performance, low maintenance, and reduced environmental impact.

TECHNICAL DATA
Effective free air delivery to the entire unit 0,707 m³/min
according to ISO 1217 Annex C, at positive compressor operating pressure 10,0 bar
Rated capacity of main drive motor 5,50 kW
Protection type / insulation class of the motor IP 55 / F
Operating voltage (compressor) 400 V / 50 Hz
Control voltage (compressor) 24 V AC / 24 V DC
Operating/control voltage (dryer) 230 V / 50 Hz
Cooling air flow volume (compressor) 1.500 m³/h
Cooling air volumetric flow rate (dryer) 320 m³/h
Suction or ambient temperature (min to max) +5...+40 °C
Compressed air outlet temperature above ambient temperature (on compressor) 11 K
Pressure dew point at inlet conditions according to DIN ISO 7183 +3 °C
Residual oil content in compressed air < 3 mg/m³
Receiver volume 160 l
Permissible maximum receiver pressure 11,0 bar

DIMENSIONS AND WEIGHT
silenced version (acc. to dimensional drawing): M 1200.1129
Unit sound pressure level (in accordance with DIN EN ISO 2151) 68 dB(A)
Width 1.610 mm
Depth 634 mm
Height 1.254 mm
Compressed air connection (ball valve) G ½
Weight 226 kg

RECEIVER
• BOGE are manufactured and galvanised as standard according to AD2000, preventing corrosion and ensuring a long working life.

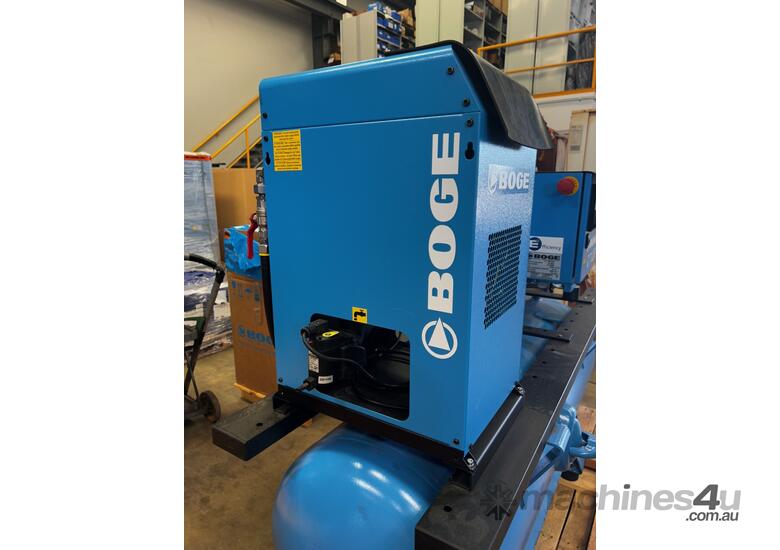

Refrigerant Compressed Air Dryer DT
Ensures long-lasting, energy-efficient drying with the following features:
Highly efficient “all-in-one” aluminium heat exchanger for minimal differential pressure
Hot gas/bypass valve for stable pressure dew point
Electronic control with LED status display
Potential-free alarm contact and Modbus RTU / RS 485 interface
Reduced CO2 footprint with environmentally friendly R-513A refrigerant
Electronically level-controlled CCD 10 condensate drain as standard
Completely pre-installed, including piping, for minimal installation cost
Easy access to arrester recess for simple maintenance
Power supply cable and plug
