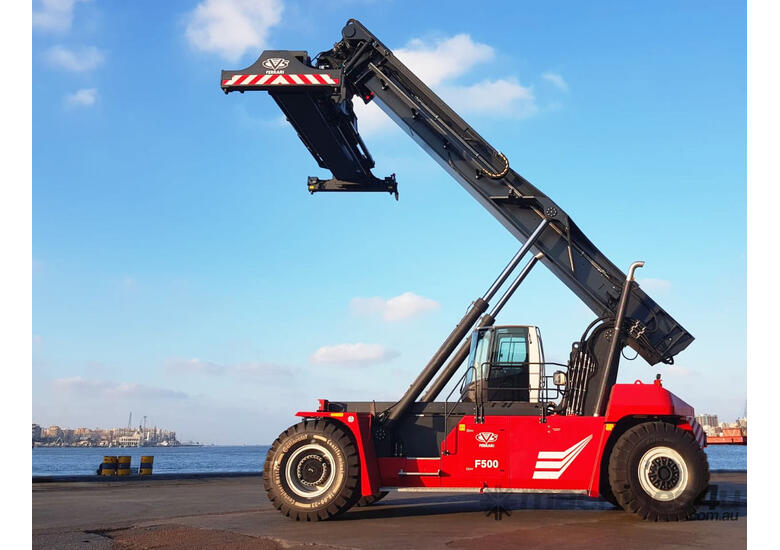

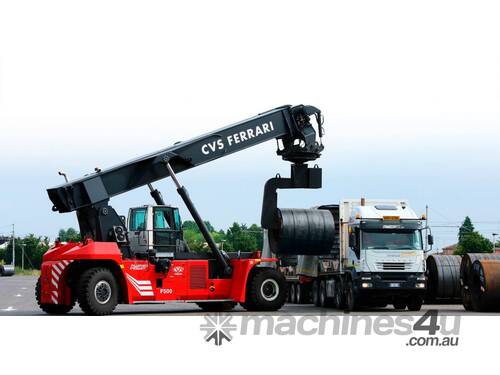

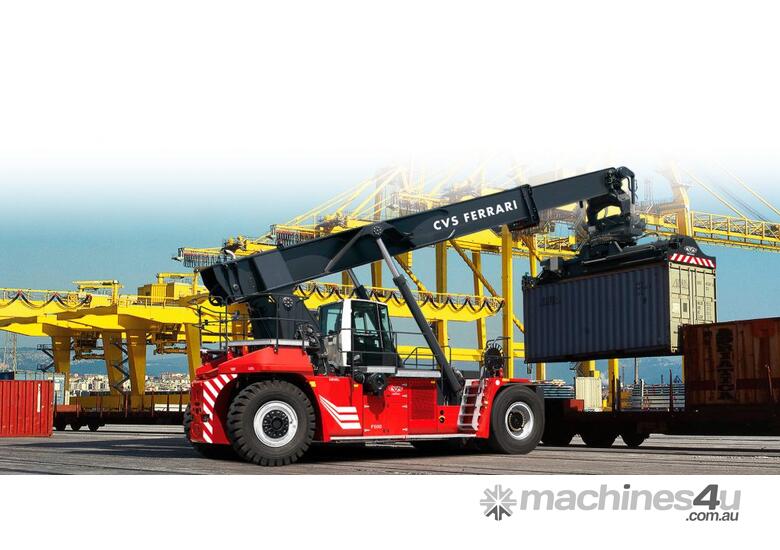

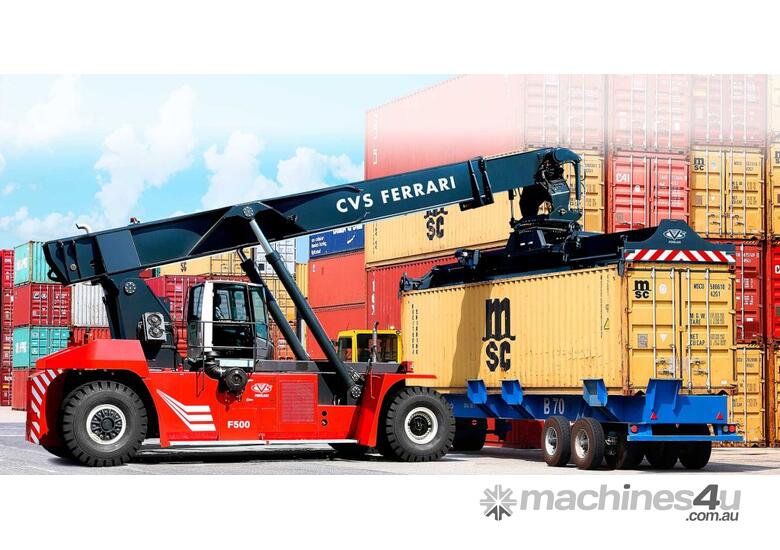

F500.RS1 REACH STACKERS

Model F500.RS3
Attachment type 20’/40? Top Pick Spreader
Load capacity on tires at 1st/2nd/3rd row (no stab) kg 46.000 | 33.000 | 17.000
Load centre distance at 1st/2nd/3rd row mm 1.780 | 3.850 | 6.400
Load capacity on stabilizers at 1st/2nd/3rd row * kg 46.000 | 40.000 | 23.000
Load centre to front face of the truck mm 830
Lifting height under twist-lock mm 16.100
Stacking Ability – containers 1 over 5 = 6 x 8’6”
Wheelbase mm 6.500
Service weight – unladen kg 73.500
EU Stage 3a Engine make(Rated Power) (kw) CUMMINS QSM11 (250)
EU Stage 4 Engine make(Rated Power) (kw) SCANIA DC13 (257)
Transmission make&model DANA TE32
Service Brakes Wet Disk on front wheels
Tires size 18.00-25
Overall width – excluding Spreader mm 4.185
Overall length – including spreader mm 12.000
Overall height mm 4.800
Seat height mm 2.720
Spreader rotation – clockwise/anticlockwise deg -105 / +195
Spreader side-shift – left / right mm +800 / -800
Boom Angle (min / max) deg 0 /60
? optional
