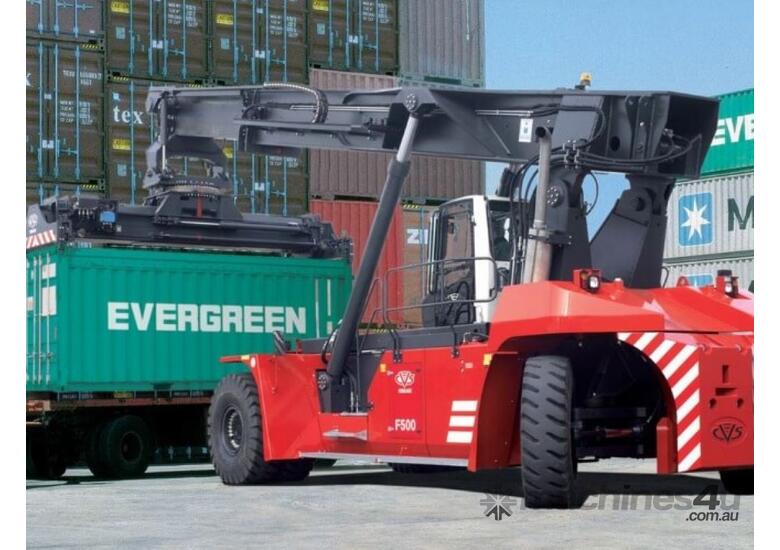

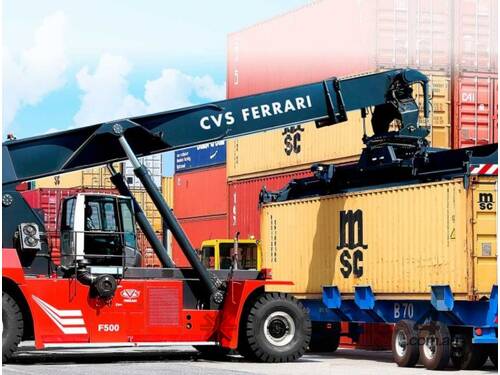

Hire cvs ferrari Reach Stacker - F500.RS8 - Hire

REACH STACKERS

Engineering - MASTERPIECE



CVS Ferrari is proud to introduce a new series reach stacker, a new breed of machine that will forever change the industries expectation on performance and return on investment. Through state-of-the-art engineering and a strong focus on reliability, the CVS Ferrari reach stacker was designed to outperform any other machine in its class by reducing operating costs and extending the typical service life.

This has been achieved by engineering superior structures certified to virtually withstand endless duty cycles. Powerful onboard intelligence coupled with energy-saving solutions has spawned a machine that's not only productive but safe and reliable.

FEATURES & BENEFITS

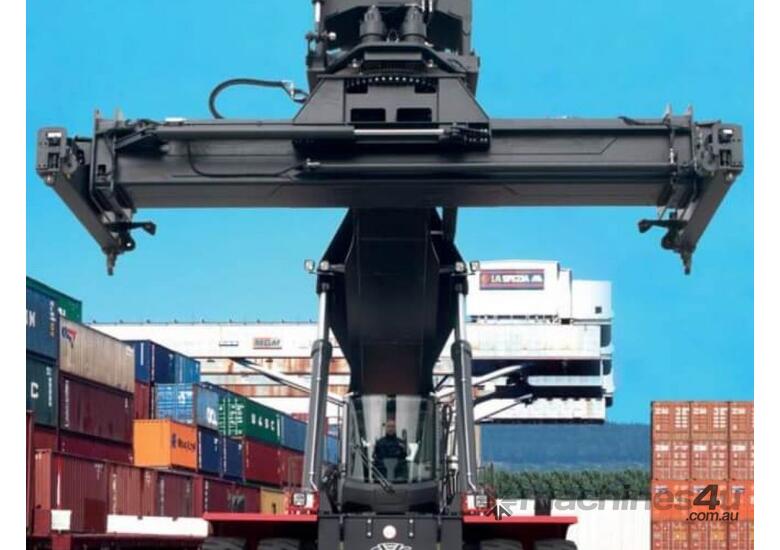

The F5OO Range is a culmination of 40 years of engineering experience in reach stacker spreaders. Light yet incredibly strong and engineered from very high tensile steel the twin-beam design with externally mounted cylinders make servicing simple and easy to undertake.

King size sandwich type steer axle with giant rubber shock absorbers. Quality tyres on heavy duty interchangeable rims. There has been no compromise what so ever in size, grade of materials or specification of mechanical's.

The precision tolerances on the F5OO pins and cylinders, chroming depth, saline fog resistance of all its rods as well as the size of the bearings are superior to those of any equivalent in class competition which enables this machine to work harder for longer delivering exception return on investment.

The new lift and move technology employed by the F5OO and its six high stacking ability and the best weight distribution in class makes this machine a formidable contender for King of the yard. Unique dynamic stability control and driver optimiser function enhances operational safety and minimises tyre wear.


SPECIFICATIONS

Model:
F500.RS8
Attachment Type:
20’/40? Top Pick Spreader
Load Capacity: on tires: at 1st/2nd/3rd row (no stab):
46,000kg | 46,000kg | 28,000kg
Load Centre: distance at 1st/2nd/3rd row
1780 | 3850 | 6400mm
Load Capacity: on stabilizers at 1st/2nd/3rd row *
46,000kg | 46,000kg | 33,000kg
Load Centre: to front face of the truck
930mm
Lifting height under twist-lock
16,200mm
Stacking Ability – containers
1 over 5 = 6 x 8’6”
Wheelbase:
8,000mm
Service Weight: – unladen
87,000kg
EU Stage 3a Engine make & model (Rated Power):
CUMMINS QSM11 (250): (kw):
EU Stage 4 Engine make & model (Rated Power):
SCANIA DC13 (257): (kw):
Transmission make & model:
DANA TE32
Service Brakes:
Wet Disk on front wheels
Tires size
18.00-33
Overall Width: – excluding Spreader
4185mm
Overall Length: – including spreader
12000mm
Overall Height:
4800mm
Seat height:
2820mm
Spreader rotation – clockwise/anticlockwise
-105 / +195deg
Spreader side-shift – left / right:
+800 / -800mm
Boom Angle (min / max):
0 /60deg
