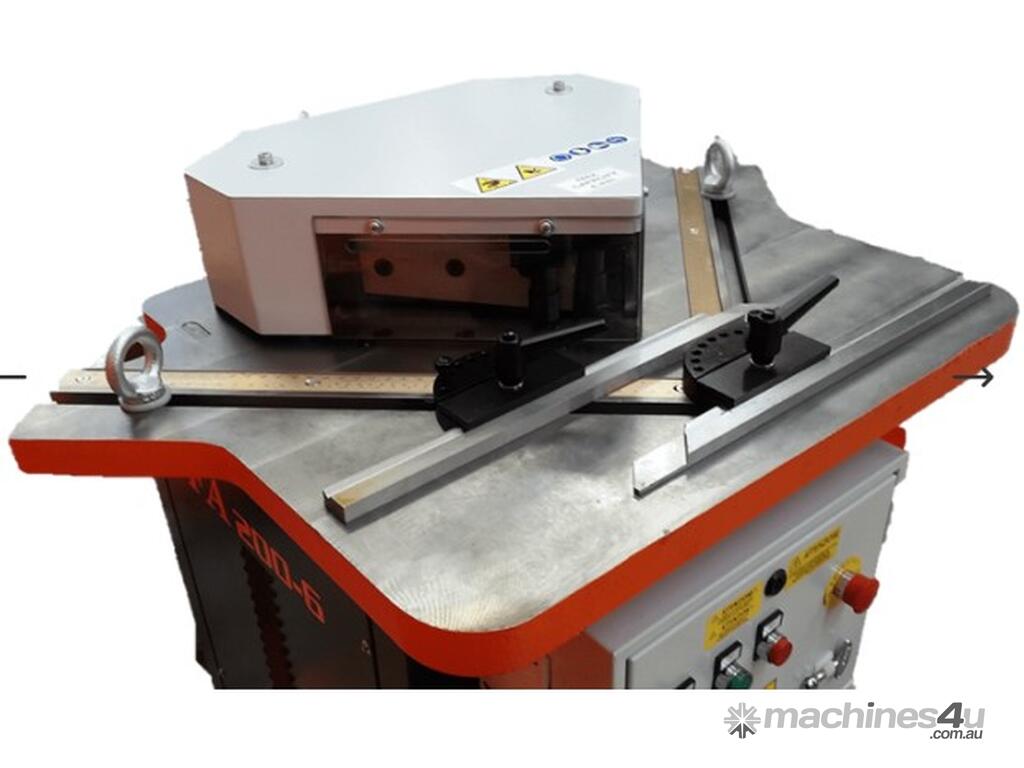

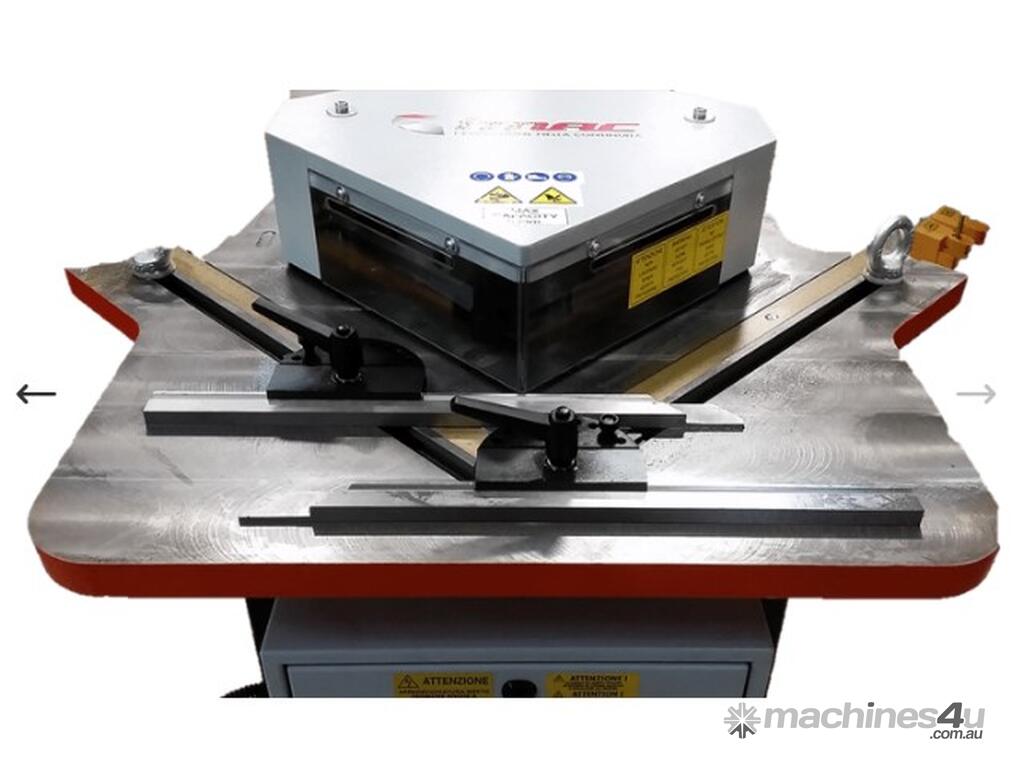

FA 200/6 Fixed Angle Hydraulic Notcher

In the international market, the success of IMAC notching machines is due to their versatility, exactness, solidity and to the easiness of use in the wide range of products. The IMAC Notchers are the best due to their cutting exactitude in the different type of materials and for the clean notching issued on the metal sheet, avoiding the bothersome trimmings. Free from oiling, they don’t need any maintenance assistance.

The fixed angle notching machines are
equipped with:
· Hydraulic functioning through two cylinders to grant a constant and smooth notching,
· A wide and rigid worktable with aluminium rods with directional triple functions, for the measuring the different type of
notches,

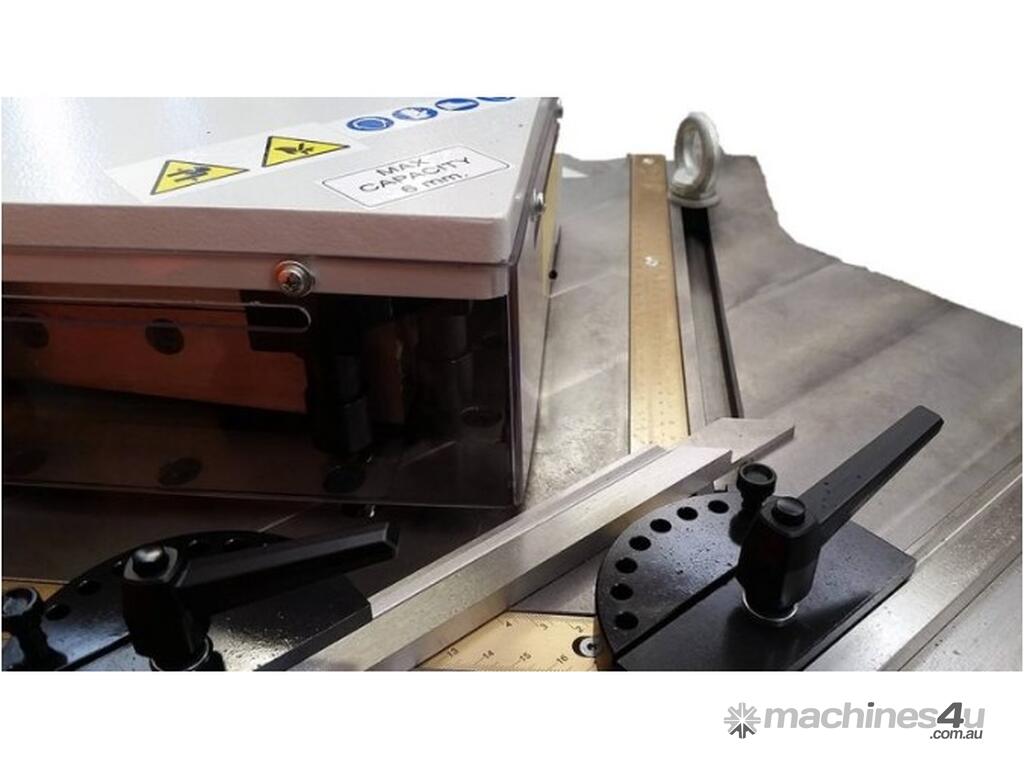

· Angle squares guides equipped with nr. 3 reference holes without scales.

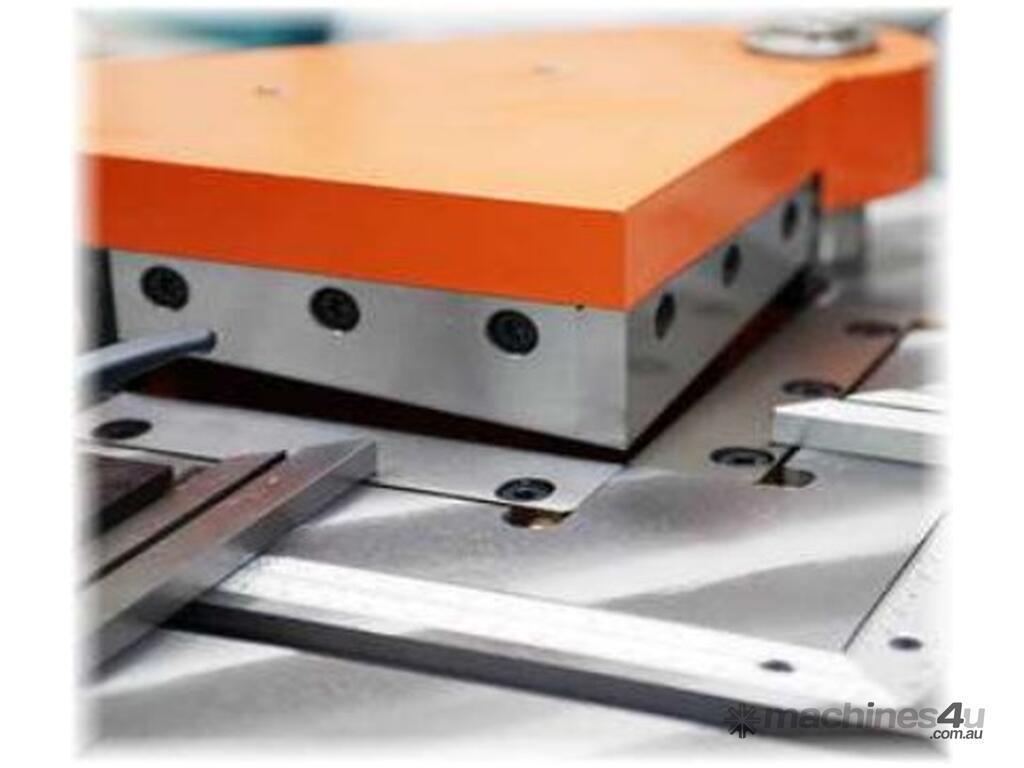

· Head configuration which allows the cuts longer than the blade length.
· Economic square rods,
· Cutting zone protection sheet made in Polycarbonate which allows a wide sight of the working area and maximum safety,
· Swarf collecting box.

FIXED ANGLE NOTCHING MACHINE - FA 200/6
Blade length: 205mm
Maximum thickness of the sheet: 6mm
Maximum thickness on stainless steel: 4mm
Hold down: 2
Blade gap automatic adjustment: Optional
Electric Motor: 2.2Kw
Strokes per minute: 45
Table dimension: 625x954mm
Height of working table mm 930
Hydraulic oil Viscosity: 46 Grade
Oil tank capacity (Oil not included): 25L
Cutting angle: 90 Degrees
Stroke electronic control: Optional
Overall dimensions ): 920 x 970 x 1000mm
Approx. weight: 390Kg
