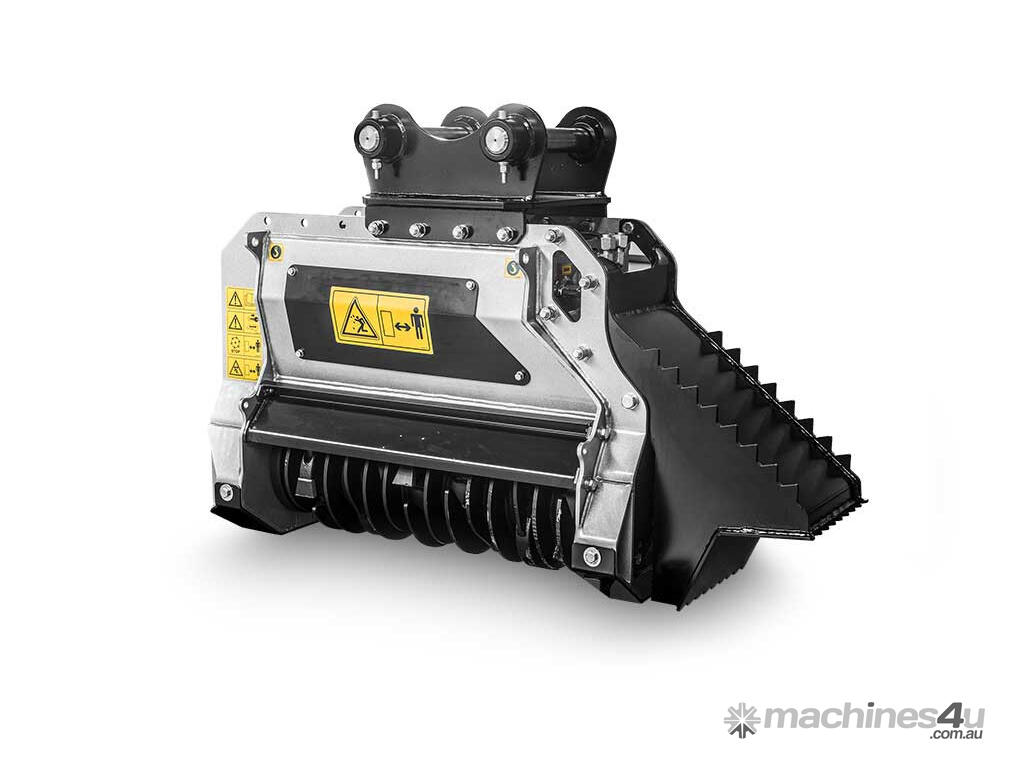

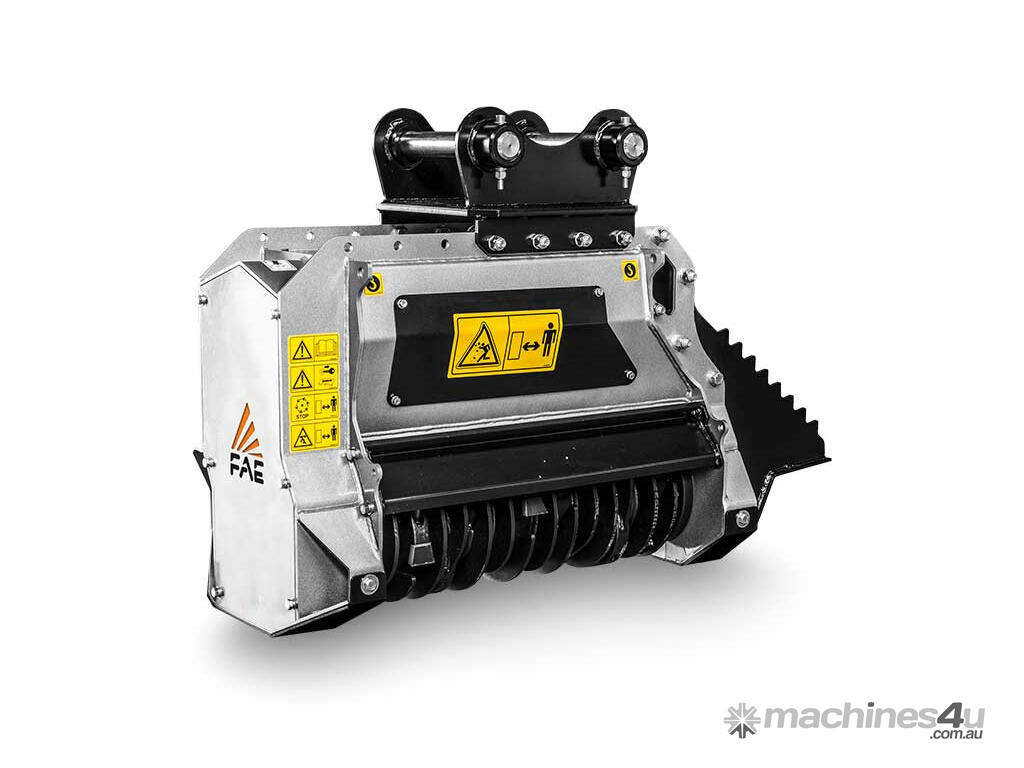

Forestry mulcher with Bite Limiter technology.
FAE introduces a new line of professional mulchers for excavators equipped with Bite Limiter technology.
Special steel limiter rings limit the depth of blade action, reducing the demand for power, guaranteeing speed and exceptional performance.

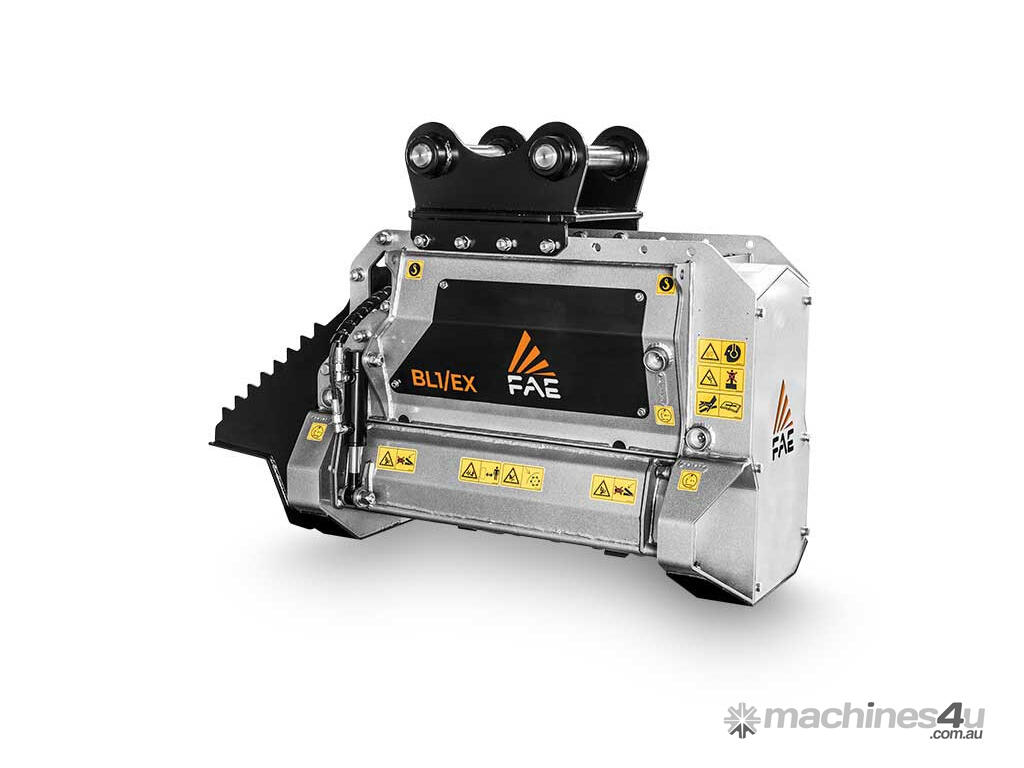

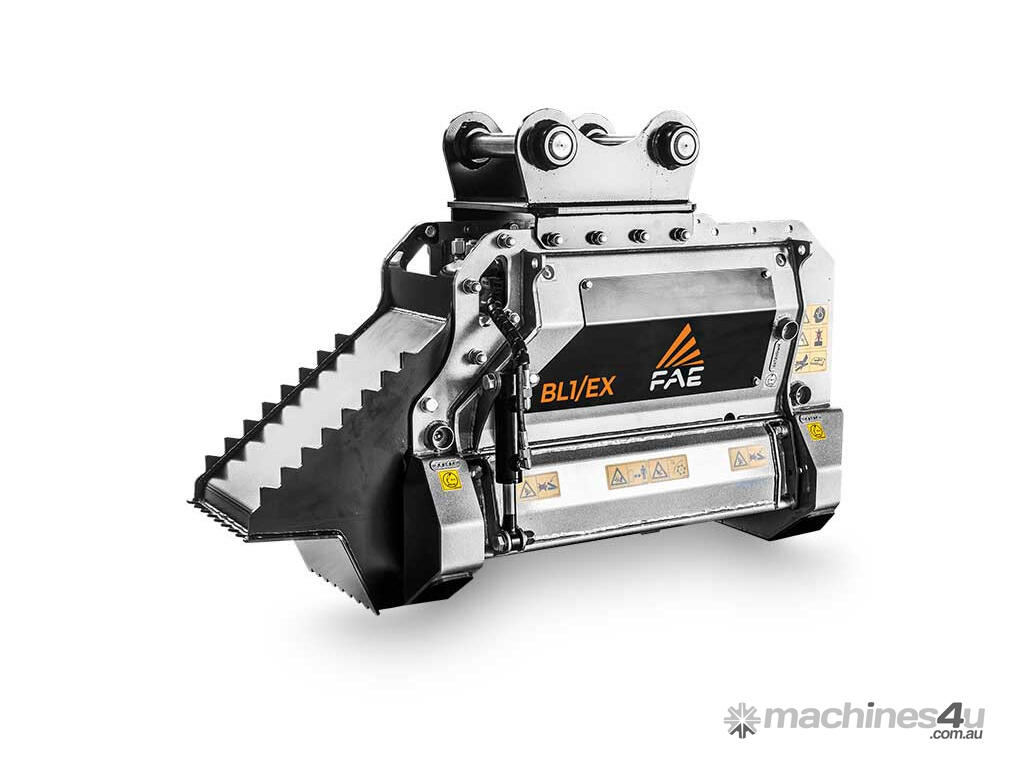

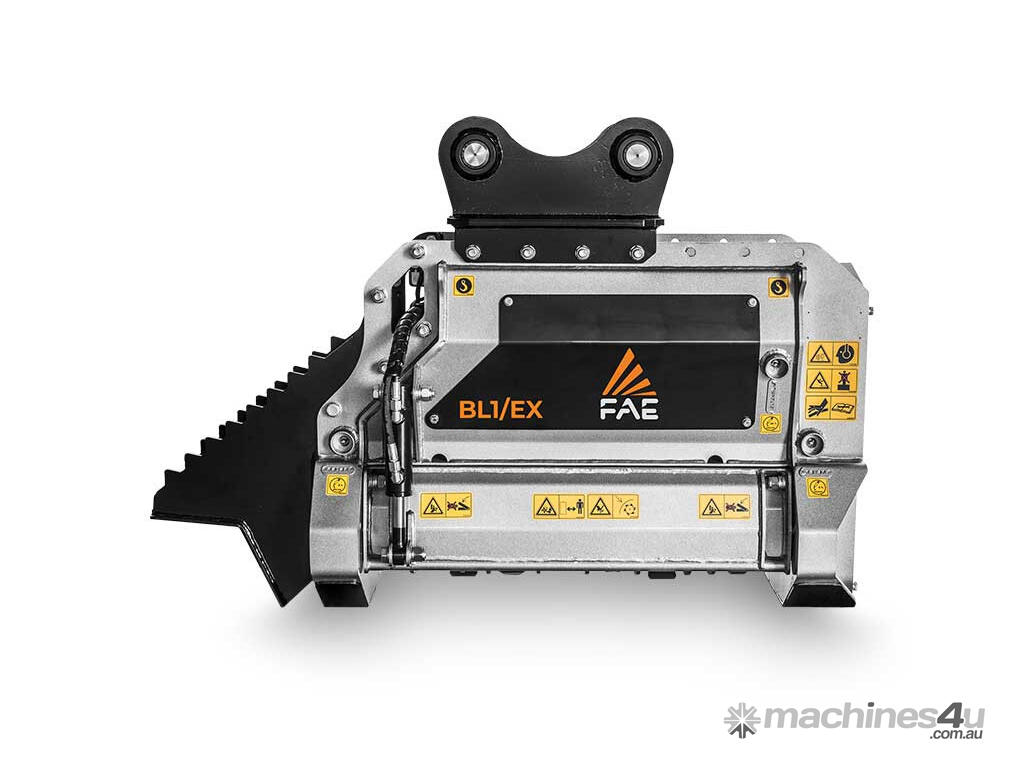

The BL1/EX - BL1/EX/VT (for 4-7.5 t excavators) has a 800 mm working width and can mulch logs up to 12 cm in diameter.
The piston engine (with manually controlled variable displacement) makes it easy to use this mulcher on different excavators with different oil flow rates.
The BL1/ EX-BL1/EX/VT has a rotor equipped with a heat-treated forged steel tooth holder, together with Type Mini BL blades.

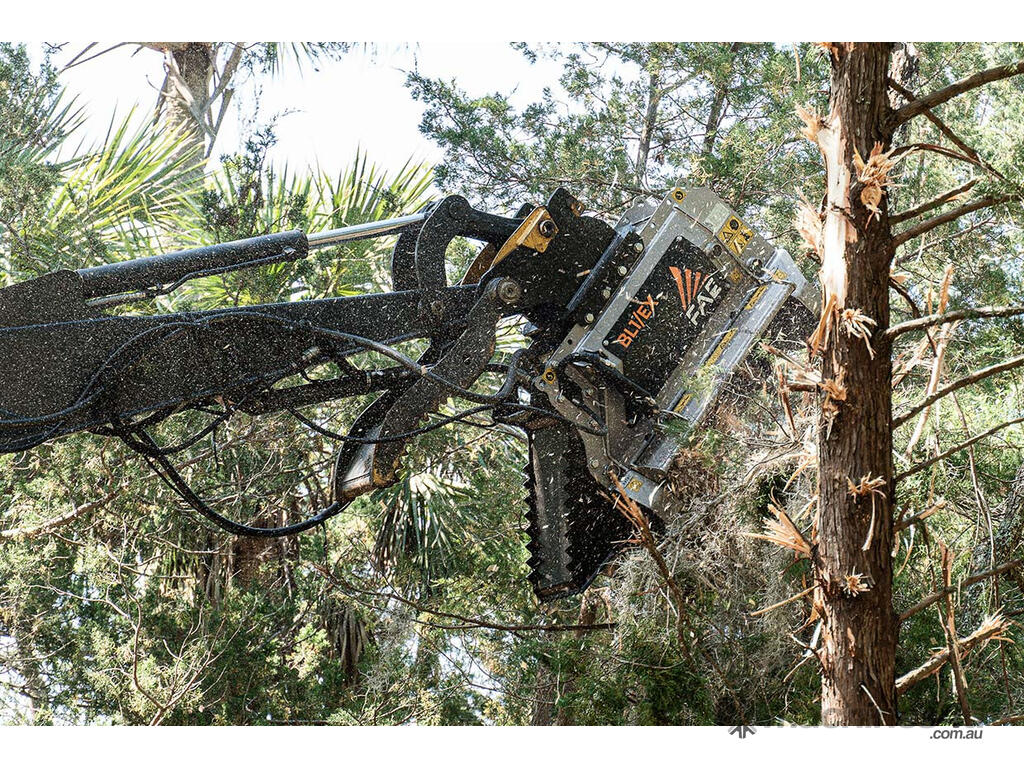

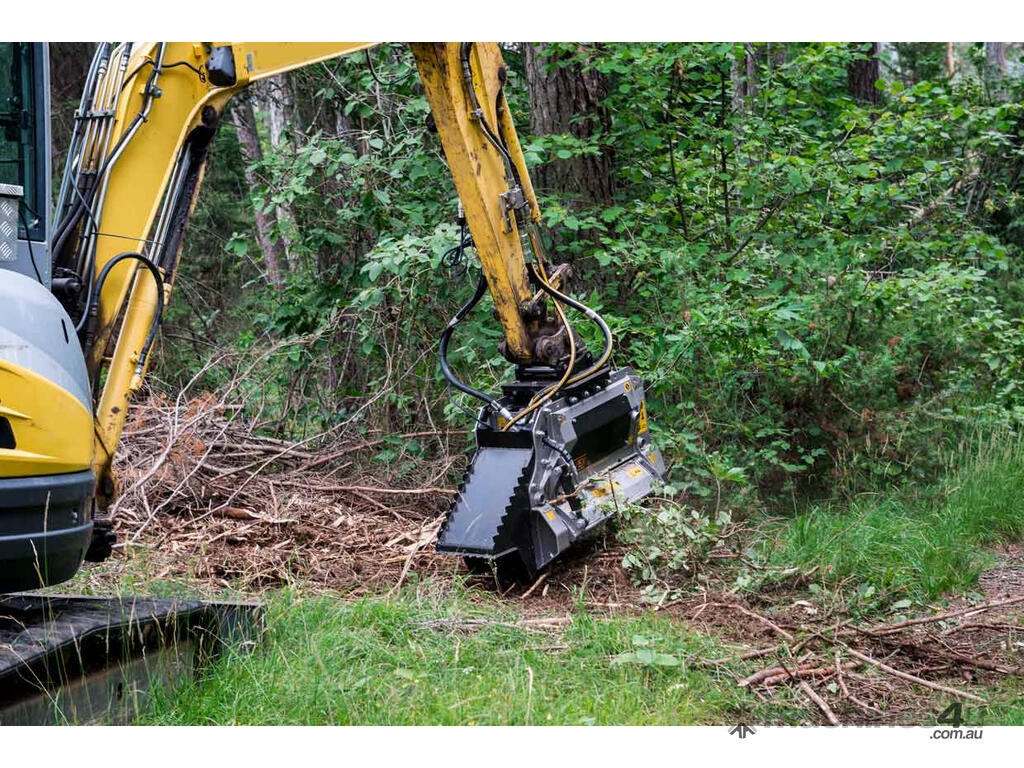

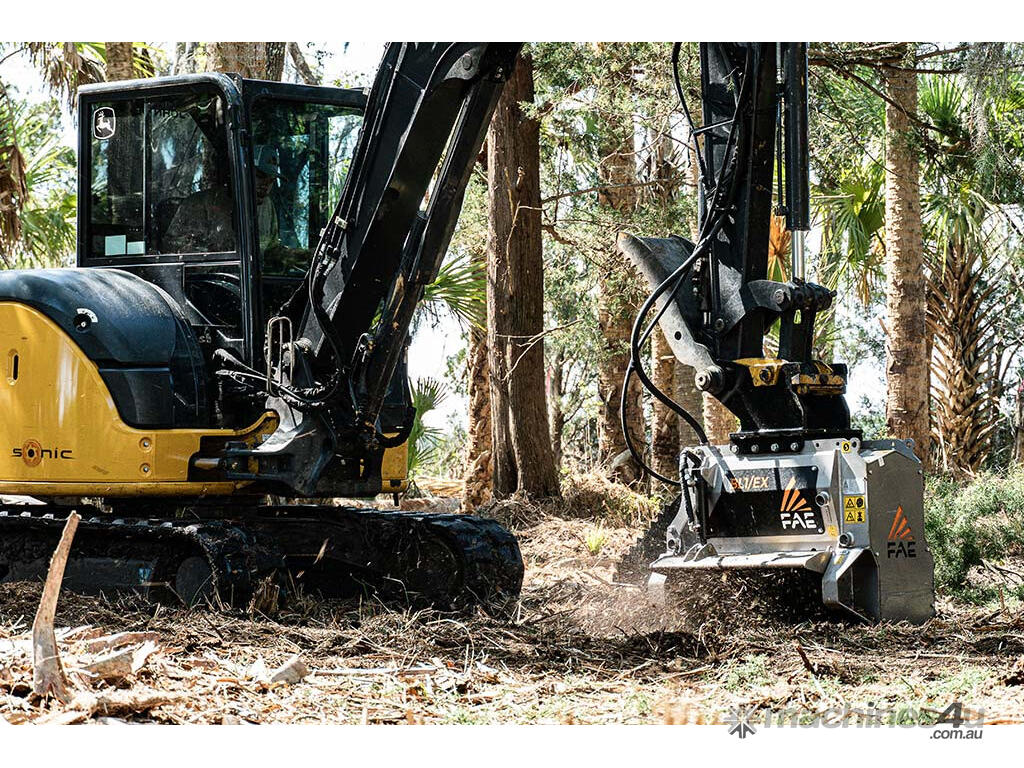

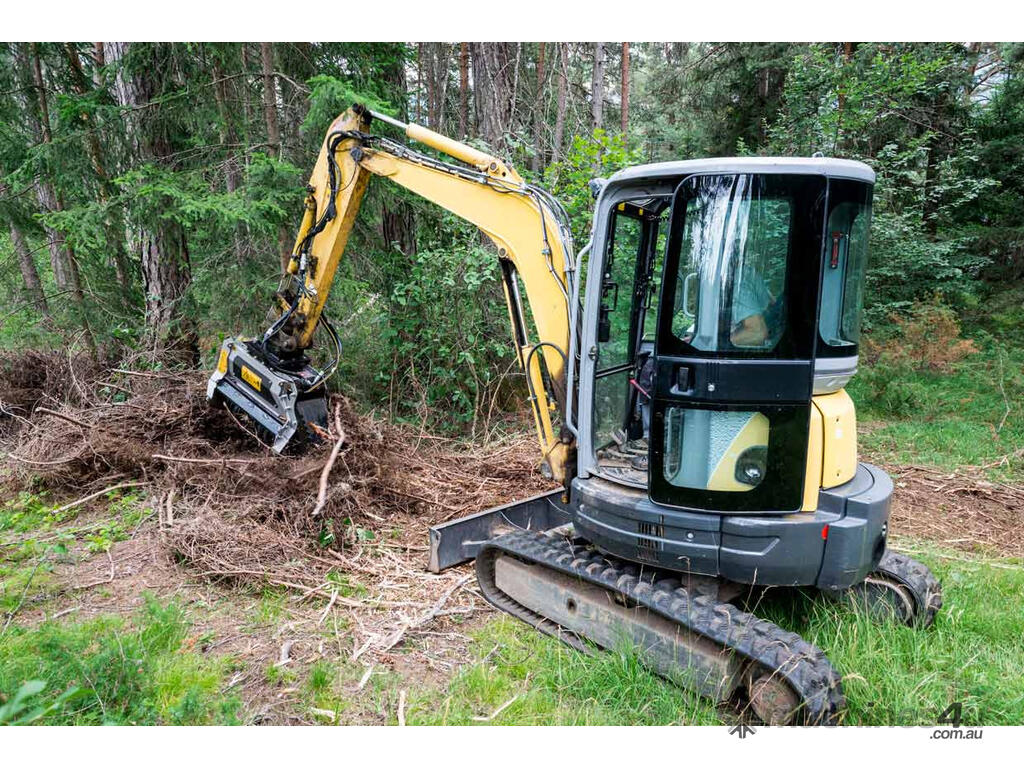

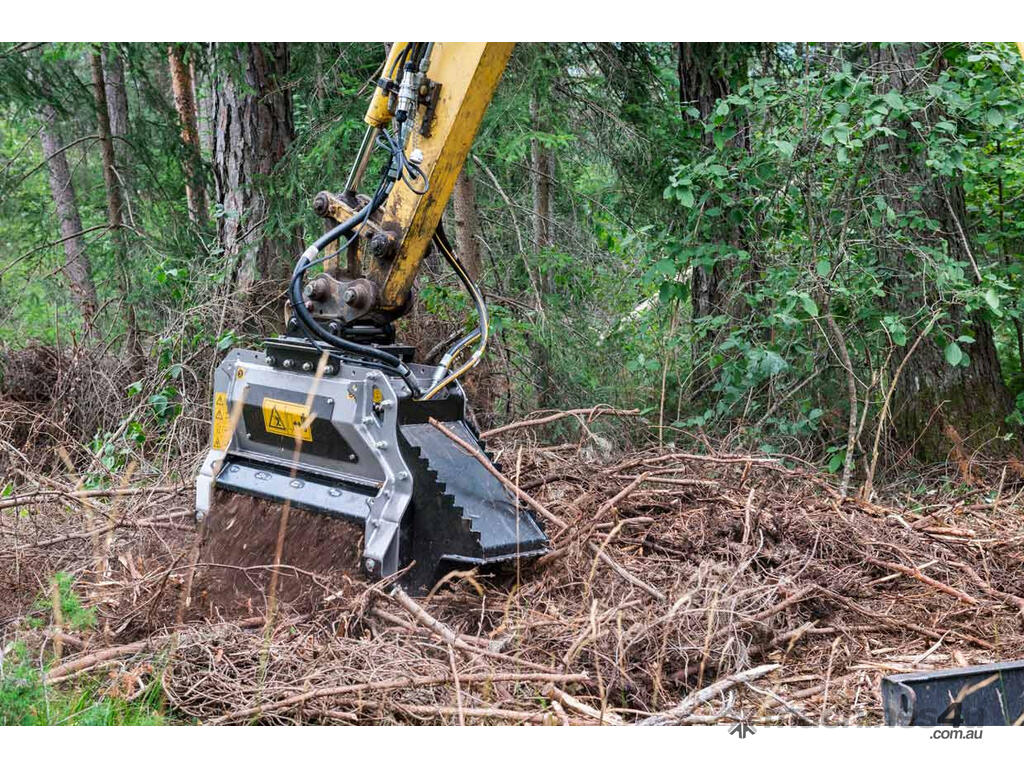

This light, compact mulcher is easy to maneuver and perfect for various types of forestry work.
EXCAVATOR WEIGHT
from 4 to 7,5 t
SHREDDING DIAMETER
Ø 12 cm max
FLOW RATE
from 50 to 140 L/min
MOST IMPORTANT FEATURES
BITE LIMITER ROTOR
EXCEPTIONAL SPEED AND PERFORMANCE WITH LOWER POWER REQUIREMENT
APPLICATIONS:

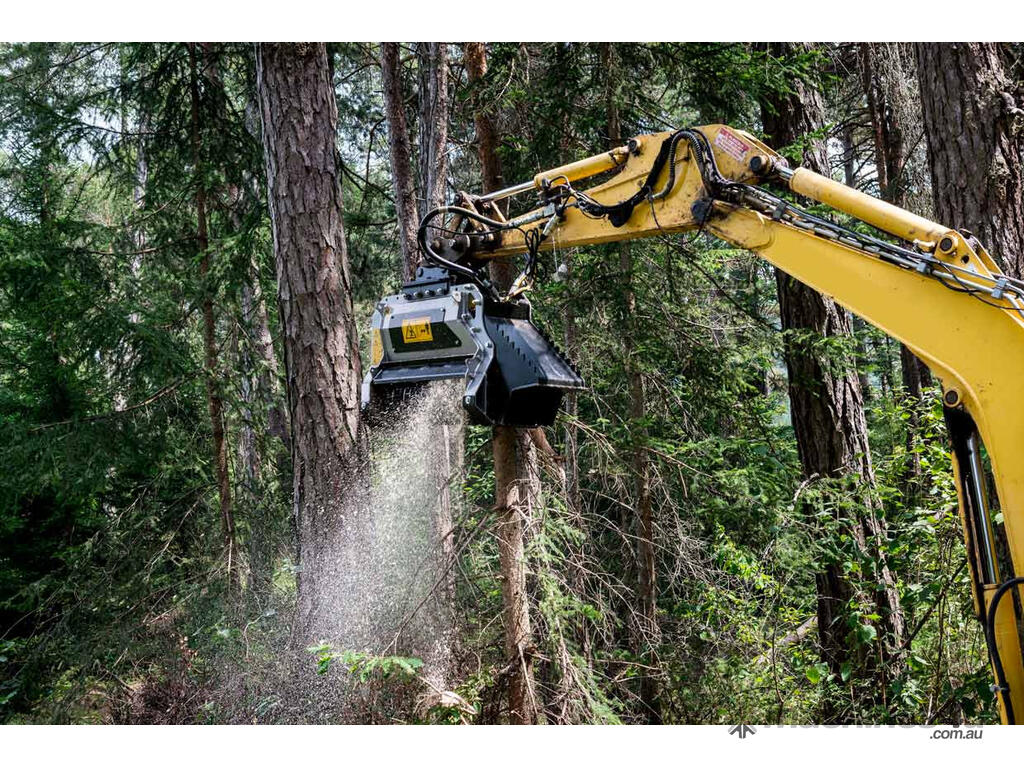

FORESTRY MAINTENANCE
ENVIRONMENTAL, WILDLIFE HABITAT PROTECTION & FOOD PLOTS
Enclosed/anti dust machine body
Motor enclosed in the frame
Bulkhead for hydraulic connections
Transmission with belts
55/38cc variable torque hydraulic piston motor (VT)
17/34cc variable manual displacement hydraulic piston motor with relief and anticavitation valve (BL1/EX)

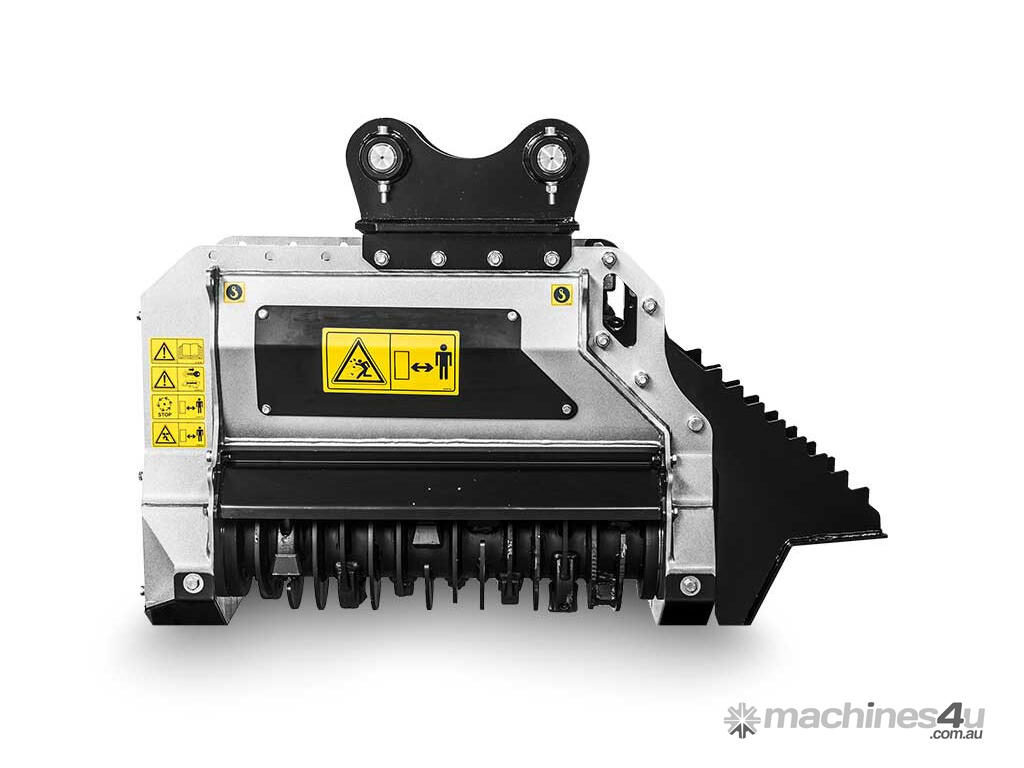

Bite Limiter Rotor
Flow control system valve
Safety and anticavitation valve
Front hood with mechanical adjustment
Dedicated rear hood (deflector)
