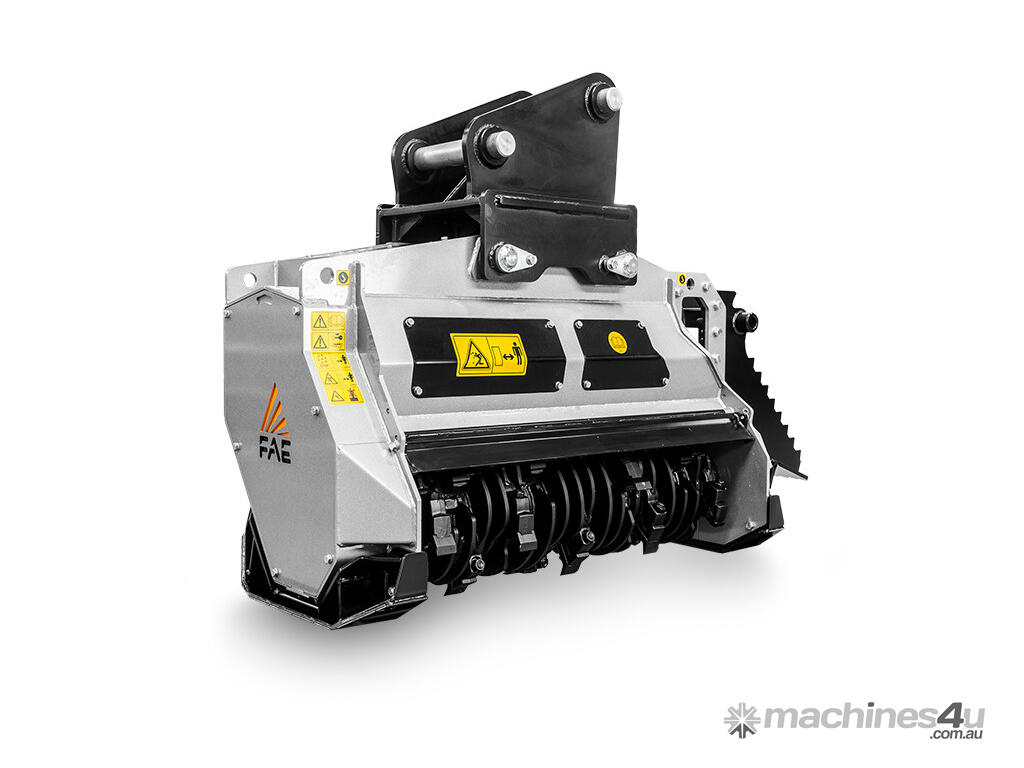

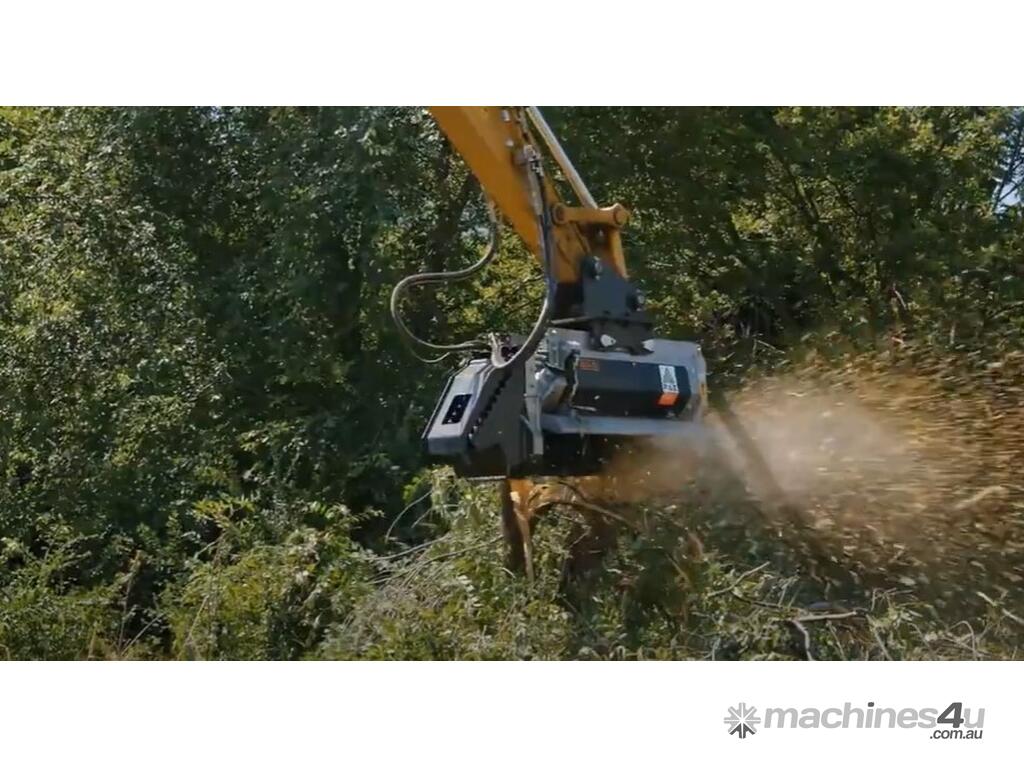

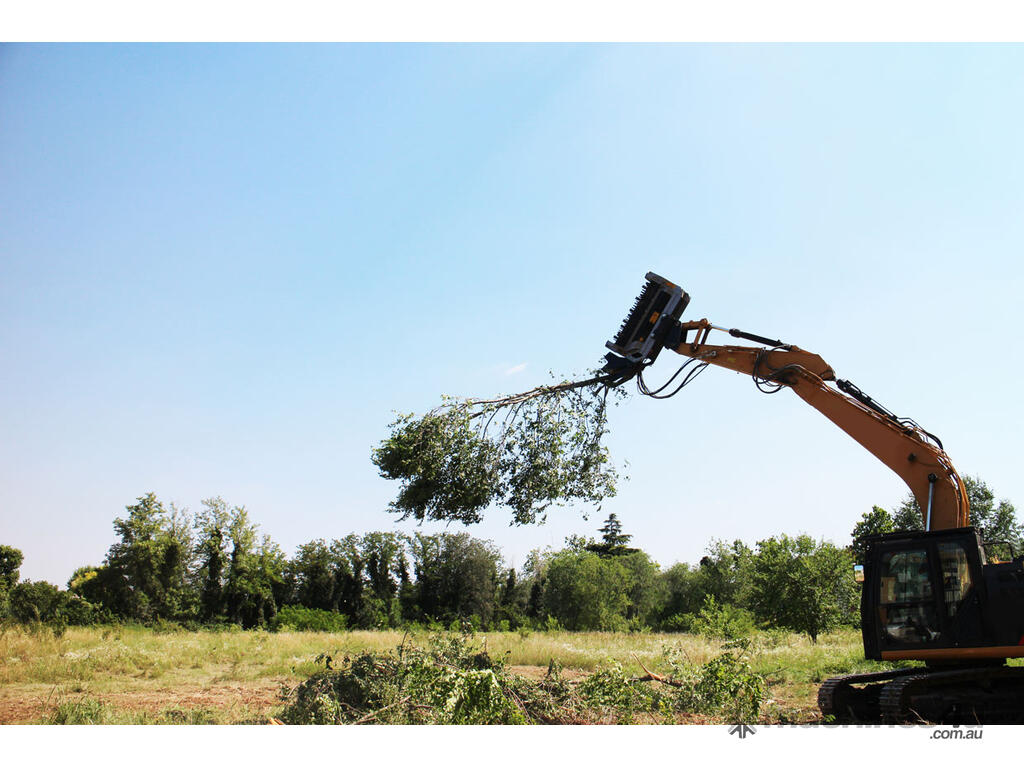

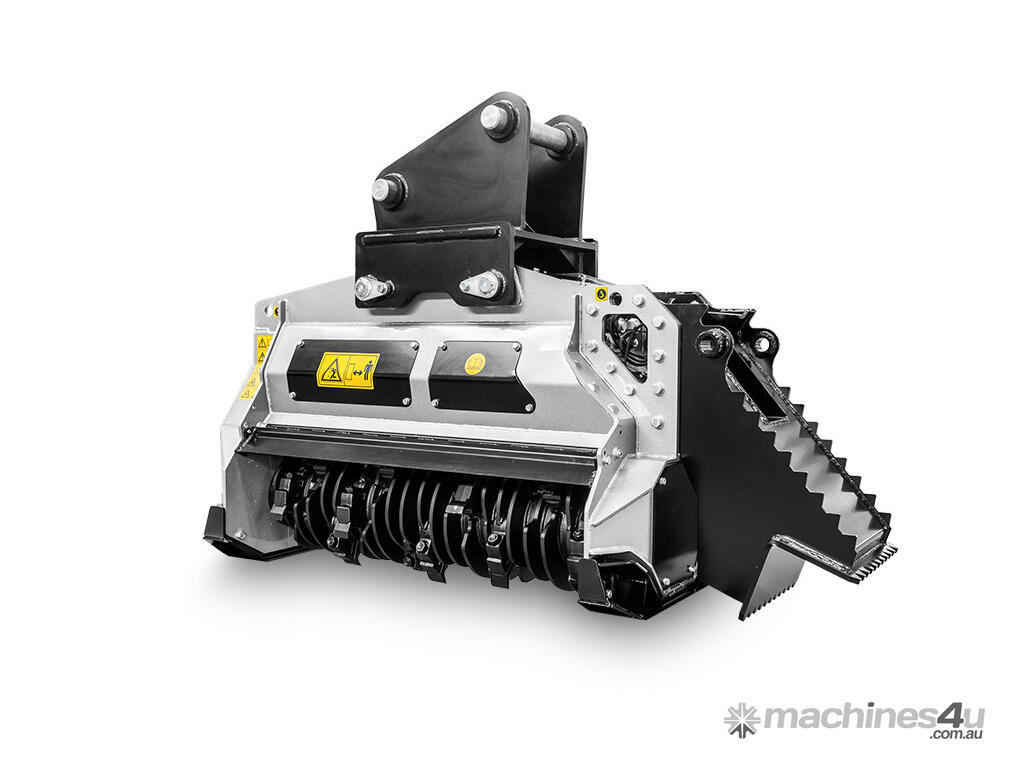

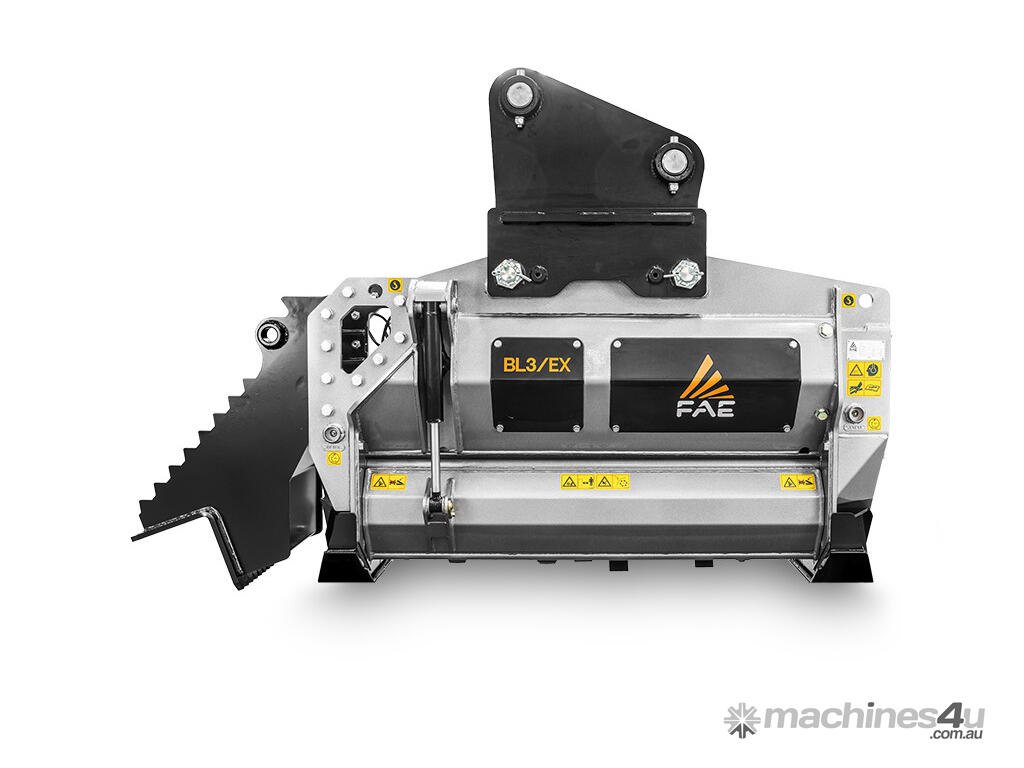

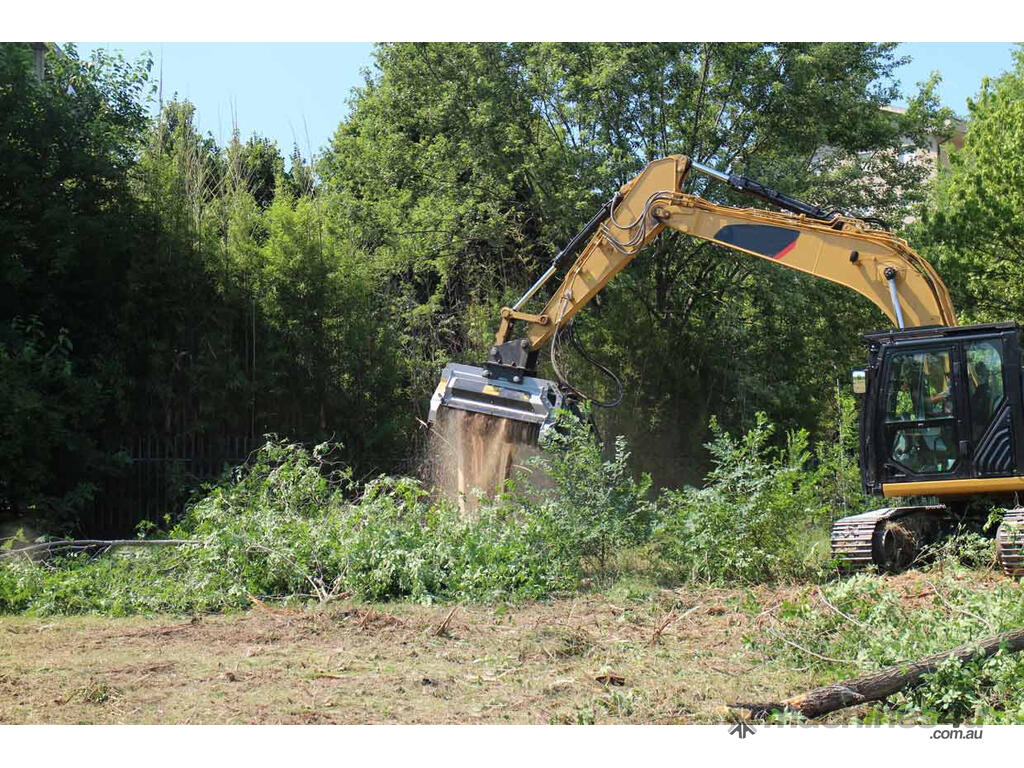

FAE BL3 FORESTRY MULCHER FOR EXCAVATORS *ITALIAN ENGINEERING*

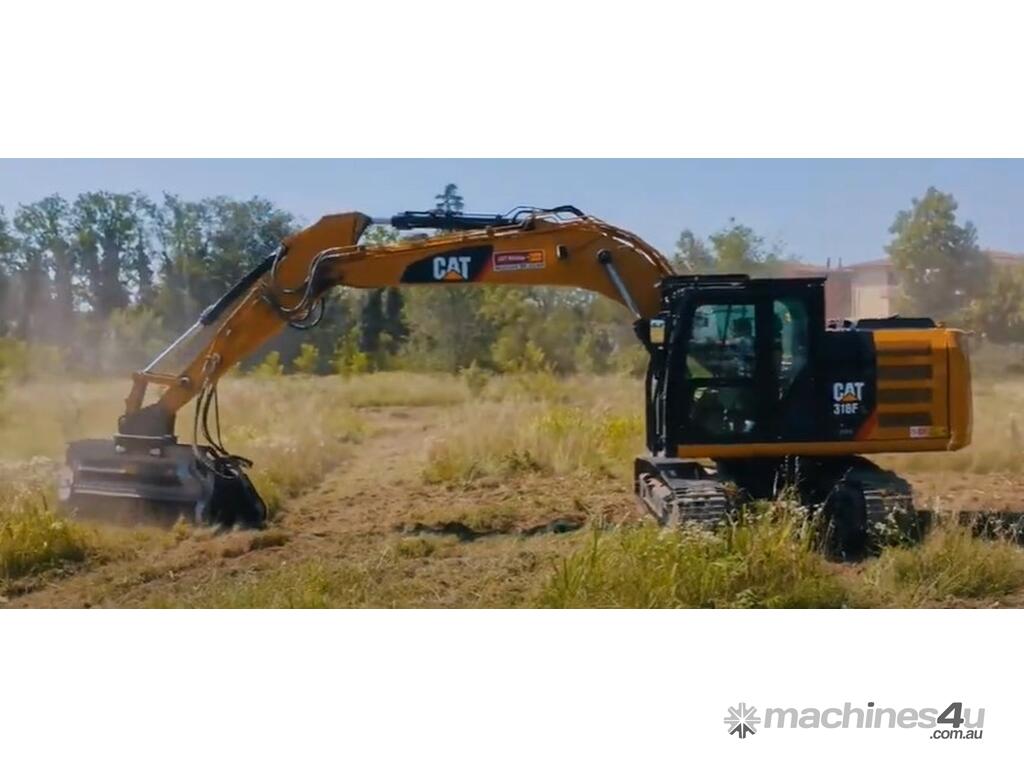

The mulcher with Bite Limiter technology for large and midsize excavators.

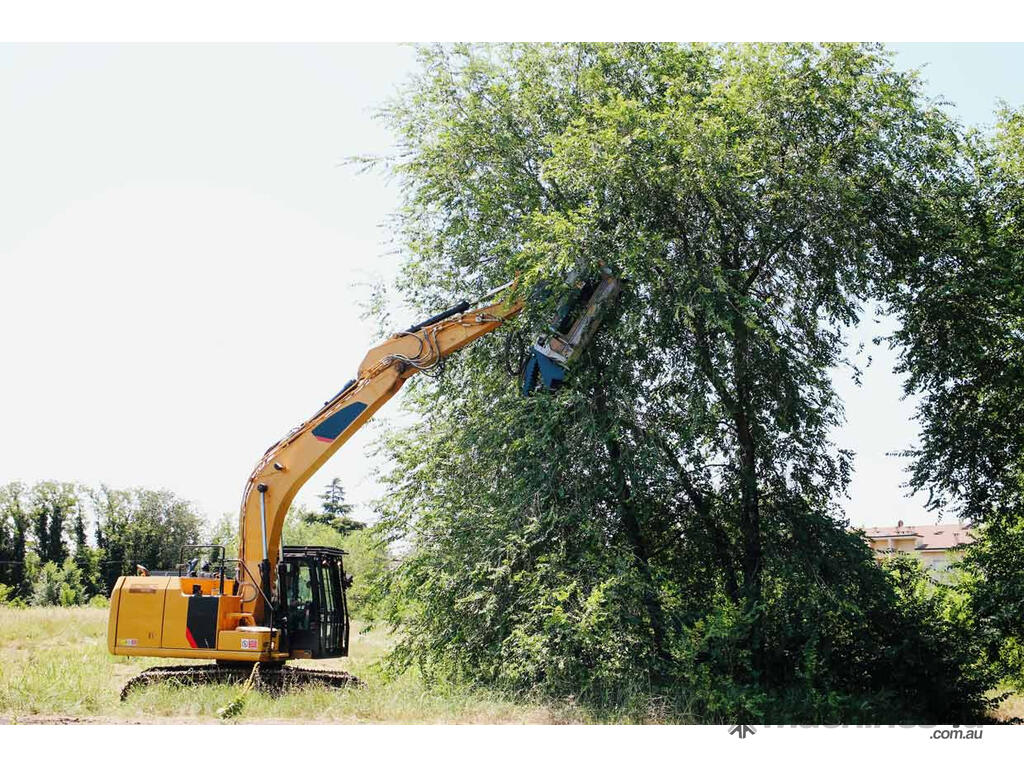

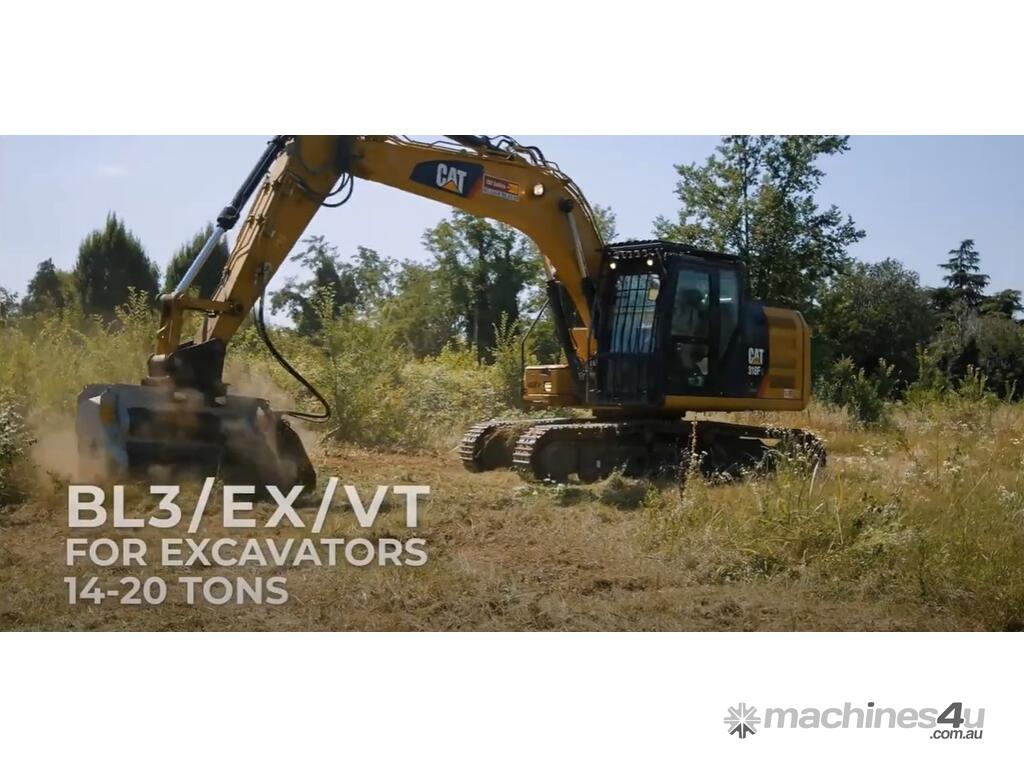

BL3/EX/VT for 14-20 ton excavators mulches trees with a max. diameter of 20 cm and is available in two working widths: 134 cm and 158 cm.

The rotor features Bite Limiter technology.
Steel limiter rings limit the depth of cut, which reduces power demand and guarantees speed and exceptional performance.

The heat-treated forged-steel BL blades are durable and can be sharpened, lowering operating costs.

BL3/ EX/VT has a 110/60 cc VT (Variable Torque) motor for noticeably better performance, increased torque when needed, and minimal risk of rotor stalling.

EXCAVATOR WEIGHT
from 14 to 20 t

SHREDDING DIAMETER
20 cm max

FLOW RATE
from 120 to 210 L/min

MOST IMPORTANT FEATURES
BITE LIMITER ROTOR
EXCEPTIONAL SPEED AND PERFORMANCE WITH LOWER POWER REQUIREMENT

SPIKE PRO COUNTER-BLADES
FINER PRODUCT SIZE OF THE MULCHING MATERIALS

SONIC (BL3/EX/SONIC)
SONIC IS A NEW AUTOMATIC INTELLIGENT SYSTEM THAT MANAGES THE HYDRAULIC TRANSMISSION

APPLICATIONS:
FORESTRY MAINTENANCE
ENVIRONMENTAL, WILDLIFE HABITAT PROTECTION & FOOD PLOTS

Enclosed/anti dust machine body
Motor enclosed in the frame
Bulkhead for hydraulic connections

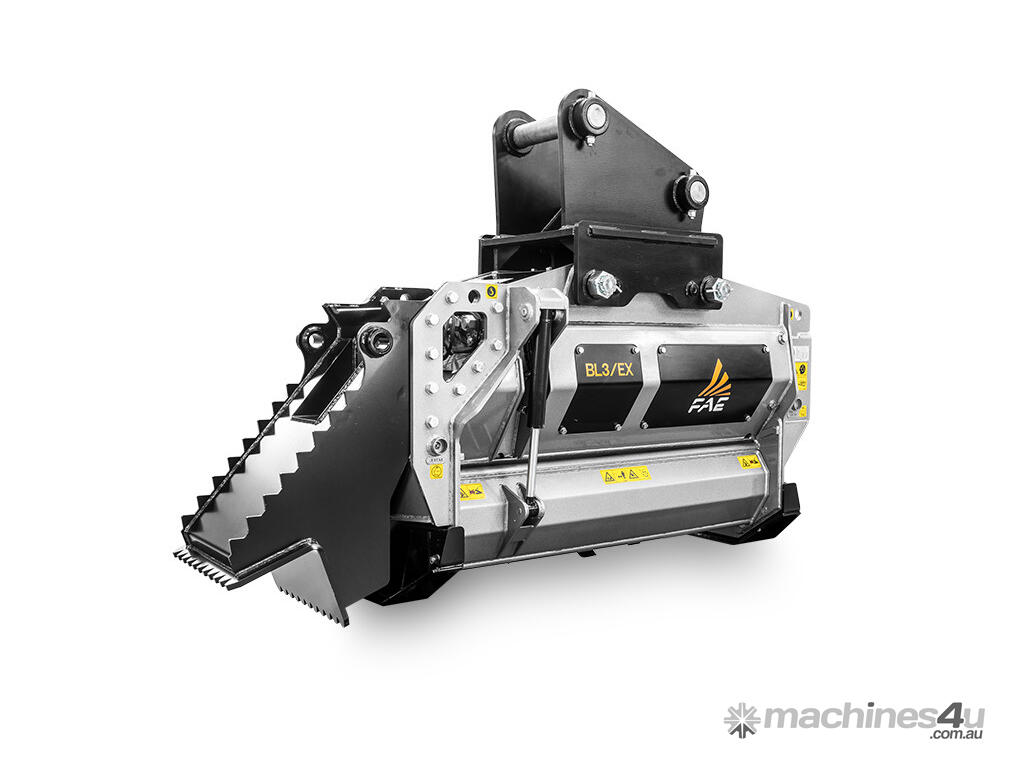

Spike Pro counter-blade

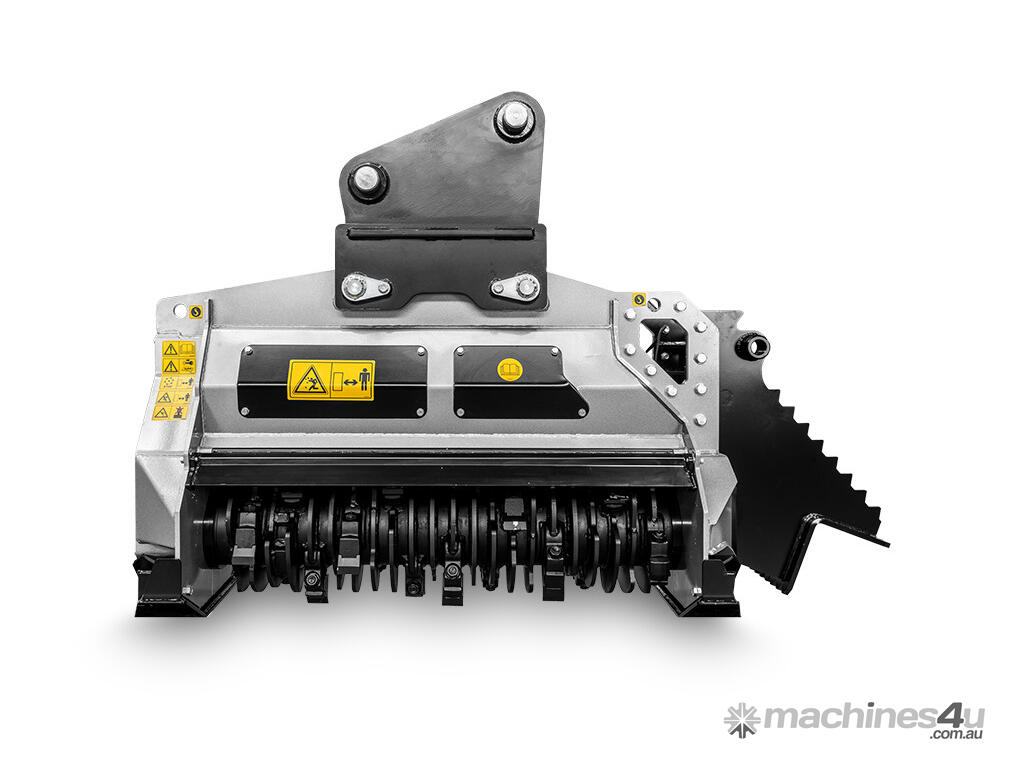

Bite Limiter Rotor
110/60cc variable torque hydraulic piston motor (VT)
110cc variable torque hydraulic piston motor (SONIC)
Timing belt transmission
Flow control system valve
Safety and anticavitation valve
Diverter valve (plug in and play)
Sonic System (SONIC)
Hydraulic front trap door
Dedicated rear hood (deflector)
Adjustable skids
