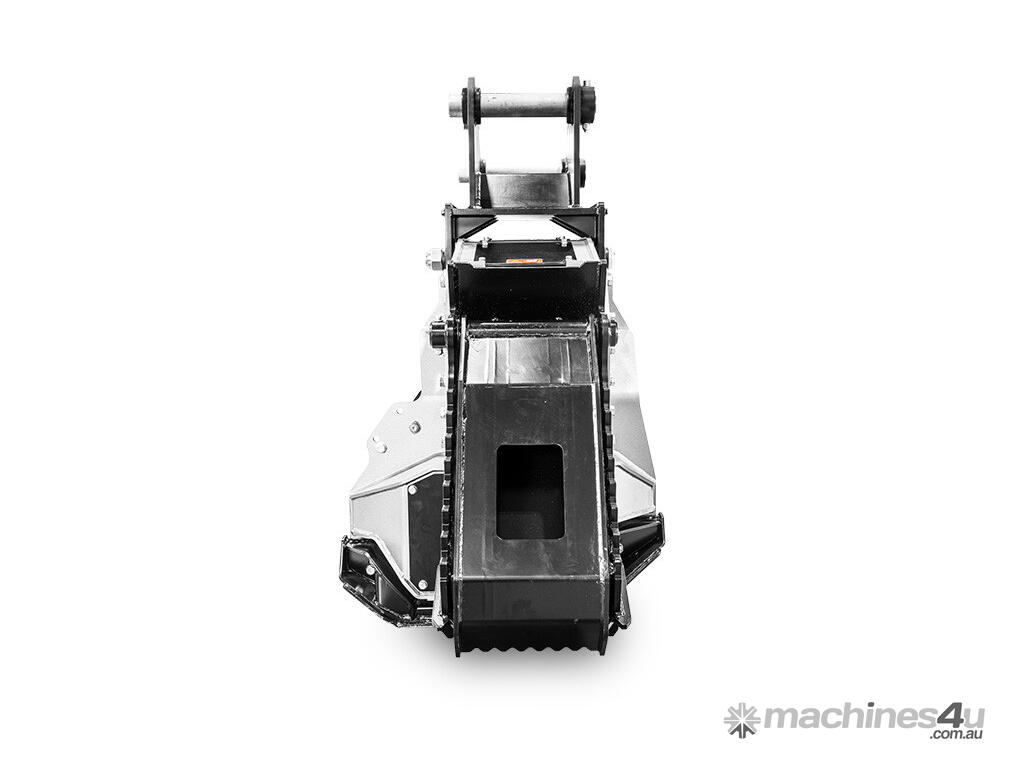

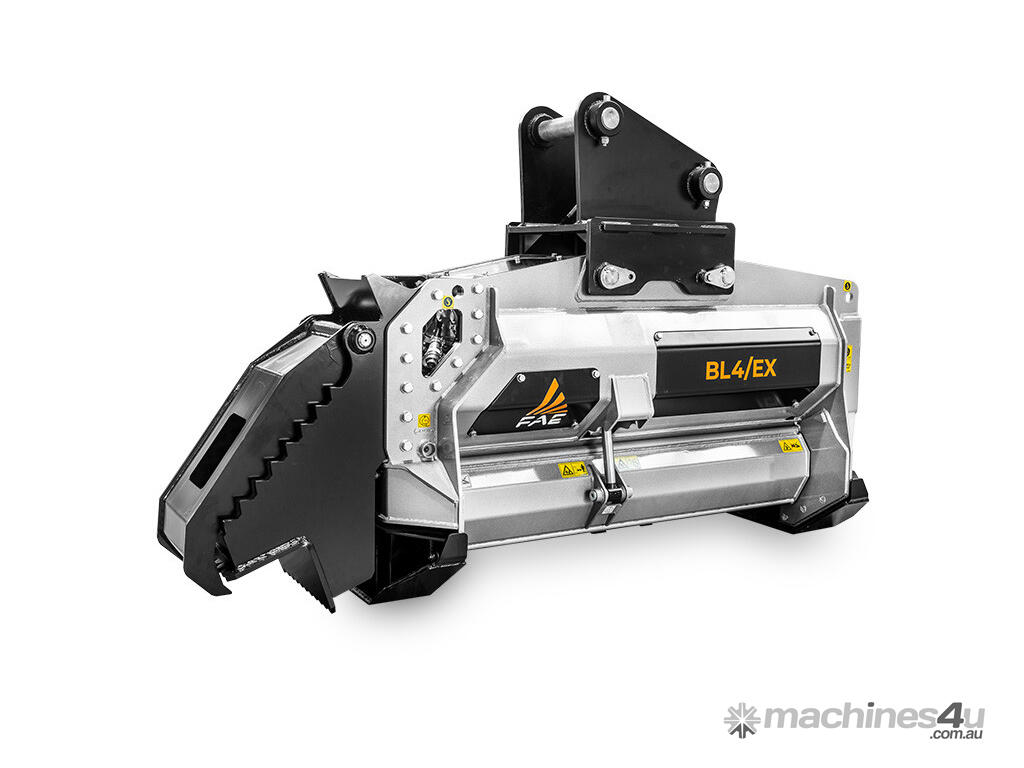

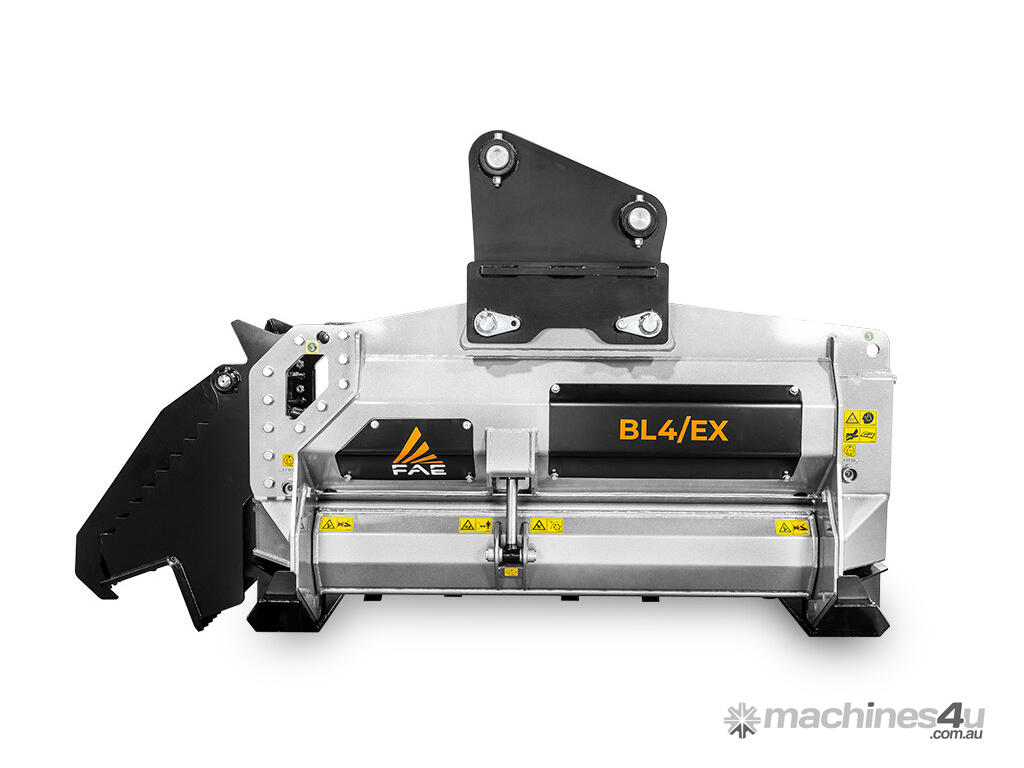

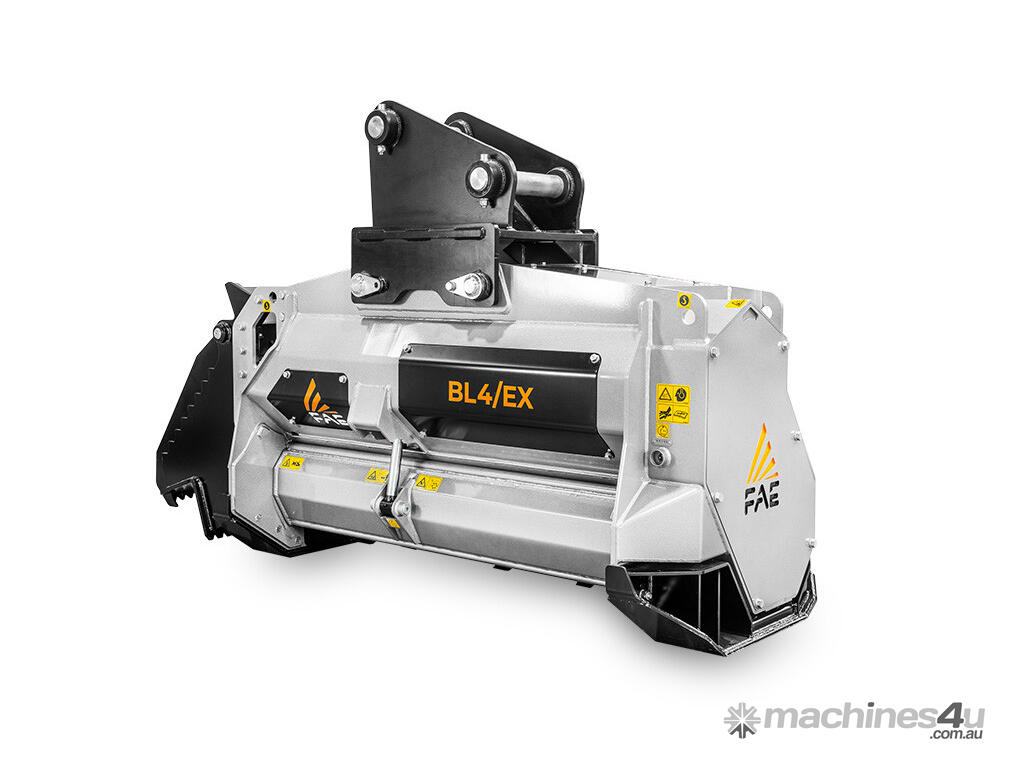

FAE BL4/EX FORESTRY MULCHER FOR EXCAVATORS *ITALIAN ENGINEERING*

The mulcher for large excavators, with Bite Limiter technology.
The BL4/EX/VT for 18-25 ton excavators mulches logs up to 30 cm in diameter and comes in two working widths: 135 cm and 160 cm.

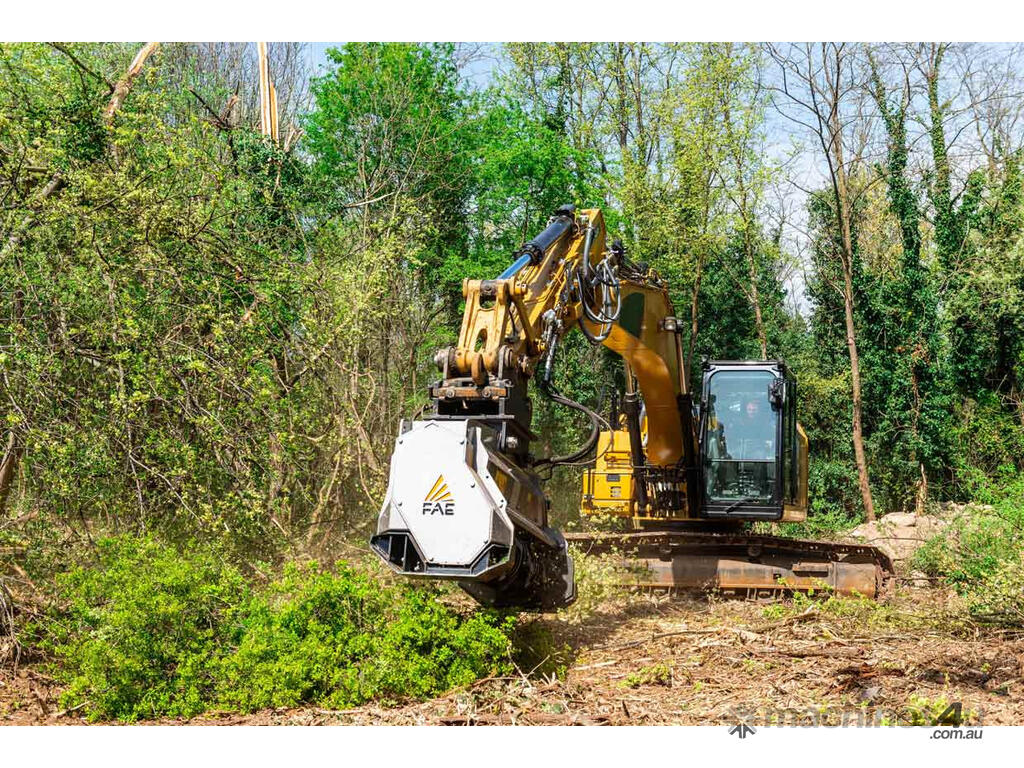

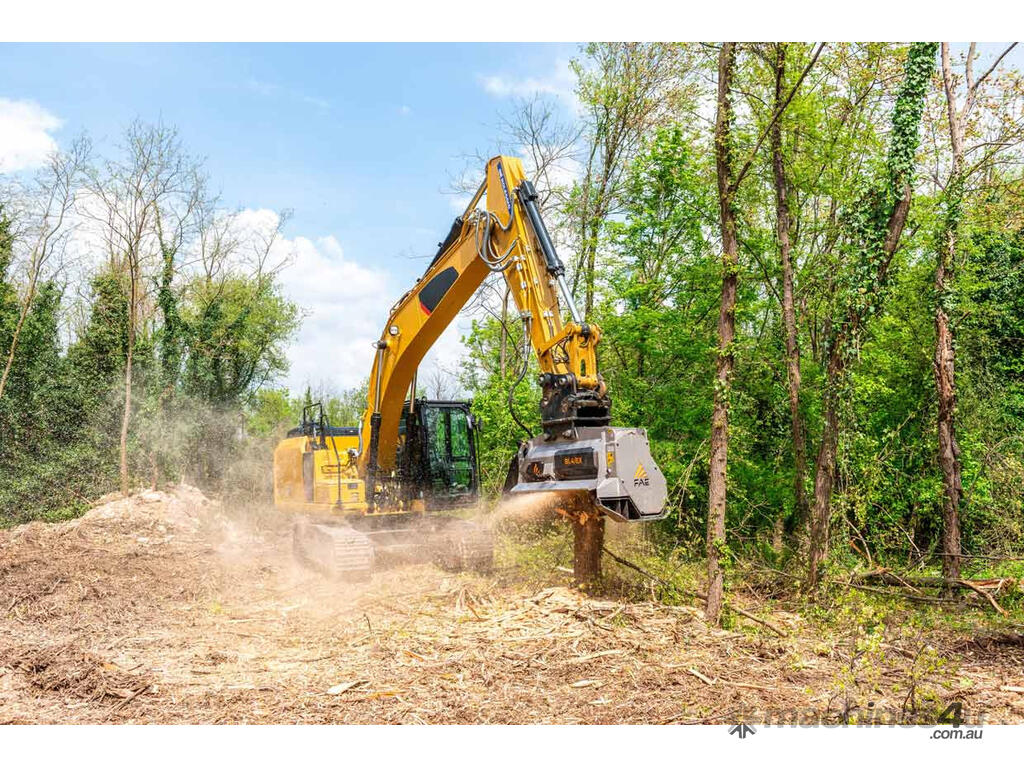

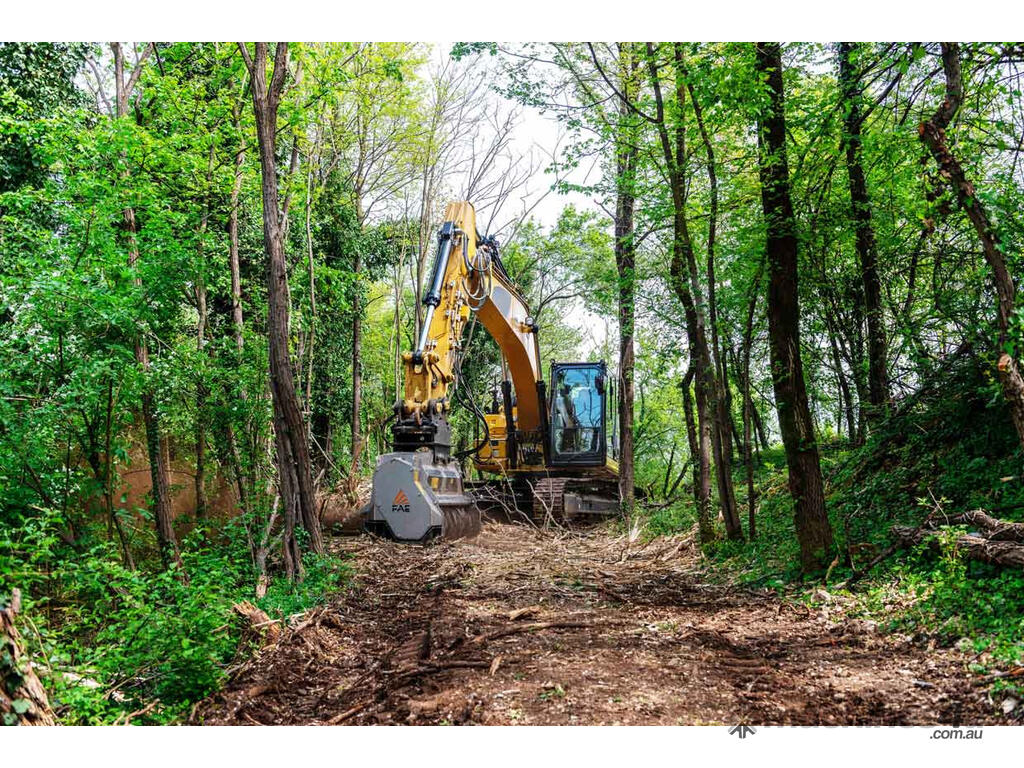

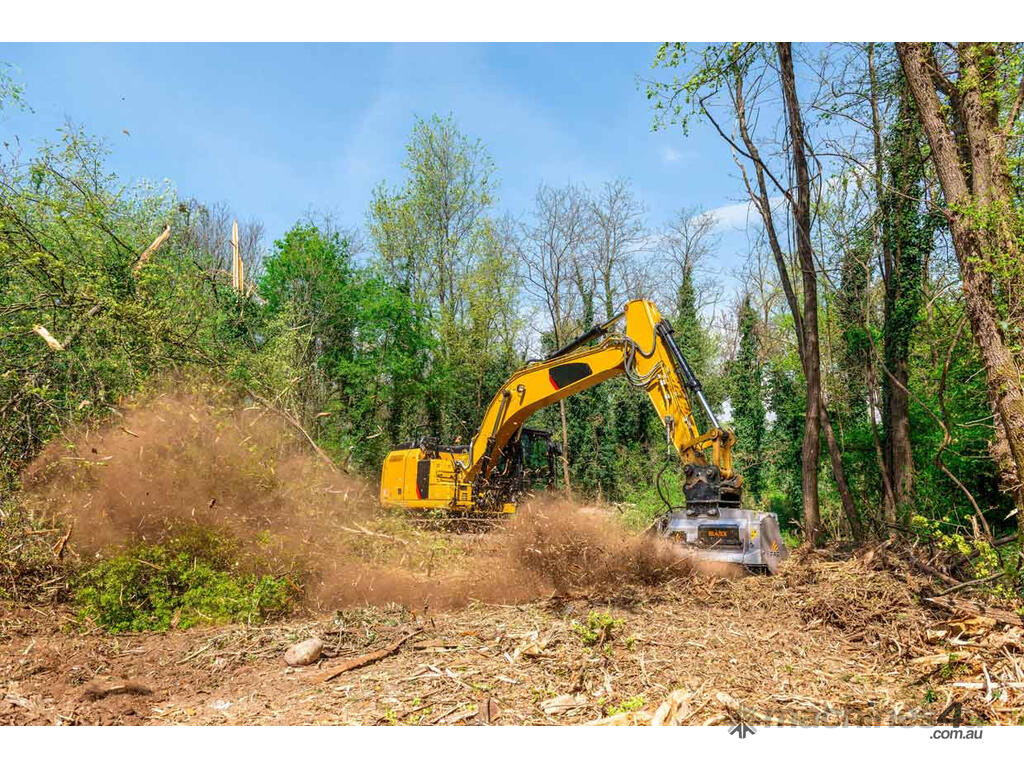

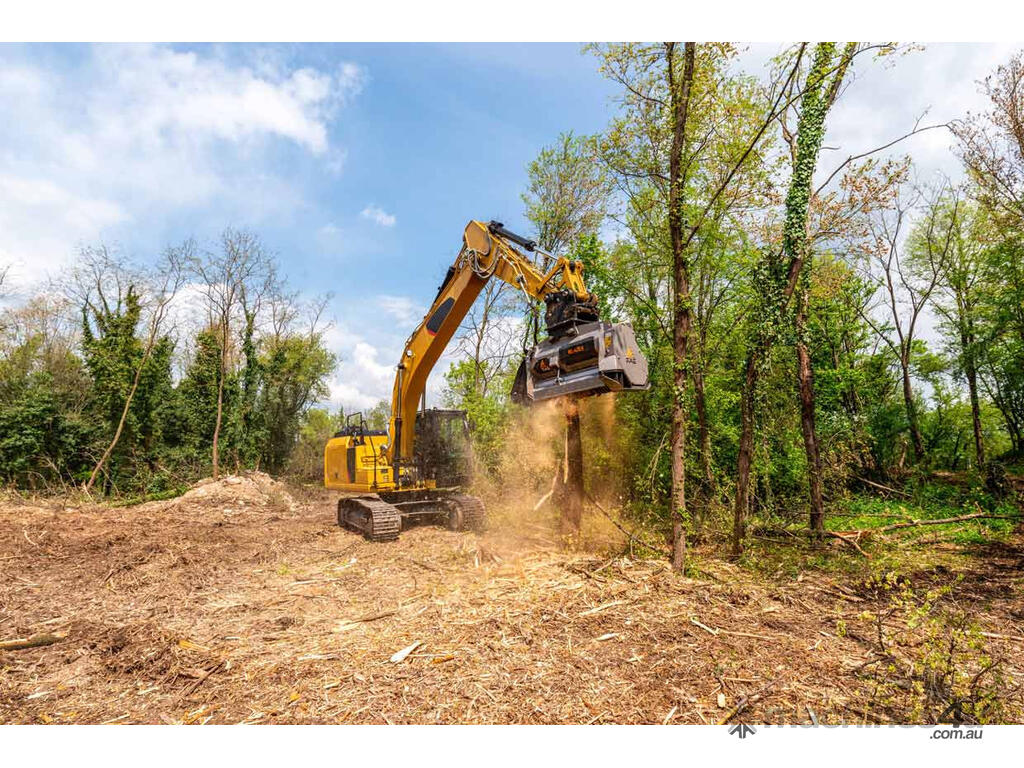

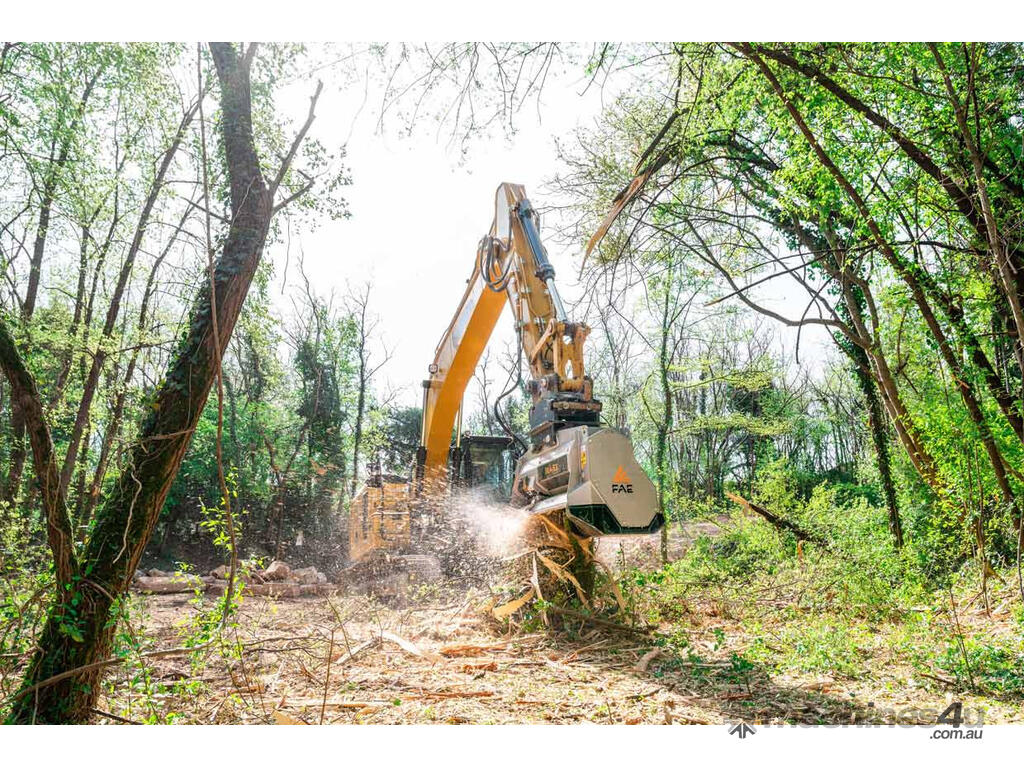

The BL4/EX/VT is ideal for handling and removing vegetation in wooded areas, especially for jobs that require a large shredding capacity and speed.

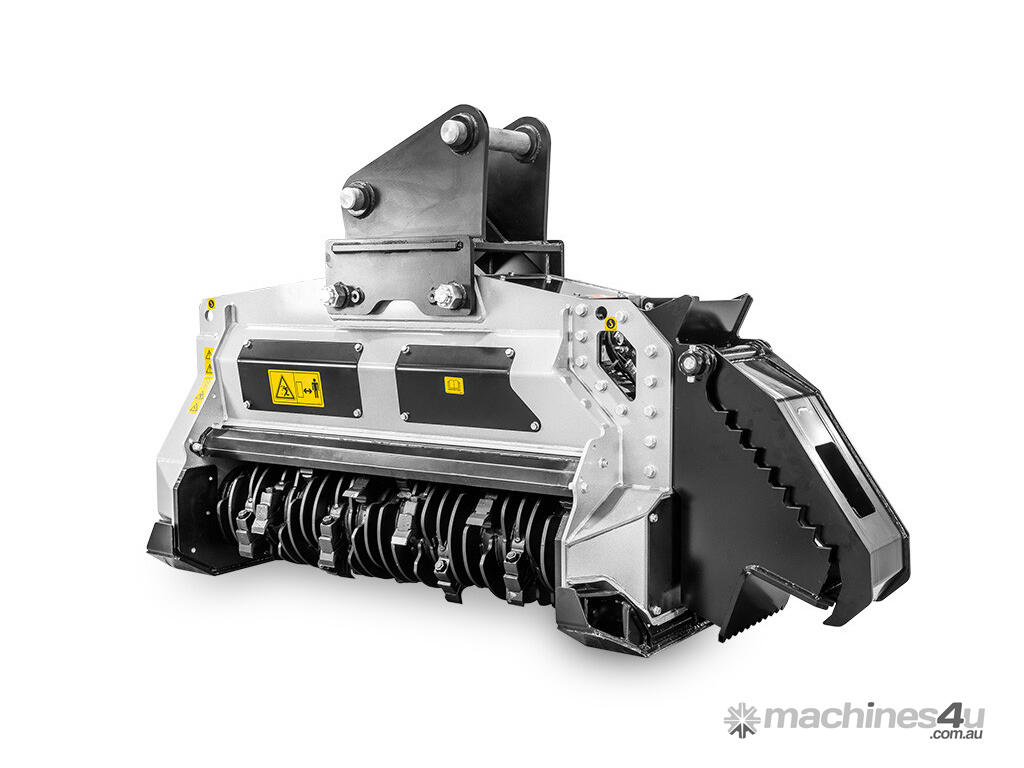

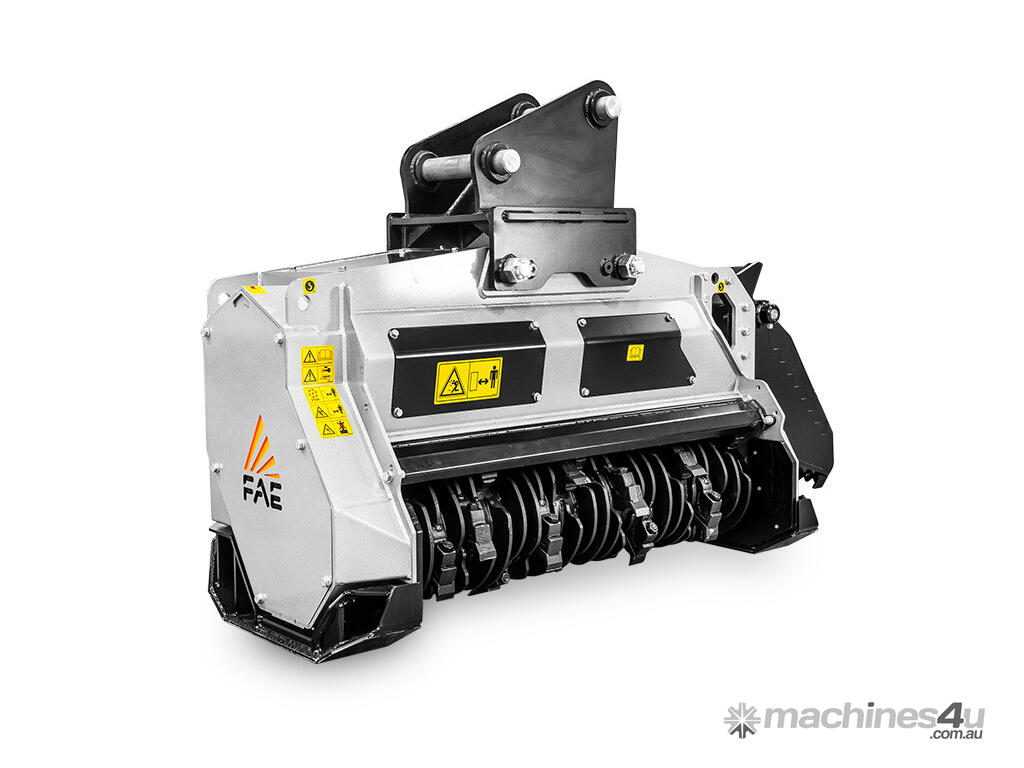

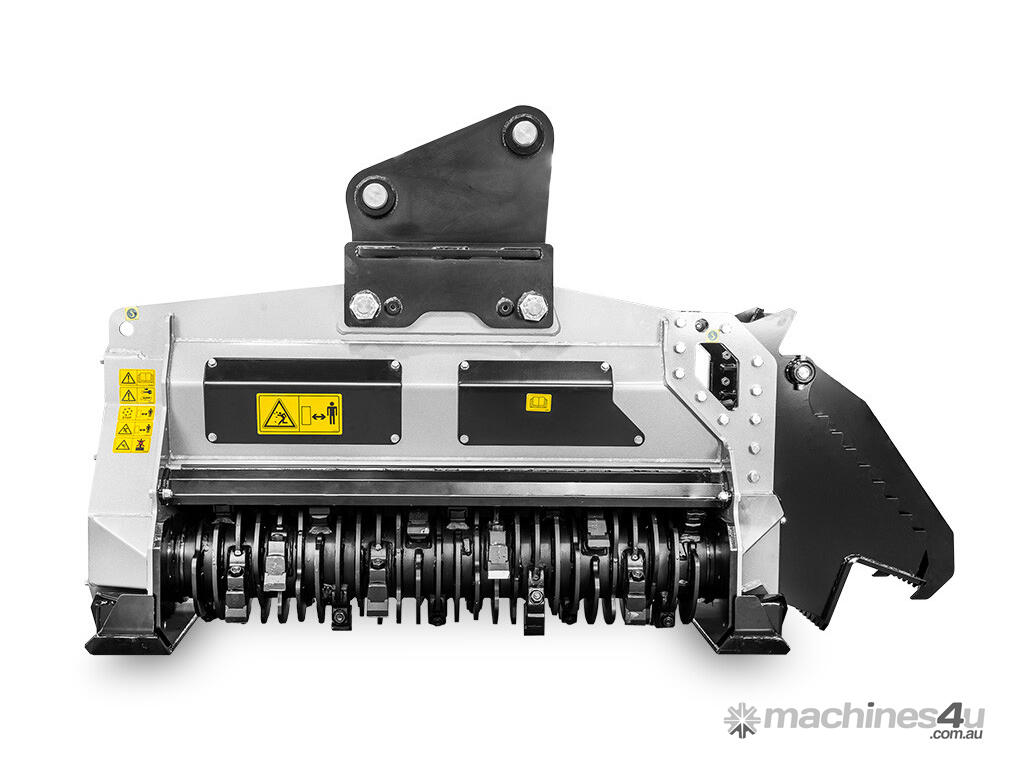

The rotor features Bite Limiter technology. Steel profiles limit the reach (bite) of the teeth, reducing the amount of power needed and guaranteeing constant working speed and excellent performance. The heat-treated forged-steel BL blades are made to last and can be sharpened to keep operating costs lower.
The timing belt transmission ensures optimum power transfer and reliability.
The BL4/EX/VT has a Variable Torque (VT) motor for noticeably better performance, increased torque when needed, and minimal risk of rotor stalling.
The sturdy steel frame is built to last. Optional Spike Pro bolted counter-blades produce very fine mulched material and make maintenance a snap.
The optional Sonic system ensures that the operating machine and the FAE mulcher are perfectly aligned by automatically calibrating and constantly regulating the mulcher's hydraulic parameters for a significant increase in productivity.

EXCAVATOR WEIGHT
from 18 to 25 t

SHREDDING DIAMETER
Ø 30 cm max

FLOW RATE
from 145 to 300 L/min

MOST IMPORTANT FEATURES
BITE LIMITER ROTOR
EXCEPTIONAL SPEED AND PERFORMANCE WITH LOWER POWER REQUIREMENT

SPIKE PRO COUNTER-BLADES
FINER PRODUCT SIZE OF THE MULCHING MATERIALS

VT MOTOR
AUTOMATIC TORQUE INCREASE

DIVERTER VALVE
FOR HYDRAULIC CONTROL OF THE HOOD

SONIC (BL4/EX/SONIC)
SONIC IS A NEW AUTOMATIC INTELLIGENT SYSTEM THAT MANAGES THE HYDRAULIC TRANSMISSION

APPLICATIONS:
FORESTRY MAINTENANCE
ENVIRONMENTAL, WILDLIFE HABITAT PROTECTION & FOOD PLOTS

Enclosed/anti dust machine body
Motor enclosed in the frame
Bulkhead for hydraulic connections
Spike Pro counter-blade
Bite Limiter Rotor
110/60cc variable torque hydraulic piston motor (VT)
110cc variable torque hydraulic piston motor (SONIC)
Timing belt transmission
Flow control system valve
Safety and anticavitation valve
Diverter valve (plug in and play)
Sonic System (SONIC)
Hydraulic front trap door
Dedicated rear hood (deflector)
Adjustable skids
