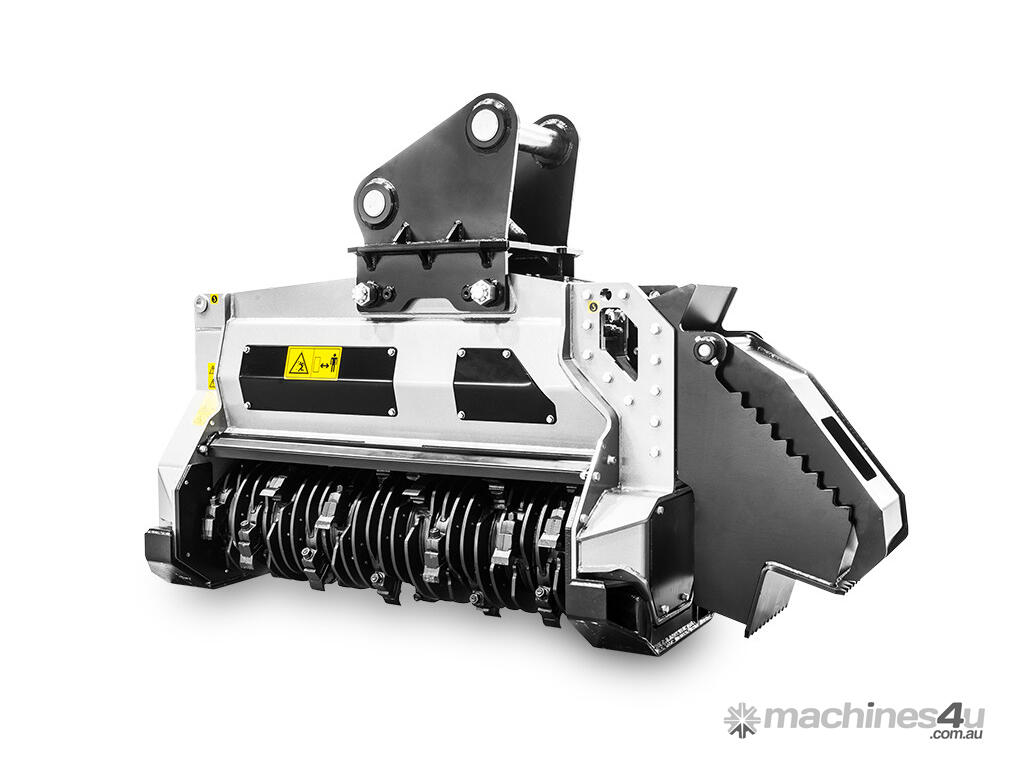

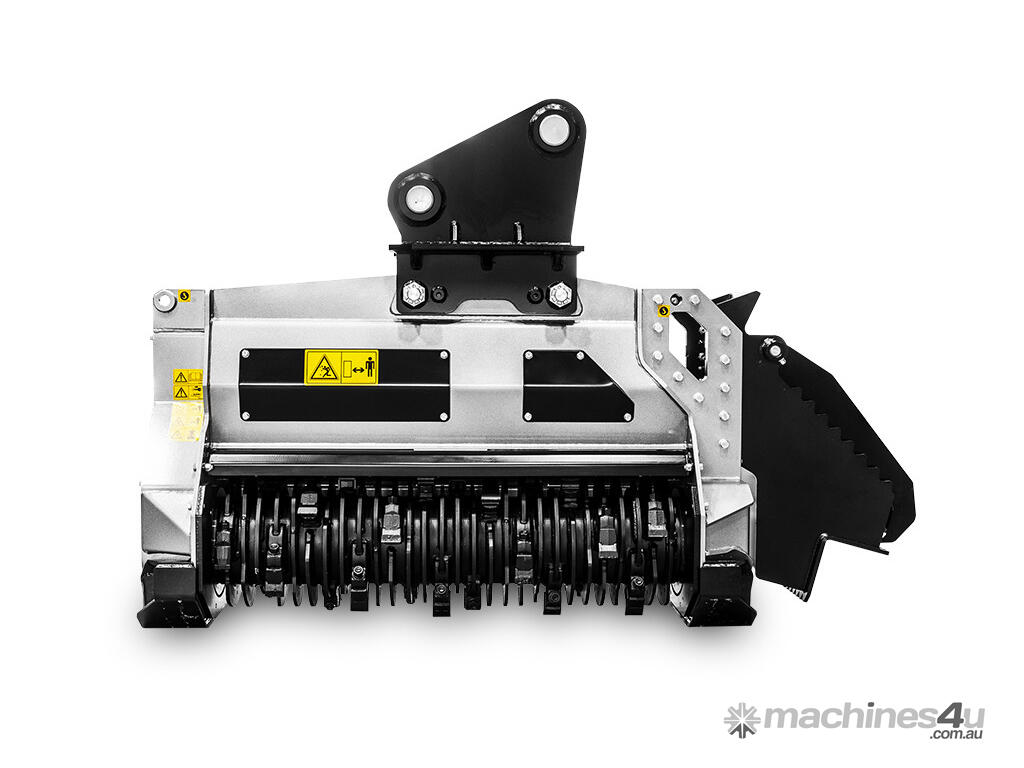

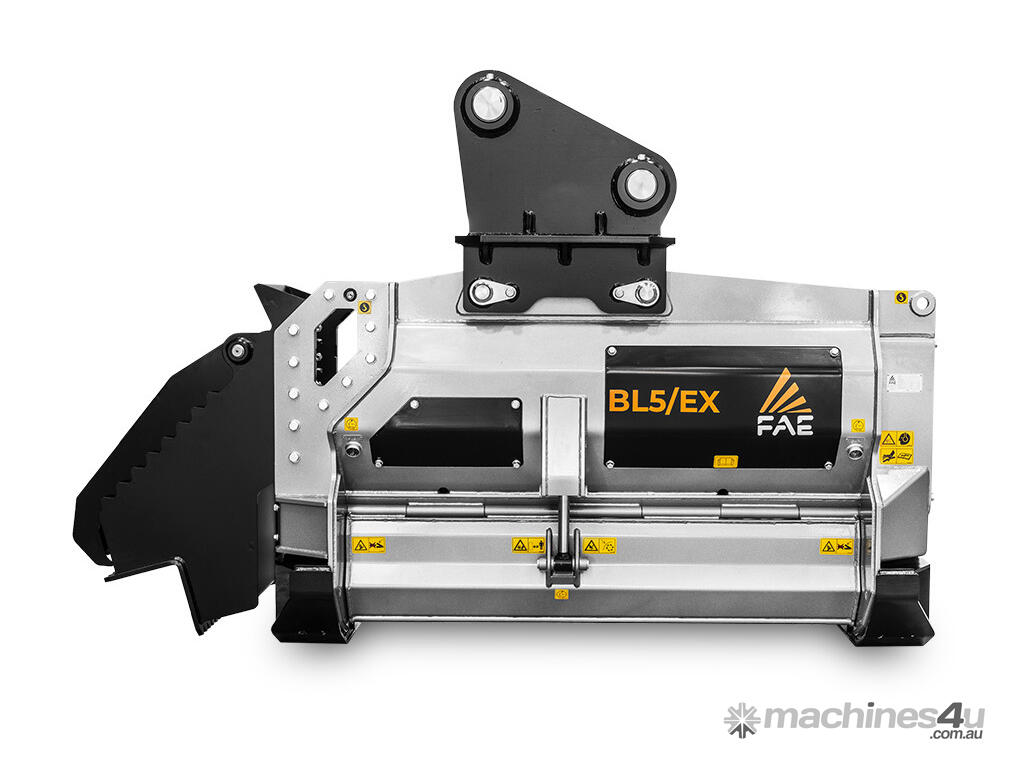

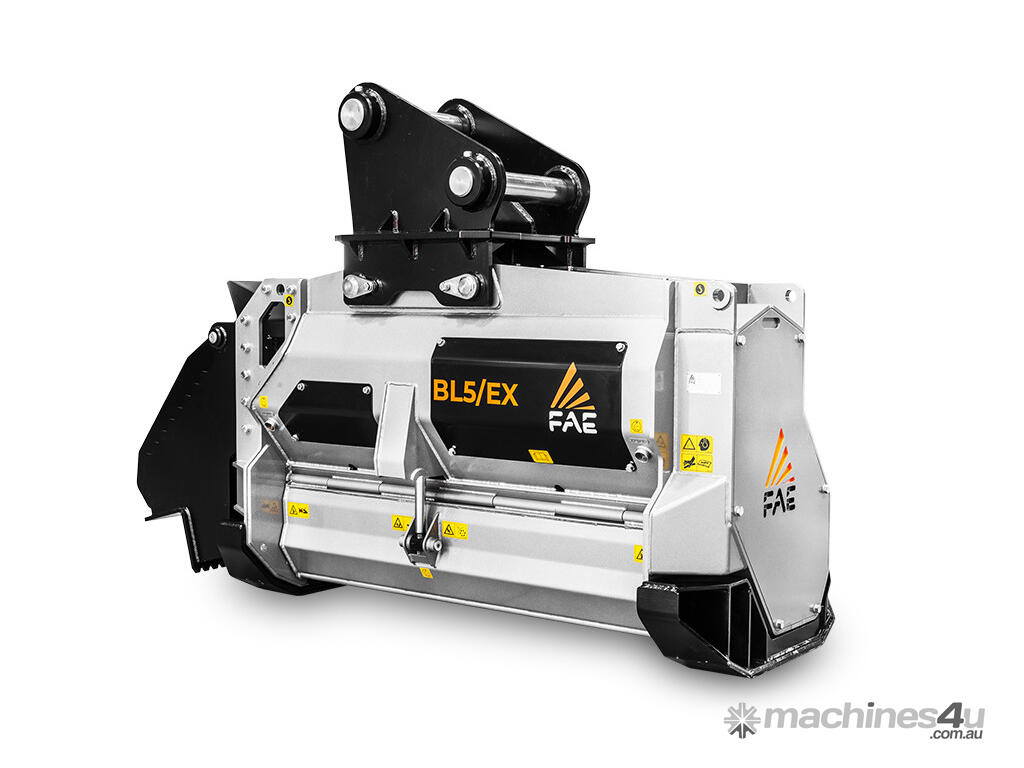

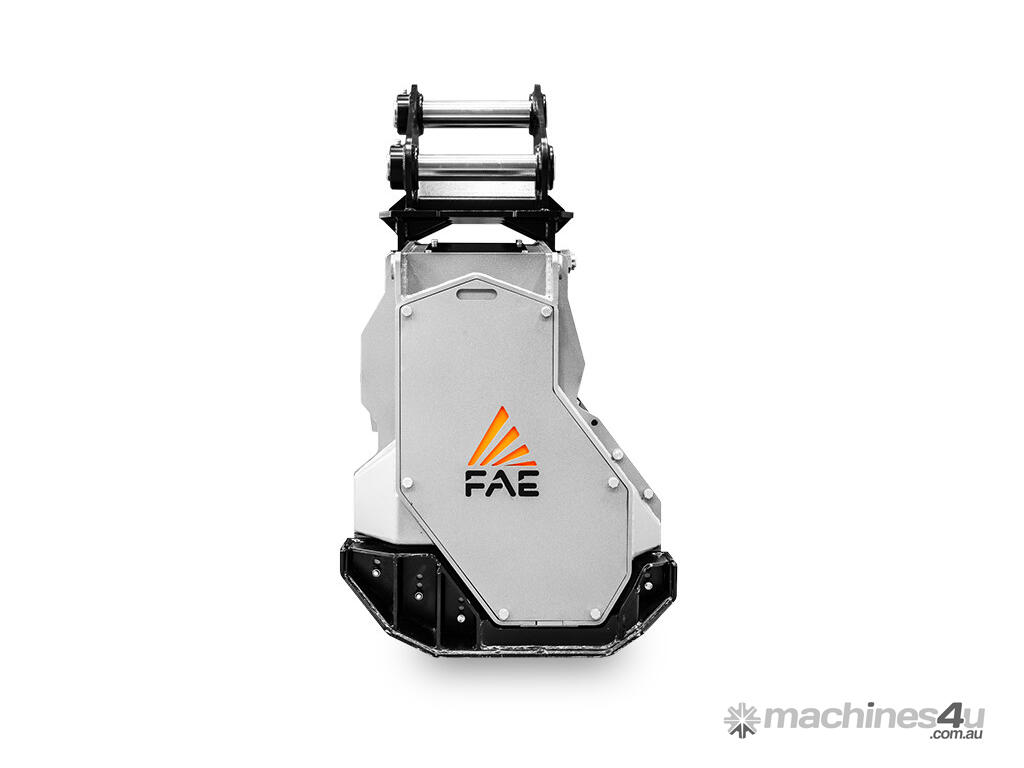

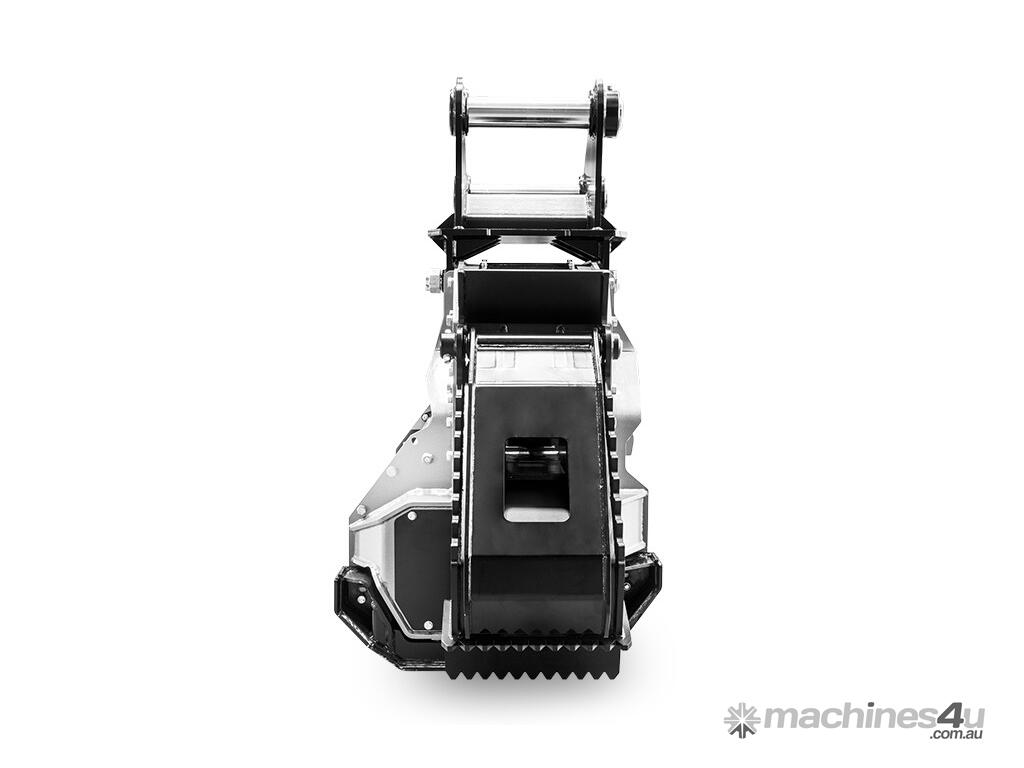

FAE BL5/EX FORESTRY MULCHER FOR EXCAVATORS *ITALIAN ENGINEERING*

The mulcher for the largest excavators, with Bite Limiter technology.

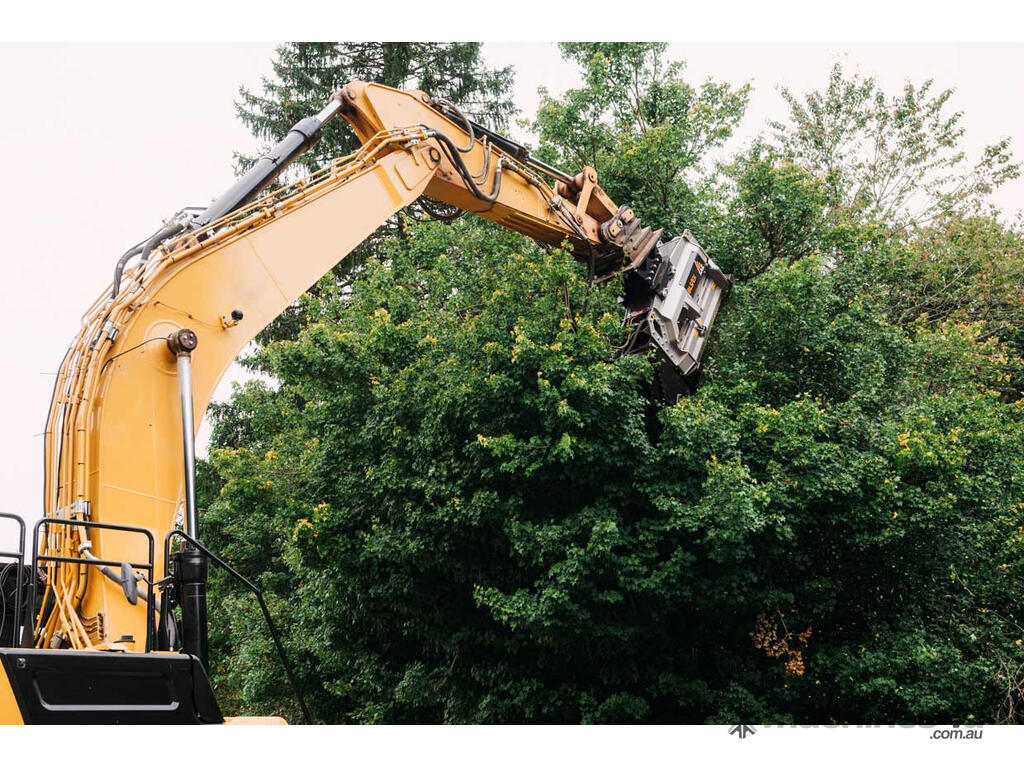

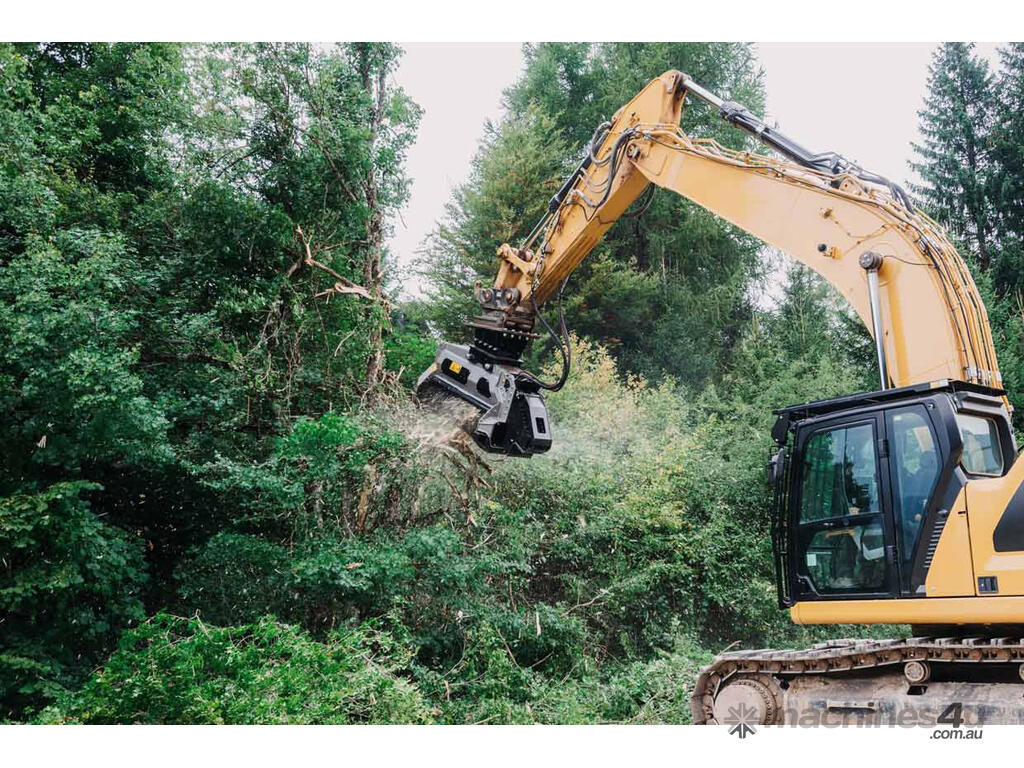

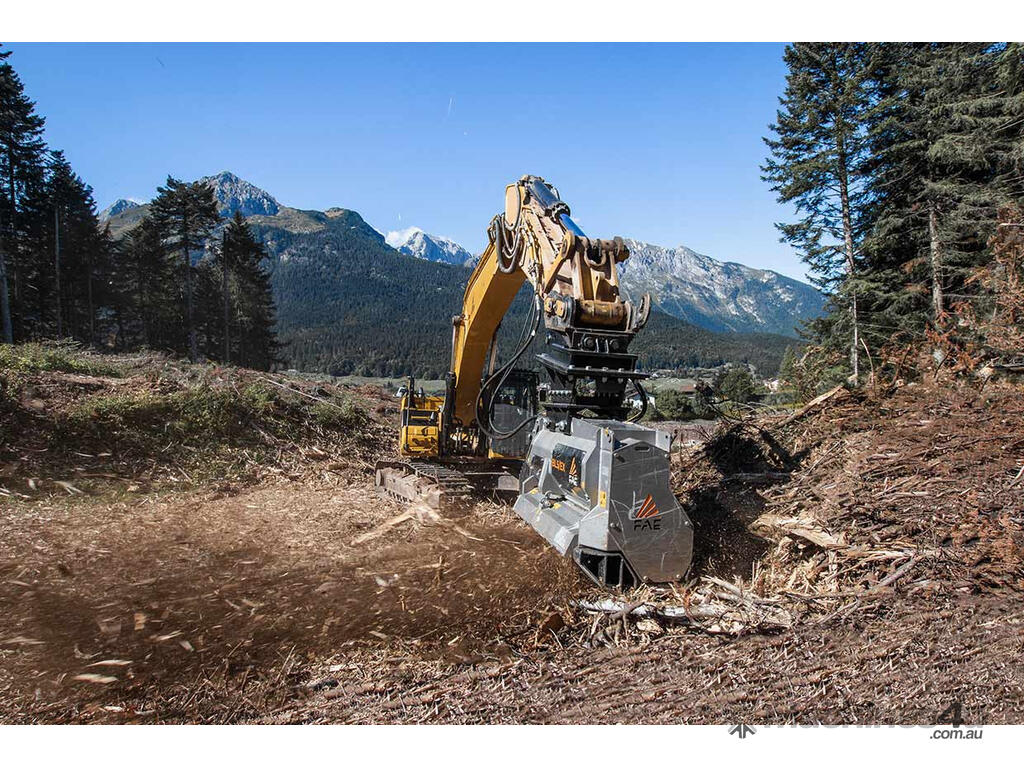

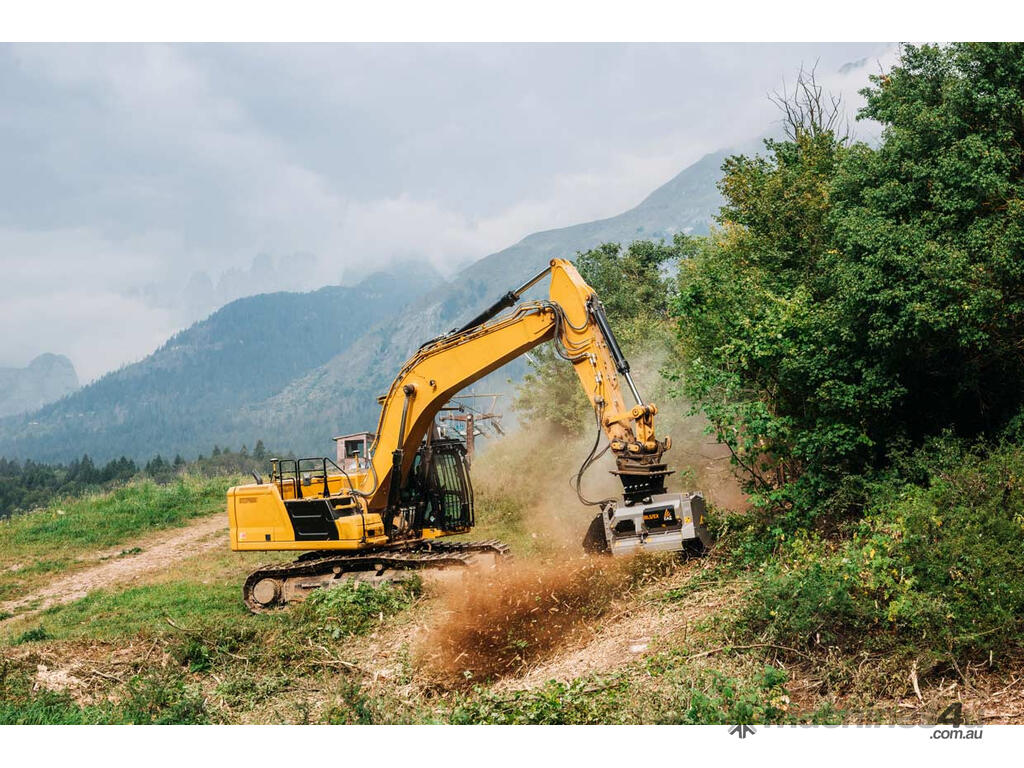

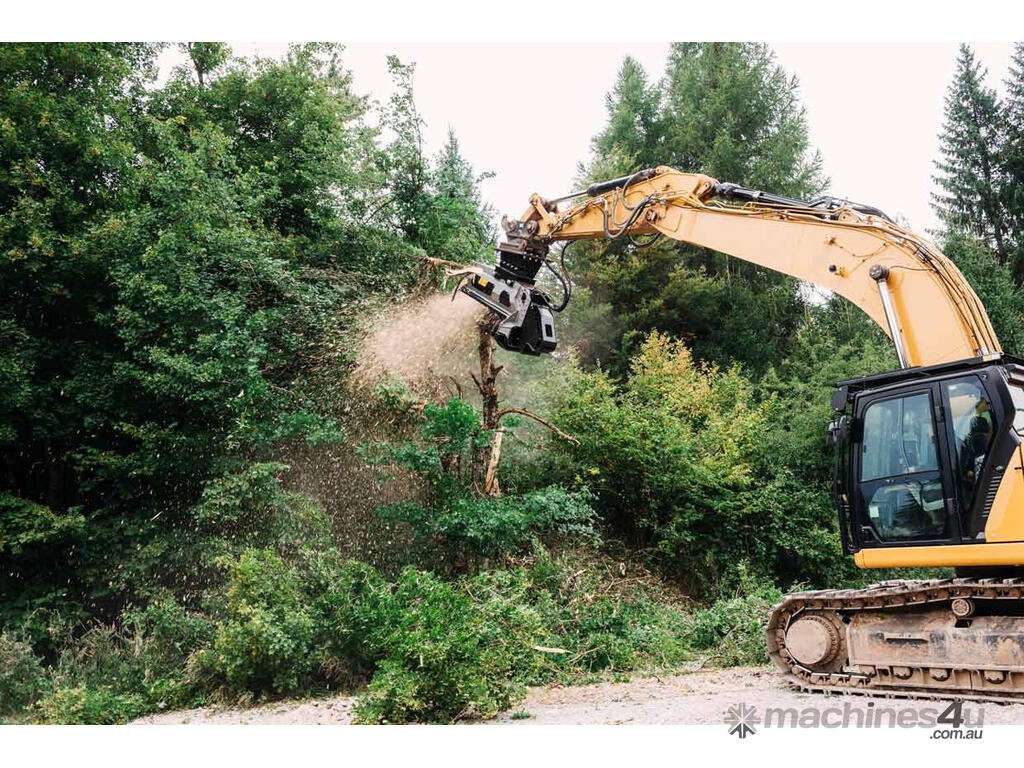

The BL5/EX for 24-36 ton excavators, mulches vegetation up to 40 cm in diameter and has a working width of 160 cm. This head is ideal for handling and removing vegetation in wooded areas, especially when a large shredding capacity and fast operational speed is required. The rotor with Bite Limiter technology comes with special wear-resistant steel limiters that
limit the teeth’s reach. This cuts down on power demand, promotes a consistent working speed, optimizes fuel consumption and ensures excellent performance when mulching any kind of wood.

EXCAVATOR WEIGHT
from 24 to 36 t

SHREDDING DIAMETER
40 cm max

FLOW RATE
from 180 to 300 L/min

BITE LIMITER ROTOR
EXCEPTIONAL SPEED AND PERFORMANCE WITH LOWER POWER REQUIREMENT

SPIKE PRO COUNTER-BLADES
FINER PRODUCT SIZE OF THE MULCHING MATERIALS

POLY CHAIN BELT TRANSMISSION (VT ONLY)
FOR OPTIMUM POWER TRANSFER

VT MOTOR
AUTOMATIC TORQUE INCREASE

SONIC (BL5/EX/SONIC)
SONIC IS A NEW AUTOMATIC INTELLIGENT SYSTEM THAT MANAGES THE HYDRAULIC TRANSMISSION

APPLICATIONS:
FORESTRY MAINTENANCE
ENVIRONMENTAL, WILDLIFE HABITAT PROTECTION & FOOD PLOTS

STANDARD EQUIPMENT
Enclosed/anti dust machine body
Motor enclosed in the frame
Bulkhead for hydraulic connections
Additional reinforced side plates
Spike Pro counter-blade
Poly-Chain® belt transmission
160/108cc variable torque hydraulic piston motor (VT)
160cc variable torque hydraulic piston motor (BL5/EX/SONIC)
Flow control system valve
Safety and anticavitation valve
Diverter valve (plug in and play)
Sonic System (SONIC)
Hydraulic front trap door
Dedicated rear hood (deflector)
Front fixed thumb bracked
Adjustable skids
Bite Limiter Rotor
