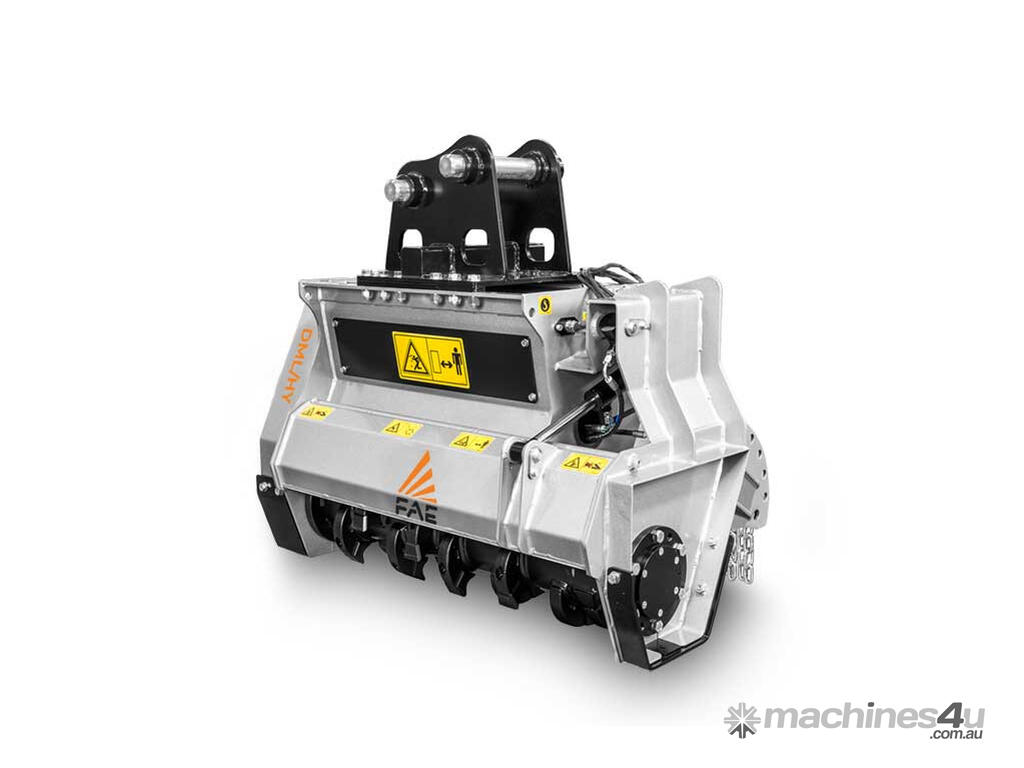

Forestry mulcher with fixed tooth rotor for excavators.

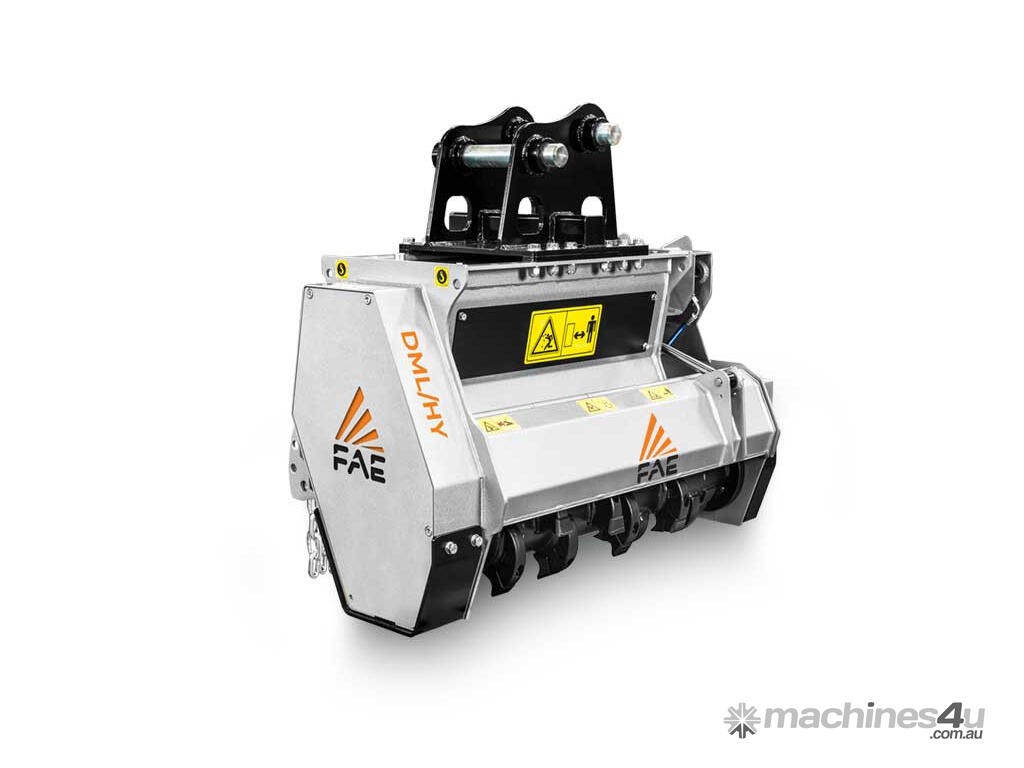

The DML/HY is the smallest, most versatile fixed hammer excavator mulcher on the market.
The VT automatic variable displacement hydraulic motor avoids any adjustment of the hydraulic levels on the excavator it is mounted too.
Both doors can be activated mechanically or hydraulically (optional) to allow for the mulching of trees (front door) and fine and fibrous material that does not require preventive removal (rear door).
EXCAVATOR WEIGHT
from 5 to 13 t
SHREDDING DIAMETER
Ø 12 cm max
FLOW RATE
from 50 to 135 L/min
MOST IMPORTANT FEATURES
HYDRAULIC REAR HOOD WITH ANTI-CLOGGING SYSTEM
FOR HIGH PRODUCTIVITY AND LOWER FUEL CONSUMPTION
FLOW CONTROL VALVE
PROTECTS THE HYDRAULIC MOTOR
VT MOTOR
AUTOMATIC TORQUE INCREASE
STEEL COUNTER-BLADES
HELPS MULCH MATERIAL INTO A SMALLER FINAL SIZE
APPLICATIONS:
FORESTRY MAINTENANCE
ENVIRONMENTAL, WILDLIFE HABITAT PROTECTION & FOOD PLOTS
Enclosed/anti dust machine body
Protection chains
Welded steel counter-blades
Motor enclosed in the frame
Bulkhead for hydraulic connections
Supporting service leg
Transmission with belts
55/38cc variable torque hydraulic piston motor (VT)
17/34cc variable manual displacement hydraulic piston motor with relief and anticavitation valve (HY)
Flow control system valve
Safety and anticavitation valve
Rear hood with mechanical adjustment
Front hood with mechanical adjustment
At Agriculture & Forestry Equipment we don’t just sell great products, we work with you to determine the best equipment fit for your requirements. Our recommendations are based on decades of real world experience working with hundreds of operators and the servicing of their equipment.
Interested in this machine? Send us a message and we will get back to you with all the information you need, or give AFEquip a call to discuss your best solution. Please visit our Machines4U showroom to see the full range of our equipment.
*Click on the PDF spec sheet for more detailed information*
