FAE PTO:RSH TOP OF THE LINE PROFESSIONAL ROCK CRUSHER * ITALIAN ENGINEERING *

FAE’s top-of-the-line professional stone crushers.

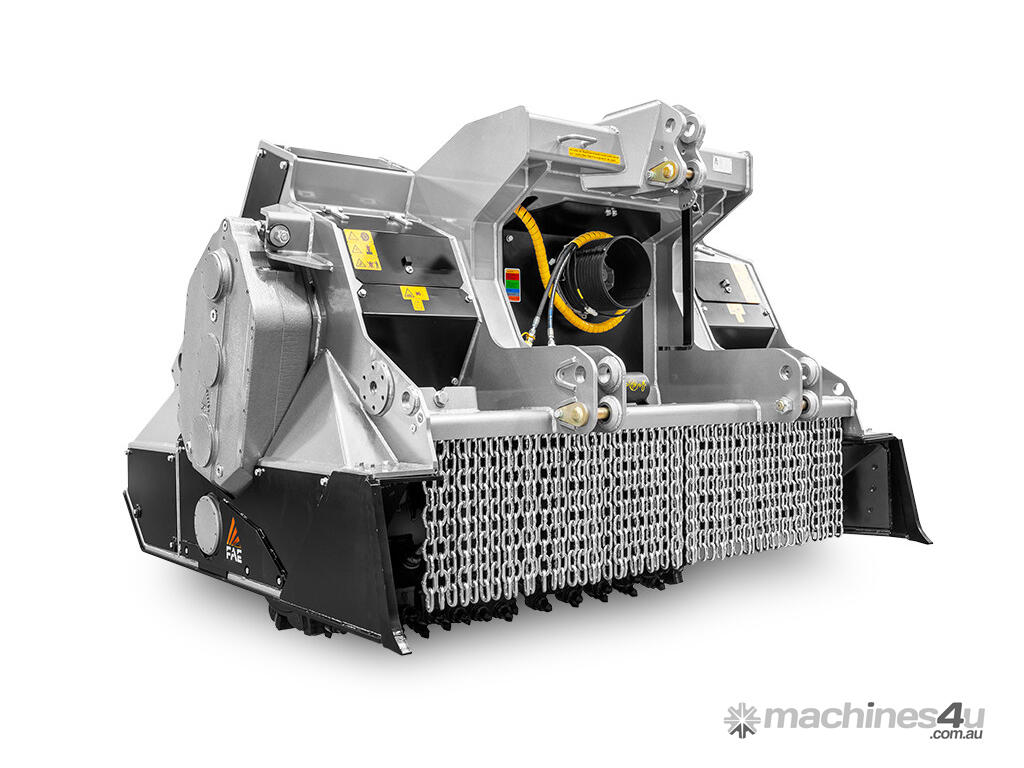

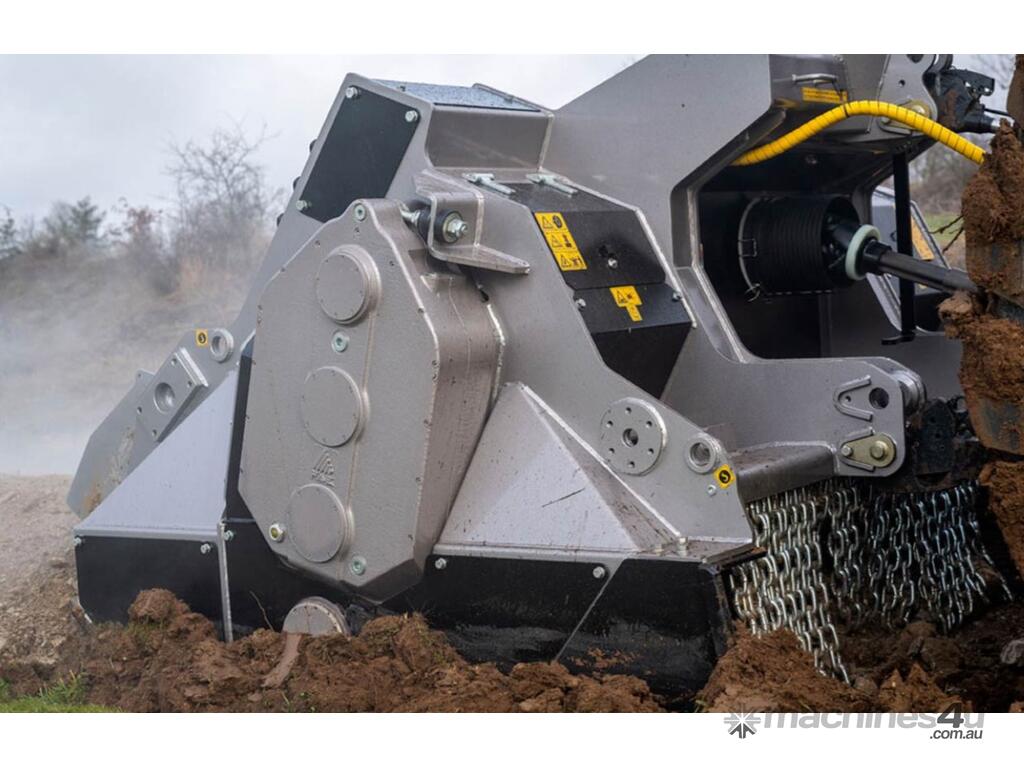

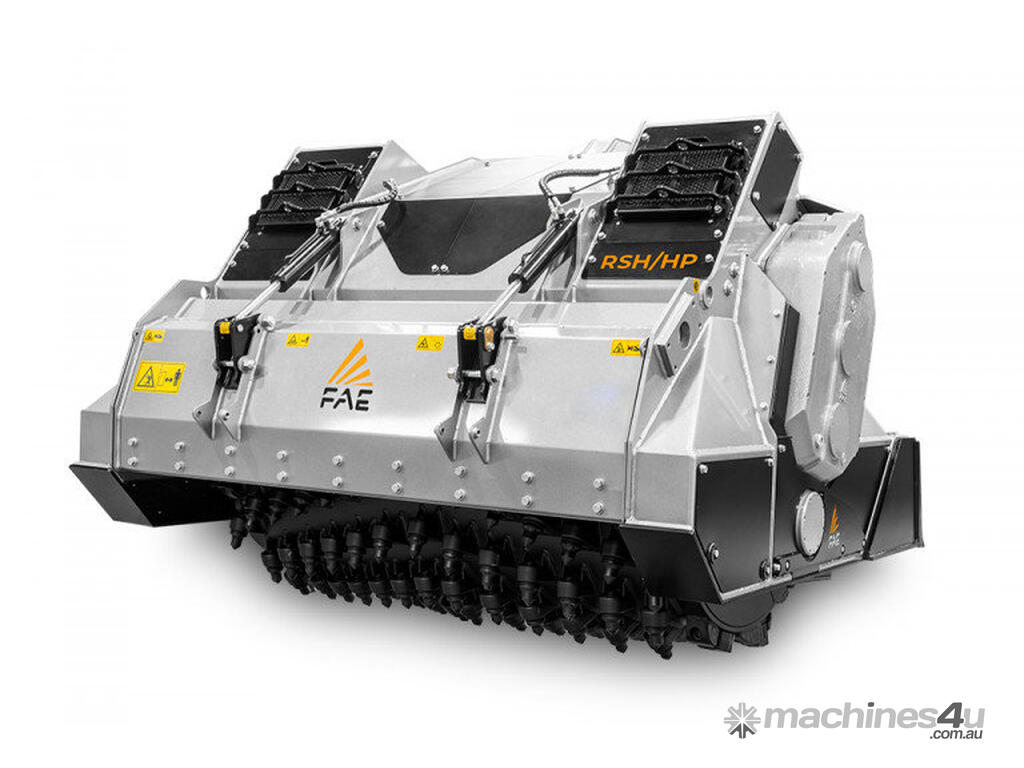

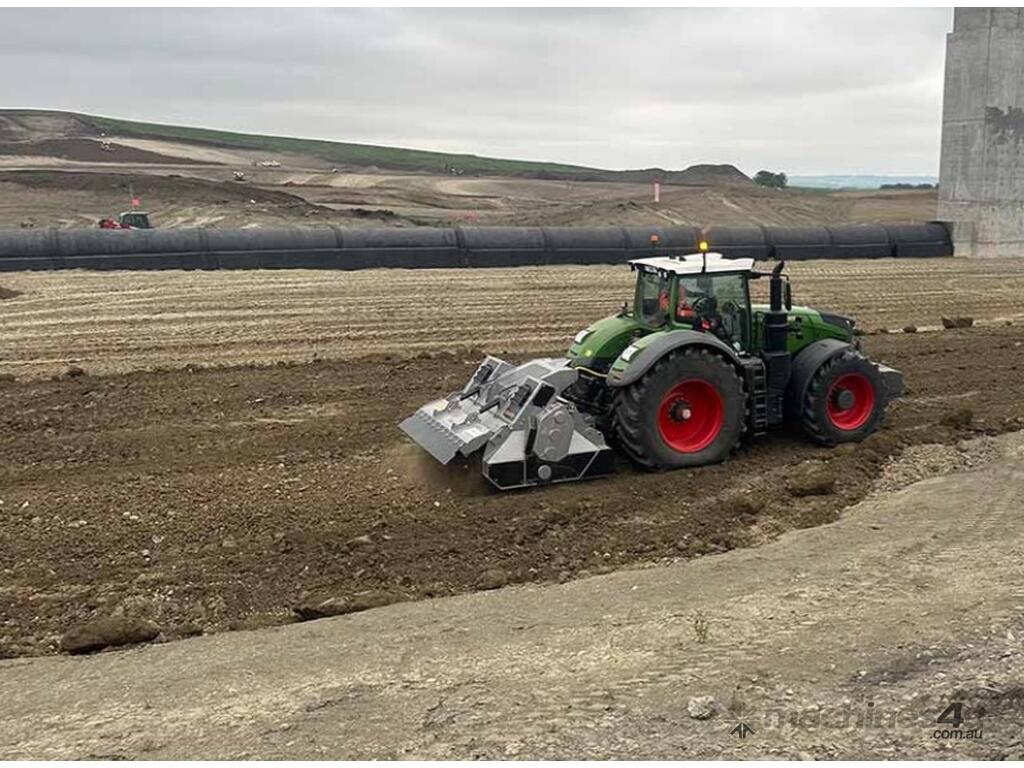

The RSH/HP is the ultimate FAE stone crusher, the ideal solution for crushing slabs of rock and stones of up to 50 cm in diameter and at a depth of up to 50 cm. It is compatible with tractors of between 360 and 500 HP, and has a working width of 260 cm.

The RSH/HP is recommended for challenging agricultural conversion operations, when the land contains rock and stones of significant dimensions, in order to prepare the soil for agricultural use.

The wide opening and the counter blade allow large material to be guided towards the rotor, as well as maintaining consistent performance while working the land. The optional rear grill holds back larger materials, releasing matter only when it has reached its optimum granulometry. For an excellent, even distribution of the crushed material, the RSH/HP can be fitted with an adjustable steel dosing blade upon request.

The side reduction gears with an oil-cooling system guarantee efficiency, reliability and reduced maintenance requirements. The gear transmissions guarantee optimum power transfer and, as a result, a longer lifespan for the components.

The use of high-resistance, anti-wear steels for the frame, the interchangeable internal and external guards, and the forged-steel tooth-holder with heat treatment all guarantee the RSH/HP a robust construction that has nothing to fear from even the most challenging tasks.

The RSH/HP stone crusher is available with two types of rotor: type “R” holds teeth with a round tang and is ideal for crushing loose stones and rock; while type “G” is ideal for lands where stones emerge. Both rotors come with side teeth which allow the crushing chamber to be kept clean at all times.

The offer is completed by 4 different types of teeth, to be chosen based on the nature of the work and the rotor attached.

POWER: 360 to 500hp
SHREDDING DIAMETER: 50cm maximum
WORKING DEPTH: 50cm maximum

MOST IMPORTANT FEATURES
WIDE OPENING TO EFFICIENTLY PROCESS MORE MATERIAL

STEEL STRUCTURAL FRAME MAXIMUM STRENGTH AND DURABILITY IN HEAVY DUTY OPERATIONS

INTERCHANGEABLE HARDOX ANTI WEAR PLATES QUICK AND EASY MAINTENANCE

SIDE REDUCTION GEARS AND CENTRAL GEARBOX WITH OIL-COOLING SYSTEM MAXIMUM PRODUCTIVITY AND EFFICIENCY MAINTAINED IN ALL WORKING CONDITIONS.

Hydraulic rear hood
Interchangeable inner antiwear plates in Hardox®
Enclosed/anti dust machine body
Inside lateral protection
Protection chains
Adjustable Hardox® counter-blade
Transmission with side gearbox
Side gearbox with oil cooling system
Gearbox with oil cooling system
Gearbox with freewheel
PTO shaft
Friction clutches
Bolt-on rotor shafts (in forged steel)
Penetration skids


At Agriculture & Forestry Equipment we don’t just sell great products, we work with you to determine the best equipment fit for your requirements. Our recommendations are based on decades of real world experience working with hundreds of operators and the servicing of their equipment.
Interested in this machine? Send us a message and we will get back to you with all the information you need, or give AFEquip a call to discuss your best solution. Please visit our Machines4U showroom to see the full range of our equipment.

*Click on the PDF spec sheet for more detailed information*
