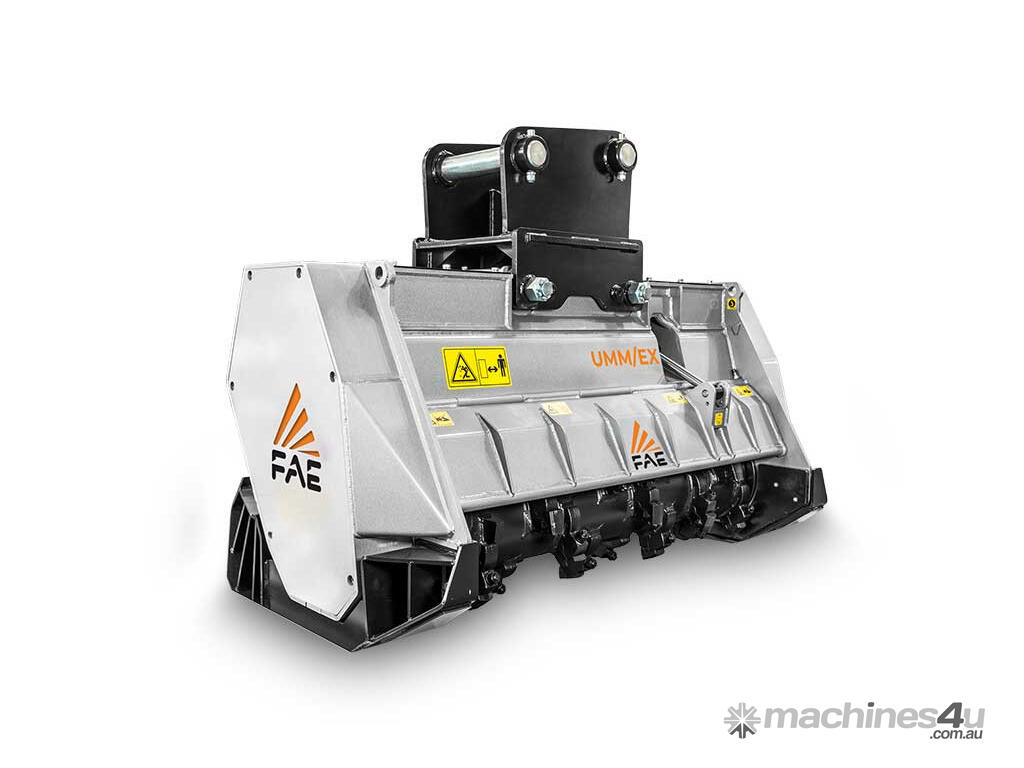

FAE UMM/EX FORESTRY MULCHER FOR EXCAVATORS *ITALIAN ENGINEERING*

The FAE forestry mulchers for the most powerful excavators.
The UMM/EX/VT - UMM/EX/SONIC - UMM/EX/VT/HP - UMM/EX/HP/SONIC mulchers are great for mulching vegetation and trees with a max. diameter of 40 cm and are compatible with excavators from 20 to 36 t. Their hydraulic capacity ranges from 130 to 300 L/min.
The models are recommended for managing and controlling vegetation in wooded areas, maintaining green spaces, and anywhere a large mulching capacity is required.
The line offers two types of hydraulic motors: the VT motor with automatic variable displacement and increased torque and the SONIC motor, a FAE exclusive that optimizes performance and can be easily managed using the dedicated FAE App for smartphone.
The Poly Chain belt transmission guarantees optimum power transfer and reliability over time. The bolted counter blades work to finely mulch the material being processed and make maintenance easier.
Its strong steel structural frame guarantees excellent reliability over time. The mulching chamber also features welded protections made of an anti-wear material.
The large type “C” rotor that comes standard lets you attach different tooth models designated for various types of vegetation and uses. The rotor also comes with side teeth, which help keep the crushing chamber clean at all times.

EXCAVATOR WEIGHT
from 20 to 36 t

SHREDDING DIAMETER
40 cm max

FLOW RATE
from 130 to 300 L/min

MOST IMPORTANT FEATURES
POLY CHAIN BELT TRANSMISSION (VT ONLY)
FOR OPTIMUM POWER TRANSFER

BOLTED COUNTER BLADES
FOR FINE MULCHING AND EASY MAINTENANCE

FLOW CONTROL VALVE
PROTECTS THE HYDRAULIC MOTOR

VT MOTOR
AUTOMATIC TORQUE INCREASE

DIVERTER VALVE (SONIC)
FOR HYDRAULIC CONTROL OF THE HOOD

SONIC (UMM/EX/VT - UMM/EX/SONIC - UMM/EX/VT/HP - UMM/EX/HP/SONIC)
SONIC IS A NEW AUTOMATIC INTELLIGENT SYSTEM THAT MANAGES THE HYDRAULIC TRANSMISSION

APPLICATIONS:
FORESTRY MAINTENANCE
ENVIRONMENTAL, WILDLIFE HABITAT PROTECTION & FOOD PLOTS

STANDARD EQUIPMENT
Inner anti wear clad plates FCP
Enclosed/anti dust machine body
Interchangeable steel Hardox® counter-blade
Motor enclosed in the frame
Bulkhead for hydraulic connections
Additional reinforced side plates (HP)
Screwed protection chains
Poly-Chain® belt transmission
110/60cc variable torque hydraulic piston motor (VT)
110cc variable torque hydraulic piston motor (SONIC)
160/108cc variable torque hydraulic piston motor (HP)
Flow control system valve
Safety and anticavitation valve
Sonic System
Diverter valve (plug in and play) (SONIC)
Hydraulic rear hood

At Agriculture & Forestry Equipment we don’t just sell great products, we work with you to determine the best equipment fit for your requirements. Our recommendations are based on decades of real world experience working with hundreds of operators and the servicing of their equipment.
Interested in this machine? Send us a message and we will get back to you with all the information you need, or give AFEquip a call to discuss your best solution. Please visit our Machines4U showroom to see the full range of our equipment.

*Click on the PDF spec sheet for more detailed information*
