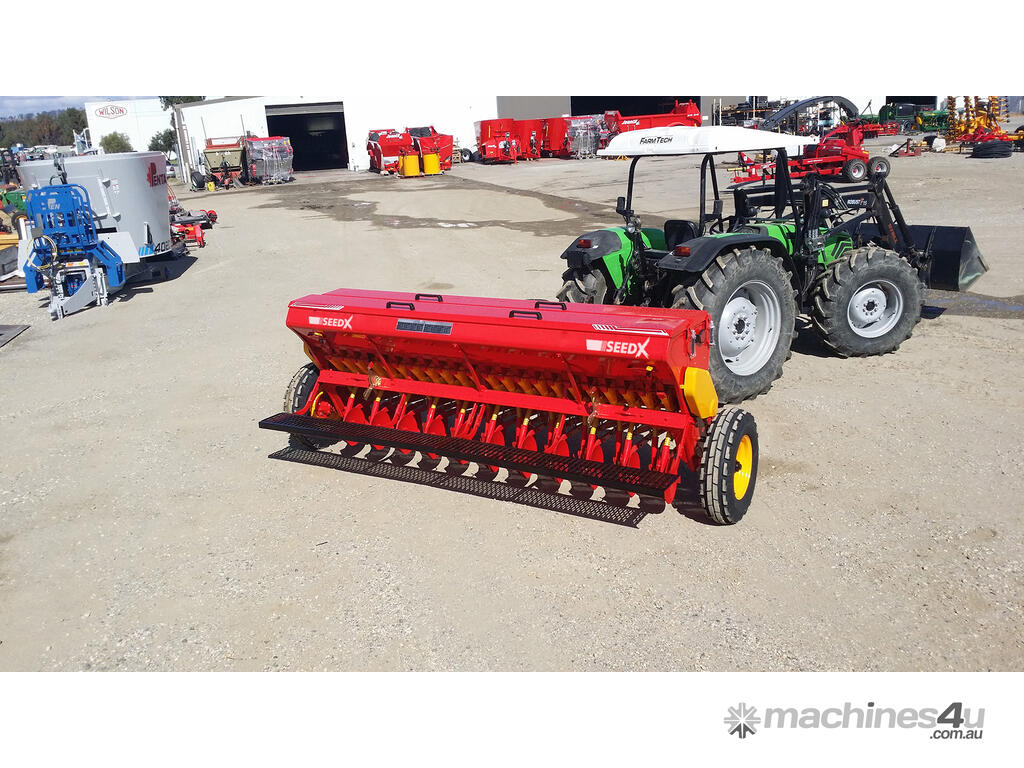

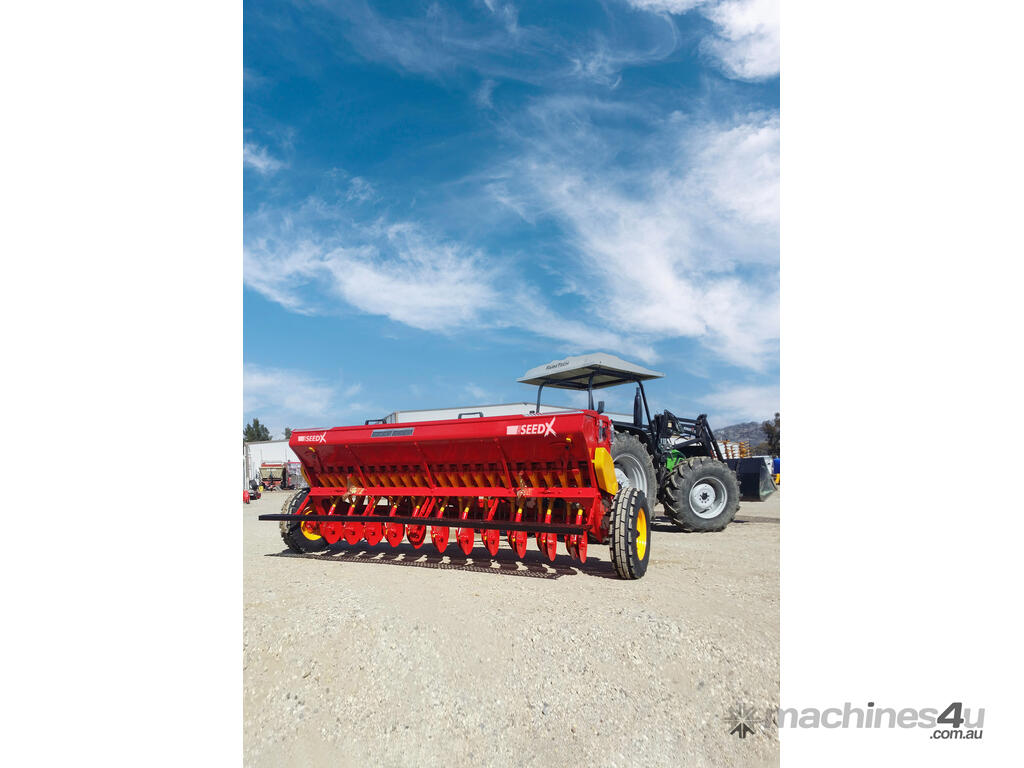

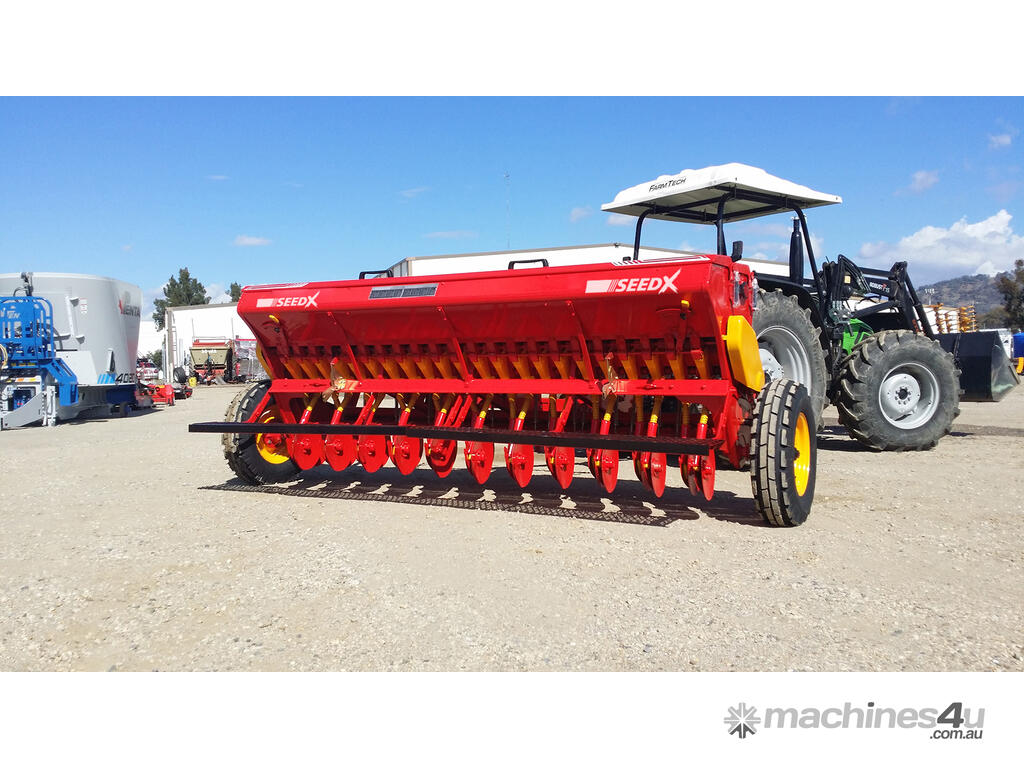

FARMTECH BM 12 SINGLE DISC SEED DRILL (2.6M)

The marvelous FARMTECH BM series machine is a heavy-duty single disc seed drill that is primarily designed to carry and dispense larger seeds such as cereal like wheat, rye, barley, oats, among others as well as legumes like peas, beans, lentils, etc.

Farmers can choose between hydraulically-operated or mechanically-operated variant depending on their needs. For transportation, they can opt for either a draw bar or a three point linkage with either large or small wheels.

For trailed variants, the BM series employs a unique yet reliable mechanism to run its operations: The fertilizer hopper system is driven by the left wheel while the seed hopper system is moved by the right Wheel of the machine.

On the other hand, mounted variants require a tractor that’s anywhere between 40-45 HP all the way to 90-95 HP depending on the model.


Model - BM 12
Number Of Discs: 12
Total width: 2470 mm
Total Length: 2920 mm
Total Height: 1430 mm
Working Depth Max: 100 mm
Working Width: 1704 mm
Length Of Hopper: 1870 mm
Space Between Of Disc: 142 mm
Space Between Wheels: 2302 mm
Fertilizer Hopper Volume: 199 L
Seed Hopper Volume: 248 L
Fertilizer Hopper Capacity: 180 kg
Speed Hopper Capacity Wheat: 210 kg
Seed Hopper Capacity Barley: 166 kg
Seed Hopper Capacity Oats: 120 kg
Seed Hopper Capacity Lentil: 240 kg
Required Power: 40-45 HP
Weight: 700 kg

Machine/Equipment base price only, additional price for optional extras.

FarmTech represents Agromaster (Turkey) as their national distributor in Australia should you prefer to buy this machine through your local dealer, you can do that too, just ask!

Contact FarmTech today for sales or more information.
