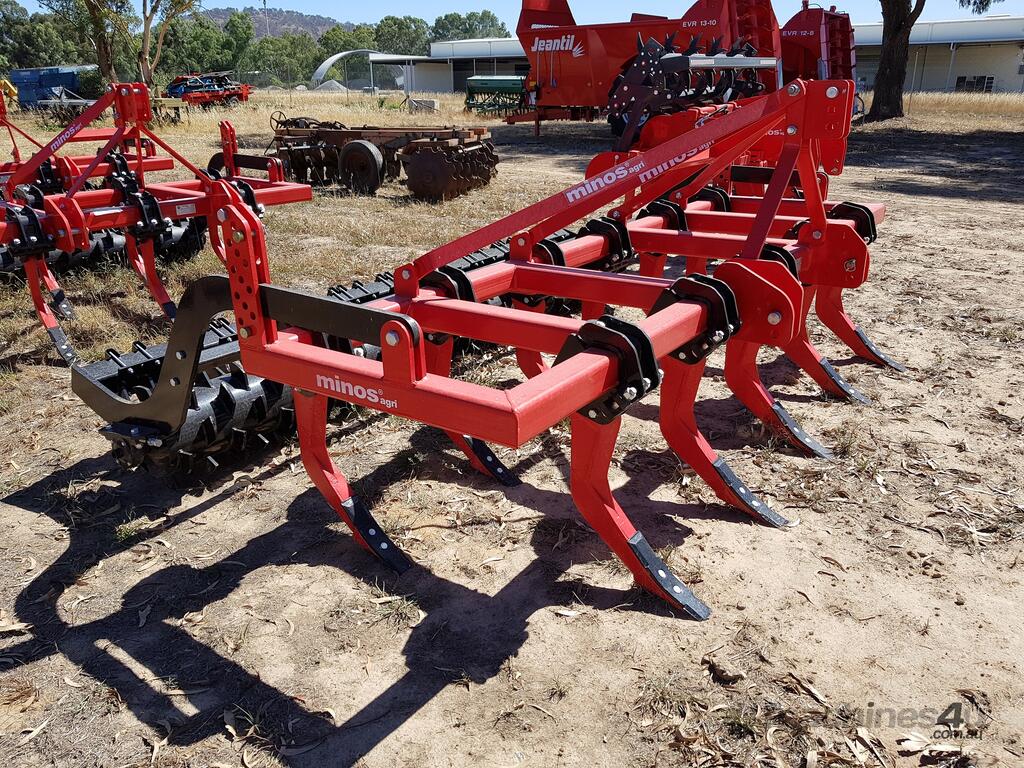

FARMTECH CZ-13-M CHISEL PLOUGH + PACKER ROLLER (13 TINE, 3.6M)

The CZ-M Chisel Plough is available with 5, 7, 9, or 11 tines and is mounted to tractors by a three-point linkage system. In comparison with other chisels, non-soldered steel rolled iron is used for the tines.

Since it swells the soil without turning over it, decomposition of organic materials is too slow and damp soil is not removed to the top. Since stubble and plant residuals scratch the surface, a good upper layer composes. It is very effective against weeds that are robust and develop roots. It can be used successfully in heavy soils where other materials are insufficient in terms of quality and capacity. While chisel swells the soil in ploughing depth and stubble stays on the land surface, it provides a protective impact against water and wind erosion. If the soil is wet and damp, it should be avoided to use this tool.

The main functions of these chisel type ploughs are breaking hard bottom soil which is formed by ploughing and processing soil without tipping and airing. In case of sudden pressure, safety pins come into action and prevent the tractor and chassis from damage. Tines are designed to get the maximum output from your tractor by giving them the most appropriate submersion angle.

Specifications - CZ-13-M
Number Of Tines: 13
Angle Of Penetration: 30 Degrees
Total Height: 1300mm
Working Depth: 150-350 mm
Furrow Distance: 275 mm
Working Width: 320cm
Machine Weight: 670 kg
Required Tractor Power: 110-140 HP


Machine/Equipment base price only, additional price for optional extras.

We can deliver this machine Australia wide, just ask us for a delivered price.

Prefer to buy this machine through your local dealer? You can do that too, just ask!

Contact FarmTech today for sales or more information.
