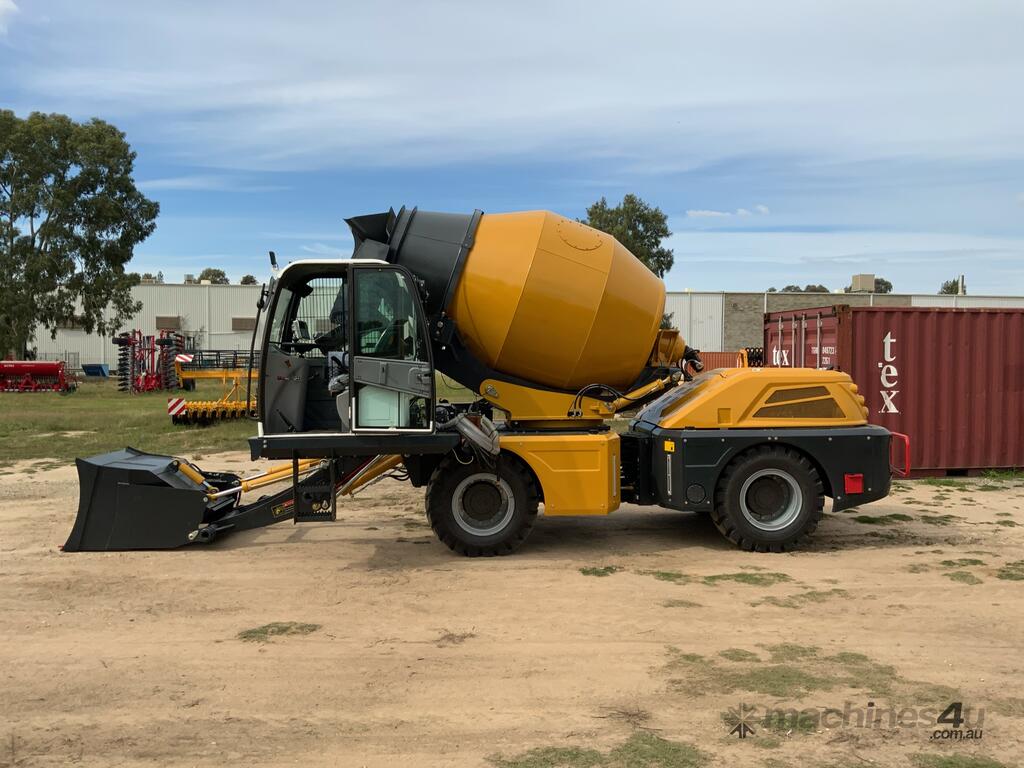

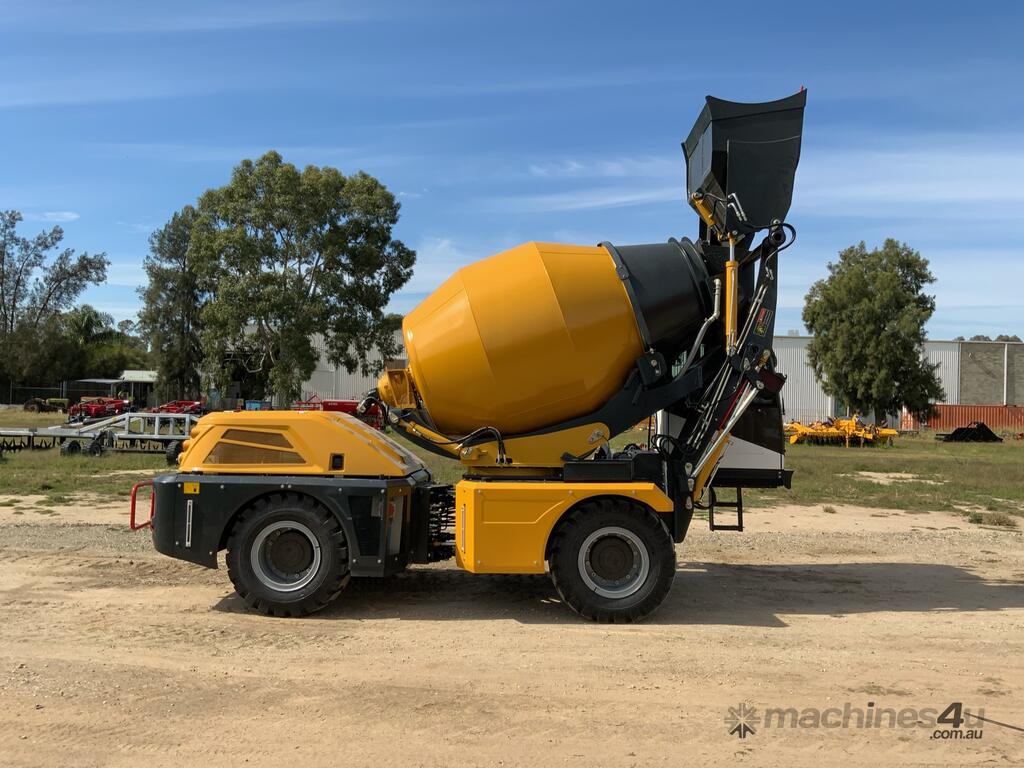

FARMTECH LZ3500 SELF PROPELLED/LOADING CEMENT MIXER

Self propelled, self loading cement mixer.

KEY FEATURES
* Self-Propelled 4x4
* Auto Weighing System
* Articulated Steering Mode
* 270 Degree Discharge Angle
* Self-Cleaning Via Water Pump
* Lifting Drum For Increased Discharge Speed
* Air-conditioned Luxury Cab
* High Pressure Water System For Exterior Cleaning

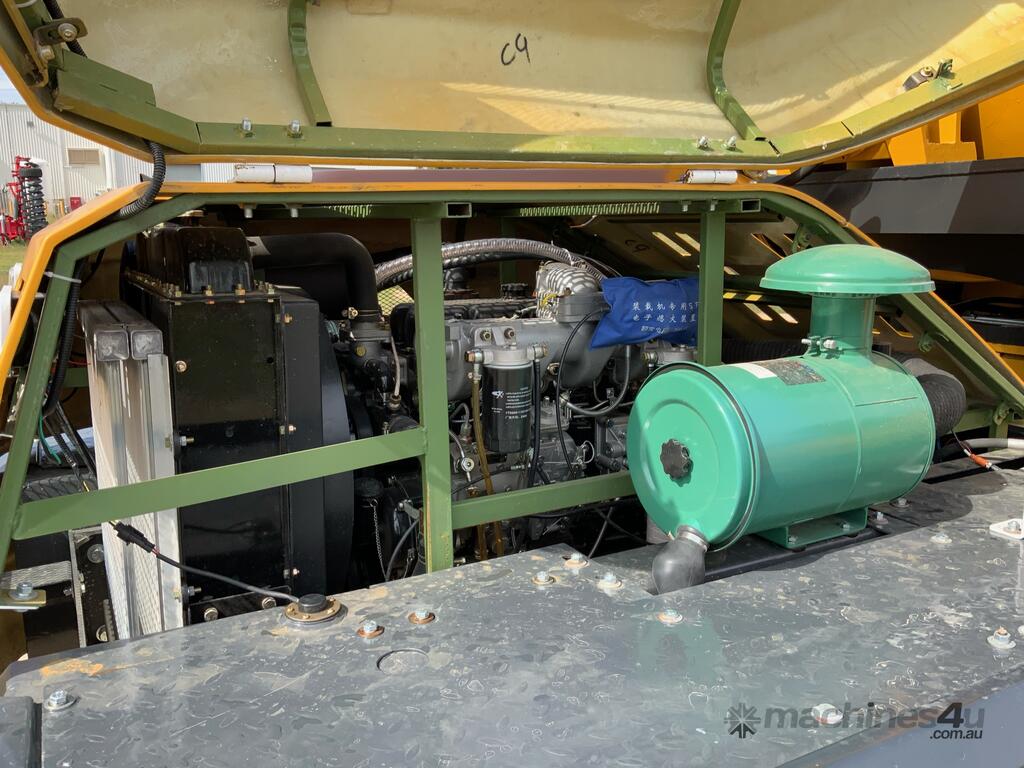

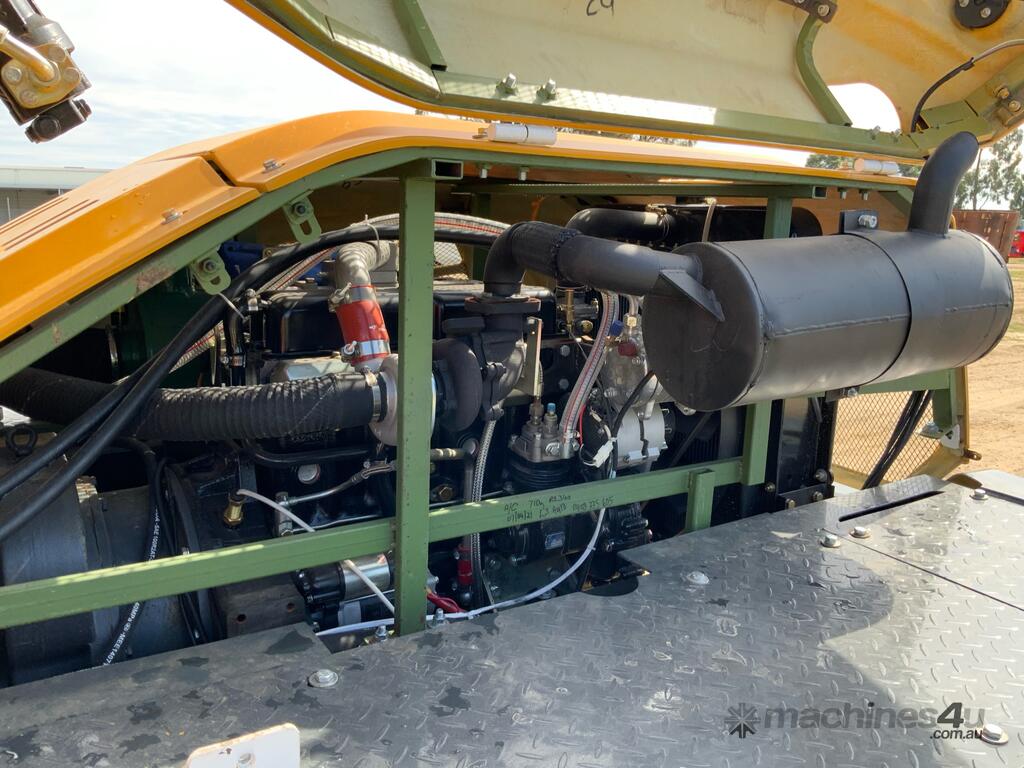

ENGINE
Model: Yuchai YCD4J22G Diesel
Total Displacement, No Cylinders: 4330CC, 4 in-line
Injection: Direct with mechanical control
Cooling: Water, dry air filter
Max. Power: 85Kw (116HP)
Max. Torque: 390Nm 2800rpm

ELECTRICAL SYSTEM
Alternator: 28V, 1500WA (53.5A)
Battery: 2×12V, 100AH (453A)

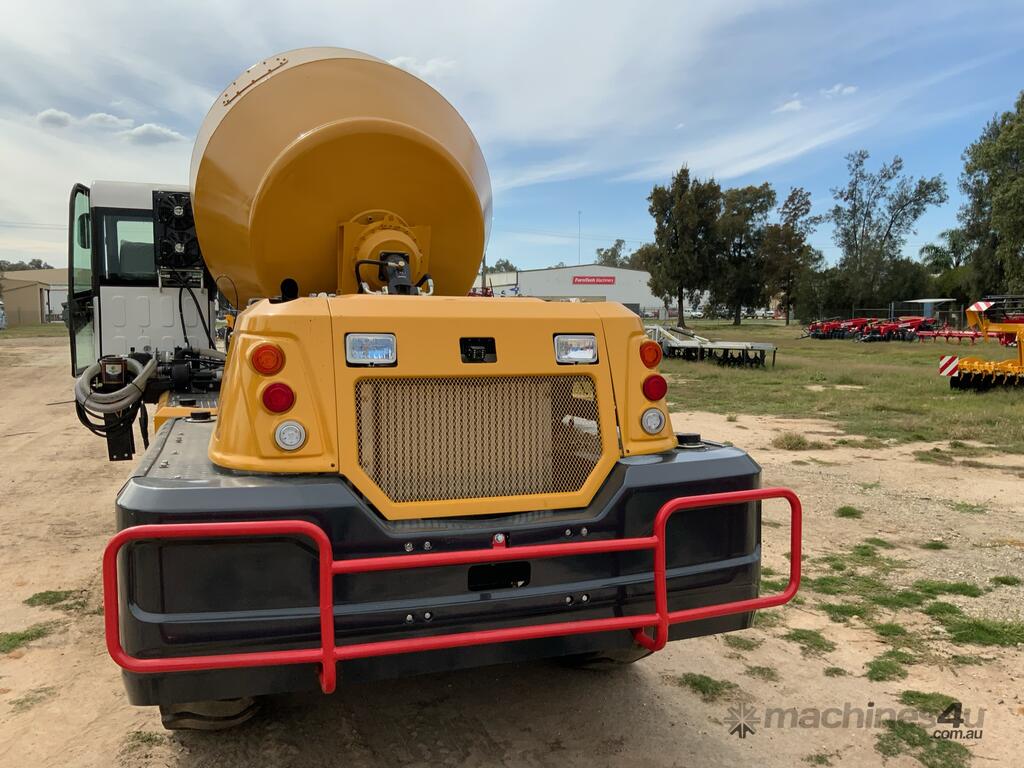

Road light system, rear working lights

STEERING
Articulated Steering by two cylinders move alternately.
Electro-hydraulically controlled mechanical gearbox for working speed and road transfer speed"

4X4
Hydraulic torque converter transmission with open Gear oil pump and reverse gear control on the steering wheel.
Electro-hydraulically controlled mechanical gearbox for working speed and road transfer speed".
Speed: 2 Forward gears & 2 reverse gears
Ist Gear: 0-7.0 KM/PH
2nd Gear: 7-20 KM/PH

AXLES AND WHEELS
Front/Fear Axle: Large wheel side deceleration axle with planetary reduction gears on the bridge and flanged gearbox.

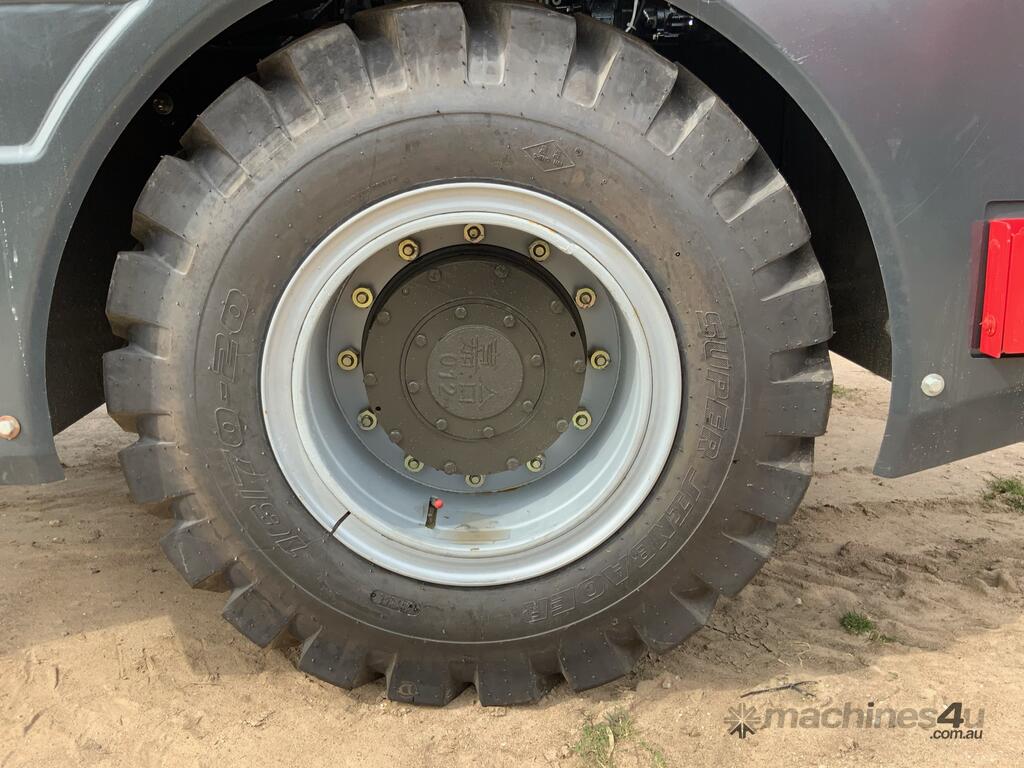

Tyres: , Max. L: 5,550kg, 450kpa

BRAKES
Internal wheel hub disc service and emergency brakes acting on the 4 wheels, activation with mini servo pump on independent dual circuit.
Negative type parking brake, with internal wheel hub discs on the front axle.

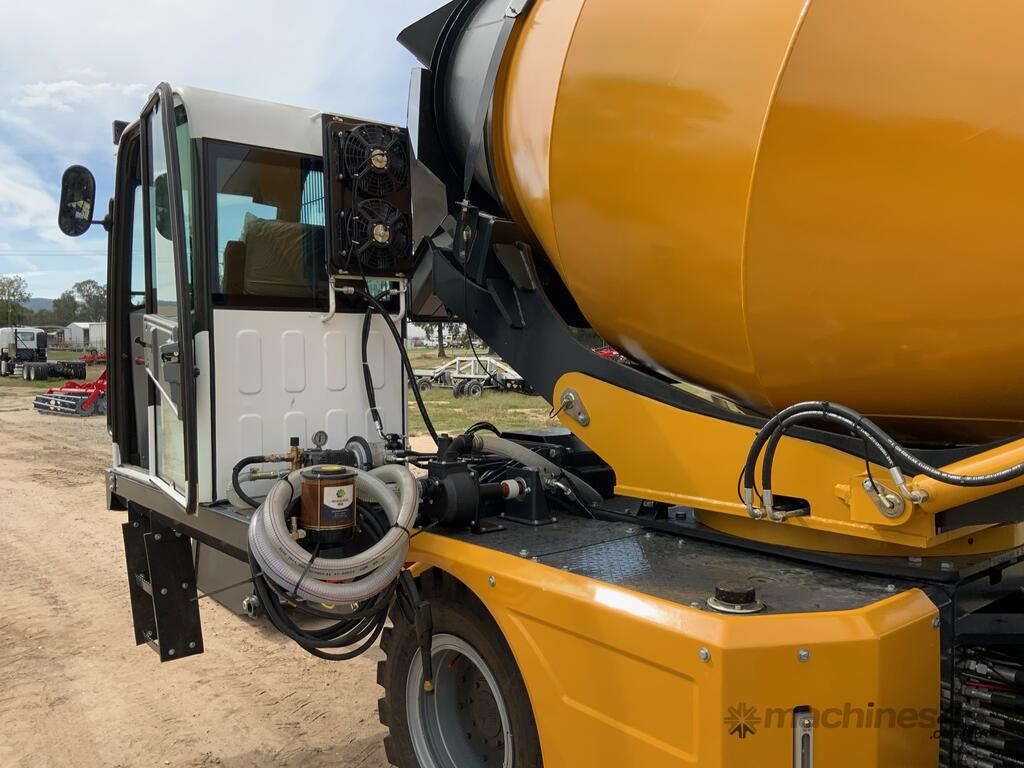

WATER SYSTEM

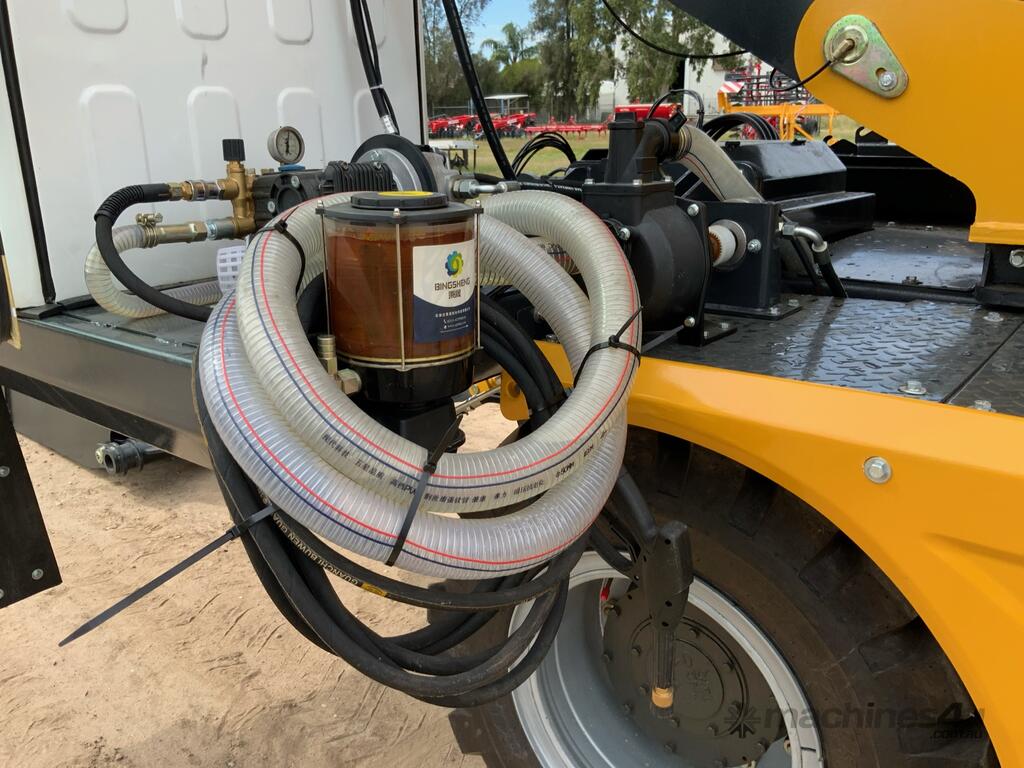

24V Self-priming volumetric water pump with quick suction.
Max. capacity: 180 liters/min.
Two Tanks: 2×300L.

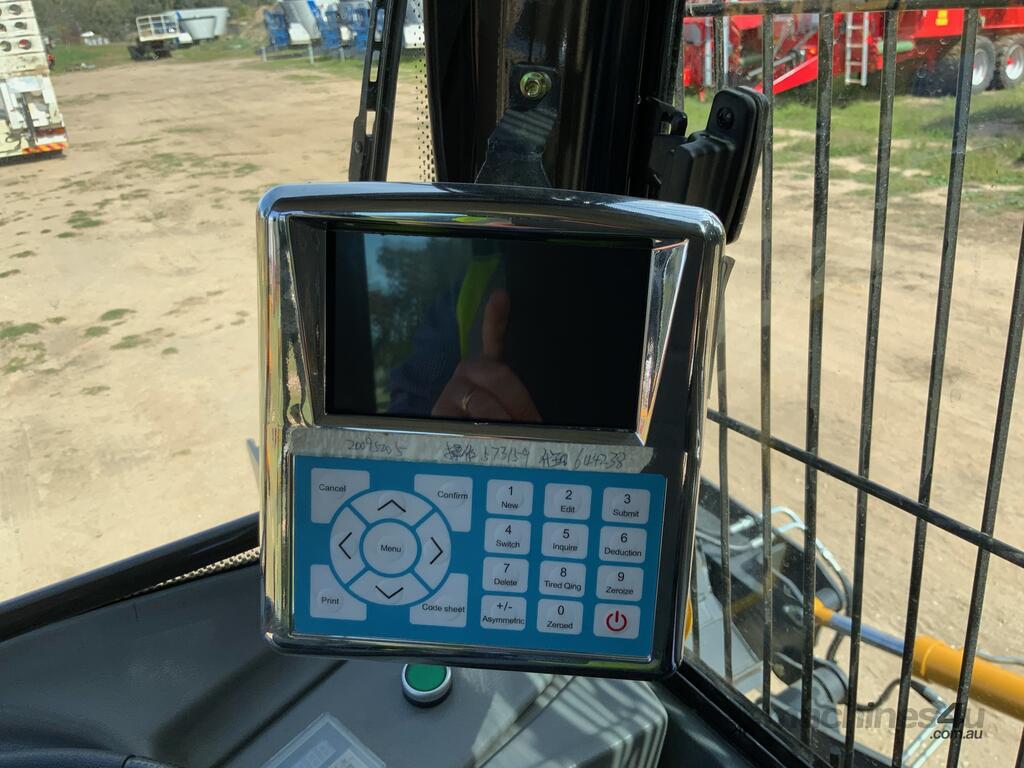

Water feeding to the drum controlled by means of electromagnetic flow meter and feed litre reading on the cabin display. Water pump activation from the drivers seat.
Washing vehicles outside by water blast gun via high pressure water pump.

MIXING AND UNLOADING
Double-cone drum with double-spiral mixing screws and convex bottom.
Geometrical drum volume: 5,550L
Drum Rotation Speed: 16 RPM
Concrete Produced: 3.5 m³

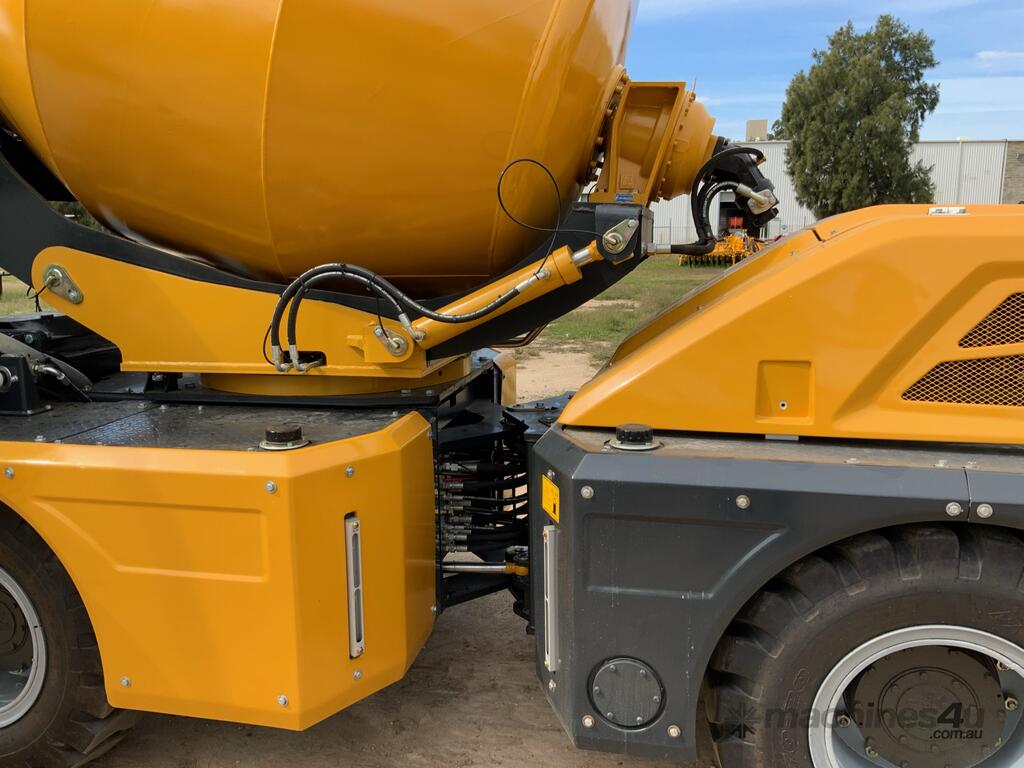

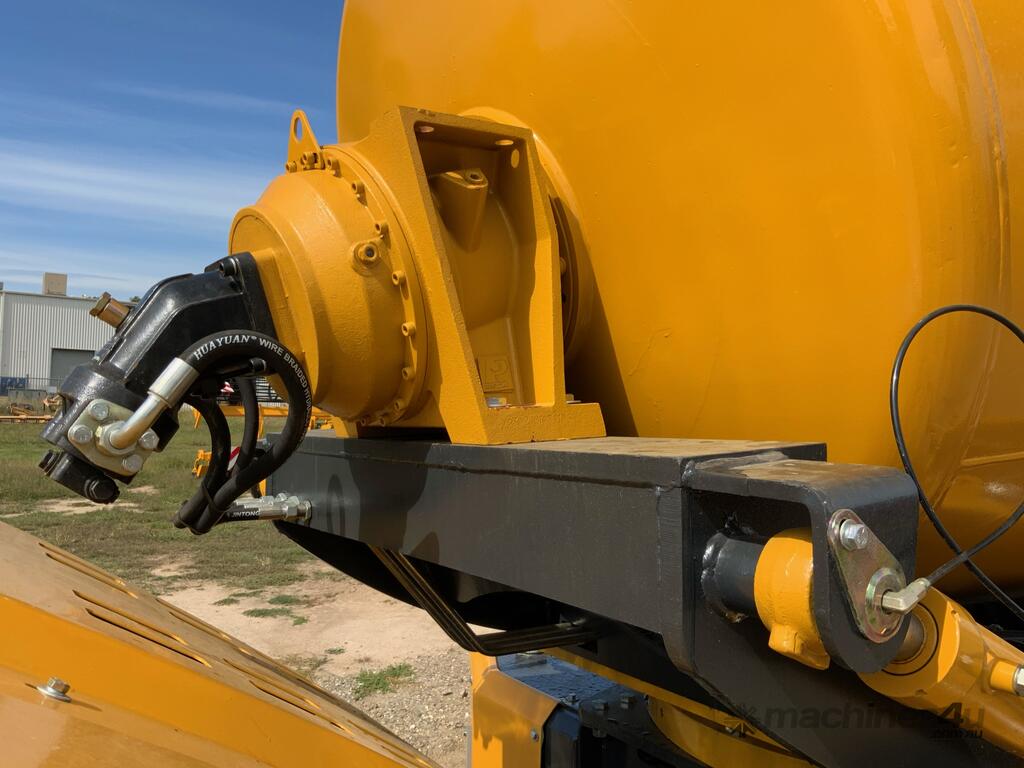

Counter frame mounted on heavy-duty ball fifth wheel, with 270° hydraulic rotation and automatic locking by means of hydraulic brake. Drum rotation by means of a gear pump with variable flow rate and an orbital hydraulic motor in open circuit with adjustable handle control manually positioned in the cabin and at the rear of the machine.
Drum raising up to the horizontal position by means of 2 double-acting jacks.
Removable chute if unloading from hopper.
2 unloading chute extensions provided as standard equipment.

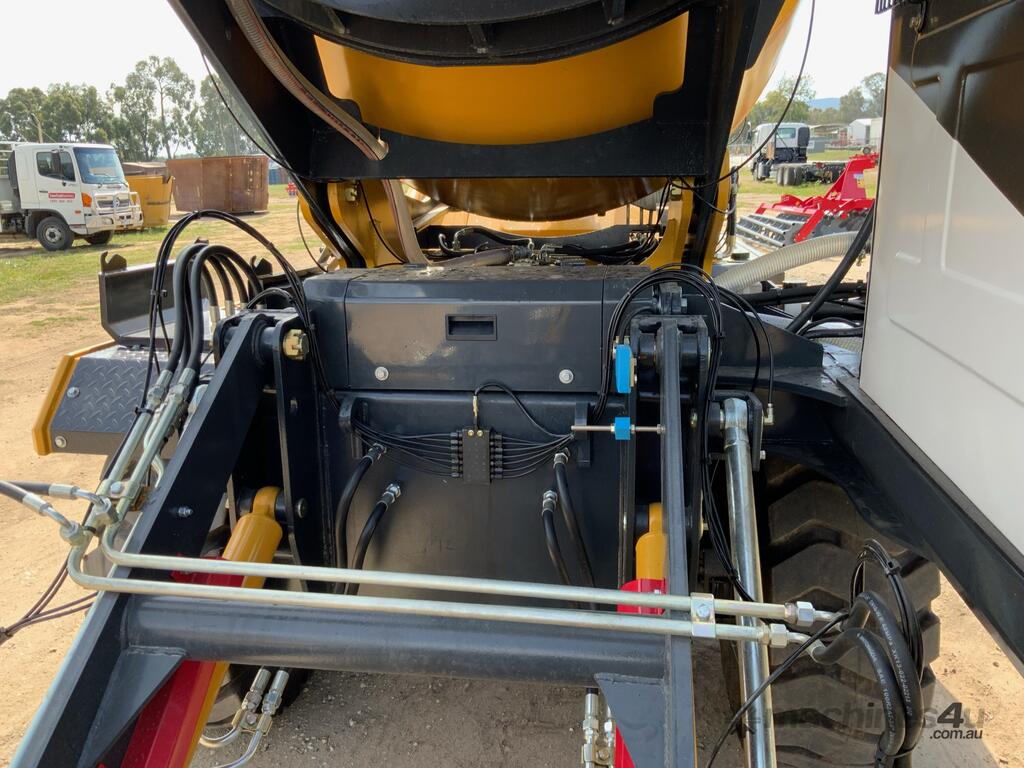

HYDRAULIC SYSTEM
Piston Motor: Sunny (USA)
Max. Flow Rate: 60 L/PM.
Maximum Pressure: 32 MPA
3-Handles controlled with multi-function joystick.
Aluminium heat exchanger for hydraulic oil cooling.
Pressurized open-circuit intake with oil filter replaceable from the outside.

LOADER

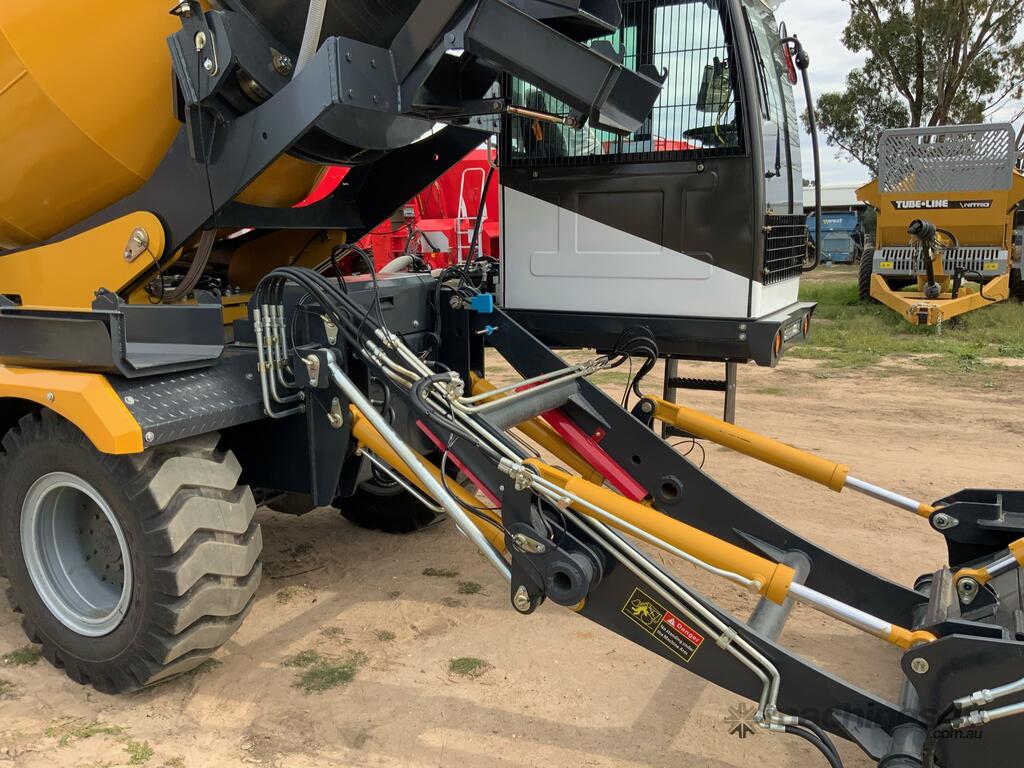

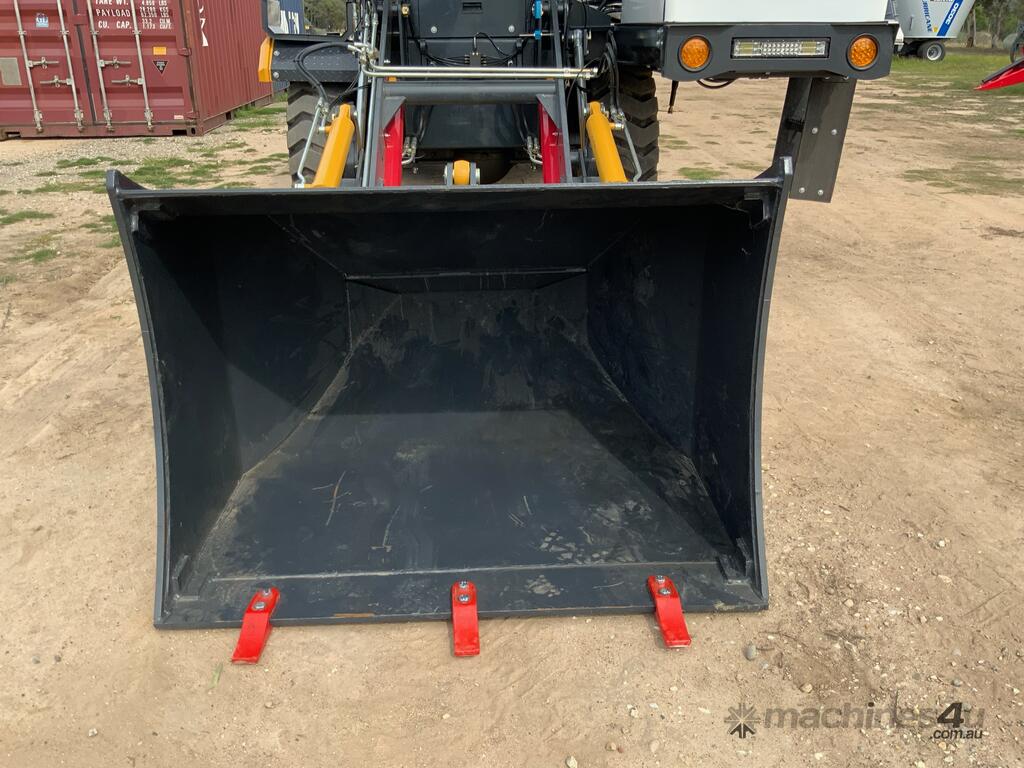

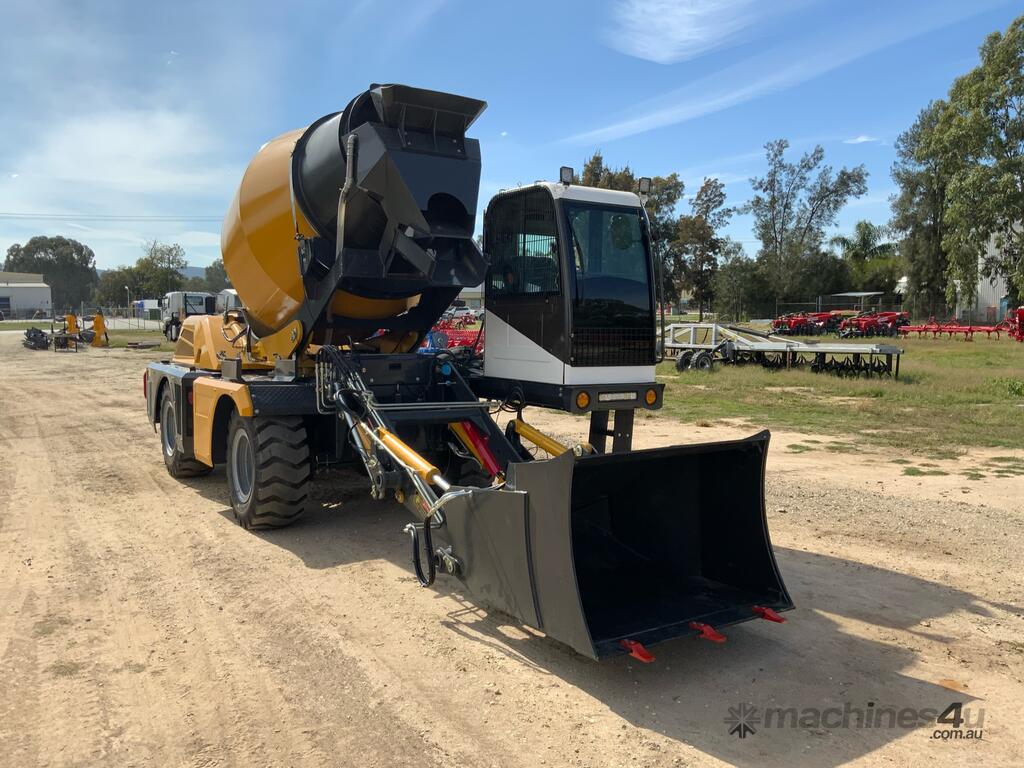

Auto weighing function, loading device with teeth bucket and lifting arms controlled by double-acting hydraulic cylinders. Automatic unloading hatch driven by a mechanical lever.
Volumetric capacity: 600L
Number of loading times: Approx. 5

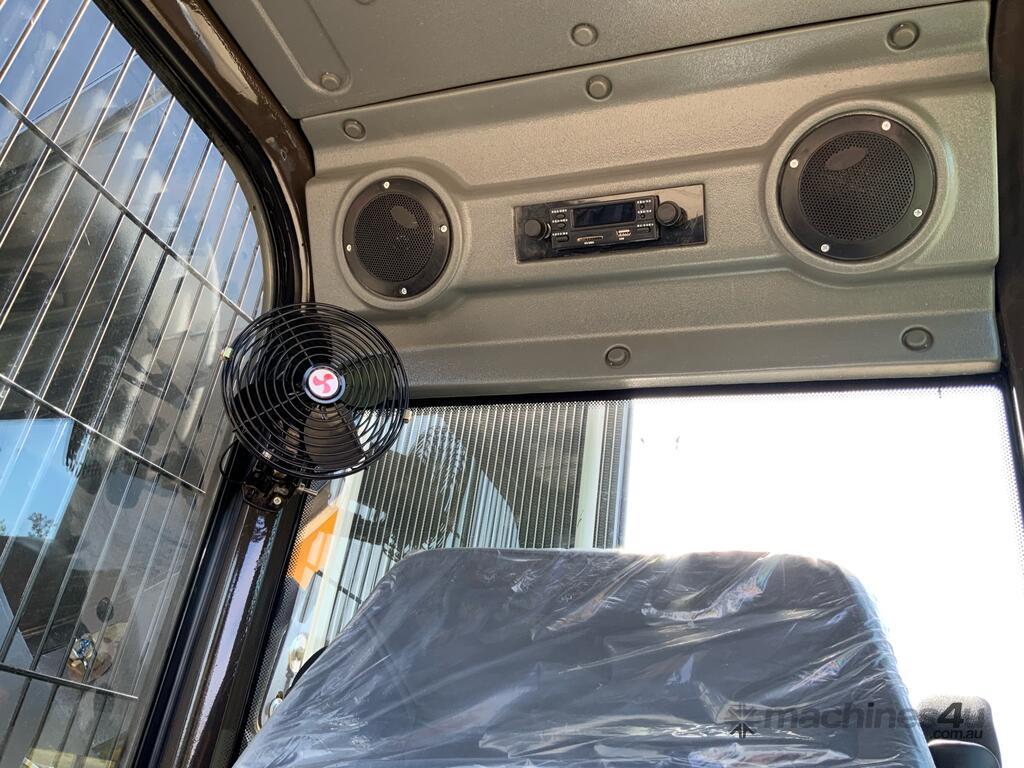

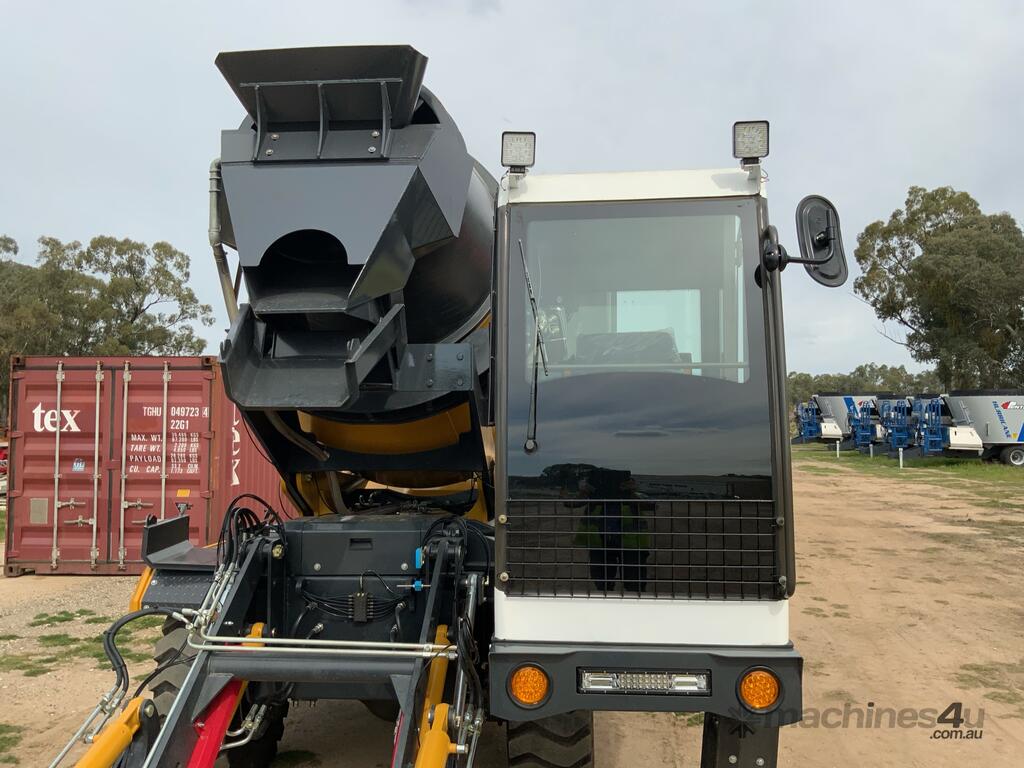

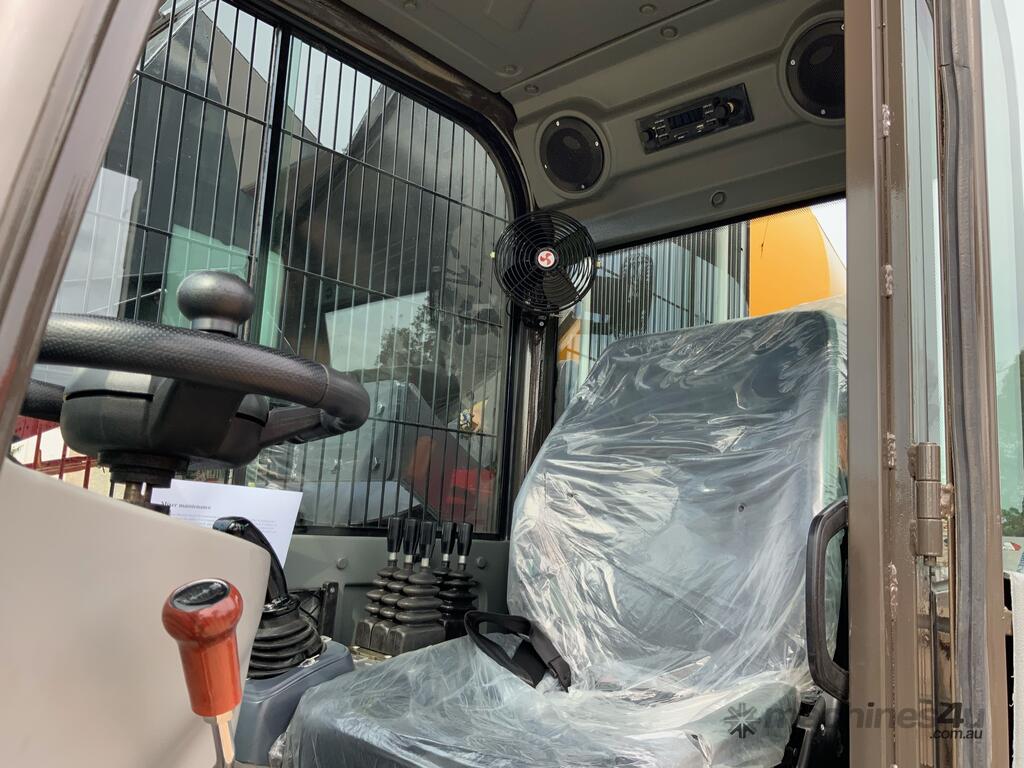

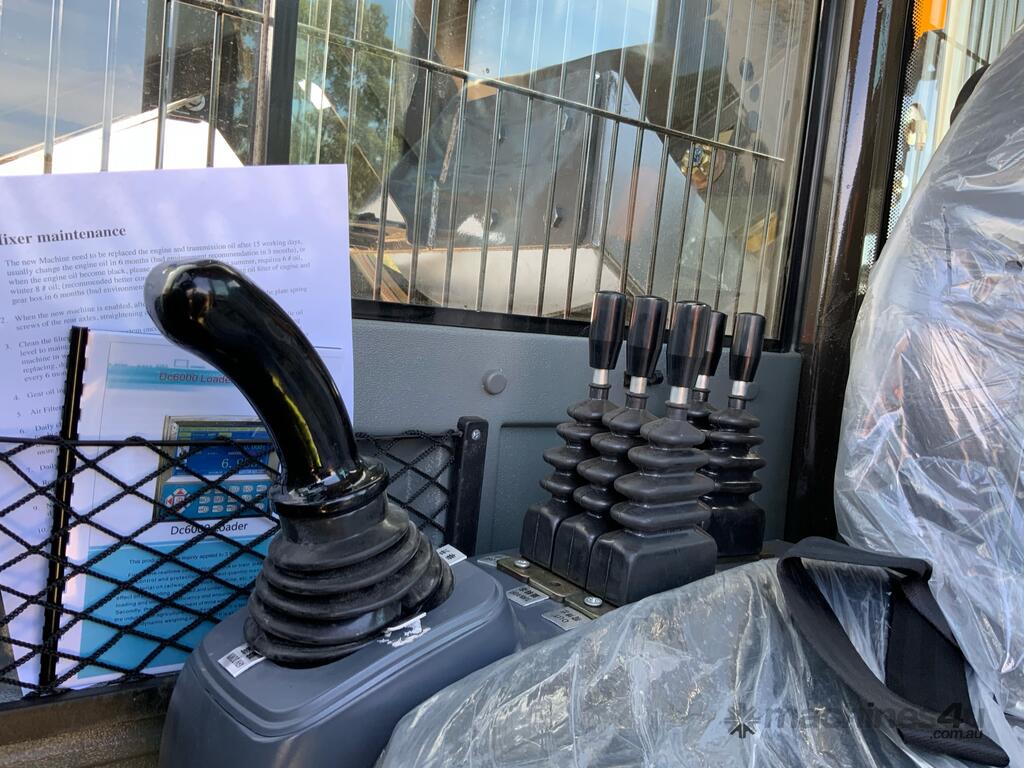

CAB
Closed cab with tilting front window,
Anatomic seat with flexible suspension and height adjustment, luxury model designs. with air conditioner.

SERVICE REFILL CAPACITIES
Fuel tank: 200 L
Total Hydraulic System Capacity: 200L
Engine Oil: 16L

WEIGHTS
Operating weight: 8,800kg
Max gross weight: 16,000 kg
Load-Carrying Capacity: 7,200 kg

DIMENSIONS
Length × Width × Height: 7,960 × 2,700 × 3,450 mm

Machine/Equipment base price only, additional price for optional extras.

We can deliver this machine Australia wide, just ask us for a delivered price.

Prefer to buy this machine through your local dealer? You can do that too, just ask!

Contact FarmTech today for sales or more information.
