FARMTECH MR 5 RIDGER PLOUGH (5 TINE)

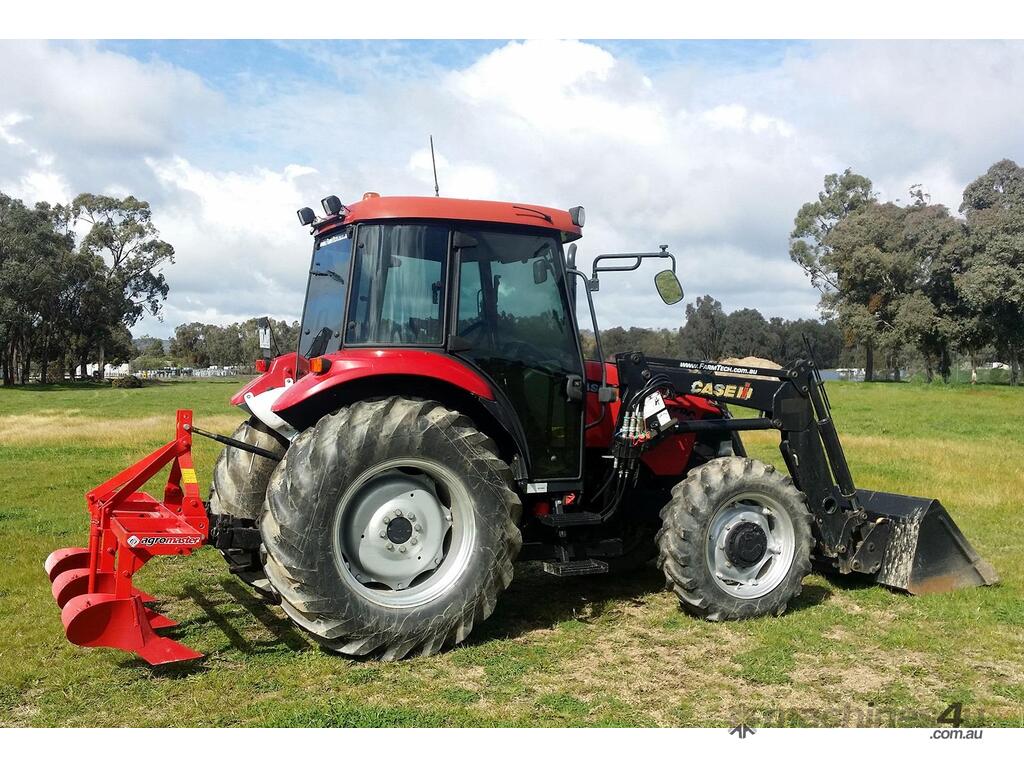

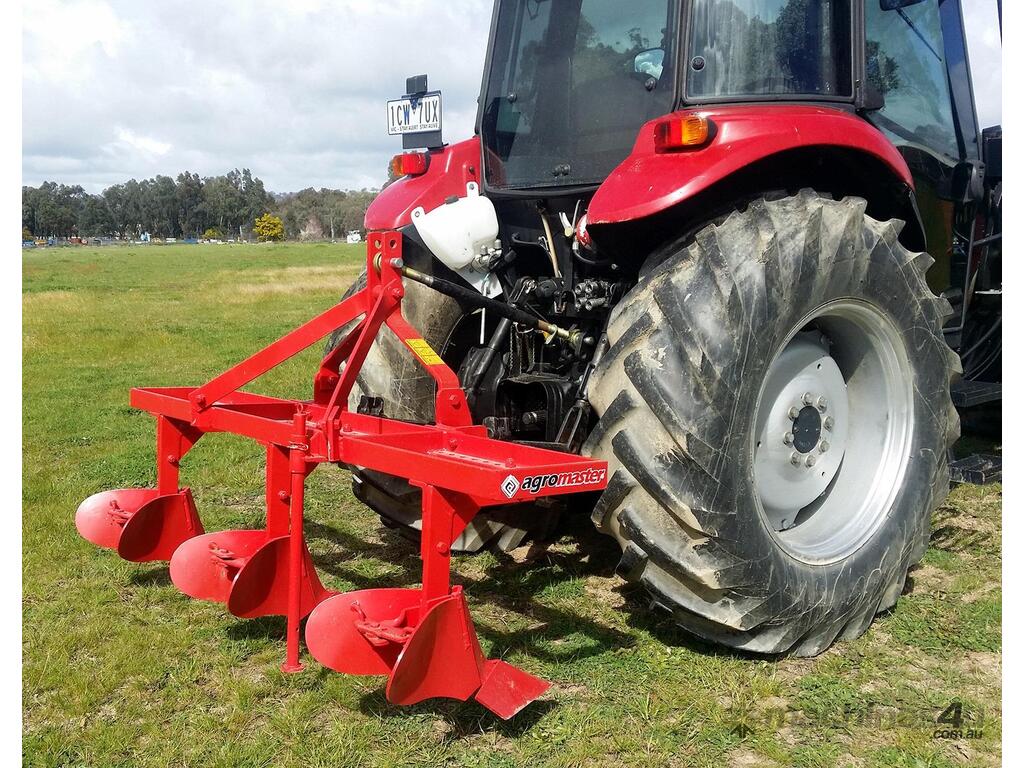

The primary soil tillage machine is mounted from the tractor's hydraulic lifting unit and universal three-point linkage system. Therefore transportation to the field can be easily done.

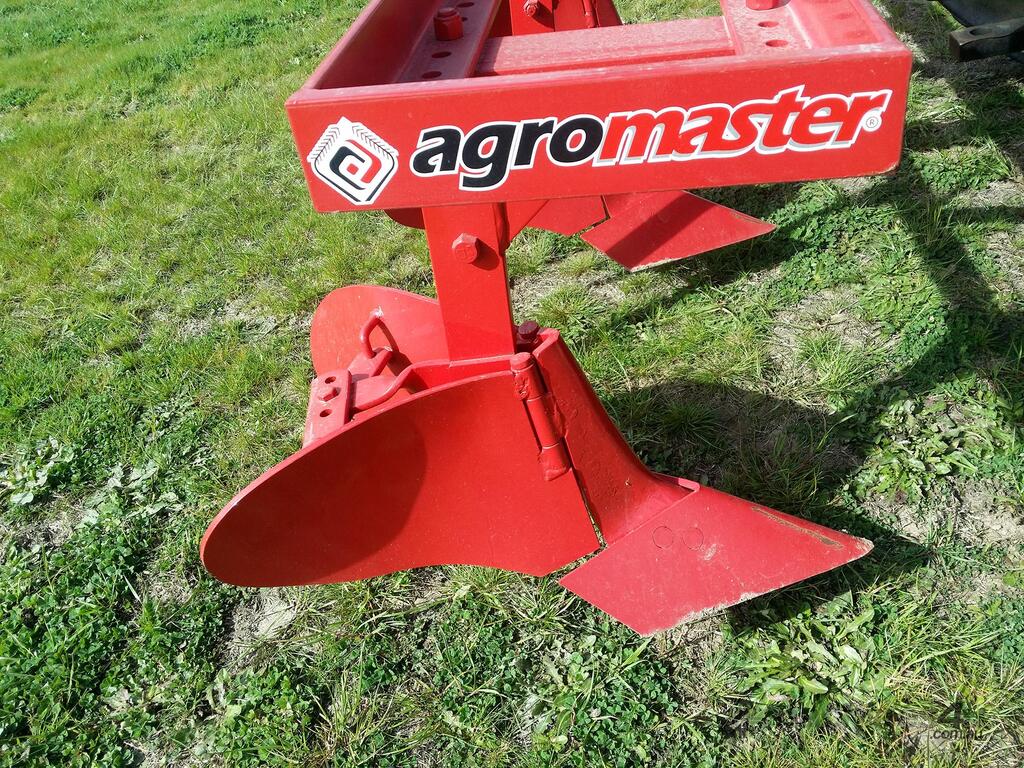

The furrow opener is placed over adjustable profile chassis and also it is manufactured with or without the wheel. It has an opportunity to enter between rows as demanded width due to its adjustable moldboards.

The usage aim of the machine is to open furrows between rows and ridging for row-planted seeds such as; corn, sunflower, cotton, etc.

Specifications: MR 5
Number of furrowers: 5 pcs
Total Width (W): 3700 mm / 12'2" ft.in
Total Length (L): 800 mm / 2'7" ft.in
Total Height (H): 1250 mm / 4'1" ft.in
Distance Between Bodies: 600-950 mm / 1'12"-3'1" ft.in
Furrow Bottom Depth: 250-300 mm / 10" ft.in
Furrow Width: mm / 12"-13"-14" ft.in
Working Depth (Max): 200-350 mm / 8"-14"
Required Power: 80-90 HP
Weight: 450 kg / 992 lbs

Machine/Equipment base price only, additional price for optional extras.

We can deliver this machine Australia wide, just ask us for a delivered price.

Prefer to buy this machine through your local dealer? You can do that too, just ask!

Contact FarmTech today for sales or more information.
