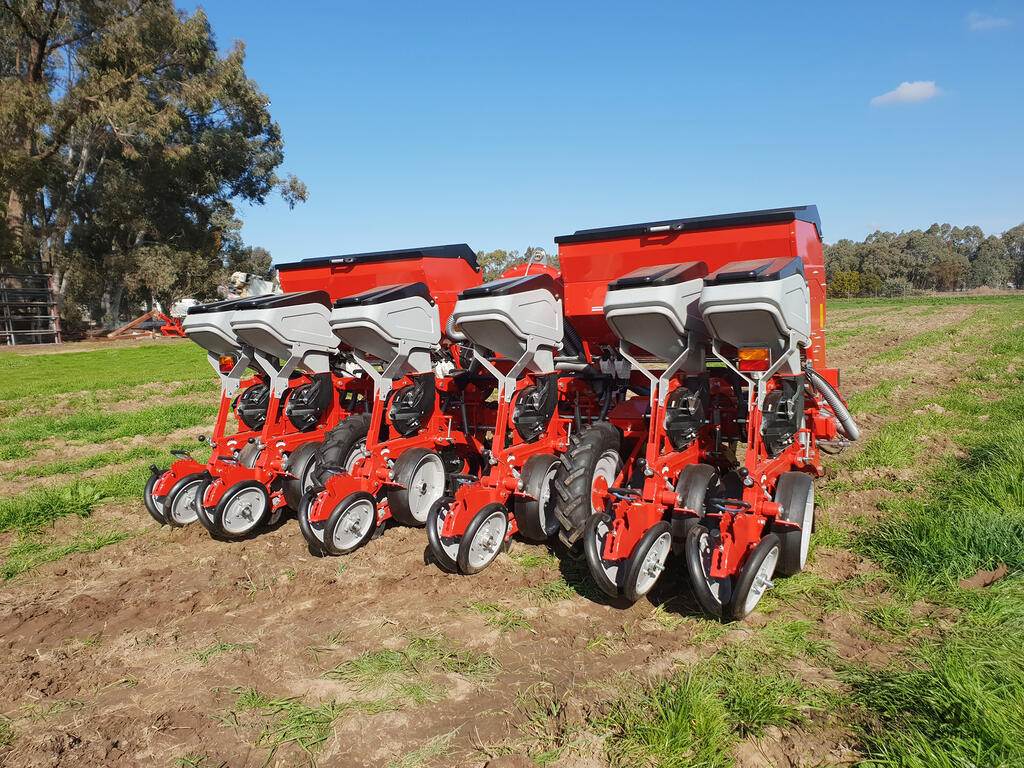

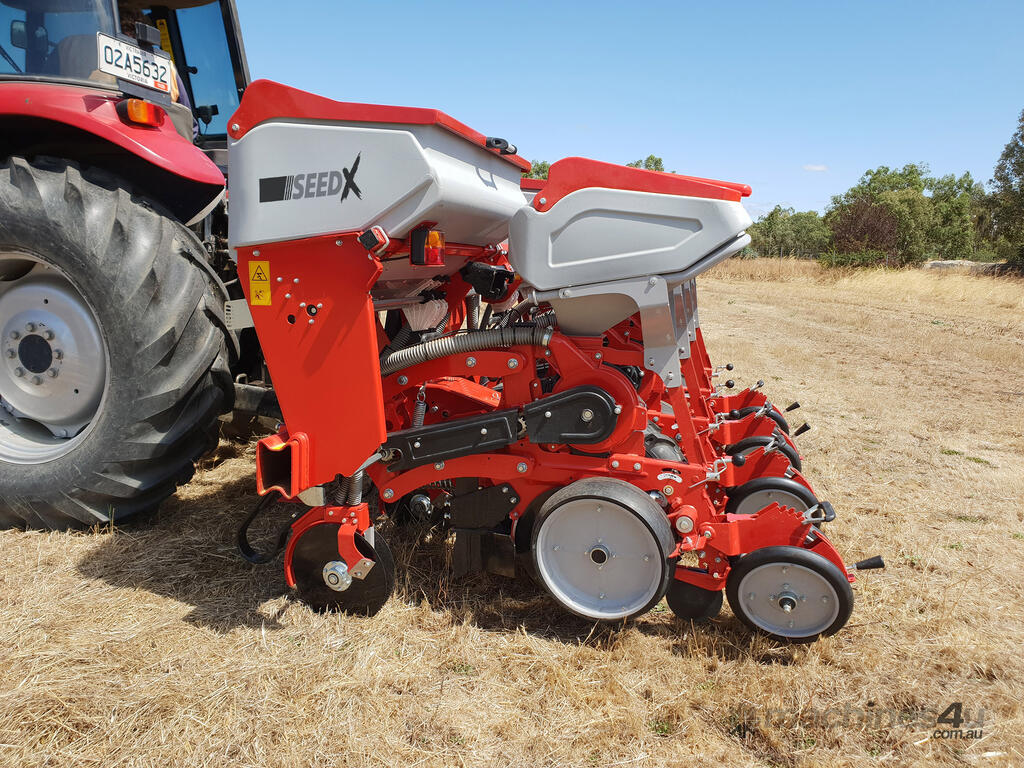

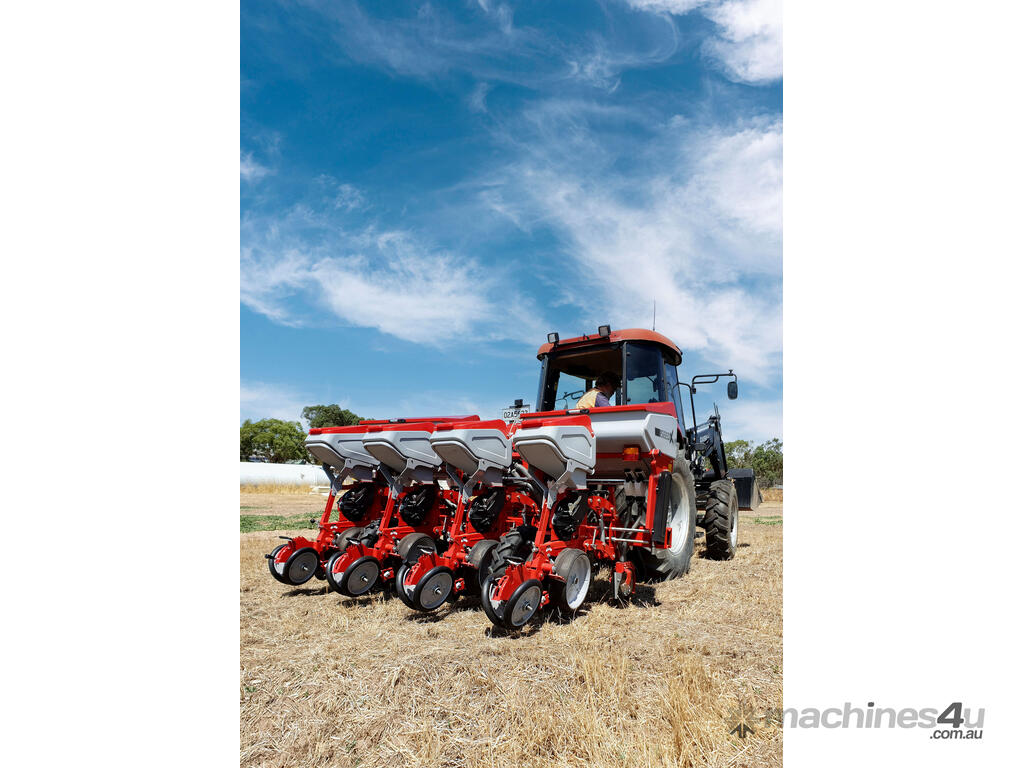

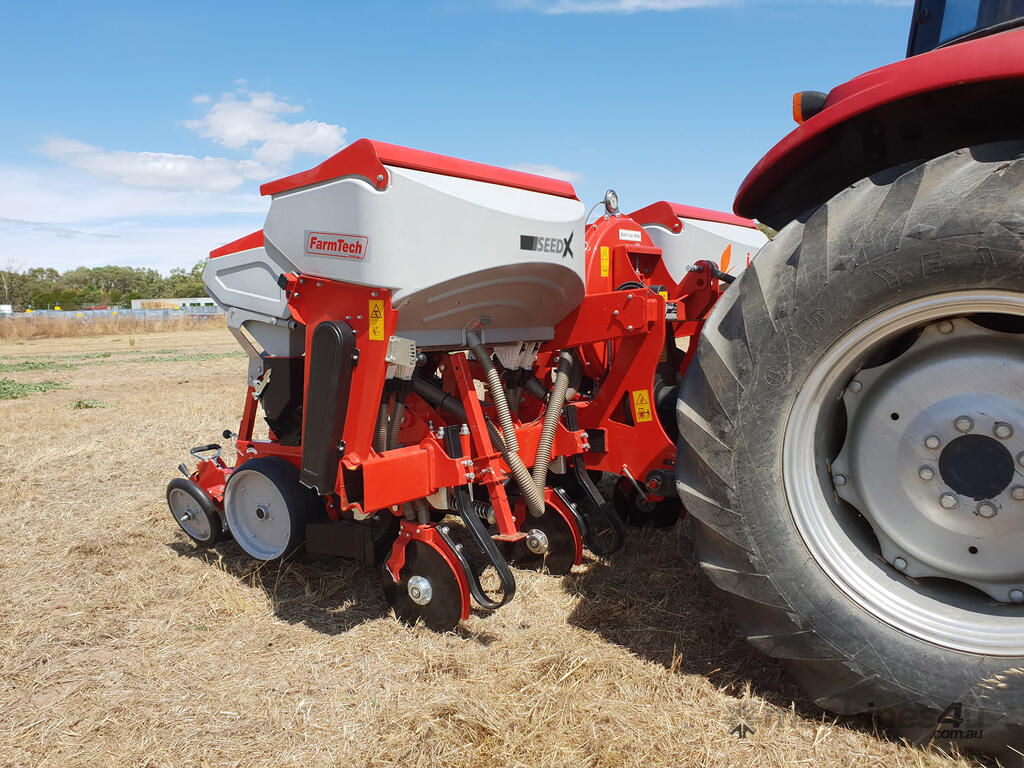

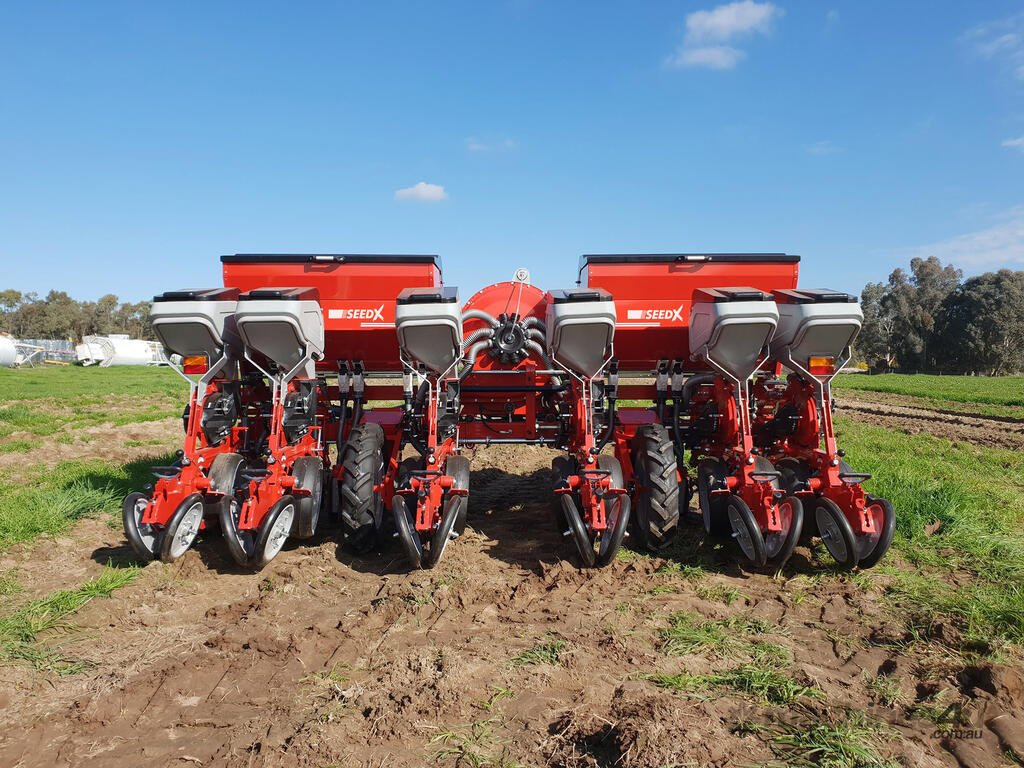

FARMTECH PPP06 (SEED ONLY) PNEUMATIC PRECISION PLANTER (6 ROW)

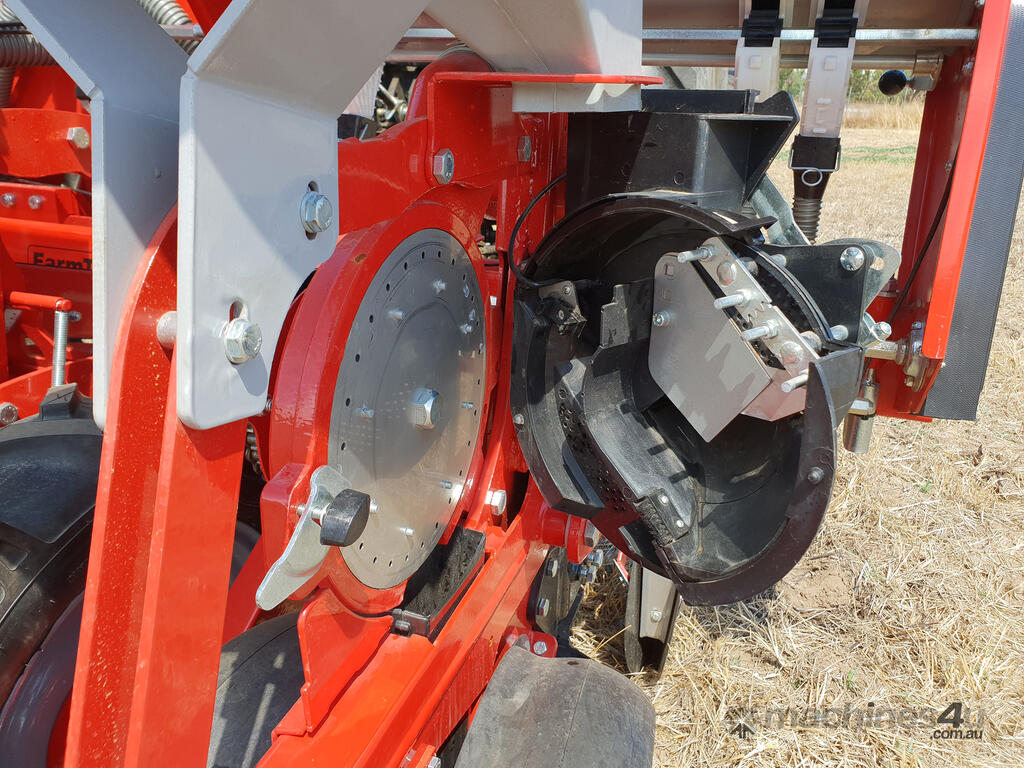

Vacuum plate planter for the precision of seeds

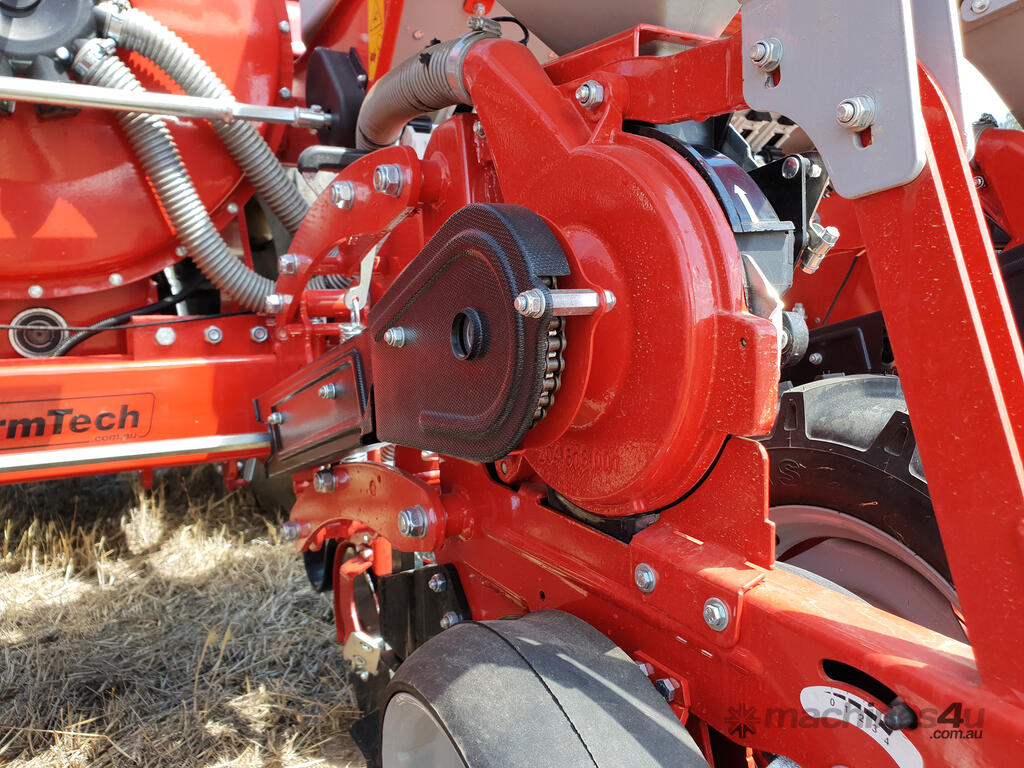

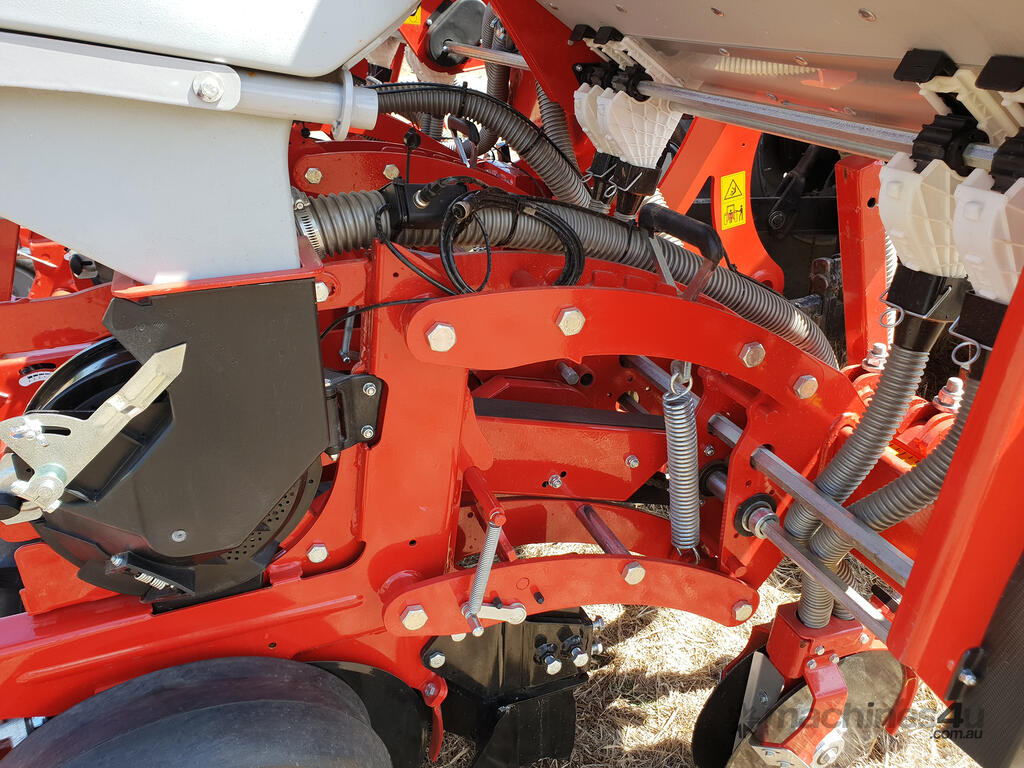

Three-point linkage planter ground drive to seeder mechanism with PTO to a vacuum system

standard features
1- disc opener
2- double press wheels
3- large seedbed prep wheels
4- 70 cm row spacing standard
5- Variable spacing from 45 to 80cm
6- Optional Fertiliser boxes
7- Optional press wheel style

Quality, European-made, six-row precision planter.

* Designed to make sowing with high depth-precision, without any effect from straw waste on the field in every kind of soil and climate conditions.
* The unit weight is distributed evenly to the ground, thanks to depth adjustment wheels which have a wide contact surface.
* It doesn’t increase the penetration resistance of the soil. In this way, especially in the ridge planting applications, the sowing operation happens without damage to ridges that have been prepared before.
* Maximum sowing depth precision with depth adjustment wheels which work in tandem.
* Practical depth adjustment which is made from one single point.

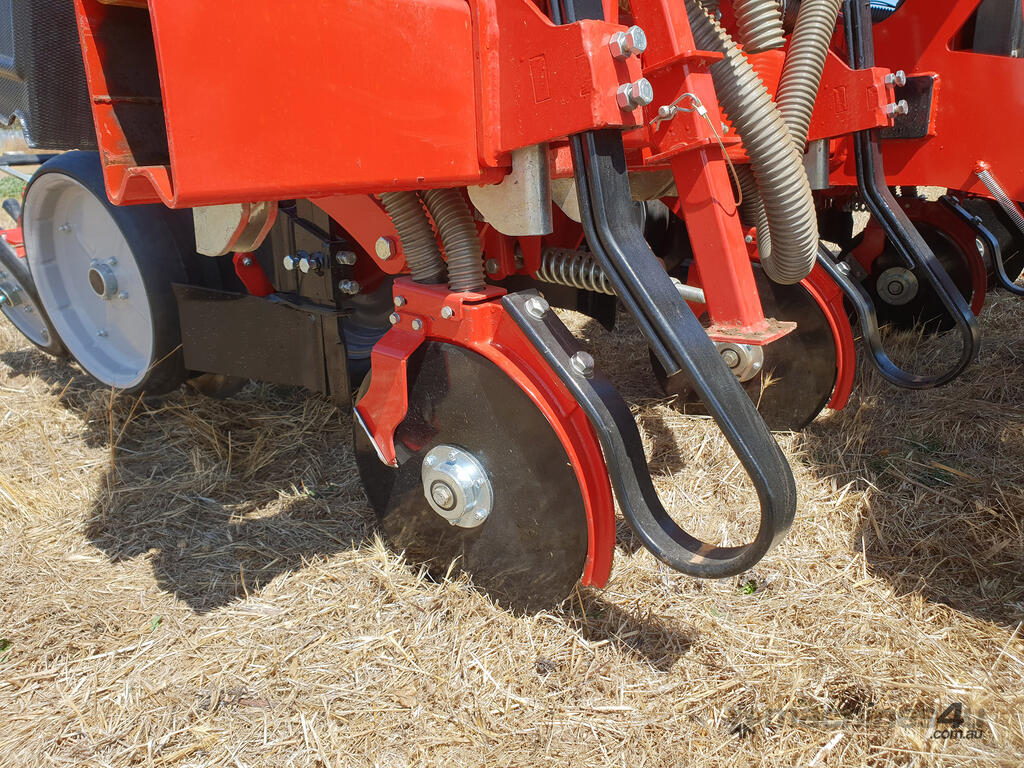

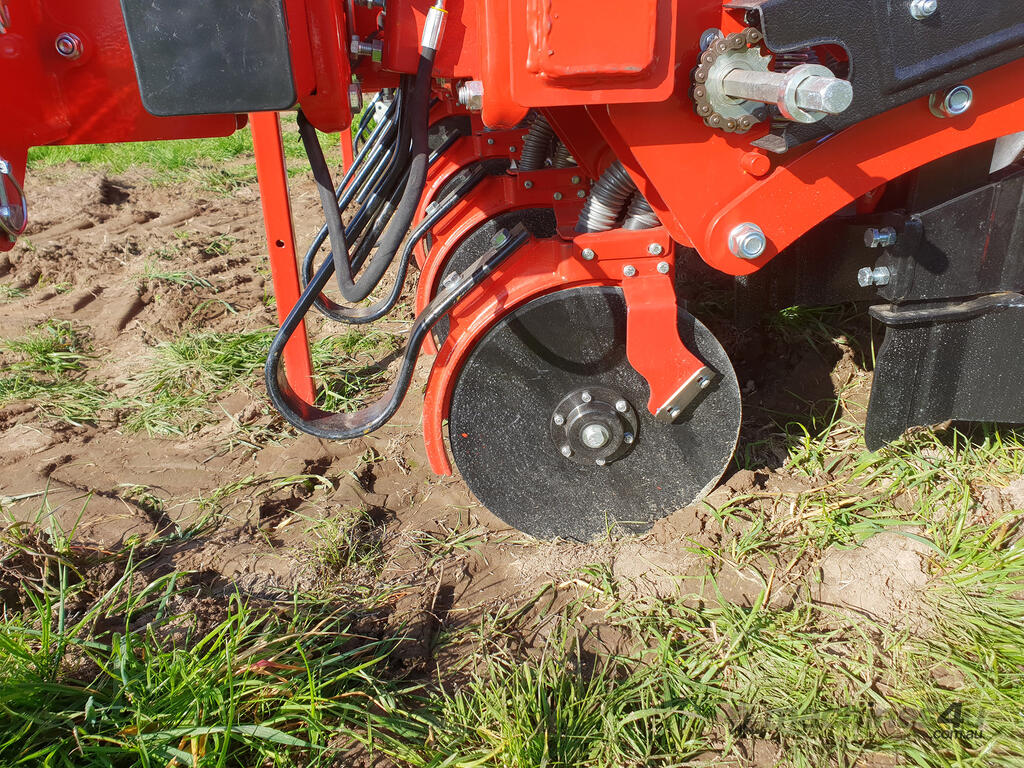

* Low-angle positioned double disc design which doesn’t become affected by the straw waste on the field.

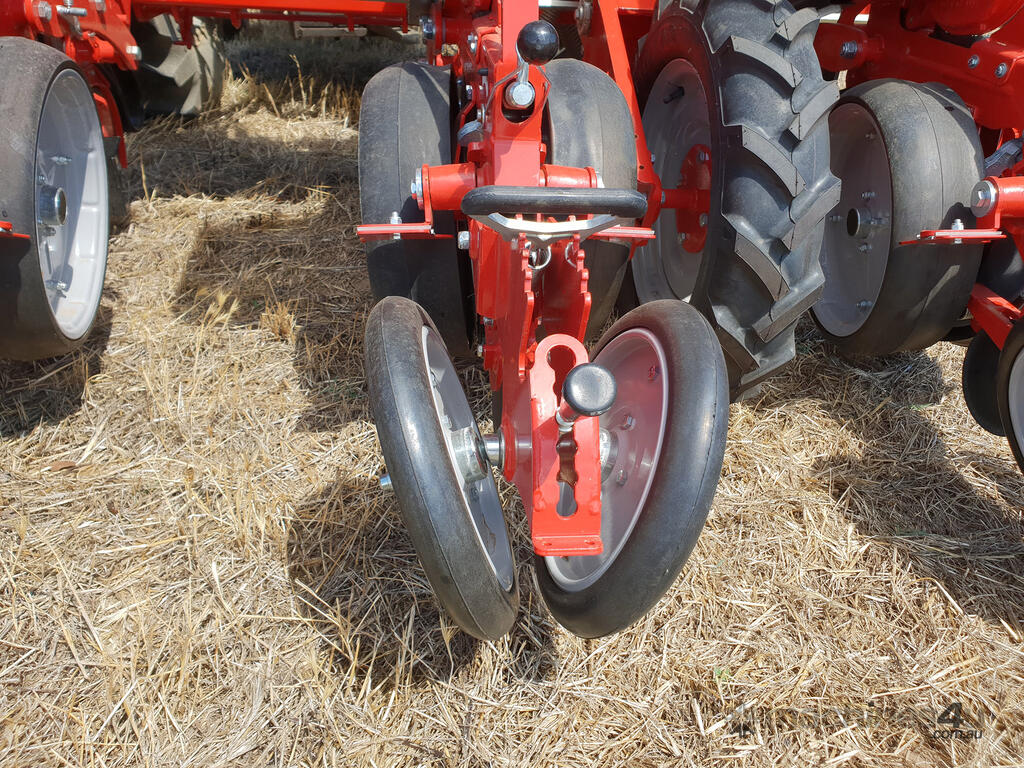

* Angle, width, and pressure adjustable V-type pressure wheels.
* Moveable seed pressure wheels which increase the contact with the soil and seed.
* Double disc, high and stiff, adjustable fertilizer coulters.
* Other models available. 4, 8, or 10-row machines.

Specifications - PPP06 (SEED ONLY)
Width: 3880 mm
Height: 2710 mm
Length: 2230 mm

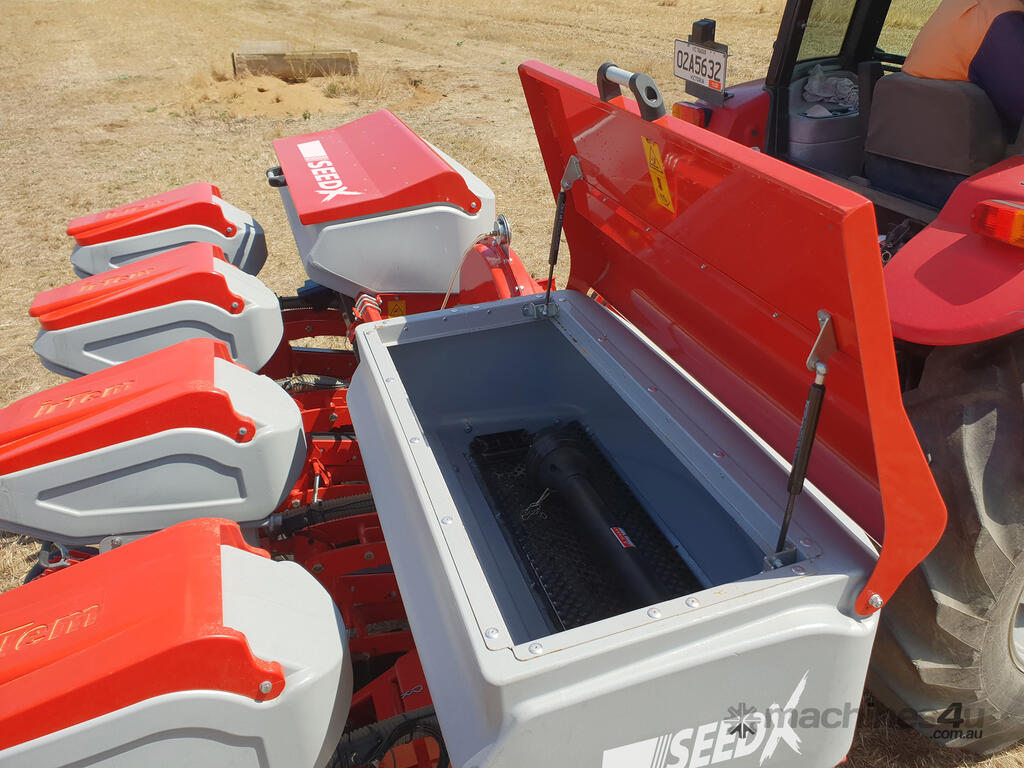

Seed Tank Volume: 6 x 32
Fertiliser Tank Volume: 780 L
Disc Hole Diameter: 1-6 mm
Disc Hole No: Variable
Distance Between Rows: 700 mm
Row-Top Distance: 1-177 cm
Operating Speed: 5-7 km/h
Required Power: 100+ HP
Weight: 1475 kg

OPTIONAL EXTRAS
* Plastic or steel fertliser hoppers
* Telescopic frame for easy road transport
* Disc type furrow opener
* Front pressure wheelset for beet planting.
* Singular rear press wheels in-lieu of double.
* Powder chemical distributor
* In-cab seed control/monitoring system

Machine/Equipment base price only, additional price for optional extras.

We can deliver this machine Australia-wide, just ask us for a delivered price.

Prefer to buy this machine through your local dealer? You can do that too, just ask!

Contact FarmTech today for sales or more information.
