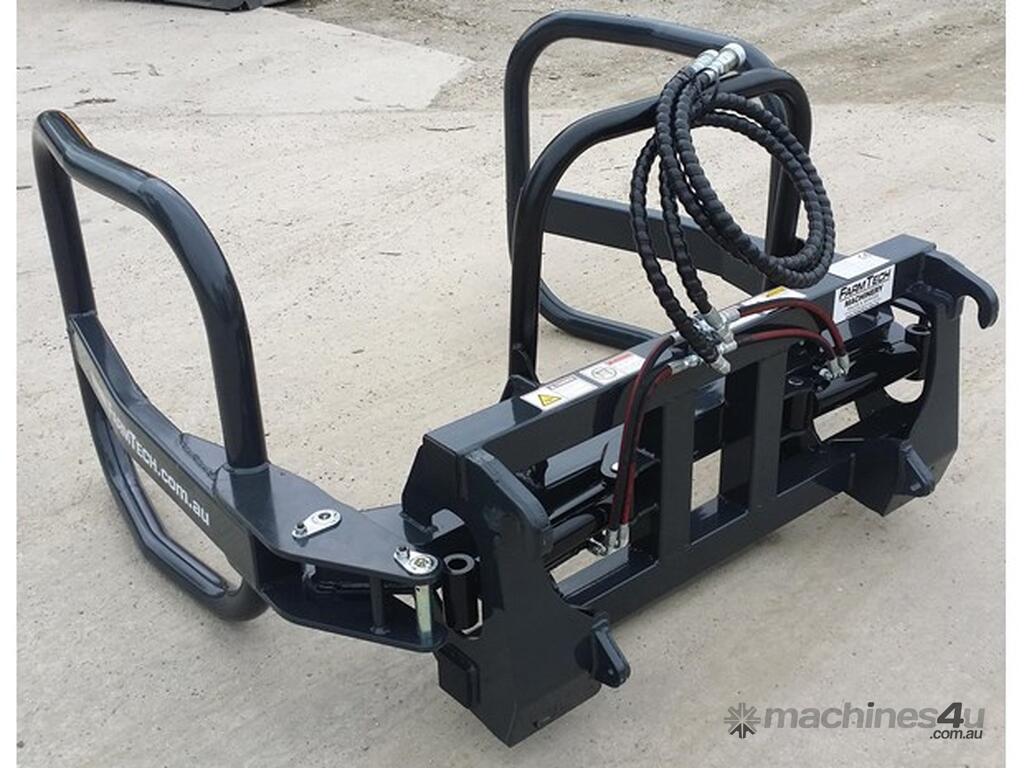

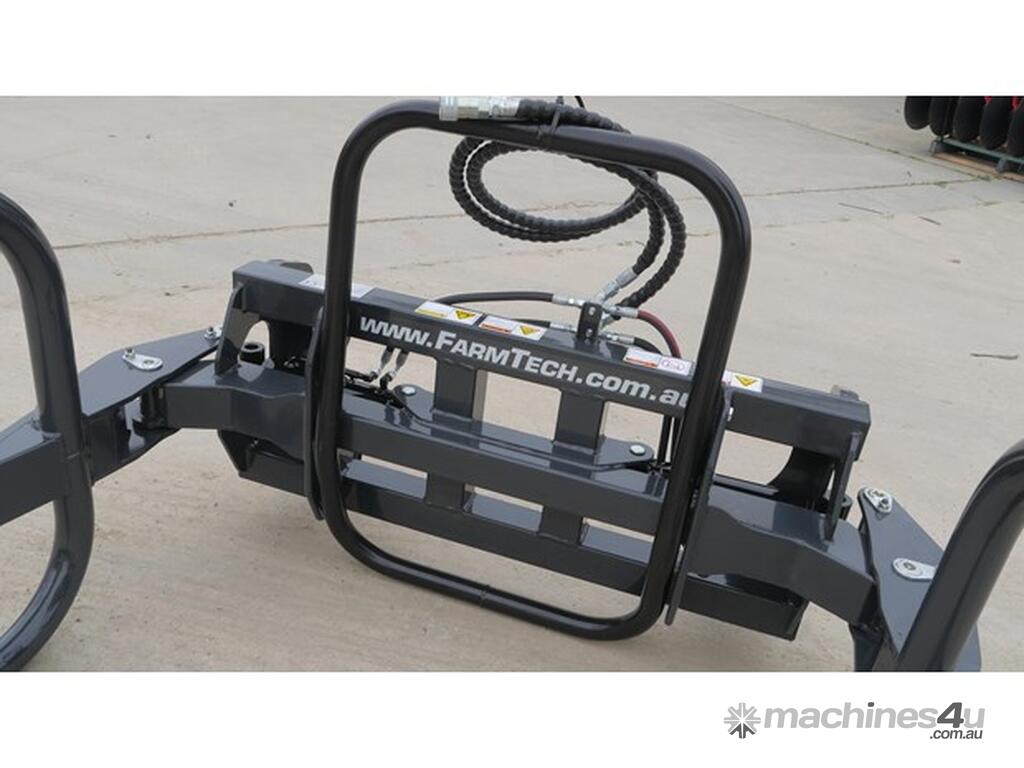

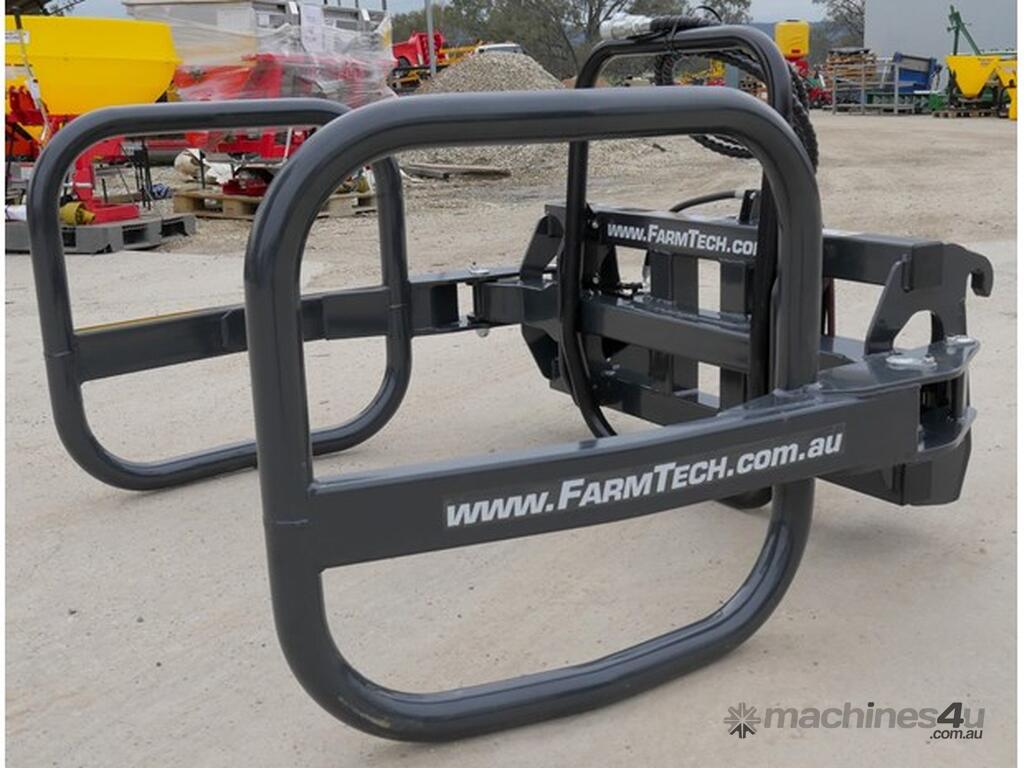

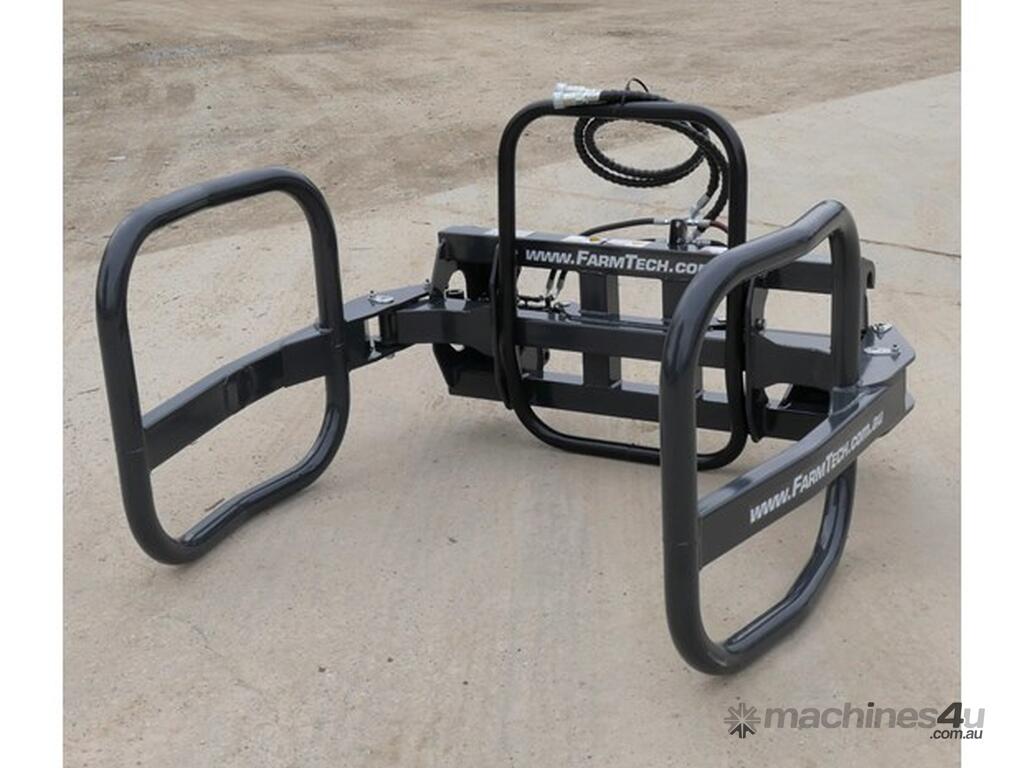

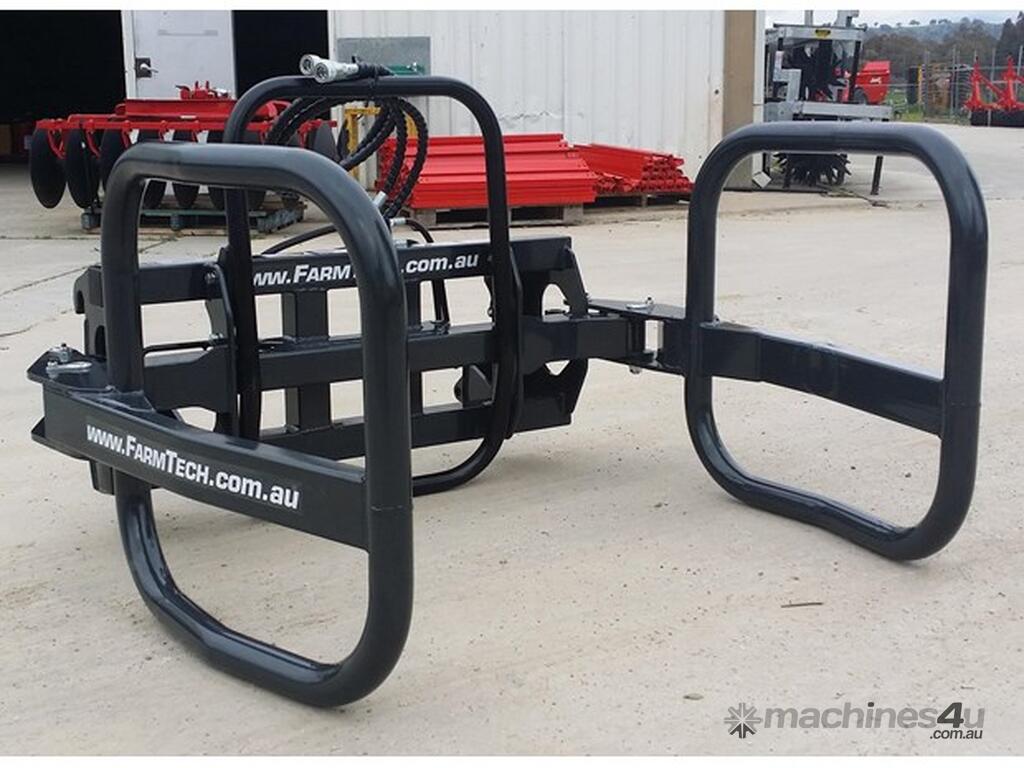

FARMTECH SH-90BG ROUND BALE GRAB

For easy handling and stacking of wrapped round silage bales and bales of hay. The SH-90BG has two hydraulic cylinders and can handle bales up to 1.5m in diameter. Comes complete with euro brackets and hydraulic hoses.

Specifications -
Total length (mm): 1359
Height without a guide (mm): 780
Height with a guide (mm): 900
Total width (mm): 1833
Weight (kg): 170
Operating width at the front end (mm): 195-1713
Operating width at the centre of arm (mm): 714-1639
Arm length (mm): 810
Arm height (mm): 780
Max. load (kg): 1200
Available bale size (mm): 1200-1500
Available oil pressure(bar): 180-210

Machine/Equipment base price only, additional price for optional extras.

We can deliver this machine Australia wide, just ask us for a delivered price.

Prefer to buy this machine through your local dealer? You can do that too, just ask!

Contact FarmTech today for sales or more information.
