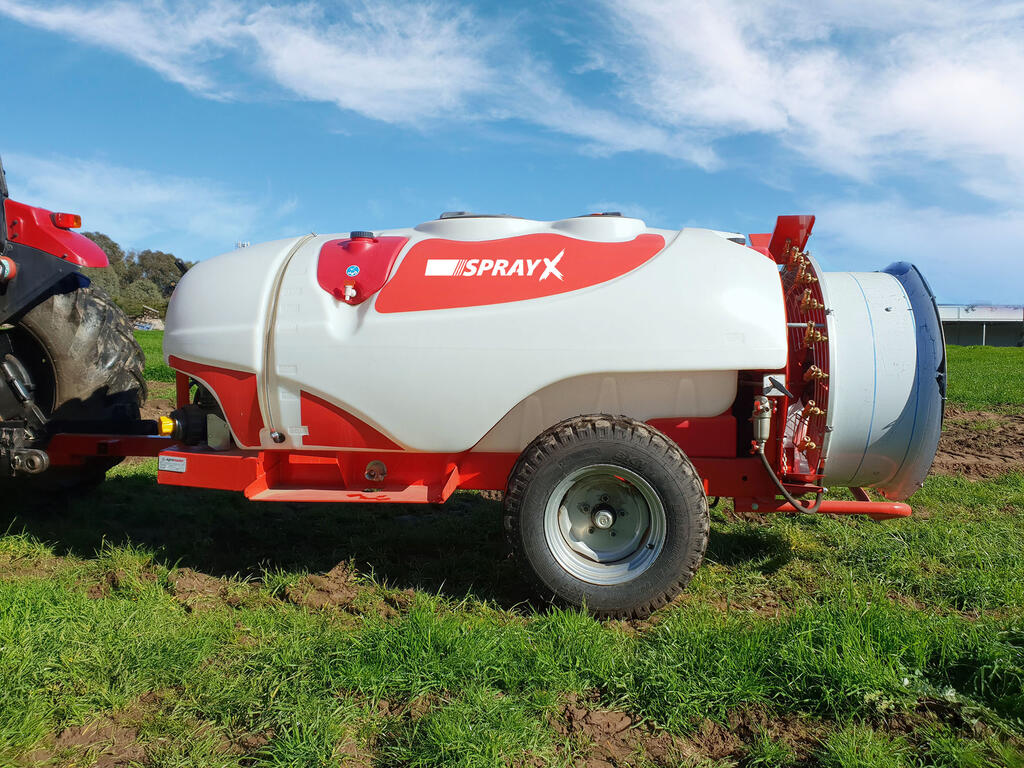

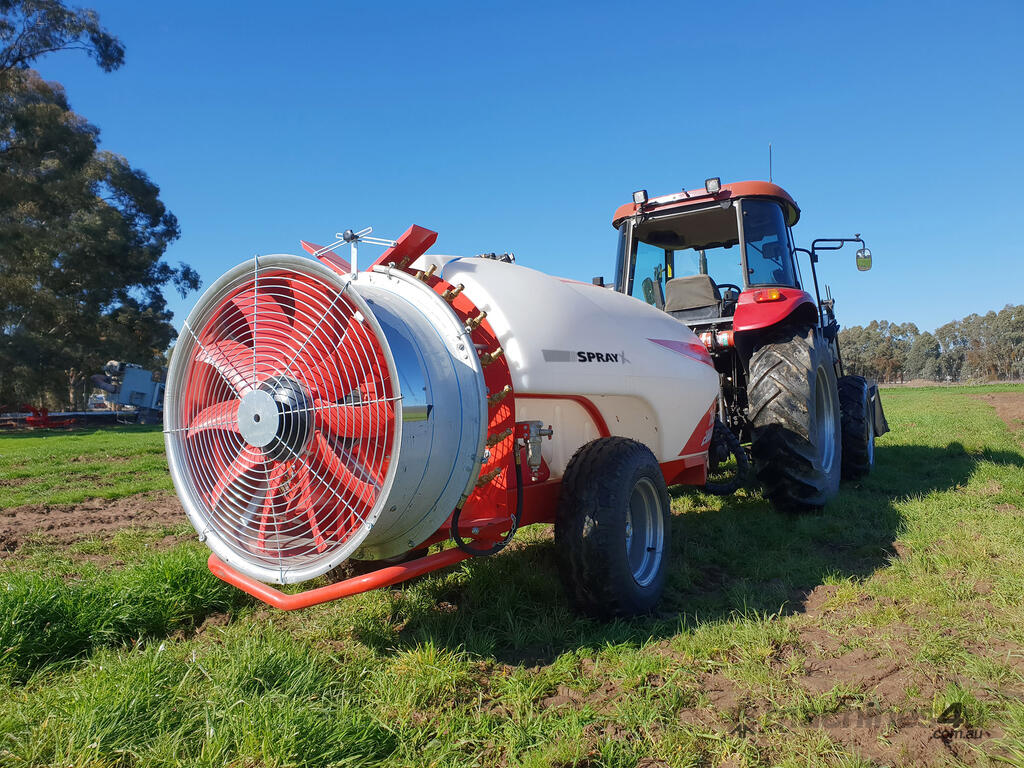

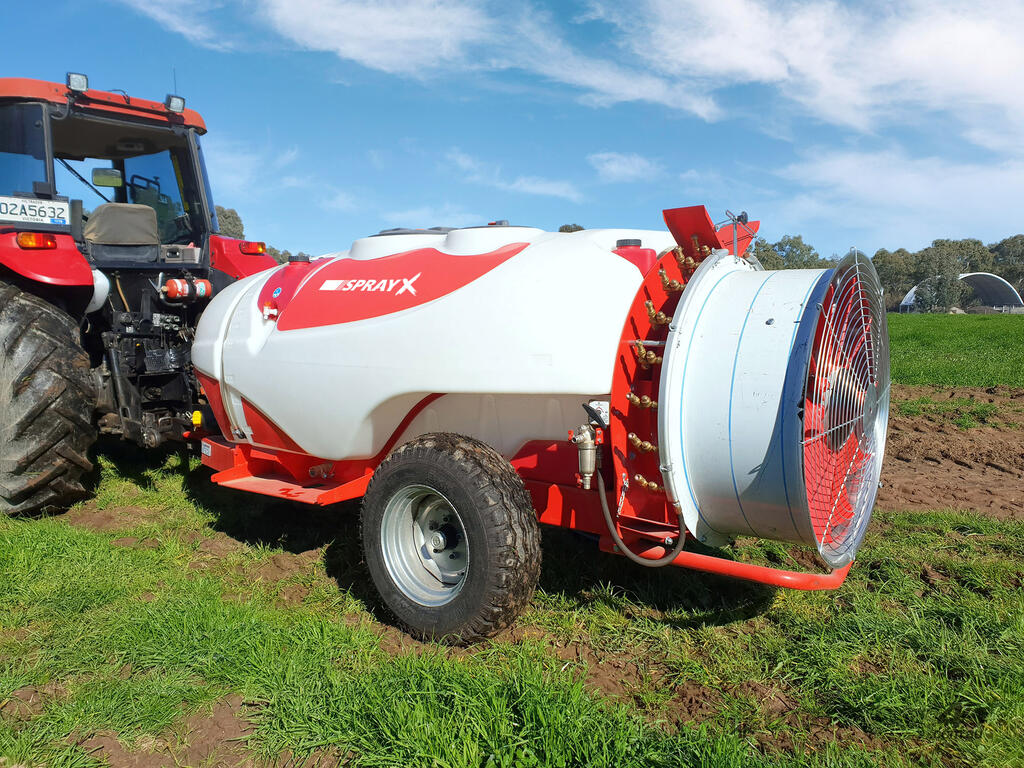

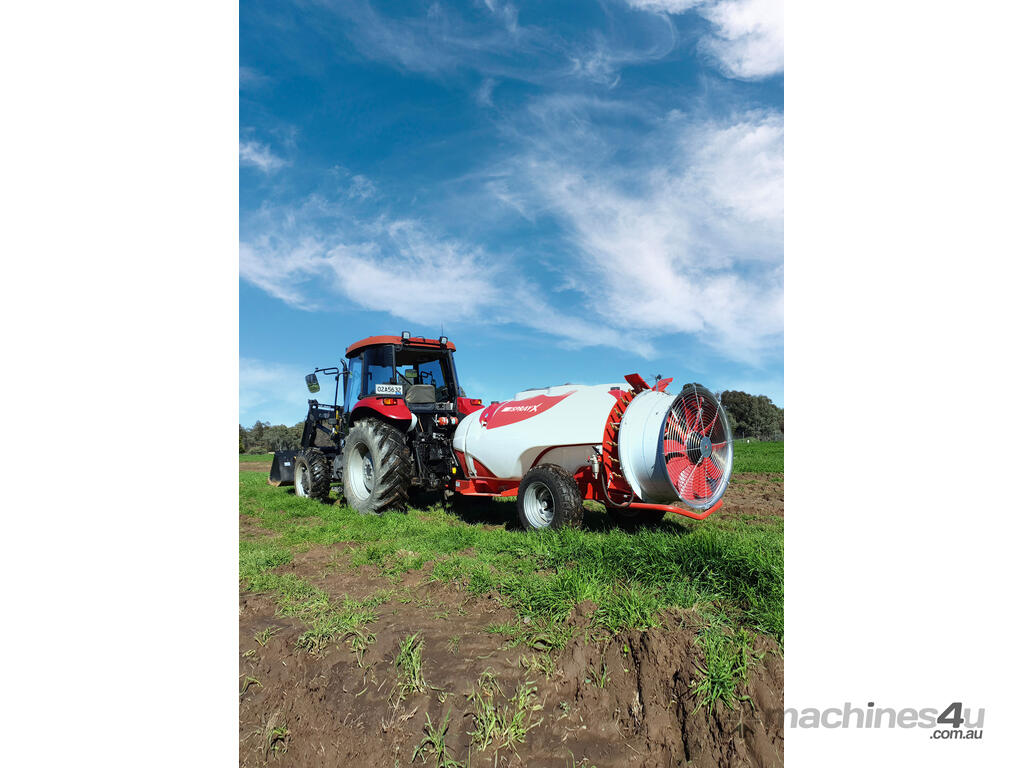

FARMTECH SPRAYX TAS 2000 ORCHARD SPRAYER (2000L)

IN STOCK

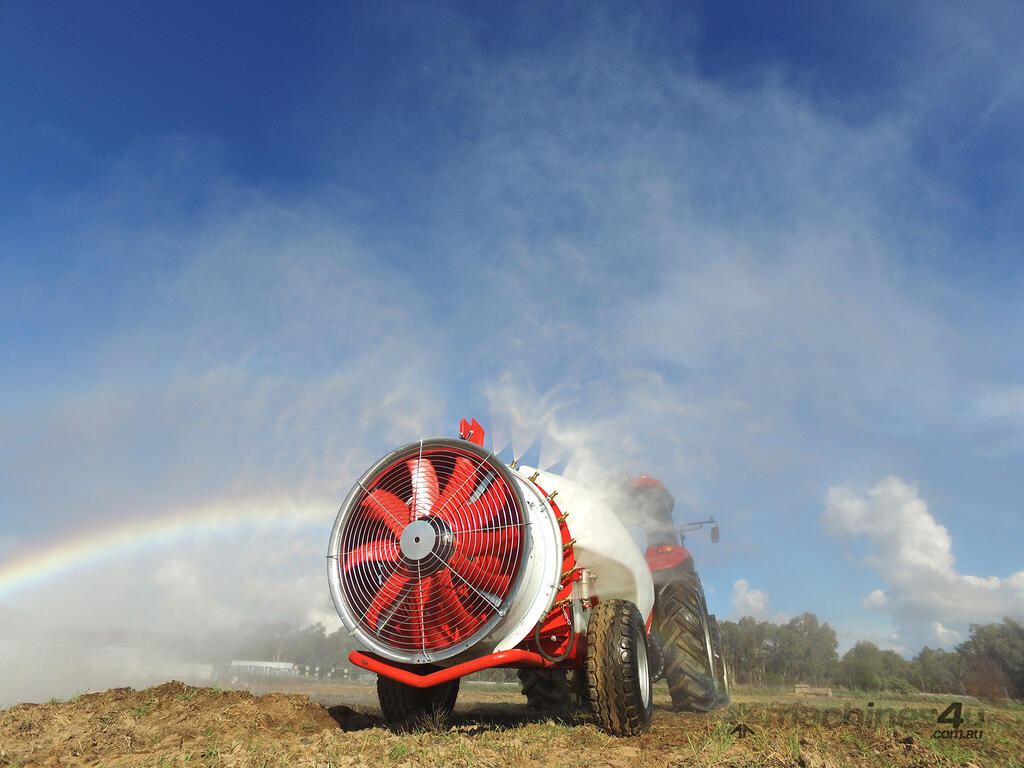

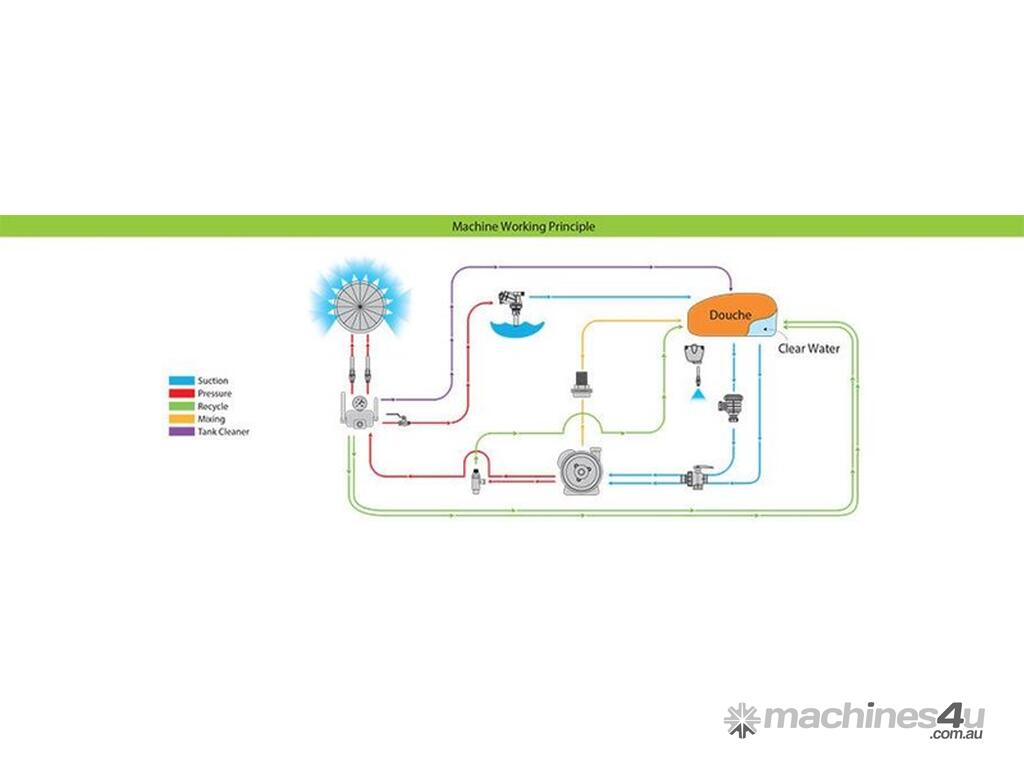

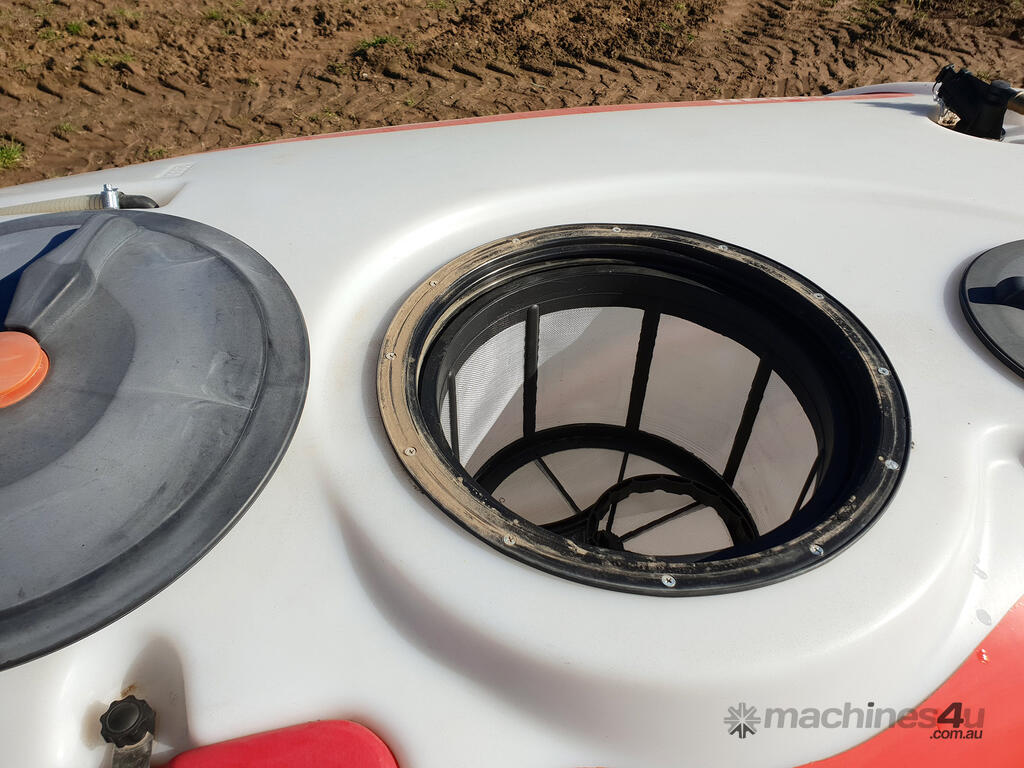

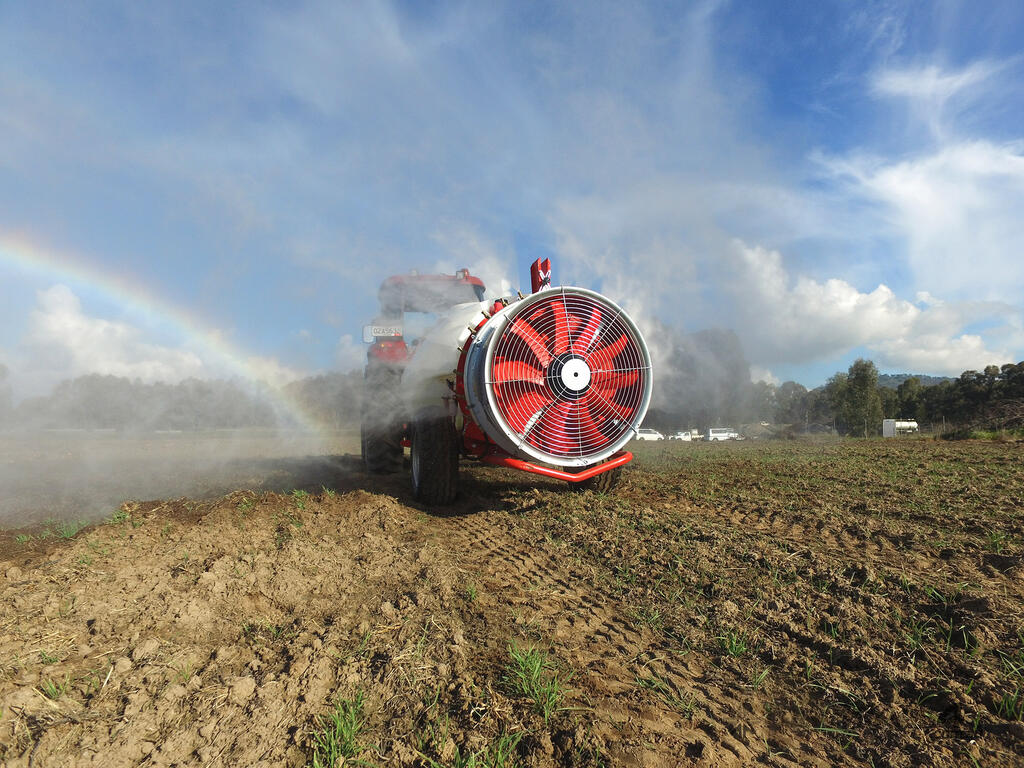

Trailed type 2000 L mistblowers are used for multipurpose plant protection. Mist blowers connected to drawbar of tractor and powered by P.T.O Spraying pump is getting the power from P.T.O. and deliver the liquid under the pressure to nozzles on the spray fan. Propeller getting drives by PTO provide pressured air release in the field.Release of the pressured air direction cen be adjusted by guide wings. By means of this facility, pressured air can spray effectively each type trees 2 rowed 10-15 meters height as fruit gardens,vineyards and cultivated areas.1000, 1600, 2000 L sprayer tanks are produces from polyethylene or fiberglass material.All sprayers have a filter system which enables spraying without blocking. There are cartridge filters before tank outlet and nozzle inlet, also a sieve at the intake of the tank.By changing angle and direction adjustable spraying nozzle plates, the amount and the direction of the spray can be adjusted. Double-side anti-drip nozzles are standard accessories of sprayers.Cleanable 3 way filter provides healthy working conditions during the filling of tank and disinfection.Propeller in the fan system is driven by the 2 speed gearbox.

FEATURES
* Polyethylene tank
* System washing tank
* Hand washing tank apart from main tank supplies clean water
* Painted steel chassis
* High pressure pump
* Manual regülatör
* Adjustable jack
* Width and height adjustable axe
* Level gauge

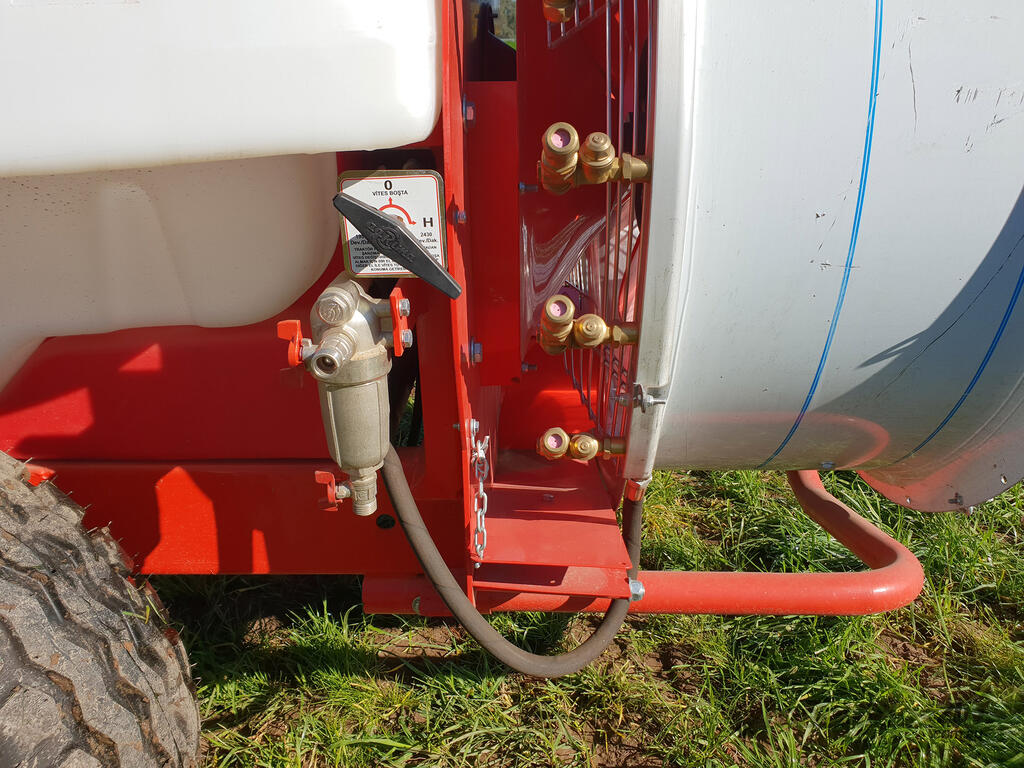

* Double side brass nozzle with drop switcher
* Automatic filling system with filter that fills into the spraying tank by pumping water from the canal or any source with the suction hose
* Hydraulic mixer is provided to homogeneous checmicals-water mixture
* Drawbar connection
* Low and high speed cycle gearbox
* Speed and angle adjustable propeller
* Stop light
* High volüme flow rate

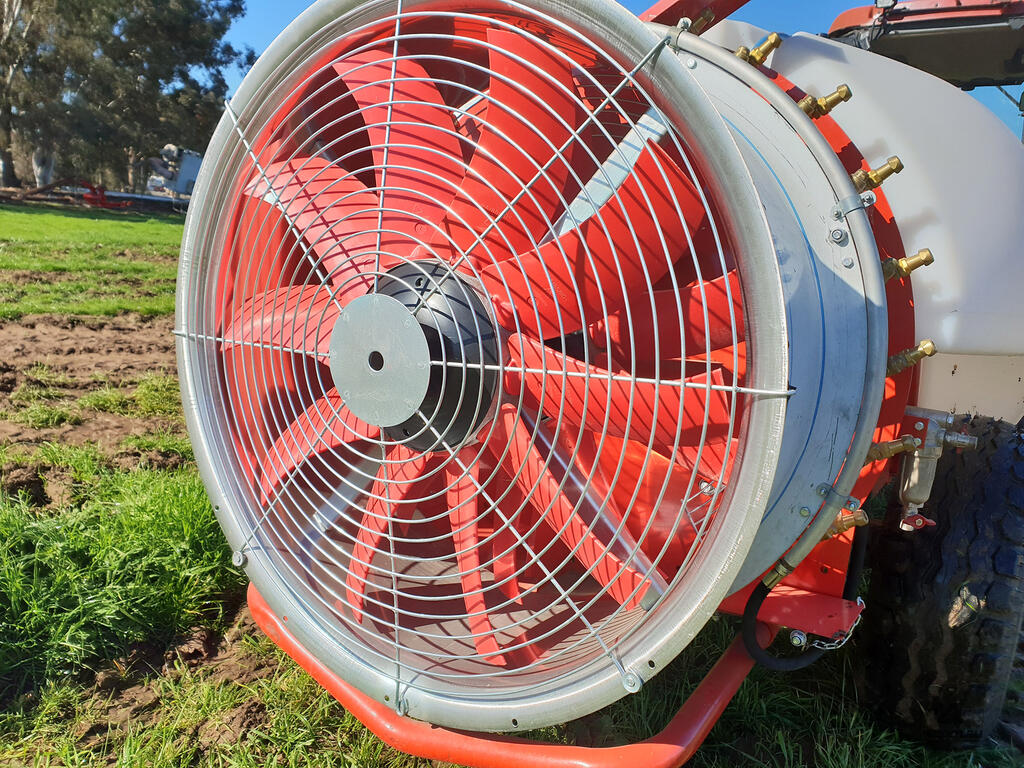

* Stainless turbo fan

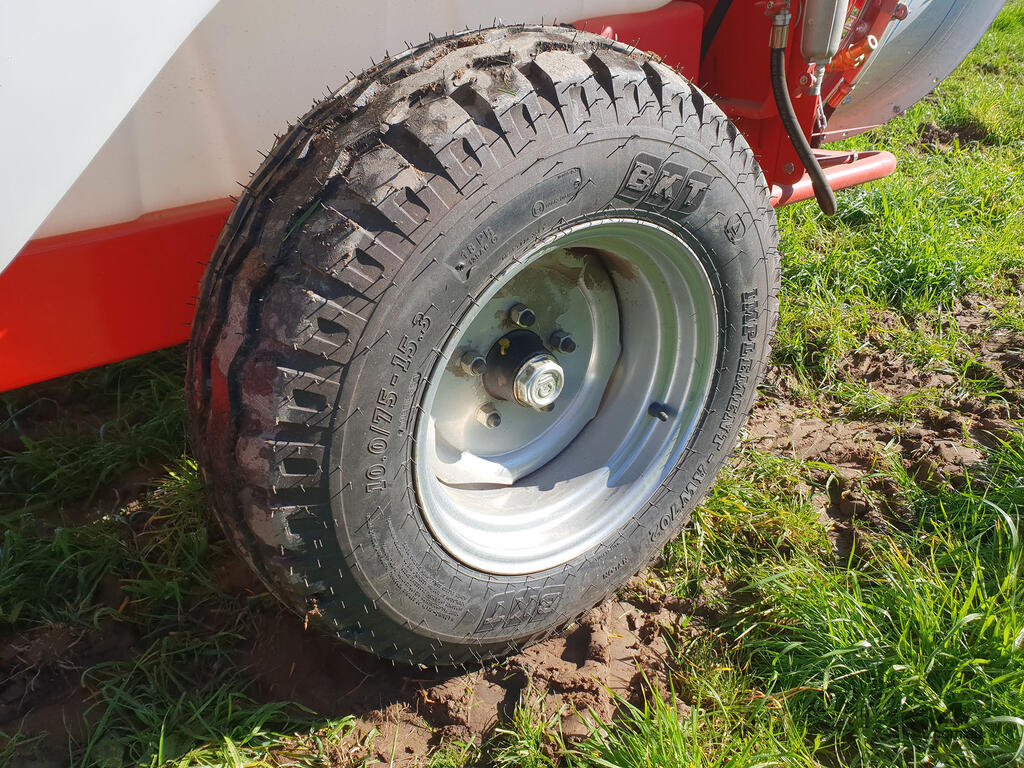

* Durable tubeless wheels to all of terrain conditions
* Protection system against any waste which might come from ground during fan working

SPECIFICATIONS - TAS 2000
Capacity: 2000L
Total Width: 1500mm
Total Length: 4250mm
Total Height: 1600mm

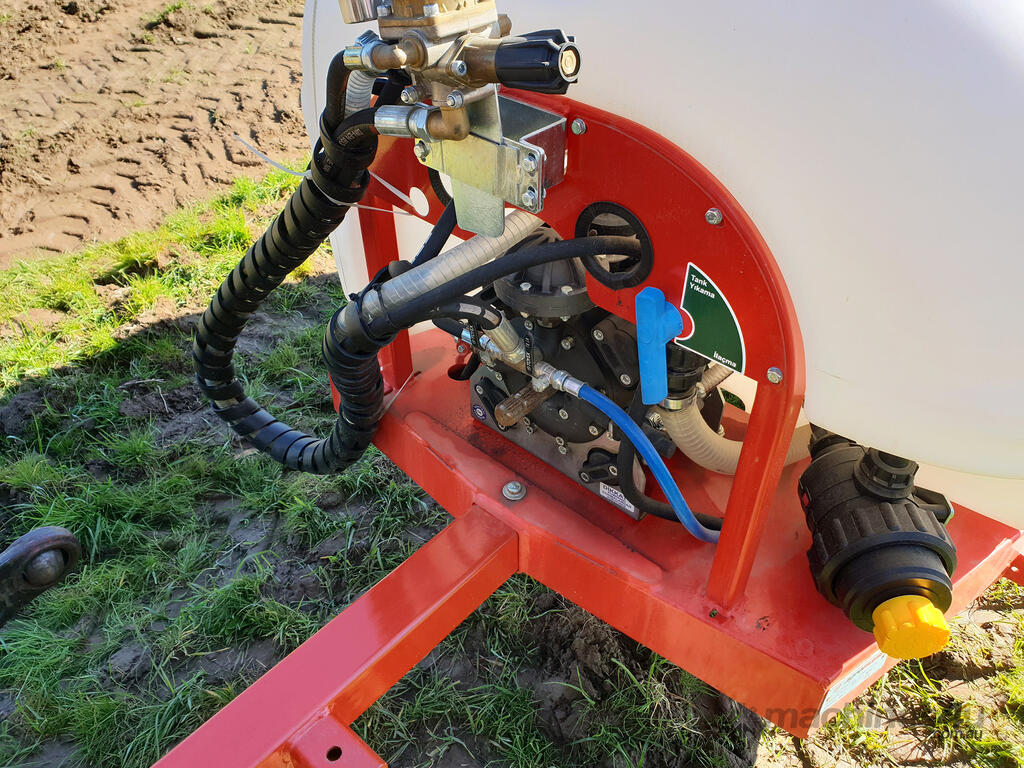

Pump Type: Membrane C145
Air Flow: 66,000 m3/h
Fan Diameter: 900mm

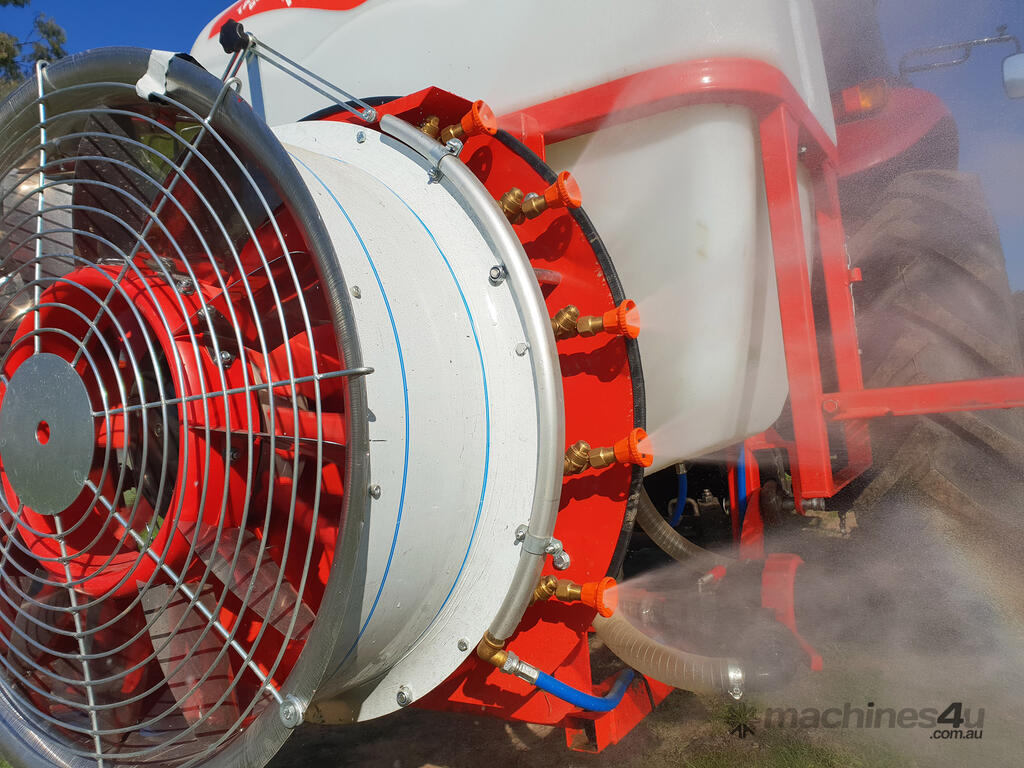

Number Of Nozzles: 8+8
Working Width: 10-15m
Regulator Model: By Matic
Pressure Safety Valve: Standard
Tank Mixer: Standard
Tank Material: Fiberglass/Polyethylene
PTO Rotation: 540 rpm
Required Power: 90-95 HP
Total Weight: 935 kg

Machine/Equipment base price only, additional price for optional extras.

We can deliver this machine Australia wide, just ask us for a delivered price.

Prefer to buy this machine through your local dealer? You can do that too, just ask!

Contact FarmTech today for sales or more information.
