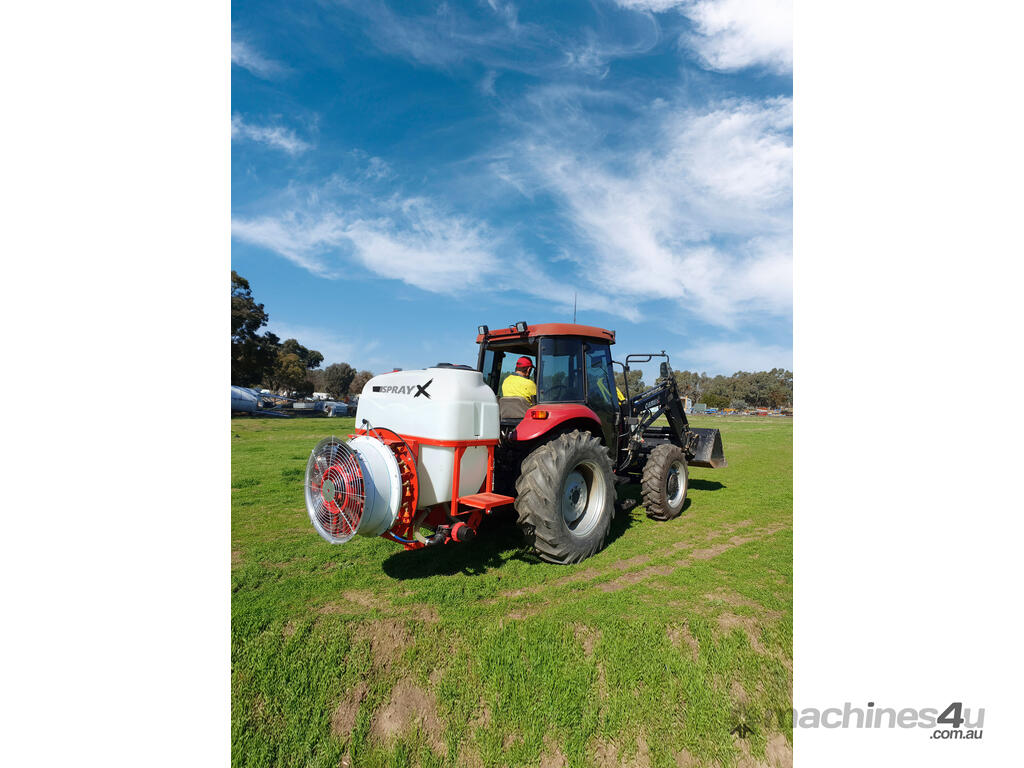

FARMTECH SPRAYX TAS 600 ORCHARD SPRAYER (600L)

Airblast mister for vineyards and orchards with adjustable nozzles for good crop coverage.

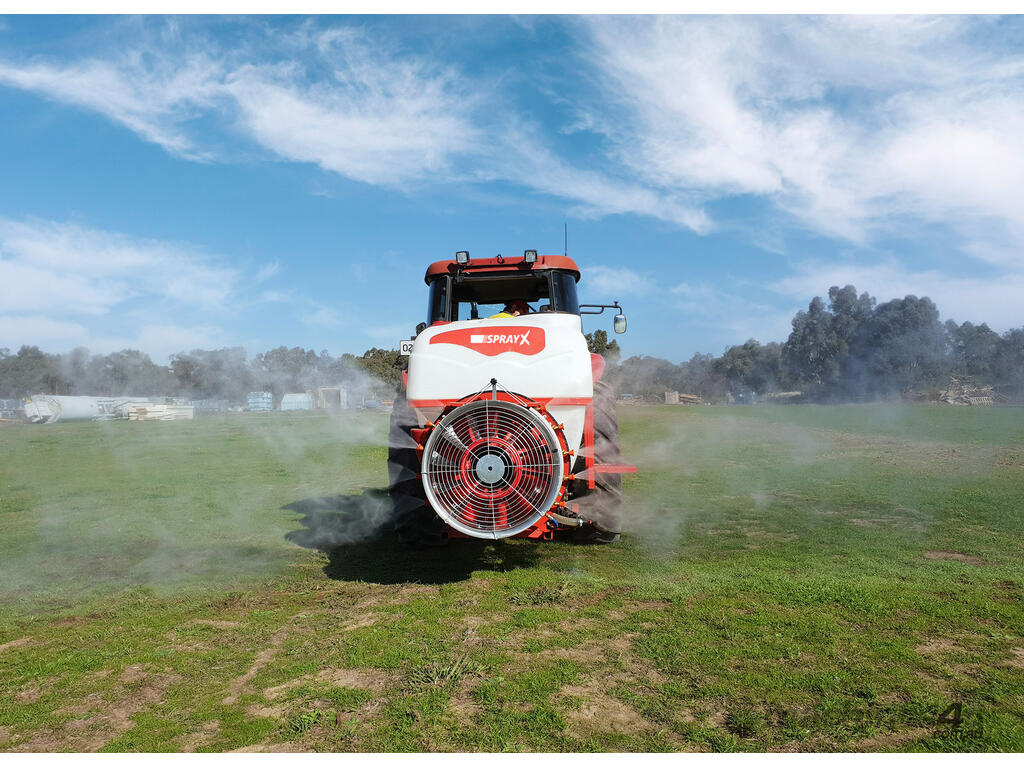

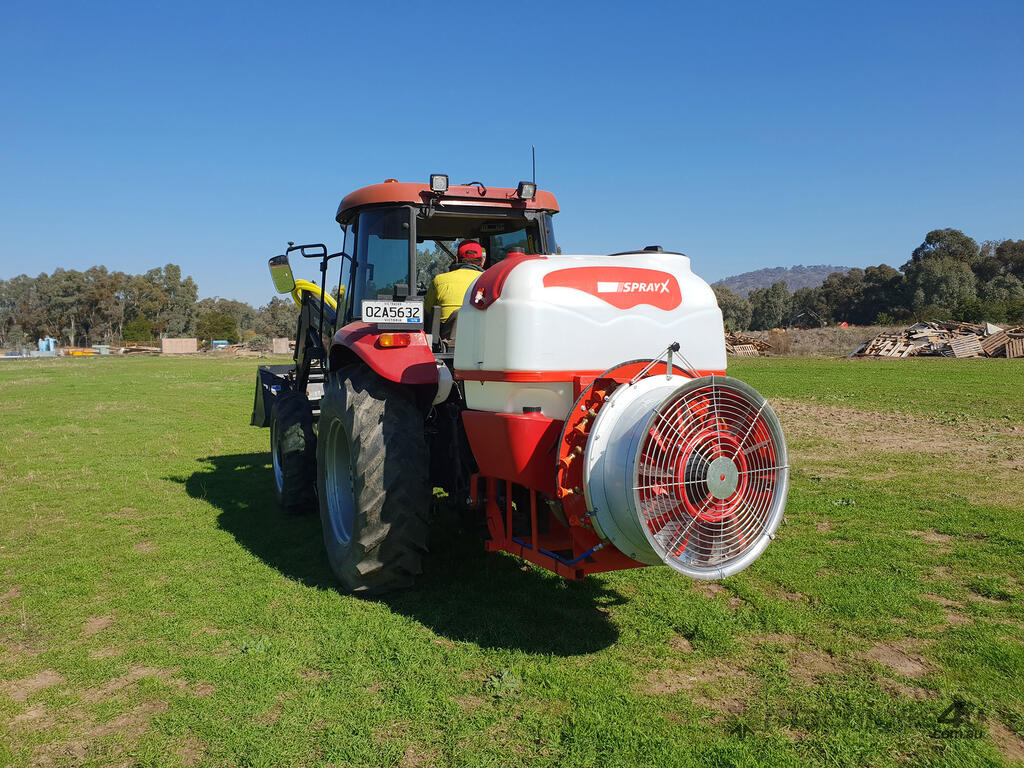

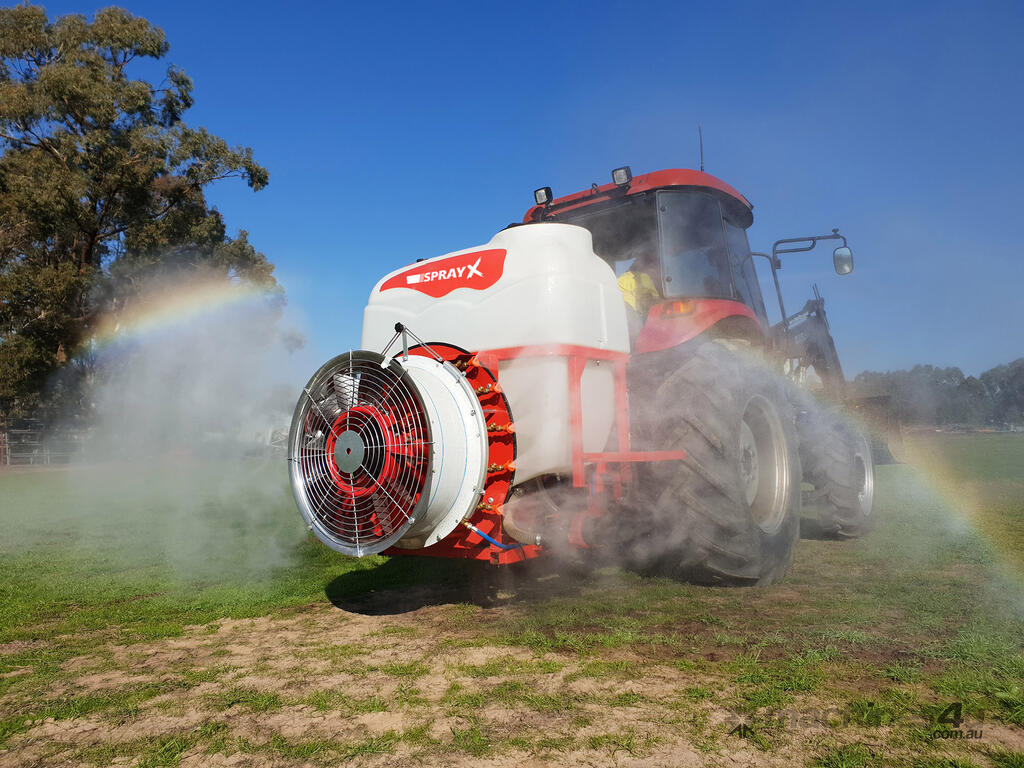

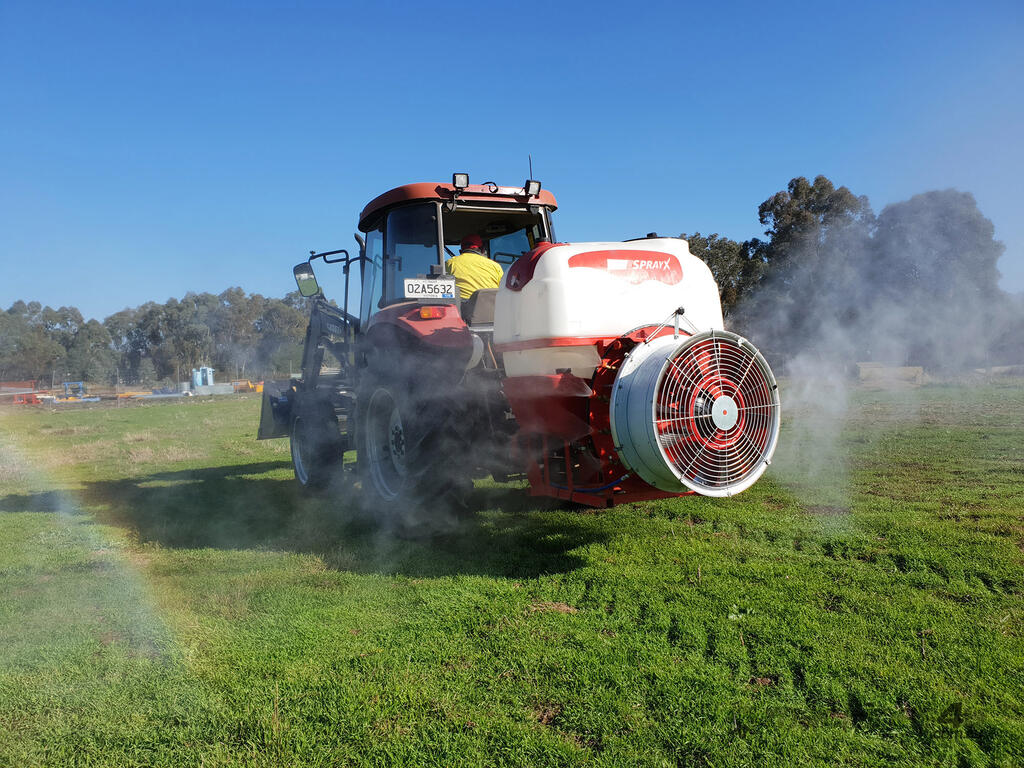

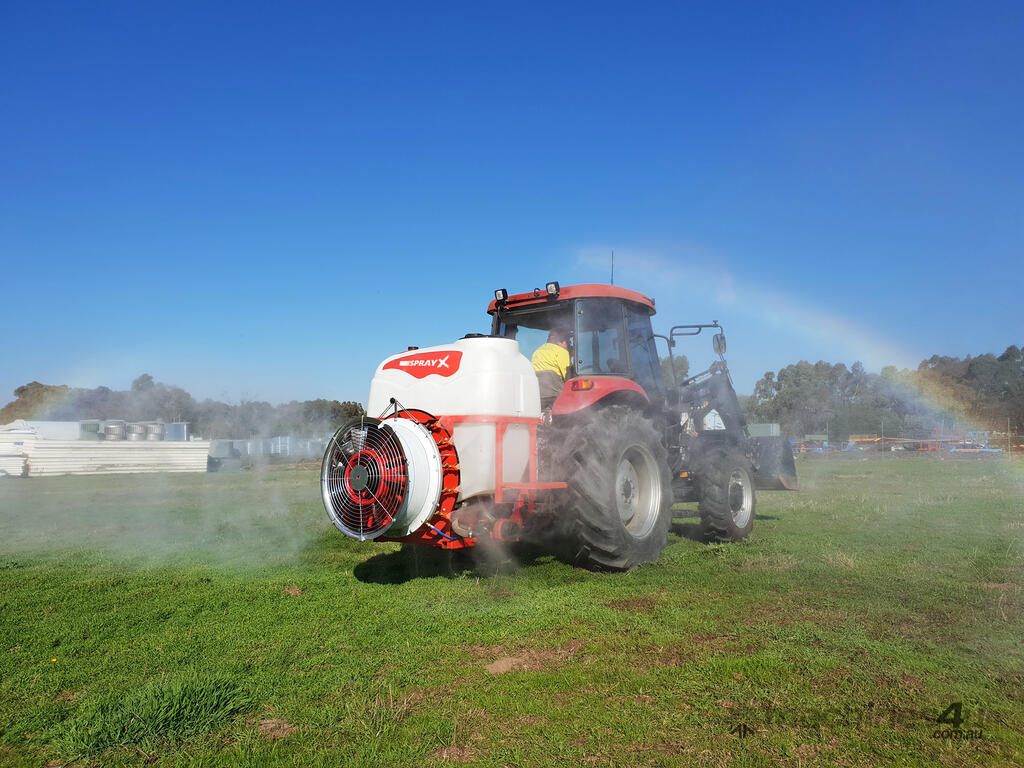

Mounted type 600 L mistblowers are used for multipurpose plant protection. Mistblowers powered by a P.T.O. pump delivers the liquid under the pressure to nozzles on the spray fan. Propeller and pump are driven by PTO. able to cover trees up to 10-15 meters in height. ideal for orchards and vineyards.

Standard features
1- Capacity: 600L Tank made of Fiberglass/Polyethylene
2- High-Pressure Pump - Membrane C96
3- Working Width: 12-16m and up to10 to 15m high.
4- Tank Mixer

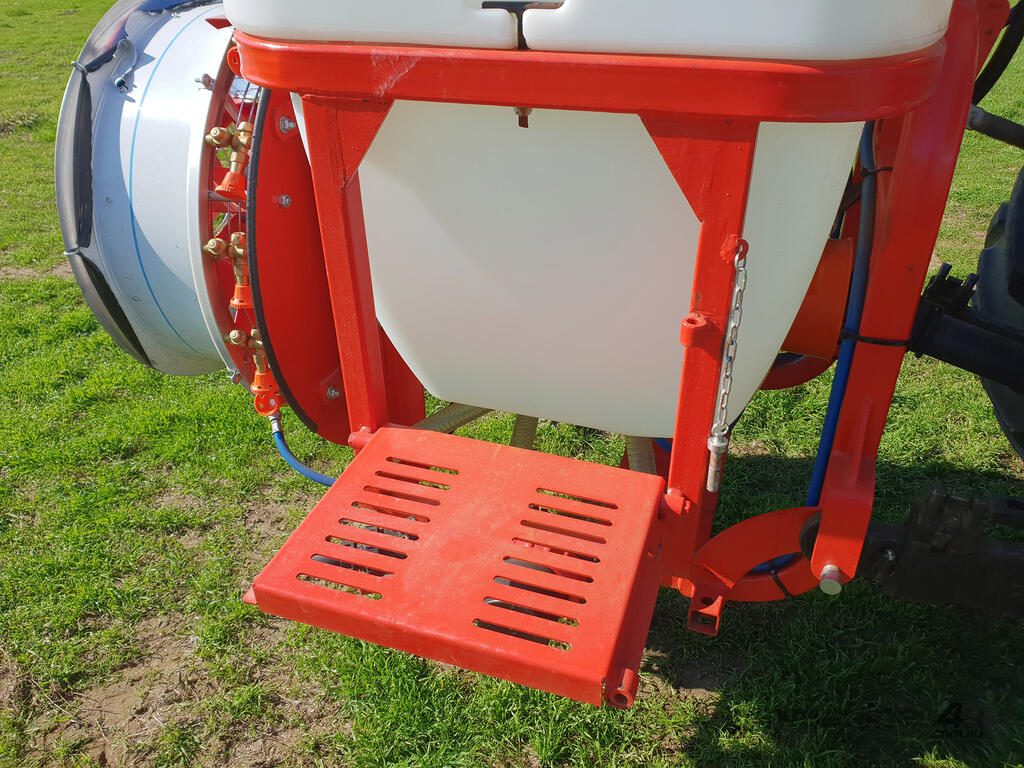

5 - handwashing station
6 - 3PL
7 - fully adjustable nozzles


IN STOCK

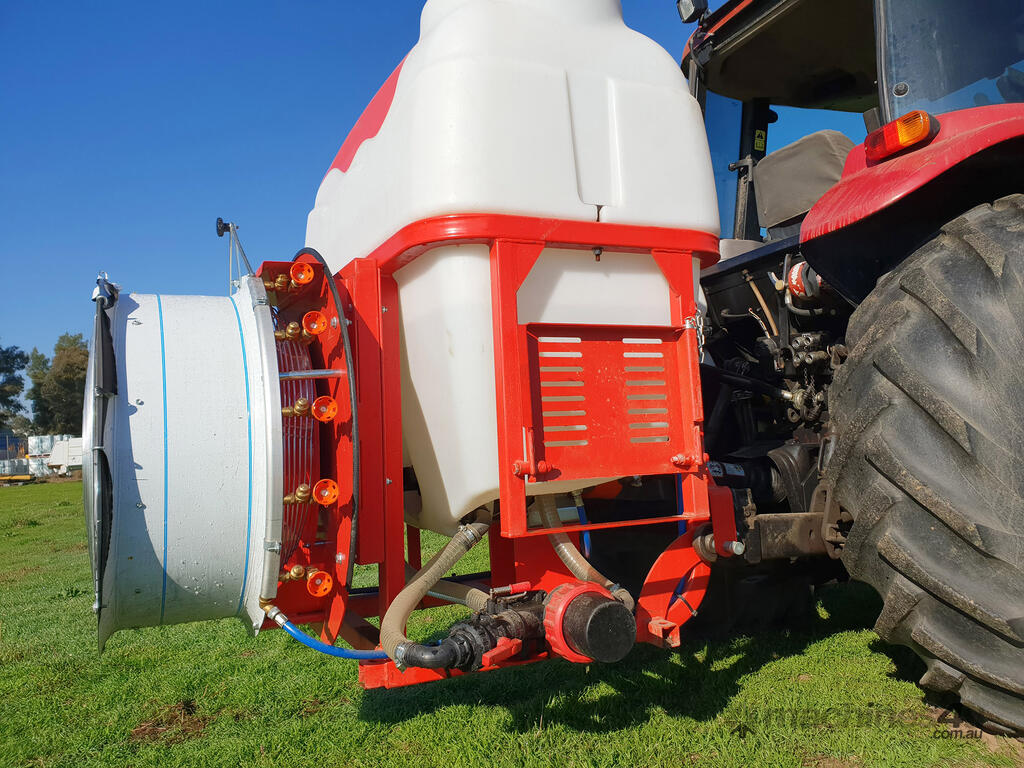

Mounted type 600 L mistblowers are used for multipurpose plant protection. Mistblowers connected to the three-point linkage of tractor and powered by P.T.O Spraying pump is getting the power from P.T.O. and deliver the liquid under the pressure to nozzles on the spray fan. Propeller getting drives by PTO provide pressured air release in the field. Release of the pressured air direction can be adjusted by guide wings. By means of this facility, pressured air can spray effectively each type of tree 2 rowed 10-15 meters height as fruit gardens, vineyards, and cultivated areas.400,600 L sprayer tanks are produced from polyethylene or fiberglass material. All sprayers have a filter system that enables spraying without blocking. There are cartridge filters before the tank outlet and nozzle inlet, also a sieve at the intake of the tank. By changing the angle and direction of adjustable spraying nozzle plates, the amount and the direction of the spray can be adjusted. Double-side anti-drip nozzles are standard accessories of sprayers. A cleanable 3-way filter provides healthy working conditions during the filling of tank and disinfection and fan protection string for prevention against accidents.

FEATURES

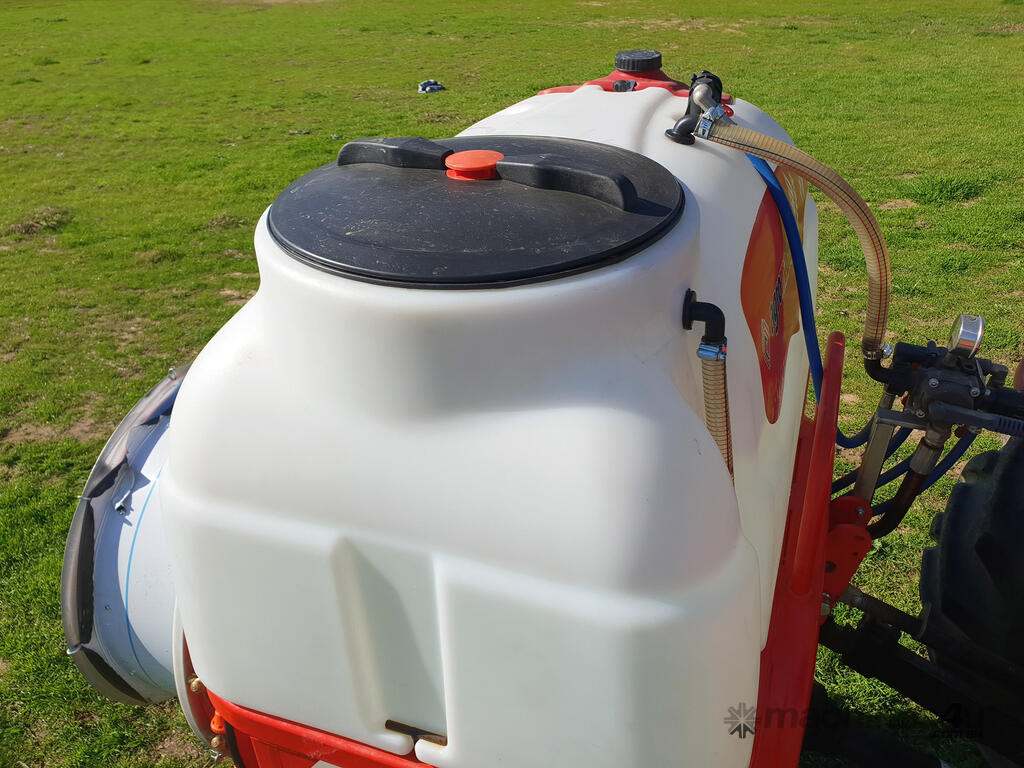

* Polyethylene Tank
* Hand washing tank apart from the main tank supplies clean water
* Painted Steel Chassis
* High-Pressure Pump
* Manual Regulator
* Chrome Fan
* Automatic filling system with the filter that fills into the spraying tank by pumping water from the canal or any source with the suction hose
* Hydraulic mixer is provided to the homogeneous chemical-water mixture
* 3 Point Connection

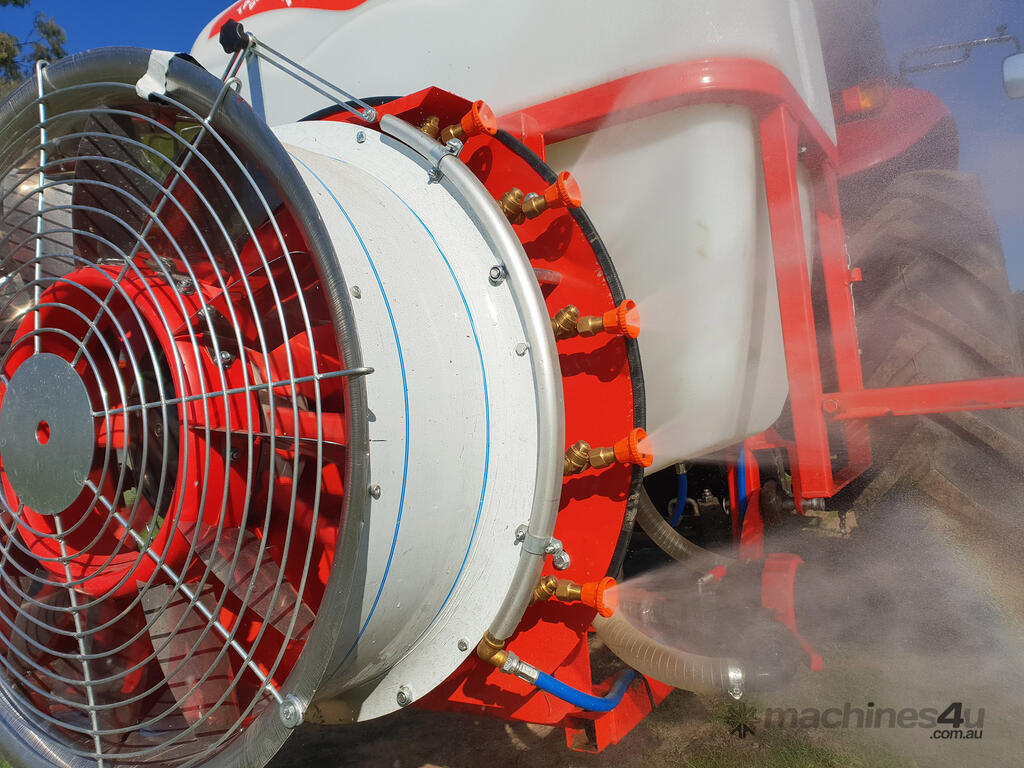

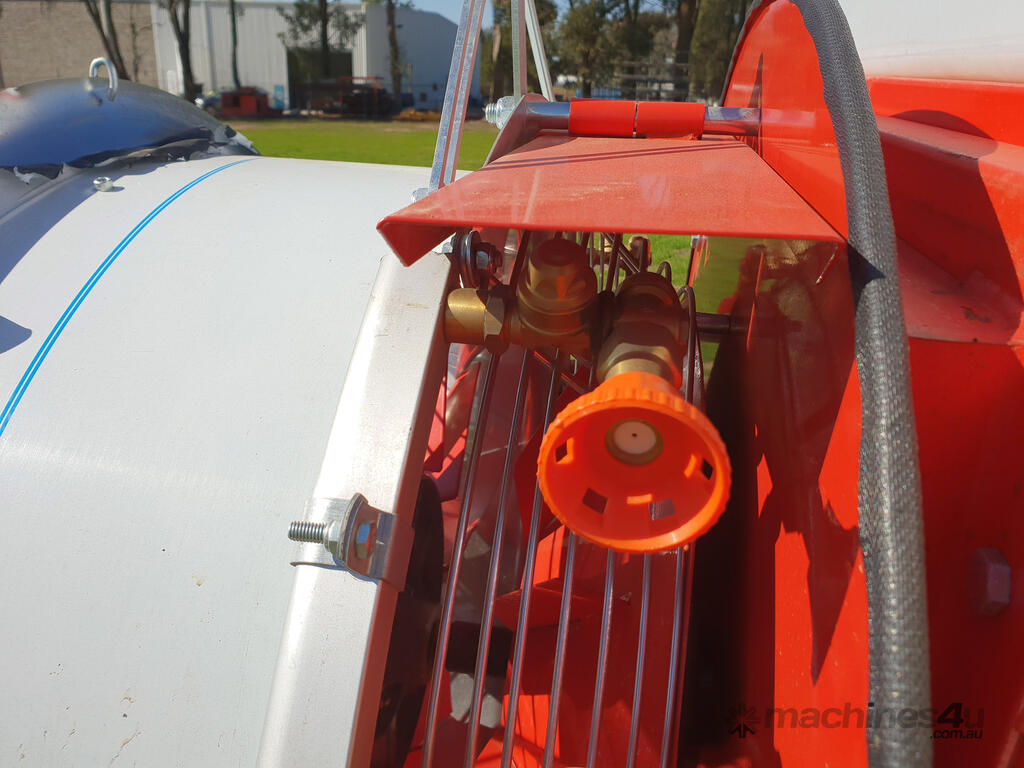

* Angled Atomize Nozzle
* Power Transfer With Belt And Pulley
* Easily Fixed Nozzles

SPECIFICATIONS - TAS 600
Capacity: 600L
Total Length: 1500mm
Total width: 1500mm
Total Height: 1600mm
Pump Type: Membrane C96
Air Flow: 54,000 m3/h
Fan Diameter: 750mm
Number Of Nozzles: 5+5
Working Width: 12-16m
Regulator Model: By Matic
Pressure Safety Valve: Standard
Tank Mixer: Standard
Tank Material: Fiberglass/Polyethylene
PTO Rotation: 540 rpm
Required Power: 60-65 HP
Total Weight: 235 kg

Machine/Equipment base price only, additional price for optional extras.
