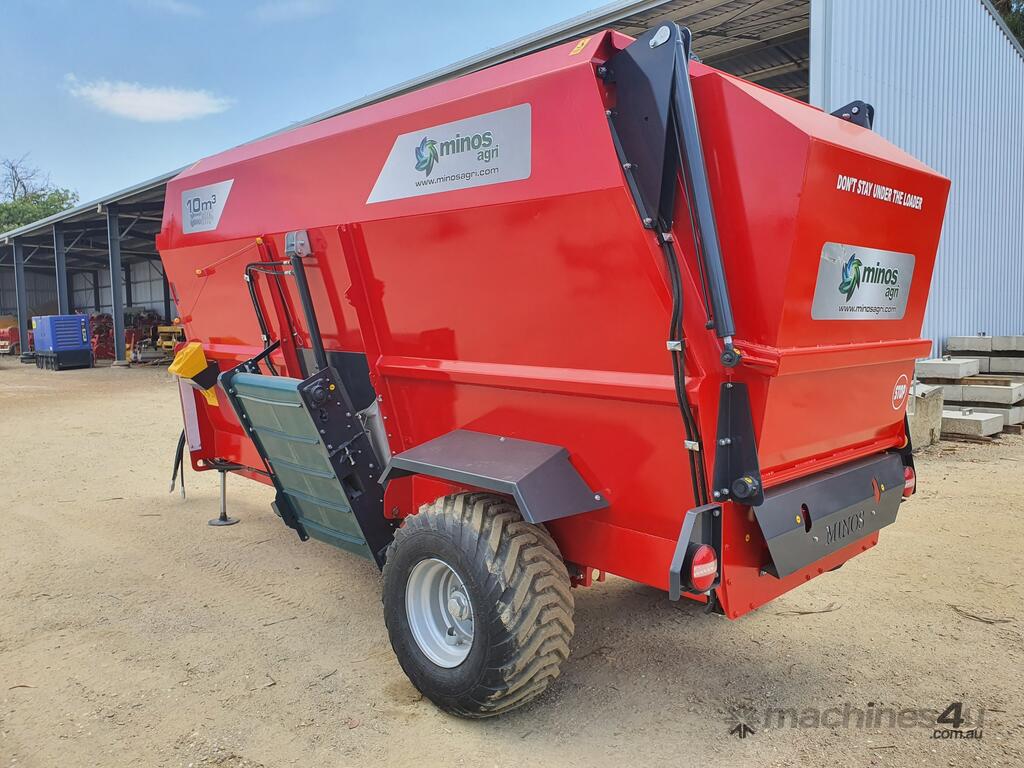

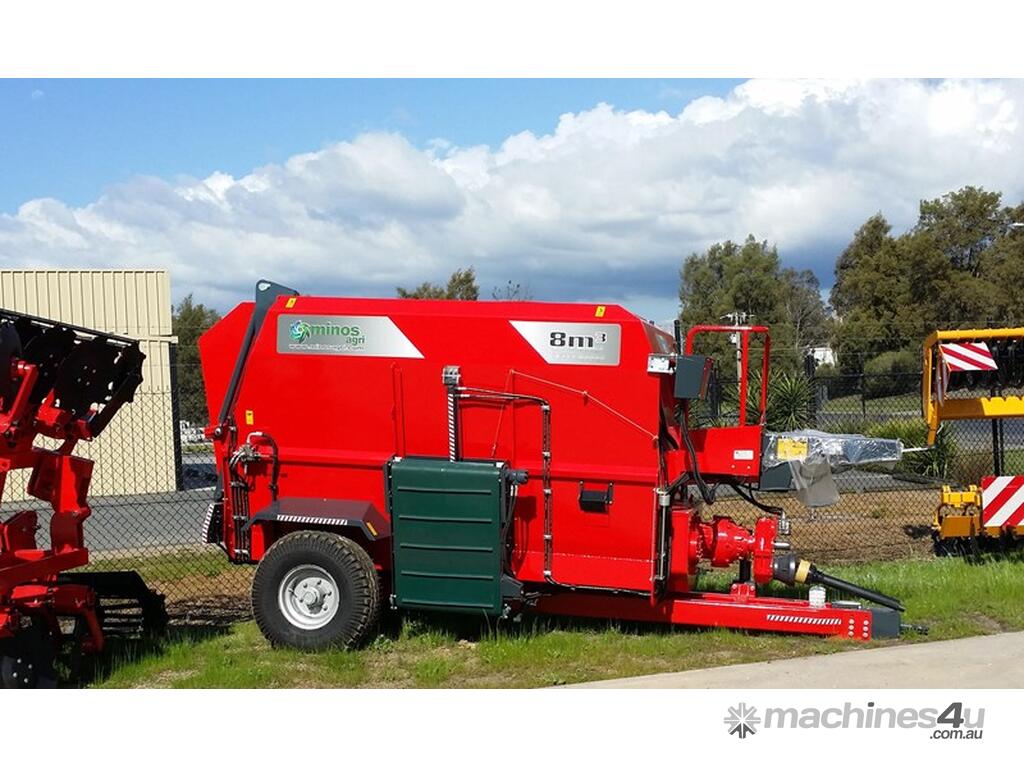

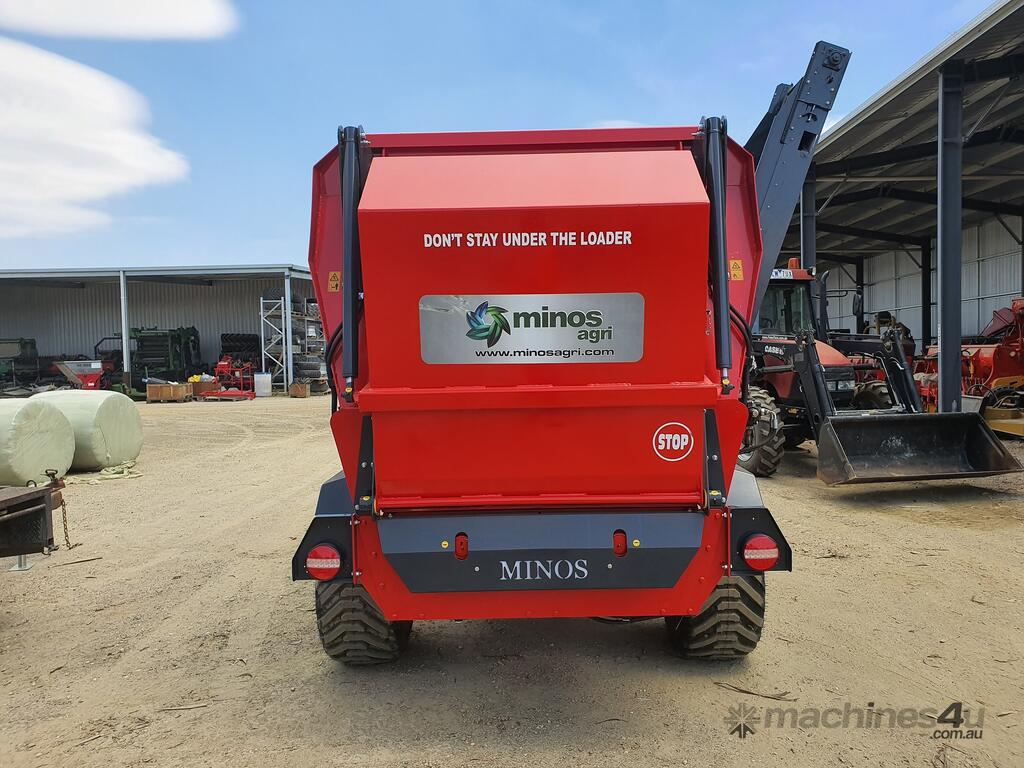

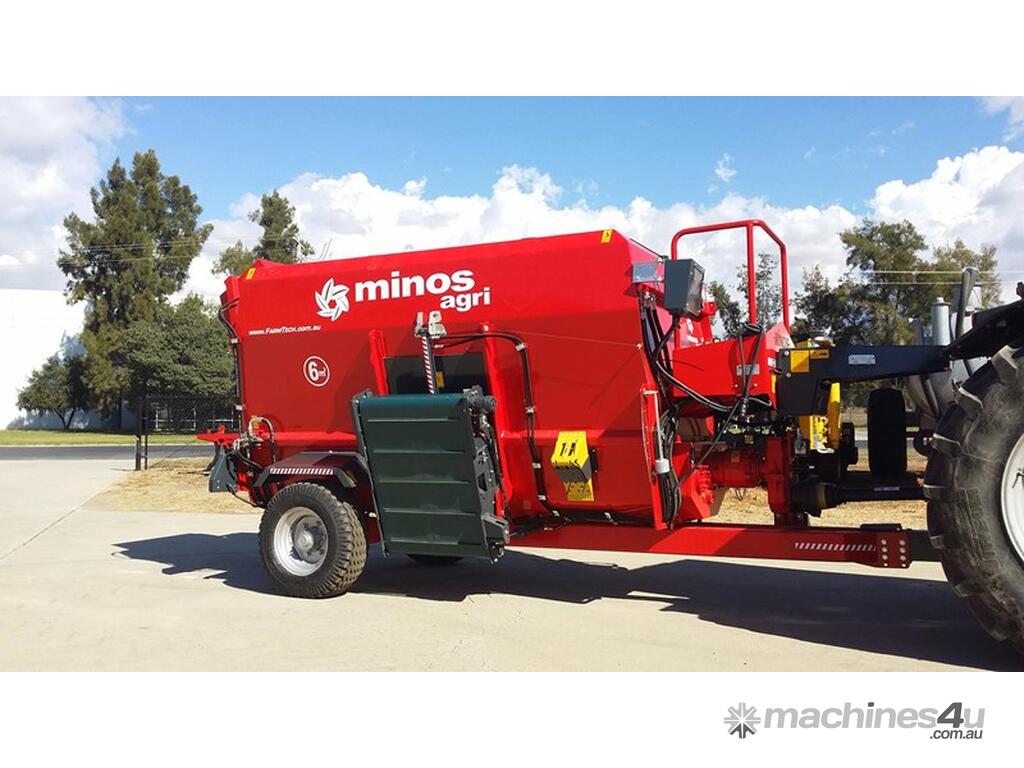

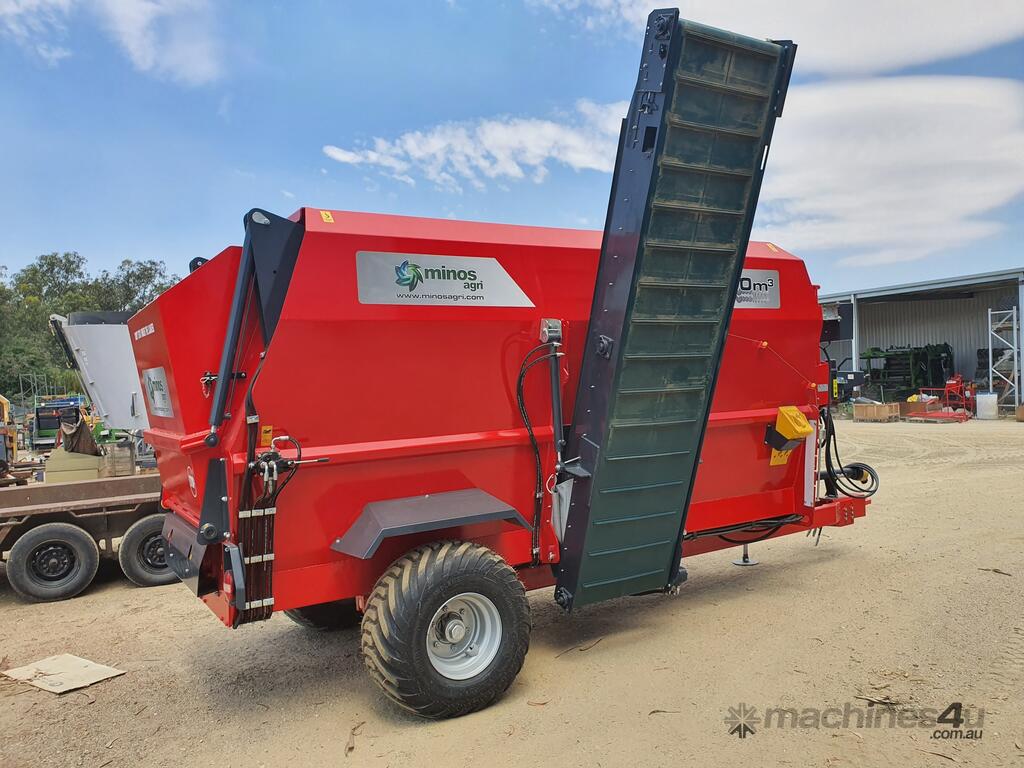

FARMTECH TYYKM-10 HORIZONTAL FEED MIXER + DUAL 3.0M & 1.0M ELEVATORS (10.0M3)

(10.0m3) Quality European made horizontal feed mixer. New stock always on order to meet market demand. FARMTECH Horizontal Mixer-Feeders; are designed to bring various animal feed into a homogenous mixture and to distribute this mixture to the animals with its robust, strong and reliable structure and easy use. All options of horizontal feed mixers of appropriate capacity for all kinds of small, medium and large scaled enterprises are available with quality and privilege of FARMTECH.

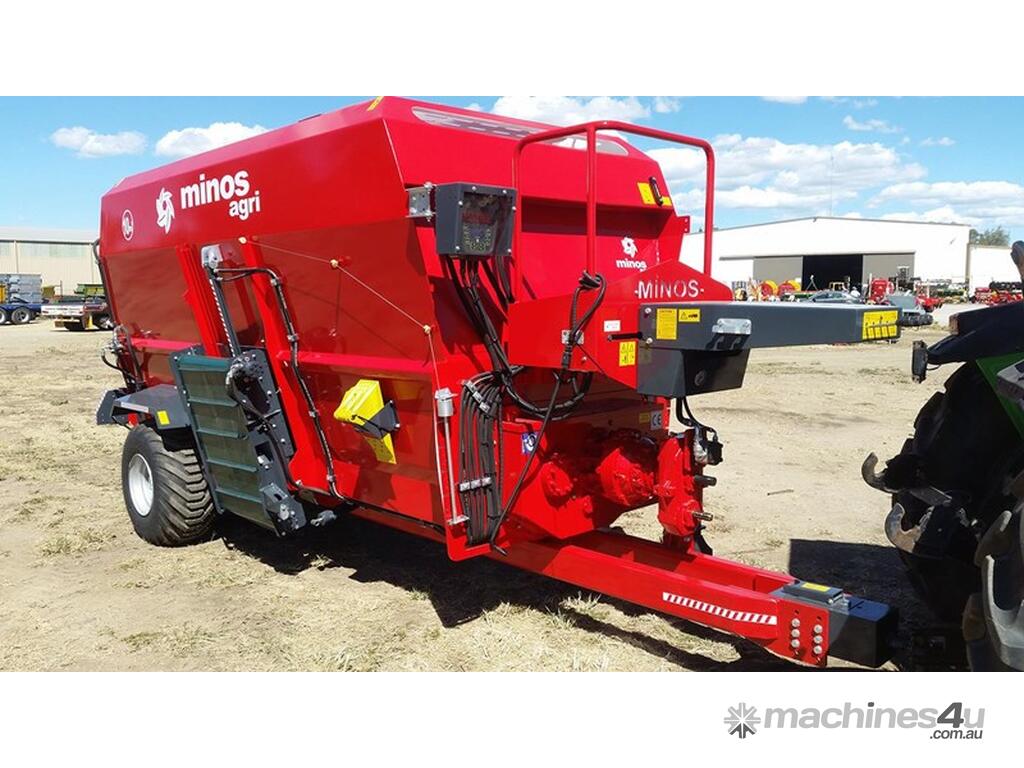

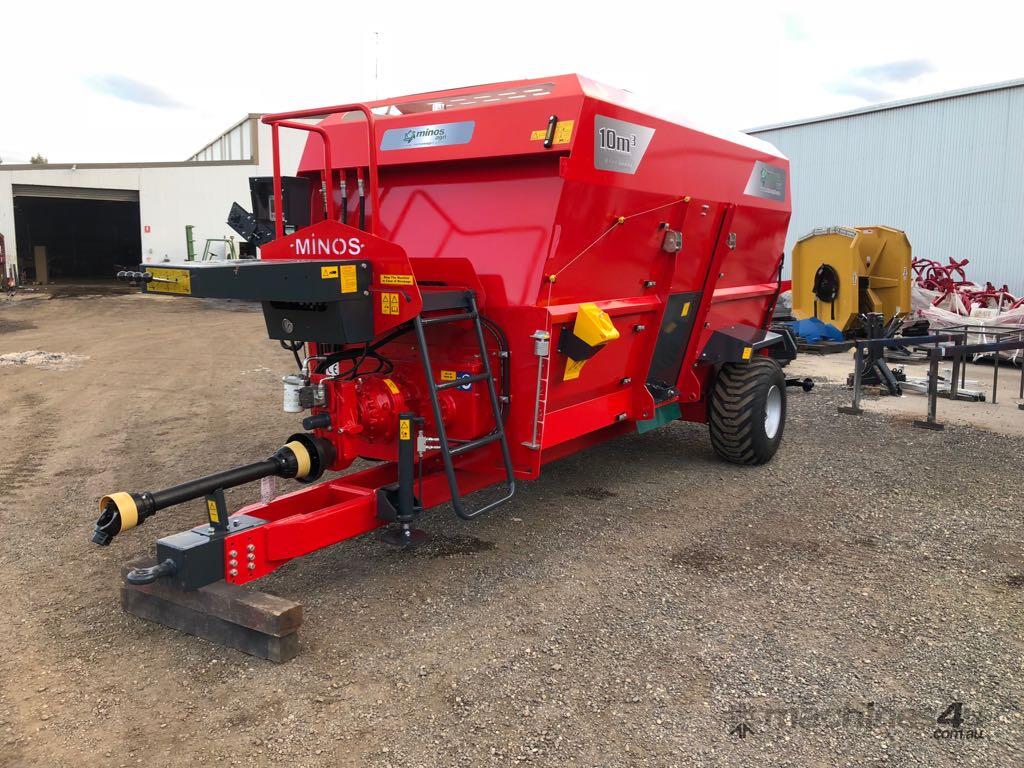

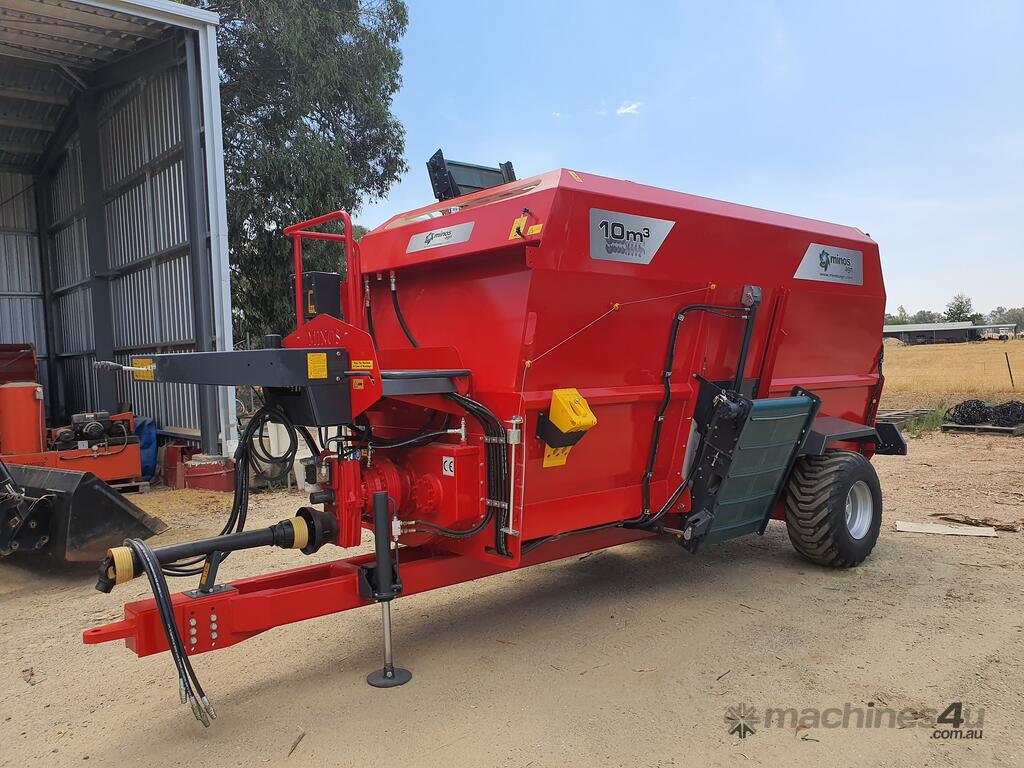

Horizontal feed mixers are moved by a tractor via an articulated shaft. They are connected to the tractor and carried with a drawbar. The movement is transmitted to the augers by gears located at the front side of the machine as to rotate reversely.

When the machine is in stable status, various materials loaded in the reservoir by a dipper located at the back are mixed with augers.

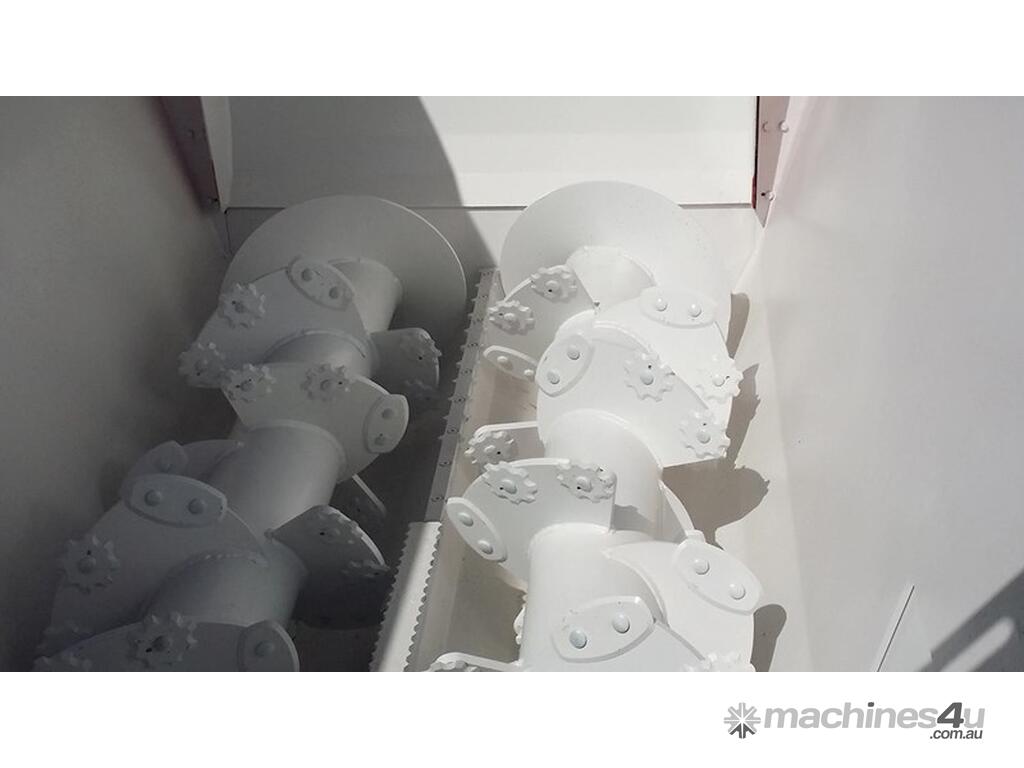

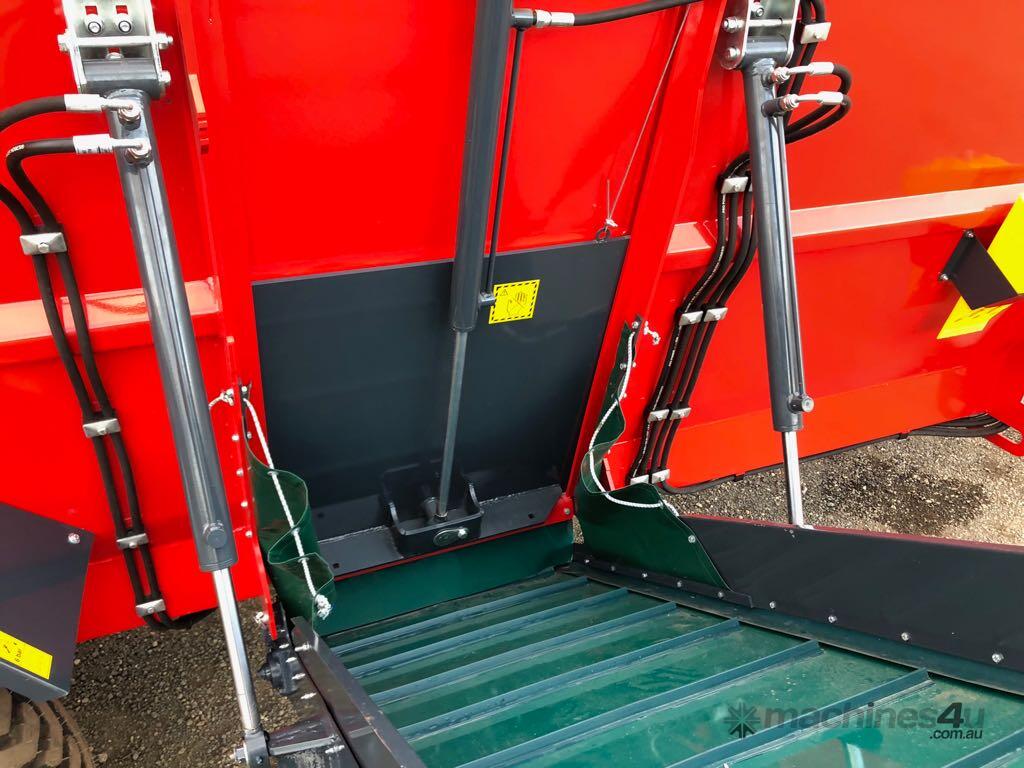

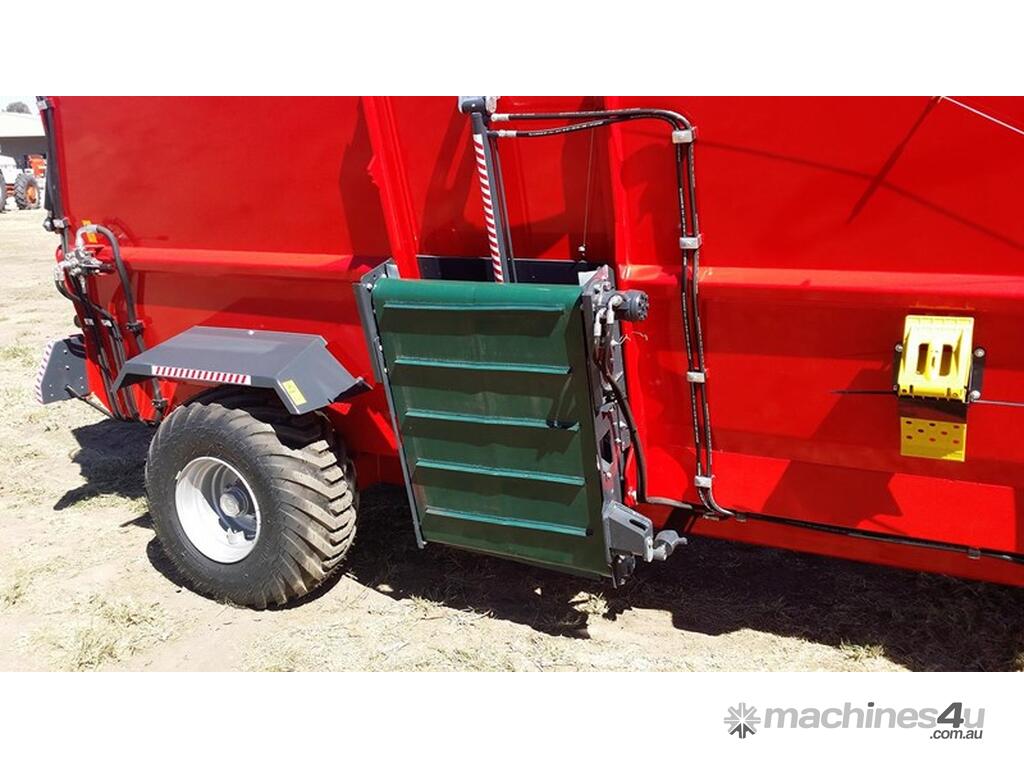

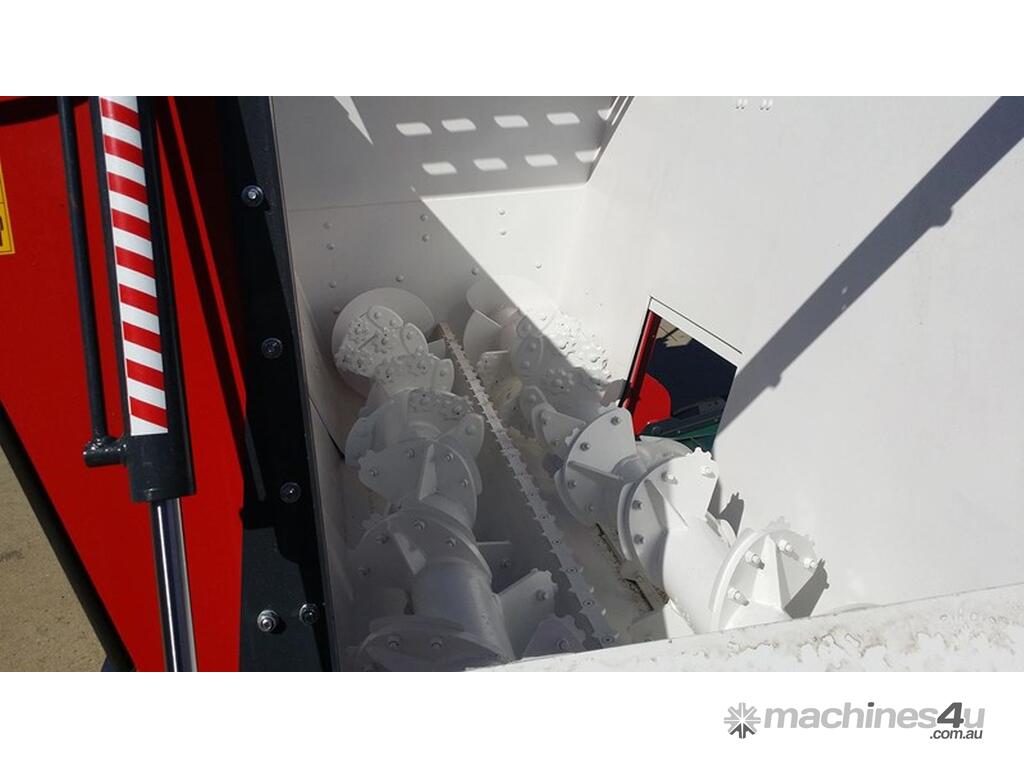

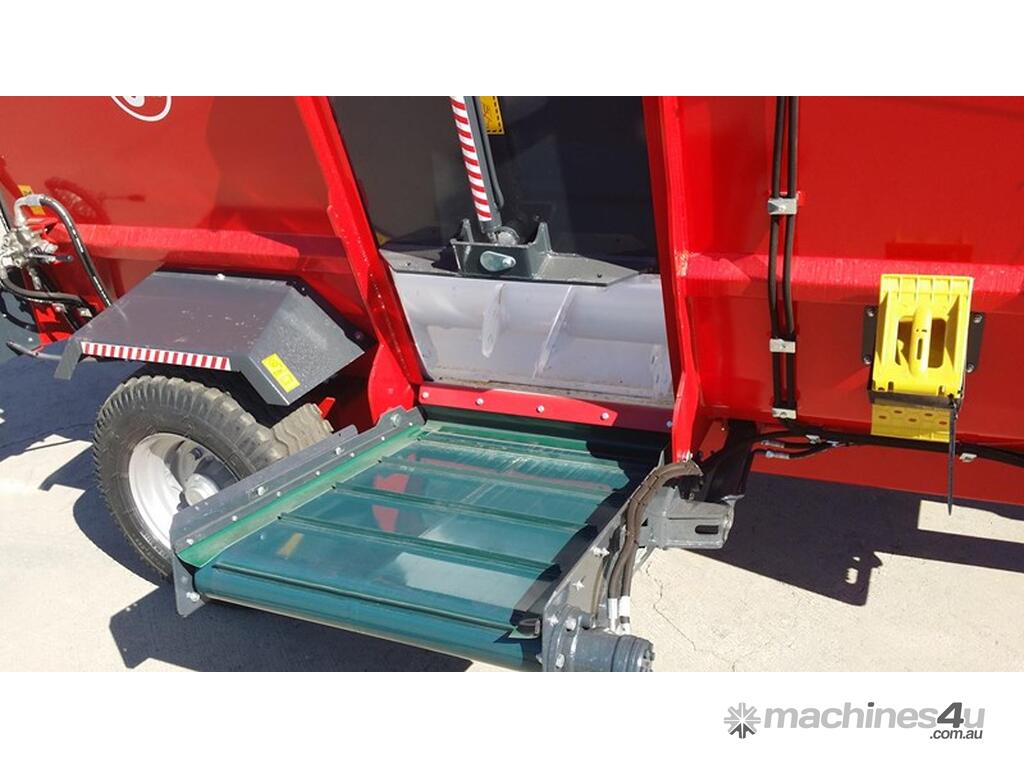

In addition, thanks to numerous knives located on the augers grinding process is performed. Mixed materials are discharged in the animal feeders at the desired quantity from the side of the machine by means of a pallet transmitter moved by a hydraulic motor.

Specifications - TYYKM-10
Volume: 10.0 m3
Transmission System: Planet Gearbox
Auger System: Double On The Base
Bucket Dimensions: 2000w x 1850h x 4000l
Total Dimensions: 2110w x 2550h x 6150l
Hydraulic Pressure System: Standard
Dipper System: Standard
Weighing System: Standard
Double Sided Discharge: Optional
Thickness Of Frame: 10 mm
Thickness Of Auger: 16 mm
Number Of Knives On Auger: 72
Number Of Coulter Knives On Auger: 38
Wheels: 400 / 60-15.5
Unladen Weight: 4600 kg
PTO RPM: 540
Tractor HP Required: 60

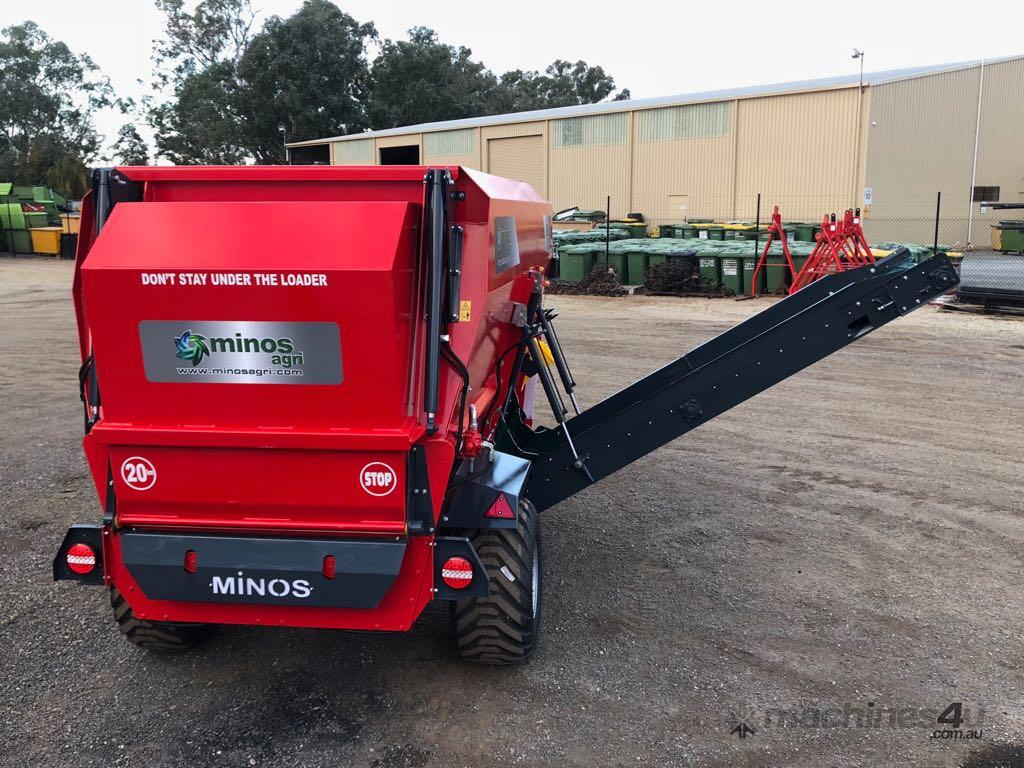

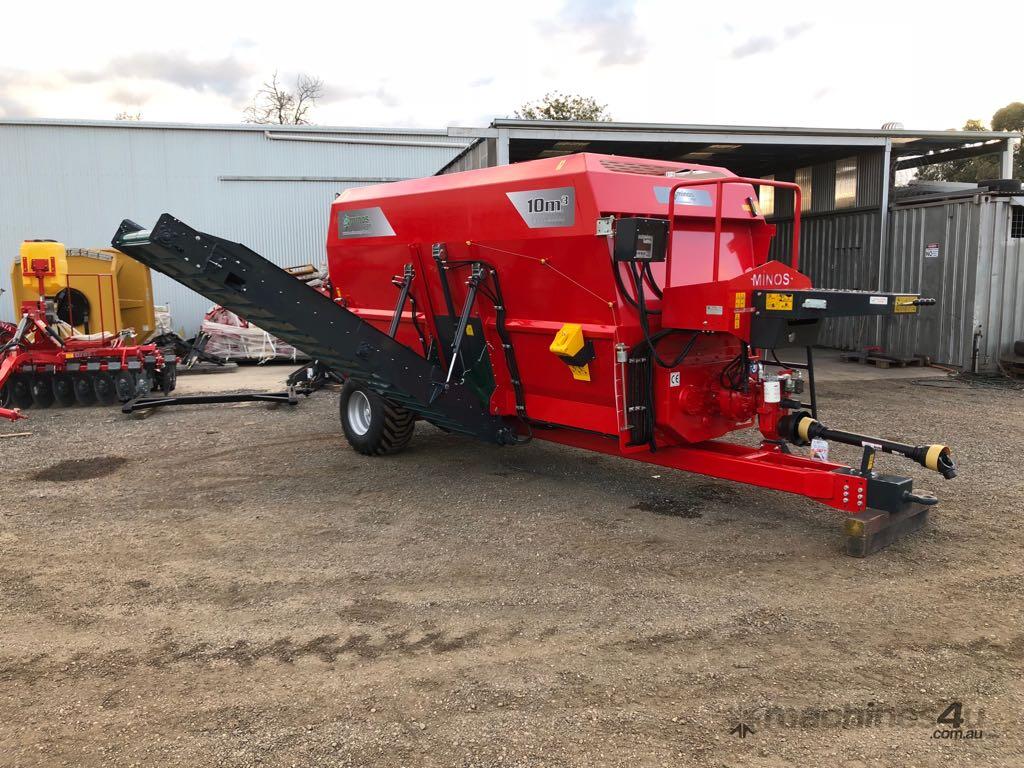

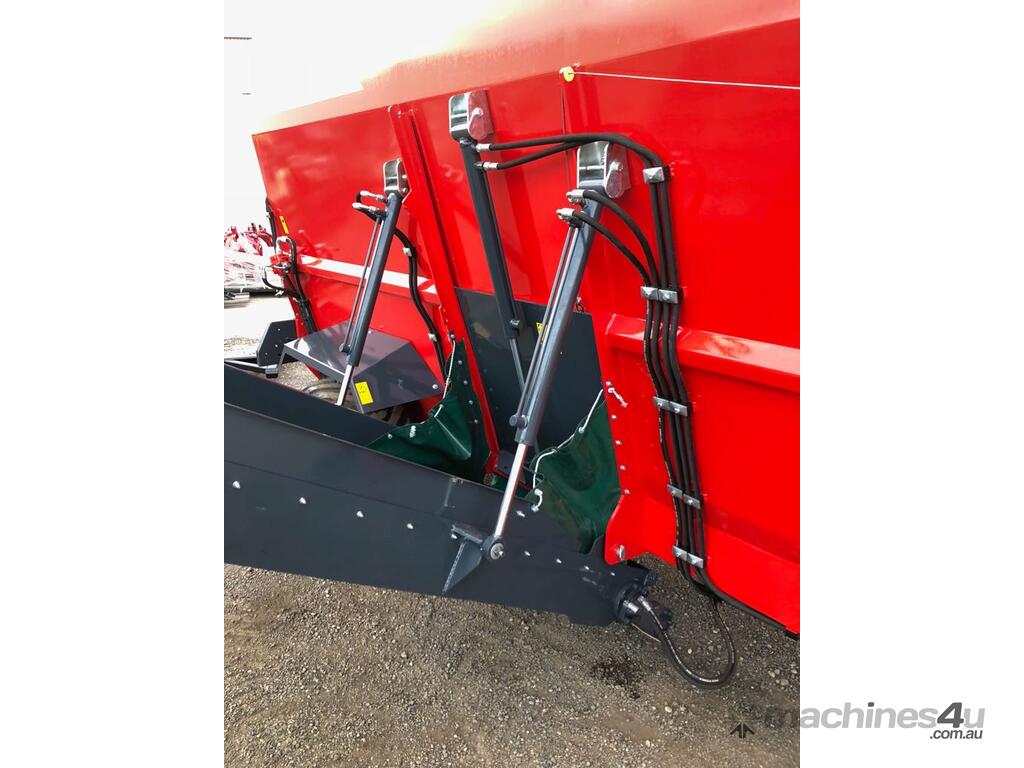

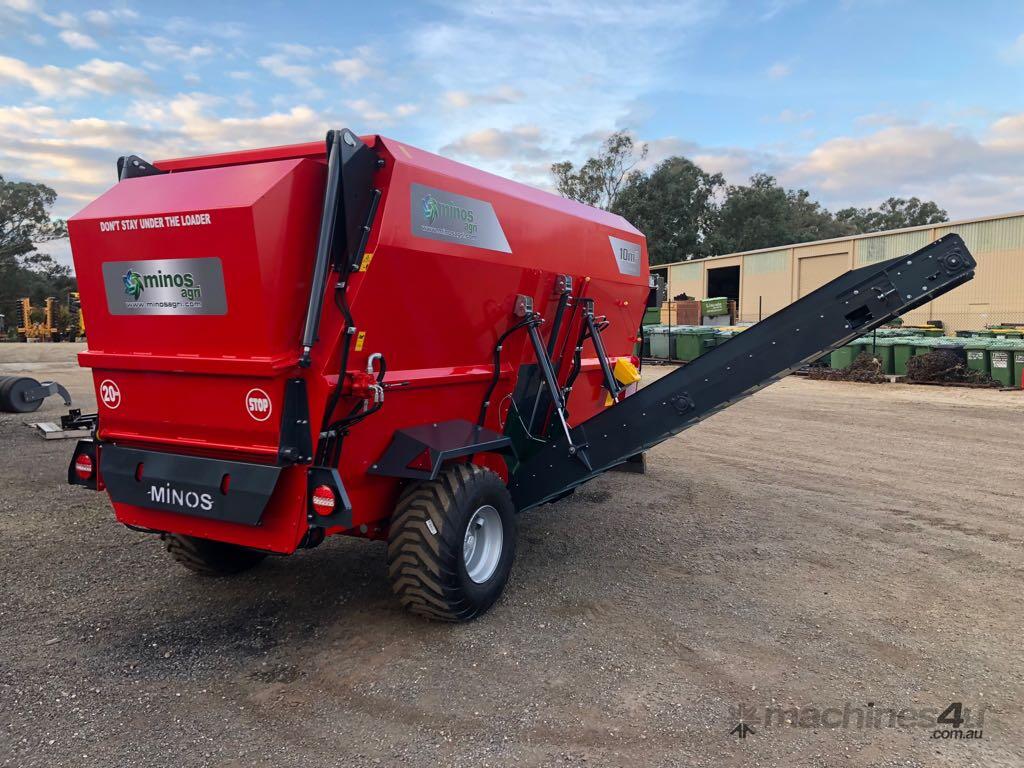

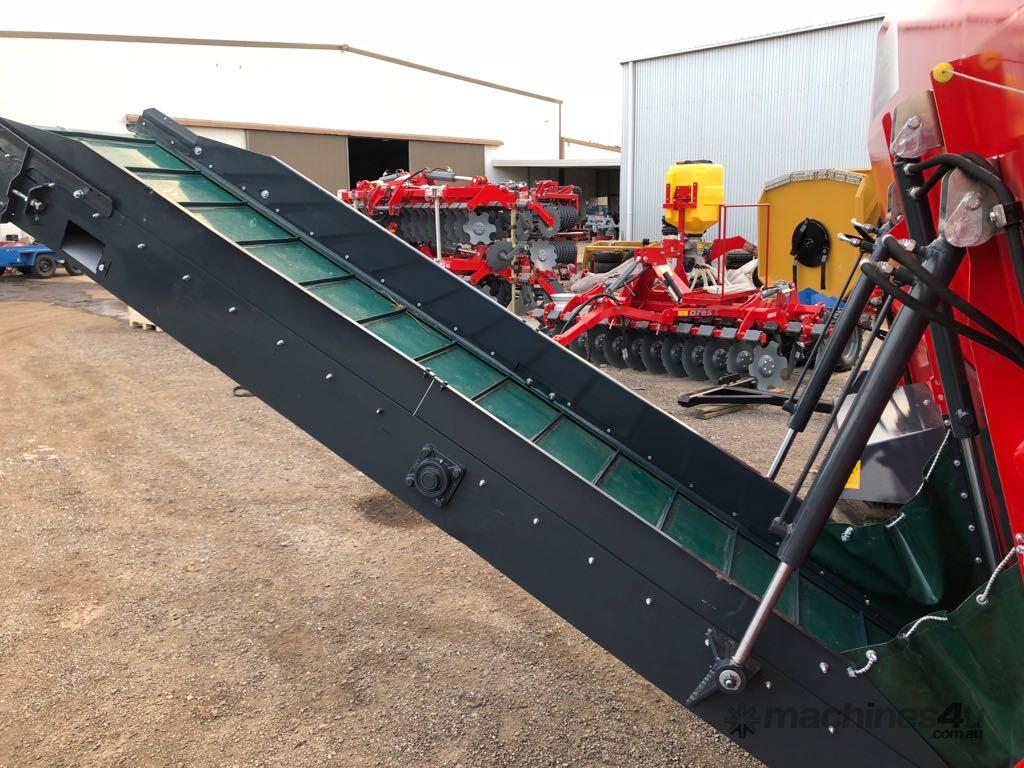

Elevator: Dual Elevators, 3.0m & 1.0m.

Can be converted into an electric stationary mixer - Ask us for details.

This mixer can be made into a truck mounted mixer - Ask us for details.

Machine/Equipment base price only, additional price for optional extras.

We can deliver this machine Australia wide, just ask us for a delivered price.

Prefer to buy this machine through your local dealer? You can do that too, just ask!

Contact FarmTech today for sales or more information.
