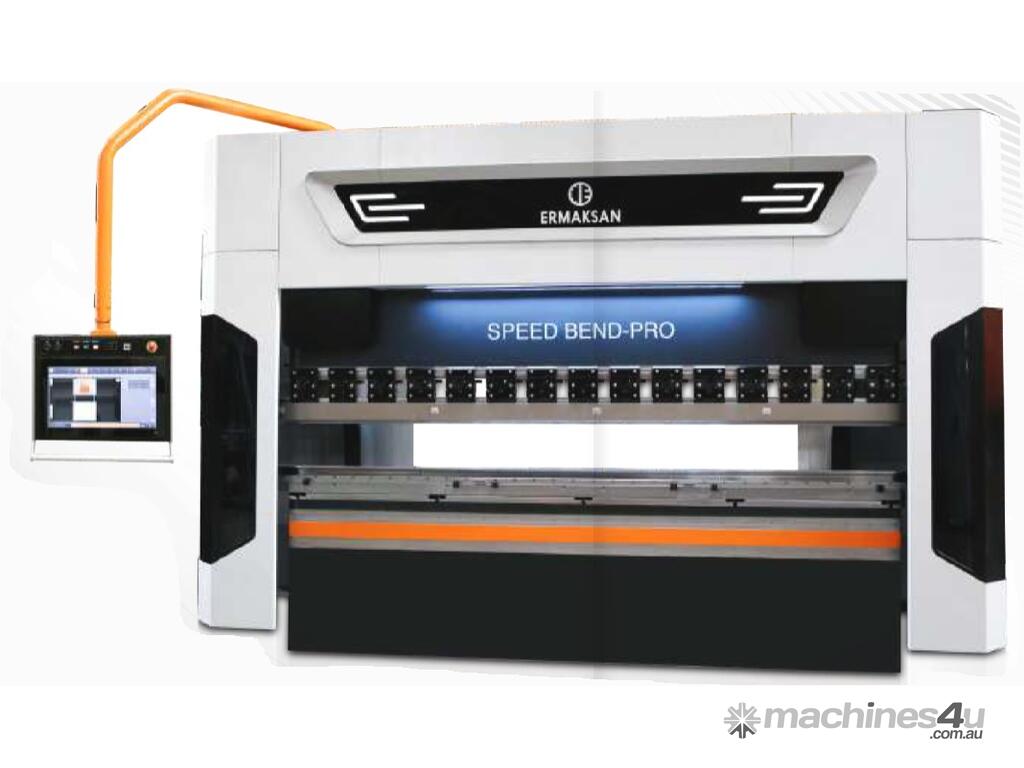

FAST HIGH QUALITY PRODUCTION - Ermaksan CNC Press Brake - Speedbend Pro 4100-260 *

Production times are the most important profit factor for businesses. Speed Bend Pro CNC press brakes are manufactured to reduce unit time costs and to become the most important machine in your business with its fast and high quality production capability in a competitive environment. Ermaksan Speed Bend Pro 4100-260.

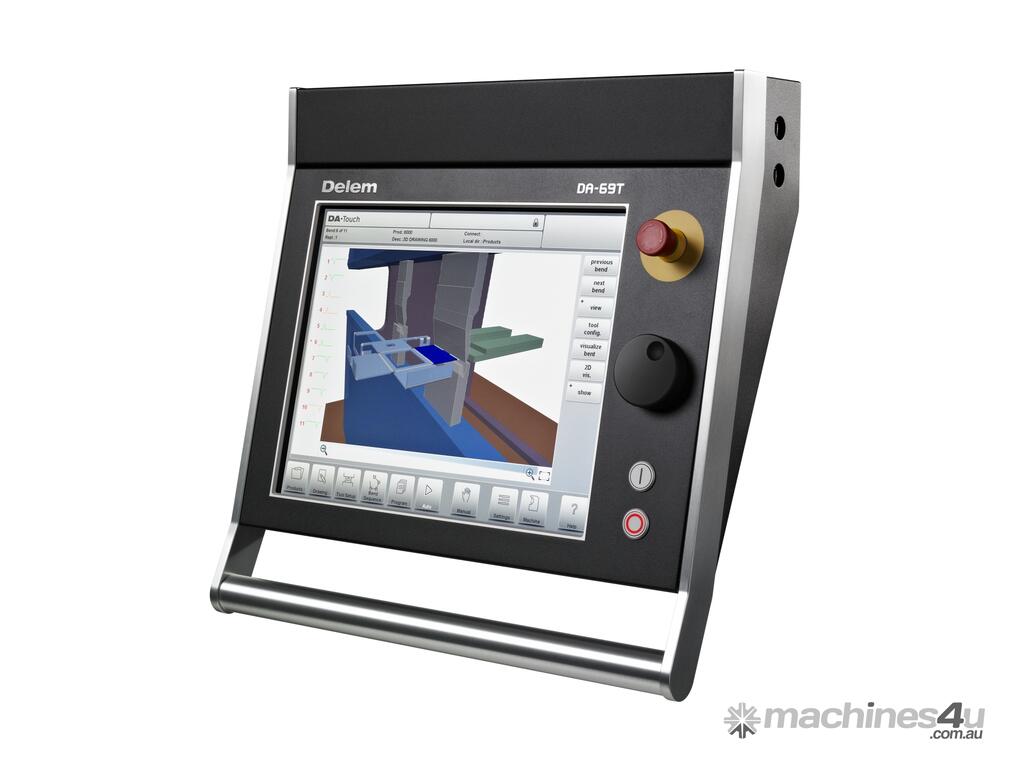

Includes Delem DA69T Control with 3D programming and offline software for CAD import
Axis by CNC is Y1, Y2, X, R, Z1, Z2 and Crowning.


UNIQUE FEATURES

• Steel body with mono bloc welding of ST44 material which is rigid against bending and high tension
• 6 axes ( Y1, Y2, X, R, Z1, Z2)
• HOERBIGER hydraulic system

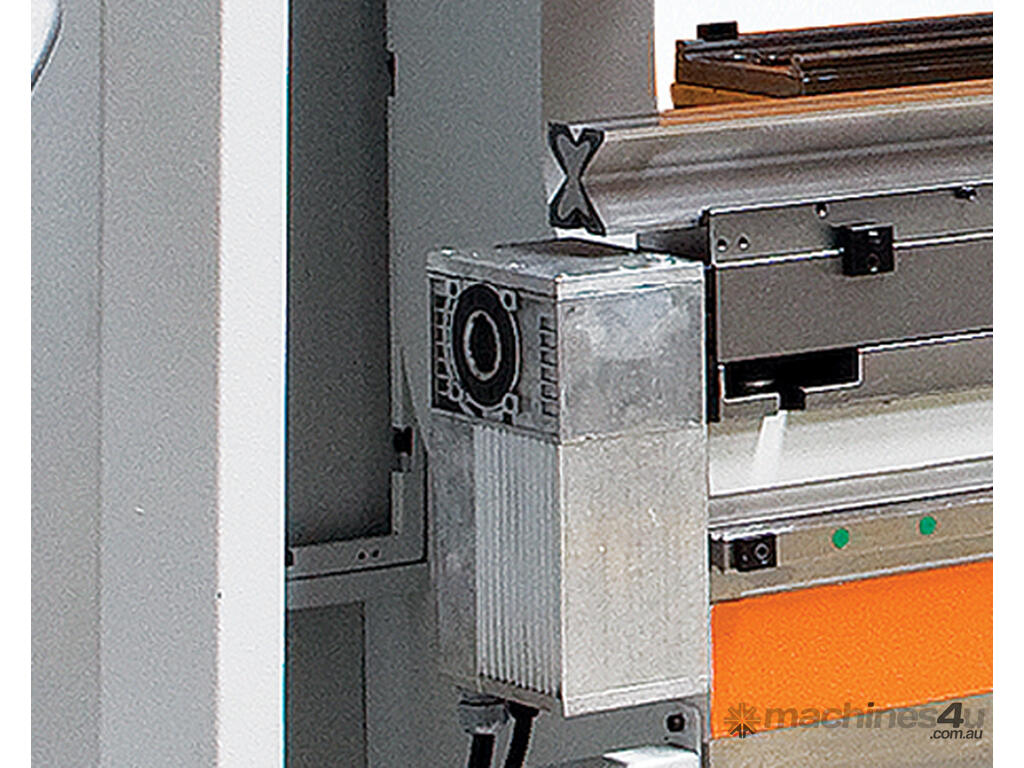

• CNC controlled motorized crowning system
• Top and bottom tools machined and hardened (835 mm length)
• Easy clamping top tool holder system
• Control units; ER Touch 15, Delem 66T, Cybelec Modeva 19T, ESA S660 W
• Electrical panel designed and manufactured from SIEMENS electrical and automation products in accordance with the CE regulations
• Backlight protection
• Switch side protection covers
• Y1+Y2 axis synchronization with a tolerance of 0.01 provided by linear scales
• CE compliant foot pedal

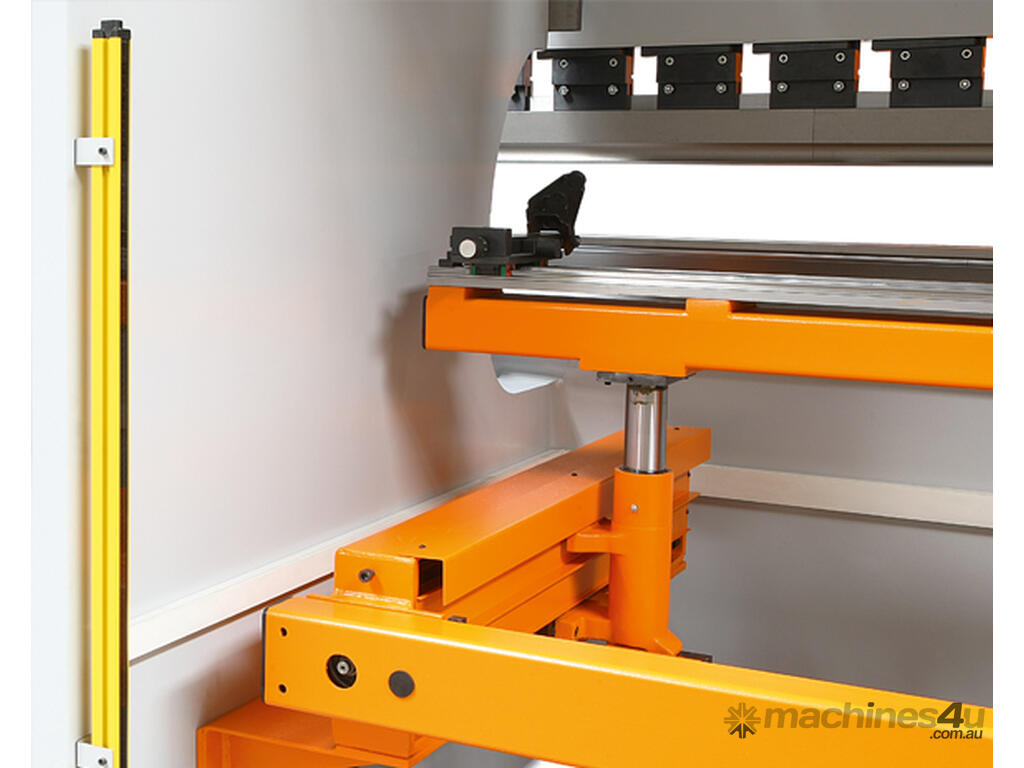

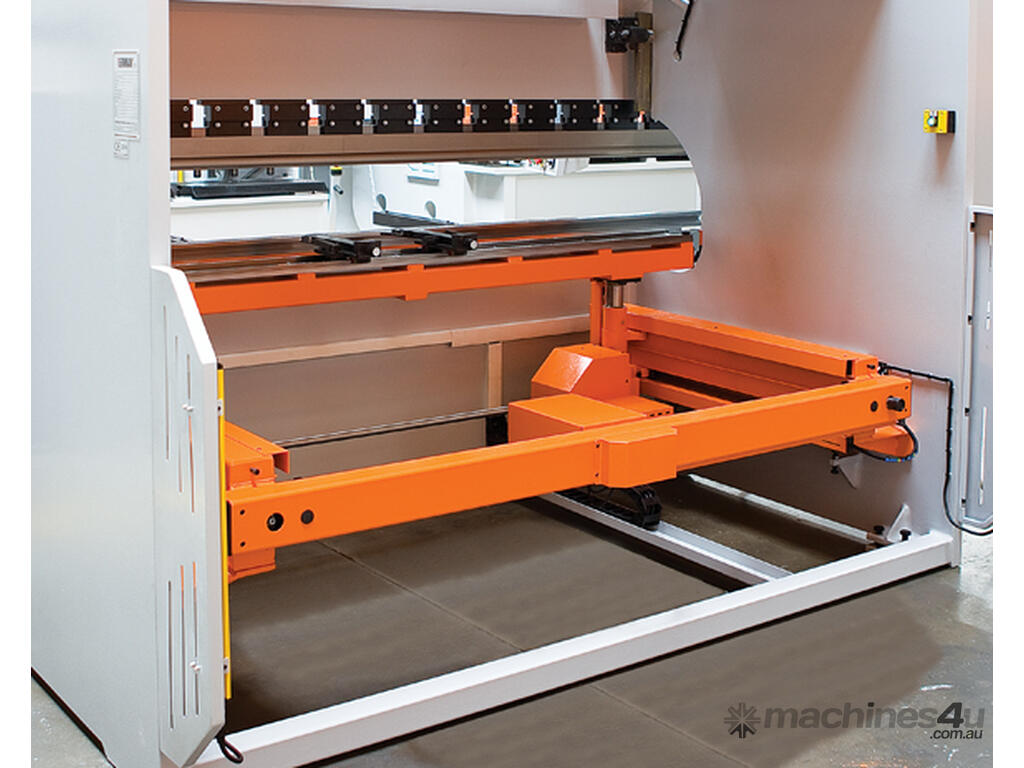

• Sliding front support arms T slot and with mm/inch scale
• 410 mm throat depth (60 – 320 tons)
• Led light enclosures

TO ENQUIRE ABOUT THIS PRESS BRAKE, CONTACT US OR DOWNLOAD THE BROCHURE
