Get in there with the new Felder AF 25 30 and 35 Raw Air Dust Extractors!
These are super powerful and at a great price point from a European Manufacturer!

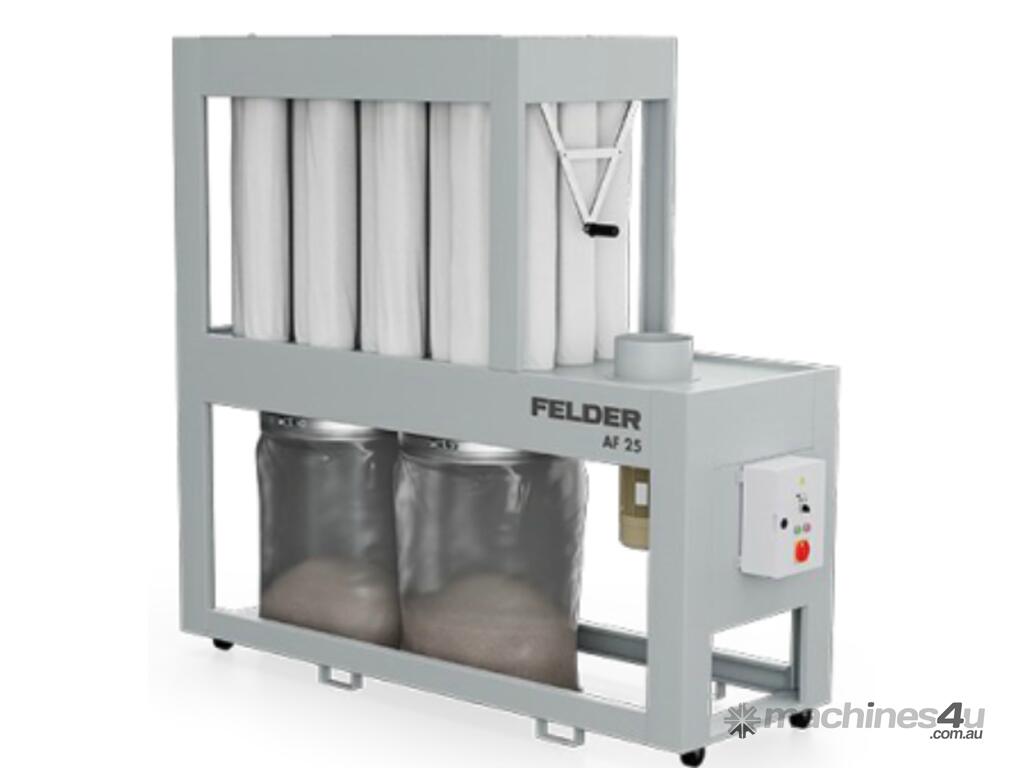

AF25: 5000m3/h 250mm port
Mobile raw air extraction and
filter station AF25
3x400V 50Hz 4 kW (5.5 HP)
with filter bags (dust class L)
extraction port 250 mm
2416 x 804 x 2210 mm
max. volume: 5000 m³/h
Nominal volume at 20m/s: 3534 m³/h
Negative pressure at 20m/s: 2263 Pa
Filter area: 13.23 m² (27 filters)
Emission sound pressure level in dB: 77

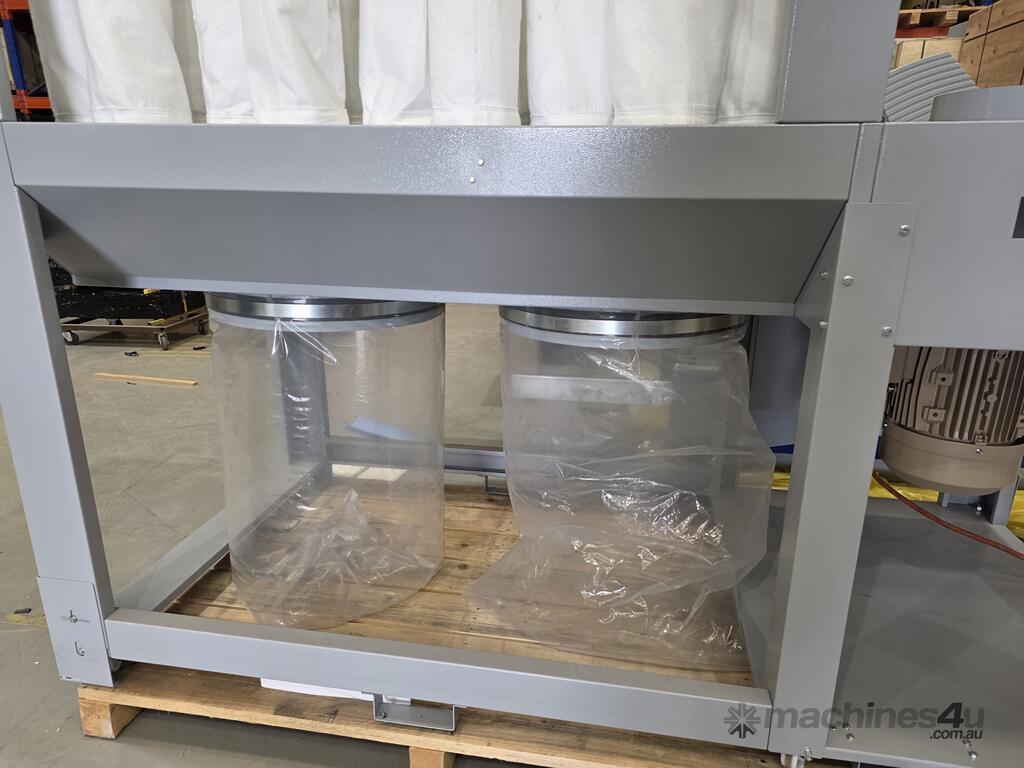

Chip bags: 2x200

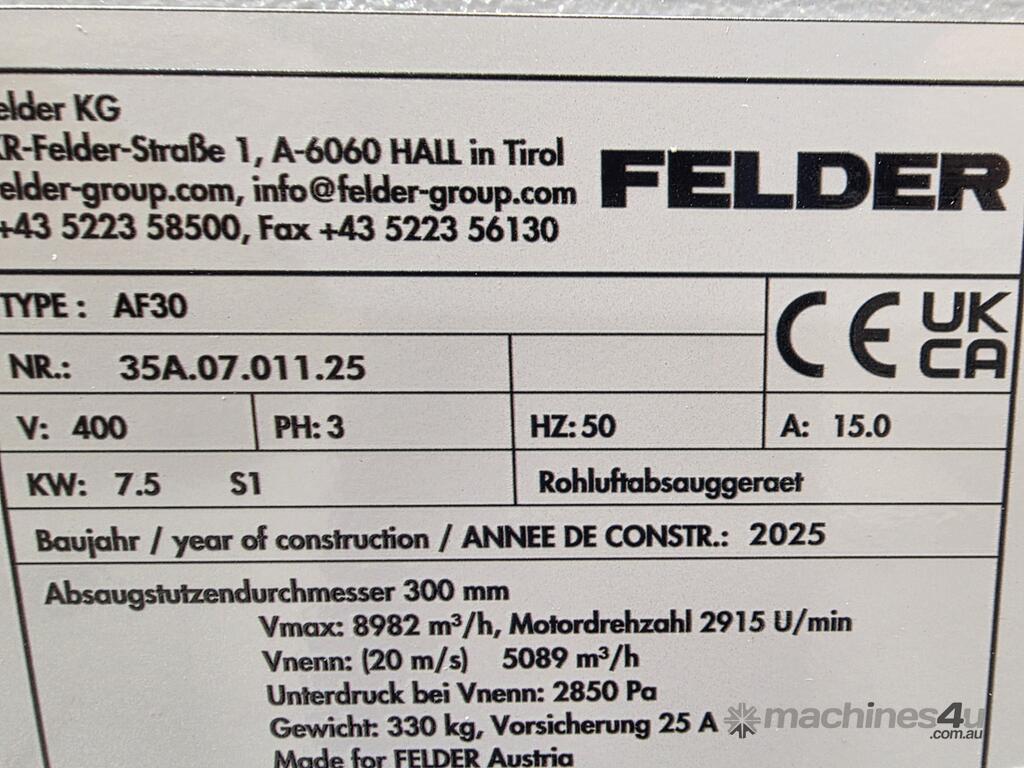

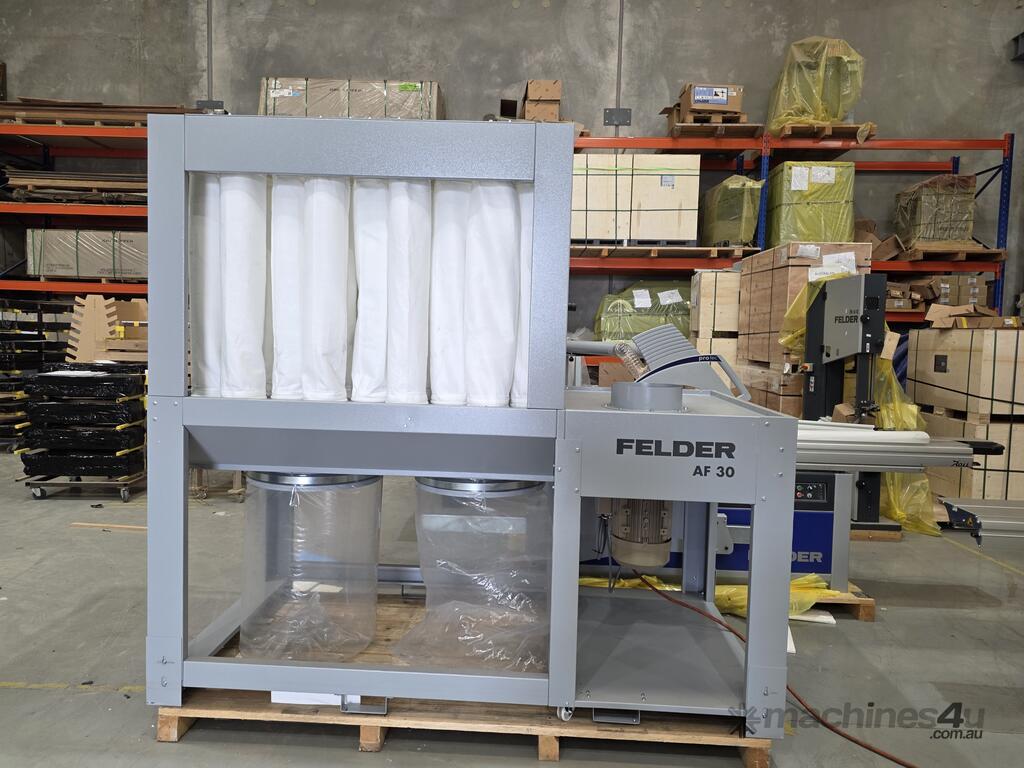

AF30: 8000m3/h with 300mm port
Mobile raw air extraction and
filter station AF30
3x400V 50Hz 5.5 kW (7.35 HP)
with filter bags (dust class L)
extraction port 300 mm
2415 x 1325 x 2240 mm
max. volume: 8000 m³/h
Nominal volume at 20m/s: 5089 m³/h
Negative pressure at 20m/s: 2850 Pa
Filter area: 22.05 m² (45 units)
Emission sound pressure level in dB: 78
Chip bags: 2x200 l

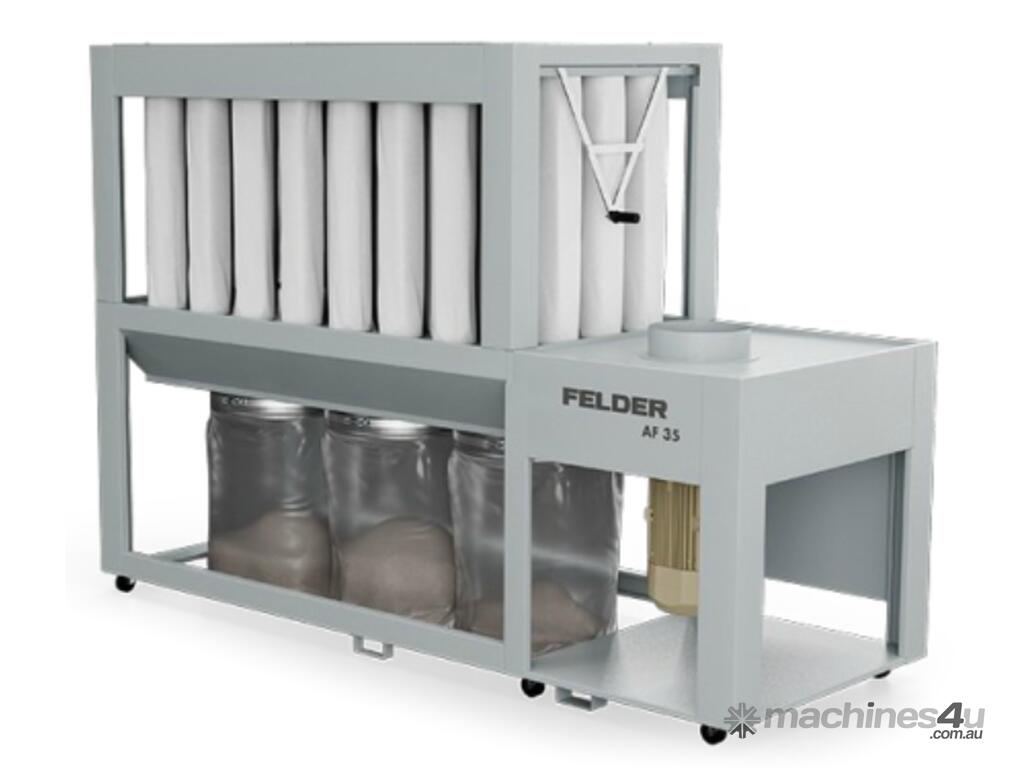

AF35: 10000m3/h with 350mm port
Mobile raw air extraction and
filter station AF35
3x400V 50Hz 11 kW (15 HP)
with filter bags (dust class L)
extraction port 350 mm
3175 x 1410 x 2250 mm
max. volume: 10000 m³/h
Nominal volume at 20m/s: 6927 m³/h
Negative pressure at 20m/s: 2378 Pa
Filter area: 31.36 m² (64 filters)
Emission sound pressure level in dB: 80
Chip bags: 3x200 l
