FH50.5 Heavy Duty Forklift - Hire

CONTAINER HANDLING

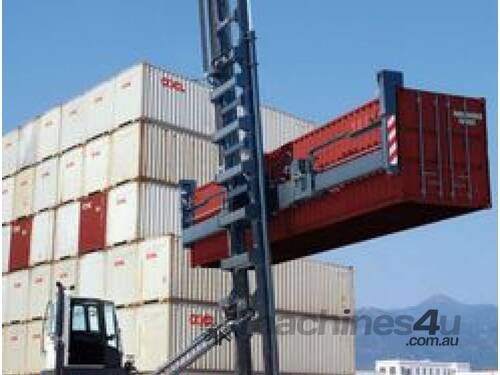

The FH50.5 design is functional, innovative and high-tech while still retaining the heavy lifting grit that is the legacy and reputation of the machine. Its container handling is second-to-none, making a difficult job not just easier and faster, but incredibly safe for the operator and everybody on site with the peace of mind of a secure load. It does not disappoint in delivering the quality expected of such a renown brand.

FEATURES & BENEFITS

The F5OO Range is a culmination of 40 years of engineering experience in reach stacker spreaders. Light yet incredibly strong and engineered from very high tensile steel the twin-beam design with externally mounted cylinders make servicing simple and easy to undertake.

King size sandwich type steer axle with giant rubber shock absorbers. Quality tyres on heavy duty interchangeable rims. There has been no compromise what so ever in size, grade of materials or specification of mechanical's.

The precision tolerances on the F5OO pins and cylinders, chroming depth, saline fog resistance of all its rods as well as the size of the bearings are superior to those of any equivalent in class competition which enables this machine to work harder for longer delivering exception return on investment.

The new lift and move technology employed by the F5OO and its six high stacking ability and the best weight distribution in class makes this machine a formidable contender for King of the yard. Unique dynamic stability control and driver optimiser function enhances operational safety and minimises tyre wear.


SPECIFICATIONS

Model:
FH50.5
Attachment Type:
20’/40? Top Pick Spreader
Attachment Mounting
Gantry Mount
Capacity: on tires
40,000kg
Load Centre: distance (+/- out/in rach):
1700 (+/- 120):mm
Load Centre: to centre of front axle:
2616mm
Lifting height under twist-lock
15000mm
Stacking Ability – containers
1 over 4 = 5 x 9’6”
Wheelbase:
6500mm
Service Weight: – unladen
73,000kg
EU Stage 3a Engine make & model (Rated Power):
CUMMINS QSM11 (250): (kw):
EU Stage 4 Engine make & model (Rated Power):
SCANIA DC13 (257):
Transmission make & model:
DANA TE32
Service Brakes:
Wet Disk on front wheels
Tires size
18.00-25
Overall Width: – excluding Spreader
4700mm
Overall Length: – including spreader
11460mm
Overall Height: (mast Lowered):
9100mm
Seat height:
2900mm
Mast tilt
3 / 5deg
Spreader side-shift
+300 / -300deg
Spreader hydraulic (mechanic): pile slope
4/4deg
