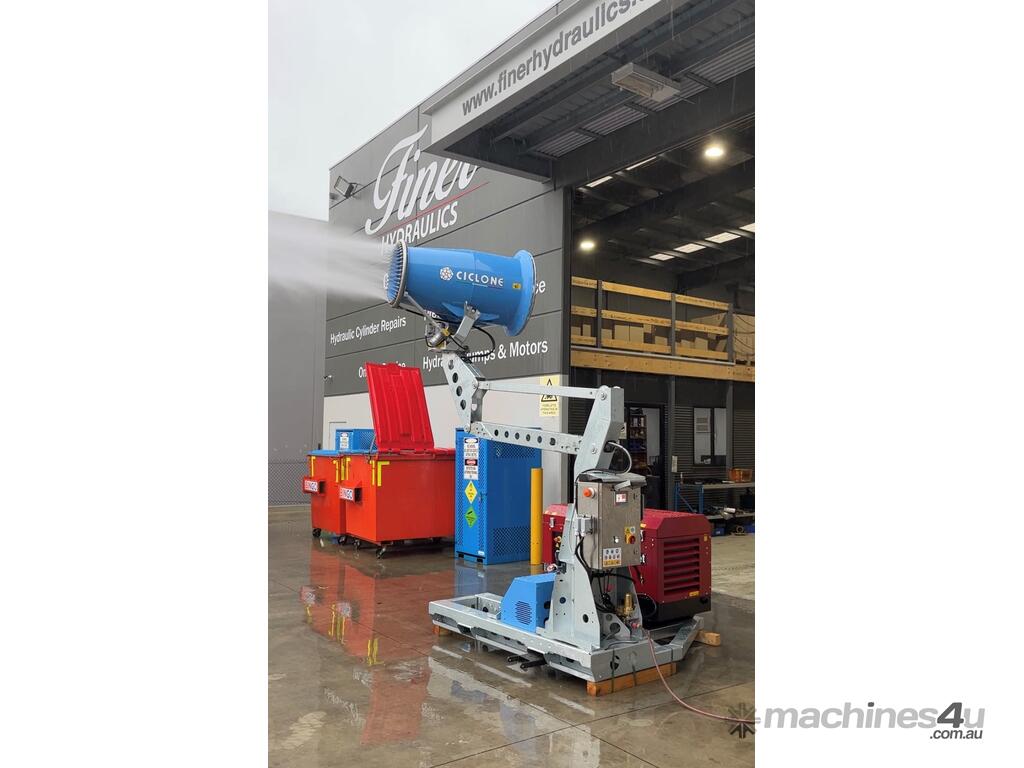

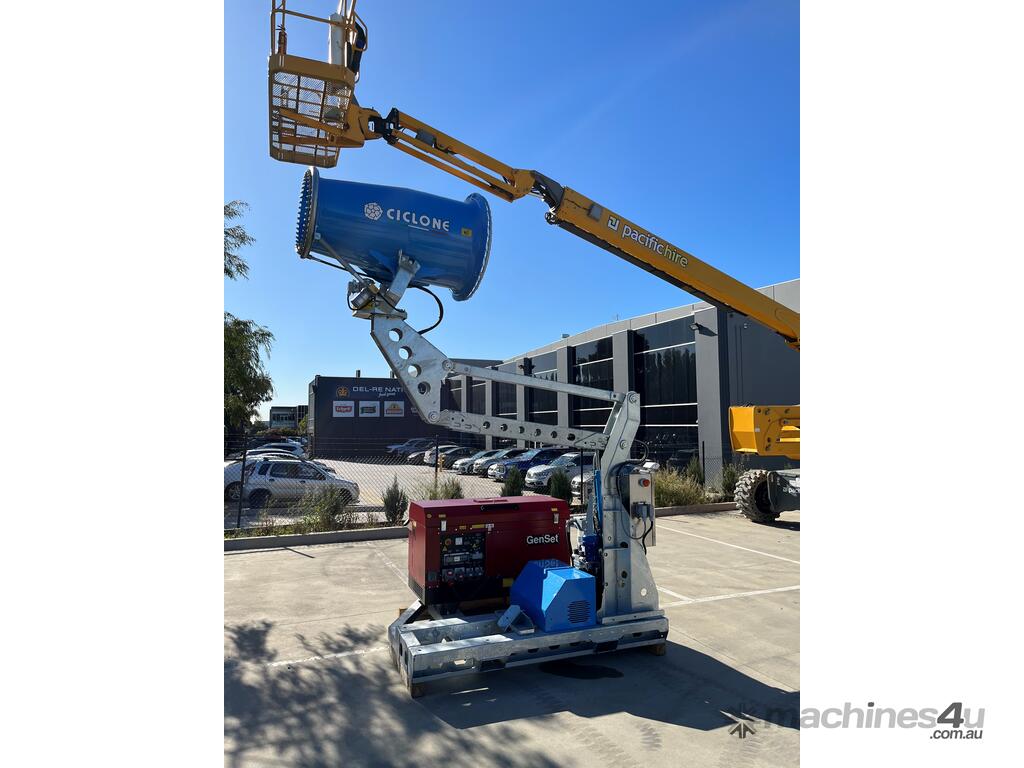

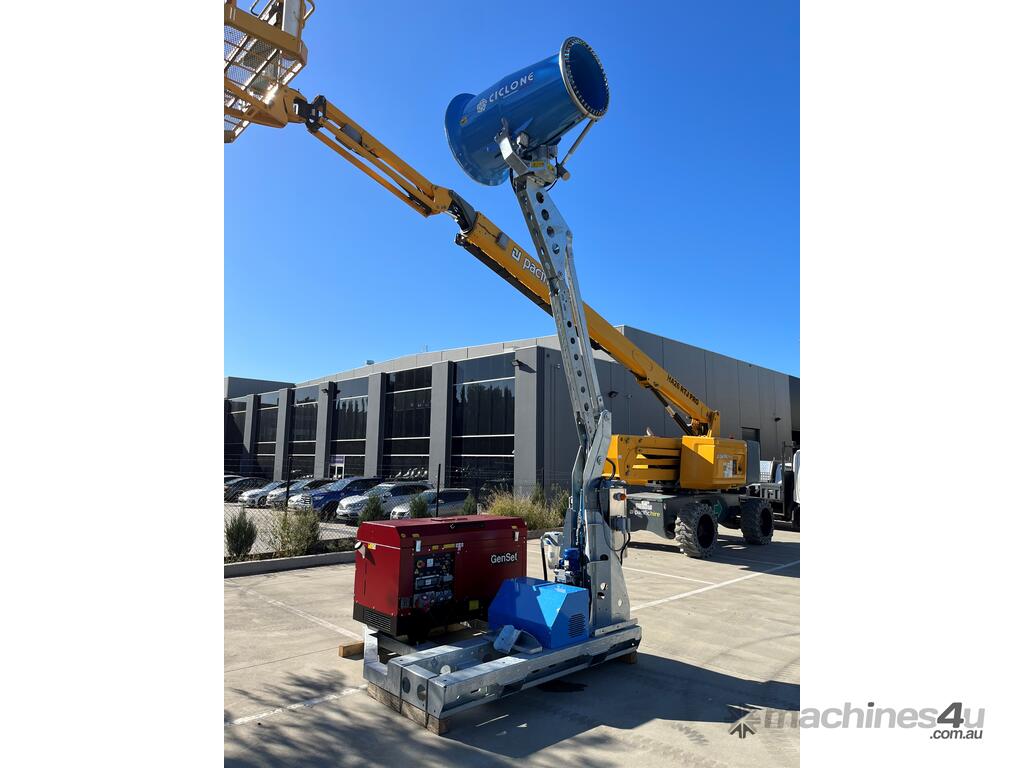

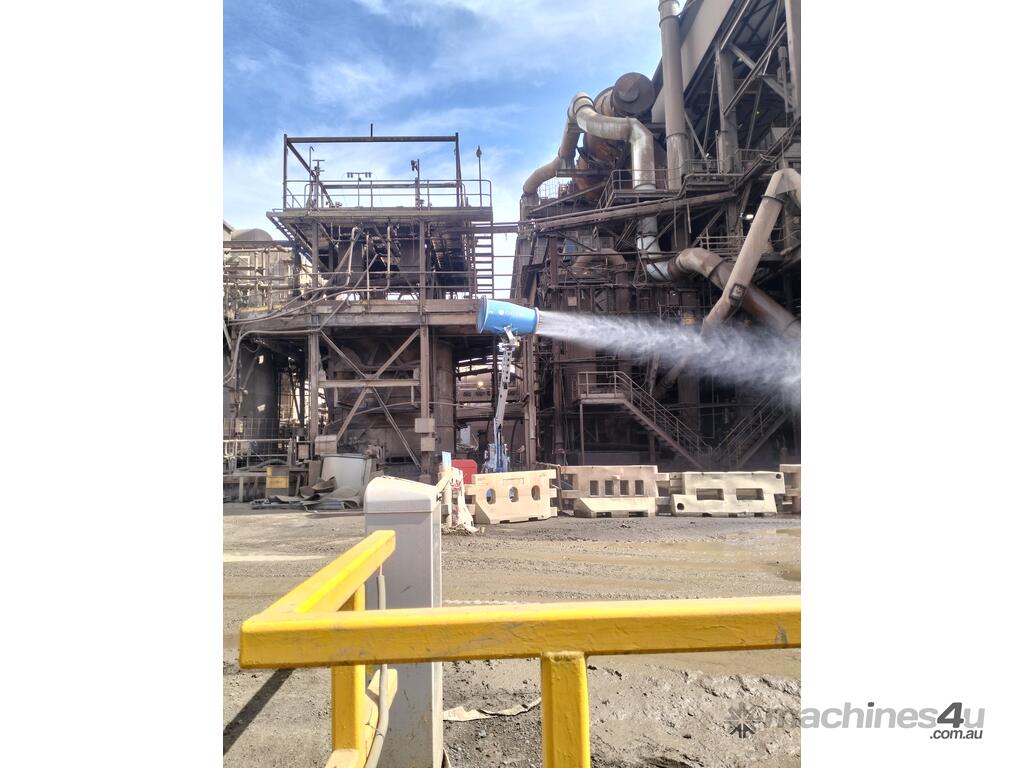

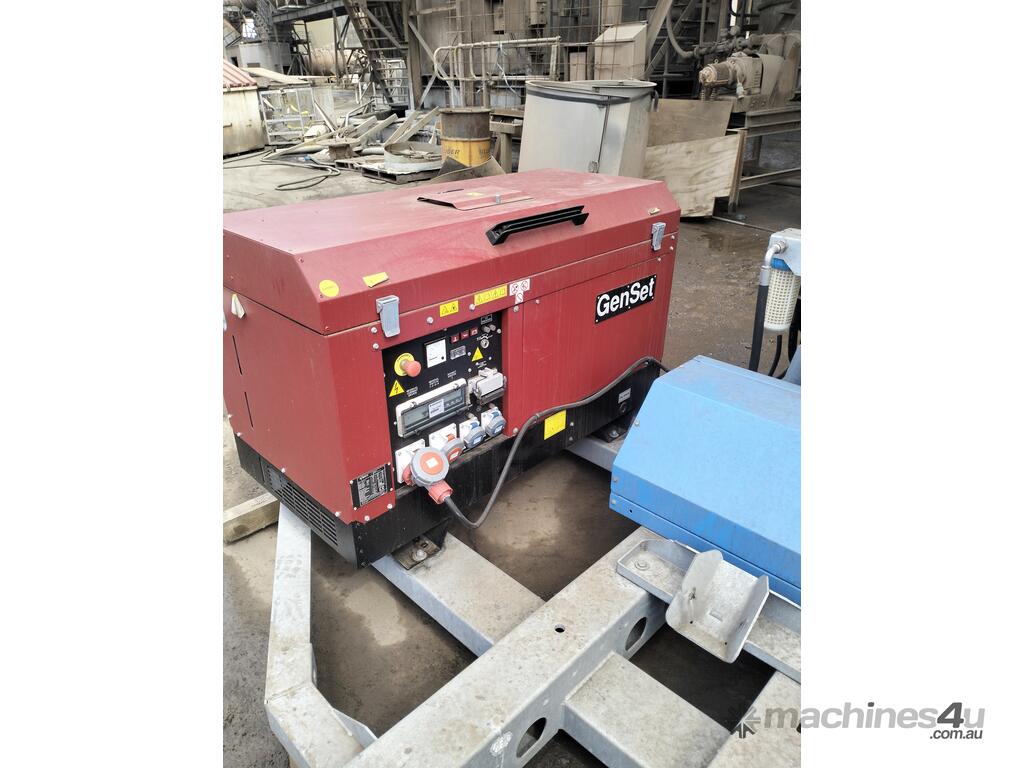

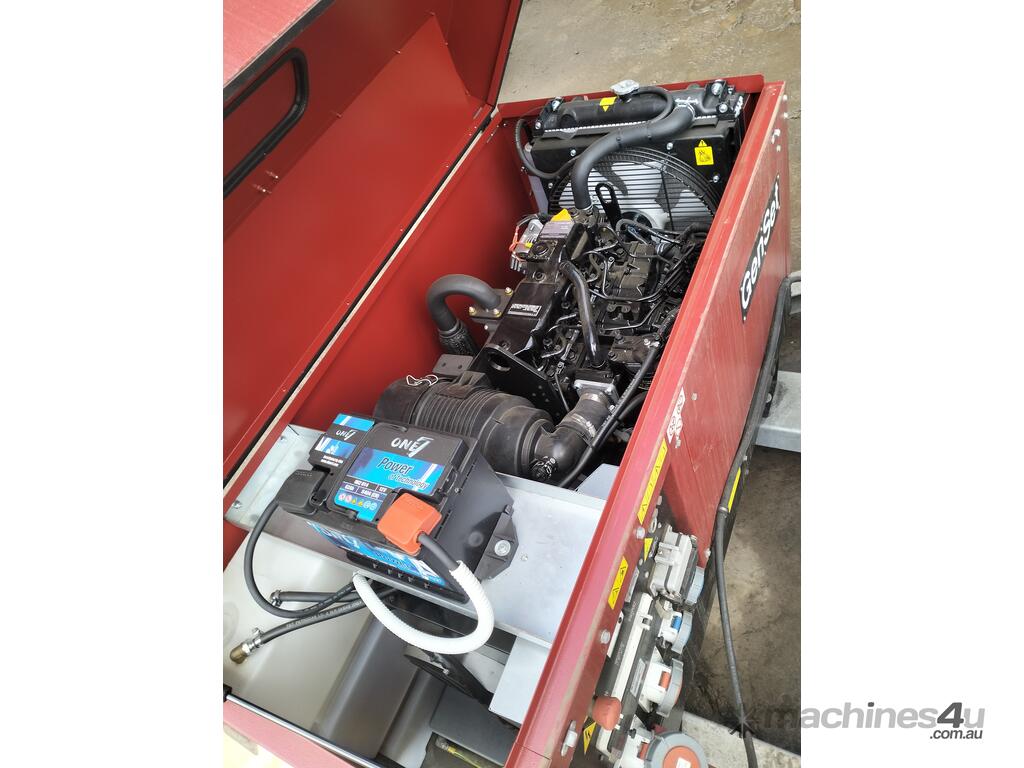

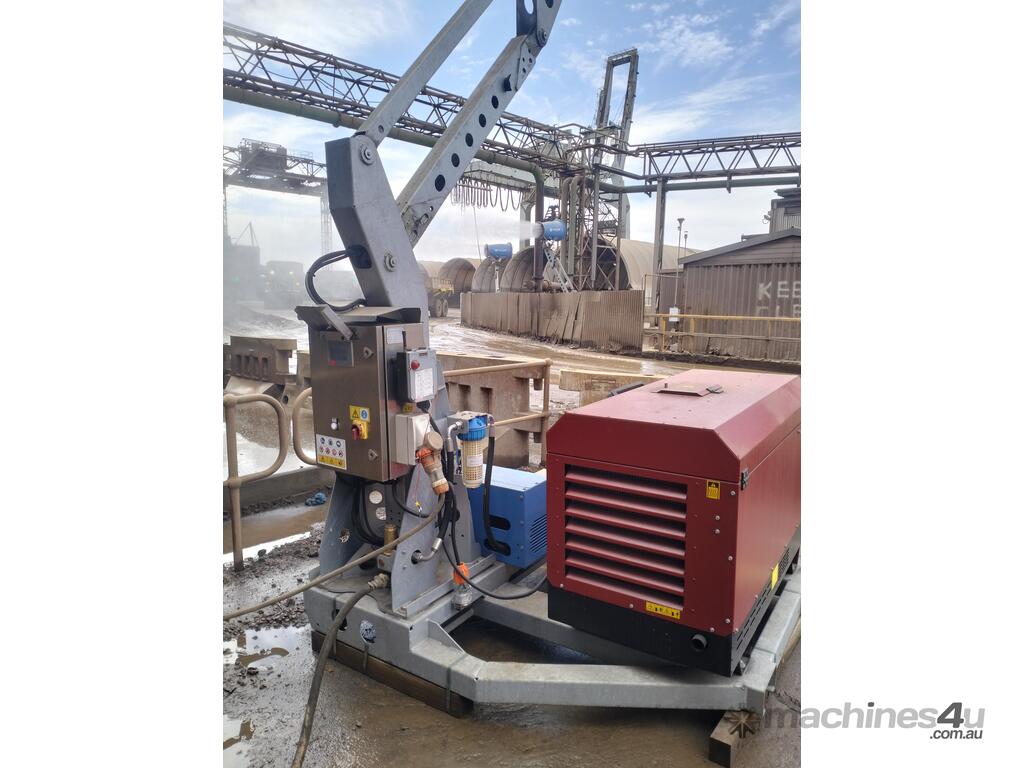

FINER HYDRAULICS - Dust Suppression Fog Cannon complete with Genset - Hire

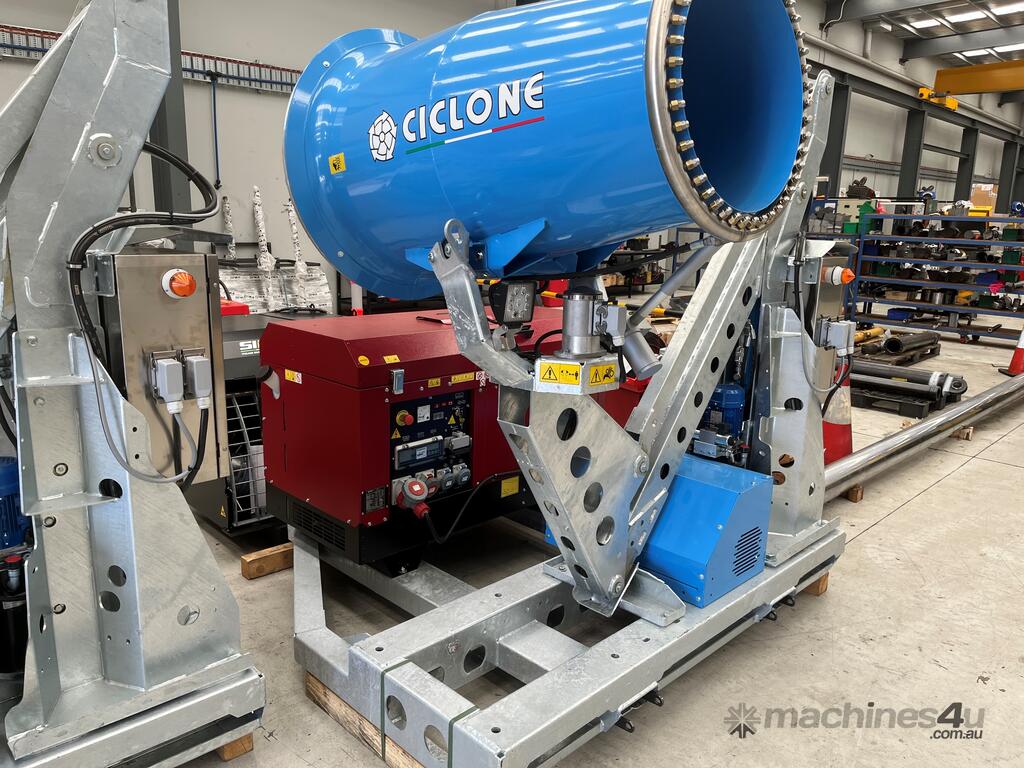

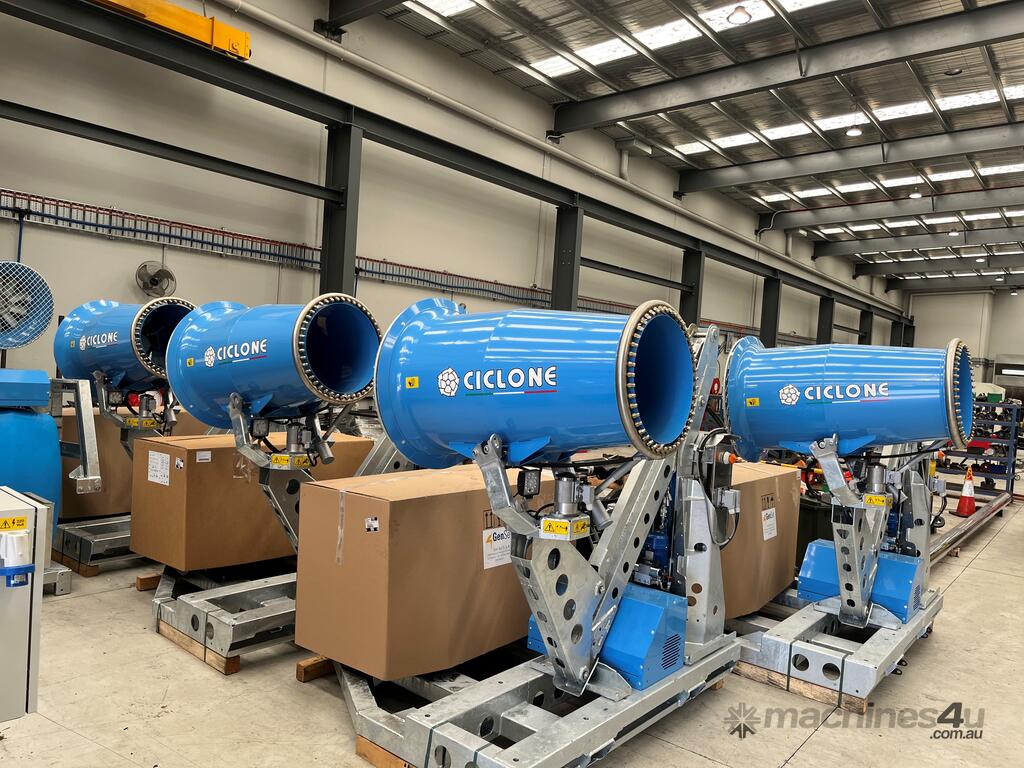

CICLONE dust suppression machine Model CE408 “HYBRID” ELECTRONIC PLC - remote control - standard configuration TECHNICAL DESCRIPTION
Model CE408 with Electronic PLC and Touch Screen for total management of functions on board the machine.

Programming of work shifts
Water throw distance - Maximum distance 45-50 m (147-164ft) (wind may affect the distance)
Water consumption - 35 l/min (9.2 gal) with 10bar LP pump - 15l/min (3.9 gal) with 70bar High Pressure pump. (option 2)
Nozzles Crown - 45 self-cleaning stainless steel nozzles mounted on 1`` stainless steel ring pipe, single delivery feed controlled by solenoid valve.

Droplets size - 20>180 ?m (the size of the drop may vary depending on the job)
Turbine rotation - 340° automatic on electromechanical slewing ring with servomotor, electronically programmable by PLC
Turbine tilting - automatic from -20° + 50° with servo actuator controlled by PLC and/or remote control
Turbine fan - Die-cast aluminium fan with 5-blades variable geometry, fan Ø 660mm (26 in), flow conveyors, 7.5Kw (10HP) three-phase asynchronous motor, 2800 rpm driven by electronic Soft-start device.
Tot. Power installed - 11KW for model configuration A) and B) , 12,5 KW for model configuration C)

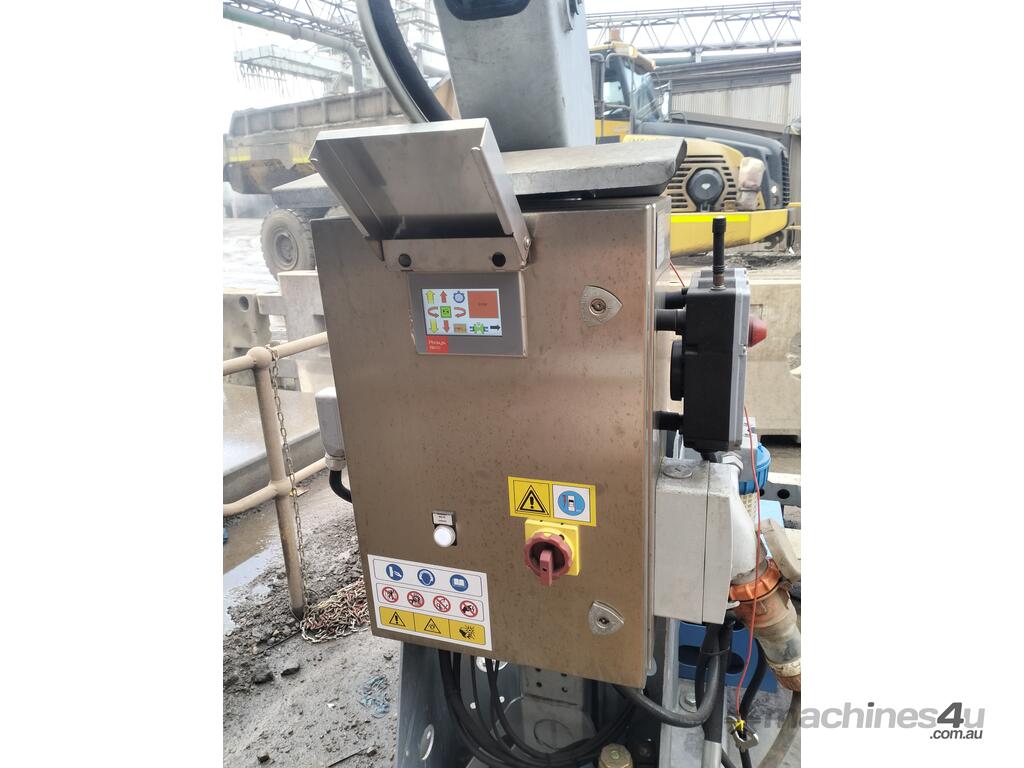

Power supply - 400V 50Hz - Electrical panel protected by an additional watertight box in stainless steel.
Prearranged watertight inlet socket 32A -5 poles to connect the machine to the mains.
Turbine air flow - 10000 m3/h
Noise Level - 93lwa = 70db a 10 mt. (32.8 ft)
Remote control - Radio remote control 12 channels for complete remote management of the machine, max 100mt,
and remote PLC programming for all machine functions. Receiver on board the machine.

Supporting structure - Electrowelded and hot-dip galvanized thick steel tube and box.
Standard configuration
A) ON FIXED BASE ( Dim, L800XP1000XH2000 - Weight 380kgs ) (L 2.6xP 3.2xH 6.5 - weight 837lb)

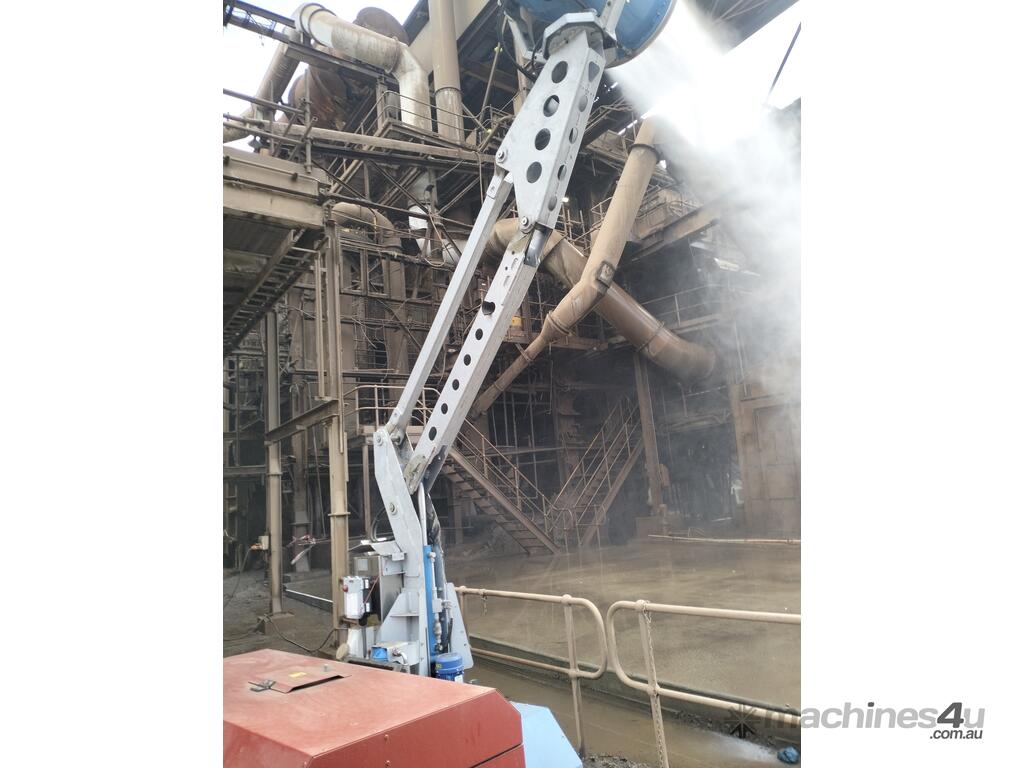

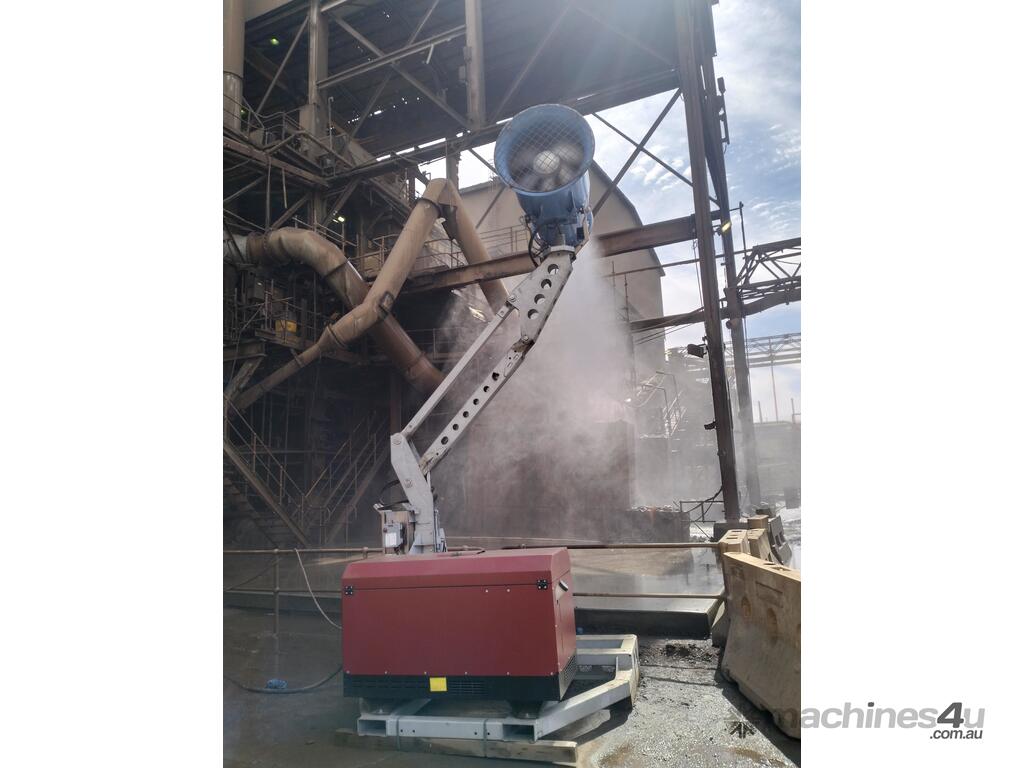

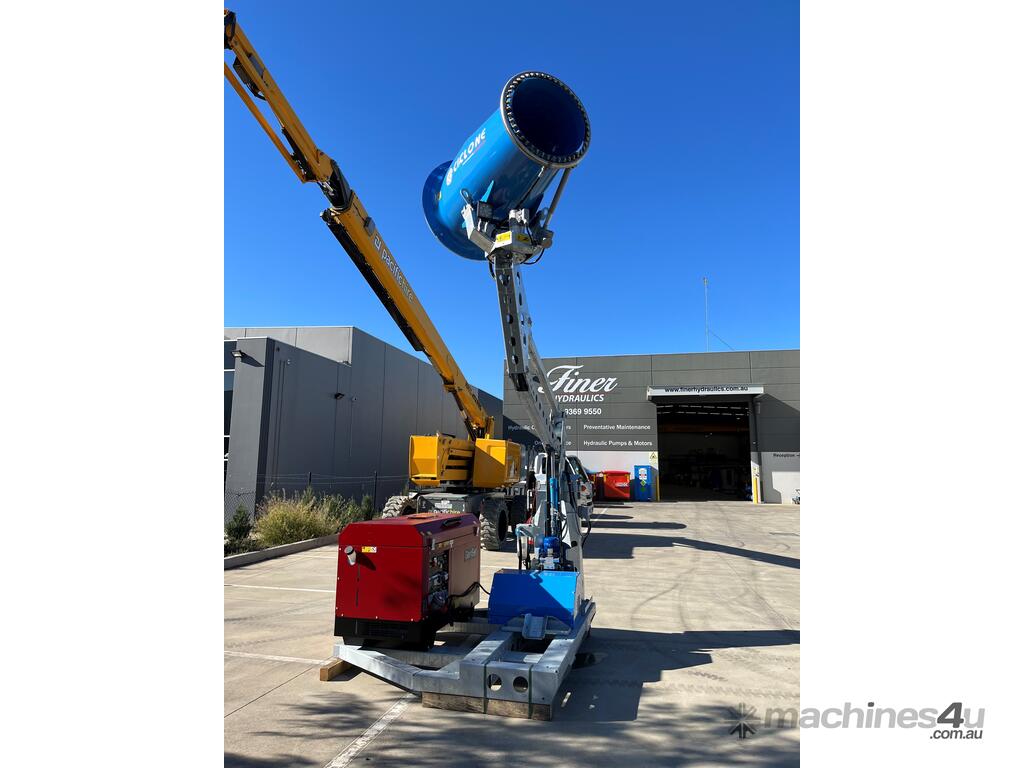

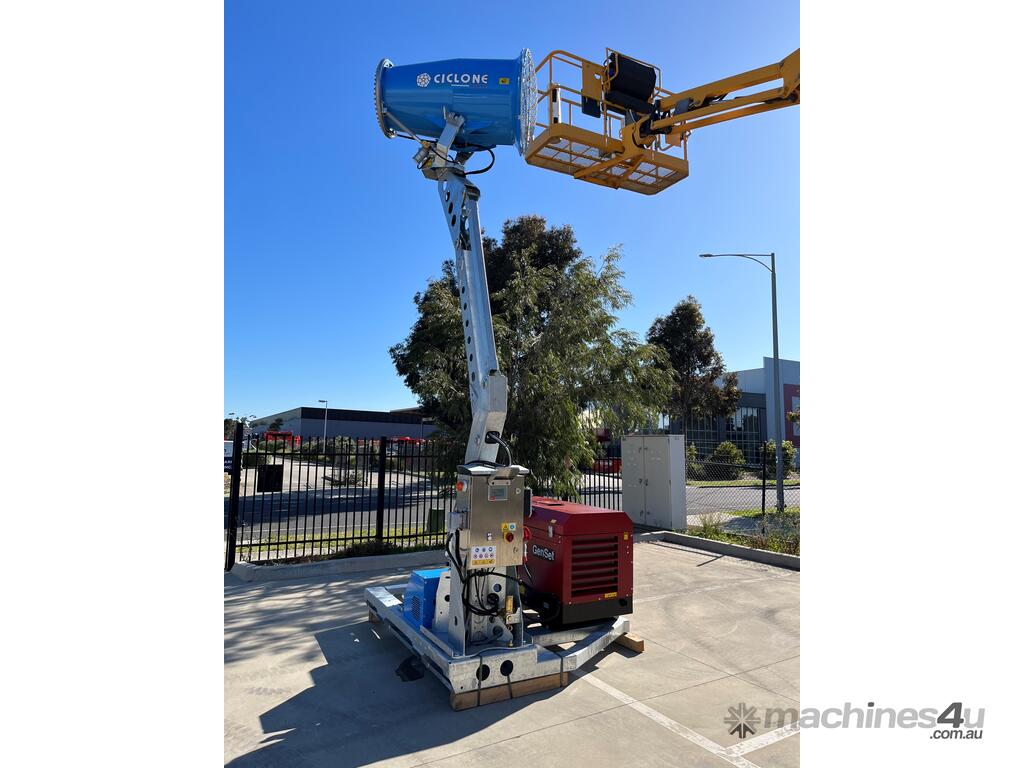

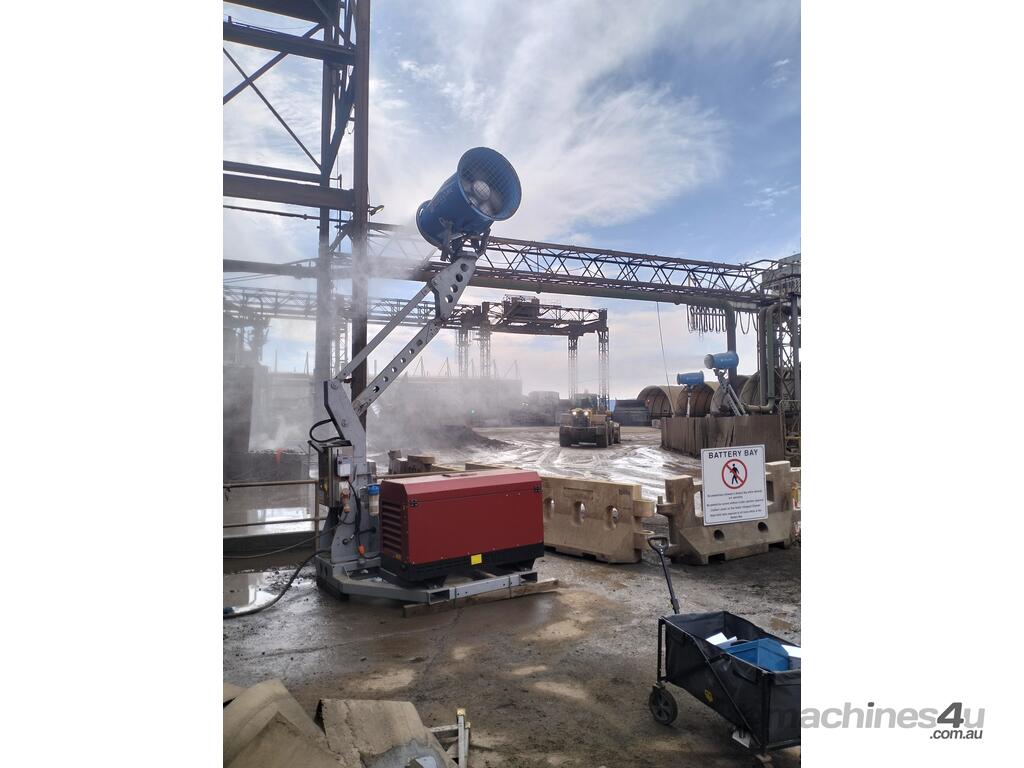

B) WITH HYDRAULIC ARM Height 6mt ( Dim, L1500XP1700XH2400 - Weight 790kgs ) (L4.9xP5.5xH7.8 weight 1741lb)
All All configurations are equipped with housing for lifting with forklift/telescopic forks, Courtesy light, safety flashing light, start buzzer.

Max covered area - 5700 m2 - 61350sq/ft WATER SUPPLY

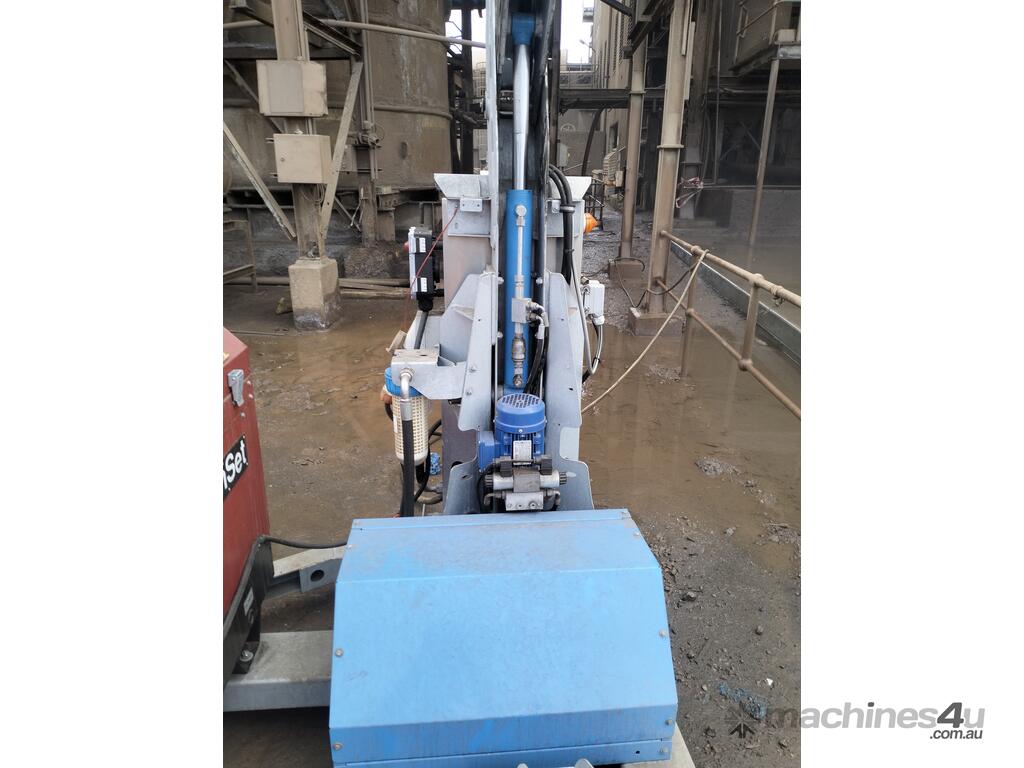

High Pressure Electric pistons Pump 70bar , single water delivery controlled by solenoid valves, 5.5KW three-phase asynchronous motor – Auxiliary valve for discharge and direct water tank connection Self-priming water withdrawal for pressureless inlet or drop feed from water tank.
Auxiliary valve for discharge and direct water tank connection - pressure switch
Hydraulic connection - Quick connection 1.5`` in. VR UNI45, Camlock

Inlet water filtration - Brass filter holder with stainless steel filter cartridge with Triple INOX micro-retina filtering system.
Accessible and easy to inspect filter for periodic cleaning.
Filtration grade - 150 ?m – 100Mesh
Safety systems - Automatic stop of the machine in absence of water, Automatic emptying of the system at the end of the cycle with function that can be excluded manually.
Water type - industrial, well, fire-fighting ring, purifier, aqueduct, rainwater harvesting.
