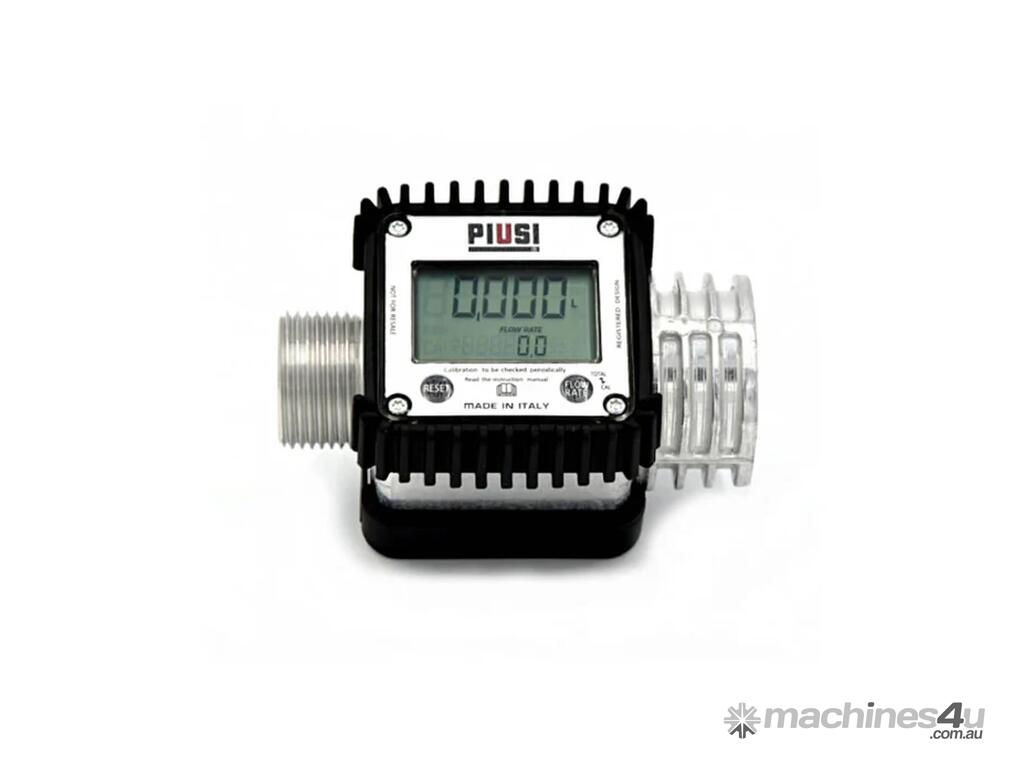

FLOW METER PIUSI K24 120lpm 1"BSP M/F - For Use with Flammable Liquids

Reinforced Polyamide Body Turbine Flow Meter

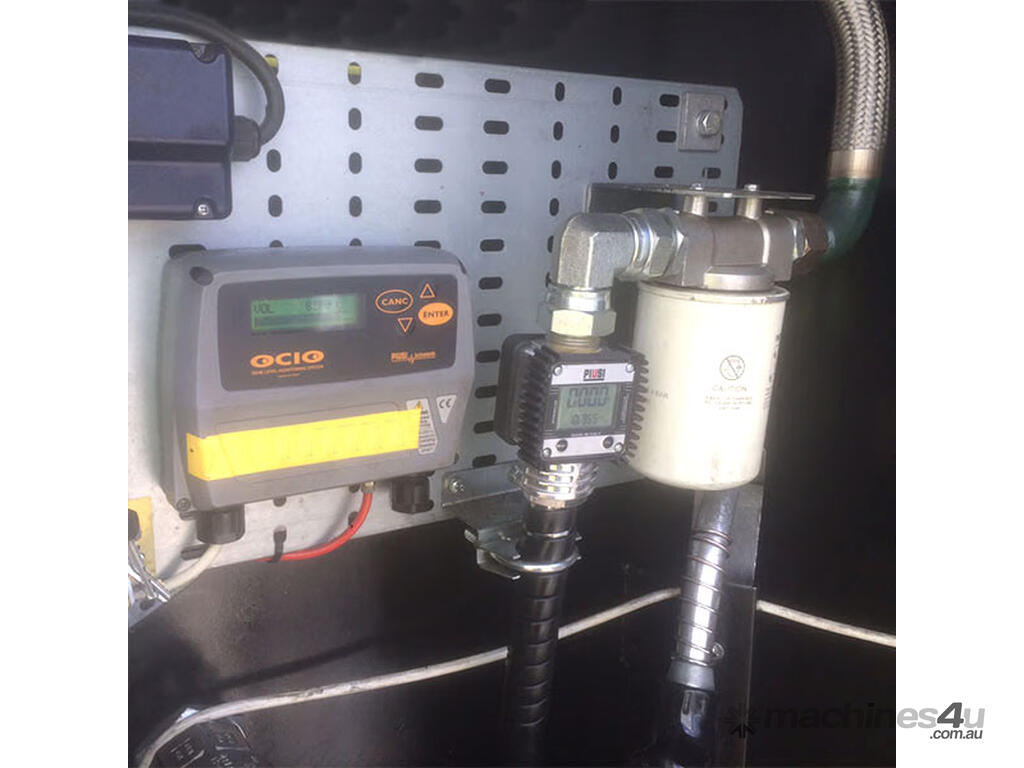

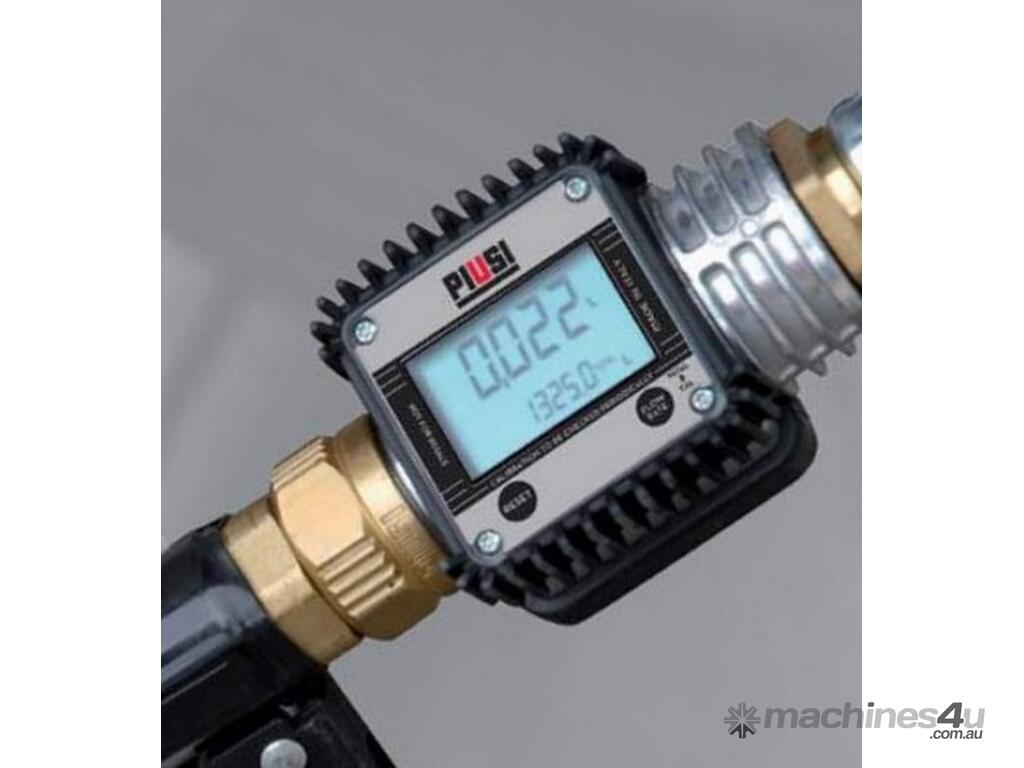

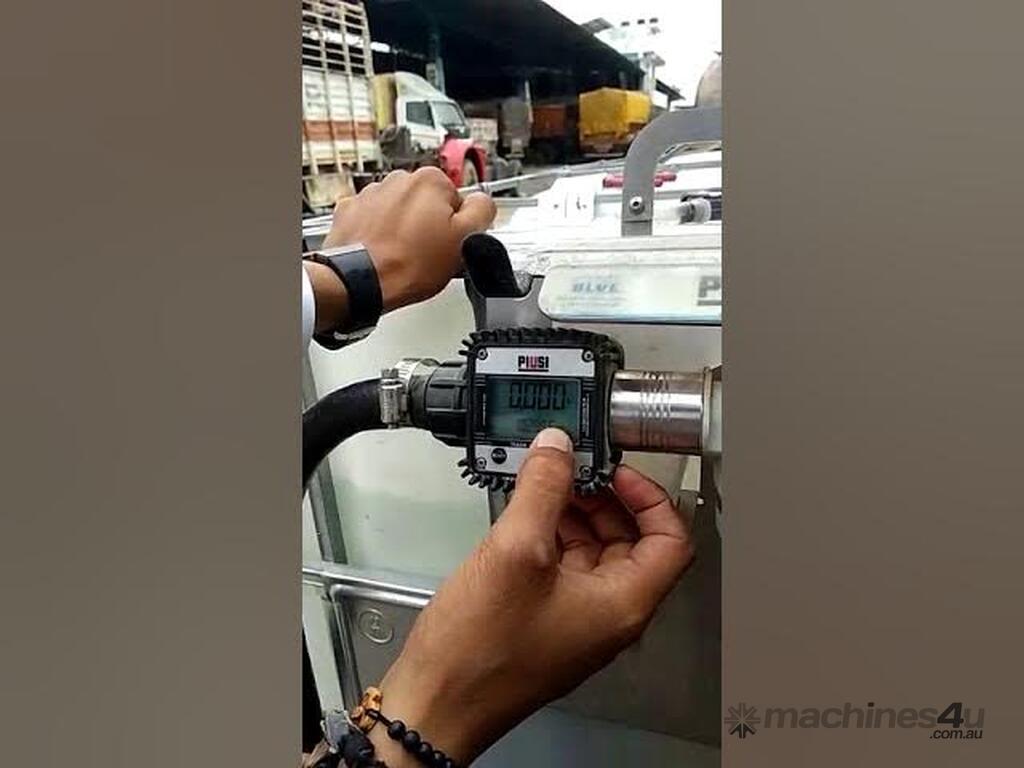

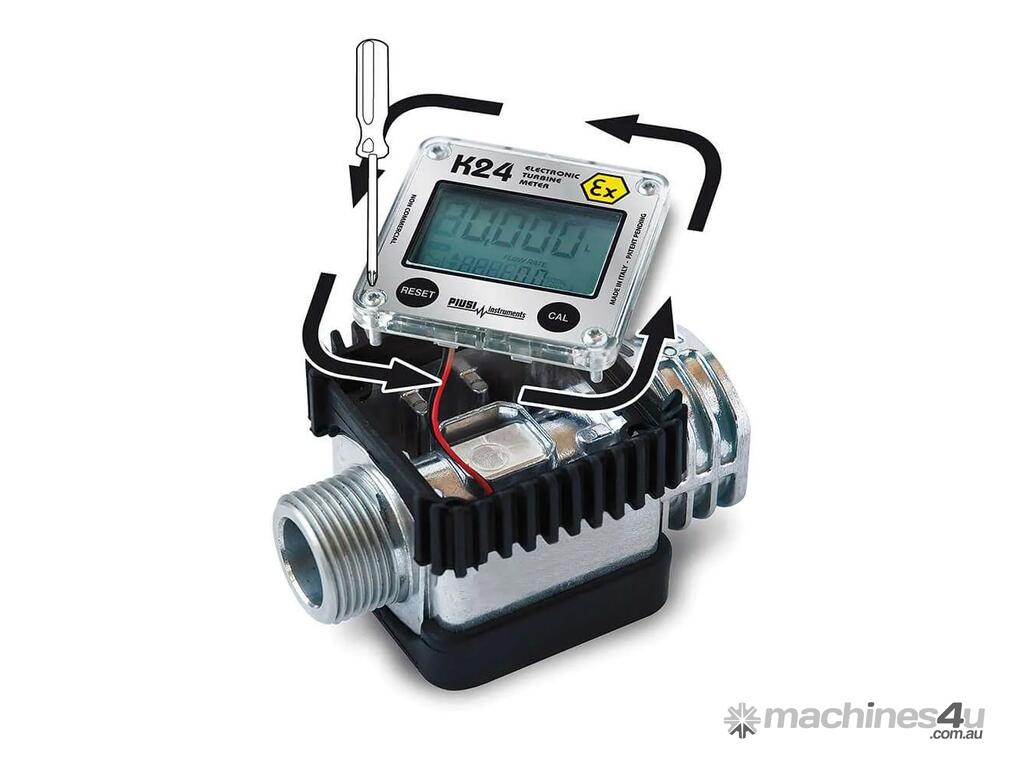

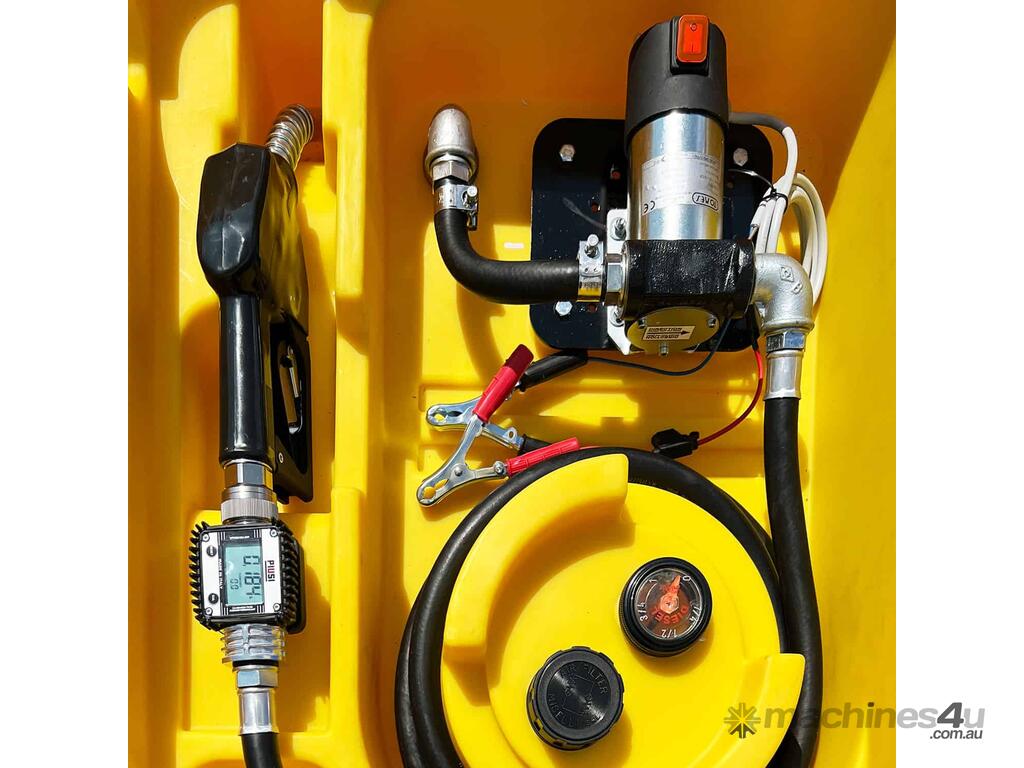

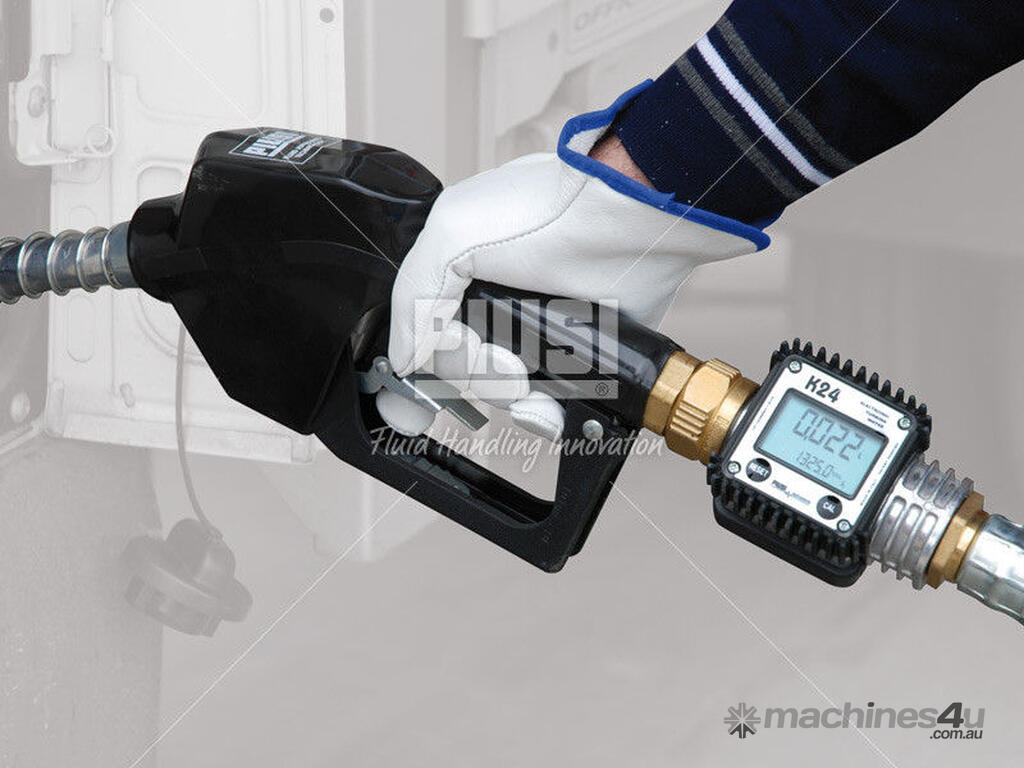

The Piusi K24 digital fuel flow meter is a turbine flow meter, designed for measuring the transfer of low viscosity fluids including diesel, water and windscreen fluid. This Piusi diesel flow meter is easy to install either inline or by the delivery nozzle, and are equipped with a display which can be rotated in 4 different positions, allowing easy reading. The K24 electronic fuel flow meter is known for its accuracy and reliability.

• Diesel flow meter
• Flow rate: 5-120ltr Per Min
• Fluid viscosity: 2-5.35 cSt - Max Temperature 50deg C
• 1” M BSP Inlet/Outlet c/w socket
• Accuracy +/-1% after calibration
• Electronic card with LCD display
• 5 digit partial totaliser and 6 digit totaliser
• Aluminium Body Flow Meter

The Piusi K24 A digital fuel flow meter is a turbine flow meter, designed for measuring the transfer of low viscosity fluids including diesel and windscreen fluid. This Piusi electronic diesel flow meter has an aluminium body making it very sturdy and durable, and is also bi-directional allowing the flow to be counted either way. The K24 turbine fuel flow meter is easy to install either inline or by the delivery nozzle, and is equipped with a display which can be rotated in 4 different positions, allowing easy reading.

• Diesel flow meter
• Flow rate: 7-120ltr Per Min
• 1” M BSP Inlet/ 1” F BSP Outlet
• Bi-directional Turbine meter
• Accuracy +/-1% after calibration
• Electronic card with LCD display
• 5 digit partial totaliser and 6 digit totaliser
• Fluid Viscosity: 2-5.35 cSt
• Max Fluid Temperature - +50ºc
