FOM BAIHA L Heavy Duty Window Corner Crimper

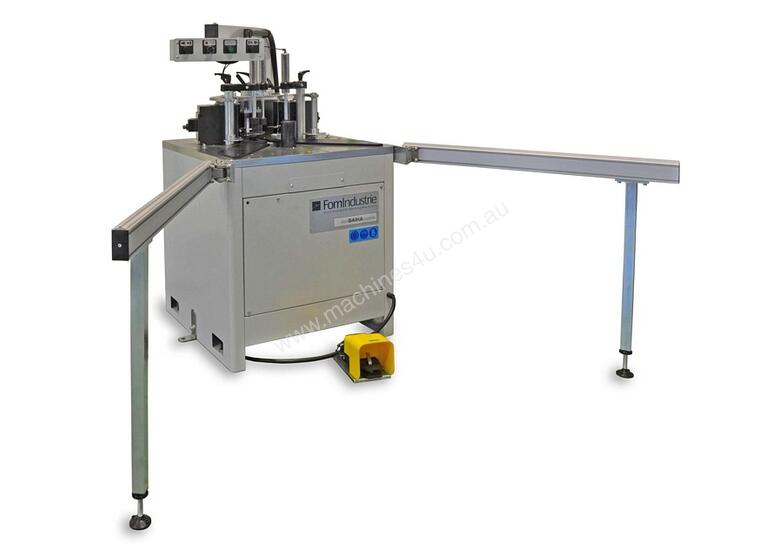

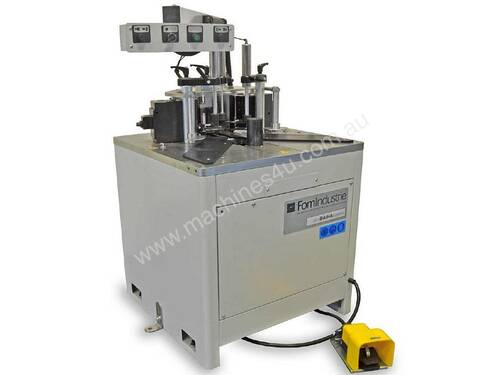

FOM Industrie Baiha L pneumatic corner crimping machine.

LARGE performance, for LARGE profiles. The Baiha L is a heavy duty corner crimper ideal for all aluminium window sashes and thermally broken window profiles.

Specifications of FOM Industrie Baiha L:
•Internal crimping force multiplication cam system, capable of developing a thrust force through the crimping blades of 5000kg at 7 bars over the whole stroke

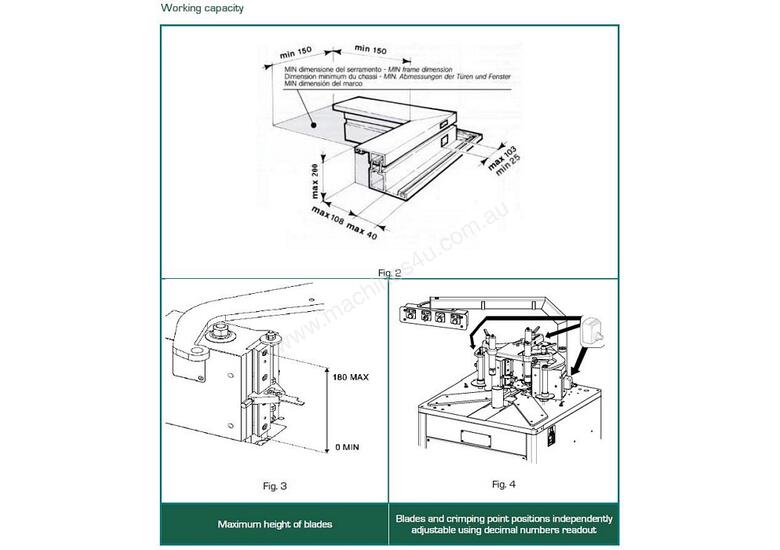

•Working capacity of profiles with max height of 200 mm

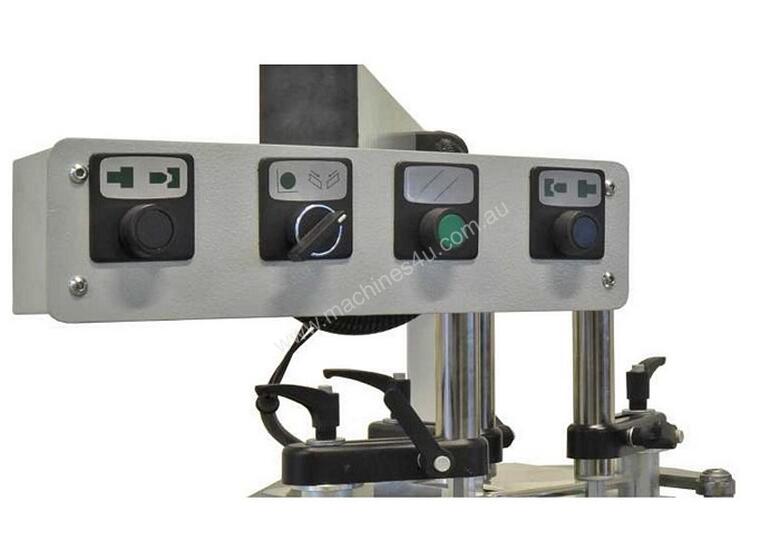

•Independent adjustment of the two tool units with decimal number readout showing their position
•Crimping positioning height from 0 to 180 mm
•Possibility of crimping at two points with standard or profiled tools by height depending on the profile chamber
•Fold-away profile fence
Dimensions mm 880 x 850 x 1500 (h)
