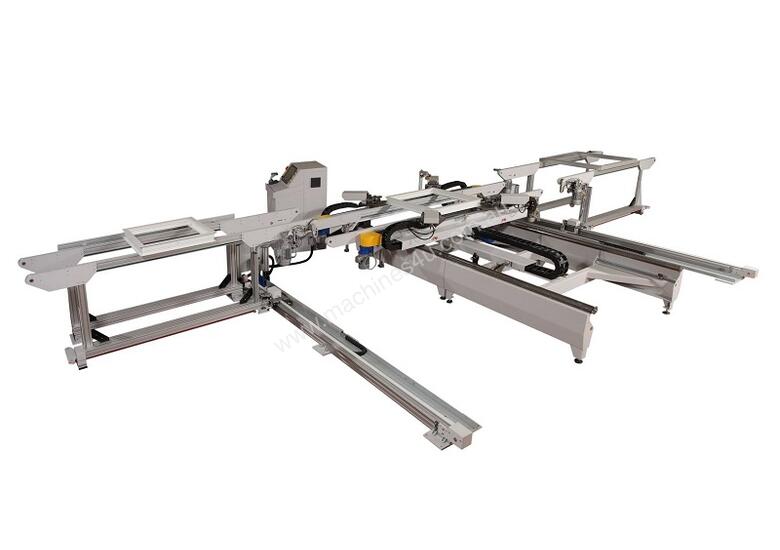

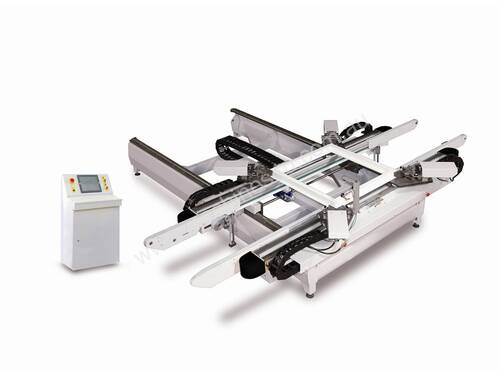

FOM EVER 4 Corner Automatic CNC Crimping

FOM Automatic Frame Management System

The FOM EVER is a CNC crimping machine with automatic loading and unloading.

Used extensively in the aluminum window and door making industry, this 4-head automatic CNC crimping machine allows for increases in both production quantities and accuracy, without comprising quality.

Communication can take place via several options including Bar code / Network / USB / keyboard / Manual / Automatic reading of the file production.

- Hydraulic crimping high pressure ( 350 bar)

- Possibility of crimping 2 or 4 sides

- Preparation and evacuation of the frames

- Motorized belts

- Electronic adjustment and control of the operations via control panel

- Crimping heads operate through CNC control

- Automatic reading of the imported file production beforehand

- The whole production can be undertaken by the same machine (frame, sash windows, doors, curtain walls)

- Easy handling of frames, with a rotation device at the exit table
