FOM Ever 4 Corner Automatic CNC Crimping

FOM Industrie EVER 4 Corner Crimping Automatic CNC Aluminium Window Assembly

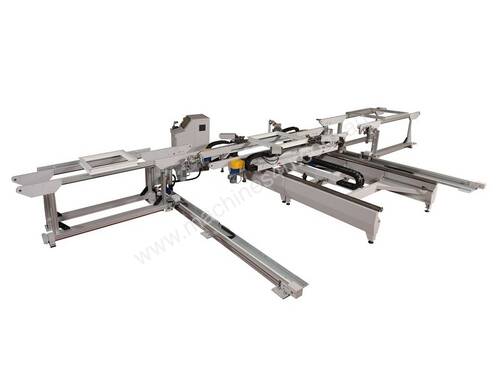

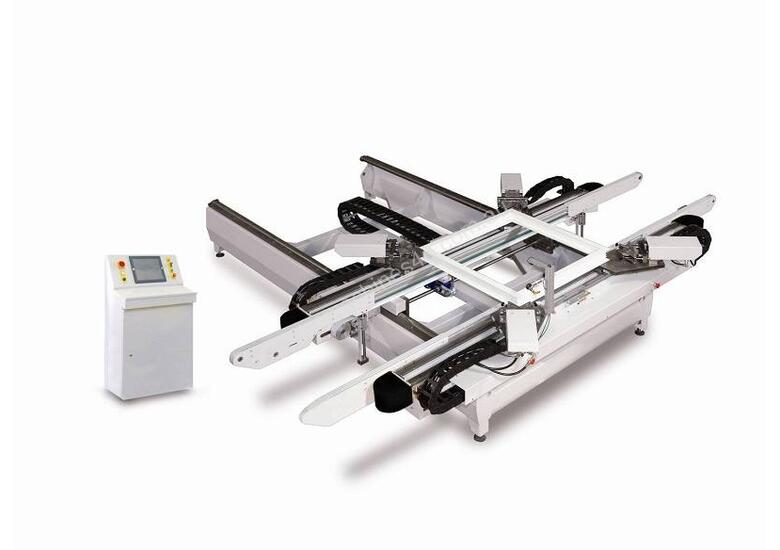

The FOM EVER is a CNC crimping machine with automatic loading and unloading.
Used extensively in the aluminum window and door making industry, this 4-head automatic CNC crimping machine allows for increases in both production quantities and accuracy, without comprising quality. Available in a standard version without loading and unloading, and also a fully automatic version with NC controlled crimping blades, customized to suit your application.

Communication can take place via several options including Bar code / Network / USB / keyboard / Manual / Automatic reading of the file production.

Technical data:
Available in 4 versions with 3 sizes in each version
17 CNC controlled axis
• EVER 13A THETA – Max. frame size 2600 x 1300mm – 150mm high
• EVER 31A THETA – Max. frame size 2600 x 3100mm – 150mm high
• EVER 49A THETA – Max. frame size 2600 x 4900mm – 150mm high
15 CNC controlled axis
• EVER 13 THETA – Max. frame size 2600 x 1300mm – 150mm high
• EVER 31 THETA – Max. frame size 2600 x 3100mm – 150mm high
• EVER 49 THETA – Max. frame size 2600 x 4900mm – 150mm high
4 CNC controlled axis
• EVER 16A – Max. frame size 2750 x 1600mm – 140mm high
• EVER 34A – Max. frame size 2750 x 3400mm – 140mm high
• EVER 52A – Max. frame size 2750 x 5200mm – 140mm high
2 CNC controlled axis
• EVER 16 – Max. frame size 2750 x 1600mm – 140mm high
• EVER 34 – Max. frame size 2750 x 3400mm – 140mm high
• EVER 52 – Max. frame size 2750 x 5200mm – 140mm high

Advantages:
• Hydraulic crimping high pressure (+350 bar)
• Possibility of crimping 2 sides or 4 sides
• Minimum frame dimension 400 x 400mm
• Preparation and evacuation of the frames
• Motorized belts
• Electronic adjustment and control of the operations via control panel
• Crimping heads operate through CNC control
• Automatic reading of the imported file production beforehand
• The whole production can be undertaken by the same machine (frame, sash windows, doors, curtain walls)
• Easy handling of frames, with a rotation device at the exit table
