FONG HO - Circular Cold Saw - FHC-275 Series [made in Taiwan]

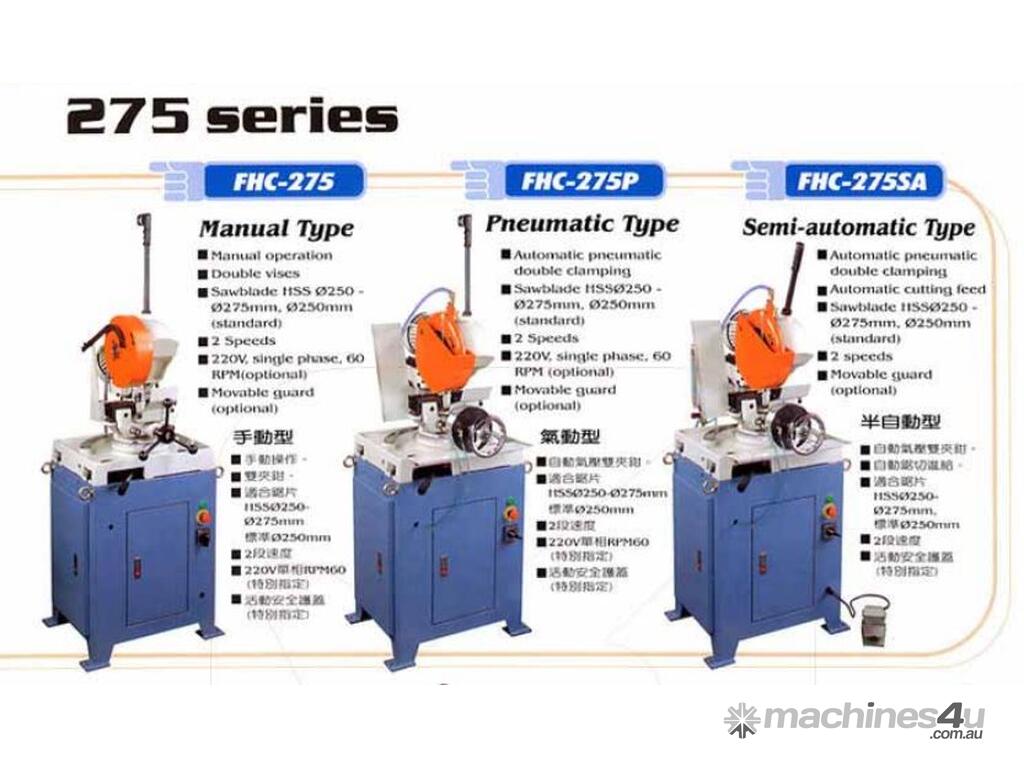

3 models available in the FHC-275 Series
- MODEL FHC-275D (manual type)
- MODEL FHC-275P (pneumatic type)
- MODEL FHC-275SA (semi-automatic type)

Standard Equipment:
Motor, switch, complete cooling system, adjustable stop, service tools.

Optional Equipment:
Saw blade, cutting fluid.

------

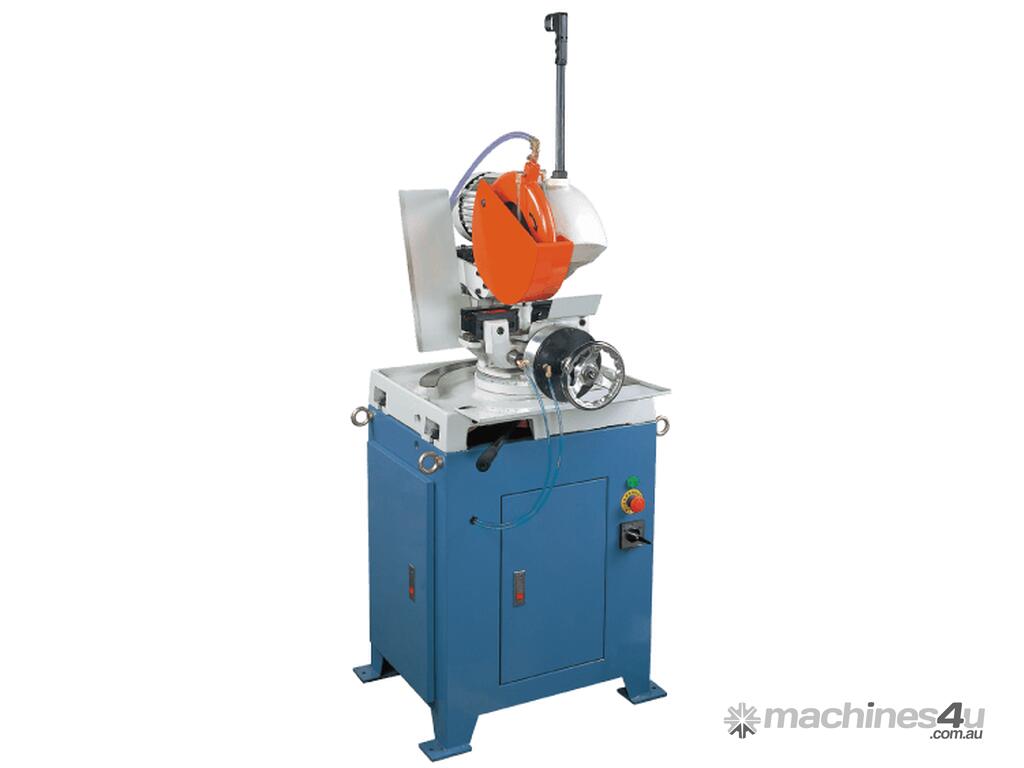

MODEL FHC-275D (manual type)
-Manual operation.
-Double vises.
-Sawblade HSS Ø250~ Ø275mm,Ø250mm.(standard)
-2 Speeds.
-220V, single phase, 60 RPM. (optional)

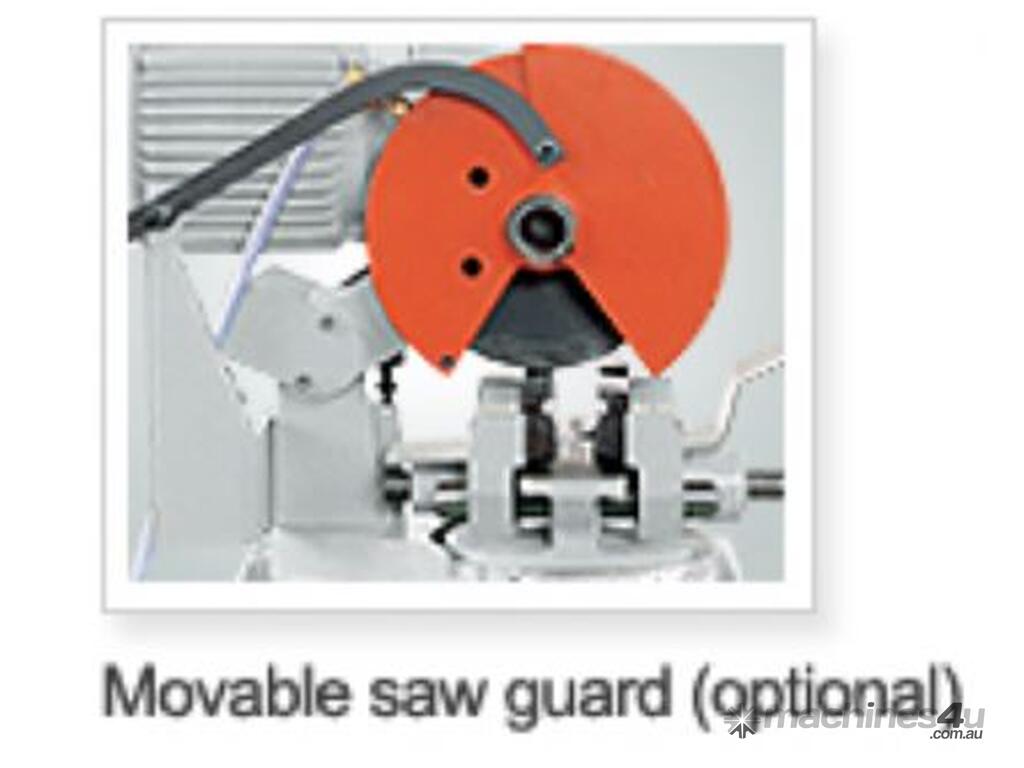

-Movable guard. (standard)
Main Drive Motor 220V Single Ph. (opt.)
H Type 3.0HP/1.5HP(2/4 Pole) 50/60 HZ (std.)
L Type 1.5/1.0 HP(4/8 Pole) 50/60 HZ (opt.)
Blade Speeds H Type:60HZ 120/60 RPM, 50HZ 100/50 RPM (std.)
L Type:60HZ 60/30 RPM, 50HZ 50/25 RPM (opt.)
Head Swivel 90°/45°
Clamping Vise Double
Coolant Pump Motor 40W
Saw Blade Size Diameter (mm) HSS Ø250 - Ø275(10"-11") Standard Ø250
Bore (mm) Ø32
Pin Holes (mm) 2xØ11xPCD 63
Air Pressure (Consumption) --
Hydraulic Pump Motor --
Operation Pressure --
Machine Dimensions (LxWxH) (mm) 1400x870x1750
Packing Dimensions (LxWxH) (mm) 750x880x1450
Packing Dimensions (inch) 30"x35"x58"
Net Weight 240 kgs(528 lbs)
Gross Weight 300 kgs(600 lbs)

-----

MODEL FHC-275P (pneumatic type)
-Automatic pneumatic double clamping.
-Sawblade HSS Ø250 ~ Ø275mm, Ø250mm. (standard)
-2 Speeds.
-220V, single phase, 60 RPM. (optional)
-Movable guard. (standard)
Main Drive Motor 220V Single Ph.(opt.)
H Type 3.0/1.5 HP(2/4 Pole) 50/60 HZ (std.)
L Type 1.5/1.0 HP(4/8 Pole) 50/60 HZ (opt.)
Blade Speeds H Type:60HZ 120/60 RPM, 50HZ 100/50 RPM(std.)
L Type:60HZ 60/30 RPM, 50HZ 50/25 RPM(opt.)
Head Swivel 90°/45°
Clamping Vise Double
Coolant Pump Motor 40W
Saw Blade Size Diameter (mm) HSS Ø250 - Ø275(10"-11") Standard Ø250
Bore (mm) Ø32
Pin Holes (mm) 2xØ11xPCD 63
Air Pressure (Consumption) 6 kg/cm² (120 ? /min)
Hydraulic Pump Motor --
Operation Pressure --
Machine Dimensions (LxWxH) (mm) 1400x870x1750
Packing Dimensions (LxWxH) (mm) 750x880x1450
Packing Dimensions (LxWxH) (inch) 30"x35"x58"
Net Weight 240 kgs(528 lbs)
Gross Weight 310 kgs(682 lbs)

-----

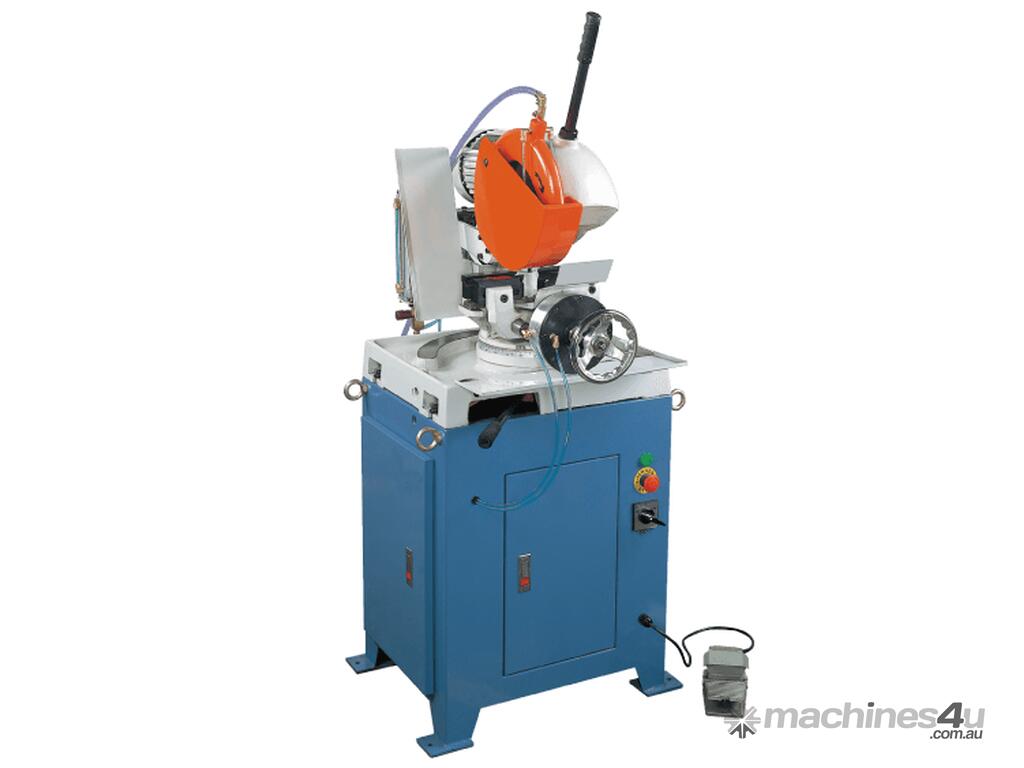

MODEL FHC-275SA (semi-automatic type)
-Automatic pneumatic double clamping.
-Manual cutting feed.
-Sawblade HSS Ø250 ~ Ø275mm, Ø250mm. (standard)
-2 Speeds.
-Movable guard. (standard)
Main Drive Motor --
H Type 3.0/1.5 HP(2/4 Pole) 50/60 HZ (std.)
L Type 1.5/1.0 HP(4/8 Pole) 50/60 HZ (opt.)
Blade Speeds H Type:60HZ 120/60 RPM, 50HZ 100/50 RPM(std.)
L Type:60HZ 60/30 RPM, 50HZ 50/25 RPM(opt.)
Head Swivel 90°/45°
Clamping Vise Double
Coolant Pump Motor 40W
Saw Blade Size Diameter (mm) HSS Ø250 - Ø275(10"-11") Standard Ø250
Bore (mm) Ø32
Pin Holes (mm) 2xØ11xPCD 63
Air Pressure (Consumption) 6 kg/cm² (120 ? /min)
Hydraulic Pump Motor --
Operation Pressure --
Machine Dimensions (LxWxH) (mm) 1400x870x1750
Packing Dimensions (LxWxH) (mm) 750x880x1450
Packing Dimensions (LxWxH) (inch) 30"x35"x58"
Net Weight 270 kgs(594 lbs)
Gross Weight 330 kgs(726 lbs)


* The manufacturer always performs product improvements to achieve the best possible performance. All specifications, dimensions and design characteristics shown in this catalogue are subject to change without notice. ( Product specifications are based on the actual machines. )
