Standard Equipment:
Motor, switch, complete cooling system, adjustable stop, service tools.
Optional Equipment:
Saw blade, cutting fluid.
------

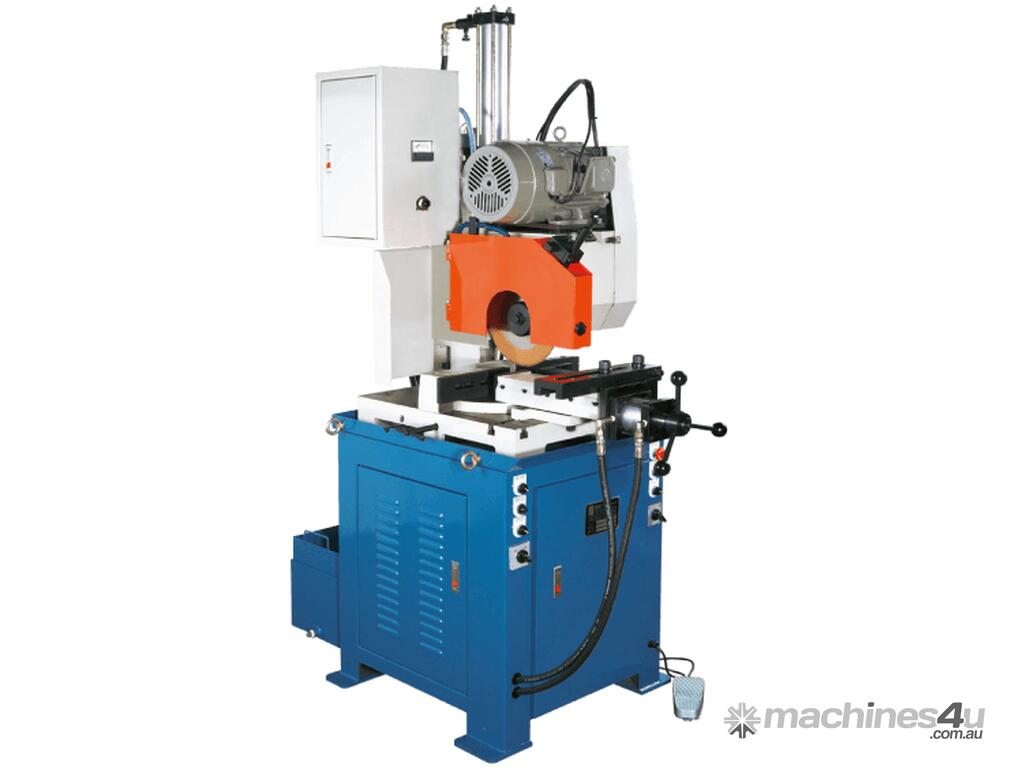

MODEL FHC-385SA
-Sawblade HSS Ø250 - Ø400mm, Ø350mm. (standard)
-Automatic hydraulic single clamping.
-Automatic hydraulic vertical cutting saw.
-Movable guard. (standard)
Main Drive Motor 3HP/2HP (4/8 Pole) 50/60 HZ or
4HP/3HP (2/4 Pole) 50/60 HZ
Blade Speeds L Type:50HZ 44/22 RPM, 60HZ 52/26 RPM (opt.)
M Type:50HZ 58/29 RPM, 60HZ 70/35 RPM (std.)
H Type:50HZ 86/43 RPM, 60HZ 105/52 RPM (opt.)

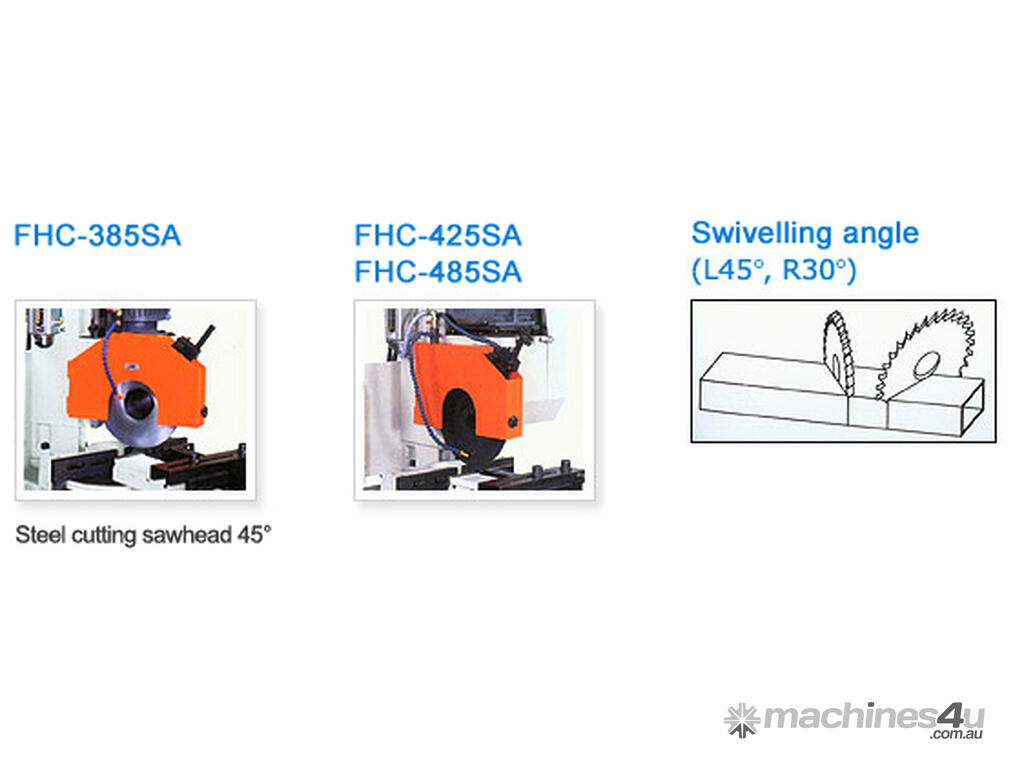

Head Swivel L45° 90° R30°
Clamping Vise Single
Coolant Pump Motor 40W

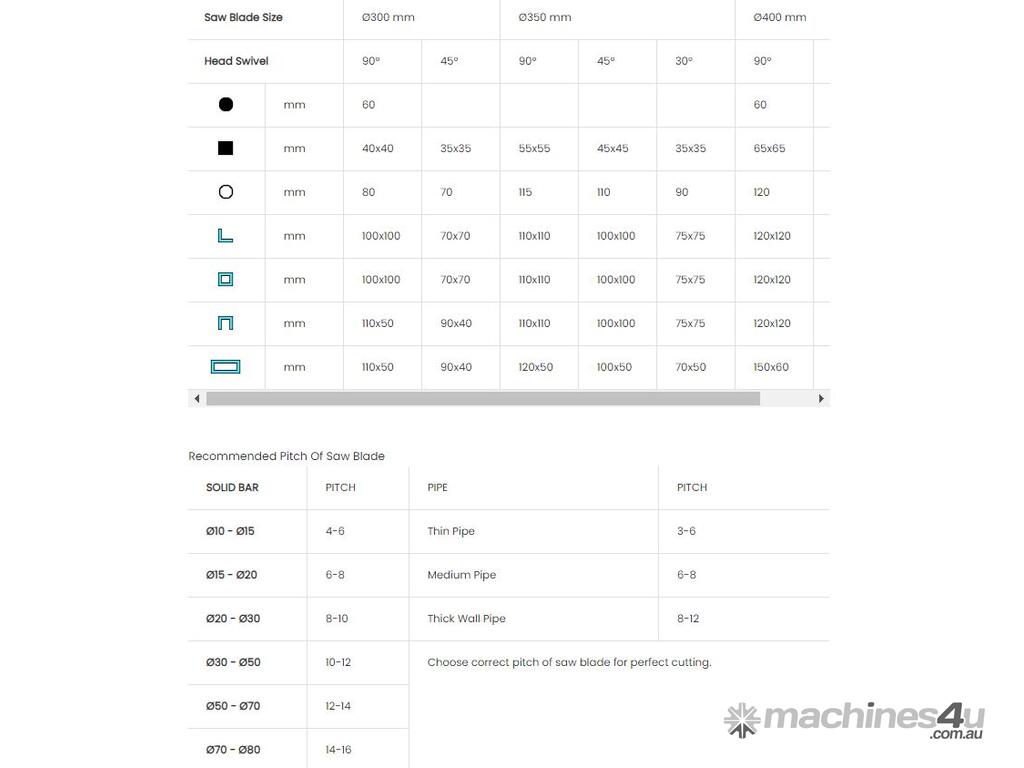

Saw Blade Size Diameter (mm) HSS Ø250-Ø350(10"-14") Standard Ø350
Bore (mm) Ø32
Pin Holes (mm) 2xØ11xPCD 63
Air Pressure (Consumption) --
Hydraulic Pump Motor 2HP 4P
Operation Pressure 20-30 kg/cm²/td>
Machine Dimensions (LxWxH) (mm) 1300x1400x1900
Packing Dimensions (LxWxH) (mm) 1460x820x2230
Packing Dimensions (LxWxH) (inch) 58"x33"x88"
Net Weight 600 kgs (1320 lbs)
Gross Weight 850 kgs (1870 lbs)
------

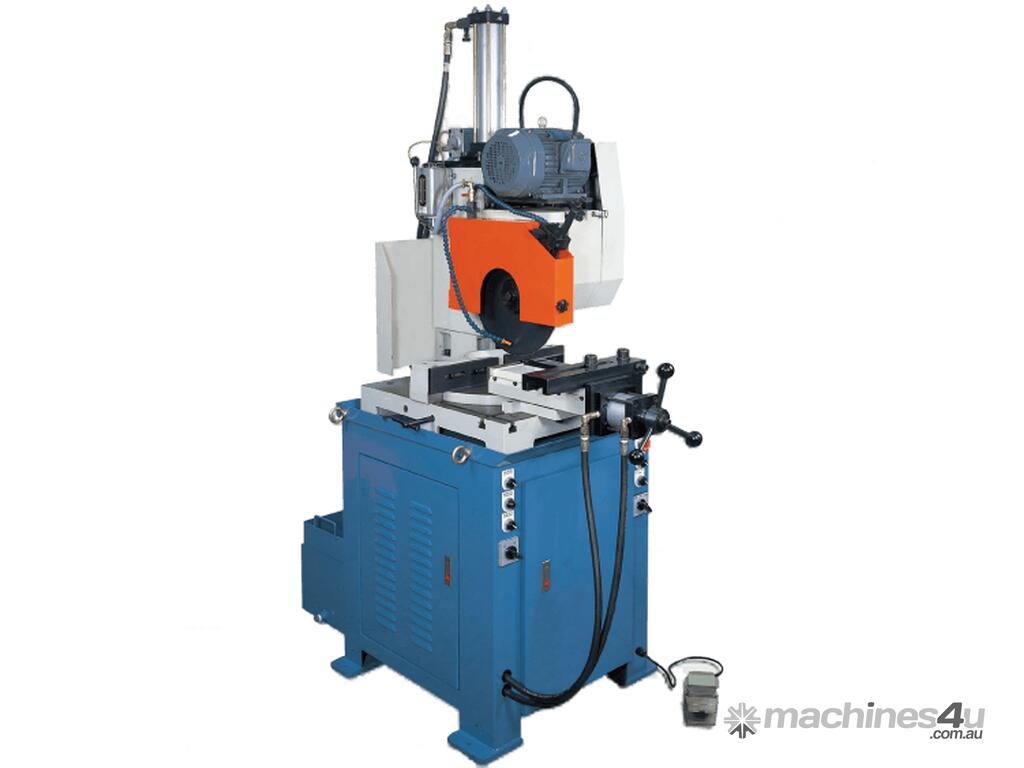

MODEL FHC-425SA
- Sawblade HSS Ø250 - Ø425mm, Ø350mm. (standard) ?
- Hydraulically operated type.
- Semi-automatic operation for clamping and cutting off.
- Tool gap compensation device. ( hydraulic )
- Movable guard. (standard)
Main Drive Motor A:5HP / 3HP 2/4 Pole(std)
Low 50HZ/60HZ 70/35 rpm
High 50HZ/60HZ 120/60 rpm
Blade Speeds B:3HP 6 Pole(opt.)
50 HZ 35/20 rpm
60 HZ 42/23 rpm
Head Swivel L45° 90° R30°
Clamping Vise Single
Coolant Pump Motor 1/8 HP 40W

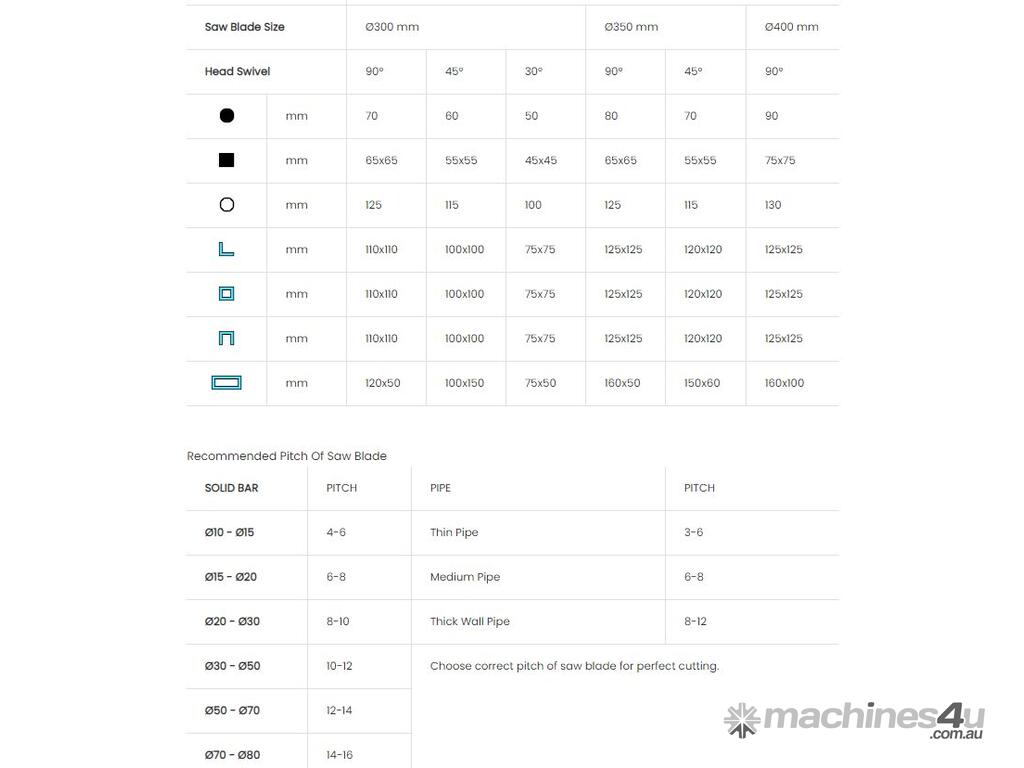

Saw Blade Size Diameter (mm) HSS Ø250-Ø350(10"-14") Standard Ø350
Bore (mm) Ø32
Pin Holes (mm) 2xØ11xPCD 63
Air Pressure (Consumption) --
Hydraulic Pump Motor 2HP 4P
Operation Pressure 20-30 kg/cm²
Machine Dimensions (LxWxH) (mm) 1300x1400x1900
Packing Dimensions (LxWxH) (mm) 1460x820x2230
Packing Dimensions (LxWxH) (inch) 58"x33"x88"
Net Weight 650 kgs (1430 lbs)
Gross Weight 850 kgs (1870 lbs)
-----
MODEL FHC-485SA
-Sawblade HSS Ø250 - Ø425mm, Ø350mm. (standard)
-Hydraulically operated type.
-Semi-automatic operation for clamping and cutting off.
-Tool gap compensation device. ( hydraulic )
-Movable guard. (standard)
-Frequency Inverter.
Main Drive Motor 5HP 2 pole A(opt.)
5HP 4 pole B(std.)
Frequency Inverter 5KW/7.5HP
Blade Speeds A:L 40 RPM-140 RPM(opt)
H 70 RPM-240 RPM(opt)
B:L 20 RPM- 70 RPMstd.)
H 35 RPM-120 RPM(std.)
Head Swivel L45° 90° R30°
Clamping Vise Single
Coolant Pump Motor 1/8 HP 40W

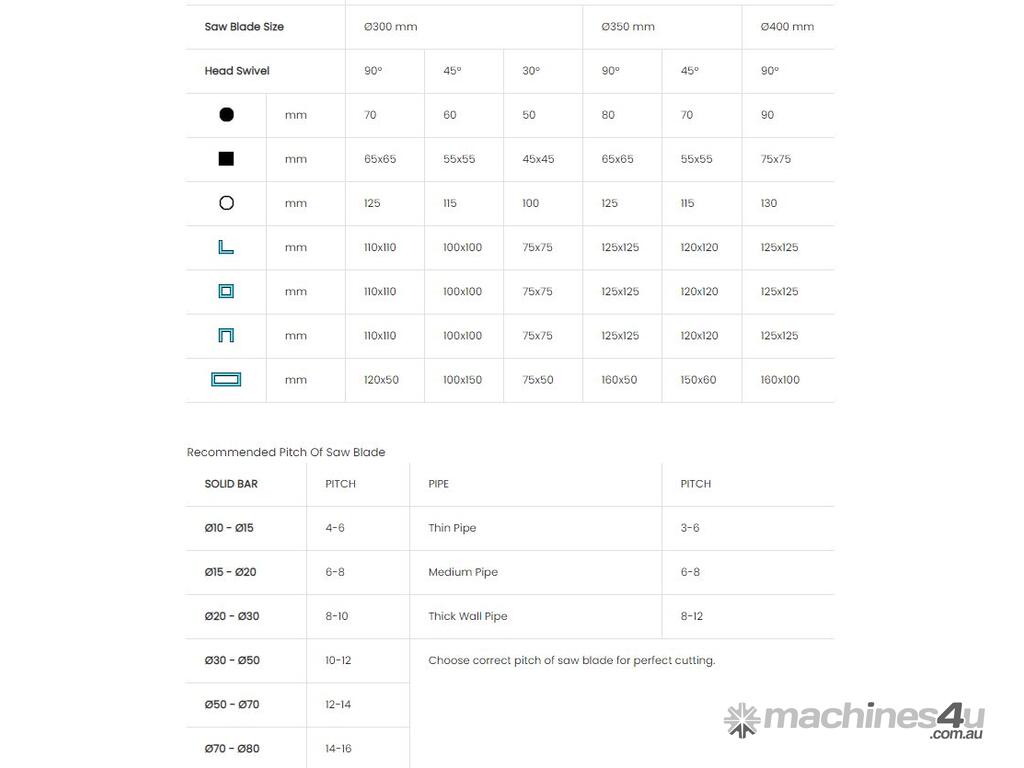

Saw Blade Size Diameter (mm) HSS Ø250-Ø350(10"-14") Standard Ø350
Bore (mm) Ø32
Pin Holes (mm) 2xØ11xPCD 63
Air Pressure (Consumption) --
Hydraulic Pump Motor 2HP 4P
Operation Pressure 20-30 kg/cm²
Machine Dimensions (LxWxH) (mm) 1300x1400x1900
Packing Dimensions (LxWxH) (mm) 1460x820x2230
Packing Dimensions (LxWxH) (inch) 58"x33"x88"
Net Weight 660 kgs (1452 lbs)
Gross Weight 860 kgs (1892 lbs)
* The manufacturer always performs product improvements to achieve the best possible performance. All specifications, dimensions and design characteristics shown in this catalogue are subject to change without notice. ( Product specifications are based on the actual machines.
